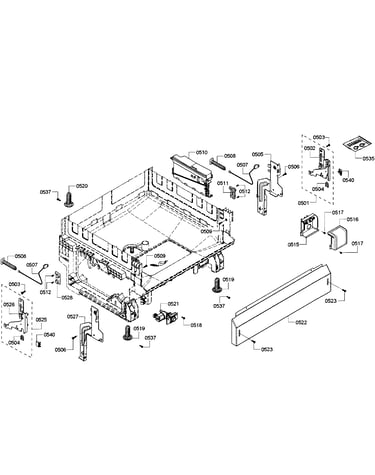

On the Bosch SHE3AR75UC dishwasher, an E15 typically means water has collected in the base pan and lifted the flood float switch; the “leak” is usually from a fill, drain, or door-seal point that intermittently drips into that bottom tray. Use the installation guide to safely access the base area.

Most common leak points that trigger E15

Check these areas first because they can drip just enough to fill the base pan over time:

• Water inlet connection at the 90° elbow and inlet valve (over-tightening can crack or distort the valve body)
• Drain hose connection at the rear of the dishwasher and the routing under the sink
• Door seal and lower door corners where splash-out can run down into the base
• Detergent dispenser area (suds or a small seep can track down the inner door)
• Pump and motor area (slow seep that only shows during wash)

Helpful parts for this model include the dishwasher water inlet valve 00622058, dishwasher drain hose 00668108, and sealing 00645141.

Quick isolation steps (safe and effective)

1. Shut off water to the dishwasher before touching any plumbing connections.
2. Cut power at the breaker before removing the toe panel or reaching into the base.
3. Remove the toe panel and look for water trails (mineral tracks) and the wettest point.
4. Dry the base pan fully; then run a short cycle and watch for the first drip.
5. If the leak appears during fill, focus on the inlet elbow and valve; if it appears during drain, focus on the drain hose and pump area.

What to inspect and what it usually means

Where you see water	Most likely source	What to do next
Front corners, along the door	Door seal or loading/suds issue	Inspect/replace seal; reduce suds and avoid blocking spray arms
Left side near fill area	Inlet elbow/valve seep	Recheck fitting, avoid over-tightening; replace valve if cracked
Rear/bottom during drain	Drain hose or pump seep	Check clamps and hose routing; replace hose if soft or split

Why it matters

E15 is a flood-protection response; once water reaches the base pan, the float switch can stop normal operation to prevent overflow. Fixing the source leak and fully drying the base pan restores reliable starts and prevents repeat shutdowns.

For code-specific guidance, use Bosch dishwasher error codes. If you need to order parts beyond the ones listed for SHE3AR75UC, search by model at Sears PartsDirect.

Last updated: February 2026

To force a drain on your Bosch SHE3AR75UC dishwasher, cancel the current cycle by pressing and holding Start (or Cancel/Reset) until the unit begins the cancel-drain sequence. If it still will not drain, a clogged filter, kinked drain hose, or a failing drain pump is usually the cause.

Fast ways to start a drain

• Press and hold Start or Cancel/Reset until the dishwasher cancels the program and starts draining.
• Wait for the drain portion to finish; you should hear the drain pump running.
• If the tub still holds water, turn power off at the breaker before checking the sump area.

What to check if it will not drain

These are the most common drain blockers and installation issues we see:

• Filter and sump area: Remove debris (glass, labels, food) that can jam the impeller.
• Drain hose routing: Make sure the hose is not kinked or crushed behind the unit.
• High loop / drain loop height: The drain hose must be routed with a loop; the installation guide calls for a loop height of at least 20 inches off the cabinet floor for proper draining.
• Air gap or disposer connection (if used): Clear clogs at the sink connection point.

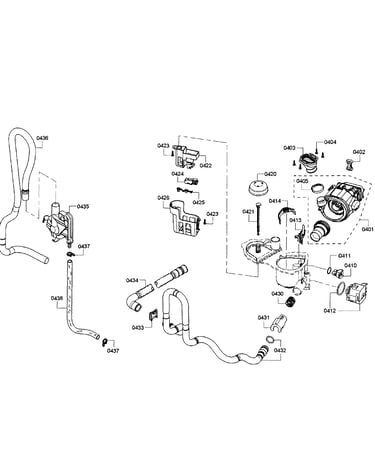

• Drain pump: If the pump hums, is noisy, or does not run during cancel-drain, replacement is a common fix.

Parts that commonly fix a no-drain problem

Symptom	Most likely area	Part to consider
Water left in tub, pump not running	Drain pump failed or jammed	Drain pump 00611332
Slow drain, intermittent drain	Drain hose kinked or restricted	Dishwasher drain hose 00668108 or dishwasher drain hose 00645149
Drains then backflows into tub	Check valve sticking	Valve 00611320

Why it matters

Standing water can cause odors, poor cleaning, and can trigger Bosch drain-related error codes. Correct drain hose loop height and a clear sump area keep the drain pump from working harder than it should.

Helpful DIY guidance

If you are seeing an error code along with the drain issue, use Bosch dishwasher error codes to match the code to the most likely drain, hose, or pump problem.

For step-by-step model-specific operating and canceling instructions, use the installation guide.

Last updated: February 2026

The most common issue we see with Bosch dishwashers like model SHE3AR75UC is a drainage problem: water left in the tub because the filter area or drain path is restricted, or the drain components are failing. Leaks at the door seal are another frequent complaint; both problems are usually straightforward to diagnose.

Most common symptoms and what they usually mean

• Standing water after the cycle: clogged filter/sump area, kinked drain hose, or a weak drain pump
• Bad odor: leftover water and debris in the filter area or drain path
• Water on the floor at the front: worn or mis-seated door seal
• Dishwasher stops mid-cycle or shows a code: a drain/fill fault or sensor-related issue
• Poor cleaning: spray arm blockage, loading issues, or heavy soil buildup

For model-specific operating and care steps, use the SHE3AR75UC owner's manual.

Quick checks we recommend first (no parts needed)

1. Clean the filter area thoroughly and remove any debris.
2. Check the drain hose routing for kinks and make sure it is not crushed behind the unit.
3. Run hot water at the sink for a minute before starting a cycle (helps fill and wash performance).
4. Confirm proper loading so large items do not block spray movement.
5. Run a cleaning cycle (or a hot cycle) to reduce grease and odor buildup.

When a part is the likely fix

If the basic checks do not resolve it, these are the most common repair paths for this model:

Problem you notice	Most likely part area	Part on this page that often applies
Not draining, water left in tub	Drain system	Drain pump 00611332
Slow drain or backflow	Drain hose or check valve	Dishwasher check valve 00611320
Not filling or fills poorly	Water supply/inlet	Dishwasher water inlet valve 00622058

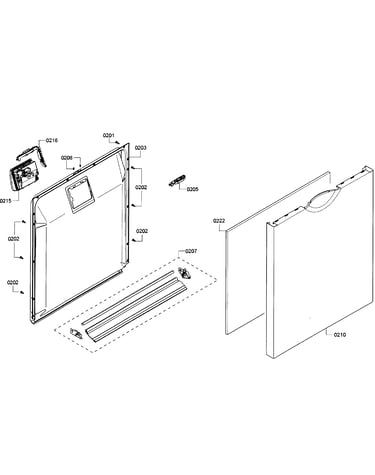

Leaking at the door	Door sealing surface	Dishwasher door seal 00645141

Why it matters

Drain and leak issues can lead to repeat cycle failures, odors, and water damage around the toe panel area. Fixing the root cause early also prevents strain on the pump and control system.

If you want to look up additional parts by model number or shop beyond the most common items listed here, use Sears PartsDirect.

Last updated: February 2026

On a Bosch dishwasher like model SHE3AR75UC, an E08 error points to a water-level problem in the heating area, most often because the unit is not filling correctly or water is siphoning out through an incorrectly routed drain hose. Use the installation guide drain-hose height requirement as your first check.

What to check first (fast, no parts)

• Cancel the cycle and let the dishwasher drain, then restart a normal cycle and listen for filling.
• Verify the drain hose routing: it must rise to at least 20 inches (508 mm) above the cabinet floor before it goes to the drain connection.
• Make sure the sink drain or garbage disposer inlet is not restricted (a partial clog can cause odd fill and drain behavior).
• Confirm the hot water supply valve is fully open.
• Avoid extension cords; this dishwasher is designed for a dedicated 120V, 60 Hz circuit.

Why drain-hose height matters for E08

If the drain hose is routed too low, the dishwasher can siphon water out while it is trying to heat. That leaves the heater area with a low water level, which commonly triggers E08.

Drain hose setup (quick reference)

Item to verify	What “correct” looks like	What can happen if wrong
Drain hose high loop	At least 20 in. (508 mm) above cabinet floor	Siphoning, low water level, E08
Drain path	No kinks, no crushing behind unit	Poor draining, standing water

When a part is likely involved

If the drain hose is routed correctly and the dishwasher still throws E08, the issue is often related to filling or water sensing.

Common part checks for this model:

• Dishwasher water inlet valve 00622058 if the unit fills slowly or not at all.
• Sensor 00611323 if water clarity or level sensing is erratic.
• Dishwasher drain hose 00668108 if the hose is kinked, split, or cannot hold the proper high loop.

Why it matters

E08 is usually a “protect the heater” condition. Fixing the fill or siphoning problem helps prevent poor cleaning, long cycle times, and heating performance issues.

For code lookups and related Bosch symptoms, use our Bosch dishwasher error codes reference.

You can order replacement parts for SHE3AR75UC from the parts list for this model, or search by model number on Sears PartsDirect.

Last updated: February 2026
