Kenmore Elite 79572043313 refrigerator Parts

The exact cubic-foot capacity for Kenmore Elite model 79572043313 is listed on the model’s rating label and in the specifications section of the 79572043313 owner's manual. This 795-prefix bottom-freezer platform is commonly in the 20 to 22 cu. ft. range, but the rating label gives the definitive number.

Where to find the exact cubic feet (fastest options)

• Check the rating label inside the fresh food compartment (commonly on a side wall near the crisper area).
• Look in the specifications section of the 79572043313 owner's manual.
• If the label is hard to read, take a clear photo and zoom in; the capacity is usually shown as “Total volume” or “Capacity”.

Typical capacity range for this style (what to expect)

Most Kenmore bottom-mount refrigerators in the 795 series (LG-built platform) land in a narrow capacity band.

Refrigerator style	Typical total capacity	Notes
Bottom-mount (bottom freezer)	20 to 22 cu. ft.	Most common for this platform
Larger bottom-mount variants	22 to 25 cu. ft.	Depends on cabinet width and features

Why the “795” number does not equal capacity

The 795 at the start of the model number is a manufacturer prefix used by Kenmore for certain production lines; it is not a size code. Capacity is determined by the cabinet design and is printed separately on the rating label.

Related maintenance tip (helps performance)

If you are checking specs because cooling seems off, these quick items often help:

• Replace the water filter on schedule (if equipped) to keep dispenser flow strong.
• Keep door bins and gaskets sealing properly.
• Make sure vents inside the refrigerator are not blocked by food containers.

If you need a compatible filter for this model, use the genuine Kenmore refrigerator water filter 9690 AGF80300801 as the model-matched reference.

Last updated: February 2026

Kenmore model numbers are read left to right; the first 3 digits identify the manufacturer, and the remaining digits narrow down the exact design and features. For your Kenmore Elite refrigerator, the full model number 79572043313 is what we use to match the correct parts and manual information in the 79572043313 owner's manual.

What each part of the model number tells you

On Kenmore appliances, the model number is structured so you can identify who built it and which product family it belongs to.

• Prefix (first 3 digits): manufacturer code (for example, 795 is commonly associated with LG-built Kenmore refrigerators)
• Middle digits: series and configuration (such as bottom-mount vs. top-freezer)
• Last digits: feature and production variations (color, revisions, option packages)
• Full number matters: even one digit off can point to a different parts list

Where to find the model number on this refrigerator

For Kenmore Elite 79572043313 bottom-mount refrigerators, the model/serial tag is typically in one of these spots:

• Inside the fresh food compartment on a side wall
• Near the top interior frame behind the doors
• On or near the door jamb area
• Occasionally behind the lower grille area

Why the 3-digit prefix matters (quick reference)

Prefix example	Common manufacturer association	What it helps with
795	LG	Correct parts diagrams and compatible components
106	Whirlpool	Correct parts diagrams and compatible components
253	Frigidaire/Electrolux	Correct parts diagrams and compatible components

Why it matters

Using the exact model number (including every digit) prevents ordering the wrong refrigerator water filter, door gasket, control board, or ice maker assembly. It also ensures the instructions you follow match your exact configuration.

Last updated: February 2026

Common problems we see on Kenmore Elite refrigerators like model 79572043313 include cooling issues, ice maker or water dispenser failures, frost buildup from defrost problems, and door sealing troubles. Many of these symptoms trace back to airflow, filtration, or sensor and control components; use the 79572043313 owner's manual troubleshooting section to narrow it down.

Most common symptoms and what they usually point to

• Not cooling or warm temperatures: dirty condenser area, airflow restriction, evaporator fan or defrost issue
• Ice maker not making ice: clogged water filter, low water pressure, frozen fill tube, ice maker failure
• Water dispenser slow or not dispensing: restricted filter, kinked water line, inlet valve issue
• Frost buildup or freezer icing: defrost sensor/heater problem, door left ajar, gasket leak
• Bad odors: expired air filter, spills in drawers, poor airflow
• Lights not working or door alarm issues: door switch problem

Quick checks we recommend before replacing parts

1. Confirm settings: refrigerator about 37°F and freezer about 0°F.
2. Make sure vents inside the fresh food section are not blocked by food packages.
3. Replace filters on schedule (water and air filtration affect taste, flow, and odors).
4. Inspect door closing and sealing; a small gap causes frost and temperature swings.
5. After a power interruption, give cooling 24 hours to stabilize.

Parts that commonly solve these problems (when symptoms match)

Symptom	Commonly involved part	Example for this model
Slow water, bad taste, no ice	Water filter	Genuine Kenmore refrigerator water filter 9690 AGF80300801
Odors in fresh food section	Air filter	Lg refrigerator air filter ADQ73214408
Frost/temperature swings	Defrost sensor	Refrigerator defrost sensor assembly 6615JB2005R
Lights or door alarm acting up	Door switch	Refrigerator door switch 6600JB1010A

Error codes and built-in diagnostics

If your display shows an error code, use the model-family guide to match the code to the failure and next steps: Kenmore 795 model bottom freezer refrigerator error codes. Your manual also describes Kenmore Connect phone-based diagnostics, which can speed up troubleshooting when the refrigerator still has power.

Why it matters

Catching airflow, filtration, and door-seal problems early prevents food spoilage, reduces frost buildup, and helps the compressor run less often, which protects long-term cooling performance.

Last updated: February 2026

On Kenmore Elite refrigerator model 79572043313, dH (often shown as Er dH) indicates a defrost heating problem. The refrigerator is not sensing normal warming during the defrost cycle, so frost can build up and cooling performance can drop.

What to check first (safe, quick steps)

• Unplug the refrigerator or turn off power at the breaker before removing panels.
• Make sure the doors fully close and the gaskets seal; warm air leaks increase frost.
• Listen for the evaporator fan; if airflow is weak, the unit can ice up faster.
• Check for heavy frost on the rear freezer panel (a strong sign of a defrost issue).
• Restore power and see if the code returns after several hours of run time.

Common causes of a dH / Er dH code

In this Kenmore 795-series bottom-mount design, the most common causes are in the defrost circuit:

Likely cause	What you typically notice	What usually fixes it
Defrost sensor/thermistor issue	Frost buildup, temps drift, code returns	Replace the sensor assembly
Defrost heater circuit problem	Heavy frost, poor airflow, warm fridge section	Heater or wiring repair
Control board not driving defrost	Intermittent or repeated defrost errors	Control board diagnosis/replacement

A model-correct part often involved in this symptom is the refrigerator defrost sensor assembly 6615JB2005R.

Why it matters

When defrost heat is not working correctly, frost can block the evaporator and restrict airflow. That forces longer run times, warmer fresh food temperatures, and can lead to ice maker and dispenser performance problems.

Where to find model-specific troubleshooting

Use the 79572043313 manual to follow the troubleshooting guide and locate the exact test points and access steps for your refrigerator.

For code definitions and what they mean on Kenmore 795 models, use the Kenmore 795 model bottom freezer refrigerator error codes guide.

Last updated: February 2026

A Kenmore Elite refrigerator like model 79572043313 typically lasts 10 to 15 years. With steady maintenance (clean airflow, good door sealing, and timely filter changes), many units reach the upper end of that range before major sealed-system or compressor repairs become more likely.

Typical lifespan ranges (what to expect)

Most modern bottom-mount refrigerators fall into these practical ranges:

• 10 to 15 years: typical service life for the refrigerator overall
• 8 to 12 years: when cooling-system wear (fans, sensors, controls) becomes more common
• 12 to 20 years: achievable with excellent maintenance and stable home conditions

Lifespan range	What it usually means	What you do next
0 to 5 years	Early-life issues are uncommon but possible	Keep coils clean; follow care guidance in the 79572043313 owner's manual
6 to 10 years	Normal wear items start showing up	Watch temps, ice maker performance, and door sealing
11 to 15 years	“Average lifespan” window	Plan for higher repair frequency; keep airflow and seals in top shape
16+ years	Extended life	Prioritize preventive care; address small issues quickly

What most affects lifespan

These factors drive how long a Kenmore Elite refrigerator runs reliably:

• Condenser airflow and cleanliness (dust buildup raises compressor workload)
• Door gasket condition and door alignment (warm air leaks increase run time)
• Stable temperatures and ventilation around the cabinet
• Water and air filtration maintenance (helps dispenser performance and odors)
• How often doors are opened and how full the compartments stay

Maintenance that adds years (high impact)

We recommend these habits for model 79572043313:

• Vacuum and brush the condenser area regularly
• Keep doors closing squarely; correct sag or misalignment early
• Replace the water filter on schedule; use the correct genuine Kenmore refrigerator water filter 9690 AGF80300801
• Replace the air filter when odors linger; use the matching lg refrigerator air filter ADQ73214408
• Confirm temperatures stay near 37°F (fresh food) and 0°F (freezer)

Why it matters

A refrigerator’s “lifespan” is mostly about how long it can hold safe temperatures efficiently. Good airflow, tight door seals, and clean filtration reduce compressor run time, which is the biggest driver of long-term reliability.

Last updated: February 2026

If you’re on this Kenmore Elite refrigerator parts page, your refrigerator model is 795.72043313 (often shown as 795.7204* or 795.7205* in the manual, where the asterisk is the color code). Use the full model number from the ID label to match the correct parts and manual.

Where to find the model number label

On Kenmore bottom-mount refrigerators like model 79572043313, we typically see the model and serial label in one of these spots:

• Inside the fresh food compartment on a side wall
• On the ceiling area inside the refrigerator section
• On the door frame when you open the refrigerator doors
• Behind or near the lower kick plate (toe grille)
• On the tech sheet area under the front of the refrigerator (service info location)

For diagrams and model coverage details, use the 79572043313 owner's manual.

How to read Kenmore model numbers (what matters for parts)

Kenmore model numbers often include a prefix that points to the original manufacturer. For this refrigerator, the 795 prefix is the key identifier you want to match when selecting parts like a water filter, air filter, or door gasket.

Quick check table

What you see	What it means	What to do
79572043313	Full model number	Use this for parts lookup
795.7205* or 795.7204*	Model series with color code (*)	Match series, then confirm full number
Serial number	Production identifier	Not used to choose most parts

Tips to avoid ordering the wrong part

• Copy the model number exactly as printed (include all digits)
• Use the full model number, not just “795”
• If your manual shows an asterisk (*), treat it as a color placeholder, not a digit
• Match parts by function and fit (example: water filter vs air filter)
• When replacing filtration parts, confirm the exact cartridge style before ordering

If you’re replacing the water filter on this model, the genuine Kenmore refrigerator water filter 9690 AGF80300801 is a common match for this series, and our DIY steps in how to replace the water filter in a Kenmore refrigerator help you do it correctly.

Why it matters

Kenmore refrigerators share similar styling across many series, but internal components (like the ice maker assembly, electronic control board, and door gasket) vary by model. Using 79572043313 ensures the part diagrams and replacement parts match your exact bottom-mount configuration.

Last updated: February 2026

On the Kenmore Elite 79572043313 bottom-mount refrigerator, the water filter is located inside the fresh food (refrigerator) compartment. You access it from the interior; keep a towel handy, then twist the filter to unlock and pull it out (a small amount of water can drip). See the 79572043313 owner's manual for the exact location diagram.

How to find and remove the water filter

We recommend these quick checks before you start:

• Open the refrigerator (upper) doors and look along the inside walls and upper interior areas where the manual’s parts diagram labels “Water Filter.”
• Place a towel under the filter area to catch drips.
• Grip the filter and turn it to the left (counterclockwise) to unlock.
• Pull the filter straight out.
• Install the new filter by pushing it in and turning it to the right (clockwise) until it locks.

If you are replacing the filter, use the model-matched part listed for this refrigerator: genuine Kenmore refrigerator water filter 9690 AGF80300801.

What to expect after you change the filter

A few normal symptoms can happen right after replacement:

• Water may sputter or look cloudy for a short time (air in the line).
• Dispensed water flow may be slow until the filter seats fully.
• A few drips at the filter housing can happen if the filter is not fully locked.

Symptom	Most common cause	What we do next
Dripping at filter	Filter not fully seated	Reinstall and lock firmly
Low water flow	Air in line or new filter	Dispense several glasses of water
Bad taste/odor remains	Filter overdue or fridge odors	Replace filter; consider changing the air filter

Why it matters

A properly installed water filter helps protect the dispenser and ice maker from sediment buildup and keeps water tasting clean. If the filter is loose or overdue, you can get leaks, slow dispensing, or poor ice production.

Last updated: February 2026

If your Kenmore Elite 79572043313 is warm at the bottom, the most common causes are blocked air vents, a damper or fan airflow problem, doors being opened too often, or the unit being in demo mode or a defrost cycle. Use the airflow and control checks in the owner's manual first.

Quick checks that fix most “warm bottom” complaints

• Make sure the refrigerator is not in demo mode (cooling is disabled in demo mode).
• Confirm the temperature controls are set correctly; adjust one step at a time and allow time to stabilize.
• Check for blocked air vents; rearrange food so air can circulate.
• Reduce long or frequent door openings; warm, humid air quickly raises temperatures.
• If the refrigerator was recently installed or moved, allow up to 24 hours to reach target temps.
• Wait 30 minutes after a defrost cycle to see if temperatures recover.

Airflow issues that specifically affect the lower section

Bottom areas often warm up first when cold air cannot move through the fresh food compartment.

What to look for

Symptom	Likely cause	What we recommend
Top shelves feel cooler than crisper area	Air vents blocked by food	Clear space around vents and return grilles
Temperature swings, especially after loading groceries	Overpacked shelves	Leave gaps for airflow; avoid packing against the back wall
Warm bottom plus weak circulation sound	Fan or damper not moving air	Follow the airflow diagram in the manual; inspect for ice buildup

If you suspect a damper problem on this model, the airflow control component to check is the refrigerator air damper ADJ73252235.

Why it matters

When airflow is restricted, the refrigerator can run longer, food in the lower section can spoil faster, and moisture can increase. Restoring proper circulation usually brings the bottom temperature back in line without major repairs.

When to move from checks to parts and service

If vents are clear, settings are correct, and the unit is not in demo mode, persistent warm temperatures can point to a cooling-system issue (such as frost restricting airflow or a sealed-system problem). At that point, we recommend using the troubleshooting steps in the manual and considering professional diagnosis.

Last updated: February 2026

Water leaking from the bottom of your Kenmore Elite refrigerator 79572043313 is most often caused by a clogged or frozen defrost drain that overflows during defrost. It can also come from an overflowing drain pan or a slow leak in the water supply line; use the 79572043313 owner's manual to identify access points.

Most common causes to check

• Defrost drain clogged or iced over: Meltwater backs up and runs into the cabinet and out to the floor.
• Drain pan shifted or cracked: Water misses the pan or the pan overflows.
• Water line or fitting drip: Leaks show up more when the ice maker fills or the dispenser is used.
• Door seal leak: Warm air causes excess frost, which increases defrost water and can refreeze the drain.

Quick troubleshooting steps

• Unplug the refrigerator before removing panels or reaching underneath.
• Look for ice or water on the freezer floor or under the crisper drawers.
• Flush the drain opening with warm water to clear sludge and ice.
• Pull the unit forward; inspect the drain pan for placement, cracks, and overflow.
• If the leak happens only with ice or water use, inspect the supply line and tubing for wet spots.

Symptom guide

What you notice	Likely source	What to do next
Puddle appears after defrost	Defrost drain	Clear and flush the drain path
Leak only during ice maker fill/dispenser use	Water line/tubing	Tighten fittings; replace damaged tubing
Water under front, pan full	Drain pan issue	Re-seat pan; replace if cracked

Parts that can be involved

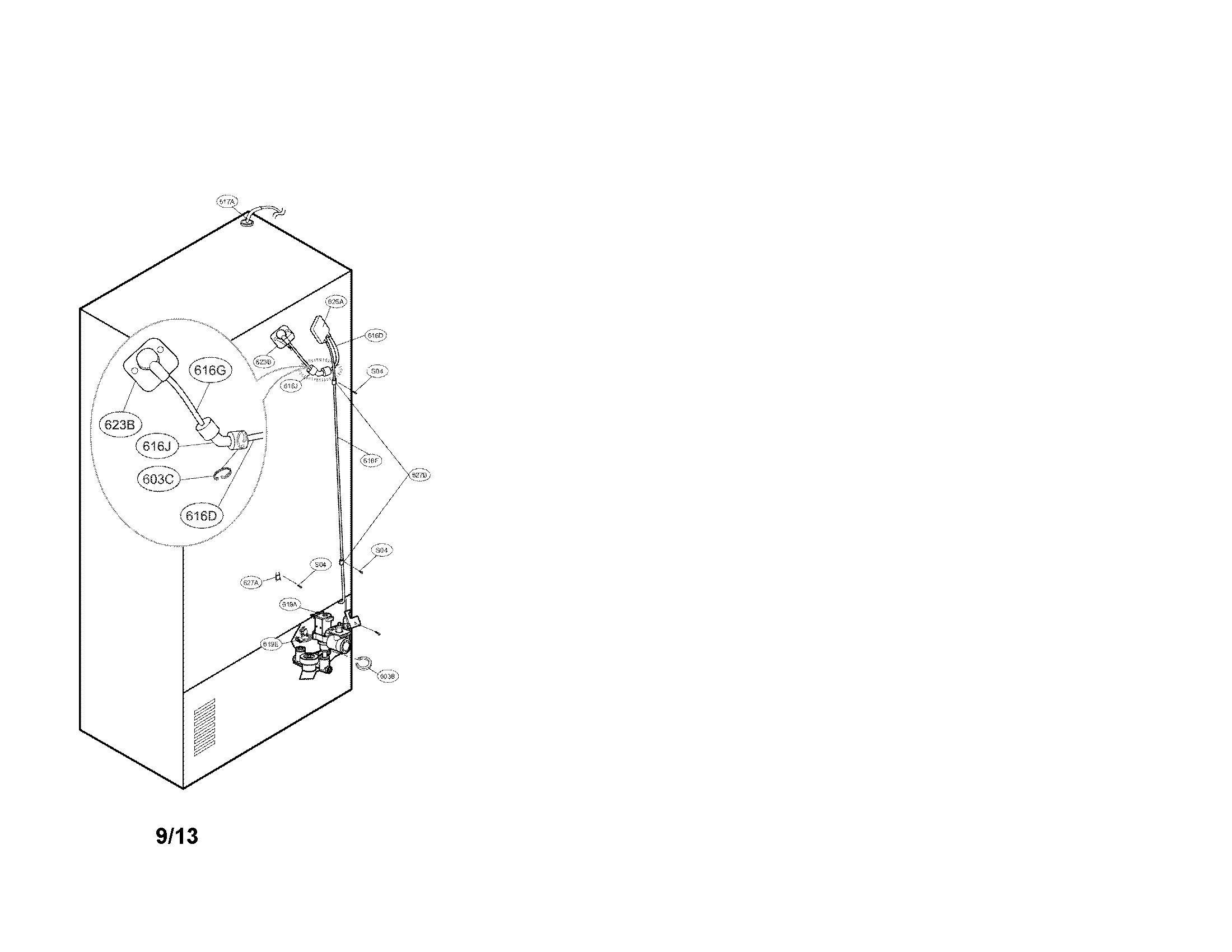

• Refrigerator water tubing MJU62070602 (for splits, kinks, or leaking connections)

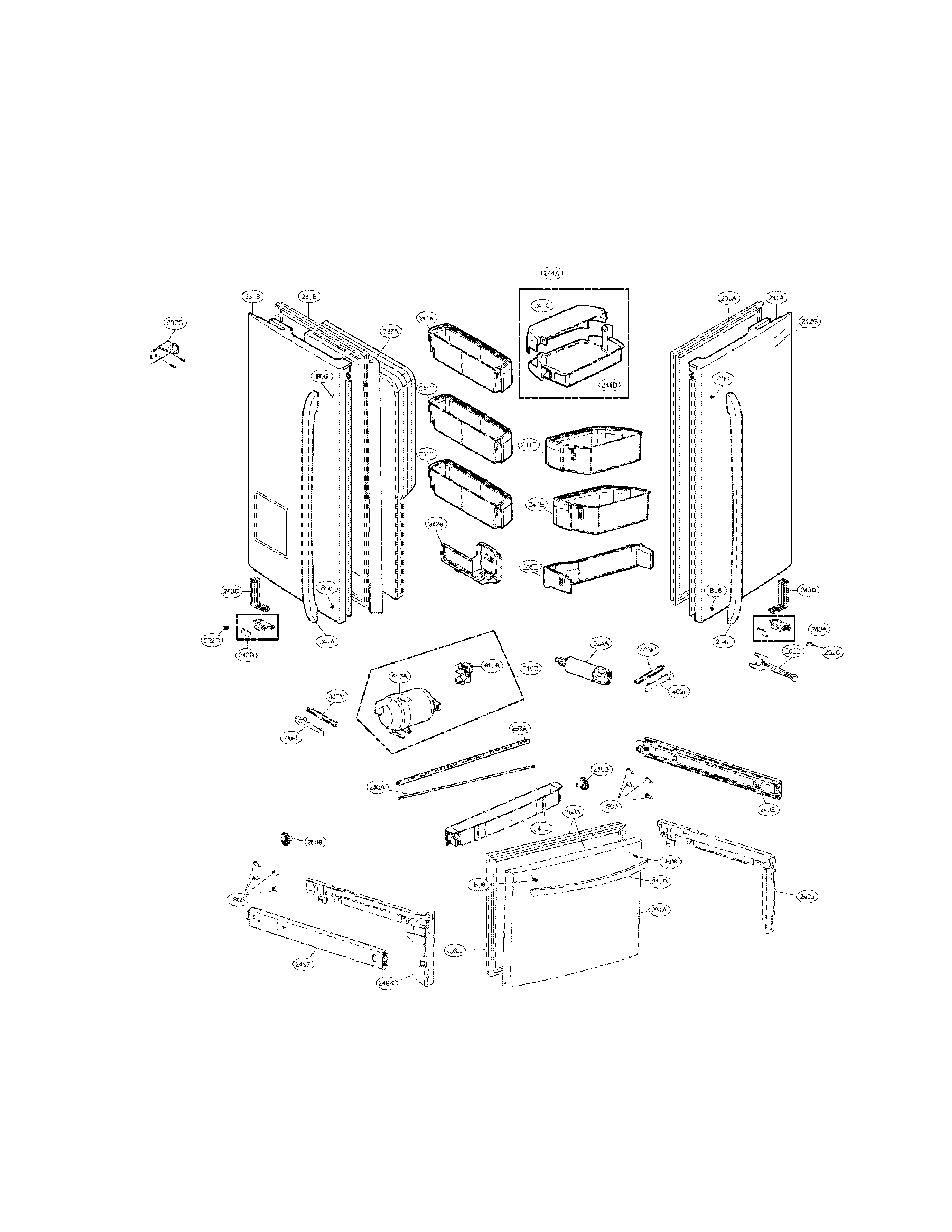

• Refrigerator door gasket, right ADX72930461 (if poor sealing is causing heavy frost and repeat drain icing)

Why it matters

A bottom leak can damage flooring and create ice buildup that restricts airflow, leading to warm temperatures and longer compressor run times.

Last updated: February 2026
