Model # FGF366ECA Official Frigidaire gas range

Here are the diagrams and repair parts for Official Frigidaire FGF366ECA gas range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

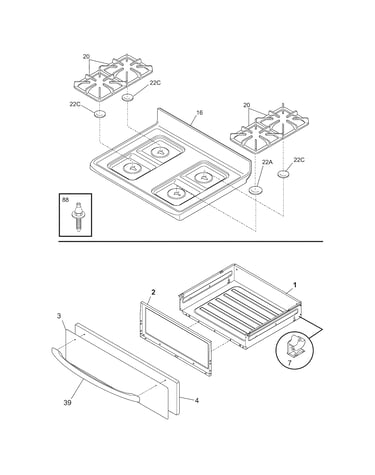

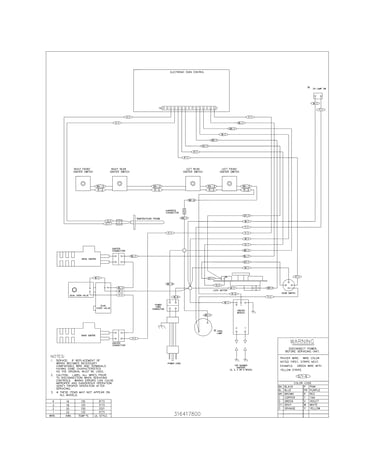

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 135 parts  |

Range Oven Light Bulb 5303013071
#15

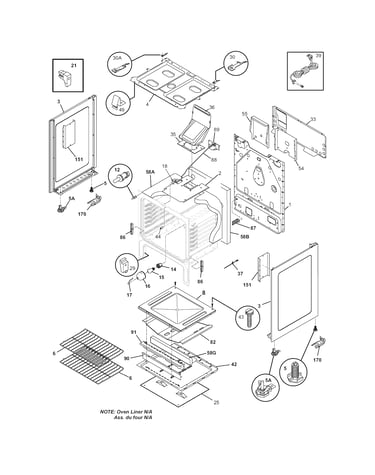

Body diagram

Range oven light bulb

Part #5303013071

Replaced by #316538904

?
Manufacturer substitution
This part replaces 5303013071. Substitute parts can look different from the original.
BEST SELLER
$14.33
16% OFF Phone Price : $17.07
In Stock
Igniter 316428500
#19

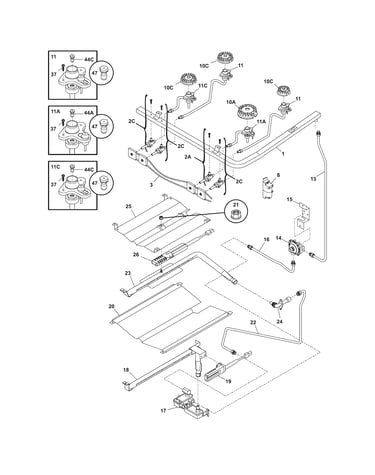

Burner diagram

Igniter

Part #316428500

Replaced by #316489400

?
Manufacturer substitution
This part replaces 316428500. Substitute parts can look different from the original.
BEST SELLER
$133.39
6% OFF Phone Price : $141.50
In Stock
Range Screw (replaces 5304472956, 7316240600) 316240600
#37

Burner diagram

Range screw (replaces 5304472956, 7316240600)

Part #316240600

BEST SELLER
$10.87
18% OFF Phone Price : $13.20
In Stock
Range Control Panel Overlay 316419103
#20A

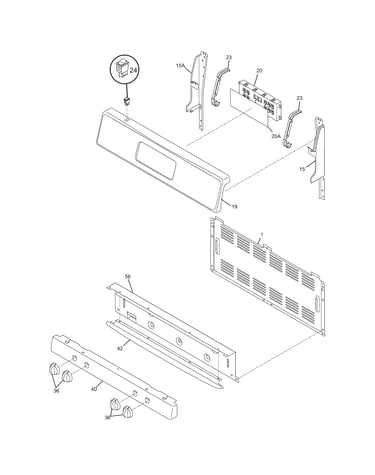

Backguard diagram

Range control panel overlay

Part #316419103

Replaced by #316419141

?
Manufacturer substitution
This part replaces 316419103. Substitute parts can look different from the original.
BEST SELLER
$39.16
11% OFF Phone Price : $44.02
In Stock
Universal/multiflex (frigidaire) Range Oven Door Handle Screw, 10-14 X 2-1/8-inch 316433300
#10

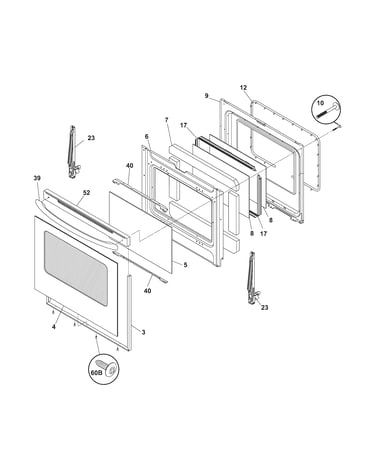

Door diagram

Universal/multiflex (frigidaire) range oven door handle screw, 10-14 x 2-1/8-inch

Part #316433300

BEST SELLER
$15.61
11% OFF Phone Price : $17.61
In Stock
Probe 316217001
#37

Body diagram

Probe

Part #316217001

Replaced by #316490001

?
Manufacturer substitution
This part replaces 316217001. Substitute parts can look different from the original.
BEST SELLER
$45.60
14% OFF Phone Price : $53.01
In Stock
Igniter And Orifice Holder 316237800
#11C

Burner diagram

Igniter and orifice holder

Part #316237800

Replaced by #316237805

?
Manufacturer substitution
This part replaces 316237800. Substitute parts can look different from the original.
BEST SELLER
$86.13
9% OFF Phone Price : $94.79
In Stock
Range Surface Burner Head (replaces 7316212400) 316212400
#10C

Burner diagram

Range surface burner head (replaces 7316212400)

Part #316212400

BEST SELLER
$30.46
14% OFF Phone Price : $35.57
In Stock
Range Surface Burner Head (replaces 7316223400) 316223400
#10A

Burner diagram

Range surface burner head (replaces 7316223400)

Part #316223400

BEST SELLER
$60.53
9% OFF Phone Price : $66.53
In Stock
Range Pressure Regulator 316091706
#14

Burner diagram

Range pressure regulator

Part #316091706

Replaced by #5304521339

?
Manufacturer substitution
This part replaces 316091706. Substitute parts can look different from the original.
BEST SELLER
$76.02
5% OFF Phone Price : $79.81
In Stock
