Kenmore 11064902200 dryer Parts

Your Kenmore dryer’s model number is printed on the model and serial number plate; on model 11064902200, that plate is typically found in the door opening area. Once you have the full model number, we can match the correct parts, diagrams, and specifications.

Where to look for the model number plate

Check these common locations on Kenmore dryers:

• Inside the dryer door opening on the cabinet frame
• On the back panel of the dryer cabinet
• Near the lint screen housing area (depending on design)
• On a metal plate or durable sticker labeled “Model” and “Serial”

For the exact location and what the plate looks like for your unit, use the 11064902200 owner's manual.

How to read the number (and why it matters)

Kenmore model numbers are long on purpose; each section helps identify the platform and the correct replacement parts. For example, the 110 prefix is commonly associated with Whirlpool-built Kenmore laundry products, which helps narrow down compatible components.

Why it matters

Using the complete model number prevents ordering the wrong items, especially for parts that look similar but fit differently (like a door switch, timer, or heating system components).

Quick checklist before you order parts

Use this list to avoid common mistakes:

• Write down the full model number exactly as shown (all digits)
• Record the serial number too (helps with production variations)
• Match the model number on the appliance, not just paperwork
• If the label is worn, take a clear photo with good lighting
• Use the model number to confirm whether you have an electric or gas version

Common parts you can match once the model is confirmed

Here are examples of parts that must match the exact model:

Part type	Example for this model	What a mismatch can cause
Drive system	Dryer drum belt 341241	Drum will not turn, belt won’t fit
Door safety	Dryer door switch WP3406107	Dryer will not start or stops when door closes
Heat system (electric)	Dryer element 279838	No heat, overheating, incorrect mounting

Last updated: February 2026

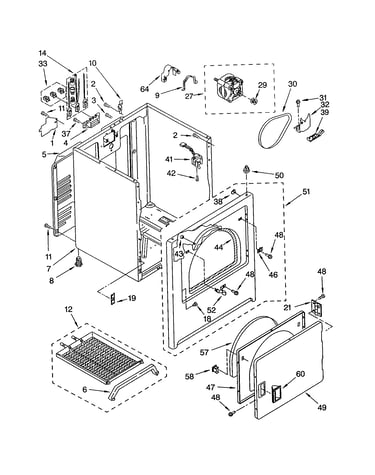

On the Kenmore dryer model 11064902200, the front panel comes off after you disconnect power, open up the top (or access the top fasteners), remove the mounting screws (often inside the door opening and along the top edge), then lift the panel up and off the lower retaining clips while supporting any wiring.

Before you start (safety and prep)

• Unplug the dryer (or switch off the breaker) before removing any panels.
• If it is a gas model, shut off the gas supply valve.
• Pull the dryer forward enough to work without crushing or kinking the vent.
• Keep a small container for screws so none get lost.
• Use gloves; cabinet edges can be sharp.

For model-specific diagrams and fastener locations, follow the steps shown in the 11064902200 owner's manual.

Typical front panel removal steps

1. Disconnect power.
2. Remove the lint screen (if your version has one in the top) and take out any screws revealed in that area.
3. Release the top: insert a putty knife a few inches in from each front corner to release spring clips, then lift the top.
4. Remove front panel screws:
   • Remove screws along the top inside edge of the front panel.
   • Remove screws in the door opening (door switch area and/or hinge side), if present.
5. Disconnect wiring: unplug the door switch connector if it is attached to the front panel.
6. Lift and remove: lift the front panel up to unhook it from the bottom clips, then pull it forward and set it aside.

What you can access once the front is off

Area you can reach	Common reason you remove the front panel
Drum and belt path	Squealing, thumping, drum not turning
Idler and rollers	Belt slipping, noisy operation
Blower housing area	Poor airflow, overheating symptoms

If you are going in for a drum-not-turning or squeal issue, we typically replace wear items together using the dryer repair kit 4392065 and inspect the belt, including the dryer drum belt 341241.

Why it matters

Removing the front panel the right way prevents bent cabinet tabs, broken door switch wiring, and air leaks that can reduce drying performance.

Last updated: February 2026

On Kenmore dryer model 11064902200, an “F” code means the control detected a fault. The exact meaning depends on the full code shown (for example F1/F01). Use the troubleshooting section in the 11064902200 owner's manual to match the code to the failed circuit or sensor.

What to do first (quick checks)

• Write down the entire code (F1, F2, etc.) and any beeps.
• Unplug the dryer (or switch off the breaker) for 1 minute, then restore power and retry.
• Confirm the dryer door closes firmly and the Start button is pressed correctly.
• Check the house power: a tripped breaker or blown fuse can cause odd behavior.
• If the drum turns but there is no heat, stop the cycle and move to the heat checks below.

If the “F” code happens with no heat

Many “fault” situations show up when the dryer cannot heat correctly or overheats. On this style of Kenmore electric dryer, common heat-related suspects include:

• Heating circuit issues (heater, wiring, thermostats)
• Restricted airflow (lint buildup, crushed vent)
• Overtemperature protection opening

If you are diagnosing a no-heat condition, the dryer element 279838 is one of the core components in the heating circuit for this model.

Common symptoms and what they usually point to

What you notice	What it often indicates	What to check next
Code appears soon after pressing Start	Control detected an electrical/sensor fault	Power reset, door closure, then manual code chart
Dryer runs but clothes stay wet	Heat circuit or airflow problem	Venting, lint screen, heater and thermostats
Code appears mid-cycle with beeping	Overheat or intermittent electrical issue	Airflow restriction, thermal protection components

Why it matters

An “F” code is the dryer’s way of preventing damage or unsafe operation. Clearing airflow restrictions and using the correct troubleshooting steps helps you avoid repeat shutdowns and protects key parts like the heating element and thermostats.

Last updated: February 2026
