Here are the diagrams and repair parts for KitchenAid KDTE204GPS0 dishwasher, as well as links to manuals and error code tables, if available.
There are a couple of ways to find the part or diagram you need:
Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.
We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.
For DIY troubleshooting advice and repair guides, visit our repair help section.
Showing 10 of 155 parts

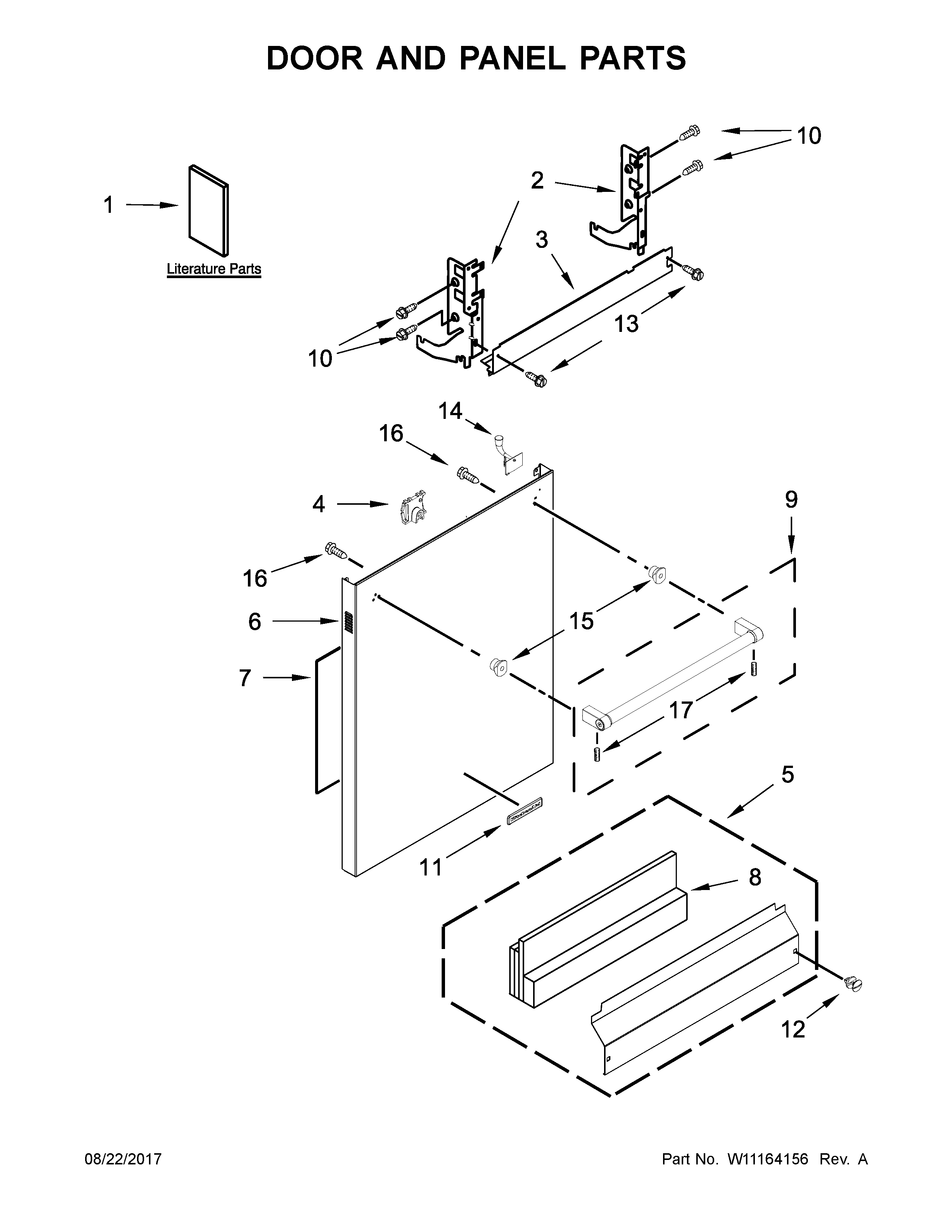

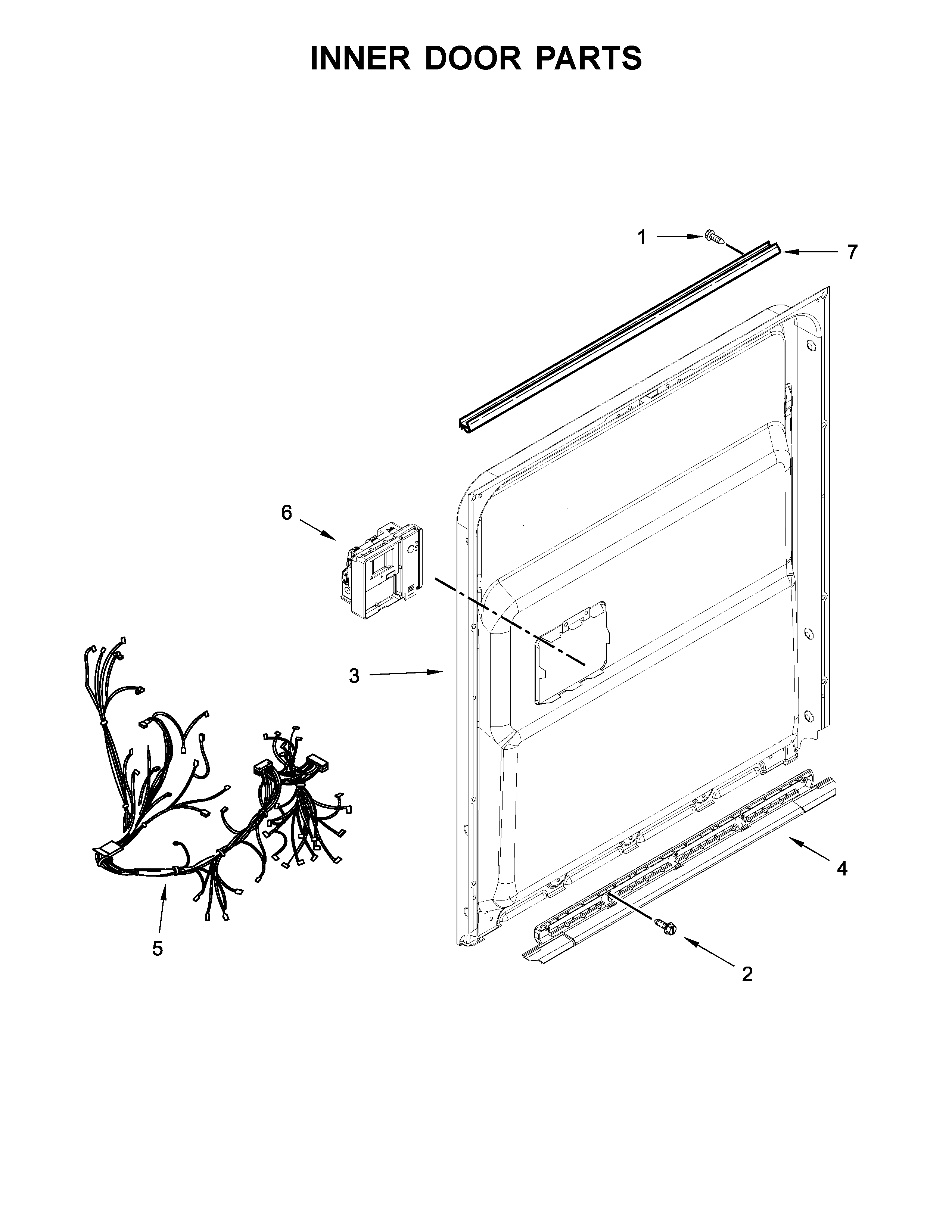

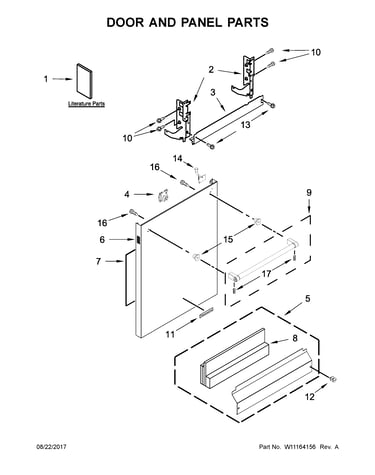

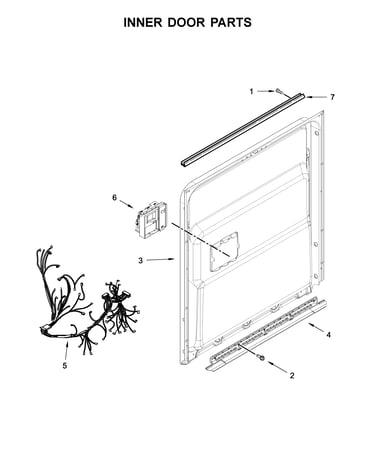

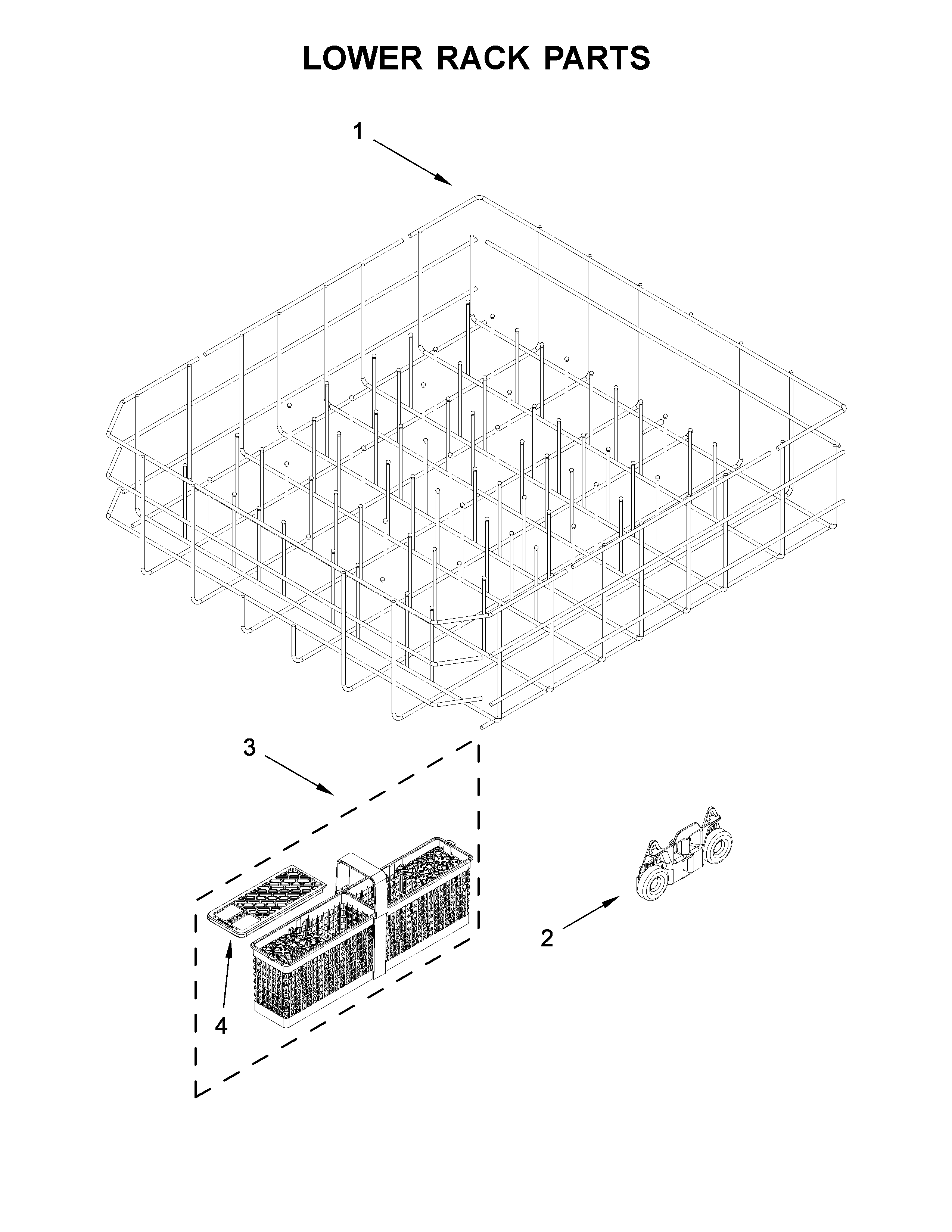

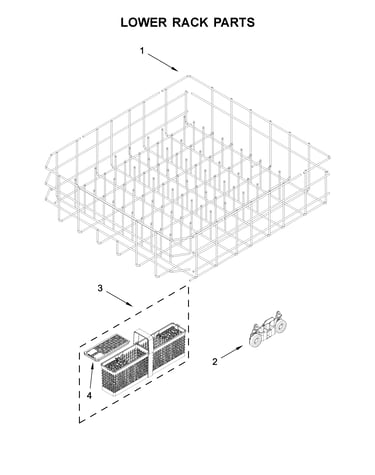

Lower rack parts Diagram

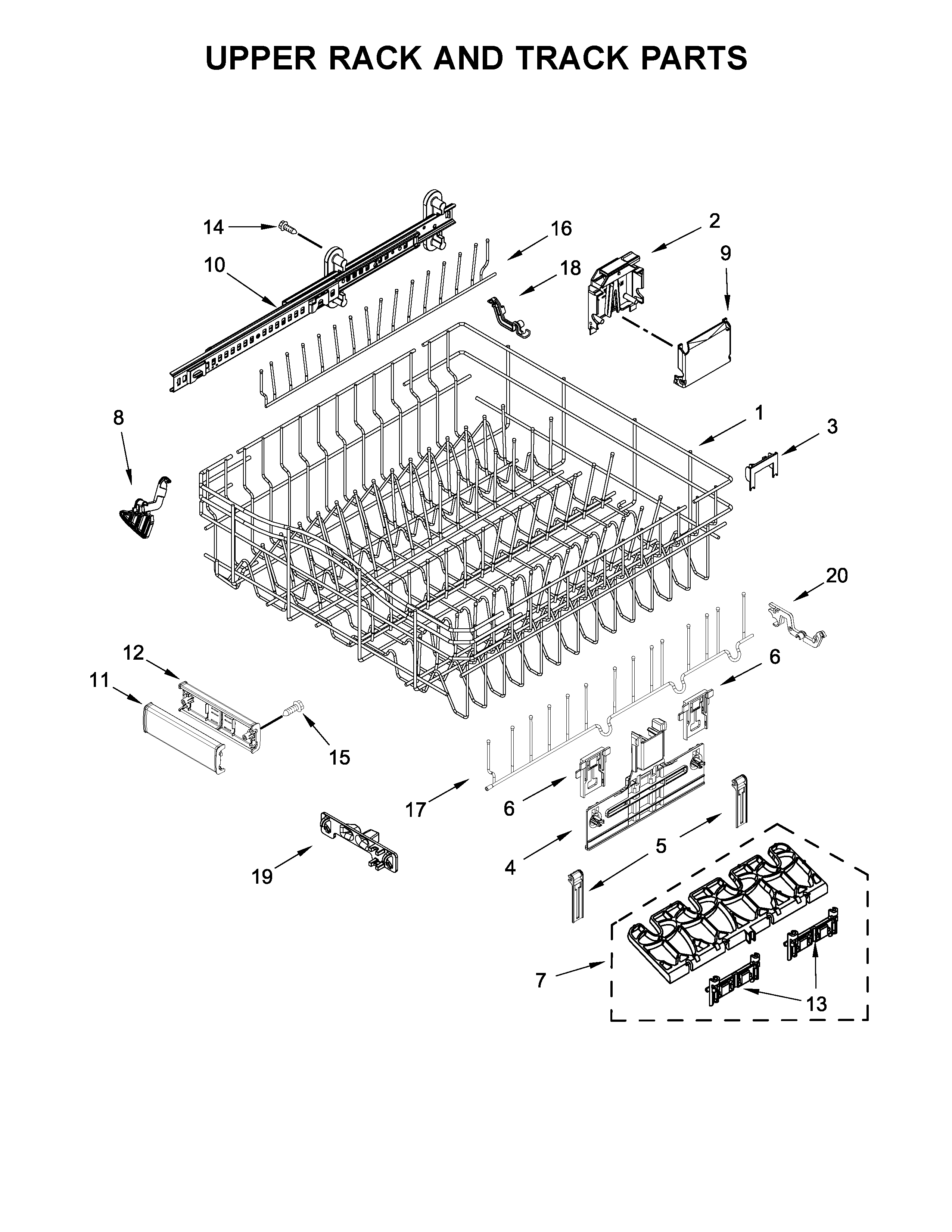

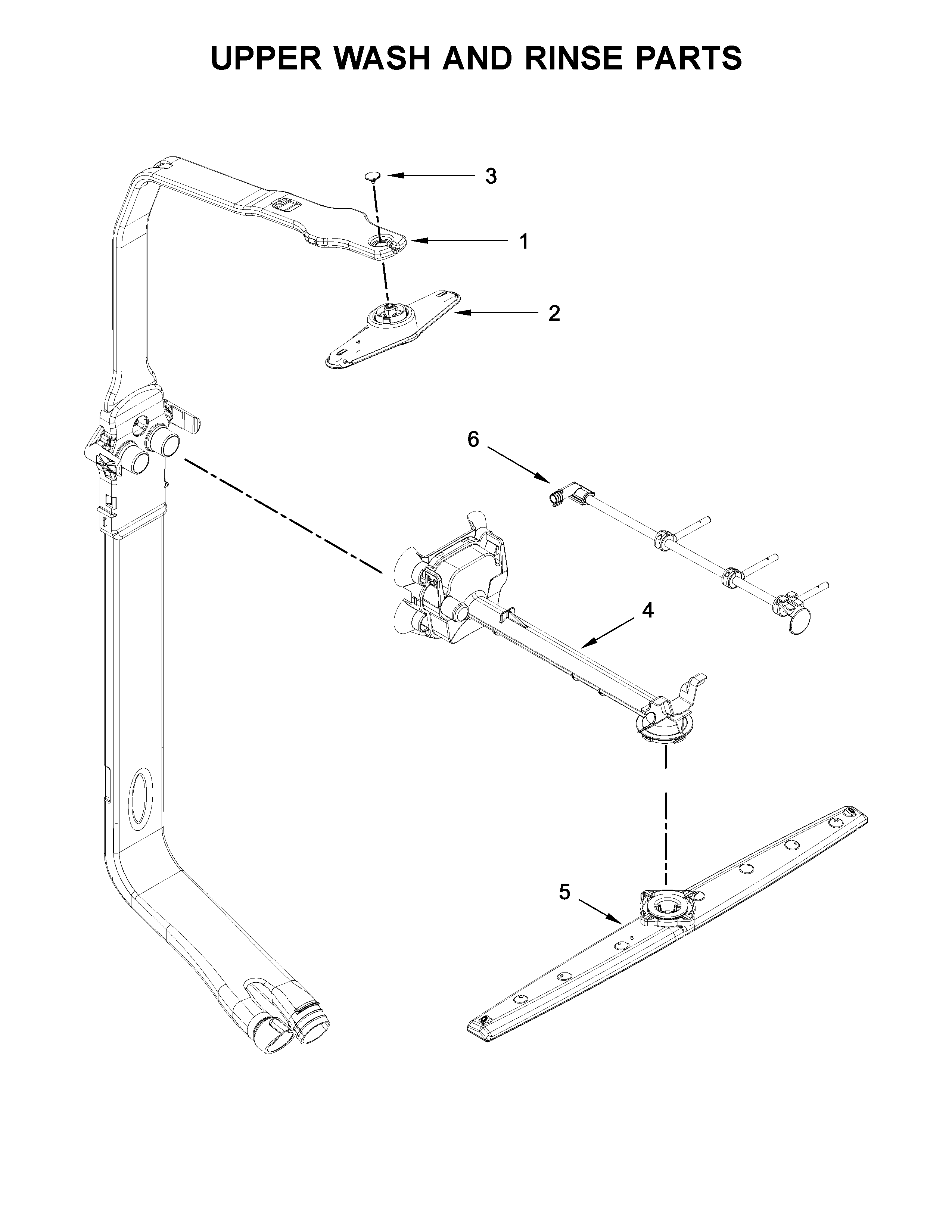

Upper rack and track parts Diagram

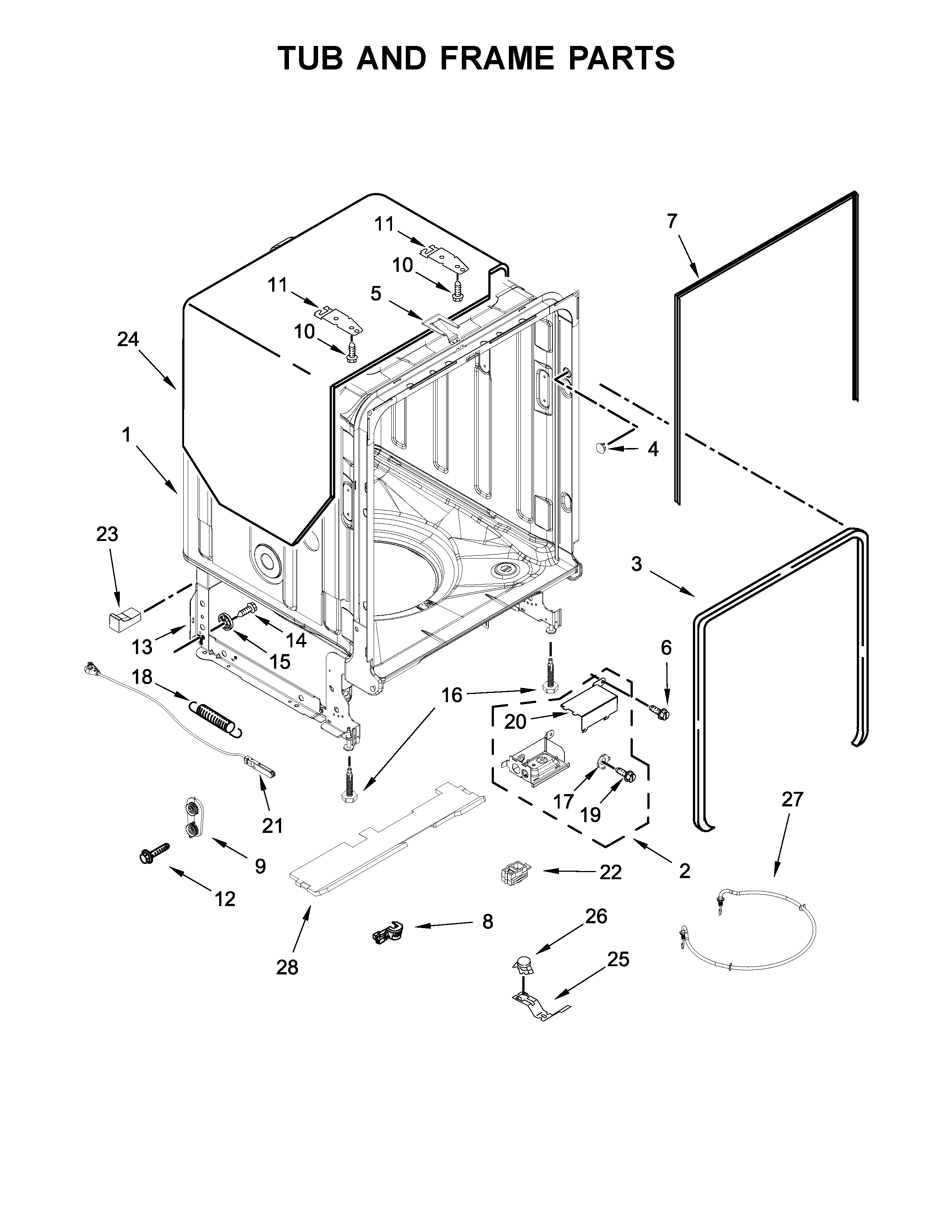

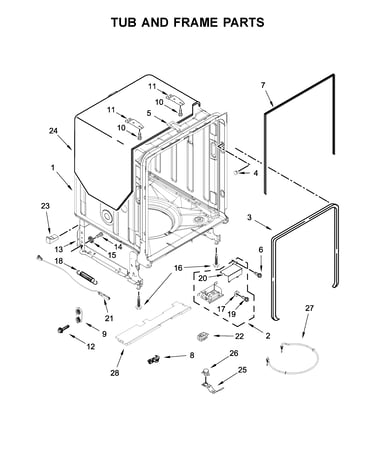

Tub and frame parts Diagram

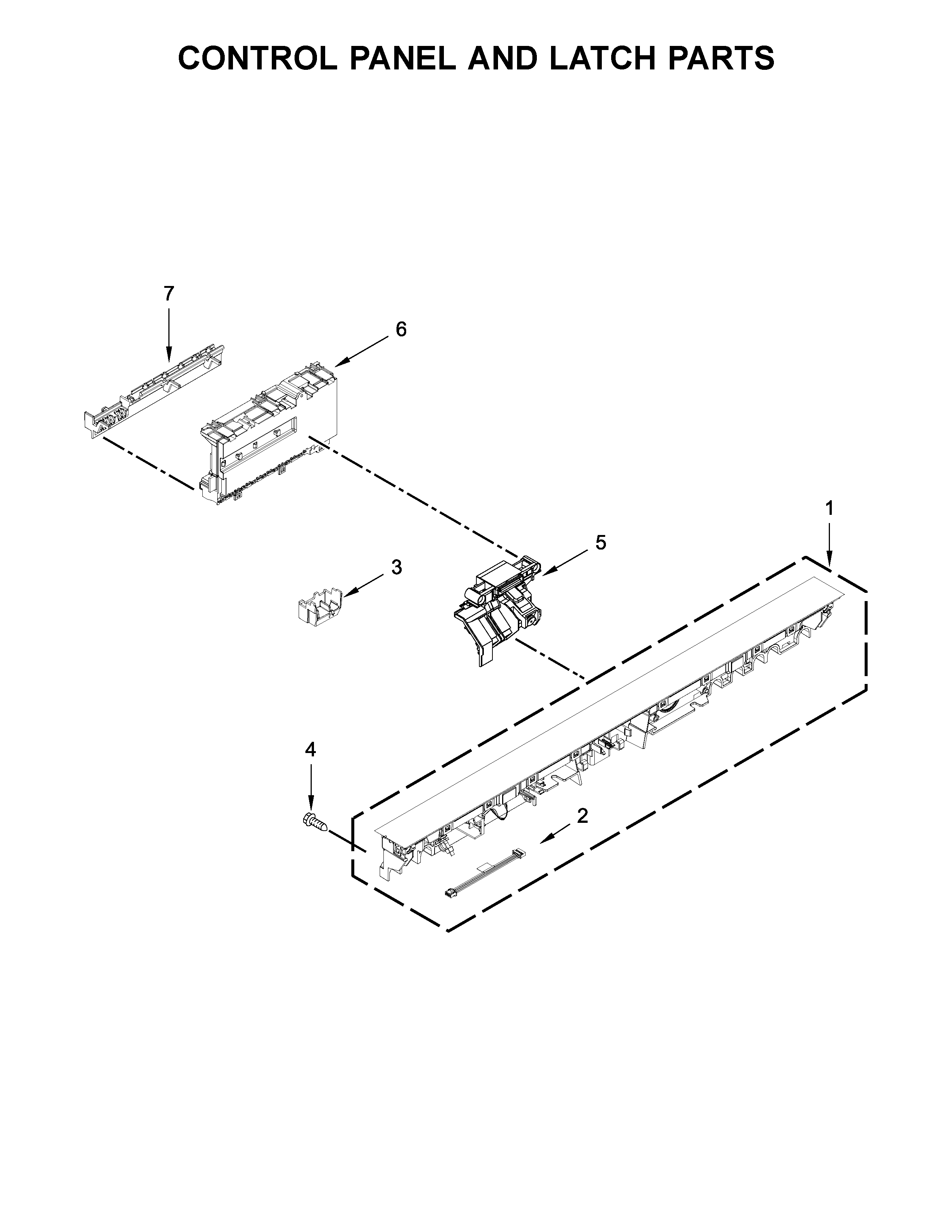

Control panel and latch parts Diagram

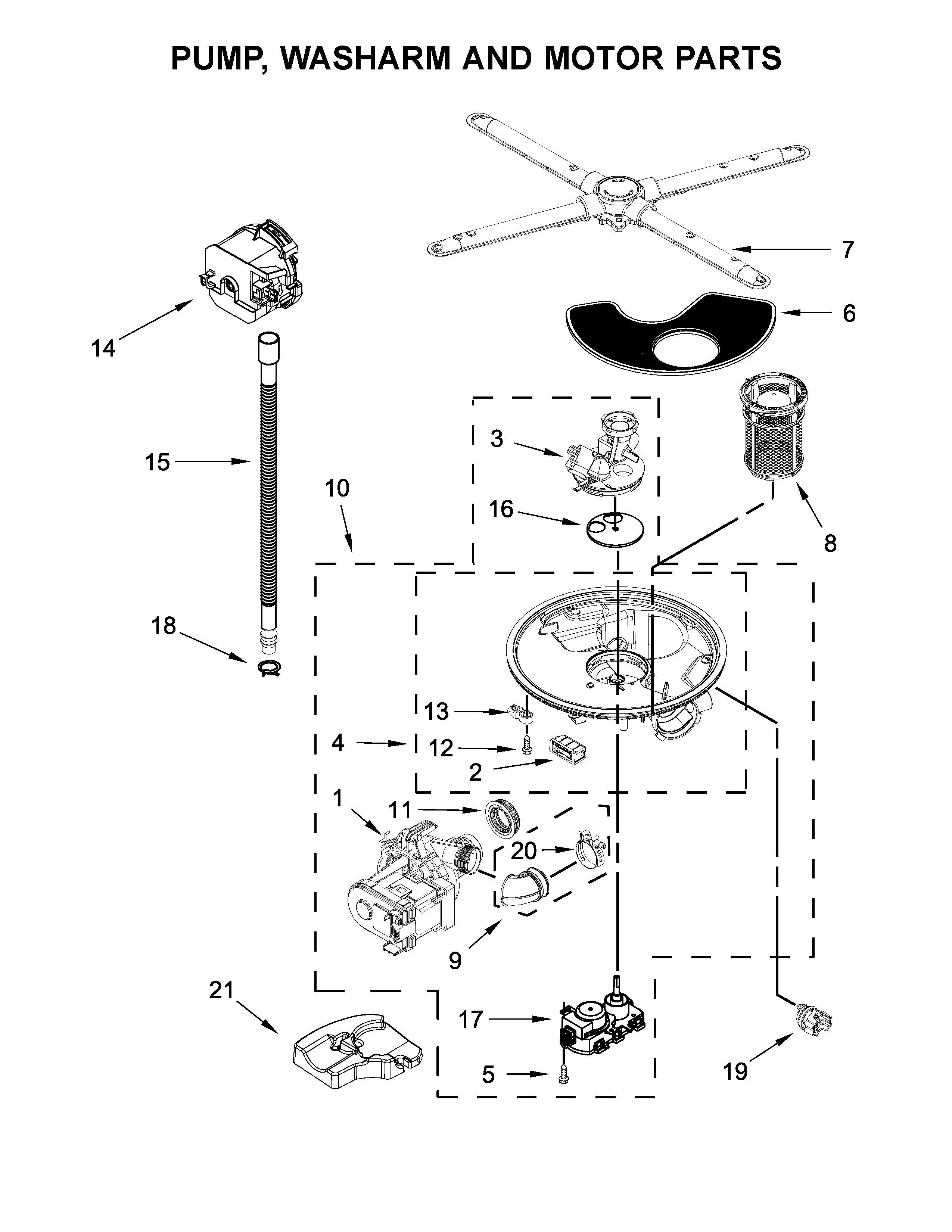

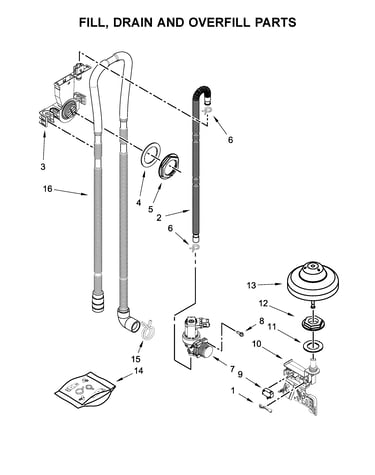

Pump, washarm and motor parts Diagram
