Model # LFSC2324VF1 Official Frigidaire side-by-side refrigerator

Here are the diagrams and repair parts for Official Frigidaire LFSC2324VF1 side-by-side refrigerator, as well as links to manuals and error code tables, if available.

By Schematic
By Part

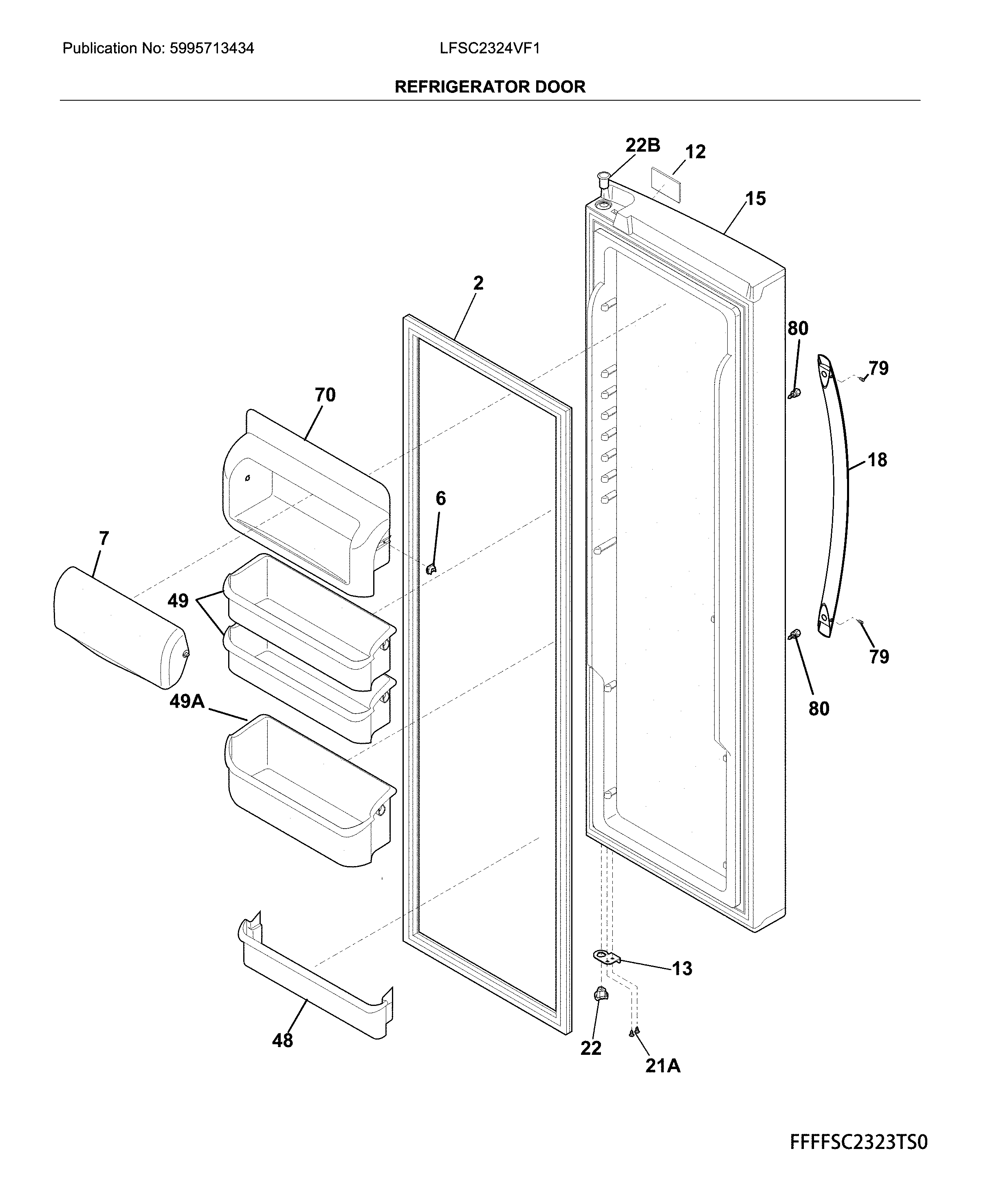

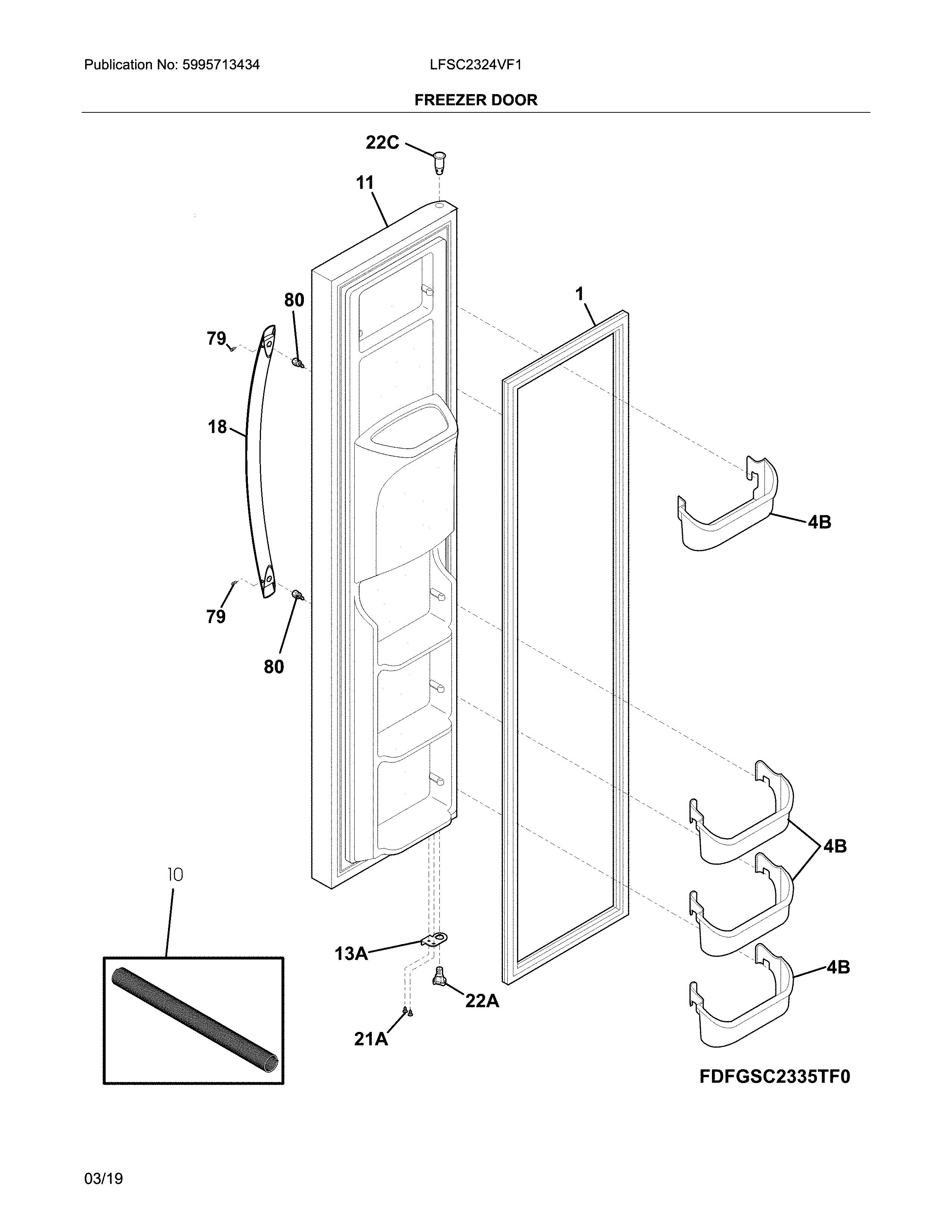

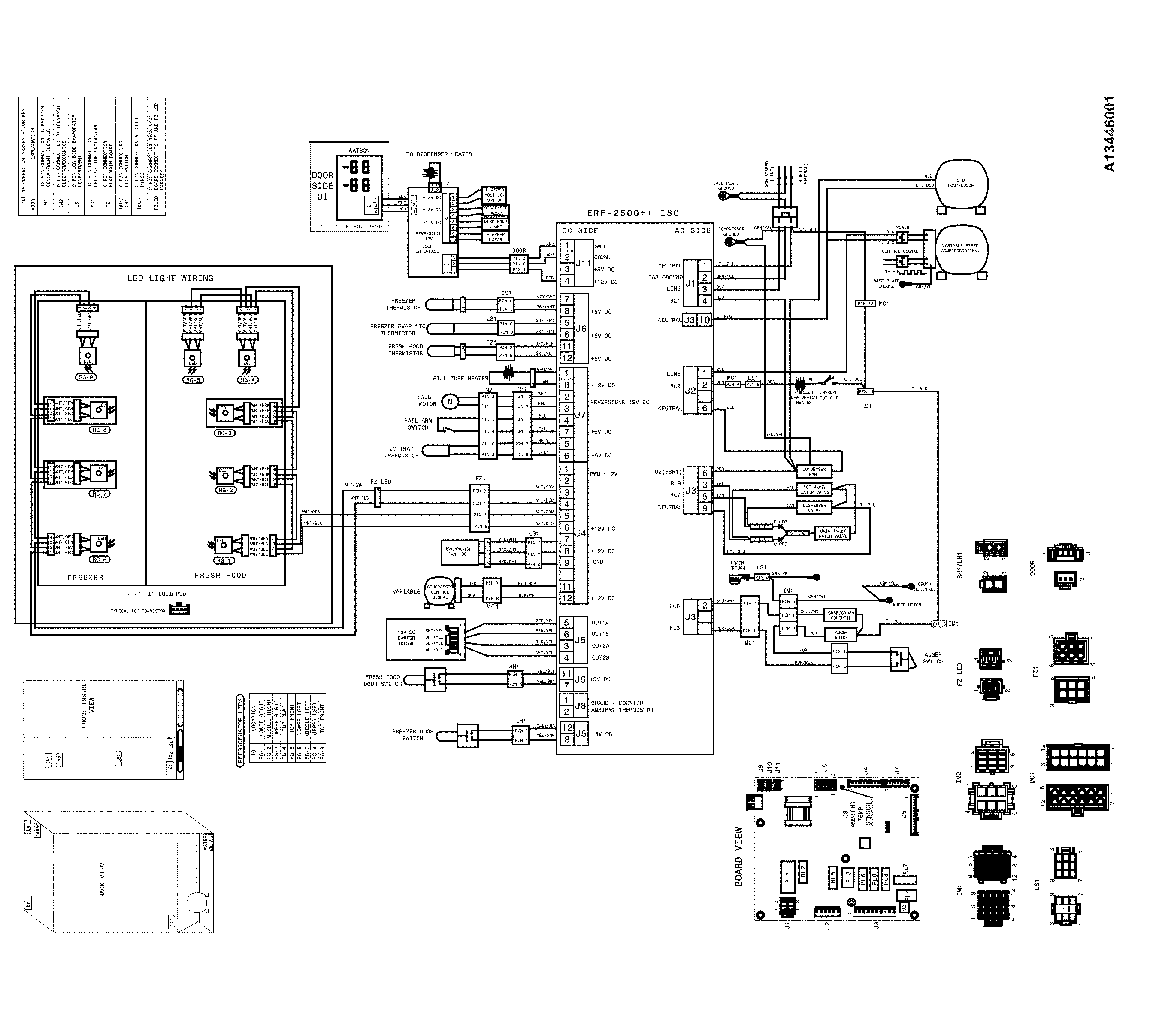

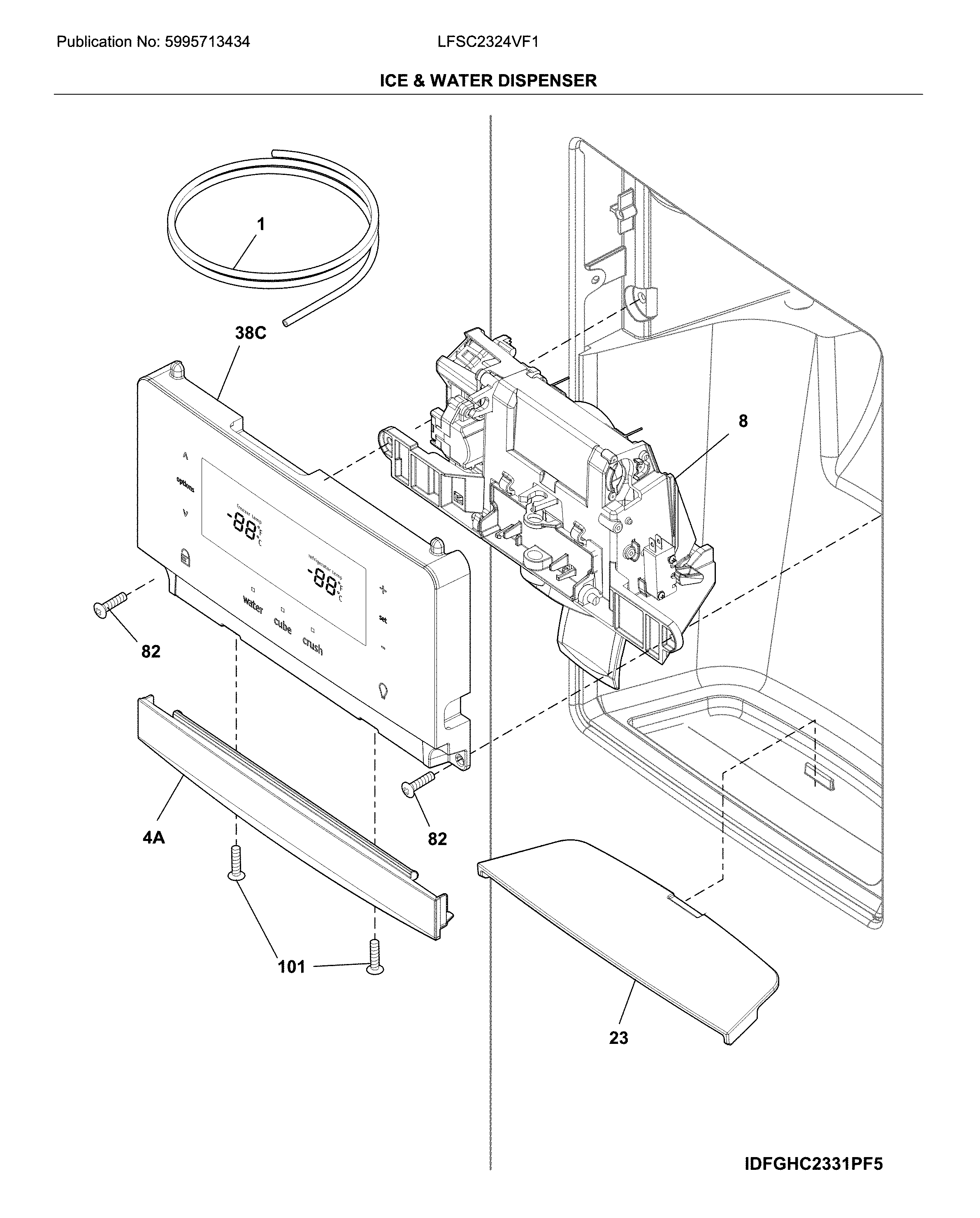

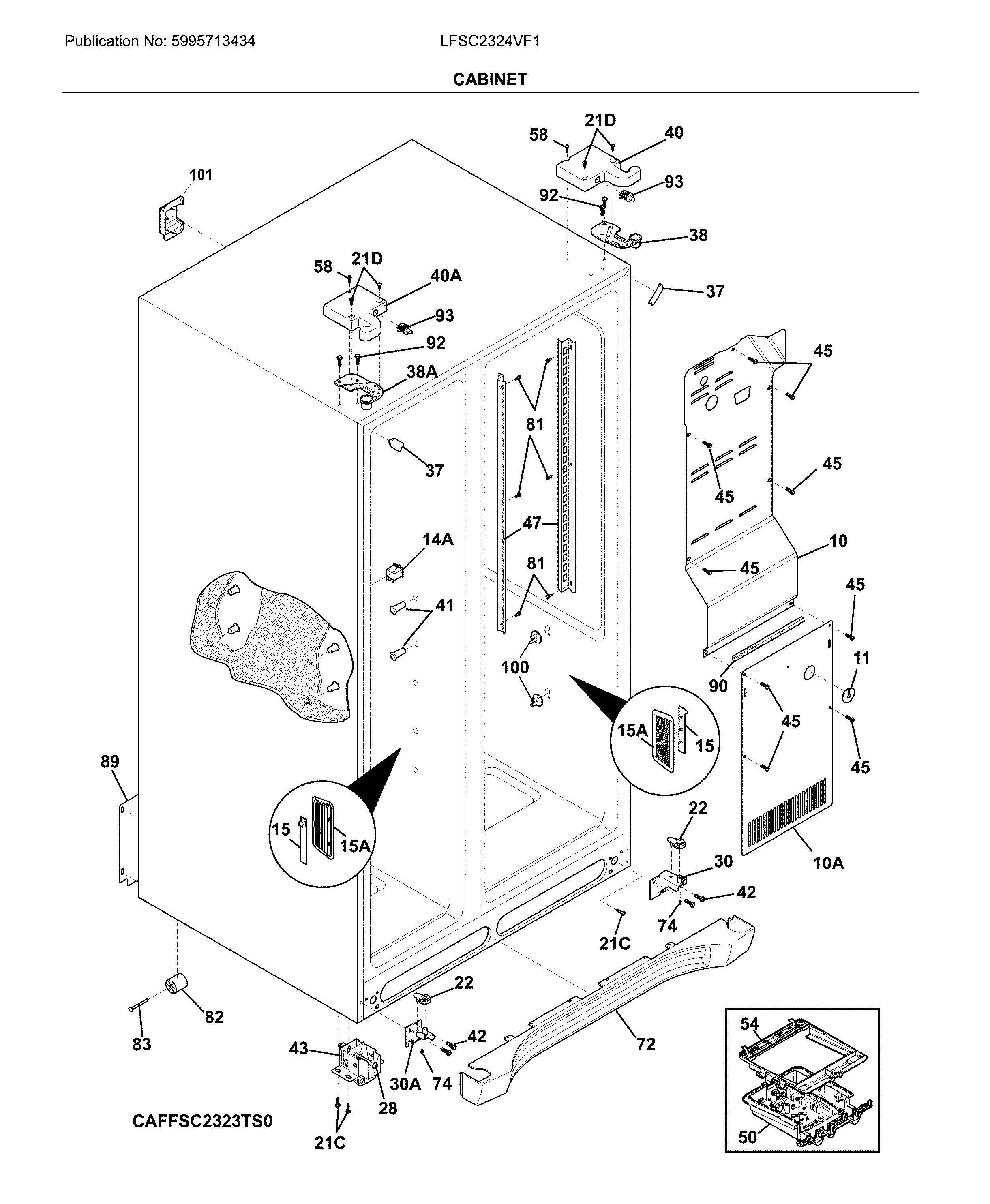

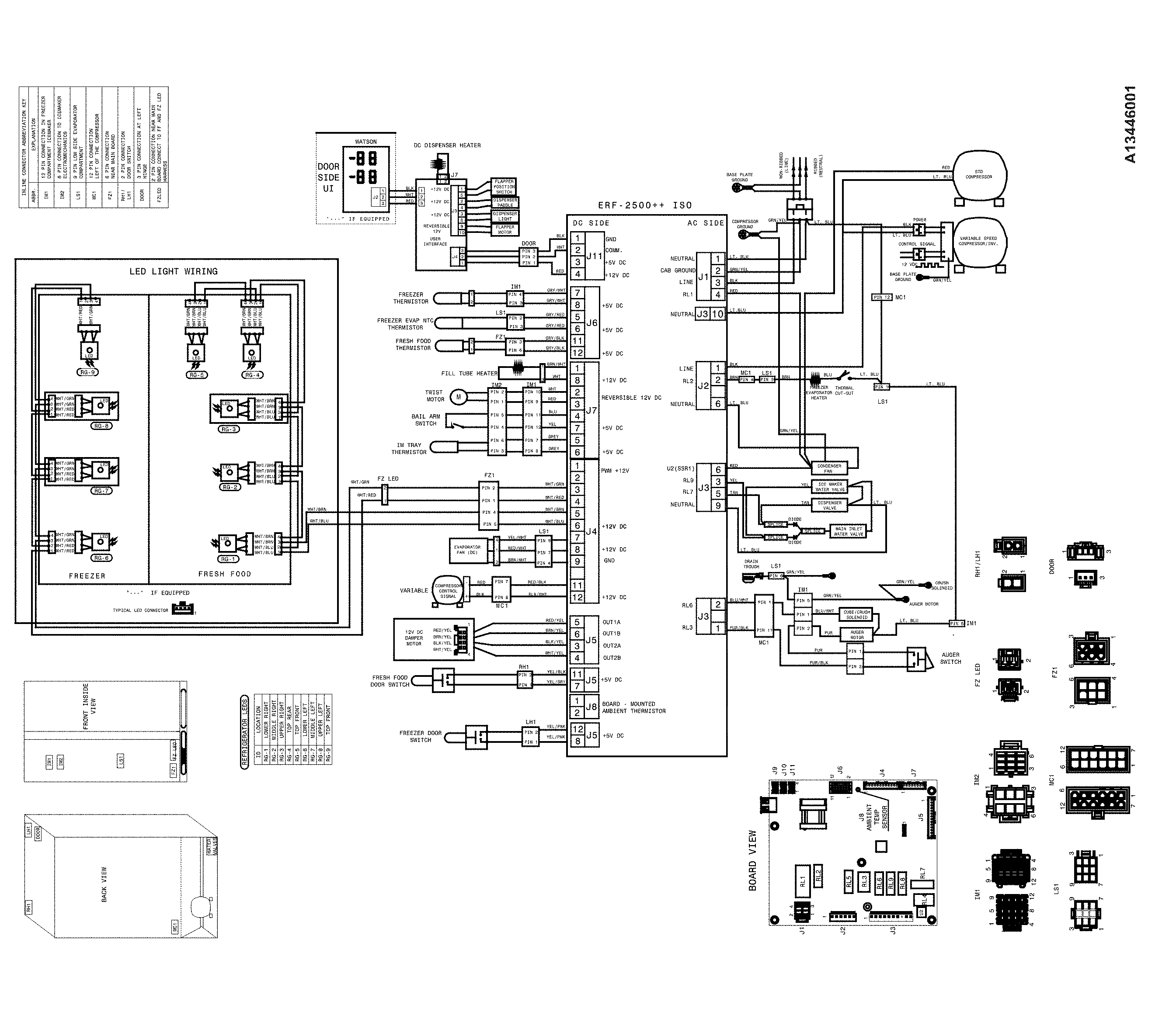

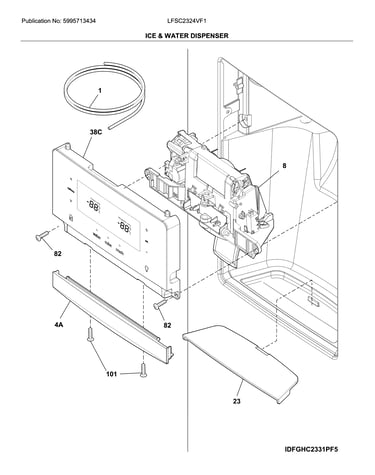

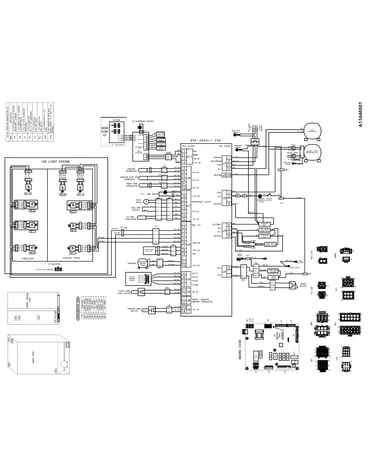

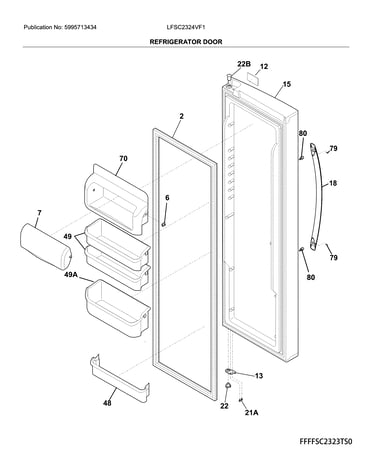

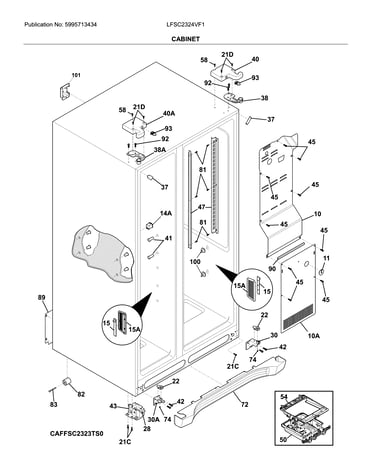

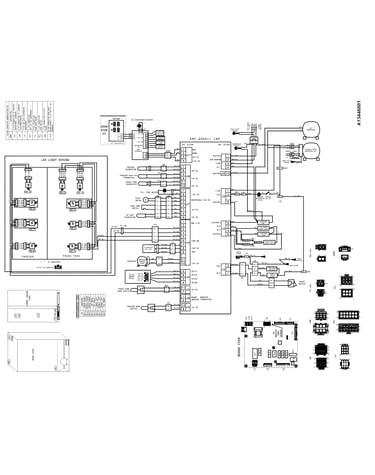

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts forLFSC2324VF1 Refrigerators

  • Refrigerator Air Filter 242047804
    #209

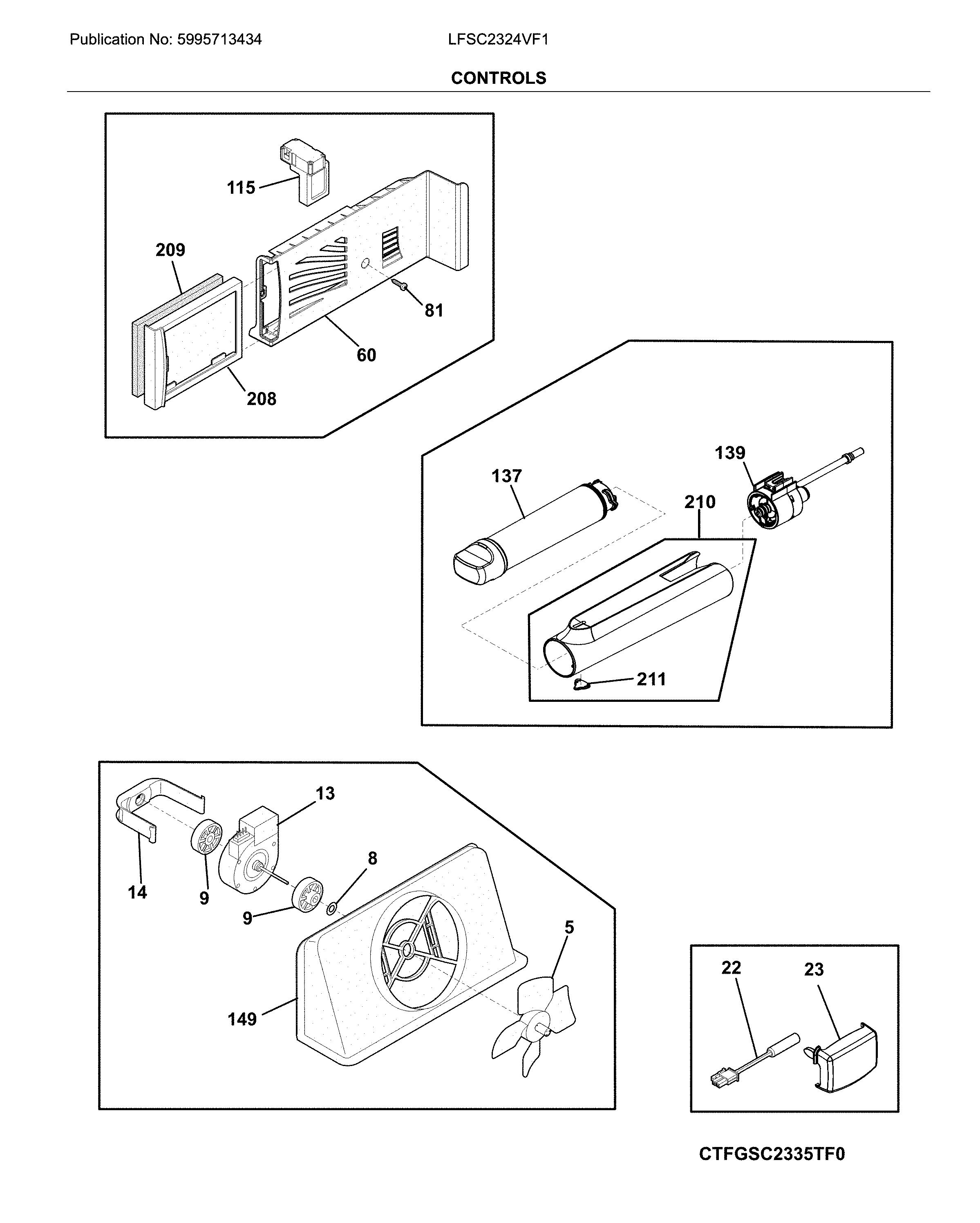

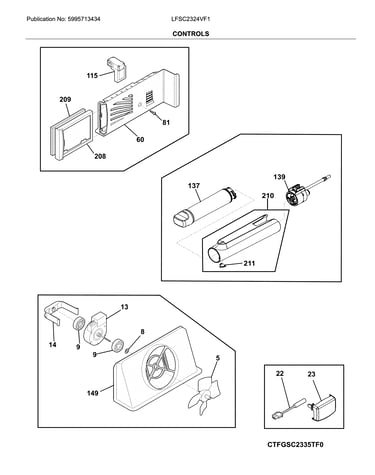

    Controls diagram

    Refrigerator air filter

    Part #242047804

    Replaced by #EAFCBF

    ?
    Manufacturer substitution
    This part replaces 242047804. Substitute parts can look different from the original.
    BEST SELLER

    Get free shipping with Automatic Reorder

    $27.46 |
    18% OFF Phone Price : $33.46
    In Stock
  • Dryer Filter 242047604
    #4

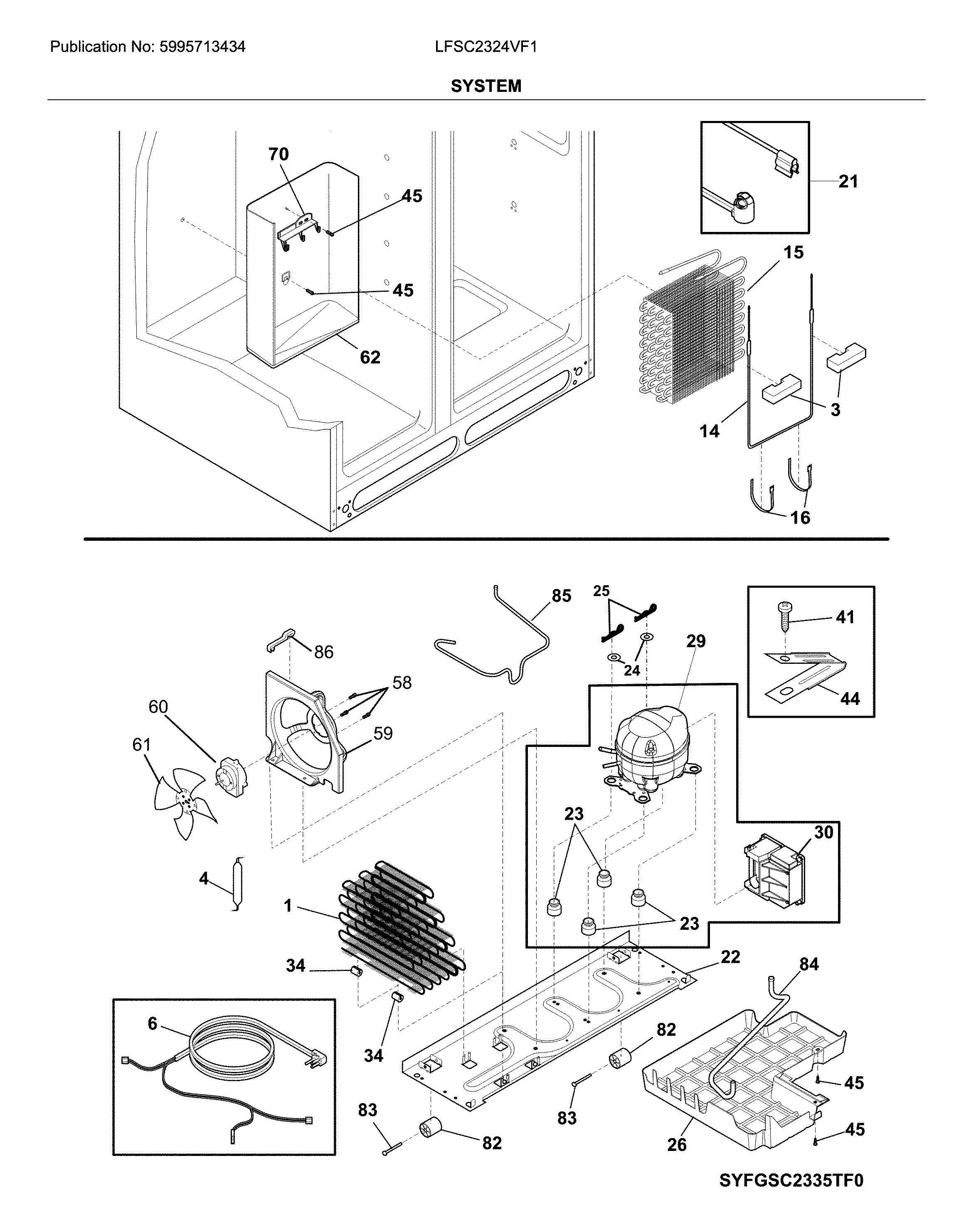

    System diagram

    Dryer filter

    Part #242047604

    Replaced by #5303305677

    ?
    Manufacturer substitution
    This part replaces 242047604. Substitute parts can look different from the original.
    BEST SELLER
    $20.18 |
    23% OFF Phone Price : $26.18
    In Stock
  • Frigidaire Refrigerator Water Inlet Valve Assembly 242252702
    #55

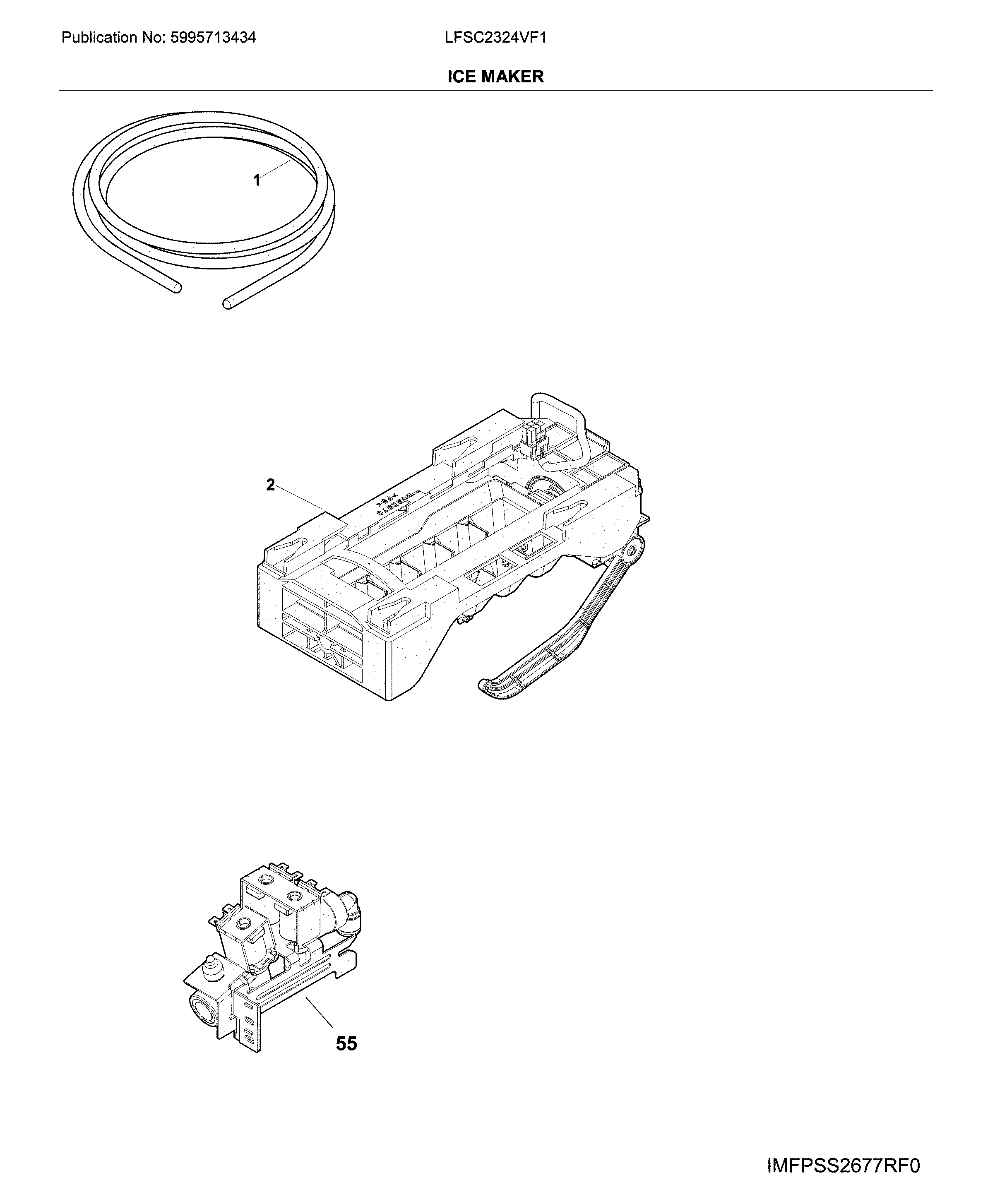

    Ice maker diagram

    Frigidaire refrigerator water inlet valve assembly

    Part #242252702

    BEST SELLER
    $58.29 |
    9% OFF Phone Price : $64.29
    In Stock
  • Refrigerator Ice Maker 243297607
    #2

    Ice maker diagram

    Refrigerator ice maker

    Part #243297607

    Replaced by #243297613

    ?
    Manufacturer substitution
    This part replaces 243297607. Substitute parts can look different from the original.
    BEST SELLER
    $87.46 |
    6% OFF Phone Price : $93.46
    In Stock
  • Refrigerator Evaporator Fan Blade 5308000010
    #5

    Controls diagram

    Refrigerator evaporator fan blade

    Part #5308000010

    BEST SELLER
    $43.26 |
    12% OFF Phone Price : $49.26
    In Stock
  • Refrigerator Evaporator 5303918284
    #15

    System diagram

    Refrigerator evaporator

    Part #5303918284

    BEST SELLER
    $323.19 |
    $12.00 OFF Phone Price : $335.19
    In Stock
  • Refrigerator Condenser Fan Blade 241639501
    #61

    System diagram

    Refrigerator condenser fan blade

    Part #241639501

    Replaced by #241639502

    ?
    Manufacturer substitution
    This part replaces 241639501. Substitute parts can look different from the original.
    BEST SELLER
    $20.81 |
    22% OFF Phone Price : $26.81
    In Stock
  • Refrigerator Ice Dispenser Solenoid 241675704
    #45

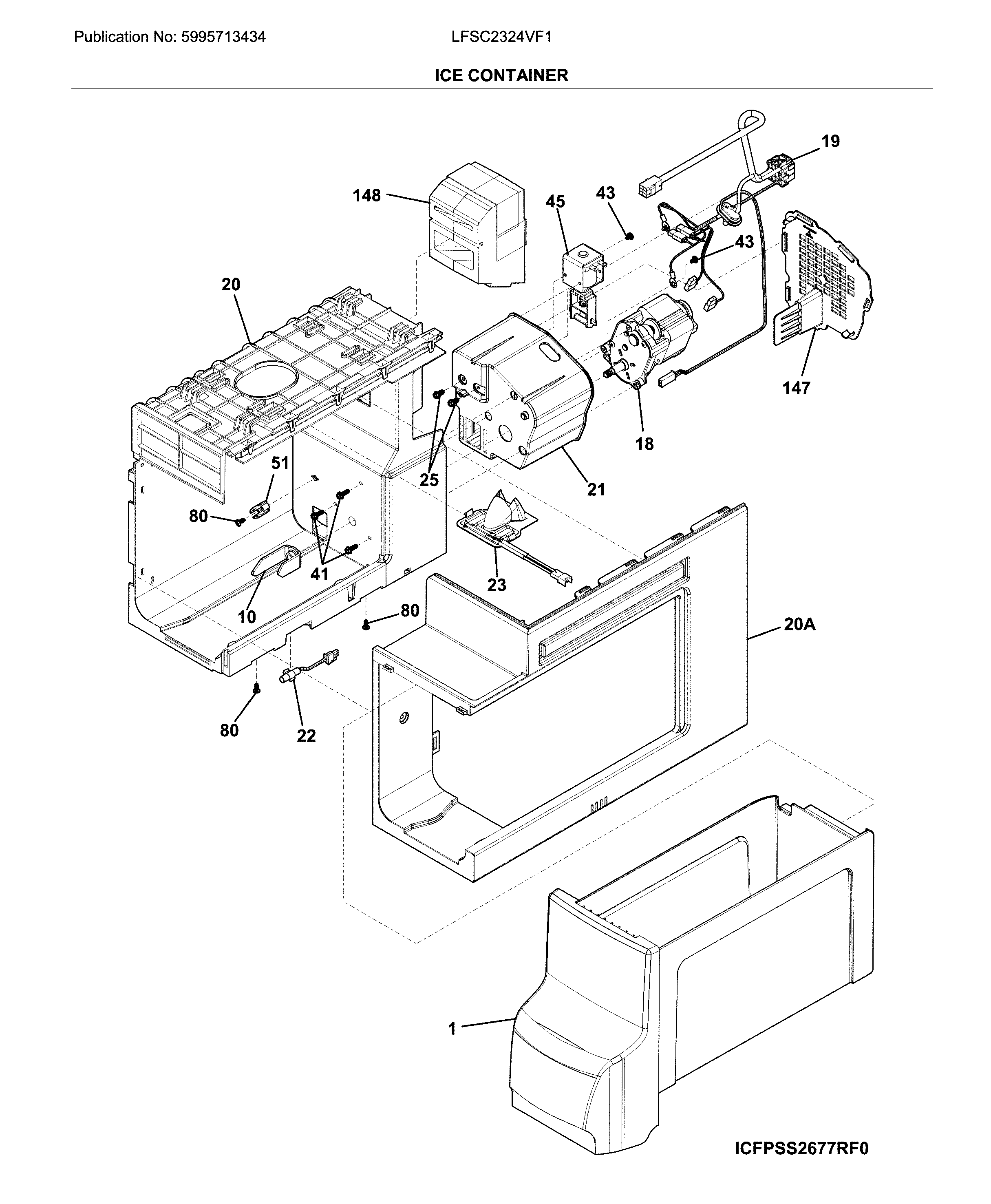

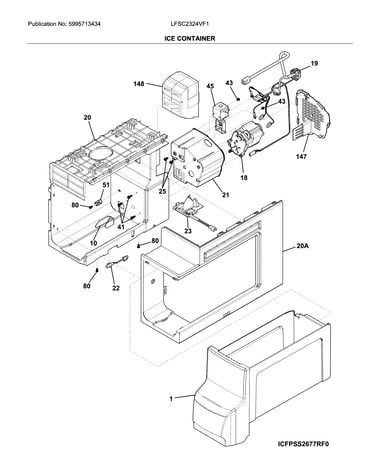

    Container diagram

    Refrigerator ice dispenser solenoid

    Part #241675704

    BEST SELLER
    $56.70 |
    10% OFF Phone Price : $62.70
    In Stock
  • Frigidaire Refrigerator Crisper Drawer Cover Frame 240350702
    #25

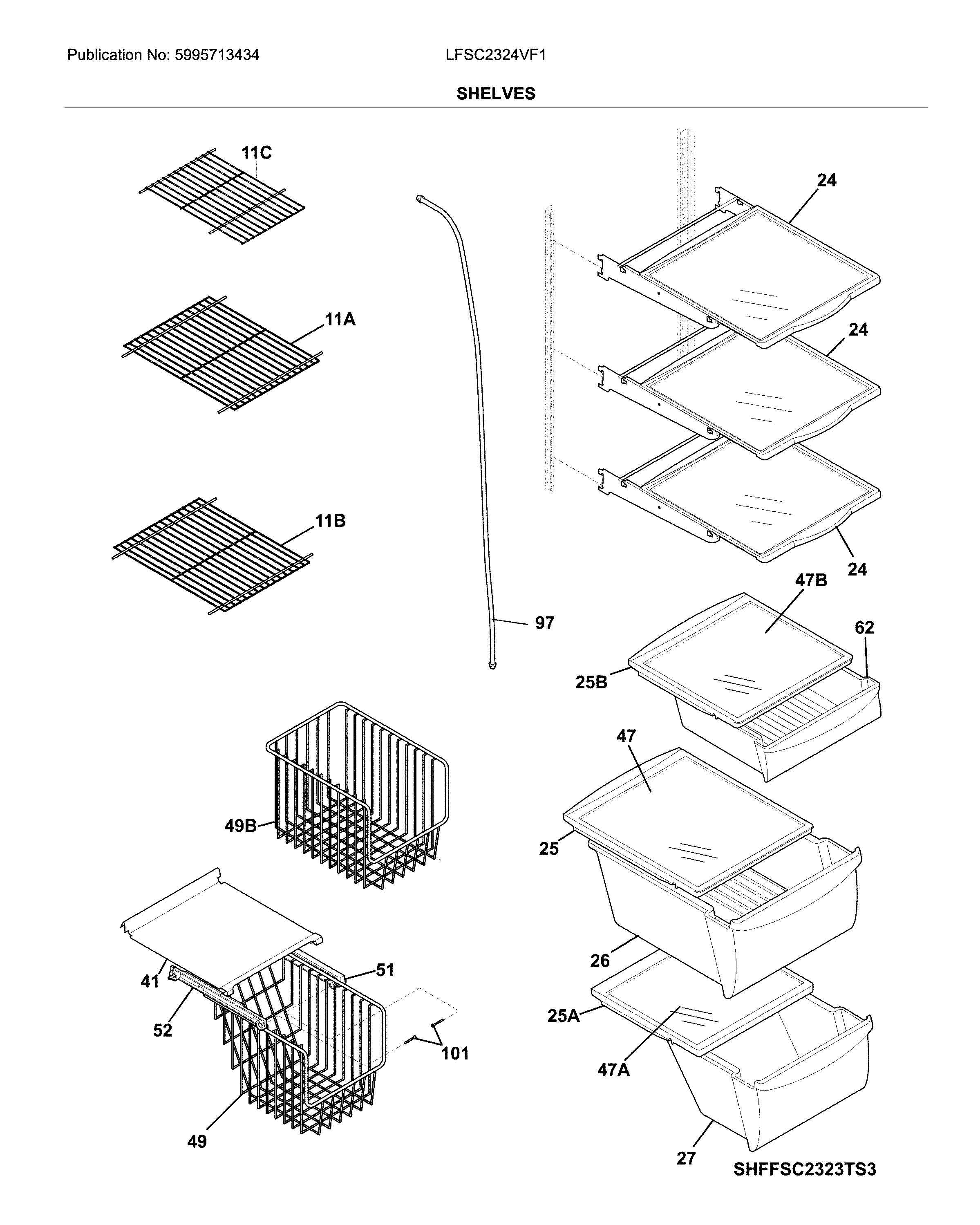

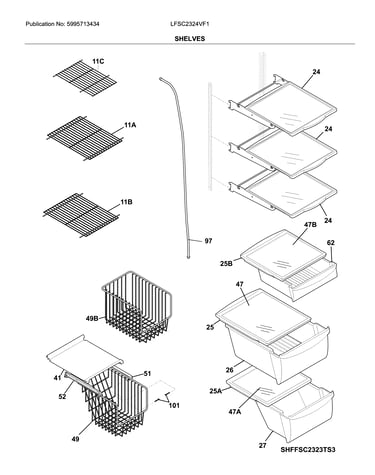

    Shelf diagram

    Frigidaire refrigerator crisper drawer cover frame

    Part #240350702

    BEST SELLER
    $57.68 |
    9% OFF Phone Price : $63.68
    In Stock
  • Refrigerator Water Filter Head 807931801
    #139

    Controls diagram

    Refrigerator water filter head

    Part #807931801

    Replaced by #5304522623

    ?
    Manufacturer substitution
    This part replaces 807931801. Substitute parts can look different from the original.
    BEST SELLER
    $49.32 |
    11% OFF Phone Price : $55.32
    In Stock
