Kenmore Elite 79047909602 wall oven Parts
Here are the diagrams and repair parts for Kenmore Elite 79047909602 wall oven, as well as links to manuals and error code tables, if available.
Installation guide
Owner’s manual
Error Codes
By Schematic
By Part

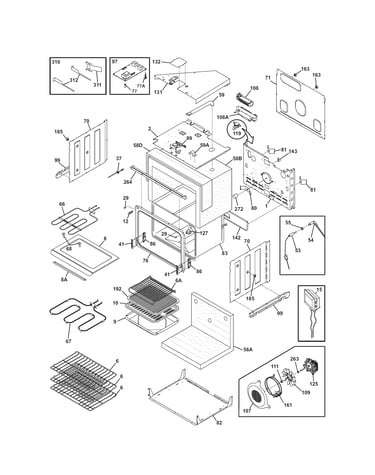

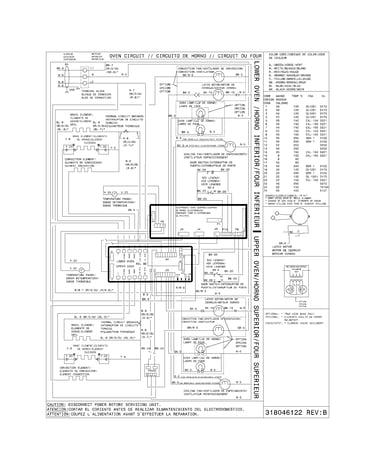

SELECT DIAGRAM
Browse Parts for 79047909602 Wall Ovens
Oven Insulation
Part #318285058Replaced by #318594301
Manufacturer substitutionThis part replaces 318285058. Substitute parts can look different from the original.In Stock$112.24
Qty
Lamp
Part #318241001Replaced by #318241008
Manufacturer substitutionThis part replaces 318241001. Substitute parts can look different from the original.In Stock$88.286% OFF Phone Price : $94.28
QtyInsulation
Part #318268099Replaced by #318268004
Manufacturer substitutionThis part replaces 318268099. Substitute parts can look different from the original.This item is not returnableIn Stock$5.9414% OFF Phone Price : $6.94QtyHarness
Part #318231750Replaced by #318402206
Manufacturer substitutionThis part replaces 318231750. Substitute parts can look different from the original.In Stock$160.40QtyInsulation
Part #318285060Replaced by #318594321
Manufacturer substitutionThis part replaces 318285060. Substitute parts can look different from the original.In Stock$106.65QtyWasher
Part #316136500Replaced by #316008401
Manufacturer substitutionThis part replaces 316136500. Substitute parts can look different from the original.In Stock$14.4512% OFF Phone Price : $16.45QtyWall Oven Bottom Liner
Part #318262011
The manufacturer no longer makes this part, and there's no substitute part

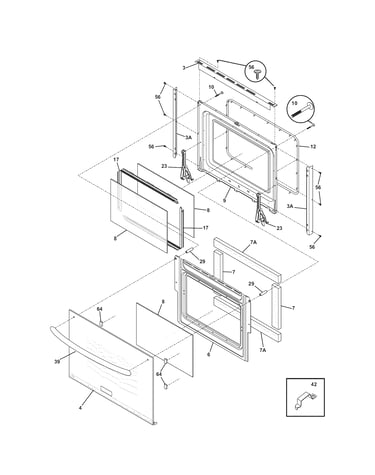

Doors diagram
Wall Oven Door Outer Panel Assembly (black)
Part #318261361
The manufacturer no longer makes this part, and there's no substitute part

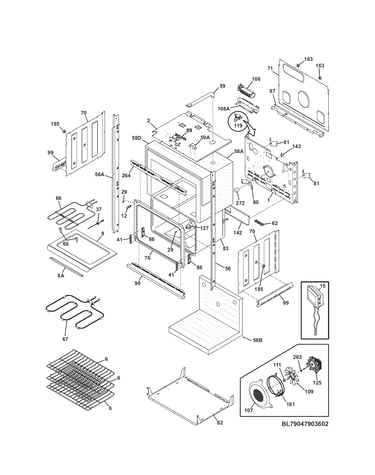

Lower oven diagram
Wall Oven Vent, Lower (white)
Part #318259710
The manufacturer no longer makes this part, and there's no substitute part
Doors diagram
Seal
Part #318053135
The manufacturer no longer makes this part, and there's no substitute part
RECOMMENDED MAINTENANCE PARTS AND ACCESSORIES
Wall Oven Owner's Manual
Part #318201512
This item is not returnable
In Stock
$4.08
20% OFF Phone Price : $5.08
Qty
Most common symptoms to help you fix your wall oven
Choose a symptom to see related wall oven repairs.
Main causes: bad oven door lock assembly, faulty electronic control board, wiring failure...
Main causes: faulty oven temperature sensor, control system problem, weak burner igniter, damaged oven element...
Main causes: lack of gas supply, broken igniter, tripped circuit breaker, broken oven element, tripped thermal fuse, con...
Main causes: lack of electrical power, bad electronic control board, faulty oven control thermostat...
Main causes: broken broil element, faulty broil burner igniter, control system failure...
Main causes: broken bake element, bad bake burner igniter, tripped thermal switch, control system failure...
Most common repair guides to help fix your wall oven
These step-by-step repair guides will help you safely fix what’s broken on your wall oven.
How to replace the thermal switch in a wall oven
If the oven won't heat after resetting the thermal switch, replace the thermal switch....
Repair time and Difficulty
60 minutes or less
How to replace a wall oven thermal fuse
The thermal fuse trips to prevent the over from excessively overheating. The oven won't heat again until you replace the...
Repair time and Difficulty
60 minutes or less
How to replace a wall oven door outer glass panel
Learn how to replace a damaged outer window panel on your wall oven door with these step-by-step instructions. ...
Repair time and Difficulty
45 minutes or less
Effective articles & videos to help repair your wall oven
Use the advice and tips in these articles and videos to get the most out of your wall oven.
Oven looking grimy? Discover how to clean a greasy oven using safe, effective methods like baking soda and more....
