Whirlpool WRT311FZDM00 refrigerator Parts

The most common Whirlpool refrigerator problem is not cooling correctly (fresh food warm, freezer warming, or temperatures swinging). On the Whirlpool WRT311FZDM00 top-mount, the most frequent root causes are airflow restrictions (frost buildup, blocked vents), dirty condenser coils, or a failed evaporator fan that cannot move cold air.

Quick checks we recommend first

• Set temperatures to normal targets: 37°F fresh food, 0°F freezer.
• Make sure air vents are not blocked by food packages.
• Clean condenser coils and the area around the condenser fan (if equipped).
• Listen for the evaporator fan running when the compressor is on.
• Check door gaskets for gaps, tears, or a loose seal.
• Look for water under crispers or in the freezer that can indicate a clogged defrost drain.

Common symptoms and the likely cause

Symptom	Most likely cause	What to do next
Freezer cold but fridge warm	Weak/no airflow from freezer	Inspect/diagnose the refrigerator evaporator fan motor WP2315539
Both sections warm	Dirty coils, compressor start issue, control/defrost issue	Clean coils; then follow troubleshooting in the WRT311FZDM00 owner’s manual
Frost wall in freezer, poor cooling	Defrost system problem	Check defrost heater/thermostat; review defrost steps in the WRT311FZDM00 owner’s manual
Water pooling inside	Defrost drain clogged	Clear drain; confirm cabinet is level and doors close fully

Why this happens (and why it matters)

Cooling problems usually come down to heat not leaving the cabinet (dirty coils) or cold air not moving (frost buildup or a failed fan). Fixing airflow and heat transfer early prevents food spoilage, reduces run time, and helps protect major components like the compressor.

When a part is commonly needed

If the compressor runs but you do not feel airflow from the freezer vents, the evaporator fan circuit is a top suspect. For this model, a common replacement is the refrigerator evaporator fan motor WP2315539.

Last updated: February 2026

For your Whirlpool WRT311FZDM00 refrigerator, the fastest way to get the correct part number is to start with the model and serial tag, then use that exact model number to look up the illustrated parts list. On this model, the tag is located on the inside wall of the fresh food (refrigerator) compartment; see the WRT311FZDM00 owner's manual.

Steps to find the right part number (and avoid ordering the wrong part)

• Locate the model and serial label inside the refrigerator compartment.
• Write down the full model number (WRT311FZDM00) and the serial number.
• Identify the part by name and location (for example: evaporator fan area, door gasket, light switch).
• Match the part on the diagram to the manufacturer part number and any part ID listed.
• If multiple versions appear, use the serial number range notes in the parts breakdown.

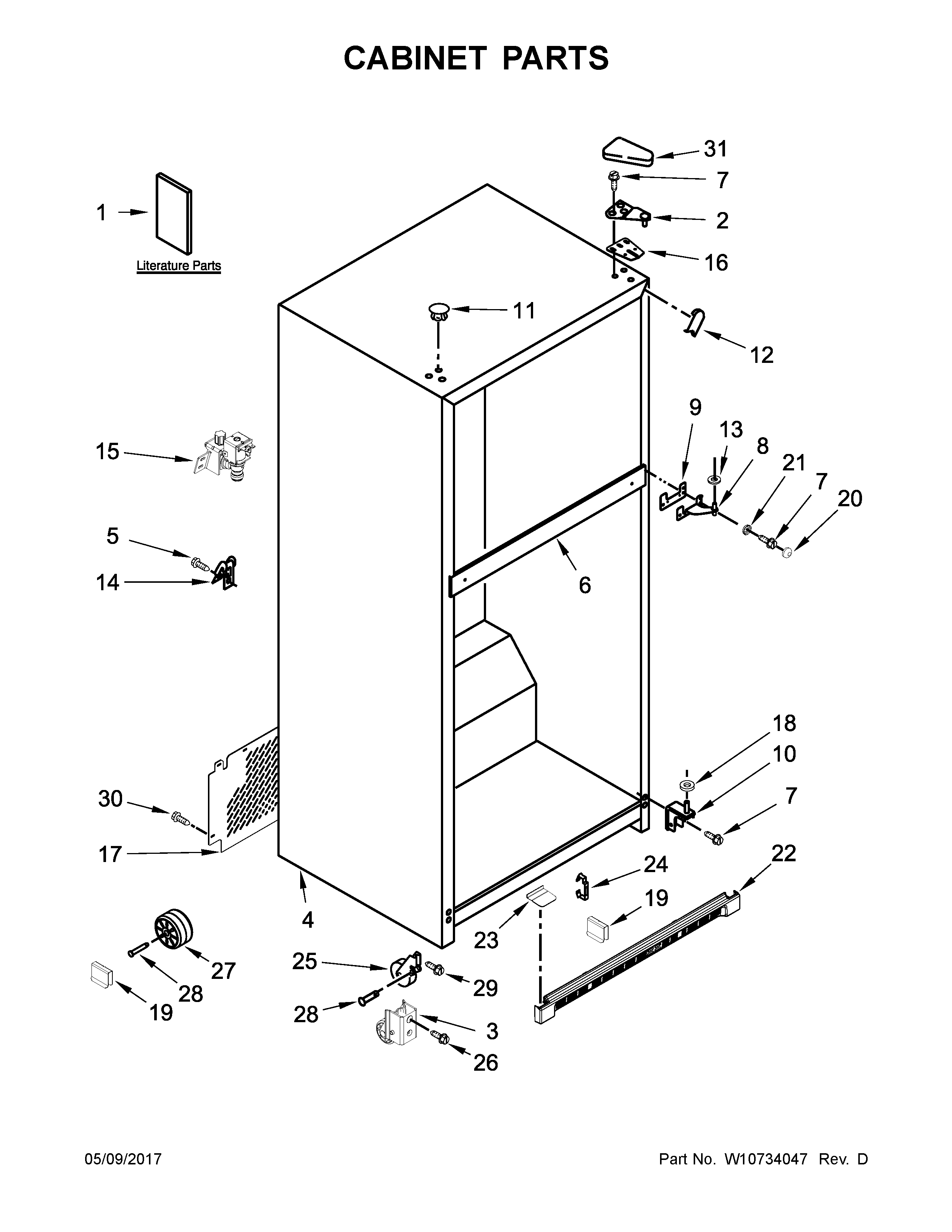

Common label locations on Whirlpool refrigerators

Most Whirlpool top-mount refrigerators place the model/serial tag in one of these spots:

Location	What to look for	Why it helps
Inside fresh food compartment wall	Model and serial label	Confirms exact model for parts lookup
Side wall near crisper area	Sticker/plate	Easy to read without moving the unit
Behind lower kickplate (some models)	Tech/ID label	Helps with service identification

Example: how a part number shows up

Once you confirm the model, you can search by the part name you need. For example, if you are troubleshooting a warm refrigerator section or noisy airflow, the evaporator fan motor is a common match for symptoms; see the refrigerator evaporator fan motor WP2315539.

Why it matters

Whirlpool often uses similar-looking parts across multiple refrigerators, but mounting points, wiring connectors, and revisions can differ. Using the exact WRT311FZDM00 model and serial information keeps the part number match accurate and prevents returns.

Last updated: February 2026

In a Whirlpool top-mount refrigerator like model WRT311FZDM00, the most commonly replaced parts are the ones that wear out from daily use or affect cooling and sealing: door gaskets, fan motors, defrost parts, and water system components (if equipped). Use the WRT311FZDM00 owner's manual to match symptoms to the right part.

Most common replacement parts (and what they affect)

• Door gaskets and seals: prevent warm air leaks, frost buildup, and long run times
• Evaporator fan parts: move cold air through the freezer and fresh-food section
• Defrost system parts: prevent the evaporator from icing over
• Lights and switches: restore interior lighting and door-activated functions
• Water inlet valve (on water/ice models): controls water flow to the ice maker or dispenser
• Shelves, bins, and handles: break from normal loading and impact

Model-relevant examples for WRT311FZDM00

These are common “go-to” parts for cooling, airflow, and door sealing issues on this model:

Symptom	Likely area	Example part for this model
Warm fridge, freezer OK or weak airflow	Evaporator fan	Refrigerator evaporator fan motor WP2315539
Frost/ice buildup on back freezer wall	Defrost system	Refrigerator defrost heater WPW10316428 or refrigerator bi-metal thermostat WPW10392132
Door not sealing, moisture or frost at edges	Door gasket	Refrigerator door gasket W10860480 (color and door position matter)
No ice, slow fill, or no water to ice maker	Water valve	Refrigerator inlet valve WPW10279909

Quick checks before you buy a part

• Confirm the temperature settings and allow 24 hours after changes.
• Check for airflow blockage (packages against vents, overpacked freezer).
• Inspect gaskets for gaps, tears, or hardened sections.
• Listen for the evaporator fan when the freezer door switch is pressed.
• If you see heavy frost, suspect a defrost heater/thermostat issue.

Why it matters

Replacing the correct wear item first (like a gasket, fan motor, or defrost component) often restores normal cooling and reduces energy use. It also helps prevent secondary problems like ice buildup, water leaks, and compressor overwork.

Last updated: February 2026

Yes, for Whirlpool model WRT311FZDM00, we recommend DIY replacement for many non-sealed-system parts (handles, gaskets, light switch, shelves) as long as you disconnect power before servicing and reinstall all panels before running the refrigerator again; use the WRT311FZDM00 owner's manual for the correct steps and safety rules.

What you can usually replace yourself

These repairs are typically straightforward with basic hand tools:

• Door gaskets and door alignment adjustments
• Handles and hinge hardware
• Light switch and light bulb access (follow the manual’s LED guidance)
• Evaporator fan blade (when accessible and not iced in)
• Water inlet valve (if your unit is connected to a water supply)

Repairs we recommend leaving to a technician

Some work involves higher electrical risk, refrigerant handling, or specialized tools:

• Compressor and sealed cooling system work
• Evaporator replacement (sealed-system related)
• Electrical diagnostics beyond simple part swaps
• Persistent cooling failures after basic checks

Repair type	Typical DIY?	Why
Door gasket/handle	Yes	Low risk; mostly mechanical fasteners and fitment
Light switch/bulb	Yes	Simple access; power-off safety is key
Evaporator fan motor	Often	Moderate disassembly; verify icing and wiring
Compressor/evaporator (sealed system)	No	Specialized tools and refrigerant safety

Safety steps we follow before any DIY repair

The manual’s safety section is the right baseline for every repair:

• Unplug the refrigerator (or disconnect power) before servicing
• Use a grounded 3-prong outlet; never use an extension cord or adapter
• Replace all parts and panels before operating
• Use nonflammable cleaner around the appliance
• Use two or more people to move or tip the refrigerator when needed

Parts that commonly solve “noisy” or “not cooling” complaints

If you are troubleshooting while planning a DIY repair, these are common suspects on top-mount refrigerators:

• Refrigerator evaporator fan motor WP2315539 (fan not running, warm fridge, noise)
• Refrigerator light switch W11384469 (light not responding to door position)
• Refrigerator inlet valve WPW10279909 (no water to ice maker or dispenser on plumbed setups)

Why it matters

Choosing the right DIY jobs helps you save time and money while avoiding sealed-system and high-voltage risks. For WRT311FZDM00, the manual also includes model-specific procedures like door removal and reversal, which prevents hinge damage and alignment problems.

Last updated: February 2026

Most Whirlpool refrigerators, including the Whirlpool WRT311FZDM00 top-mount style, typically last 10 to 18 years with normal household use. Consistent basics like correct installation, good airflow, and routine cleaning usually make the biggest difference in how long the sealed system and cooling components keep performing.

Typical lifespan and what affects it

A refrigerator’s life is mostly driven by compressor run time, heat removal, and door-seal performance.

• Usage patterns: frequent door openings and warm kitchens increase run time
• Maintenance: dirty condenser coils raise operating temperatures
• Airflow: blocked vents inside the cabinet reduce cooling efficiency
• Door sealing: worn gaskets cause temperature swings and longer run cycles
• Power quality: repeated outages or surges can stress electrical components

Quick maintenance checklist (best return for the effort)

Use these steps to help your WRT311FZDM00 reach the upper end of the typical lifespan range.

• Vacuum/brush condenser coil area regularly (especially with pets)
• Keep food from blocking interior air vents
• Confirm doors close fully and stay aligned
• Clean and dry door gaskets; condition them lightly if they feel tacky
• Set stable temps (avoid extreme cold settings unless needed)

Common “end-of-life” symptoms vs. fixable issues

Symptom	Often fixable?	Common next step
Warm fridge, freezer still cold	Yes	Check airflow and evaporator fan operation
Frost buildup on back wall/freezer	Yes	Check defrost system components
Loud buzzing/clicking, won’t start	Sometimes	Check start components, then compressor
Water puddles under unit	Yes	Clear/inspect defrost drain

If you suspect an airflow problem, the evaporator fan is a frequent wear item; see refrigerator evaporator fan motor WP2315539.

Why it matters

A refrigerator that runs hotter or longer than designed wears out the compressor faster and can lead to food temperature problems. Small maintenance habits reduce run time and help stabilize temperatures.

For model-specific care, installation clearances, and operating guidance, follow the WRT311FZDM00 owner’s manual.

Last updated: February 2026

A failing Whirlpool WRT311FZDM00 refrigerator usually shows up as poor cooling, unusual or changing noises, water leaks, or heavy frost. Some sounds are normal during operation, so we focus on symptoms that persist and affect temperature, food quality, or safety. See the WRT311FZDM00 owner's manual for operating checks and safety steps.

Common warning signs to watch for

• Food spoils faster than normal or temperatures swing (fresh food too warm, freezer soft ice cream)
• Frost or ice buildup on the freezer back wall (possible defrost problem)
• Water pooling under the refrigerator or inside the fresh food section (possible drain issue)
• Loud new noises that do not match normal “buzzing/clicking/pulsating” described in the manual
• Doors do not seal well, you feel warm air at the gasket, or you see heavy condensation
• The unit runs almost constantly and still cannot hold temperature

What’s normal vs. not normal (quick guide)

Symptom	Often normal	Often a problem
Short buzzing/clicking	Valve/controls cycling	Repeated loud clicking with no cooling
Gentle fan “whoosh”	Evaporator fan running	Grinding/squealing (fan blade hitting ice)
Longer run times	Warm room, frequent door openings	Runs nonstop and temps rise
Occasional water sounds	Defrost meltwater draining	Persistent puddles or interior leaks

Fast checks we recommend before replacing parts

1. Confirm the control is turned on and allow up to 24 hours after installation or major loading changes.
2. Check door closing and gasket contact all the way around; clean the sealing surfaces.
3. Listen at the freezer for the evaporator fan; if it is noisy or not running, inspect for ice interference.
4. Look for frost patterns on the freezer rear panel; heavy frost often points to a defrost system issue.
5. If you have an ice maker or water line, inspect for seepage; a failing valve can cause leaks.

Parts commonly involved when symptoms match

• Noisy or non-running freezer fan: refrigerator evaporator fan motor WP2315539, fan blade WP2163777
• Frost buildup/defrost issues: refrigerator defrost heater WPW10316428, refrigerator bi-metal thermostat WPW10392132
• Water supply leaks (if equipped): refrigerator inlet valve WPW10279909

Why it matters

Catching cooling, defrost, or door-seal problems early helps prevent food loss, reduces compressor strain, and can stop small leaks from turning into floor damage.

Last updated: February 2026

You typically do not need to empty the drain pan on your Whirlpool WRT311FZDM00 because defrost water normally drains into the pan and evaporates. We do recommend checking and cleaning the pan periodically; if you see overflow or persistent odors, address it right away.

What the drain pan does (and what’s normal)

During the defrost cycle, water can run into the drain pan and you may even hear water running; that’s normal operation for this refrigerator.

Normal signs

• A small amount of water in the pan
• Water that slowly disappears over time
• Occasional “water running” sound during/after defrost

Not normal signs

• Water on the floor near the refrigerator
• Strong musty odors that return quickly after cleaning
• Standing water that never evaporates

When you should clean or empty it

Clean the drain pan when you notice odor, visible slime, or any sign of overflow. In most homes, a quick inspection and cleaning every 3 to 6 months prevents mold and buildup.

Quick check and clean steps

• Unplug the refrigerator (or shut off power at the breaker).
• Locate the drain pan (commonly at the bottom near the compressor area).
• Carefully slide the pan out; avoid spilling.
• Wash with warm water and mild dish soap; dry completely.
• Reinstall the pan and restore power.

For model-specific access details and safety guidance, follow the WRT311FZDM00 owner’s manual.

If the pan is overflowing, fix the cause

Overflow usually points to a drainage problem, not a “full pan” problem.

Symptom	Most common cause	What to do next
Water under fridge	Clogged defrost drain	Clear the drain path and clean the pan
Bad odor	Dirty pan or stagnant water	Clean and dry the pan; recheck in 1 to 2 weeks
Warm fridge, odd noises	Airflow/cooling issue	Inspect for frost buildup; check fan operation

If you suspect an airflow issue (warm temps, frost, weak cooling), the evaporator fan system is a common checkpoint; see refrigerator evaporator fan motor WP2315539 and our how to fix your evaporator cooling fan guide.

Why it matters

A clean drain pan helps prevent odors, reduces the chance of water leaks, and supports stable cooling performance by keeping the defrost drainage system working as designed.

Last updated: February 2026
