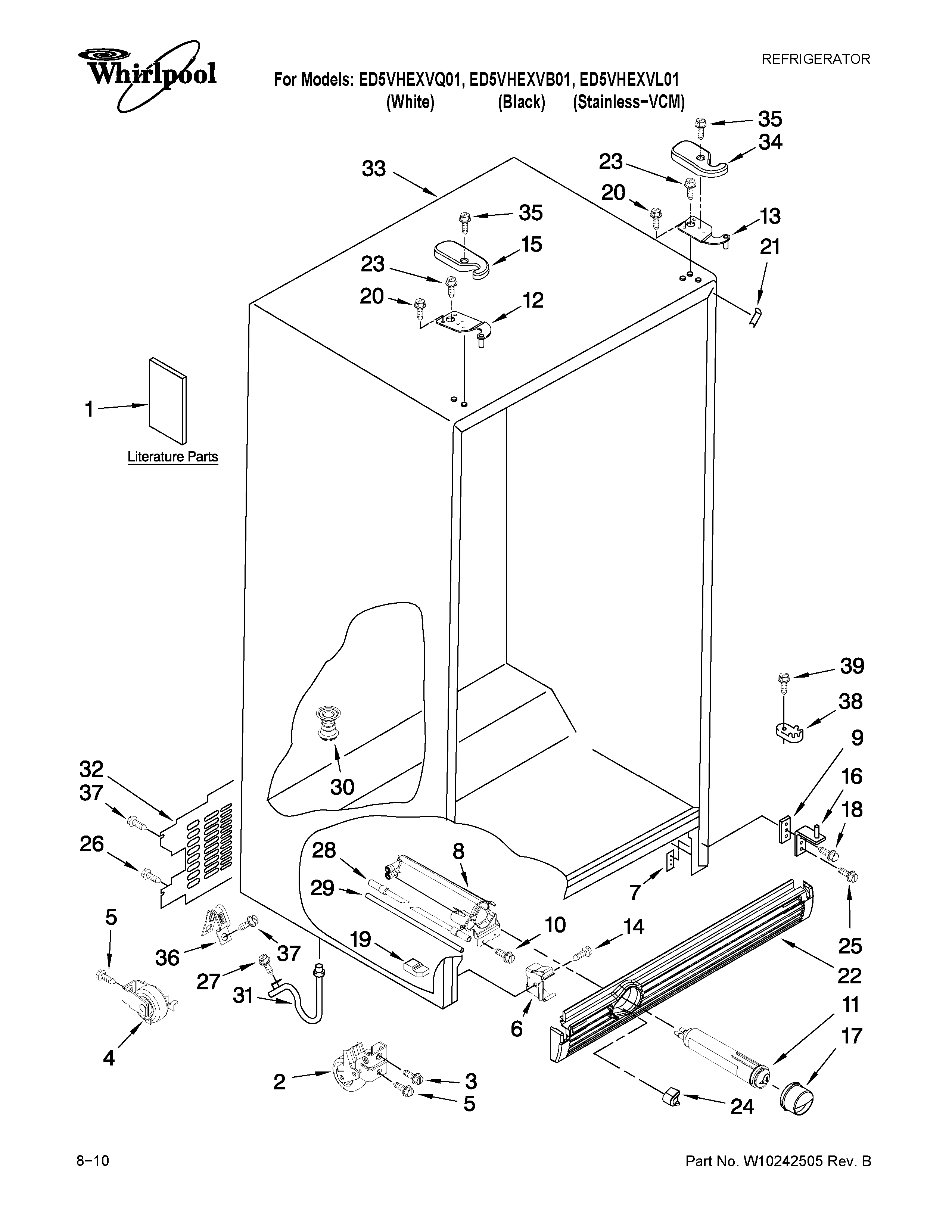

Whirlpool ED5VHEXVB01 side-by-side refrigerator Parts

The Whirlpool ED5VHEXVB01 is a full-size side-by-side refrigerator with 25.4 cu. ft. total capacity (about 14.8 cu. ft. fresh food and 10.3 cu. ft. freezer). For the exact exterior measurements and clearance guidance, use the ED5VHEXVB01 owner's manual.

Key size specs to know

When customers ask “how big,” we focus on these practical measurements:

• Total capacity: 25.4 cu. ft.
• Fresh food capacity: about 14.8 cu. ft.
• Freezer capacity: about 10.3 cu. ft.
• Overall dimensions: width, height, and depth (including handles)
• Clearances: space needed for airflow and door swing

Typical exterior dimensions for this model

Use these as your planning numbers, then confirm against your kitchen opening and the spec section in the manual.

Measurement	What to measure	Why it matters
Width	Widest point across the cabinet/doors	Fit in the cutout and door swing clearance
Height	Floor to top hinge	Prevents hinge or cabinet interference
Depth	Front of doors/handles to back	Confirms walkway and counter clearance
Capacity	Cubic feet	Confirms storage needs

How we recommend confirming fit in your kitchen

• Measure the opening (width, height, depth) and compare to the refrigerator’s overall dimensions.
• Plan clearance behind and above the unit for ventilation, plus room for doors to open.
• Measure your unit directly if it is already in place; measure to the widest and deepest points (often the handles).
• If you are also servicing the dispenser system, keep filter access in mind; the refrigerator water filter EDR3RXD1 needs room to remove and reinstall.

Why it matters

Accurate dimensions prevent delivery issues, ensure proper ventilation for the compressor and condenser, and avoid door-swing interference, especially on side-by-side models with an external ice and water dispenser.

Last updated: February 2026

For Whirlpool model ED5VHEXVB01, the correct replacement water filter is the standard base filter cartridge, part number 4396841. You can confirm by checking the model and serial label inside the fresh food compartment and matching it to the filter information in the ED5VHEXVB01 owner's manual.

Quick ways to confirm the right filter

• Check the model and serial number label on the inside wall of the refrigerator compartment.
• Look for the filter location (many are in the base grille area on side-by-side models).
• Match the filter part number listed for ED5VHEXVB01 in the manual.
• If your dispenser flow slows down or the filter light turns red (if equipped), plan to replace the filter.
• Keep the filter cap; you reuse it when installing the replacement filter.

Filter match for this model

Refrigerator model	Correct filter part number	What to buy
ED5VHEXVB01	4396841	Refrigerator water filter EDR3RXD1

When to replace the filter

Most ED5VHEXVB01 units follow these timing cues:

• Replace when the status light turns red (on models with a filter status light).
• If there is no status light, replace about every 6 months.
• Replace sooner if water flow to the dispenser or ice maker decreases noticeably.

Why it matters

Using the correct Whirlpool filter helps maintain normal water flow to the dispenser and ice maker, and it keeps filtration performance consistent. The wrong filter can fit poorly, leak, or restrict water flow.

Last updated: February 2026

The most common Whirlpool refrigerator problem is a cooling complaint (not cold enough, warm spots, or temperature swings). On Whirlpool model ED5VHEXVB01, this is often tied to restricted airflow, dirty condenser coils, or a defrost system issue that lets frost build up and block cooling.

Most common symptoms we see

• Fresh food section warms up while the freezer seems OK
• Freezer warms up or ice cream gets soft
• Unit runs “all the time” (high-efficiency compressors can run longer, but constant running usually signals a problem)
• Unusual noises that are new or getting louder
• Water leaking inside the refrigerator or onto the floor

Quick checks that fix many “not cooling” calls

Start with these basics before replacing parts:

• Set controls to the recommended mid-range settings; give it 24 hours to stabilize
• Clean condenser coils and confirm the condenser fan area is clear
• Make sure vents inside both compartments are not blocked by food packages
• Check door gaskets for gaps and confirm doors close fully
• Look for frost buildup on the freezer back panel (a strong clue of a defrost problem)

Normal vs. problem noises (what the manual describes)

Some sounds are expected during normal operation; use this as a quick guide.

Sound	Often normal?	Common source
Buzzing	Yes	Water valve filling ice maker
Pulsating	Yes	Fans or compressor adjusting
Sizzling/gurgling	Yes	Defrost water dripping on heater
Rattling	Sometimes	Items on top, water line, refrigerant flow
Loud grinding/squealing	No	Fan blade hitting ice, failing fan motor

When a part is commonly involved

If the basics check out, these parts are frequent suspects on side-by-side refrigerators:

• Water and ice issues: refrigerator water inlet valve W10408179, clogged filter, frozen water line

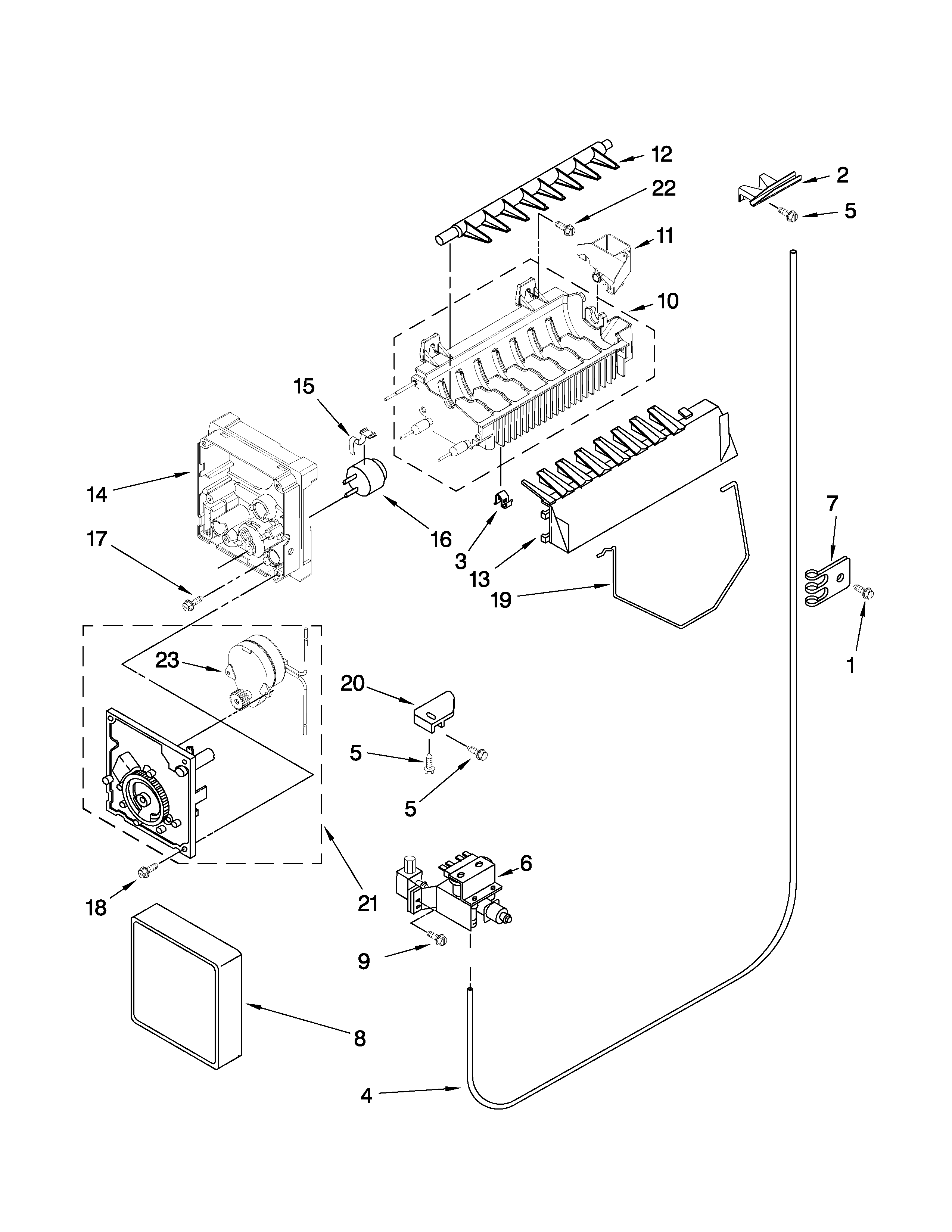

• Ice production problems: refrigerator ice maker WPW10190965
• Defrost-related cooling loss: defrost heater, bi-metal thermostat, or adaptive defrost control board

Why it matters

Cooling and airflow problems can cause food spoilage, heavy frost, and excessive run time. Catching a dirty coil, blocked vent, or early defrost issue quickly helps the ED5VHEXVB01 cool evenly and run more efficiently.

For model-specific operating tips and troubleshooting steps, use the ED5VHEXVB01 owner's manual.

Last updated: February 2026

Whirlpool refrigerators typically last 12 to 15 years on average, and many run closer to 20 years with good care. For your Whirlpool ED5VHEXVB01 side-by-side refrigerator, routine maintenance and quick fixes (like sealing air leaks and keeping airflow clear) are what most often determine whether you reach the high end.

Typical lifespan and what to expect

Most full-size refrigerators fall into these real-world ranges:

Condition	Typical lifespan	What you’ll notice
Well maintained	15 to 20 years	Stable temps, fewer repairs
Average use	12 to 15 years	Occasional ice or cooling issues
Poor maintenance	8 to 12 years	Warm temps, noisy running, leaks

Maintenance that extends life (most impact)

We recommend these habits for a Whirlpool side-by-side like the ED5VHEXVB01:

• Vacuum condenser coils and the grille area regularly to reduce compressor strain
• Keep door gaskets clean and sealing tightly to prevent long run times
• Replace the water filter on schedule to protect the dispenser and ice maker flow
• Keep vents inside the fresh food and freezer sections unblocked
• Set temps correctly (about 37°F fresh food, 0°F freezer)
• Level the refrigerator so doors close fully and don’t drift open

For model-specific care and settings, follow the ED5VHEXVB01 owner's manual.

“Repair or replace?” quick decision guide

Use this checklist when your refrigerator is aging:

• Repair makes sense if cooling is still strong and the issue is isolated (ice maker, valve, thermostat)
• Replace makes sense if you have repeated sealed-system problems, persistent warm temps, or frequent major repairs

Common repairable items on this model include the refrigerator water inlet valve W10408179 and the refrigerator ice maker WPW10190965.

Why it matters

A refrigerator near the end of its lifespan often runs longer to hold temperature, which can increase wear on the compressor and raise energy use. Simple maintenance and early part replacement usually prevent the “domino effect” of bigger failures.

Last updated: February 2026

EveryDrop style filters for Whirlpool model ED5VHEXVB01 cost more because they are certified to reduce a wide range of contaminants under standardized testing, and they are built to meet specific flow, pressure, and fit requirements for the refrigerator’s water system. Use the ED5VHEXVB01 owner's manual to confirm the correct cartridge type and replacement interval.

What you are paying for

• Certification and testing: The manual’s water filter data sheets list contaminant reduction performance and the test conditions used.
• Tight performance specs: Filters are designed to maintain a target service flow rate (commonly around 0.5 gpm) at typical household water pressures.
• Model-specific fit and sealing: The cartridge and cap interface must seal correctly to prevent leaks and bypass.
• Consistent taste and flow: Higher-grade media can keep chlorine taste down while still flowing well.
• Brand and distribution costs: OEM-branded filters often carry higher pricing than basic, generic cartridges.

Confirm the correct filter for ED5VHEXVB01

Your manual references a replacement cartridge (part #4396841). On our parts list for this model, the compatible replacement is the refrigerator water filter EDR3RXD1.

What to check	Why it matters	What “good” looks like
Cartridge ID and fit	Prevents leaks and bypass	Locks in smoothly, no dripping
Water flow rate	Keeps dispenser usable	Strong, steady stream
Change interval	Maintains filtration	About every 6 months, or sooner if flow drops
Water pressure	Protects valve and filter	Typically 30 to 120 psi

How to lower your cost without sacrificing performance

• Replace on schedule; waiting until flow is very low can stress the system.
• If flow drops early, check for low house water pressure or a partially closed shutoff valve.
• Purge air after replacement by dispensing several cups of water.
• If you see leaking at the filter area, inspect the cap and seating surface.

Why it matters

A properly matched filter helps protect the water inlet valve, supports reliable ice maker and dispenser operation, and keeps water quality consistent. If the filter is overdue, the most common symptom is noticeably reduced water flow.

Last updated: February 2026
