Model # WA37T26EW2-96146A Official Fisher & Paykel washer

Here are the diagrams and repair parts for Official Fisher & Paykel WA37T26EW2-96146A washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

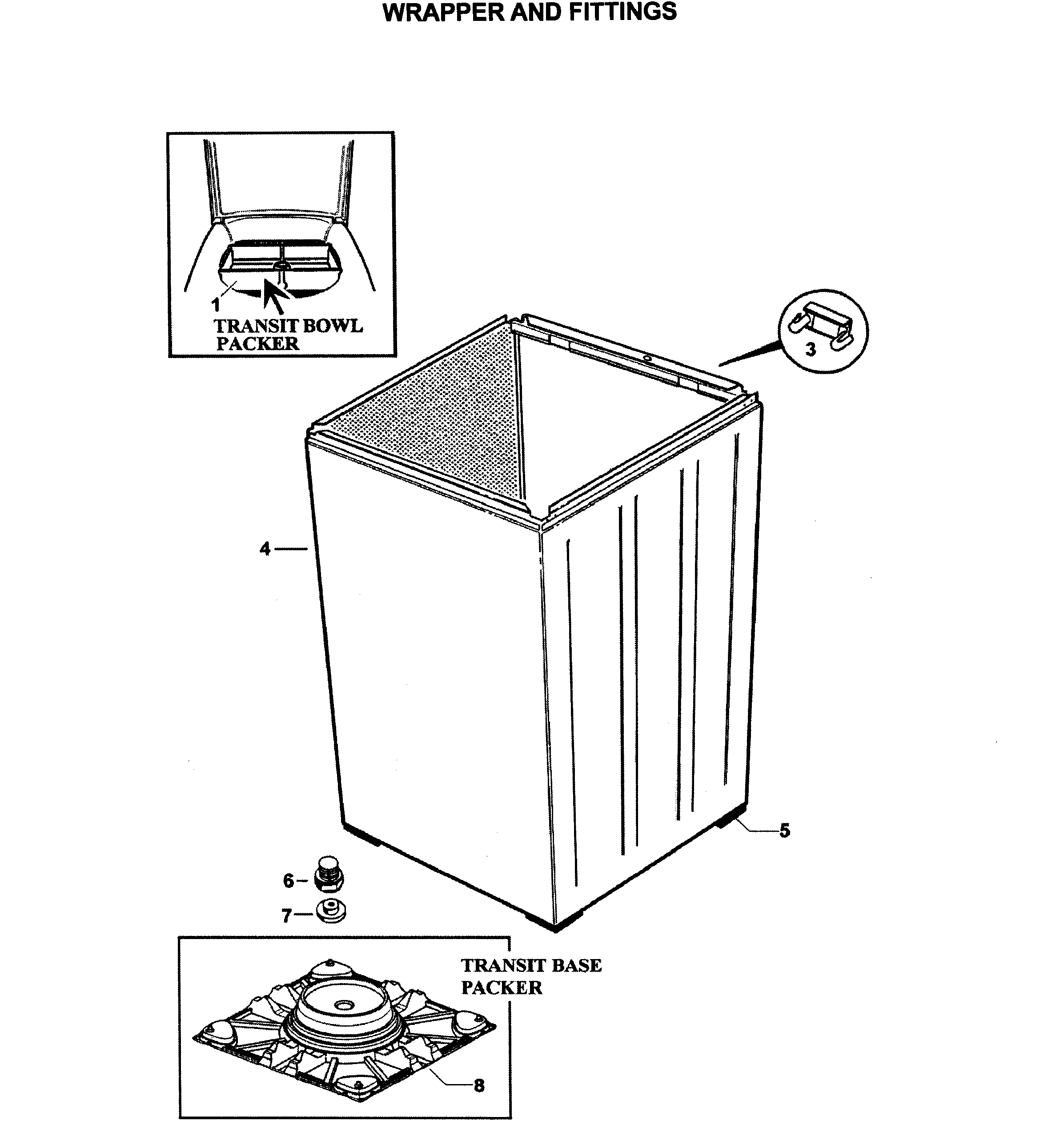

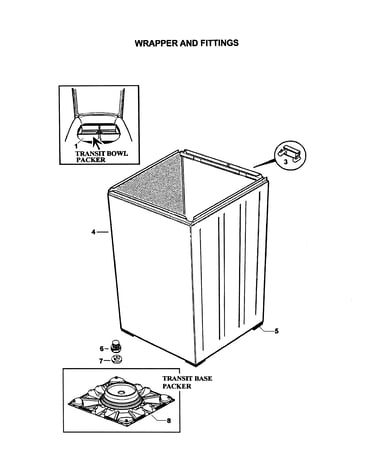

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 89 parts  |

Fisher & Paykel Washer Tub Ring Spring
#3

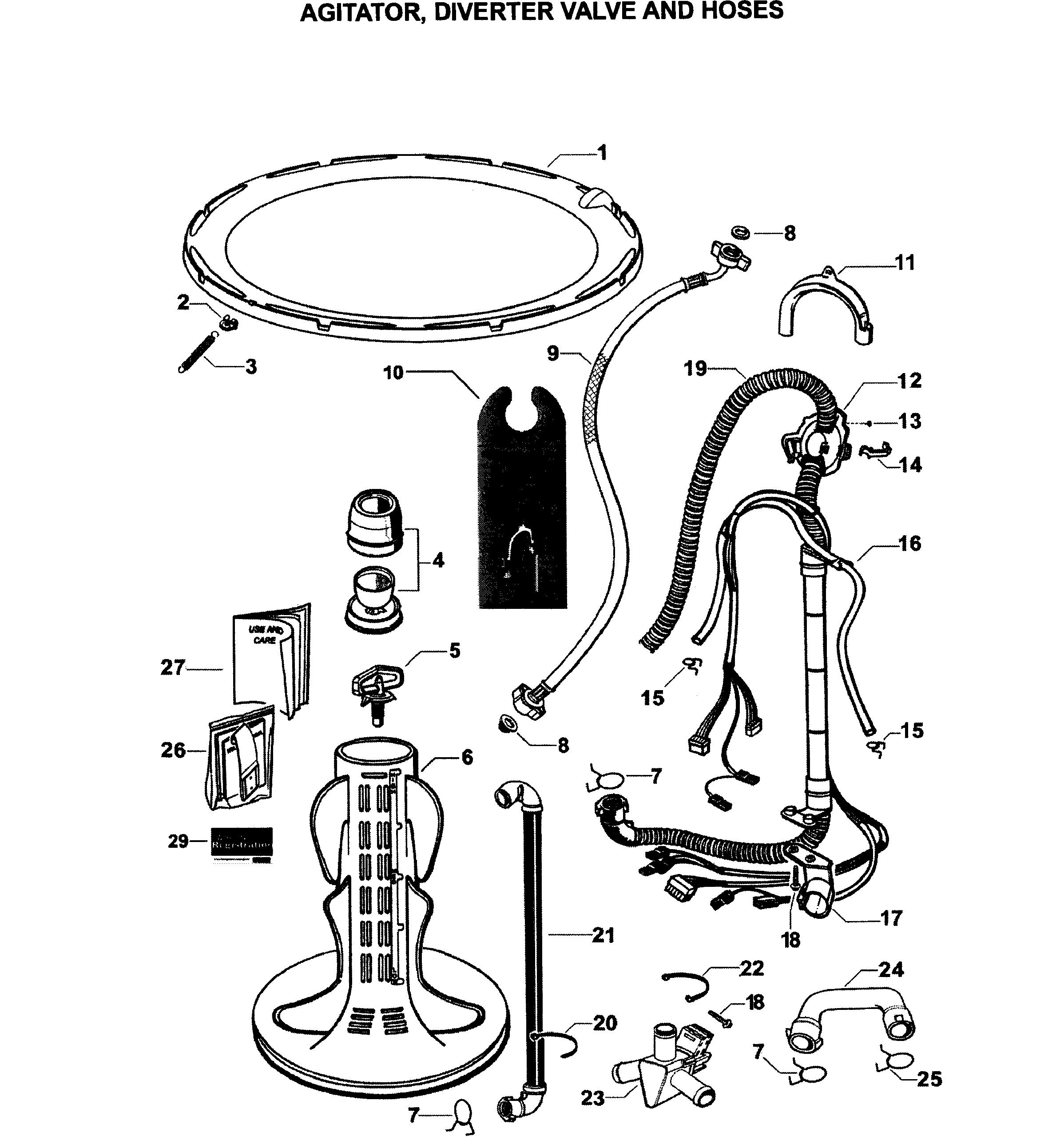

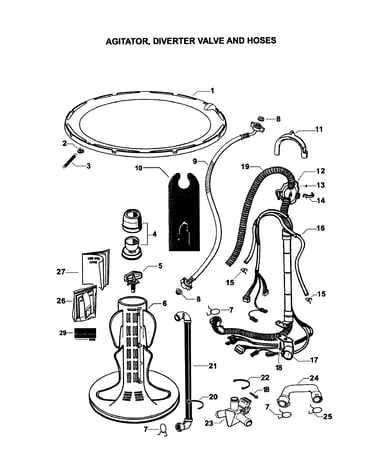

Agitator assy diagram

Fisher & paykel washer tub ring spring

Part #420122P

$7.77
11% OFF Phone Price : $8.77
In Stock
Fisher & Paykel Washer Water Inlet Valve
#13

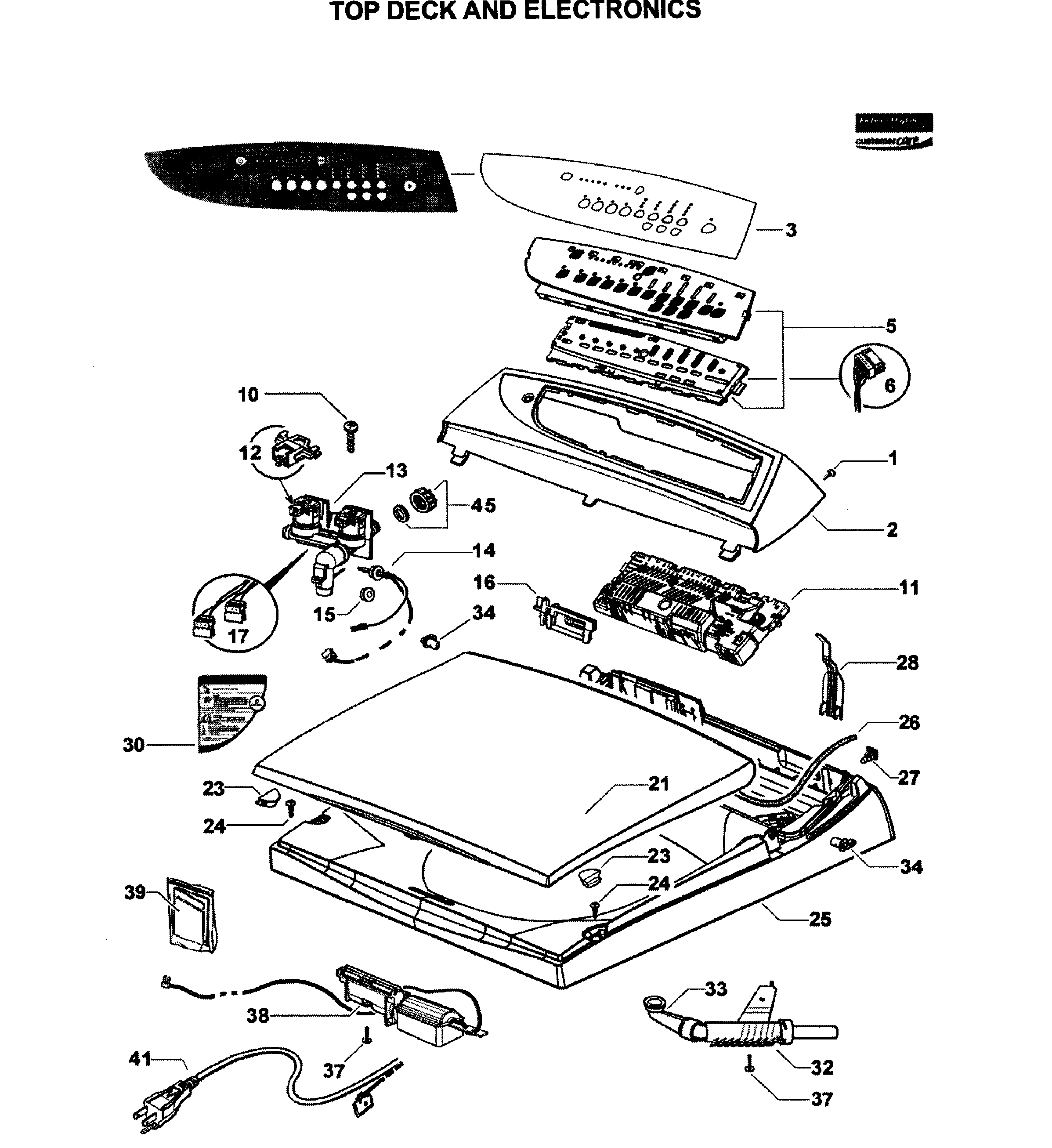

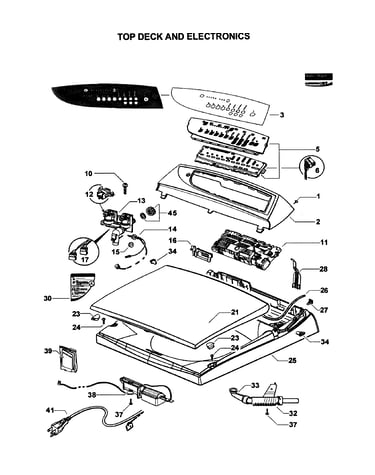

Top deck assy diagram

Fisher & paykel washer water inlet valve

Part #421177P

$154.61
6% OFF Phone Price : $164.61
In Stock
Fisher & Paykel Washer Agitator (replaces 478083P)
#6

Agitator assy diagram

Agitator

Part #478083P

Replaced by #425025P

?
Manufacturer substitution
This part replaces 478083P. Substitute parts can look different from the original.
$137.24
7% OFF Phone Price : $147.24
In Stock
Fisher & Paykel Screw
#2

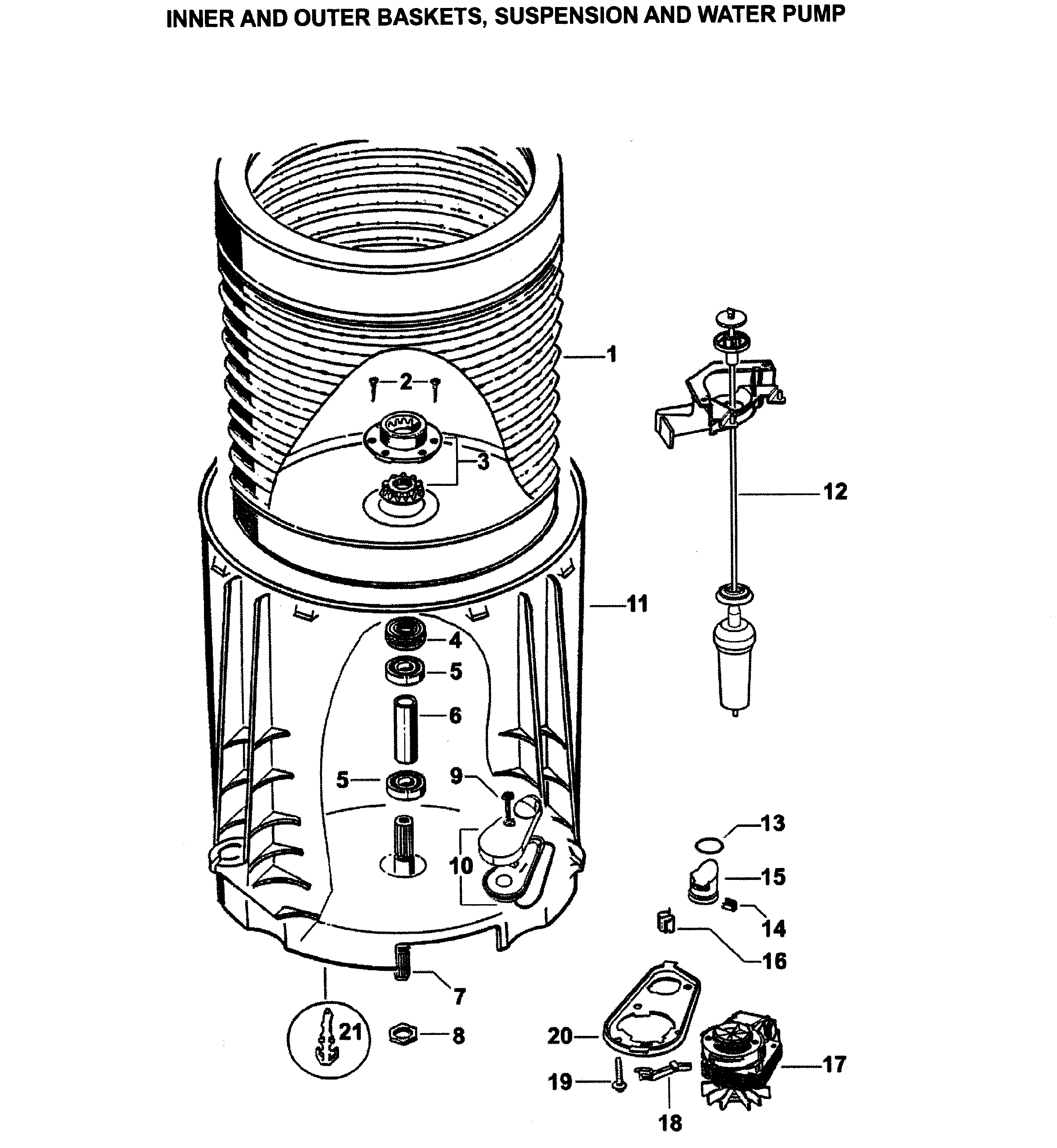

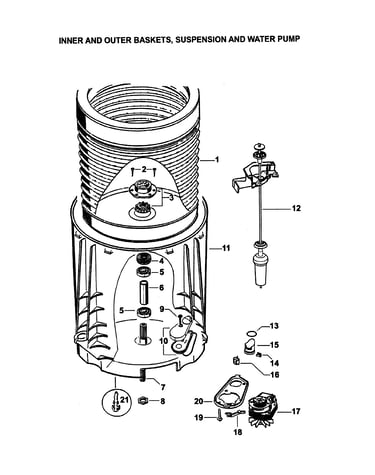

Baskets assy diagram

Fisher & paykel screw

Part #425131P

In Stock
Fisher & Paykel Washer Motor Stator
#3

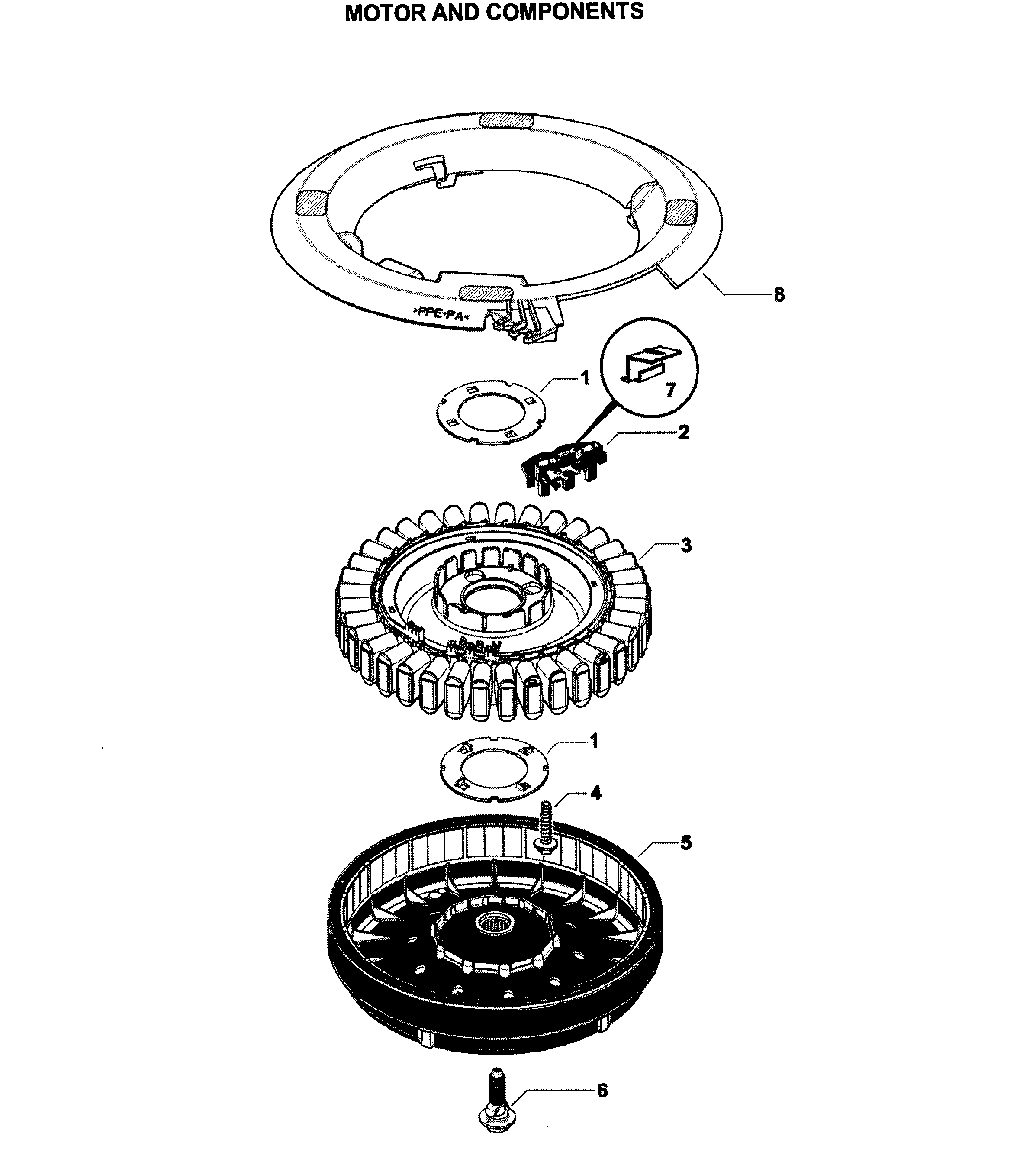

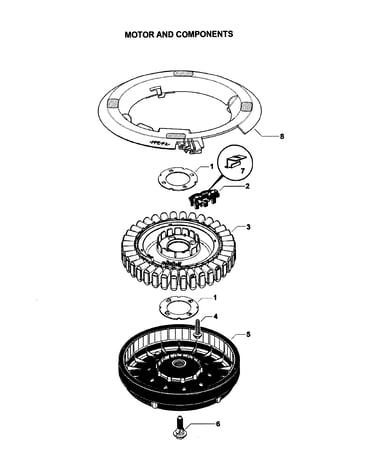

Motor assy diagram

Fisher & paykel washer motor stator

Part #438516P

$155.29
6% OFF Phone Price : $165.29
In Stock
Fisher & Paykel Washer Drain Pump Bellows O-Ring
#13

Baskets assy diagram

Fisher & paykel washer drain pump bellows o-ring

Part #425149

$15.49
11% OFF Phone Price : $17.49
In Stock
Fisher & Paykel Washer Retainer Clip
#2

Agitator assy diagram

Fisher & paykel washer retainer clip

Part #420197P

This item is not returnable
$7.77
11% OFF Phone Price : $8.77
In Stock
Fisher & Paykel Washer Lid
#21

Top deck assy diagram

Fisher & paykel washer lid

Part #478070P

$194.13
5% OFF Phone Price : $204.13
In Stock
Washer Drain Hose
#21

Agitator assy diagram

Recirculation hose

Part #426863

Replaced by #420400

?
Manufacturer substitution
This part replaces 426863. Substitute parts can look different from the original.
In Stock
Fisher & Paykel Washer Thermistor
#14

Top deck assy diagram

Thermistor

Part #479452P

Replaced by #424429P

?
Manufacturer substitution
This part replaces 479452P. Substitute parts can look different from the original.
$36.00
12% OFF Phone Price : $41.00
In Stock
