KitchenAid KBFS25ECWH00 refrigerator Parts

Here are the diagrams and repair parts for KitchenAid KBFS25ECWH00 refrigerator, as well as links to manuals and error code tables, if available.

KitchenAid KBFS25ECWH00 refrigerator
By Schematic
By Part

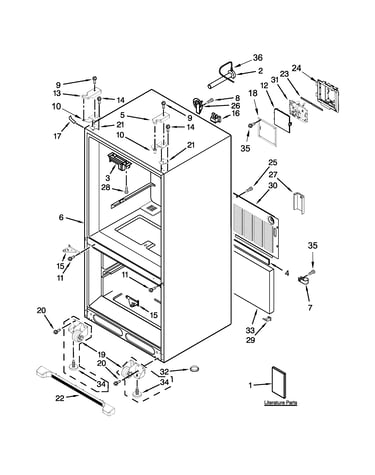

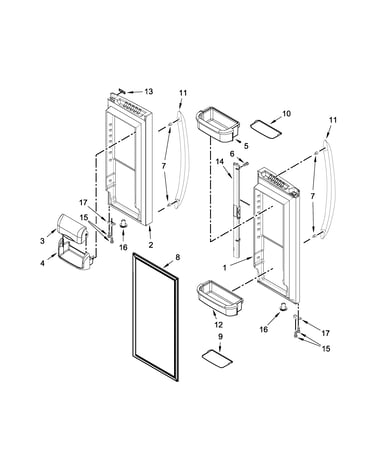

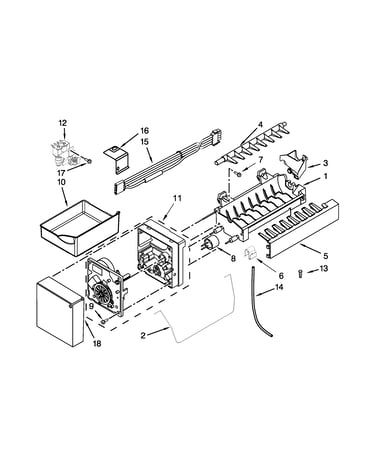

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for KBFS25ECWH00 Refrigerators

  • Whirlpool Everydrop 4 Refrigerator Water Filter for KitchenAid KBFS25ECWH00 - Part EDR4RXD1

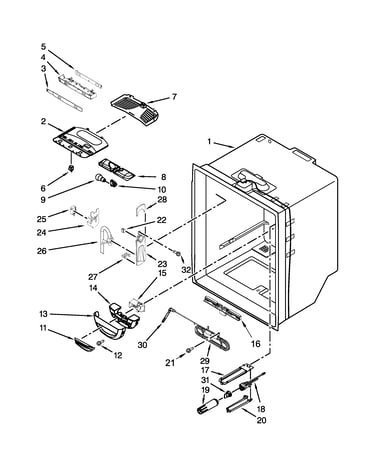

    Refrigerator liner parts diagram

    Refrigerator Filter

    Part #W10336197

    Replaced by #EDR4RXD1

    Info Icon
    Manufacturer substitution
    This part replaces W10336197. Substitute parts can look different from the original.
    Get free shipping with Automatic Reorder
    In Stock
    $61.63
    9% OFF Phone Price : $67.63Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Uv Filter Dryer for KitchenAid KBFS25ECWH00 - Part WPW10143759

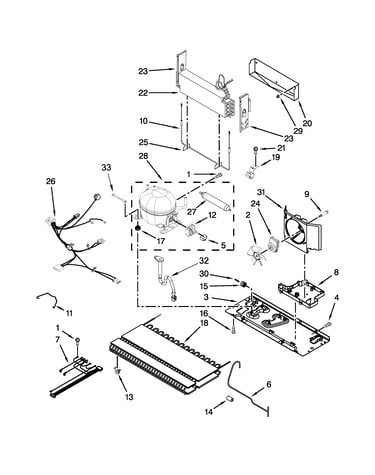

    Unit parts diagram

    Drier Tube

    Part #W10177049

    Replaced by #WPW10143759

    Info Icon
    Manufacturer substitution
    This part replaces W10177049. Substitute parts can look different from the original.
    In Stock
    $22.16
    21% OFF Phone Price : $28.16Info Icon
    Minus Item
    Qty
    Plus Item
  • Whirlpool Refrigerator Pantry Drawer End Cap Set for KitchenAid KBFS25ECWH00 - Part W10874836

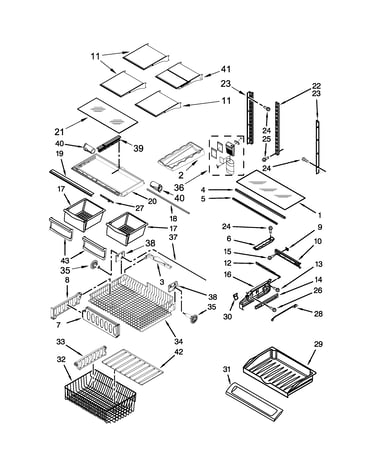

    Shelf parts diagram

    Refrigerator End Cap

    Part #12656106

    Replaced by #W10874836

    Info Icon
    Manufacturer substitution
    This part replaces 12656106. Substitute parts can look different from the original.
    In Stock
    $29.45
    17% OFF Phone Price : $35.45Info Icon
    Minus Item
    Qty
    Plus Item
  • Whirlpool Refrigerator Pantry Drawer End Cap Set for KitchenAid KBFS25ECWH00 - Part W10874836

    Shelf parts diagram

    Refrigerator Pantry Drawer End Cap

    Part #12656019

    Replaced by #W10874836

    Info Icon
    Manufacturer substitution
    This part replaces 12656019. Substitute parts can look different from the original.
    In Stock
    $29.45
    17% OFF Phone Price : $35.45Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Temperature Sensor Kit for KitchenAid KBFS25ECWH00 - Part W10316760

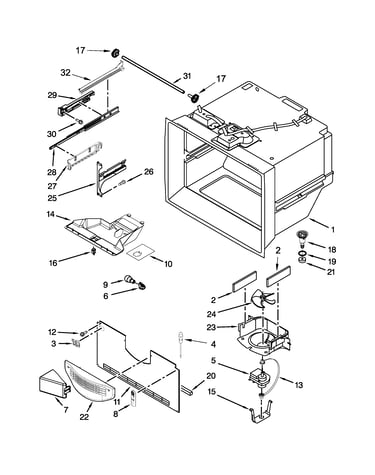

    Freezer liner parts diagram

    Refrigerator Thermistor

    Part #12791419SP

    Replaced by #W10316760

    Info Icon
    Manufacturer substitution
    This part replaces 12791419SP. Substitute parts can look different from the original.
    In Stock
    $33.96
    15% OFF Phone Price : $39.96Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Compressor for KitchenAid KBFS25ECWH00 - Part W10233960

    Unit parts diagram

    Refrigerator Compressor

    Part #W10445422

    Replaced by #W10233960

    Info Icon
    Manufacturer substitution
    This part replaces W10445422. Substitute parts can look different from the original.
    In Stock
    $357.09
    $12.00 OFF Phone Price : $369.09Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Evaporator Fan Motor for KitchenAid KBFS25ECWH00 - Part W11024089

    Freezer liner parts diagram

    Refrigerator Evaporator Motor

    Part #13062901

    Replaced by #W11024089

    Info Icon
    Manufacturer substitution
    This part replaces 13062901. Substitute parts can look different from the original.
    In Stock
    $54.35
    10% OFF Phone Price : $60.35Info Icon
    Minus Item
    Qty
    Plus Item
  • Whirlpool Refrigerator Run Capacitor for KitchenAid KBFS25ECWH00 - Part WPW10350564

    Unit parts diagram

    Refrigerator Run Capacitor

    Part #W10350564

    Replaced by #WPW10350564

    Info Icon
    Manufacturer substitution
    This part replaces W10350564. Substitute parts can look different from the original.
    In Stock
    $59.30
    9% OFF Phone Price : $65.30Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Crisper Drawer Slide Rail for KitchenAid KBFS25ECWH00 - Part WPW10326469

    Shelf parts diagram

    Center Rail

    Part #W10326469N

    Replaced by #WPW10326469

    Info Icon
    Manufacturer substitution
    This part replaces W10326469N. Substitute parts can look different from the original.
    In Stock
    $17.88
    10% OFF Phone Price : $19.88Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Drain Tube for KitchenAid KBFS25ECWH00 - Part W10619951

    Unit parts diagram

    Extension-dr

    Part #W10622099

    Replaced by #W10619951

    Info Icon
    Manufacturer substitution
    This part replaces W10622099. Substitute parts can look different from the original.
    In Stock
    $22.71
    27% OFF Was : $31.13Info Icon
    Minus Item
    Qty
    Plus Item
