Kenmore 66513042K110 undercounter dishwasher Parts

Yes. We still carry replacement parts for Kenmore dishwashers, including model 66513042K110, as long as the part is still manufactured and available. The key is matching the exact model number so you get the correct fit for items like the heating element, drain pump, spray arm, and door seal.

How to make sure you order the right part

Use your model number (66513042K110) and confirm the part’s location and description in the exploded views and parts list in the 66513042K110 owner's manual.

Before ordering, we recommend:

• Confirm the full model number from the rating label (do not rely on a partial number)
• Identify the failed symptom (no heat, not draining, leaking, poor cleaning)
• Match the part by name and position in the diagram, not just by appearance
• Compare your original part’s markings to the replacement listing when possible
• Check installation notes and hardware requirements (clamps, brackets, seals)

Common Kenmore dishwasher parts that are often available

For this Kenmore undercounter dishwasher, these are frequent repair items:

Symptom	Common part to check	Example part for this model
Dishes not drying, water not heating	Heating circuit	Dishwasher heating element W10518394
Water left in tub	Drain system	Dishwasher drain pump WPW10348269

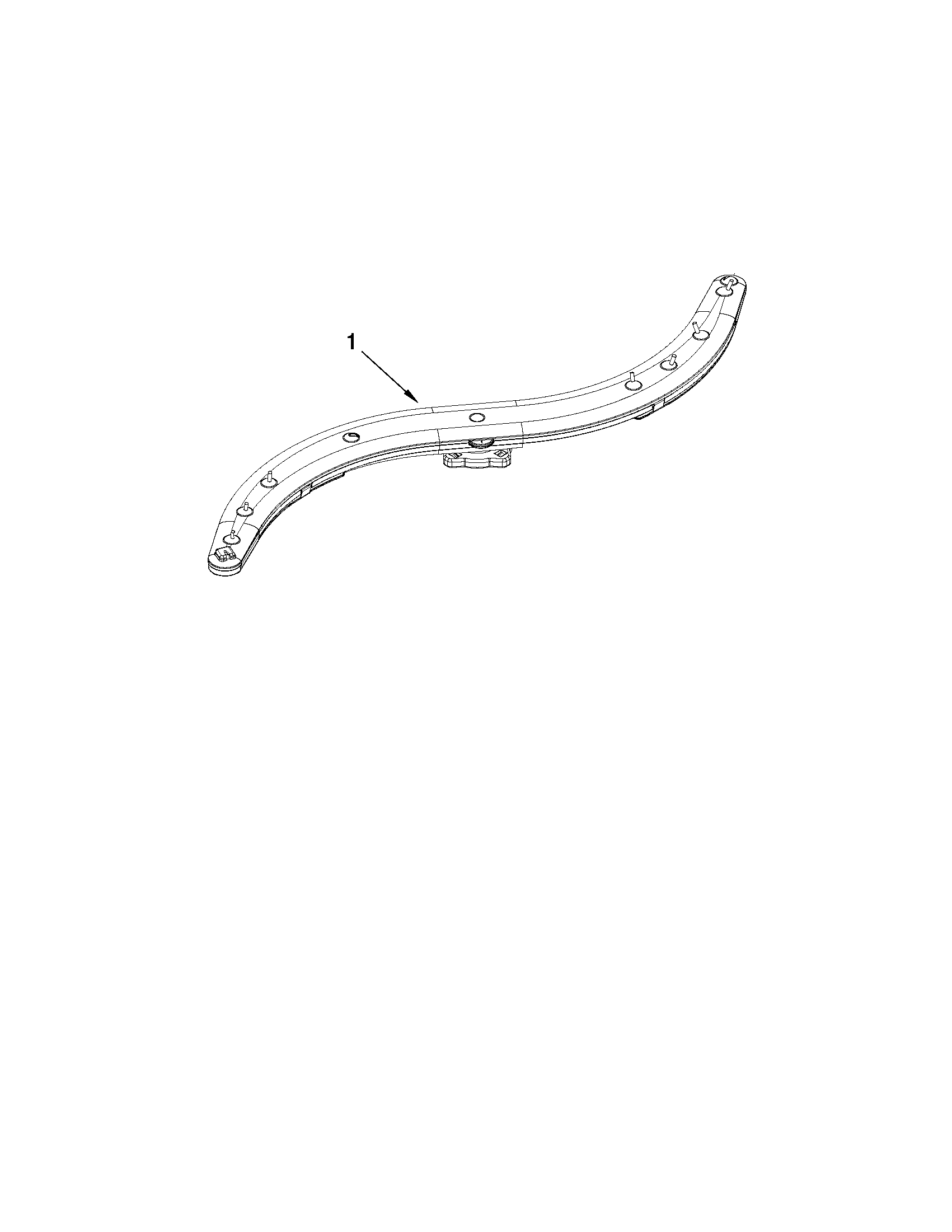

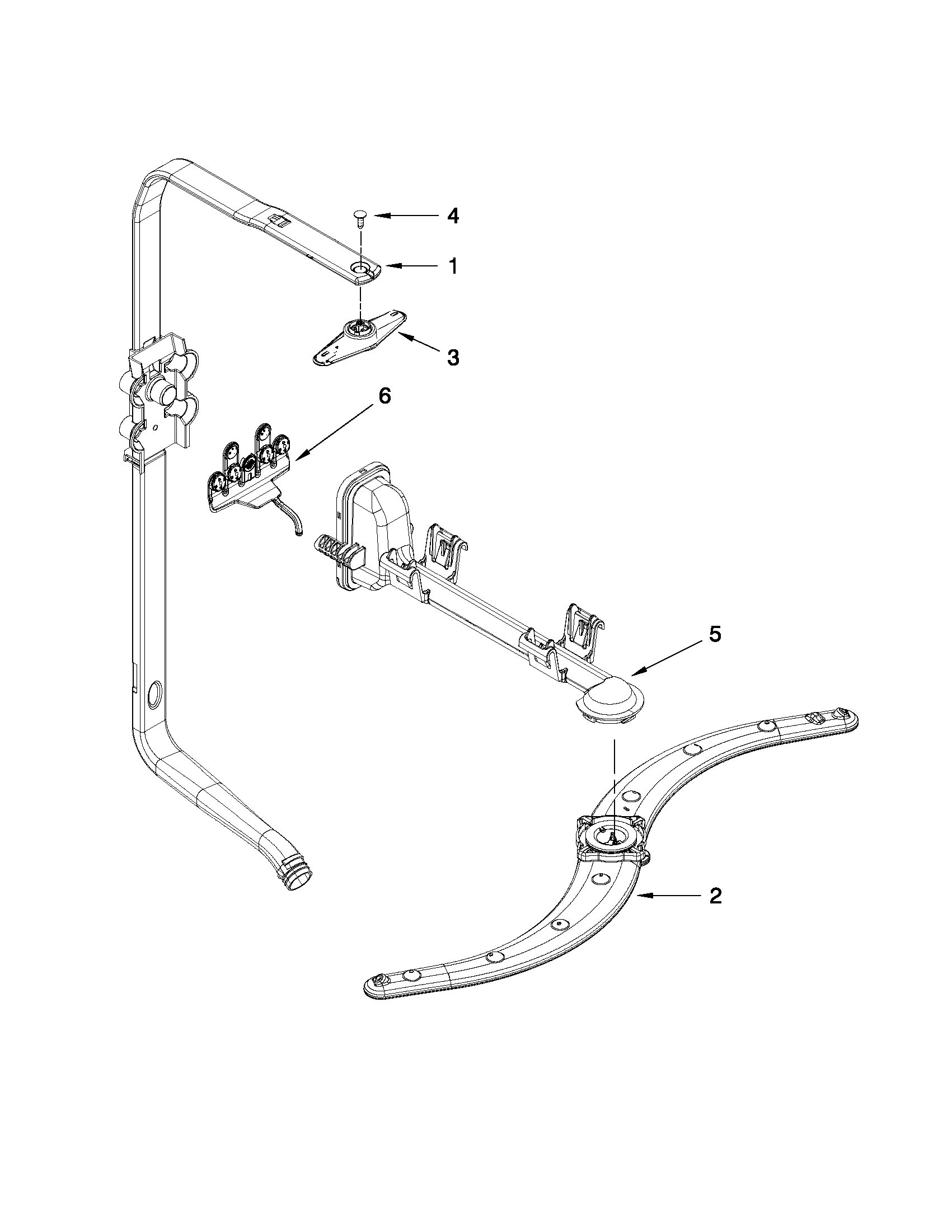

Poor wash coverage	Spray system	Dishwasher spray arm WPW10491331
Leaks at the door	Door sealing surfaces	Dishwasher door seal and strike kit W10542314
Slow fill or no fill	Water supply	Dishwasher water inlet valve WPW10327249

Why it matters

Kenmore dishwashers are built with model-specific mounting points, electrical connectors, and water-path designs. Using the exact 66513042K110 model match helps prevent ordering a look-alike part that does not seal correctly, does not plug in, or does not mount to the sump and tub properly.

Last updated: February 2026

To force-drain your Kenmore 66513042K110 dishwasher, cancel the cycle to run the drain pump; if water still stands, shut off power, remove the water manually, then clear the filter area and confirm the drain hose is routed correctly so the unit can pump out normally.

Fast ways to get the water out

• Press Cancel/Drain (or Cancel) and wait 1 to 2 minutes for the drain pump to run.
• If the tub is still full, turn off power at the breaker before reaching into the sump area.
• Bail out water with a cup, then use towels or a turkey baster for the last bit.
• Remove and clean the filter area (food debris here commonly blocks draining).
• Check the sink/disposer connection for a clog where the dishwasher drain hose attaches.

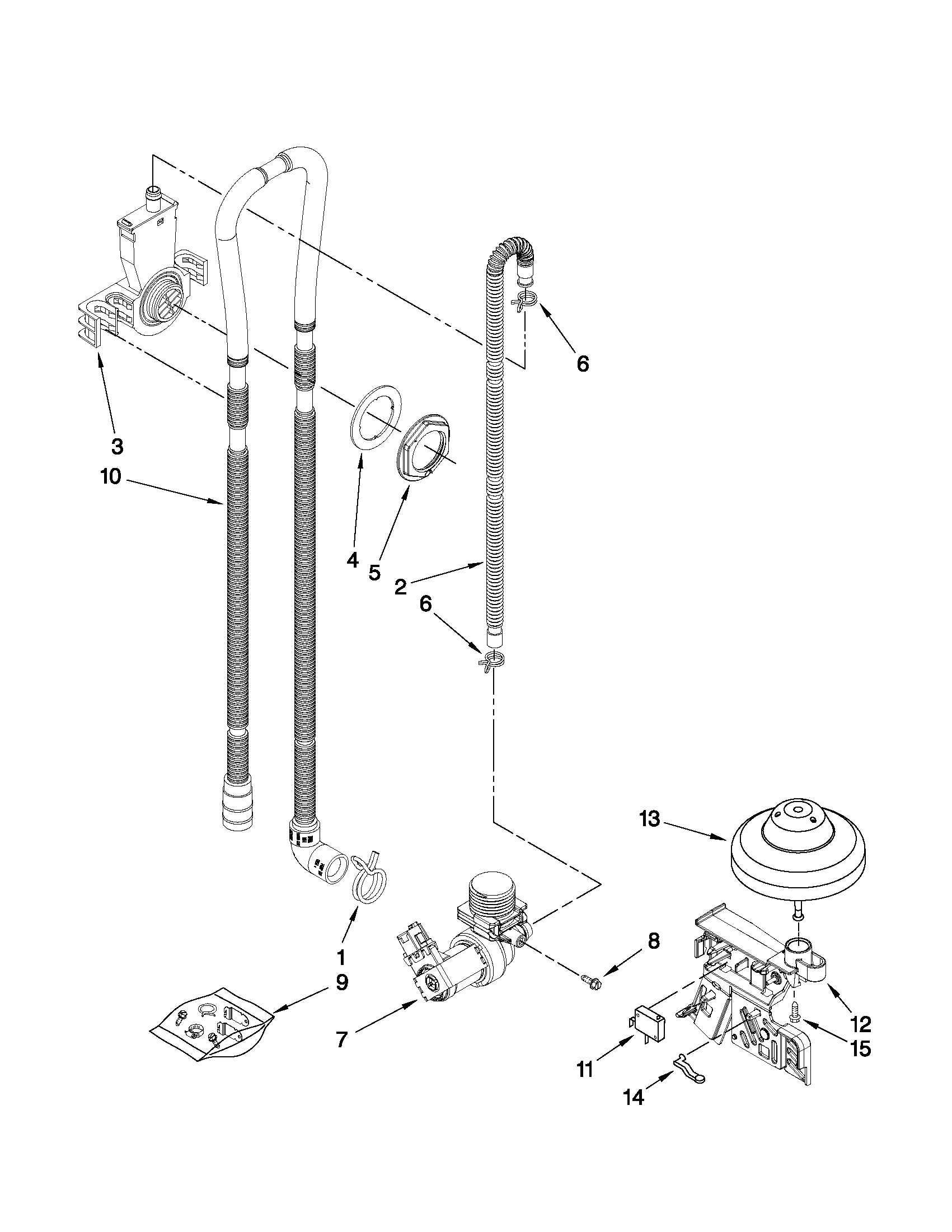

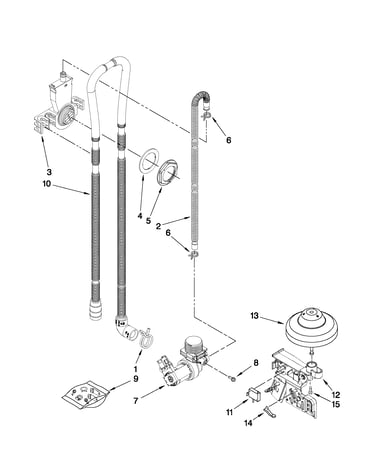

Drain hose checks that fix most “won’t drain” problems

Your installation setup matters. The drain hose must connect above the house drain trap and be routed high under the counter (or through an air gap) to prevent backflow.

• Make sure the drain hose connects to a waste tee or disposer inlet above the drain trap.
• Confirm the hose is looped up and secured under the counter, or connected to an air gap.
• Verify the connection point is at least 20 inches above the floor.
• Inspect for kinks, crushing, or a sagging hose that holds water.

Reference: 66513042K110 installation guide

When it’s likely a part problem

If the hose routing is correct and the filter area is clear, the drain pump or a restriction in the drain path is the next most common cause.

Symptom	Most likely cause	What we check first
Hums but doesn’t drain	Jammed/failed drain pump	Pump impeller area, debris
Drains slowly	Partial clog	Filter area, hose, disposer inlet
Drains then refills	Backflow from sink plumbing	High loop/air gap, trap connection

If you suspect the pump is weak or seized, the model-matched dishwasher drain pump WPW10348269 is the correct replacement part to consider.

Why it matters

Standing water can redeposit soil on dishes, create odors, and strain the pump. Correct drain hose routing (high loop or air gap) also prevents dirty sink water from flowing back into the dishwasher.

Last updated: February 2026

Yes, repairing a Kenmore dishwasher like model 66513042K110 is usually worth it when the problem is a common wear item (drain, heating, sealing, rack hardware) and the repair cost stays well below the price of a replacement; it is less worthwhile when multiple major components fail at once.

Quick way we decide: repair vs. replace

We use three practical checks:

• Age: Under 10 years typically favors repair; over 10 years depends on condition and part cost.
• Repair scope: One clear failure (leak, no drain, no heat) favors repair; multiple symptoms at once favors replace.
• Cost: If parts plus labor approach 50% of a new dishwasher, replacement usually makes more sense.

Common repairs that are often cost-effective

These are frequent fixes on undercounter dishwashers and usually restore normal operation quickly:

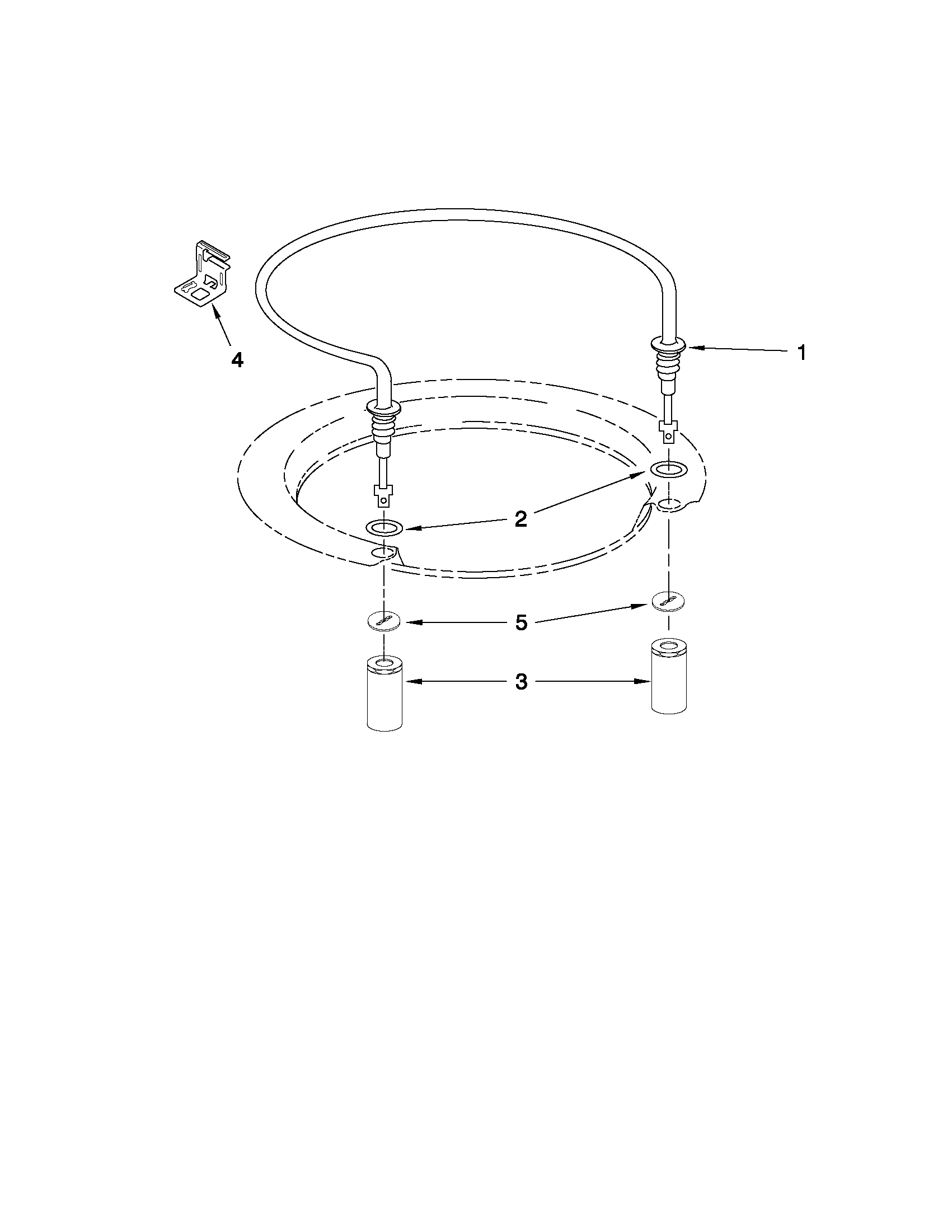

• Replace a failed heater to restore drying and water heating
• Fix draining issues caused by a worn pump or restricted hose
• Stop door leaks by renewing the door seal

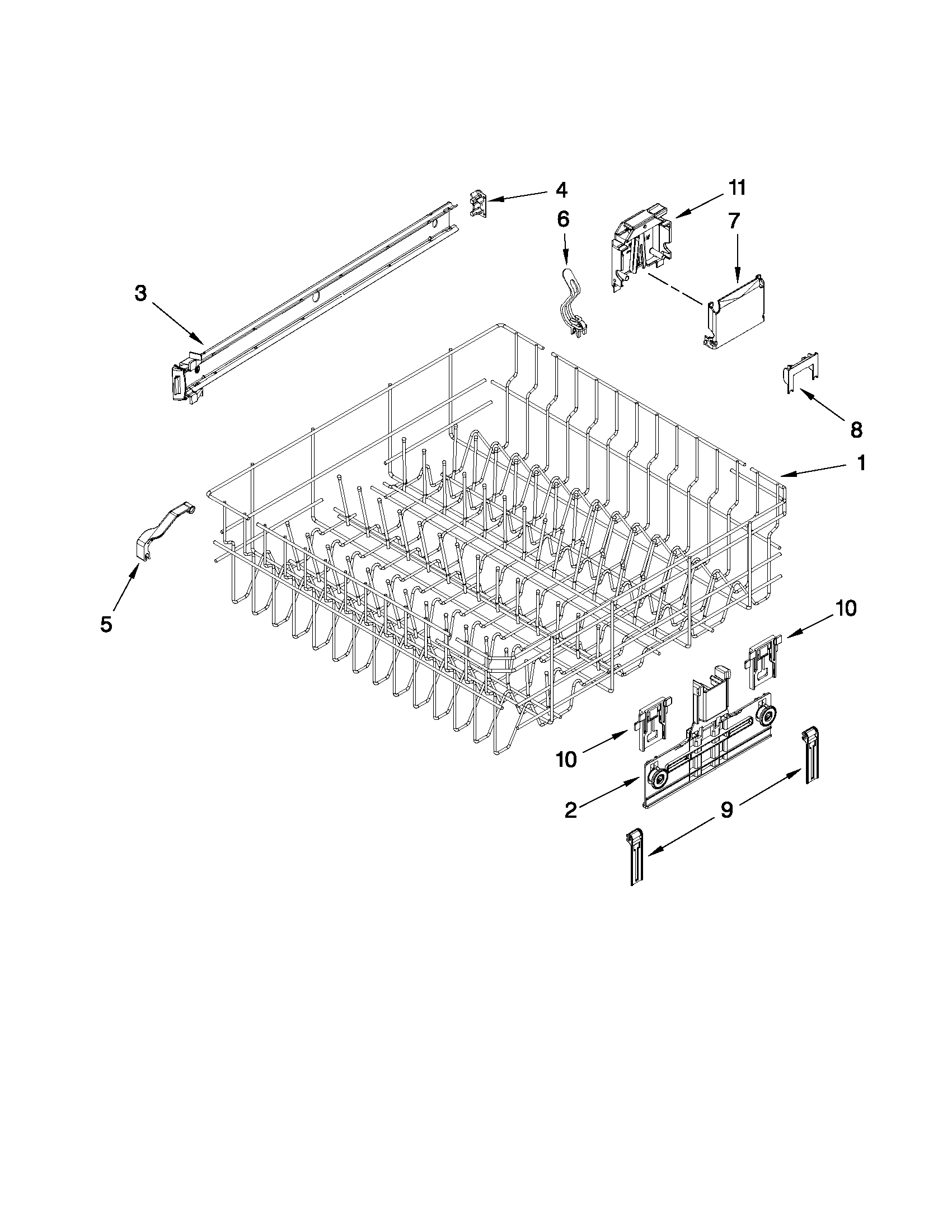

• Restore rack function by replacing worn adjusters or stops

Example parts for this model

Symptom	Likely area	Example part for 66513042K110
Dishes not drying, water not heating	Heating circuit	Dishwasher heating element W10518394
Water left in tub	Drain system	Dishwasher drain pump WPW10348269
Leaks at the door	Door sealing	Dishwasher door seal and strike kit W10542314

Why it matters

A targeted repair keeps a good Kenmore dishwasher running for years at a fraction of replacement cost, and it avoids paying for a new install, disposal, and potential cabinet adjustments.

Before you spend money on parts

Use these quick checks first (they prevent unnecessary part swaps):

• Confirm the water supply is turned on.
• Verify the cycle is set correctly and the unit is started.
• If the dishwasher is in a cold location, protect it from freezing (freezing can damage water components).
• Make sure the unit is installed with proper clearances and routing so hoses and wiring do not contact the motor.

For model-specific operating and installation details, follow the steps in the 66513042K110 installation guide.

Last updated: February 2026

Common problems we see with the Kenmore 66513042K110 dishwasher include not starting, not draining, poor cleaning, leaking, and not drying. Most issues trace back to door-latch/controls, drain and fill components, spray and filter clogs, or a failed heating circuit; use the 66513042K110 owner’s manual for model-specific checks.

Most common symptoms and likely causes

• Won’t start or stops mid-cycle: door not fully latched, power supply issue, control problem
• Won’t drain: clogged drain path, kinked drain hose, failed drain pump
• Not filling or fills slowly: water supply valve closed, inlet valve problem
• Dishes still dirty: clogged filter, blocked spray arm holes, loading issues
• Not drying: heating element issue, vent problem, rinse aid or cycle selection
• Leaks: door seal wear, loose hose connections, over-sudsing from wrong detergent

Quick checks you can do first (no parts swapping)

1. Confirm the door closes firmly and the cycle is actually started.
2. Verify the kitchen breaker is on and the dishwasher has power.
3. Check the drain hose routing; it should not be pinched and should be installed correctly (air gap/high loop as required).
4. Clean the filter area and inspect spray arm holes for debris.
5. Run hot water at the sink before starting a cycle to improve wash performance.

Parts that commonly fix these problems on model 66513042K110

Symptom	Common part involved	Example part for this model
Not drying, water not heating	Heating circuit	Dishwasher heating element W10518394
Won’t drain	Drain pump or drain hose	Dishwasher drain pump WPW10348269, dishwasher drain hose 8269144A
Poor cleaning	Spray arm or filter restriction	Dishwasher spray arm WPW10491331, dishwasher filter W10872845
Not filling	Water inlet valve	Dishwasher water inlet valve WPW10327249
Leaking at door	Door seal	Dishwasher door seal and strike kit W10542314

Why it matters

Catching the symptom early prevents secondary damage. For example, a restricted drain can leave dirty water in the tub, and a heating problem can cause poor drying and weak cleaning results.

Installation-related issues that look like “dishwasher problems”

If the dishwasher is newly installed or recently moved, we follow the installation basics: grounded electrical supply, correct drain connection (including air gap where used), and proper clearance so lines do not contact the motor or legs; see the 66513042K110 installation guide.

Last updated: February 2026

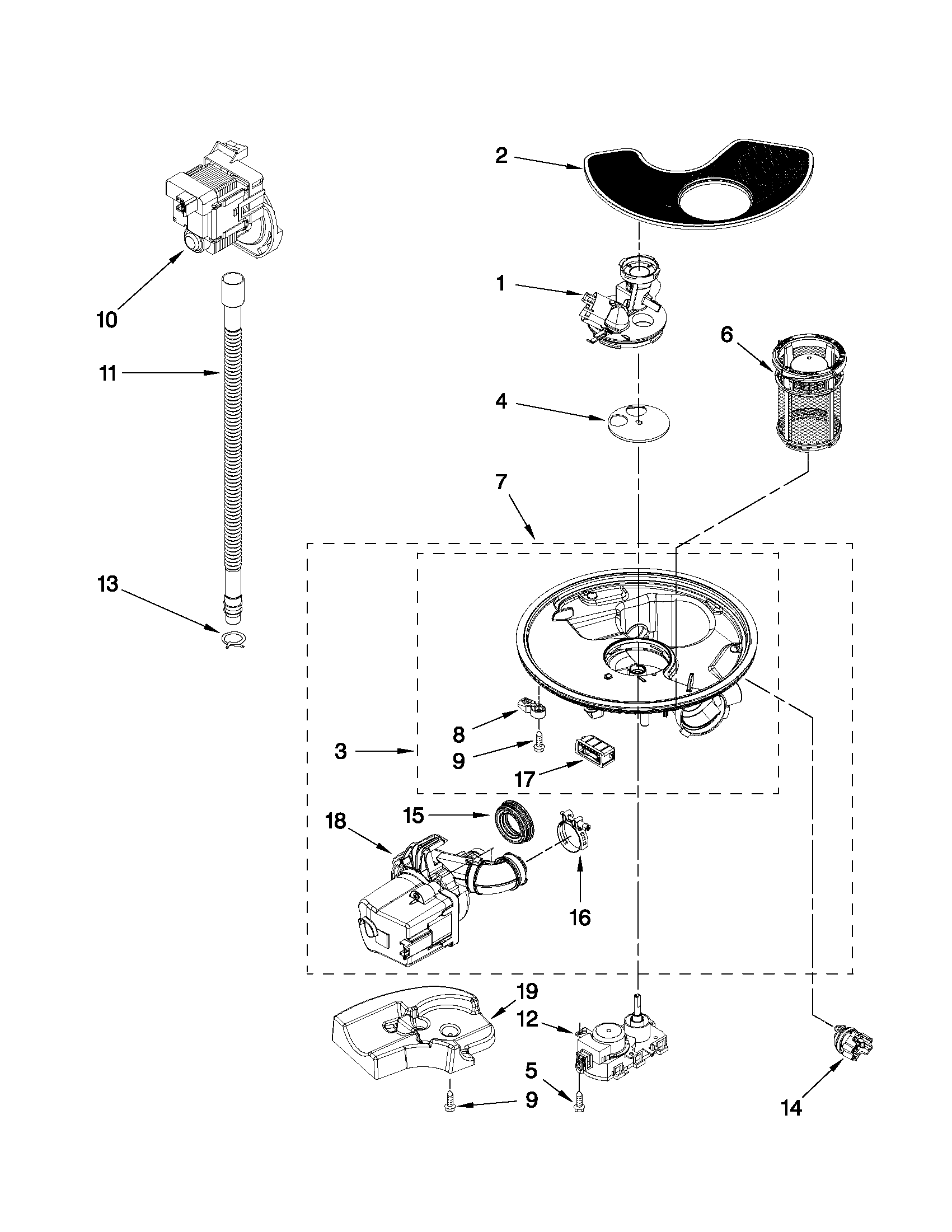

A failing pump in your Kenmore 66513042K110 dishwasher usually shows up as poor wash performance or water that will not move correctly: dishes stay dirty, you hear abnormal humming or grinding, or the tub has standing water after the cycle. Use the checks in the 66513042K110 installation guide to confirm basics like power, door latch, and water supply first.

Common signs you can see or hear

• Standing water in the bottom of the tub after the cycle (drain problem)
• Weak spray action; detergent not fully dissolving (circulation problem)
• Loud grinding, rattling, or squealing during wash or drain
• A loud hum with little or no water movement (motor struggling)
• Leaks under the dishwasher near the sump or pump area
• Intermittent operation; works sometimes, then stops moving water

Quick checks before you replace parts

We recommend ruling out simple causes that mimic a bad pump:

• Verify the door is fully closed and latched
• Confirm the water supply is turned on
• Check the house breaker or fuse
• Look for a kinked or restricted drain hose
• Run the shortest cycle and check for water in the tub after the first couple minutes (a basic operational check)

What the symptoms usually point to

Symptom	Most likely area	Parts commonly involved on this model
Standing water after cycle	Drain path	Drain pump, drain hose
Dishes not clean, weak spray	Wash circulation	Motor/pump motor, spray arm, filter
Humming or grinding	Pump/motor or obstruction	Drain pump, motor, sump area
Leak underneath	Seal or grommet	Pump grommet, door seal area

If you are chasing a drain issue first, the most common suspect is the dishwasher drain pump WPW10348269. For wash performance issues, also inspect the dishwasher filter W10872845 and spray arm for clogs.

Why it matters

A weak pump reduces water circulation and drainage, which leaves soil on dishes, can cause odors from trapped water, and can lead to repeated cycle failures. Catching it early also helps prevent secondary issues like leaks around seals and grommets.

Last updated: February 2026

A bottom-right leak on Kenmore dishwasher model 66513042K110 is usually caused by water escaping past the door area (door seal, door alignment, or spray deflection) or by a leak at the right-front underside (hose, pump, or tub seam). Start by checking the door seal and confirming the dishwasher is level and secured per the 66513042K110 installation guide.

Quick checks (most common causes)

• Inspect the door seal for tears, flattening, or hardened sections; wipe it clean and check for gaps.
• Look for a tall pan or cutting board in the lower rack that can redirect spray into the door corner.
• Confirm the unit is level front-to-back and side-to-side; a slight tilt can push water toward one corner.
• Open and close the door; if it drops open or slams shut, adjust door spring tension evenly on both sides.
• Check the lower spray pattern; a cracked or loose spray arm can throw water toward the door.

Pinpoint where the leak starts

Run a short cycle and watch for the first sign of water (use a flashlight). If needed, remove the toe panel/access panel to see the right-front underside.

What you see	Most likely source	What to do next
Water tracks from the door corner	Door seal or door not closing evenly	Clean/inspect seal; verify tub spacing is even; adjust door tension
Drips behind the toe panel on right	Hose connection, pump area, or tub-to-sump seal	Check clamps and fittings; inspect for cracks or wet insulation
Water splashing at the front during wash	Spray arm issue or loading issue	Reposition dishes; inspect/replace spray arm

Parts that commonly fix bottom-corner leaks

If inspection shows damage or looseness, these model-matched parts are common solutions:

• Dishwasher door seal and strike kit W10542314 (fixes sealing and latching issues)
• Dishwasher spray arm WPW10491331 (prevents misdirected spray)
• Dishwasher pump grommet WPW10538166 (helps stop seepage around pump connections)

Why it matters

Even a small leak can soak the insulation and toe-kick area, leading to odors, poor drying performance, and damage to flooring or cabinets. Catching the source early usually keeps the repair simple.

Last updated: February 2026

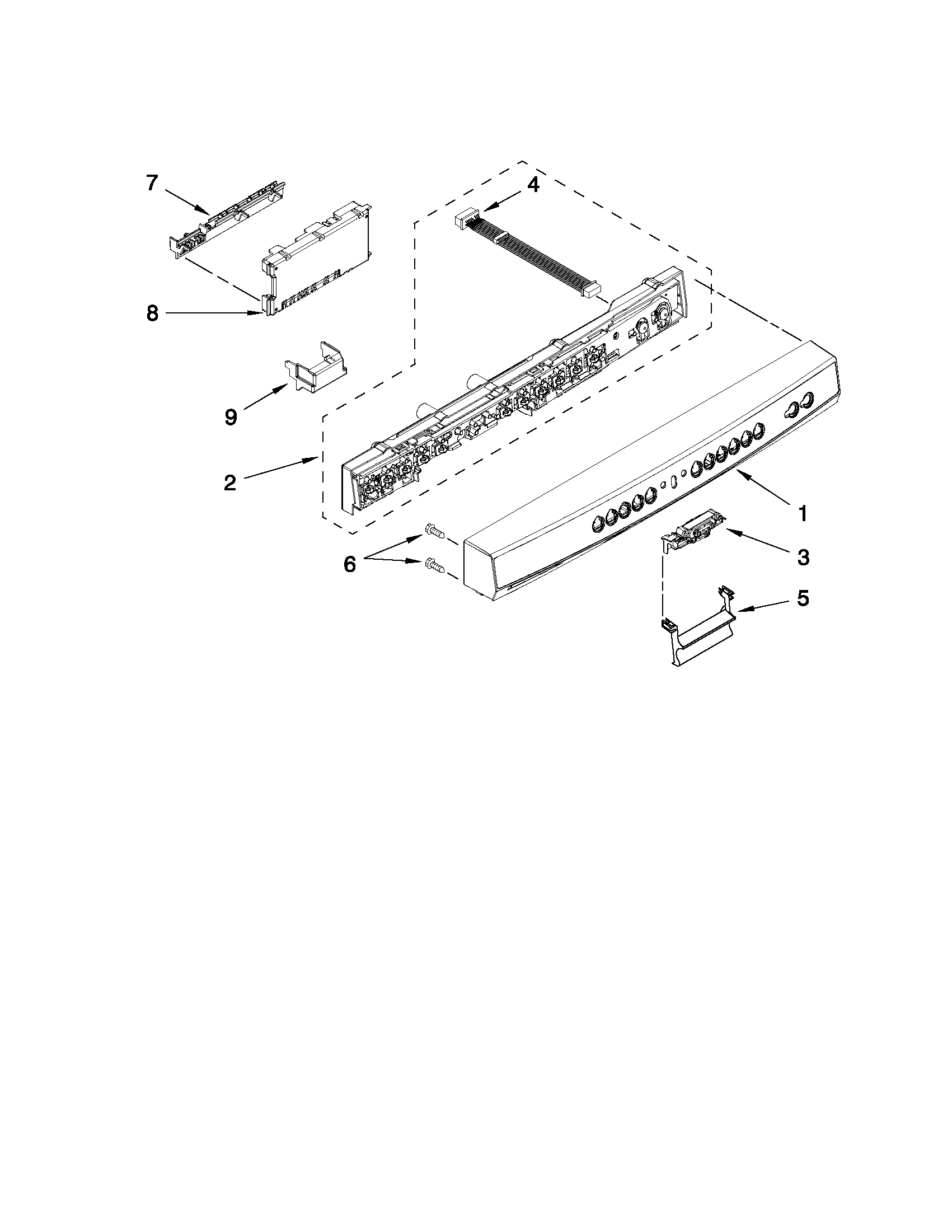

On Kenmore dishwasher model 66513042K110, the Start/Resume button often seems “not working” when the door is not fully latched or the door is not closed within 3 seconds after you press Start/Resume; the Start/Resume light can flash until you press it again. Follow the correct start sequence in the 66513042K110 owner’s manual.

Quick checks that fix most “won’t start” complaints

• Press Start/Resume, then close the door firmly within 3 seconds.
• Open and re-close the door; confirm it latches tightly.
• Verify the dishwasher has power (breaker on, no blown fuse).
• Confirm a wash cycle is selected (a partial selection can prevent starting).
• Make sure the water supply valve is turned on.

What to check next (in order)

If the correct Start/Resume sequence still does not start a cycle, we check the most common “start inhibit” causes.

• Door latch sensing: a misaligned latch or failing door switch prevents the control from starting.
• Console/keypad input: a worn keypad can stop Start/Resume from registering.
• Control power and logic: loose wiring connections or a failed control can leave the unit unresponsive.

Symptom-to-cause guide

What you see	Most likely cause	What to do
Start/Resume light flashes	Door not closed in time or not latched	Re-press Start/Resume; close door within 3 seconds
Lights work but no wash action	Door latch sensing issue or control issue	Check latch fit; then inspect console/control
Completely dead	Power supply problem	Check breaker, junction box connections, cord/wiring

Why it matters

This dishwasher is designed to prevent operation unless the door is securely closed; that safety interlock can make a normal door-latch issue look exactly like a bad Start button.

Parts that are commonly involved

If troubleshooting points to a control-side failure, a commonly used component on this model is the dishwasher electronic control W10482988.

Last updated: February 2026
