Kenmore Elite 79046823100 electric slide-in range Parts
Here are the diagrams and repair parts for Kenmore Elite 79046823100 electric slide-in range, as well as links to manuals and error code tables, if available.
Installation guide
Owner’s manual

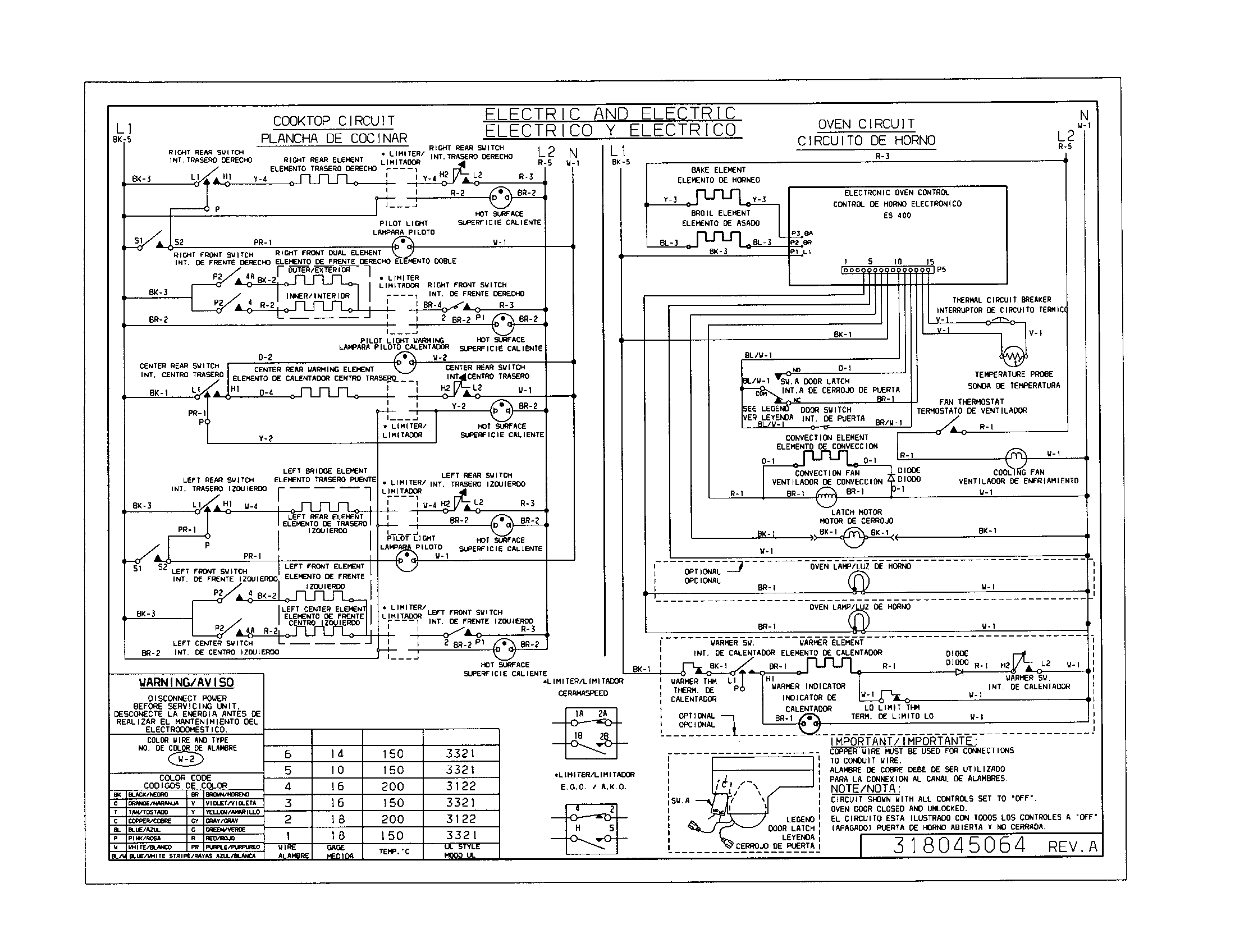

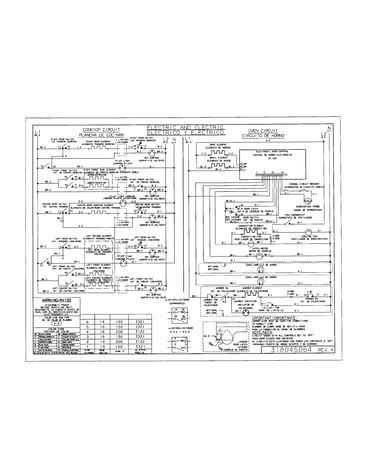

Error CodesBy Schematic
By Part

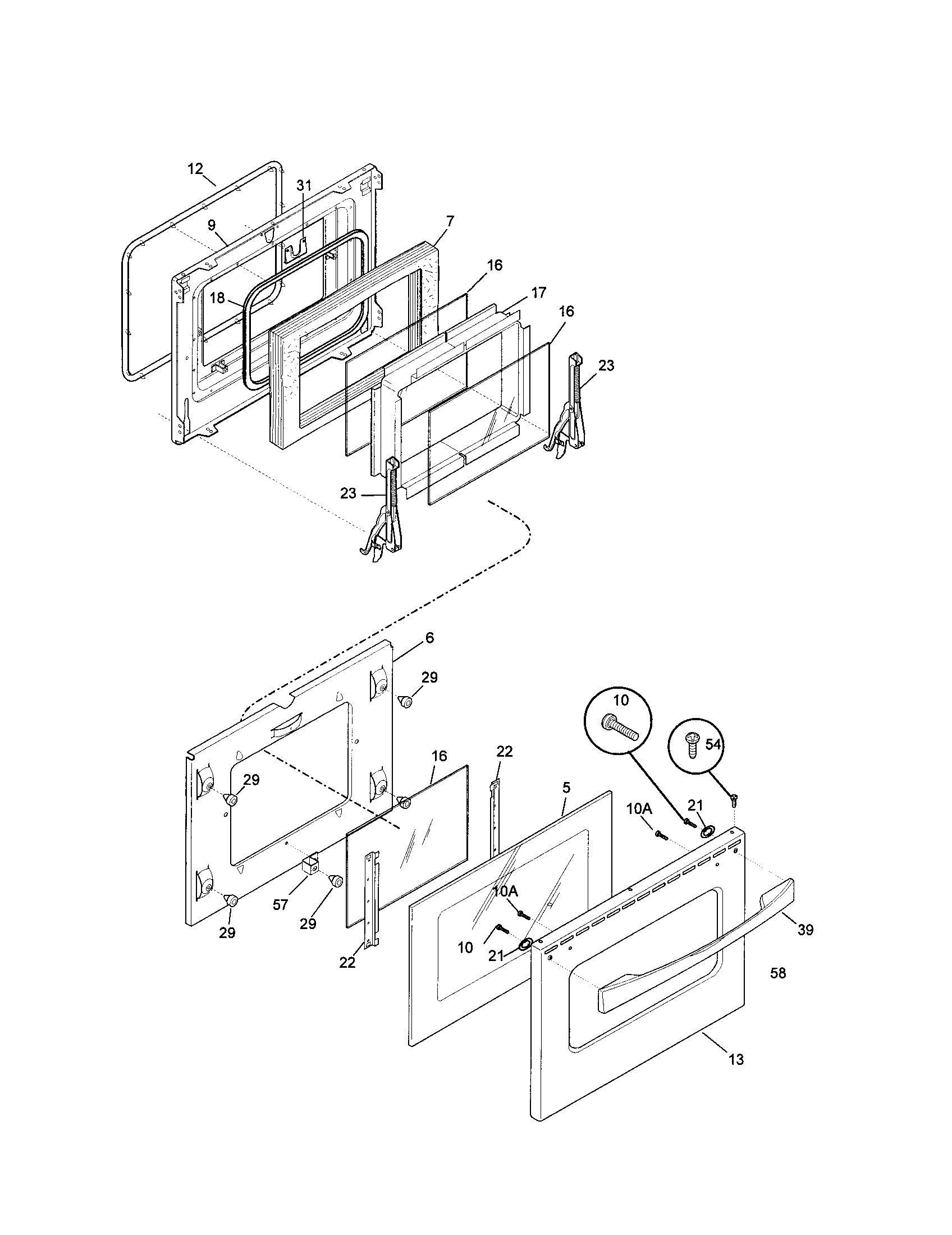

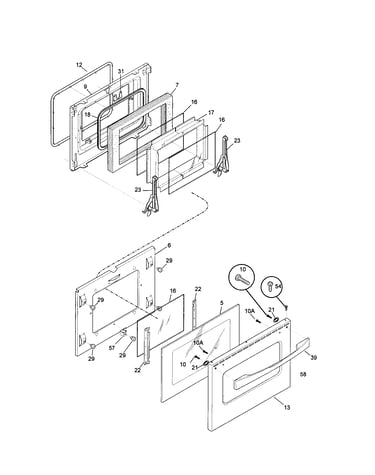

SELECT DIAGRAM
Browse Parts for 79046823100 Ranges

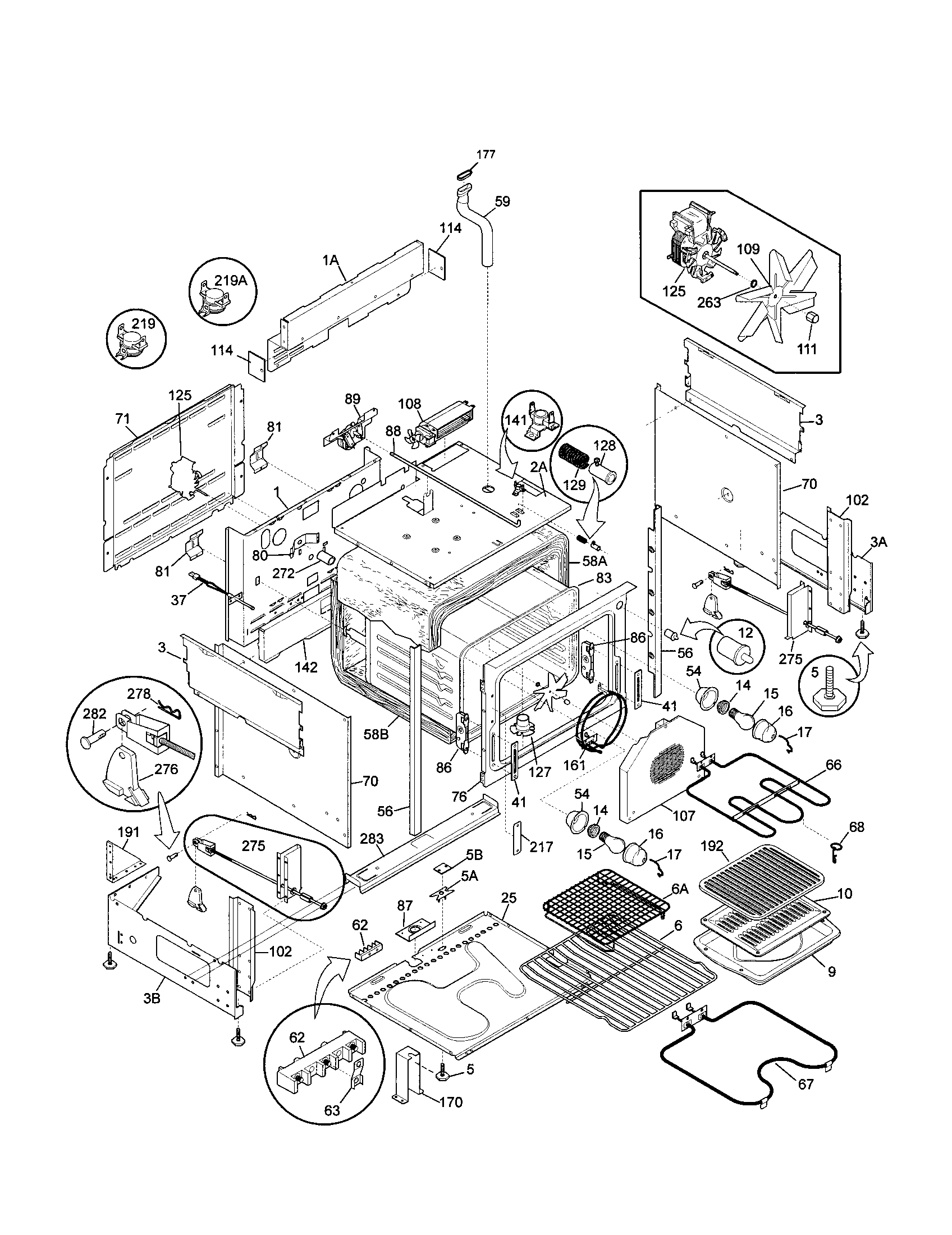

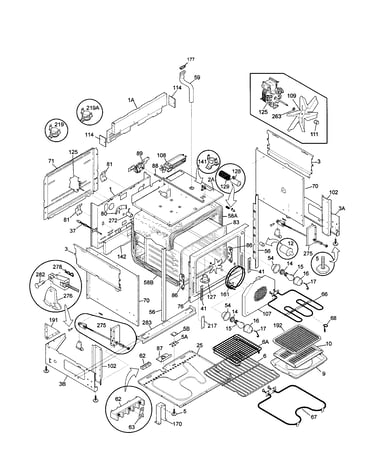

Body diagram
Bulb
Part #3201908Replaced by #316538904
Manufacturer substitutionThis part replaces 3201908. Substitute parts can look different from the original.In Stock$18.4510% OFF Phone Price : $20.45
Qty

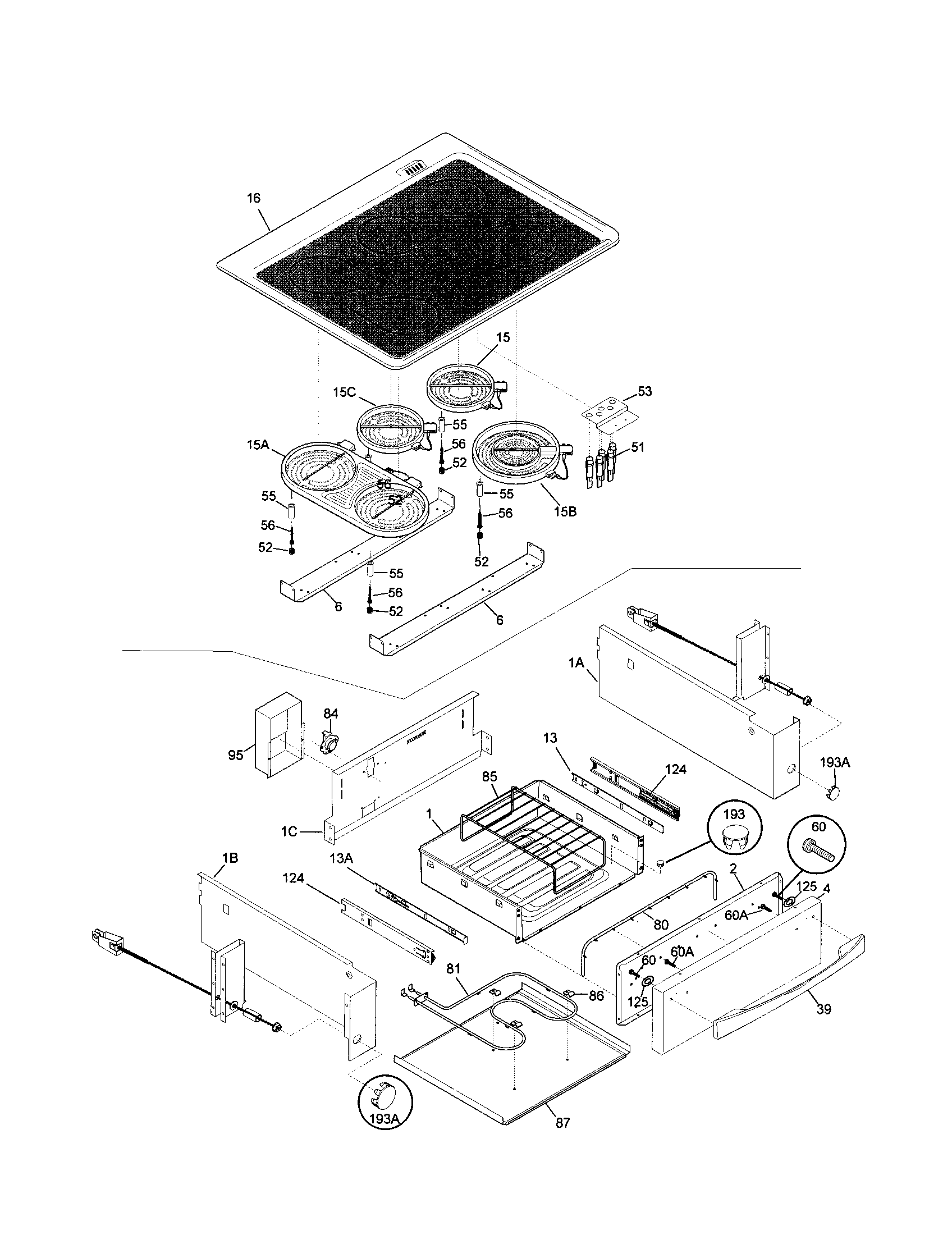

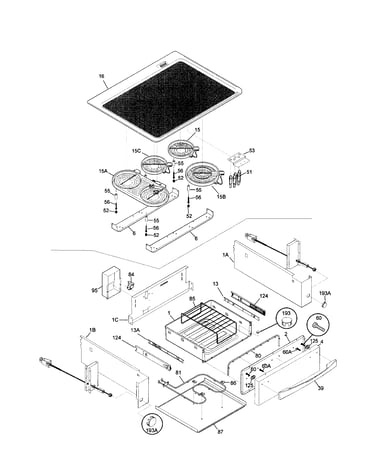

Top/drawer diagram
Range Radiant Surface Element, 6-in
Part #316010205Replaced by #318178110
Manufacturer substitutionThis part replaces 316010205. Substitute parts can look different from the original.In Stock$100.2211% OFF Phone Price : $112.22QtyBody diagram
Oven Bake Element
Part #5303310512Replaced by #318255006
Manufacturer substitutionThis part replaces 5303310512. Substitute parts can look different from the original.In Stock$164.097% OFF Phone Price : $176.09QtyTop/drawer diagram
Element-su
Part #316224300Replaced by #316555800
Manufacturer substitutionThis part replaces 316224300. Substitute parts can look different from the original.In Stock$141.268% OFF Phone Price : $153.26QtyBody diagram
Terminal Block
Part #5303310518Replaced by #5304409888
Manufacturer substitutionThis part replaces 5303310518. Substitute parts can look different from the original.In Stock$25.3019% OFF Phone Price : $31.30QtyBody diagram
Oven Broiler Element
Part #5303310513Replaced by #318255605

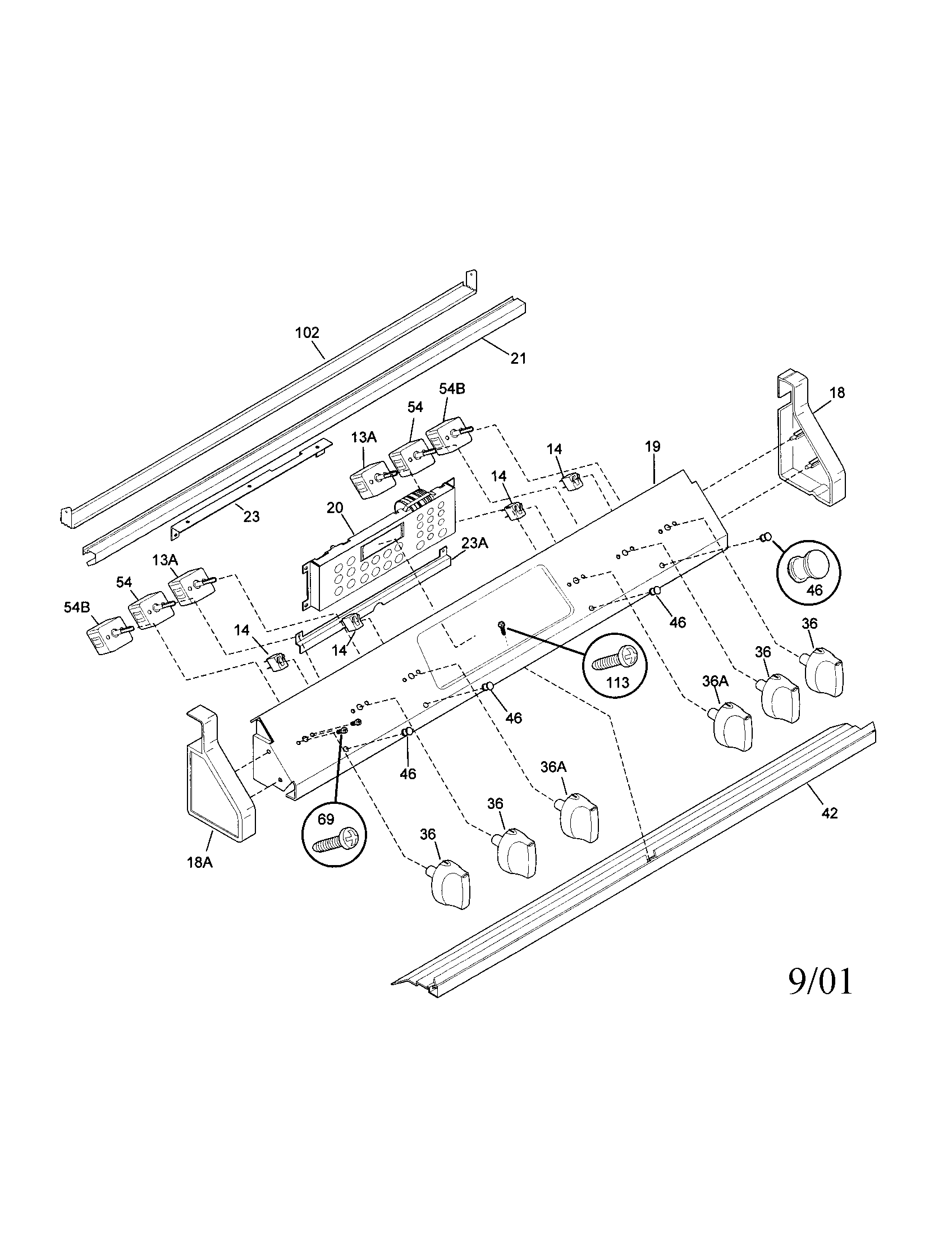

Manufacturer substitutionThis part replaces 5303310513. Substitute parts can look different from the original.In Stock$129.638% OFF Phone Price : $141.63QtyBackguard diagram
*infinite
Part #318191001Replaced by #903097-9040
Manufacturer substitutionThis part replaces 318191001. Substitute parts can look different from the original.In Stock$72.938% OFF Phone Price : $78.93QtyBody diagram
Receptacle
Part #5308011085Replaced by #316116400
Manufacturer substitutionThis part replaces 5308011085. Substitute parts can look different from the original.In Stock$51.0911% OFF Phone Price : $57.09QtyBackguard diagram
Switch
Part #318120503Replaced by #5303935086
Manufacturer substitutionThis part replaces 318120503. Substitute parts can look different from the original.In Stock$42.1912% OFF Phone Price : $48.19QtyBackguard diagram
Warmer Switch
Part #316095500Replaced by #5304508926
Manufacturer substitutionThis part replaces 316095500. Substitute parts can look different from the original.In Stock$80.597% OFF Phone Price : $86.59Qty
