Whirlpool GX5SHDXVD03 refrigerator Parts

Most Whirlpool refrigerators, including the Whirlpool GX5SHDXVD03 bottom-mount style, last 10 to 15 years with normal use; 15 to 20 years is common when the condenser stays clean, doors seal tightly, and airflow is not blocked. Use the owner's manual for model-specific care and cleaning intervals.

A refrigerator’s life is usually determined by heat management, door sealing, and how hard the sealed system has to work.

• Keep condenser coils clean and unobstructed
• Confirm doors close fully and gaskets seal all the way around
• Set stable temperatures (avoid frequent warm-ups)
• Do not overload shelves or block interior vents
• Replace failed airflow or control components promptly

These symptoms often show up years before a complete failure.

These steps reduce compressor run time and prevent temperature swings.

• Vacuum coils and the area underneath/behind the unit regularly
• Leave space around the cabinet for ventilation
• Clean and inspect door gaskets; replace if torn or warped (a leaking seal forces longer run times)
• If you have ice and water, keep the supply line and valve in good condition
• Address intermittent cooling early; repeated overheating shortens compressor life

When a key component fails, replacing it can restore normal operation and reduce wear on the compressor.

• Refrigerator water inlet valve assembly WP2315576 (helps prevent no-ice/no-water and leaking issues)
• Refrigerator electronic control WPW10503278 (can resolve erratic temperatures or cycling problems)
• Refrigerator run capacitor WPW10662129 (can help with hard-start symptoms)

A refrigerator that runs warmer than normal or runs constantly uses more energy and puts extra stress on the compressor and sealed system. Simple upkeep and timely part replacement often make the difference between a 10-year fridge and a 15 to 20-year fridge.

Last updated: February 2026

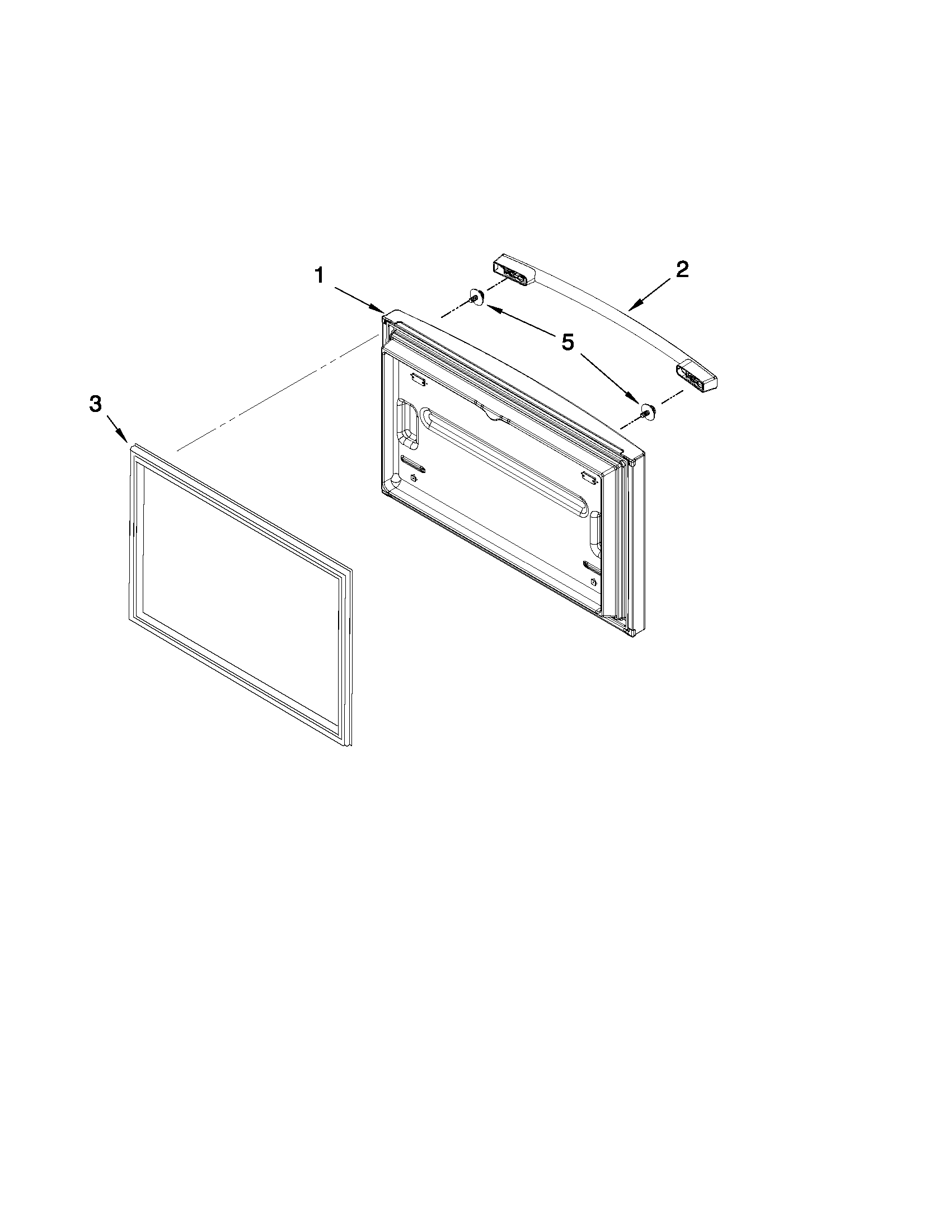

To realign the bottom freezer drawer on your Whirlpool GX5SHDXVD03 bottom-mount refrigerator, adjust the drawer front using the side screws so the gaps are even and the drawer seals tightly. Make small changes, then close the drawer to recheck the alignment.

1. Fully extend the freezer drawer.
2. Locate the drawer-front adjustment screws on the left and right sides (near the drawer glides/rails).
3. Turn the adjustment screw counterclockwise about 2 full revolutions on the side that needs to move (this is a common starting point).
4. Close the drawer and check the gap and seal.
5. Repeat in small increments until the drawer front is level and centered.

• Even gap between the freezer drawer and the refrigerator cabinet
• Drawer closes smoothly without rubbing
• No visible twist (one corner sticking out)
• Good gasket contact all the way around

These checks fix most “won’t align” situations after adjustment:

• Remove heavy items from the freezer basket and retest (weight can skew the drawer).
• Confirm both slide rails are fully seated and moving evenly.
• Inspect for ice buildup or debris along the rails and lower track area.
• Check the door gasket for folds, tears, or sections pulled out of the channel.
• Verify the refrigerator is level front-to-back and side-to-side.

A misaligned bottom freezer drawer can leak cold air, cause frost buildup, and make the compressor run longer. Getting the drawer square also protects the slide rails and helps temperatures stay stable.

• Use the alignment and leveling guidance in your owner's manual.
• If the issue is gasket-related, our DIY steps in how to fix a fridge door seal help you restore a tight seal.

Last updated: February 2026

A refrigerator with the freezer on the bottom is called a bottom-freezer refrigerator (also called a bottom-mount refrigerator). Your Whirlpool GX5SHDXVD03 is this style, with fresh food storage at eye level and a pull-out freezer drawer below.

These terms are often used for the same general layout, but the door style can differ:

• Bottom-freezer (bottom-mount): refrigerator on top, freezer drawer on bottom
• French door: two refrigerator doors on top, freezer drawer on bottom
• Single-door bottom-freezer: one refrigerator door on top, freezer drawer on bottom

The “bottom-mount” style affects which parts fit and where they install (freezer slide rails, door gaskets, ice maker routing, and airflow components). For model-specific diagrams and part locations, use the owner's manual.

• Door sealing parts such as the refrigerator gasket panel W10443320

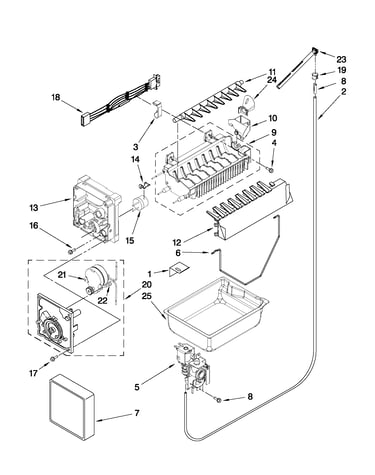

• Ice production parts such as the refrigerator ice maker D7824706Q
• Water supply parts such as the refrigerator water inlet valve assembly WP2315576
• Cooling airflow parts such as the refrigerator evaporator fan blade WP2169142

Last updated: February 2026

The most common Whirlpool refrigerator problem is a cooling complaint: the fresh food section gets too warm, the freezer ices up, or temperatures swing. On your Whirlpool GX5SHDXVD03, the usual causes are restricted airflow, dirty condenser coils, a failing fan, or a defrost drain issue; start with the basic checks in the owner's manual.

• Refrigerator section warm but freezer still cold
• Freezer packed with frost or ice on the back wall
• Unit runs constantly or cycles too often
• Unusual buzzing, rattling, or clicking noises
• Ice maker stops making ice or makes small/hollow cubes

1. Confirm settings: Make sure temperature controls were not bumped.
2. Improve airflow: Do not block vents with food packages.
3. Clean condenser coils: Dust buildup makes cooling weak and increases run time.
4. Check door sealing: A poor seal causes warm temps and frost.
5. Look for water under drawers: Often points to a clogged defrost drain.

Cooling and ice maker problems usually get worse over time. Catching airflow restrictions, door seal leaks, and water supply issues early helps prevent food spoilage, heavy frost buildup, and unnecessary wear on the compressor.

If your display shows an error or the unit behaves oddly after basic checks, use our Whirlpool refrigerator error codes guide to narrow the problem to a sensor, fan, defrost, or control issue.

Last updated: February 2026
