Model # MTC500ABD2 Official Universal/Multiflex (Frigidaire) trash compactor

Here are the diagrams and repair parts for Official Universal/Multiflex (Frigidaire) MTC500ABD2 trash compactor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

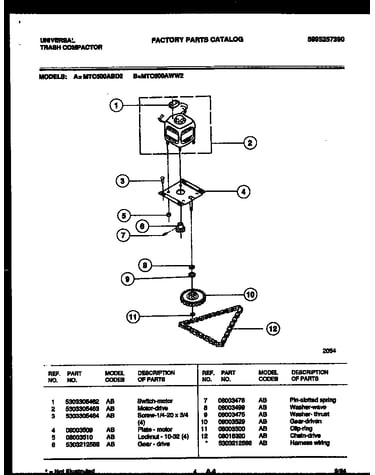

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 109 parts  |
Compactor Bag 5303296400

#NI

All parts diagram

Compactor bag

Part #5303296400

$30.11
In Stock
Safety Switch 08017605
#7

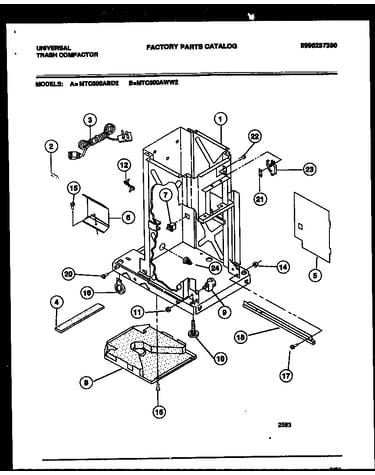

Interior parts diagram

Safety switch

Part #08017605

$19.37
In Stock
Barrier - Glass 08003520
#4

Interior parts diagram

Barrier - glass

Part #08003520

The manufacturer no longer makes this part, and there's no substitute part

Shield- Slide Track 5303305465
#6

Interior parts diagram

Shield- slide track

Part #5303305465

The manufacturer no longer makes this part, and there's no substitute part

Bracket - Retainer Rh 5303212581
#15

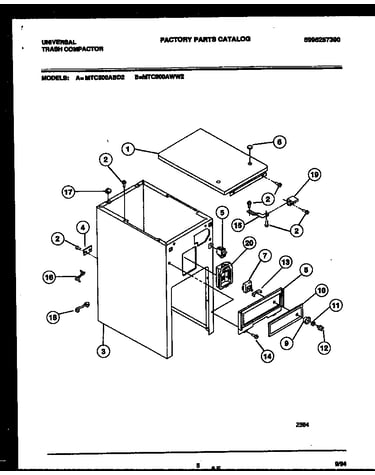

Cabinet and control parts diagram

Bracket - retainer rh

Part #5303212581

The manufacturer no longer makes this part, and there's no substitute part

Retainer-bag (4) 5303300881
#12

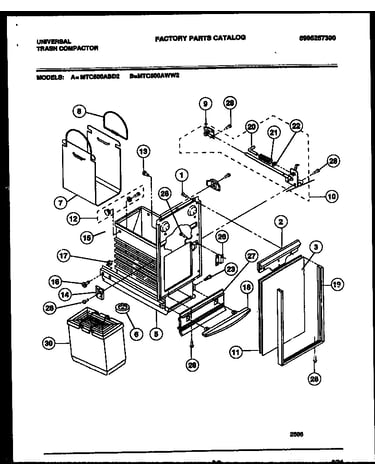

Latch and container assembly diagram

Retainer-bag (4)

Part #5303300881

The manufacturer no longer makes this part, and there's no substitute part

Screw 08003556
#22

Interior parts diagram

Screw

Part #08003556

The manufacturer no longer makes this part, and there's no substitute part

Washer - Cone (2) 08003533
#9

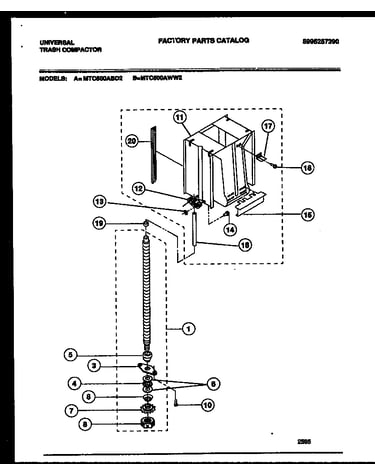

Screw-power and ram assembly diagram
