Model # 921166360 Official Craftsman air compressor

Here are the diagrams and repair parts for Official Craftsman 921166360 air compressor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 38 parts |

Craftsman Air Compressor Pressure Switch E102745

#43

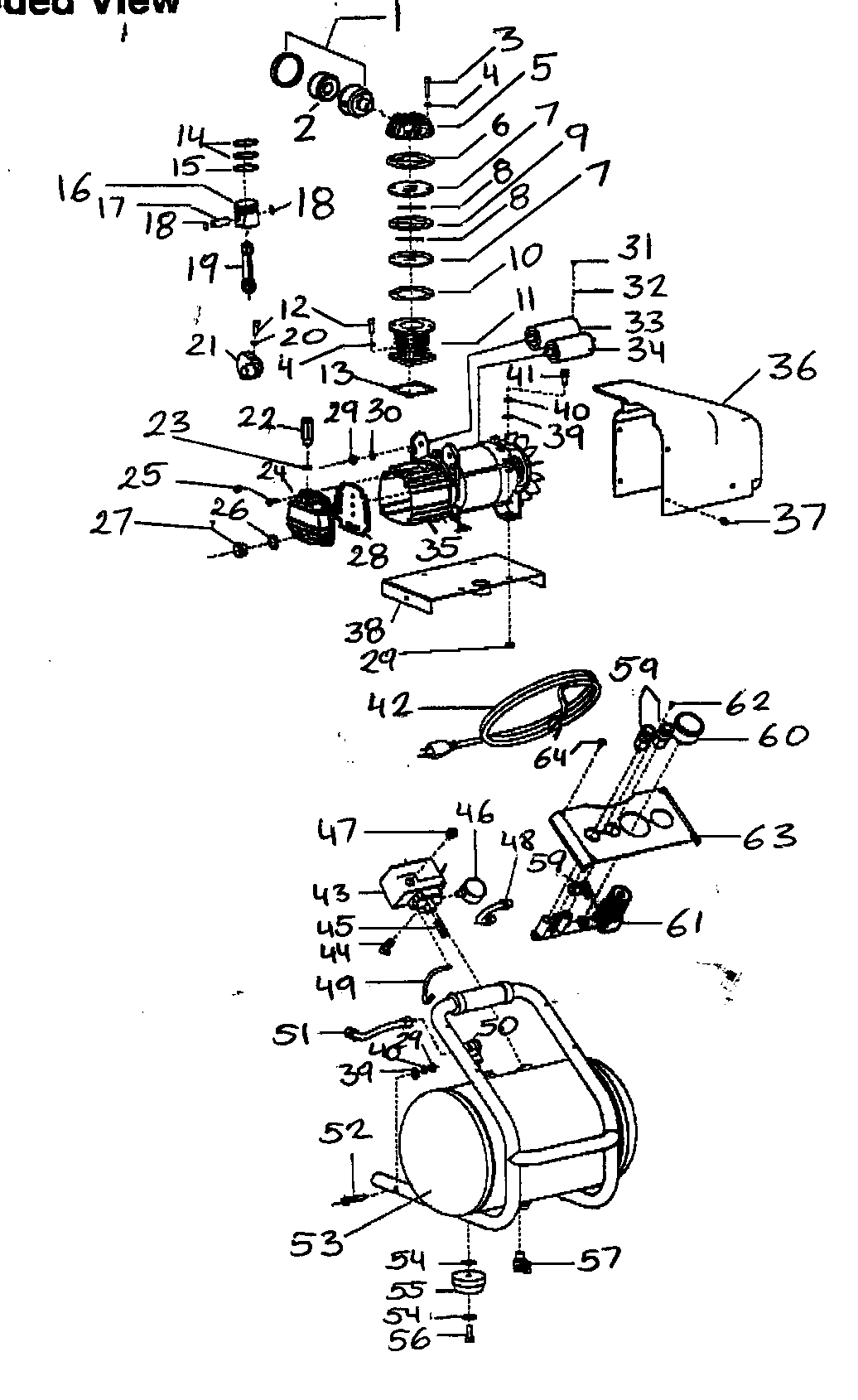

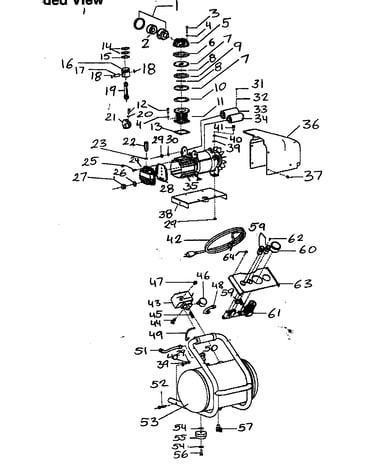

Air compressor diagram

Craftsman air compressor pressure switch

Part #E102745

The manufacturer no longer makes this part, and there's no substitute part

Air Compressor Base Retainer Knob E101360

#81

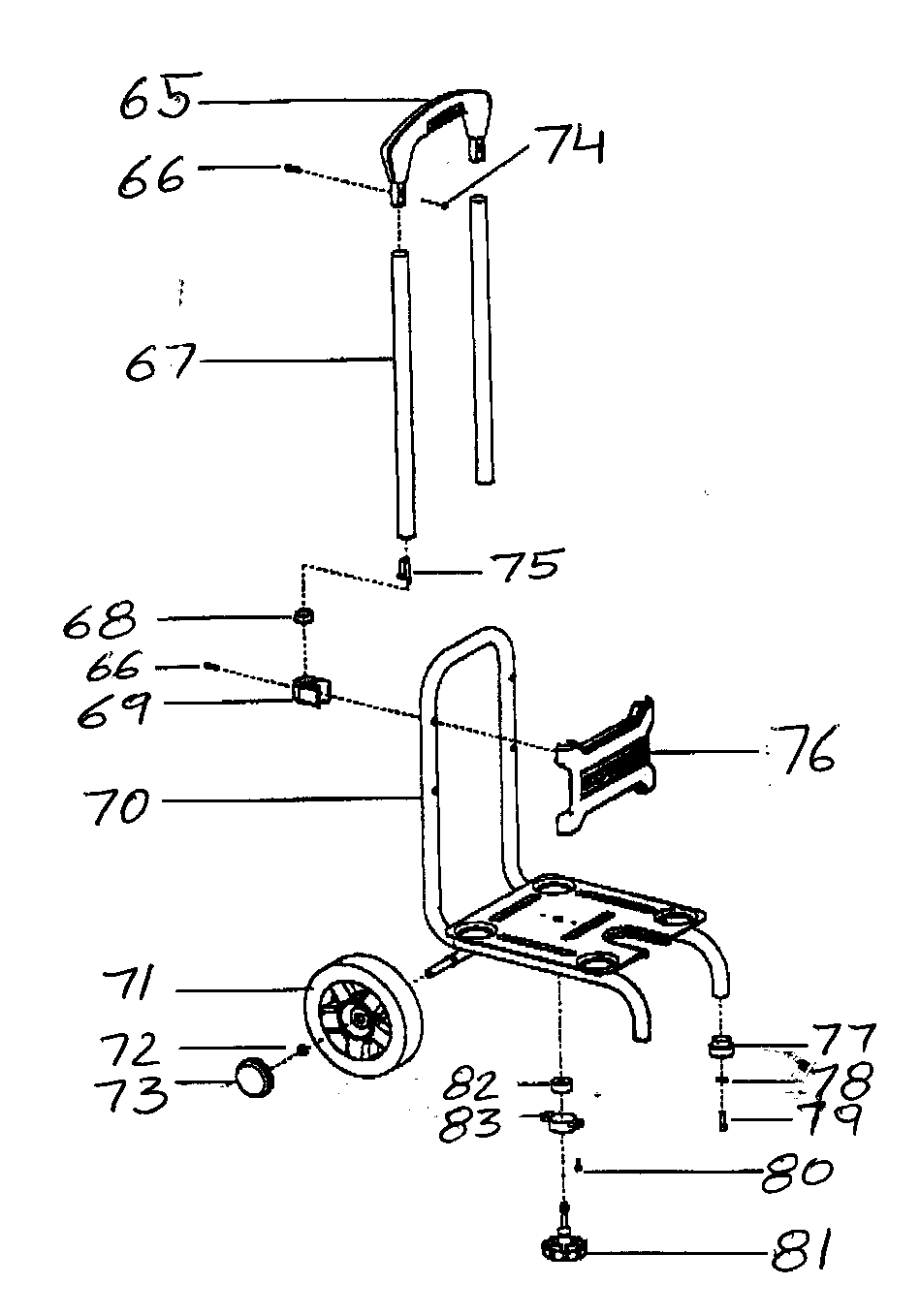

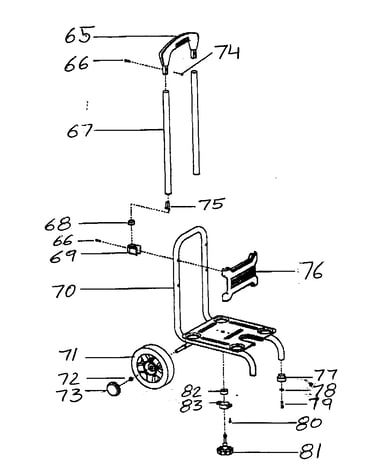

Motor assy diagram

Air compressor base retainer knob

Part #E101360

The manufacturer no longer makes this part, and there's no substitute part

#50

Air compressor diagram

Air compressor check valve

Part #E100898

The manufacturer no longer makes this part, and there's no substitute part

#45

Air compressor diagram

Nipple

Part #E100309

The manufacturer no longer makes this part, and there's no substitute part

Craftsman Air Compressor Outlet Tube E102197

#51

Motor assy diagram

Craftsman air compressor outlet tube

Part #E102197

The manufacturer no longer makes this part, and there's no substitute part

#48

Air compressor diagram

Air compressor manifold tube

Part #E101968

The manufacturer no longer makes this part, and there's no substitute part

#NI

Air compressor diagram

Air compressor piston kit

Part #E100251

The manufacturer no longer makes this part, and there's no substitute part

Craftsman Air Compressor Handle Tube E101671

#67

Motor assy diagram

Craftsman air compressor handle tube

Part #E101671

The manufacturer no longer makes this part, and there's no substitute part

#34

Air compressor diagram

Air compressor run capacitor

Part #E100247

The manufacturer no longer makes this part, and there's no substitute part

#42

Air compressor diagram

Air compressor power cord

Part #E100101

The manufacturer no longer makes this part, and there's no substitute part
