Samsung RF4287HARS/XAA-00 refrigerator

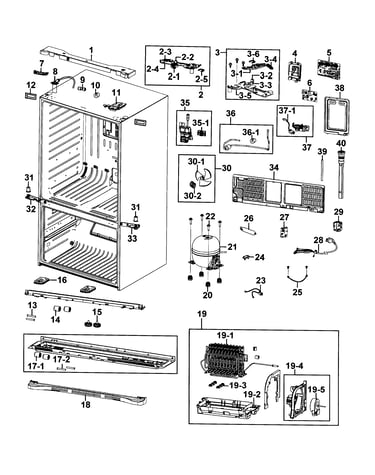

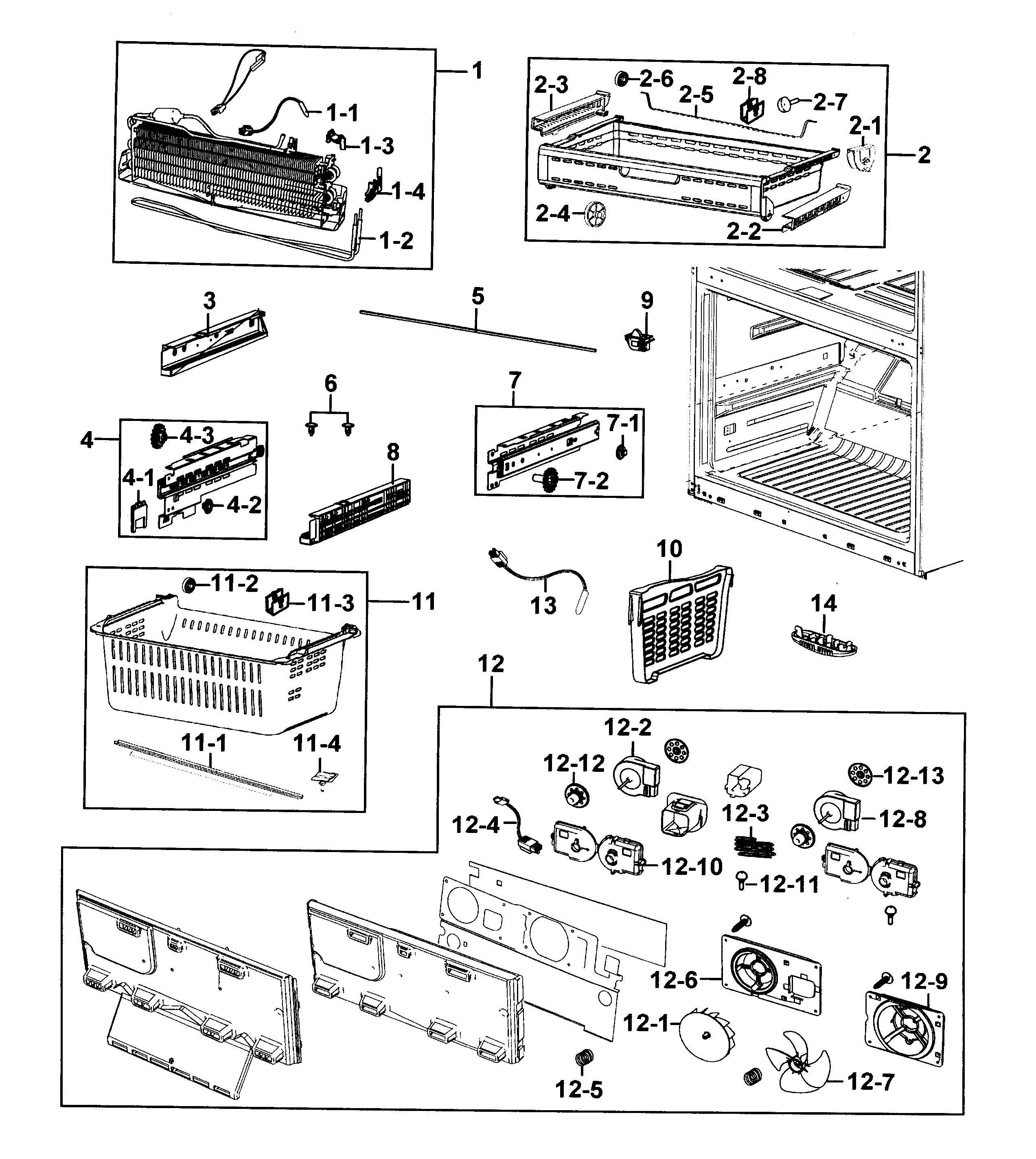

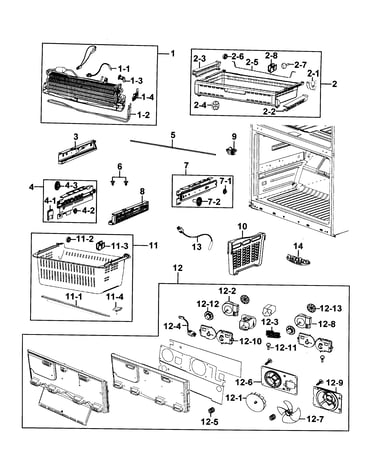

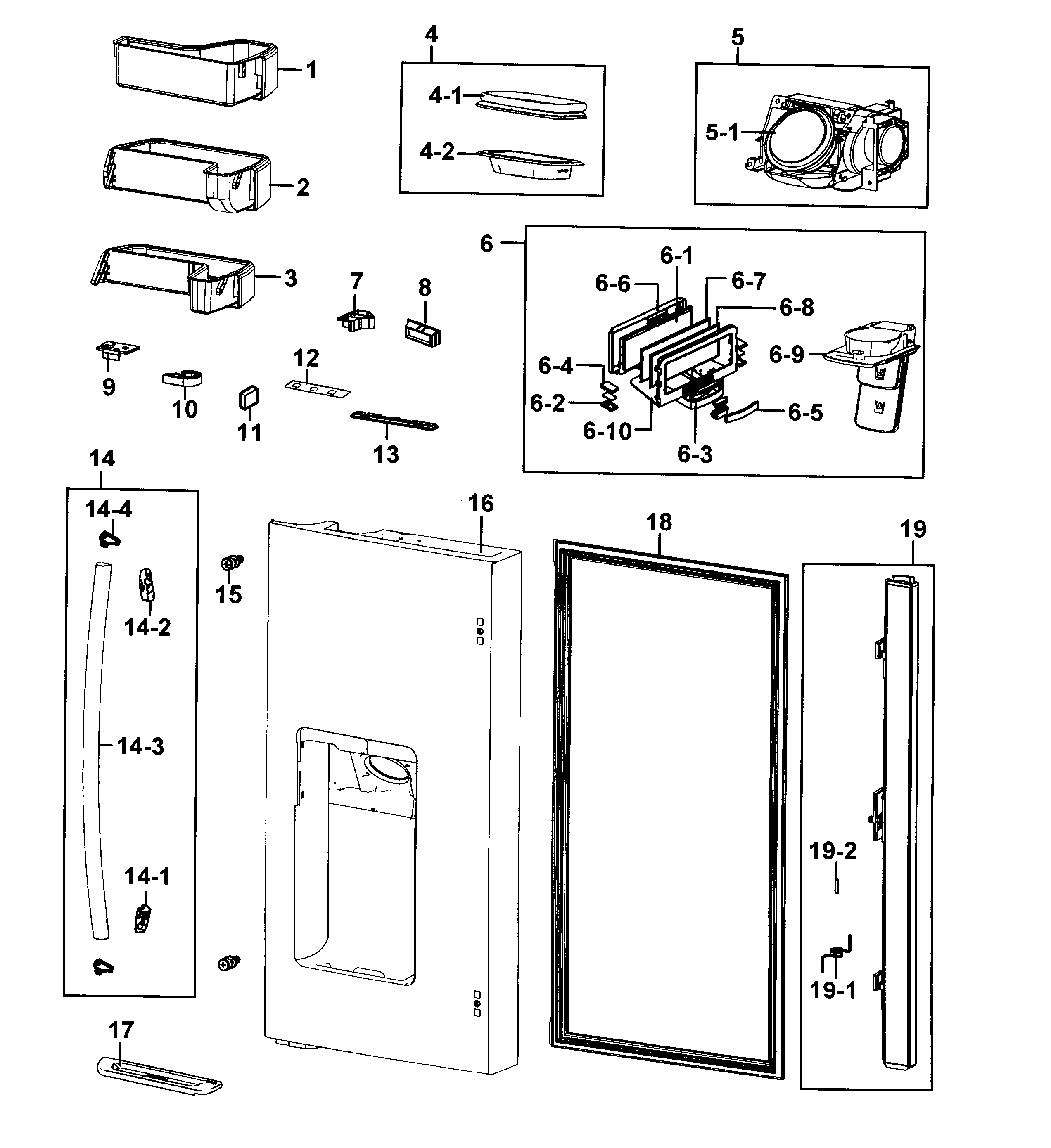

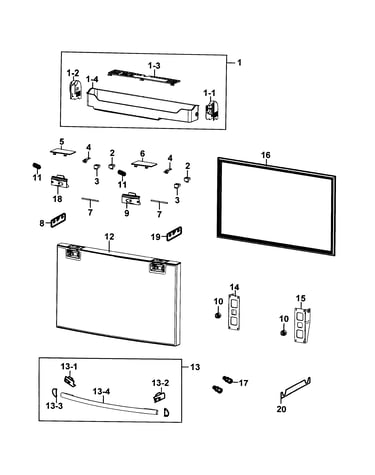

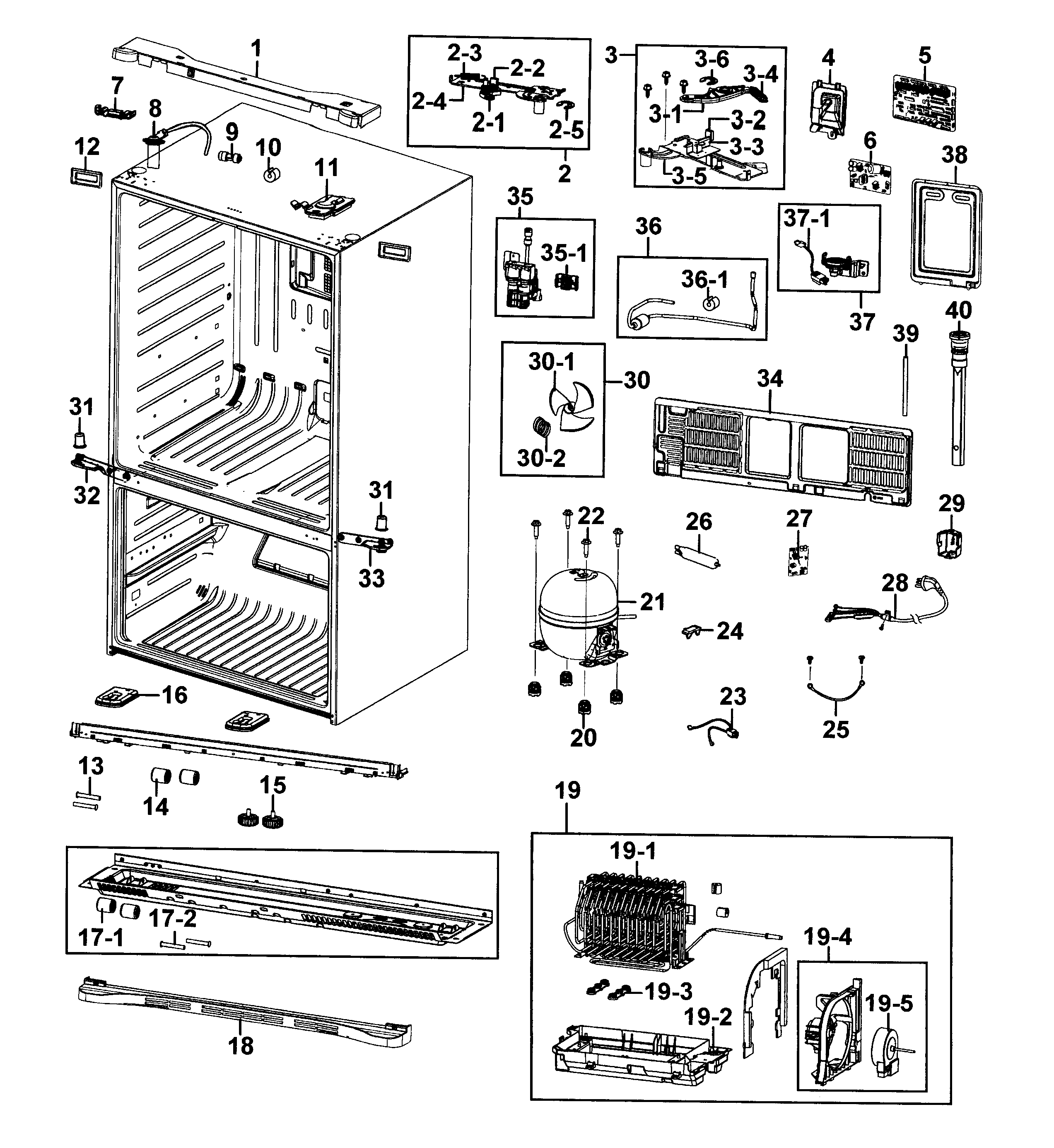

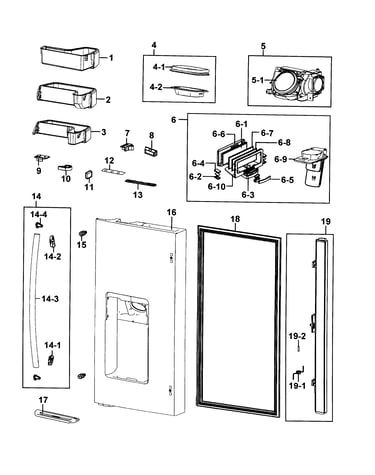

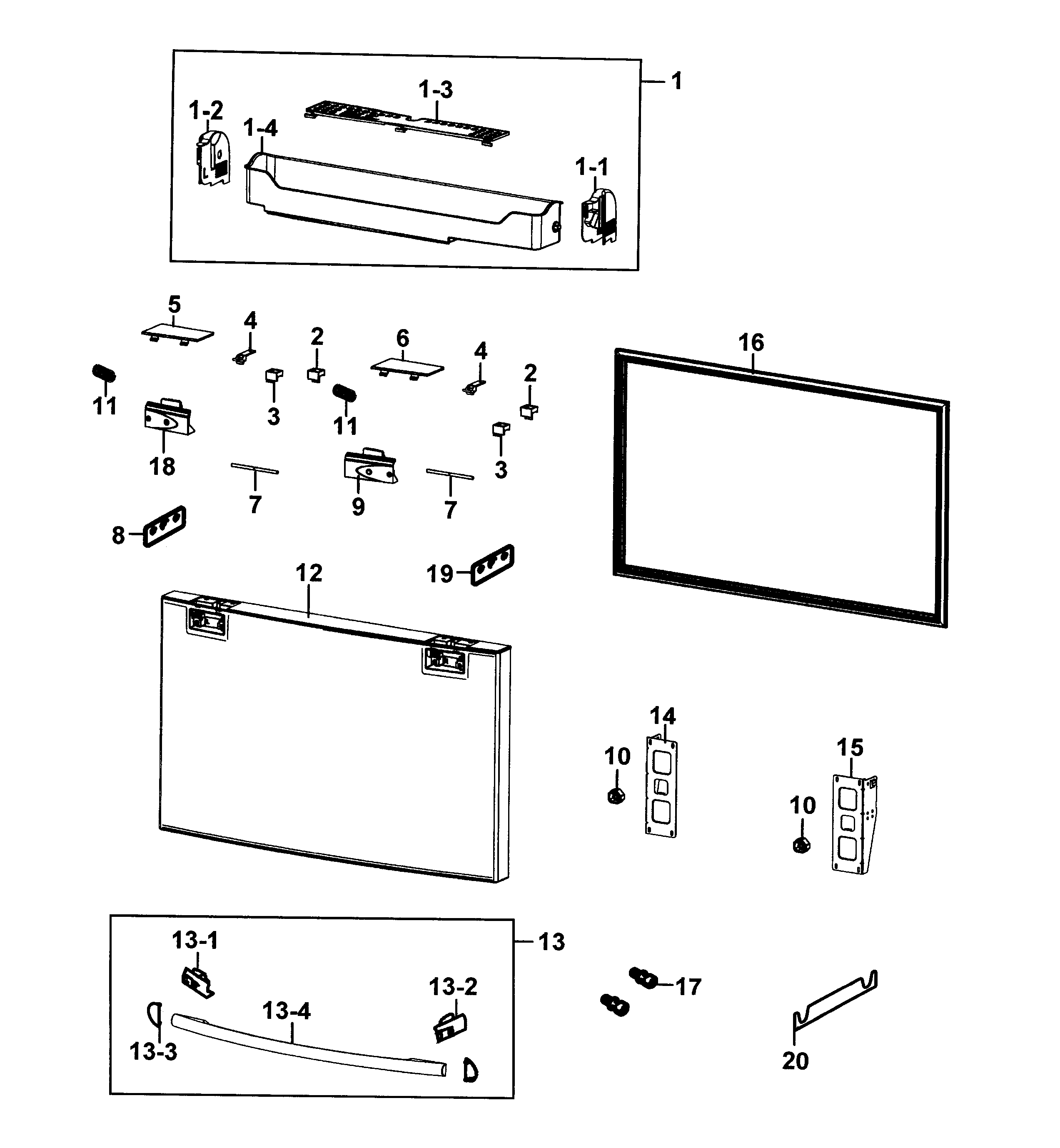

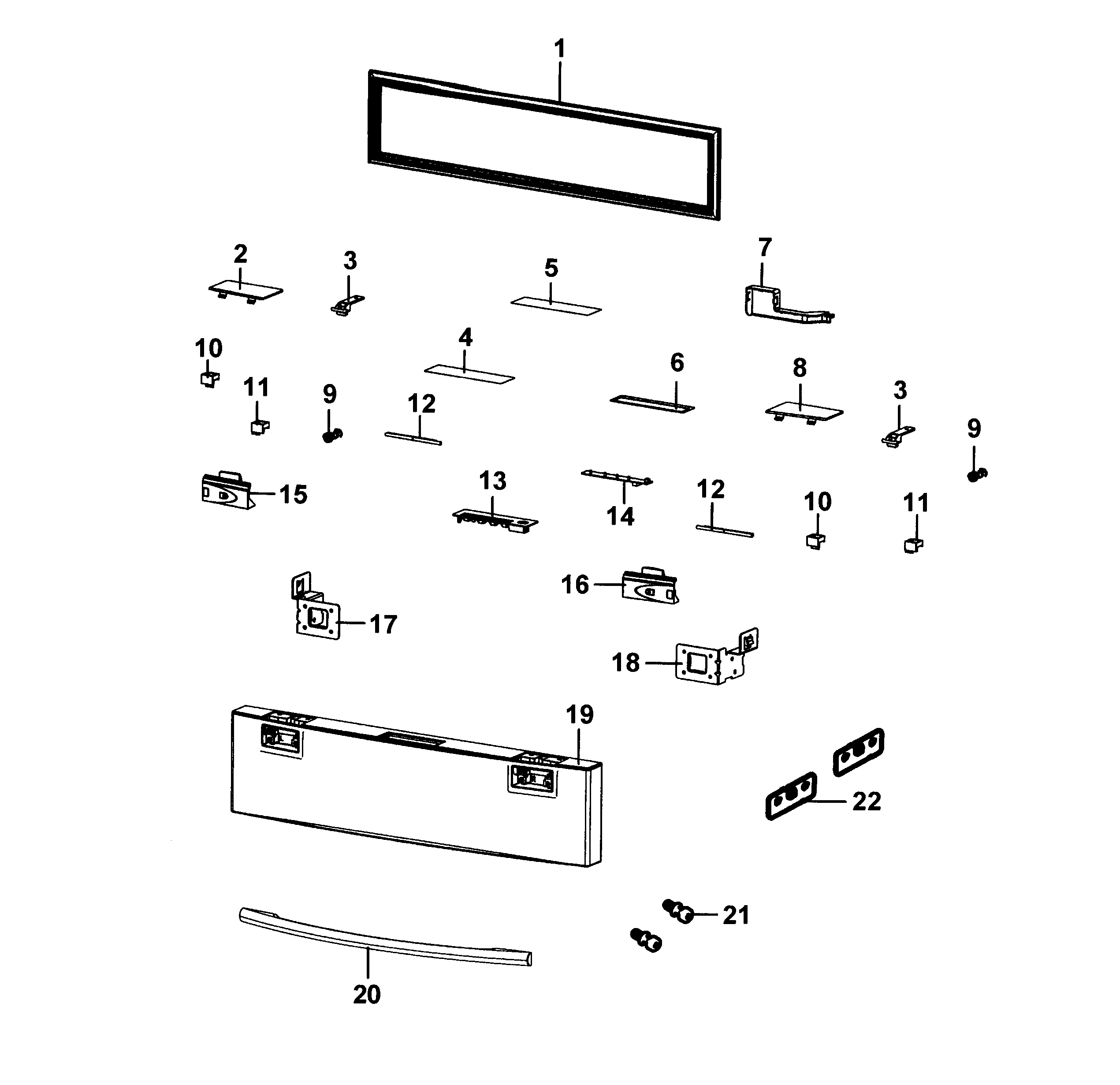

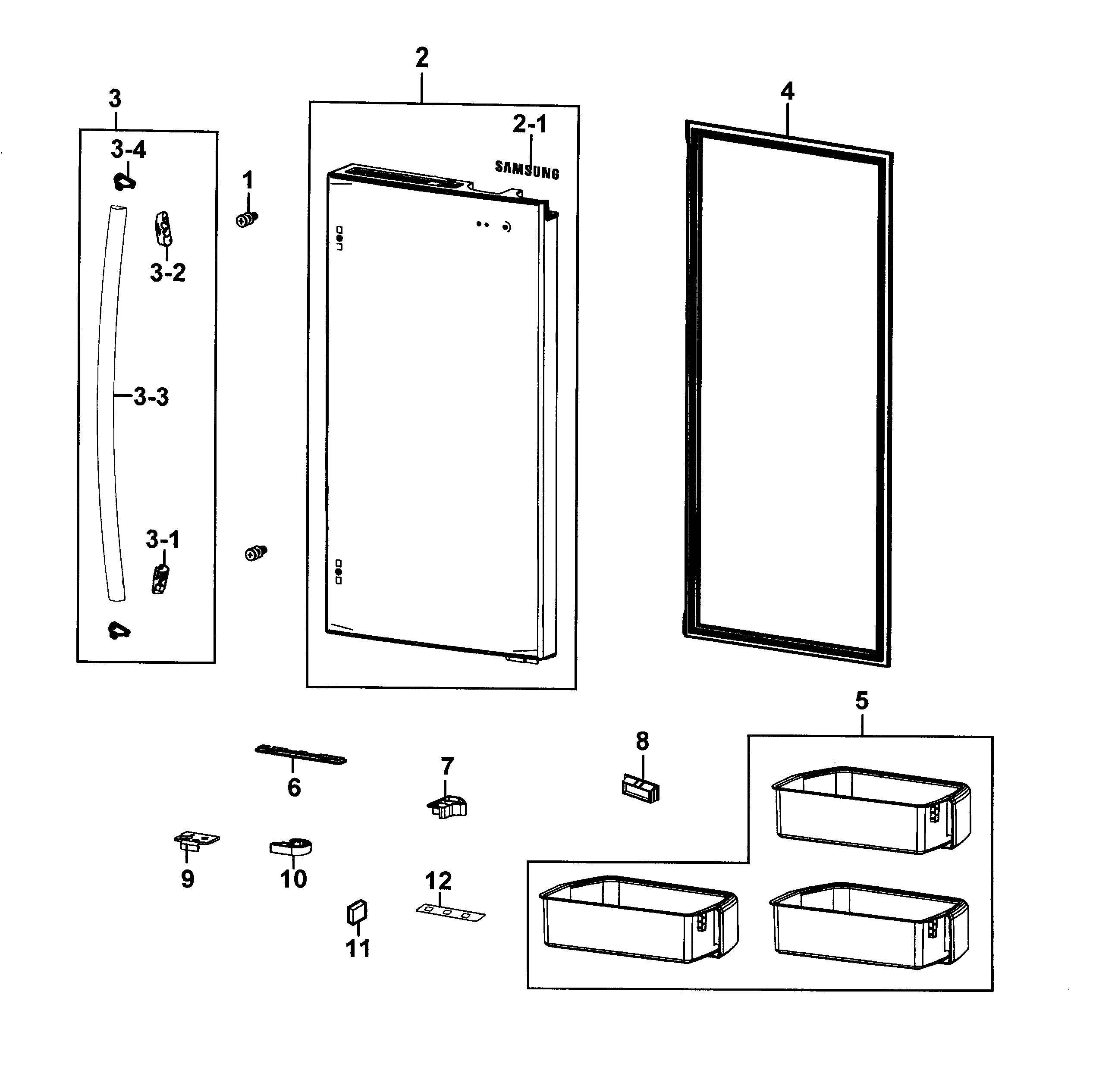

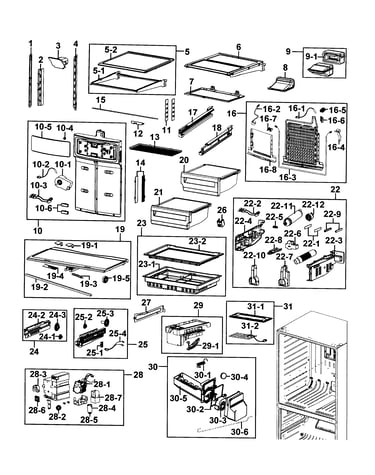

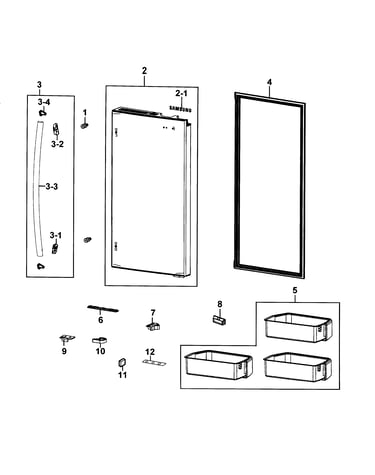

Samsung RF4287HARS/XAA-00 refrigerator Parts

Here are the diagrams and repair parts for Samsung RF4287HARS/XAA-00 refrigerator, as well as links to manuals and error code tables, if available.

By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for RF4287HARS/XAA-00 Refrigerators

Samsung Refrigerator RF4287HARS/XAA-00 FAQs

Most Samsung refrigerators, including the Samsung RF4287HARS bottom-mount style, typically last 10 to 15 years with normal household use. Consistent maintenance (cleaning, correct temperatures, and timely part replacement) is what most often determines whether you land closer to 10 years or closer to 15.

Typical lifespan ranges (what to expect)

Refrigerator life varies by usage, environment, and how hard the sealed system works.

  • Average expected life: 10 to 15 years
  • Shortened life drivers: dirty condenser area, warm room/garage use, frequent door opening, poor door sealing
  • Extended life drivers: stable room temperature, good airflow around the cabinet, prompt fixes for icing or leaks
  • Most common mid-life repairs: ice maker issues, defrost problems, sensors, control boards
Scenario What it usually means Practical takeaway
Runs constantly, warm temps Cooling system working too hard Improve airflow, clean dust, verify settings
Frost buildup, fan noise Defrost/airflow issue Address early to prevent strain
Ice maker stops Water supply or ice room issue Troubleshoot before replacing parts

Maintenance that helps you reach the high end of the range

We recommend these habits for RF4287HARS and similar Samsung French door and bottom-freezer designs:

  • Keep refrigerator at 37°F and freezer at 0°F (common targets for food safety and performance)
  • Leave space for airflow around the cabinet; avoid blocking vents inside
  • Keep door gaskets clean and sealing flat
  • Change the water filter on schedule (if equipped)
  • Fix ice buildup promptly so fans and airflow are not restricted

For model-specific care and cleaning steps, follow the RF4287HARS owner's manual.

When a repair makes sense vs. replacement

A good rule is to repair when the fix is straightforward and the refrigerator is cooling well.

  • Often worth repairing: ice maker, sensors, defrost heater, control board
  • Bigger decision: sealed-system or compressor-related repairs, especially as the unit ages

If your ice production is the main issue, use why your Samsung fridge stopped making ice and how to fix it to pinpoint the cause before buying parts.

Why it matters

A refrigerator that is struggling (icing, poor airflow, incorrect temps) runs longer and hotter, which increases wear on major components and can shorten overall lifespan.

Last updated: February 2026

On Samsung refrigerator model RF4287HARS, RD (refrigerator defrost) targets the fresh food (refrigerator) evaporator defrost cycle, while FD (force defrost) runs a broader manual defrost routine that can address heavier frost issues affecting multiple sections. For the exact button sequence and display behavior, use the RF4287HARS owner's manual.

What RD vs. FD is used for

  • RD: Use when the refrigerator section has symptoms like warm temps, restricted airflow, or frost buildup behind the rear panel.
  • FD: Use when icing seems more widespread (for example, recurring heavy frost, airflow blocked in more than one area, or ice-related performance problems).
  • Both modes are typically used as service diagnostics to clear frost and confirm whether a defrost problem is present.

What to expect during each mode

Mode What it focuses on When it helps most What it does not fix
RD Refrigerator evaporator area Frost behind fresh food rear cover, fridge warming Failed parts that caused the icing in the first place
FD Broader defrost routine Heavy icing patterns, repeated icing after normal defrost Sealed system issues, low refrigerant, weak compressor

If the frost comes back quickly

Recurring frost after RD or FD usually points to a defrost system or airflow problem. Check these common causes:

  • Door not sealing well or doors left ajar (warm air intrusion)
  • Defrost heater not heating (example part: refrigerator defrost heater DA47-00244W)
  • Temperature sensor reading incorrectly
  • Air damper stuck or airflow blocked by ice
  • Evaporator cover iced over or not seated correctly

Why it matters

RD and FD can temporarily restore cooling by melting ice that blocks airflow across the evaporator coils. If cooling improves only briefly, the real fix is identifying the failed component (heater, sensor, control, or airflow restriction) rather than repeating forced defrost.

Last updated: February 2026

Cooling problems are the most common issue we see with Samsung refrigerators, including the Samsung RF4287HARS. In many cases, the refrigerator section warms up because frost or ice buildup restricts airflow, often tied to the defrost system or evaporator area, even when the freezer still seems cold.

Most common symptoms customers notice

  • Fresh food section is warm but freezer is cold
  • Frost or ice buildup on the back wall inside the refrigerator
  • Fan noise, rattling, or a “whooshing” sound from the evaporator area
  • Temperature swings, food freezing in the refrigerator, or soft ice cream in the freezer
  • Water leaking inside the cabinet after heavy frost buildup melts

What usually causes it (and what to check first)

Start with the basics, then move to the most common failure points:

  • Airflow issues: blocked vents, overpacked shelves, or iced-over evaporator cover
  • Defrost system problems: failed defrost heater, sensor, or control logic
  • Evaporator fan problems: fan not running or hitting ice
  • Door sealing issues: warm air leaks that drive frost buildup
  • Ice maker and dispenser issues: common secondary complaints on many Samsung units

For model-specific component locations and access steps, use the RF4287HARS owner's manual.

Quick troubleshooting: what to do based on what you see

What you observe Most likely direction Typical next step
Heavy frost behind rear panel Defrost system or airflow restriction Defrost, then inspect heater/sensor
No fan sound in fridge section Evaporator fan issue or ice interference Check for ice contact, test fan
Temps fluctuate with normal frost Sensor or control issue Check sensor readings and wiring
Ice maker stopped too Water supply, ice maker, or freezer temp Verify freezer temp and fill system

If you suspect a defrost failure, the refrigerator defrost heater DA47-00244W is one of the key parts involved in restoring normal automatic defrost operation.

Why it matters

When airflow is restricted by frost, the refrigerator compartment cannot circulate cold air properly. That leads to warm food storage temperatures, extra compressor run time, and recurring ice buildup that can also trigger leaks and fan noise.
