Whirlpool GX5SHDXVB03 refrigerator Parts

Most Whirlpool refrigerators last 10 to 15 years with normal household use. For your Whirlpool GX5SHDXVB03 bottom-mount refrigerator, keeping airflow clear, temperatures set correctly, and seals tight helps you reach the upper end of that range; see the owner's manual.

A refrigerator’s life is mostly driven by compressor run time, heat removal, and how well the doors seal.

• 10 to 15 years is the typical service life for a Whirlpool refrigerator
• Heavy use (frequent door openings, warm garage installs) can shorten life
• Poor airflow (dirty condenser area, blocked vents) increases compressor wear
• Weak door gaskets cause longer run times and temperature swings
• Water and ice system leaks can create corrosion and electrical issues

These steps reduce strain on the sealed system and help prevent common failures.

• Keep the condenser area and grille openings clear of dust and pet hair
• Confirm the freezer and fresh food vents are not blocked by packages
• Set stable temps (avoid the coldest setting unless needed for food safety)
• Check door closing and gasket contact all the way around the door
• Address water/ice issues early (slow fill, no ice, leaking)

A refrigerator that runs longer to hold temperature uses more energy and wears the compressor and control components faster. Simple maintenance and fixing small issues early often adds years of reliable cooling.

If you need replacement parts for GX5SHDXVB03, we list model-matched options on this page, and you can also search by model number on Sears PartsDirect.

Last updated: February 2026

For Whirlpool refrigerators like model GX5SHDXVB03, the most common service issue is poor cooling caused by an evaporator fan problem. When the evaporator fan is not moving air across the evaporator coil, cold air does not circulate well, so the fresh food section warms up even if the freezer still seems cold. See the troubleshooting and airflow details in the GX5SHDXVB03 owner's manual.

• Refrigerator section is warm but freezer is closer to normal
• Weak or no airflow from the refrigerator vents
• Unusual buzzing, squealing, or intermittent fan noise
• Frost buildup on the back wall of the freezer (airflow gets blocked)
• Temperatures swing more than normal after door openings

1. Confirm settings: Make sure temperature controls were not accidentally changed.
2. Check vent blockage: Packages or bins can block return vents and stop circulation.
3. Listen for the fan: With the door switch held closed, you should typically hear the evaporator fan running when cooling is needed.
4. Inspect for heavy frost: A solid frost sheet often points to a defrost or airflow restriction issue.
5. Clean condenser area: Dust buildup can raise temps and mimic airflow problems.

If your diagnosis points to airflow or control issues, these model-matched parts are common fixes:

For step-by-step diagnosis tips, we also recommend our how to fix your evaporator cooling fan guide.

The evaporator fan is the “air mover” for the sealed cooling system. Even if the compressor and refrigerant system are working, a failed fan or blocked airflow prevents cold air from reaching the refrigerator compartment, which leads to food spoilage and longer run times.

If you need to order parts for GX5SHDXVB03, use the parts list for this model or search by model number on Sears PartsDirect.

Last updated: February 2026

To find the cubic feet (storage capacity) of your Whirlpool GX5SHDXVB03 refrigerator, we recommend checking the capacity listed in the specifications section of the owner's manual. If you need to estimate it yourself, you can calculate interior volume from measurements and convert cubic inches to cubic feet.

Use the published capacity for your exact model.

• Open the owner's manual for Whirlpool GX5SHDXVB03
• Look for Specifications, Product dimensions, or Capacity
• Note that some manuals list total capacity and may also break out refrigerator and freezer capacity

If you cannot find the spec, you can estimate capacity by measuring the usable interior space.

• Measure the interior width, interior height, and interior depth in inches
• Multiply: width × height × depth = cubic inches
• Divide by 1,728 to convert cubic inches to cubic feet
• Measure the fresh food and freezer sections separately, then add them

Interior shapes are not perfect rectangles, so focus on usable space.

• Measure to the inside liner, not the outside cabinet
• Subtract space taken by fixed features (air ducts, light housing, ice maker area)
• Ignore removable bins and shelves; they do not change the cabinet volume
• If you have an ice maker installed, it reduces usable freezer space even if total capacity stays the same

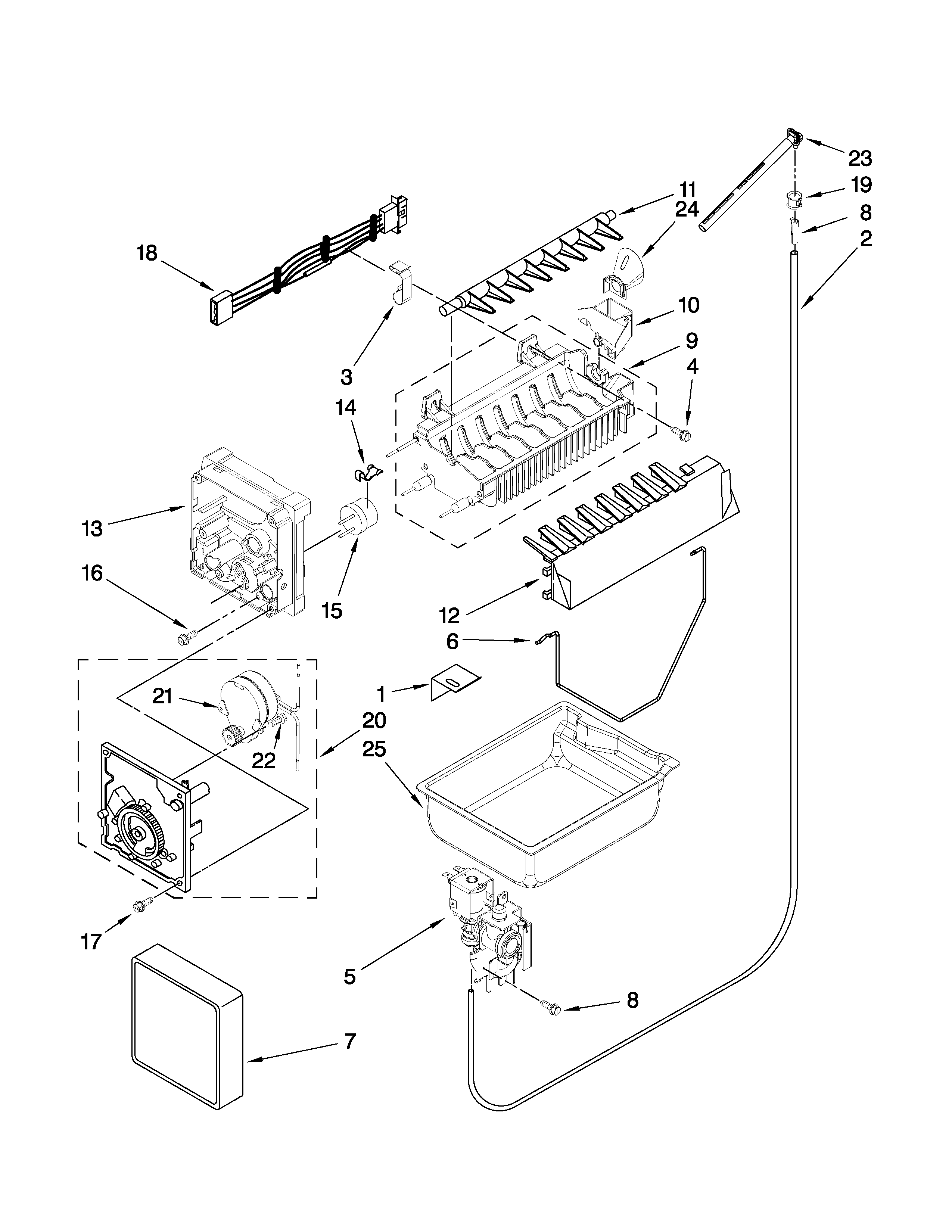

Cubic feet helps you compare refrigerator sizes, plan kitchen fit, and understand storage tradeoffs (for example, adding an ice maker or bulky bins can reduce usable space). If you are shopping for replacement parts like a refrigerator ice maker D7824706Q, matching the model number and configuration keeps fit and performance consistent.

If you are ordering parts for Whirlpool GX5SHDXVB03, start with the parts list for this model; you can also search by model number on Sears PartsDirect.

Last updated: February 2026
