Model # LHD459ELY9 Official LG dehumidifier

Here are the diagrams and repair parts for Official LG LHD459ELY9 dehumidifier, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 33 parts |

#9012

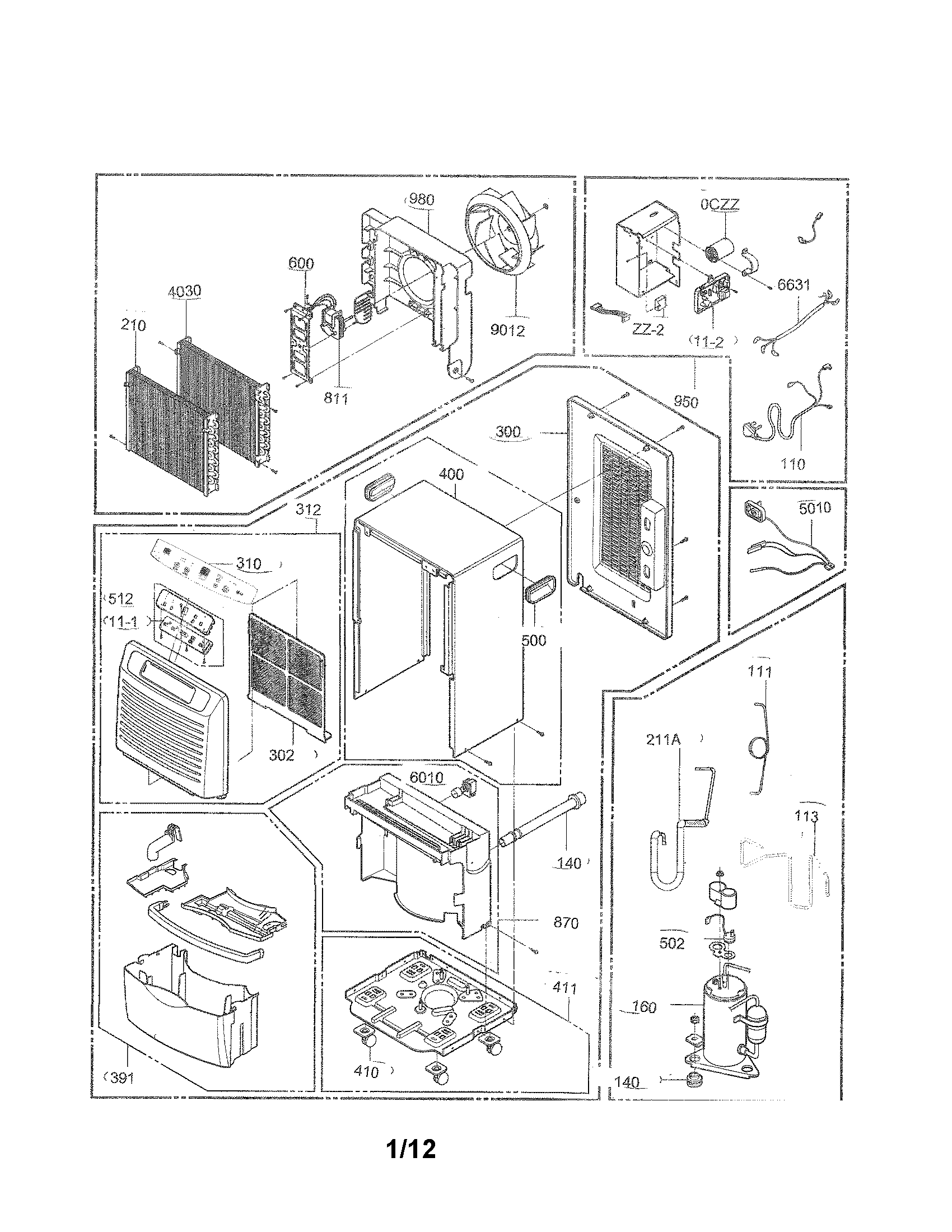

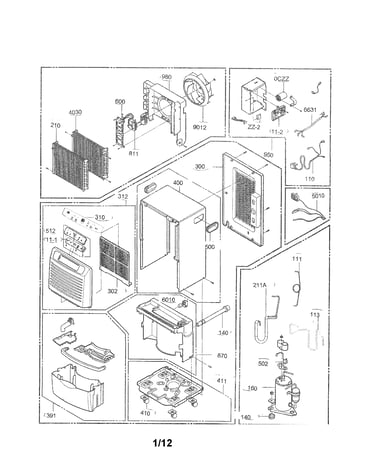

Exploded view parts diagram

Dehumidifier blower wheel

Part #5900A20007B

This item is not returnable

$10.60

In Stock

Qty

#11-2

Exploded view parts diagram

Main pcb assembly

Part #EBR36909303

$69.04

In Stock

Qty

#113

Exploded view parts diagram

Discharge tube

Part #MJU60464001

$27.47

In Stock

Qty

#140

Exploded view parts diagram

Bushing

Part #4830A30005A

The manufacturer no longer makes this part, and there's no substitute part

#410

Exploded view parts diagram

Caster

Part #4441A30001B

Replaced by #MHA62753001

$14.51

In Stock

Qty

#ZZ-2

Exploded view parts diagram

Dehumidifier run capacitor

Part #3H00660V

Replaced by #EAE42718008

$23.07

In Stock

Qty

#4030

Exploded view parts diagram

Condenser

Part #5403A10008D

The manufacturer no longer makes this part, and there's no substitute part

Dehumidifier Water Bucket Safety Switch 6600A30003C

#6010

Exploded view parts diagram

Dehumidifier water bucket safety switch

Part #6600A30003C

The manufacturer no longer makes this part, and there's no substitute part

#111

Exploded view parts diagram

Capillary tube

Part #AJR71503601

The manufacturer no longer makes this part, and there's no substitute part

#6631

Exploded view parts diagram

Single harness

Part #6862A20022Q

The manufacturer no longer makes this part, and there's no substitute part
