Kenmore Elite
Washer

Model # 11027042601 Official Kenmore Elite washer

Here are the diagrams and repair parts for Official Kenmore Elite 11027042601 washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 140 parts  |

Appliance Touch-up Paint, 0.6-oz (white) (replaces 21020, 72017r, 8006, W10813125, Y058028) 72017
#NI

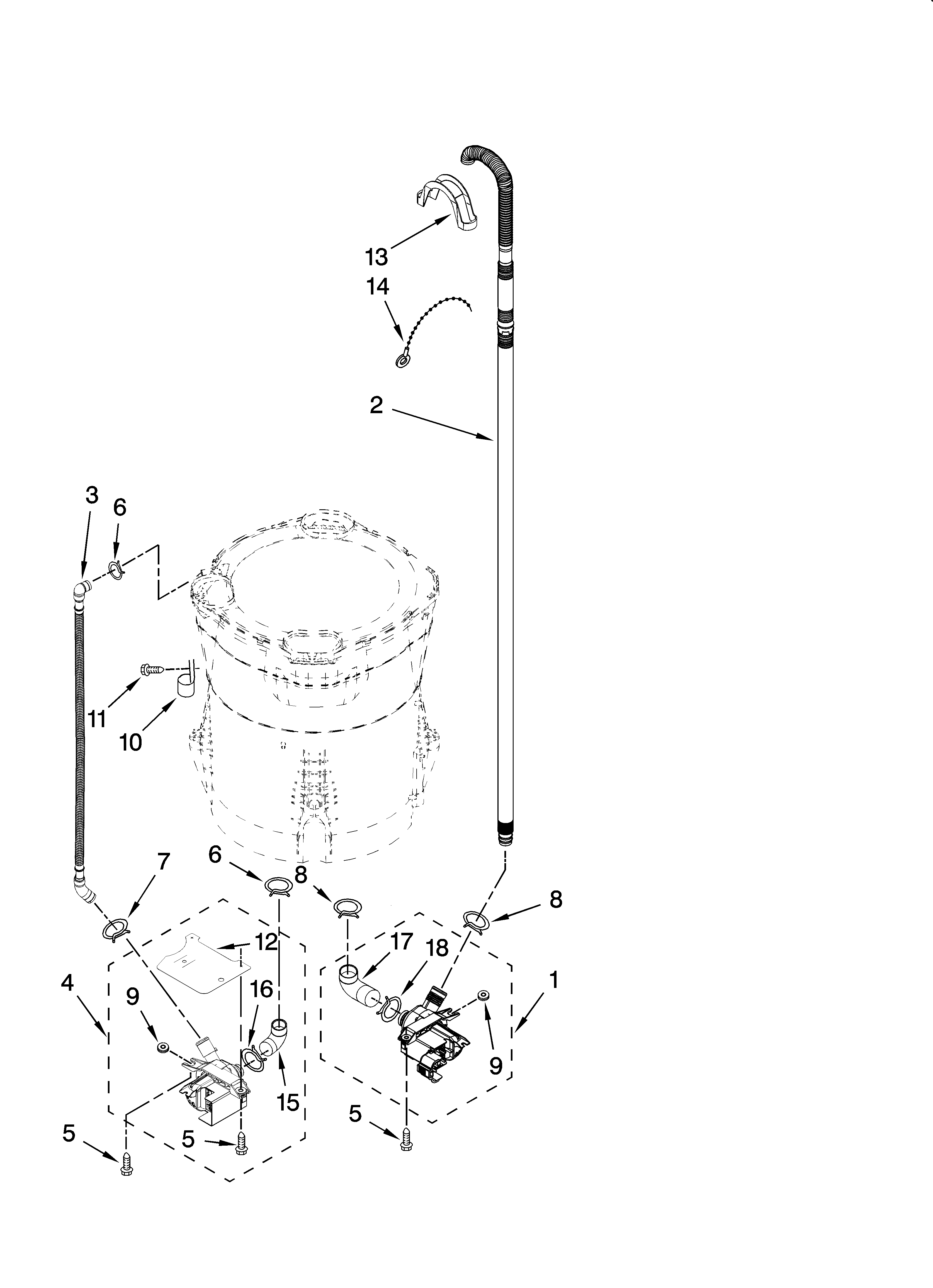

Pump parts, optional parts (not included) diagram

Appliance touch-up paint, 0.6-oz (white) (replaces 21020, 72017r, 8006, w10813125, y058028)

Part #72017

BEST SELLER
$8.29
11% OFF Phone Price : $9.29
In Stock
Hub 8545953
#9

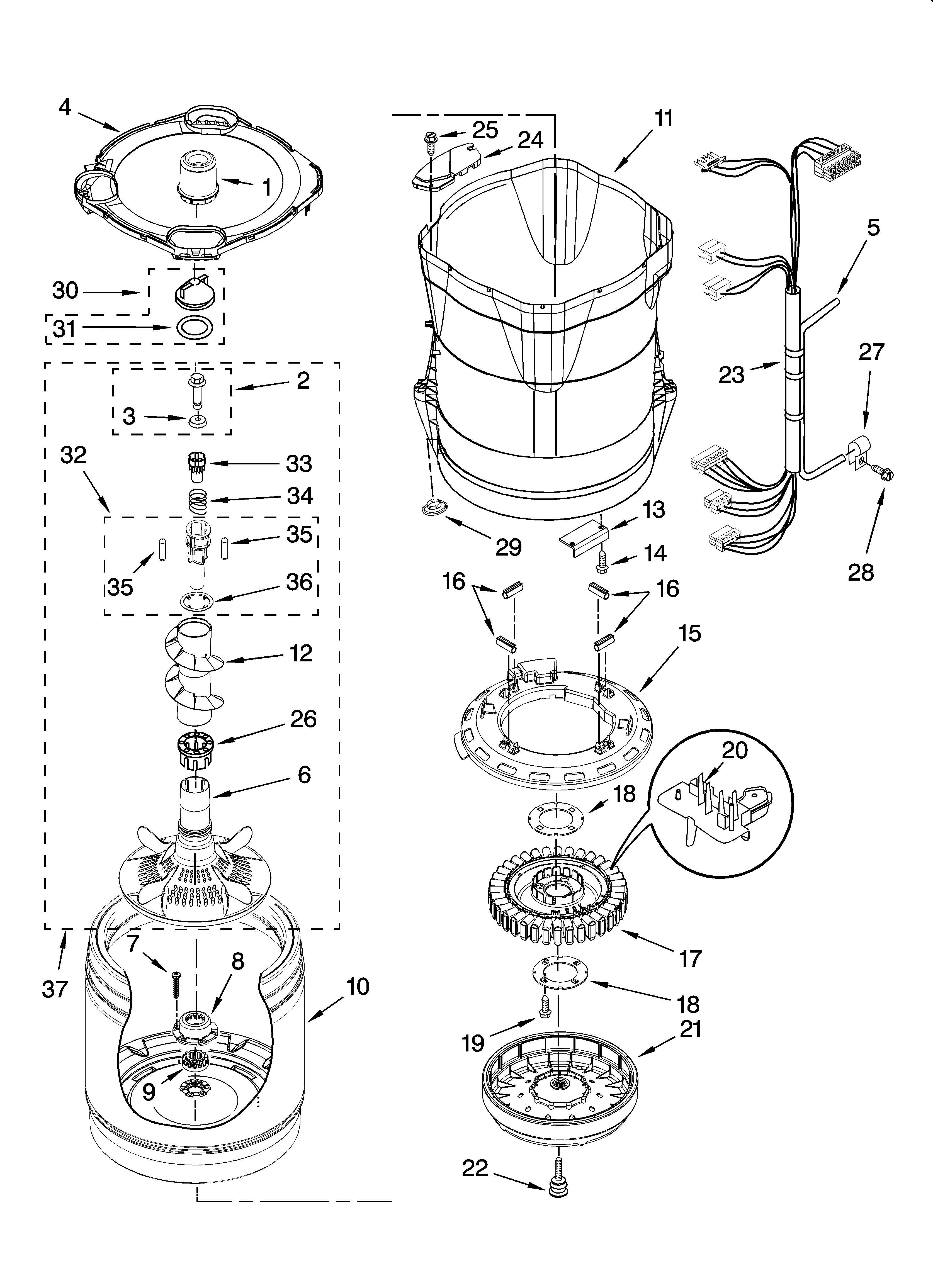

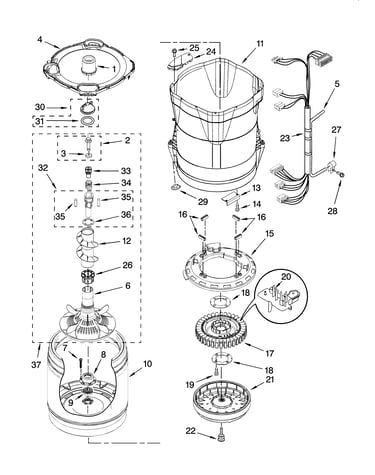

Motor, basket and tub parts diagram

Hub

Part #8545953

Replaced by #W10820039

?
Manufacturer substitution
This part replaces 8545953. Substitute parts can look different from the original.
BEST SELLER
$24.31
36% OFF MSRP : $38.00
In Stock
Hub Basket 8545948
#8

Motor, basket and tub parts diagram

Hub basket

Part #8545948

Replaced by #W10820039

?
Manufacturer substitution
This part replaces 8545948. Substitute parts can look different from the original.
BEST SELLER
$24.31
36% OFF MSRP : $38.00
In Stock
Hose Clamp 370451
#41

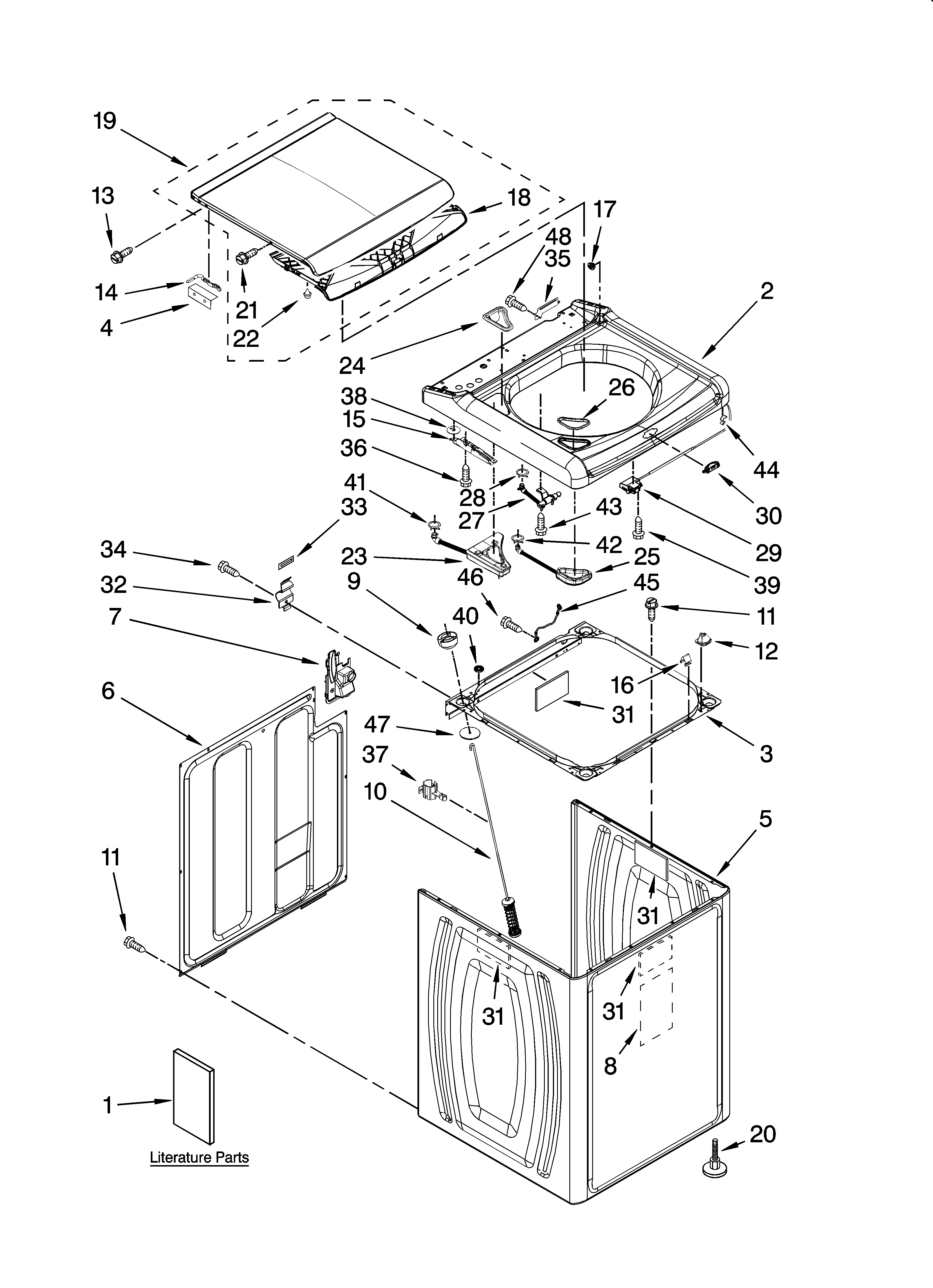

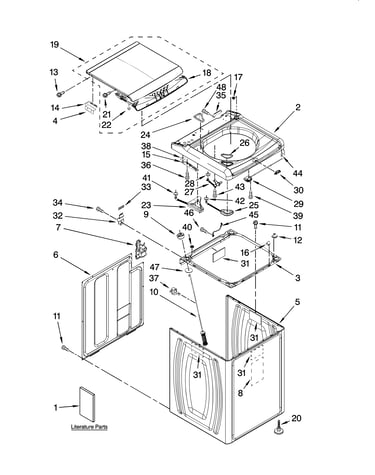

Top and cabinet parts diagram

Hose clamp

Part #370451

Replaced by #WP596669

?
Manufacturer substitution
This part replaces 370451. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.37
69% OFF MSRP : $14.00
In Stock
Clamp 371503
Clamp

Part #371503

Replaced by #WP596669

?
Manufacturer substitution
This part replaces 371503. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.37
69% OFF MSRP : $14.00
In Stock
Washer Agitator Cap W10074580
#30

Motor, basket and tub parts diagram

Washer agitator cap

Part #W10074580

Replaced by #WPW10074580

?
Manufacturer substitution
This part replaces W10074580. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.30
67% OFF MSRP : $16.00
In Stock
Screw 3390647
#48

Top and cabinet parts diagram

Screw

Part #3390647

Replaced by #WP488729

?
Manufacturer substitution
This part replaces 3390647. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.39
19% OFF Phone Price : $5.39
In Stock
Washer Fill Hose 8571378
#19A

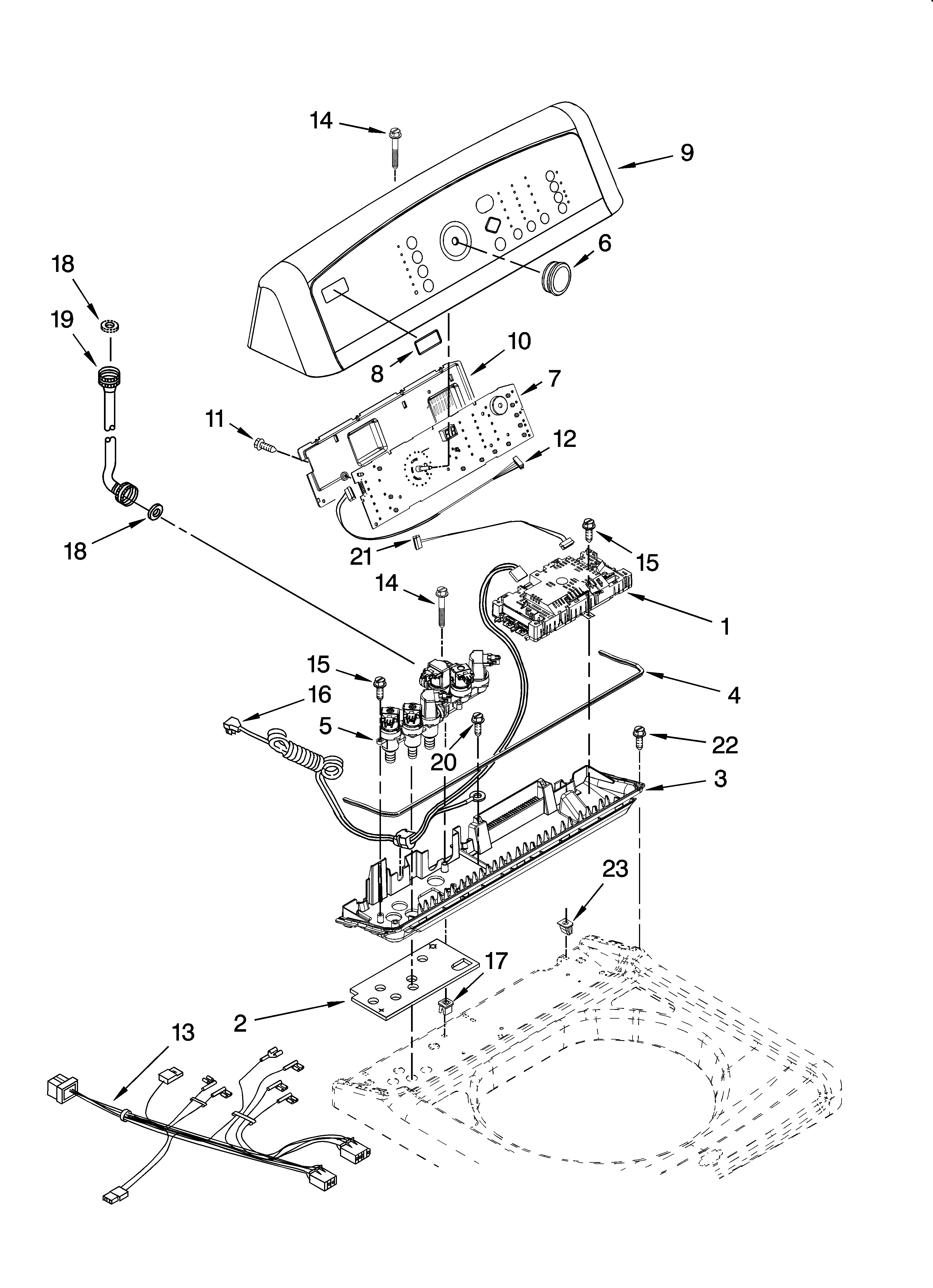

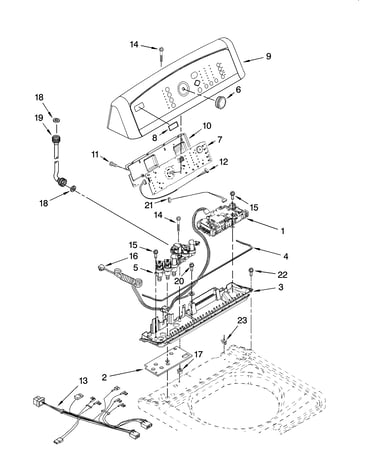

Control panel parts diagram

Washer fill hose

Part #8571378

Replaced by #WP89503

?
Manufacturer substitution
This part replaces 8571378. Substitute parts can look different from the original.
BEST SELLER
$14.49
12% OFF Phone Price : $16.49
In Stock
Fill Hose 8571377
#19

Control panel parts diagram

Fill hose

Part #8571377

Replaced by #WP89503

?
Manufacturer substitution
This part replaces 8571377. Substitute parts can look different from the original.
BEST SELLER
$14.49
12% OFF Phone Price : $16.49
In Stock
Washer Lid Bumper 9724509
#22

Top and cabinet parts diagram

Washer lid bumper

Part #9724509

Replaced by #WP9724509

?
Manufacturer substitution
This part replaces 9724509. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.39
19% OFF Phone Price : $5.39
In Stock
