Craftsman
Front-Engine Lawn Tractor

Model #917272067 Craftsman lawn tractor

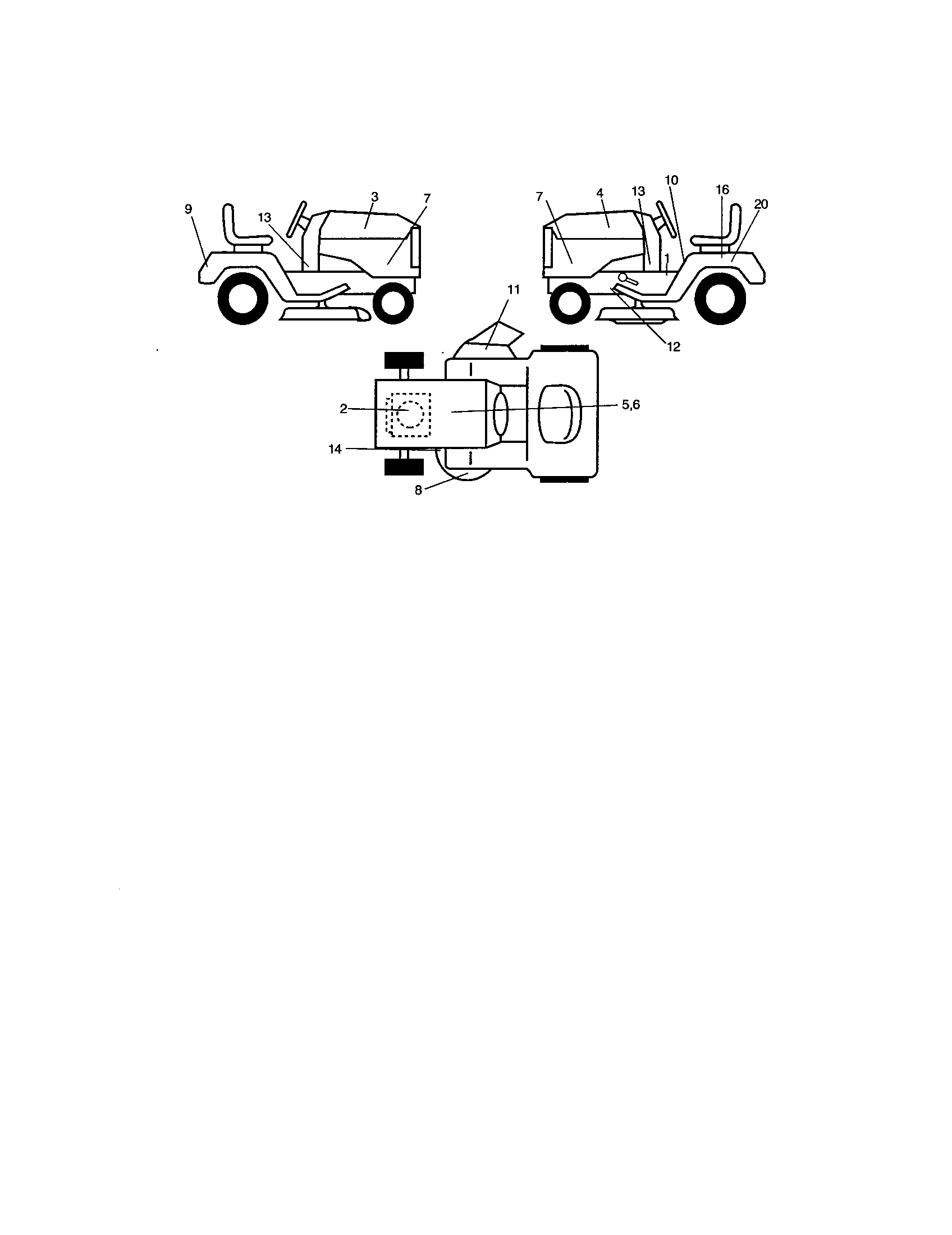

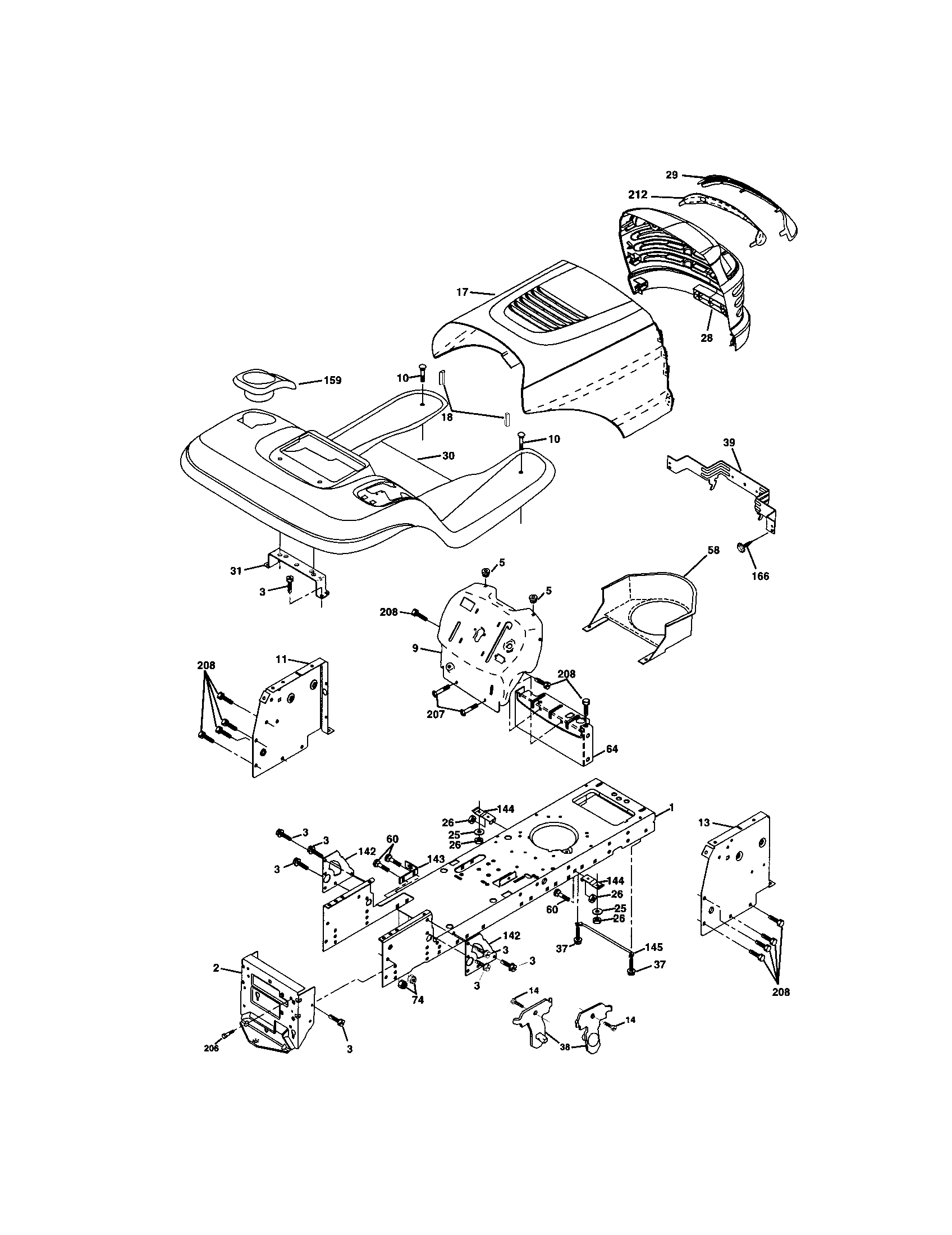

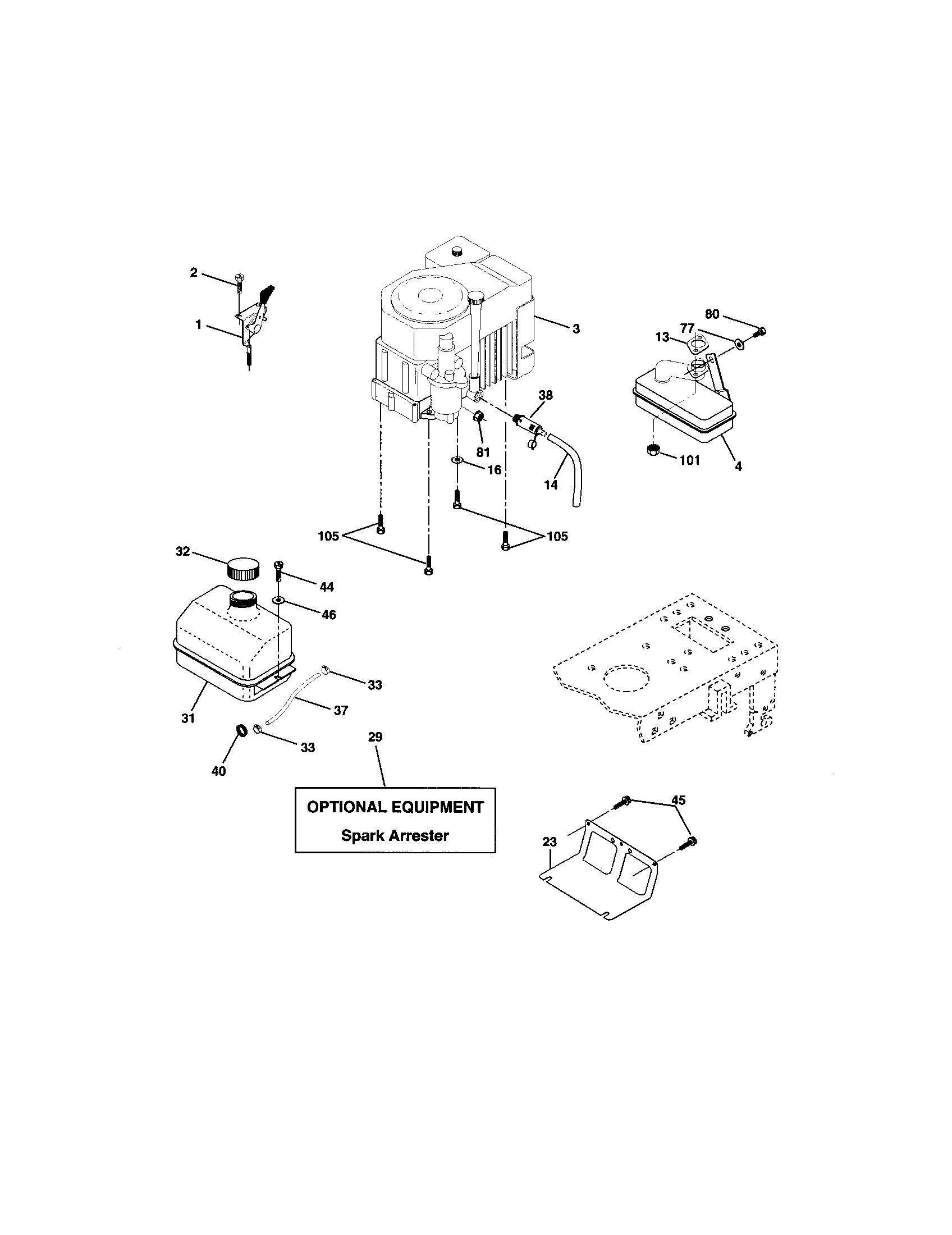

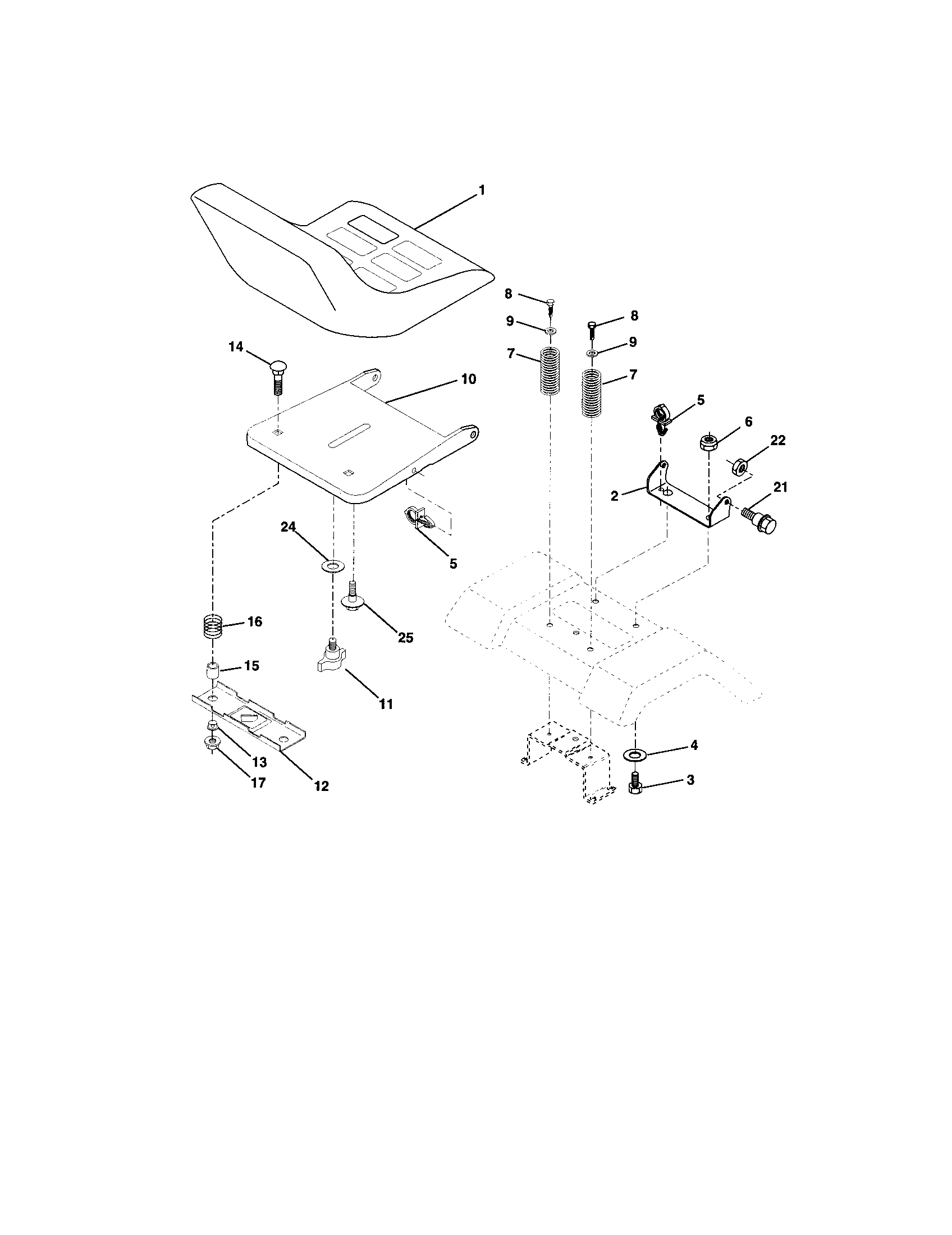

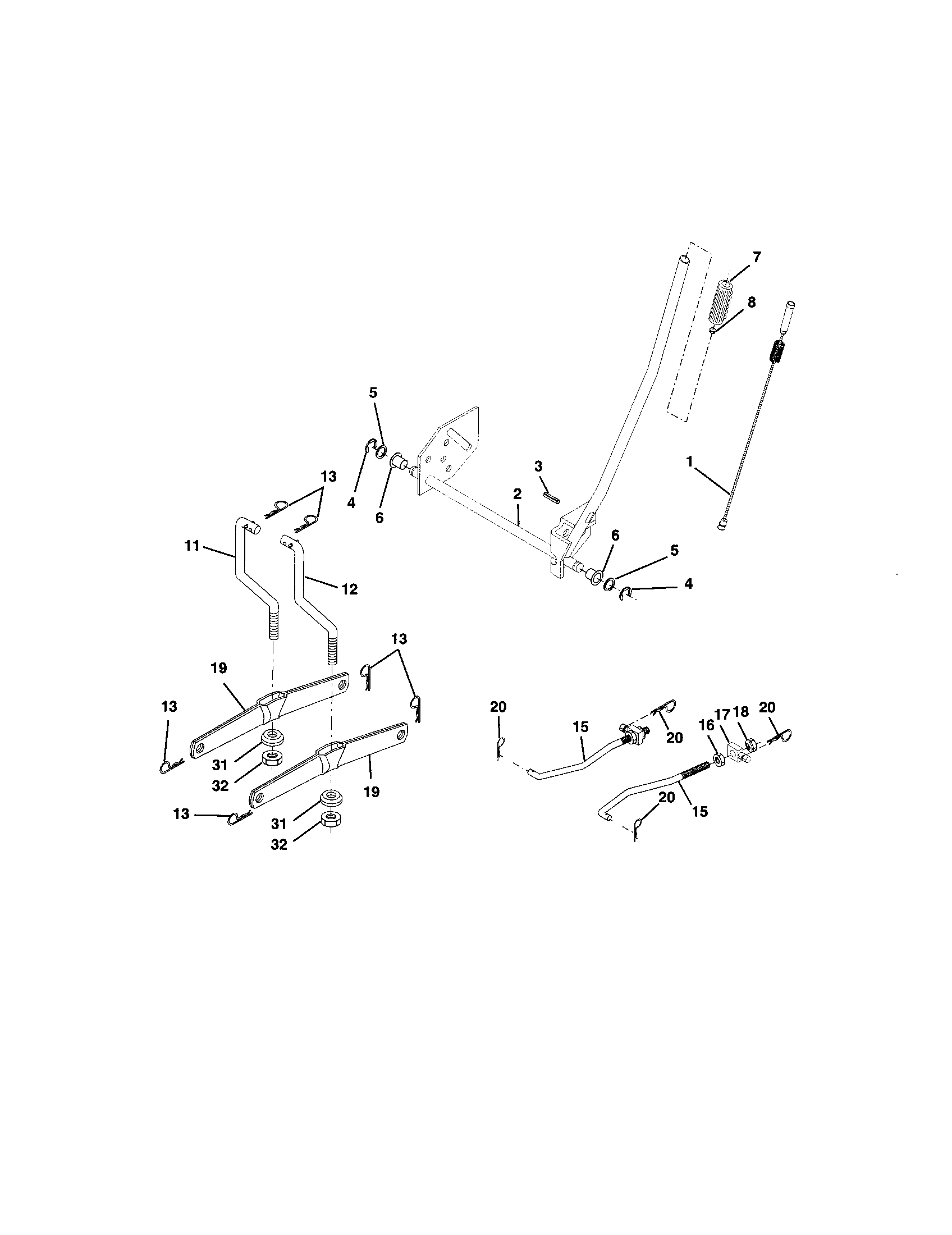

Here are the diagrams and repair parts for Craftsman 917272067 lawn tractor, as well as links to manuals and error code tables, if available.


There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

    Showing 10 of 609 parts

    Lawn Tractor Axle Flange Bearing

    #7

    Wheels and tires Diagram

    Lawn tractor axle flange bearing

    Part #9040H
    This item is not returnable
    $4.41 |
    52% OFF MSRP:$9.10

    In Stock

    Lawn Tractor Ring Clip

    #8

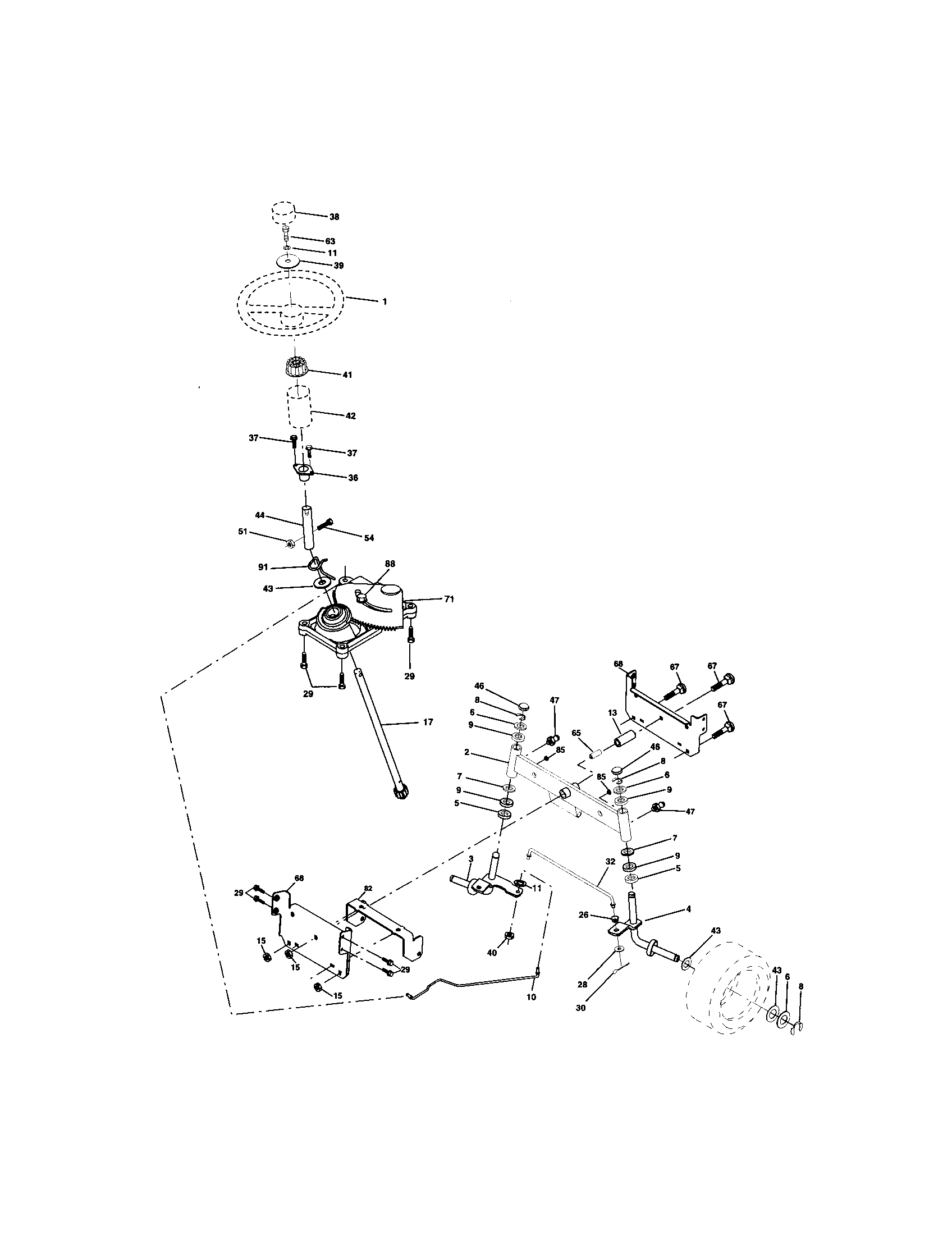

    Steering assembly Diagram

    Lawn tractor ring clip

    Part #12000029
    $16.48

    In Stock

    Lawn Tractor Ground Drive Belt, 1/2 x 82-in

    #57

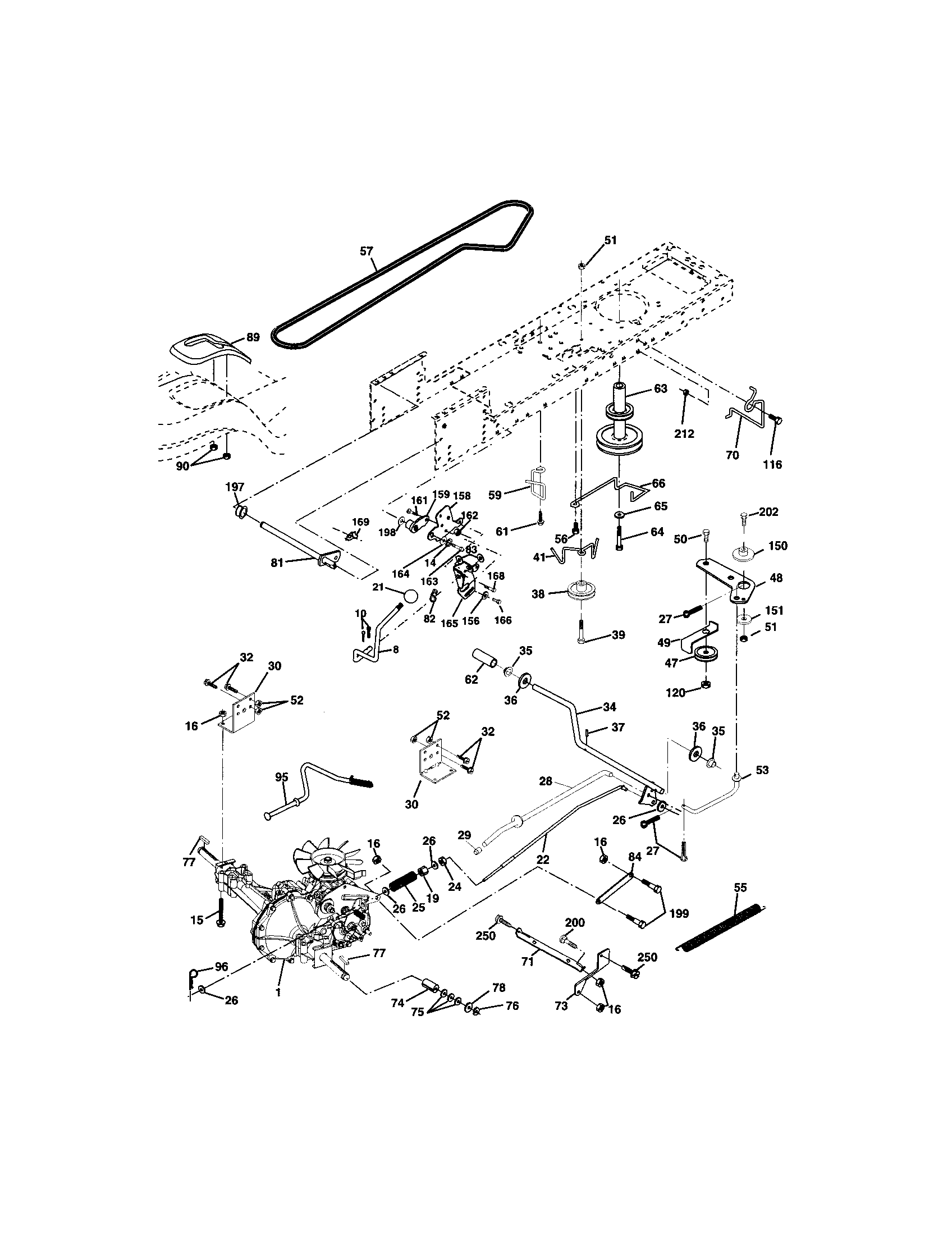

    Ground drive Diagram

    Lawn tractor ground drive belt, 1/2 x 82-in

    Part #140294

    Get free shipping with Automatic Reorder

    $20.74 |
    41% OFF MSRP:$35.00

    In Stock

    Lawn Tractor Mandrel Housing

    #14

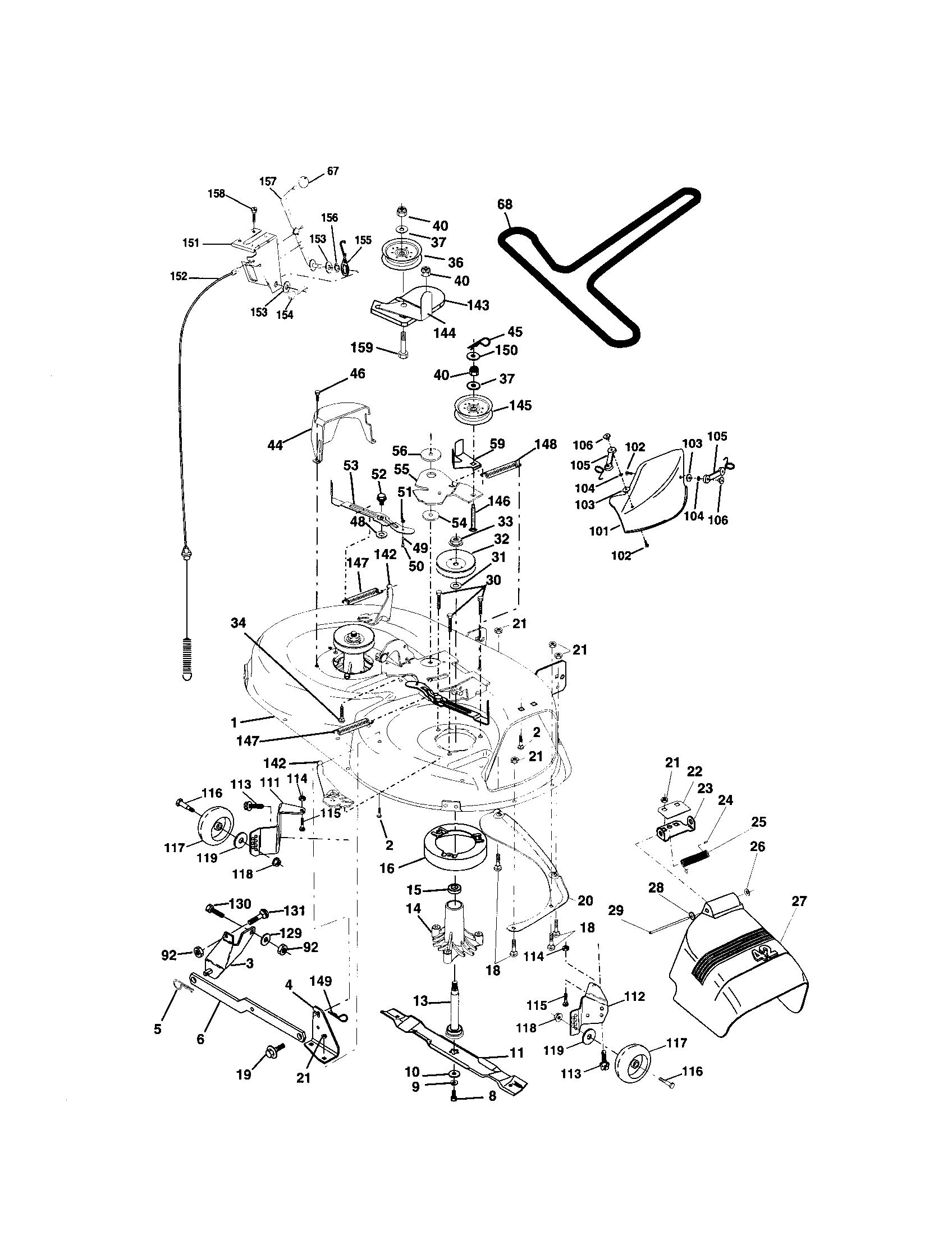

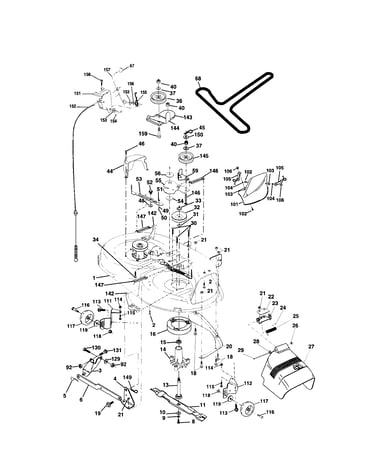

    Mower deck Diagram

    $16.14 |
    38% OFF MSRP:$26.00

    In Stock

    Lawn Tractor Mandrel Bearing

    #15

    Mower deck Diagram

    $9.44 |
    36% OFF MSRP:$14.75

    In Stock

    Lawn Tractor Washer

    #75

    Ground drive Diagram

    Lawn tractor washer

    Part #121749X
    This item is not returnable
    $2.69 |
    9% OFF MSRP:$2.96

    In Stock

    Lawn Tractor Push Nut

    #26

    Mower deck Diagram

    Lawn tractor push nut

    Part #110452X
    This item is not returnable
    $5.55

    In Stock

    Lawn Tractor Blade Idler Spring

    #148

    Mower deck Diagram

    Lawn tractor blade idler spring

    Part #169022
    This item is not returnable
    $4.02

    In Stock

    Lawn Tractor Ignition Switch

    #30

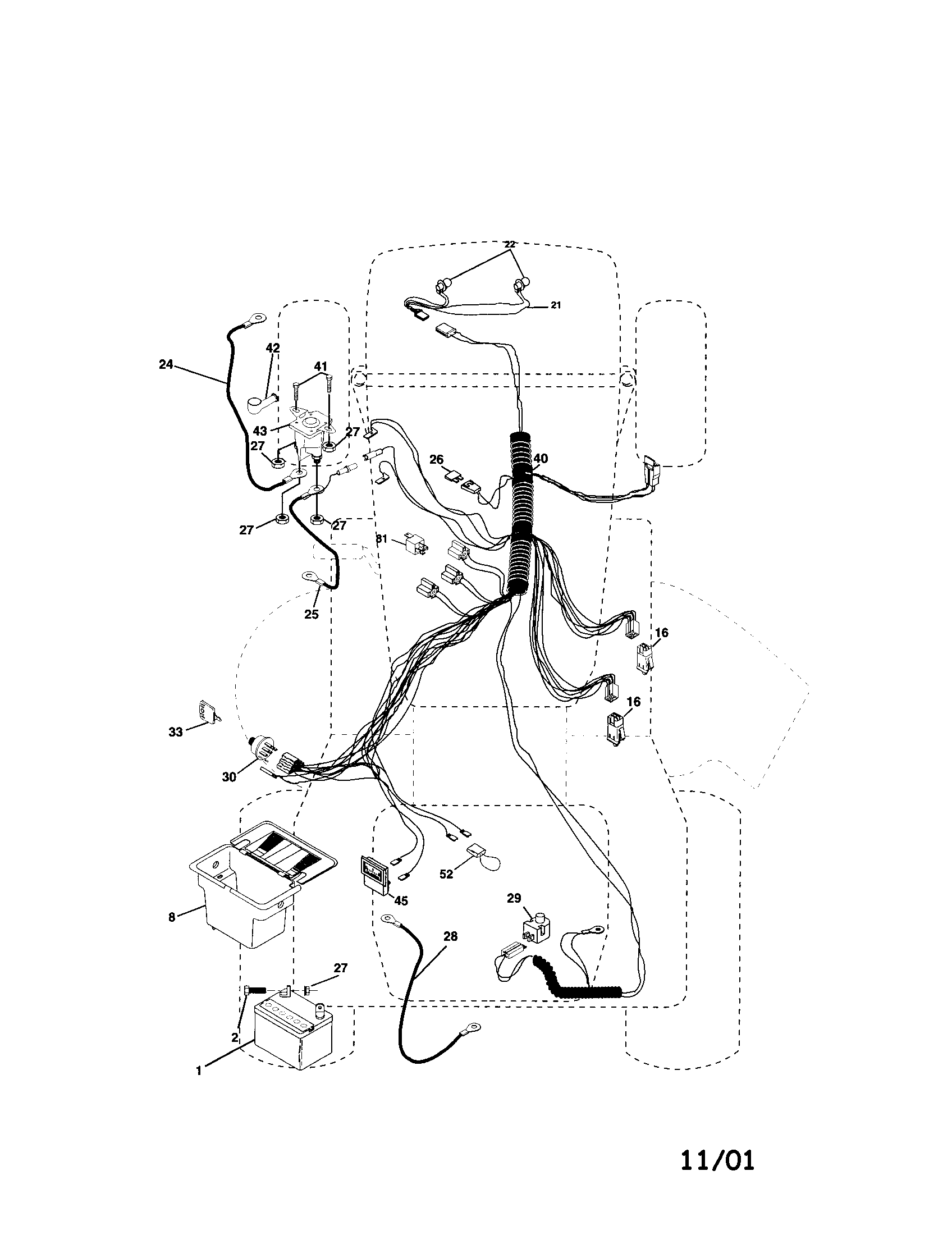

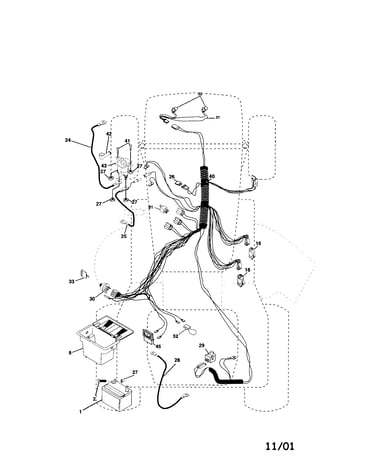

    Electrical Diagram

    Lawn tractor ignition switch

    Part #175566
    This item is not returnable
    $6.97 |
    54% OFF MSRP:$15.00

    In Stock

    Lawn Tractor Drag Link

    #10

    Steering assembly Diagram

    $29.63 |
    49% OFF MSRP:$58.00

    In Stock
