Model # T36IB70NSP/04 Official Thermador bottom-mount built-in refrigerator
Here are the diagrams and repair parts for Official Thermador T36IB70NSP/04 bottom-mount built-in refrigerator, as well as links to manuals and error code tables, if available.
By Schematic
By Part

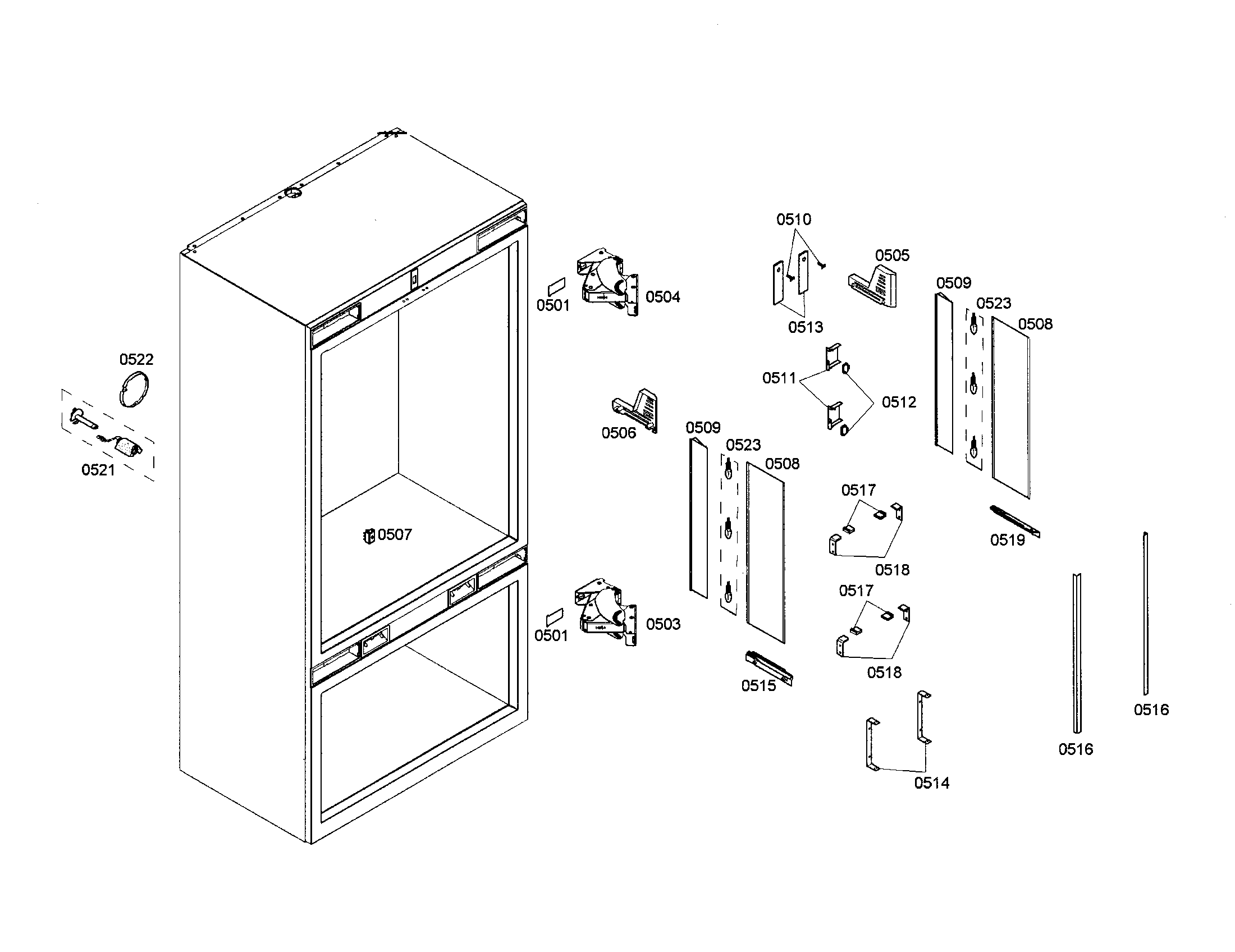

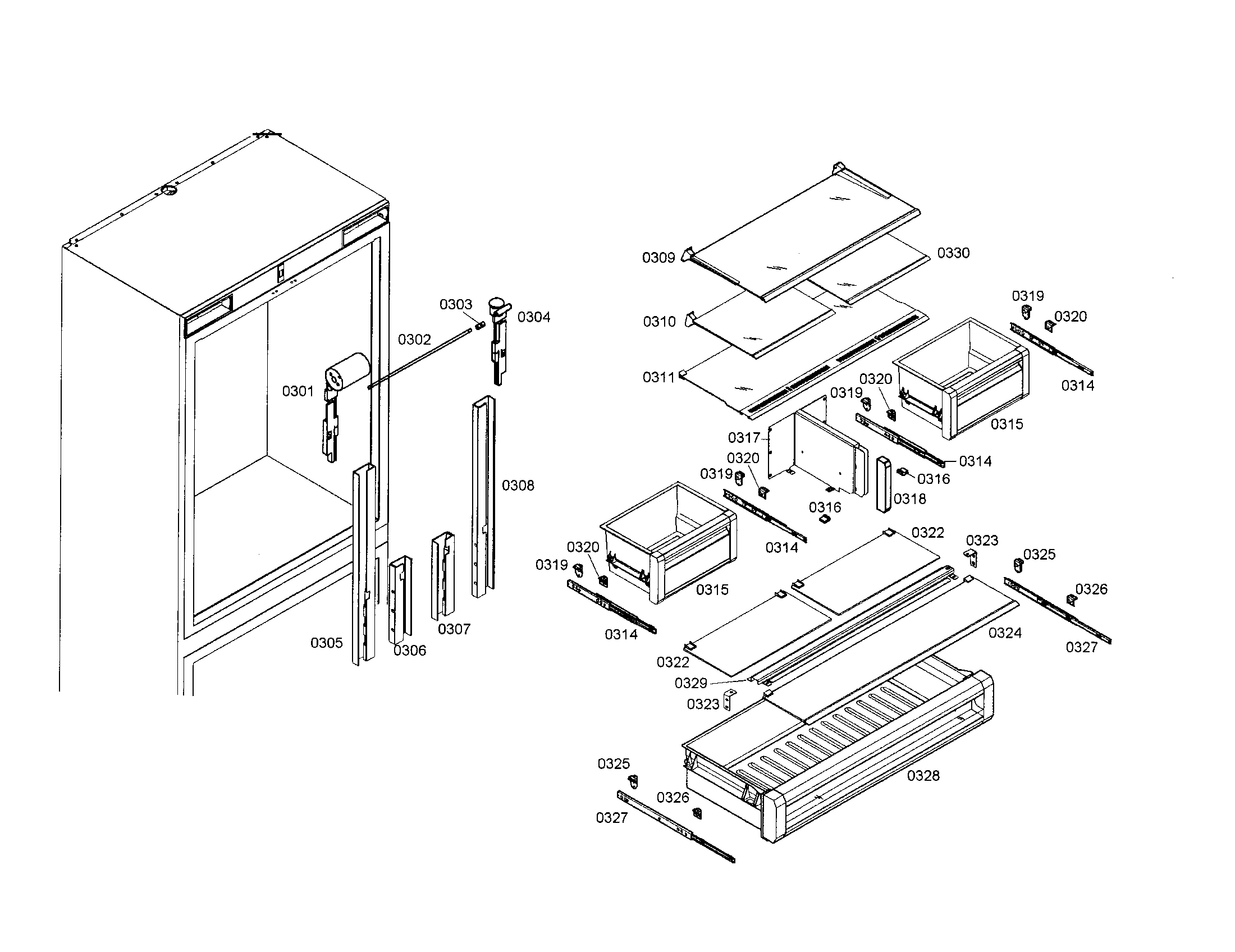

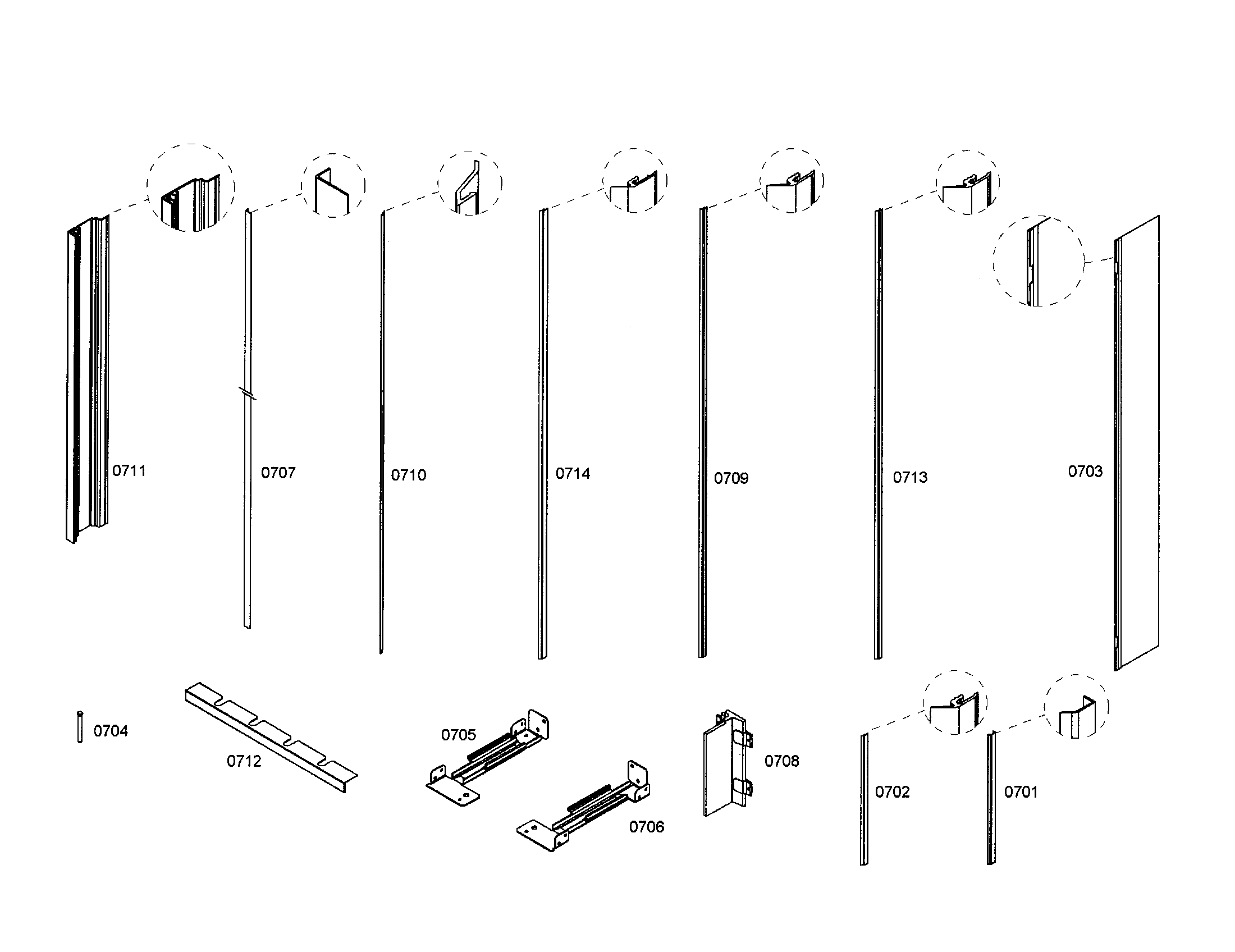

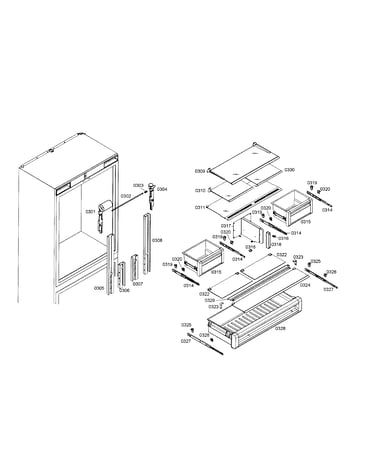

SELECT DIAGRAM
Browse Parts for
T36IB70NSP/04 Refrigerators
#646

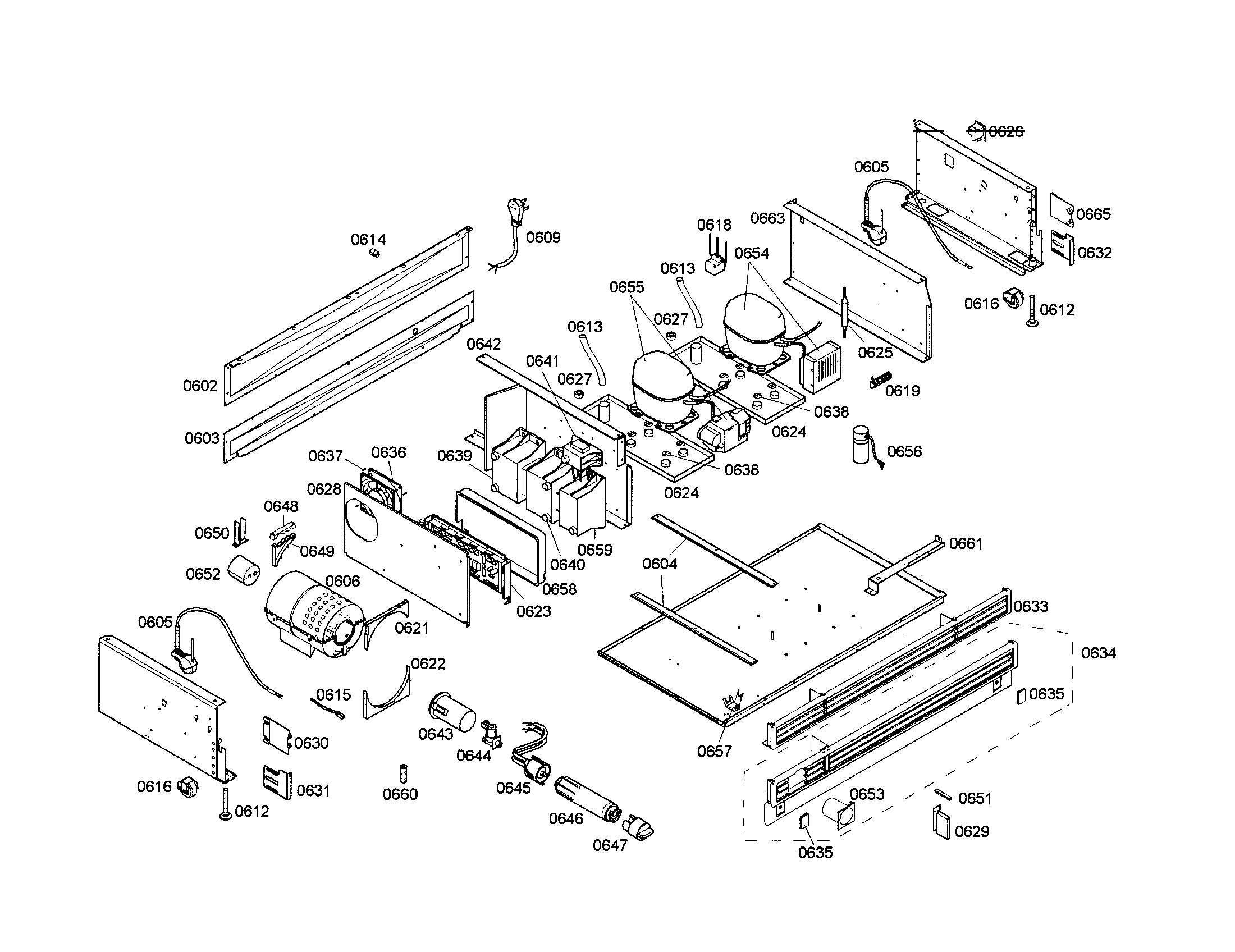

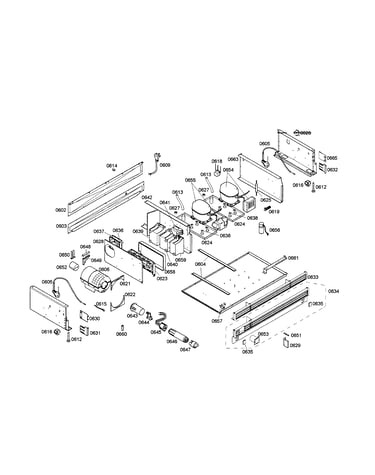

Compressor/condenser diagram
Filter
Part #499850
Replaced by #00644845
?
Manufacturer substitution
This part replaces 499850. Substitute parts can look different from the original.
Get free shipping with Automatic Reorder
$61.39
In Stock
#623
Compressor/condenser diagram
Refrigerator power control board assembly
Part #661202
Replaced by #00667846
?
Manufacturer substitution
This part replaces 661202. Substitute parts can look different from the original.
$203.49
In Stock
#219

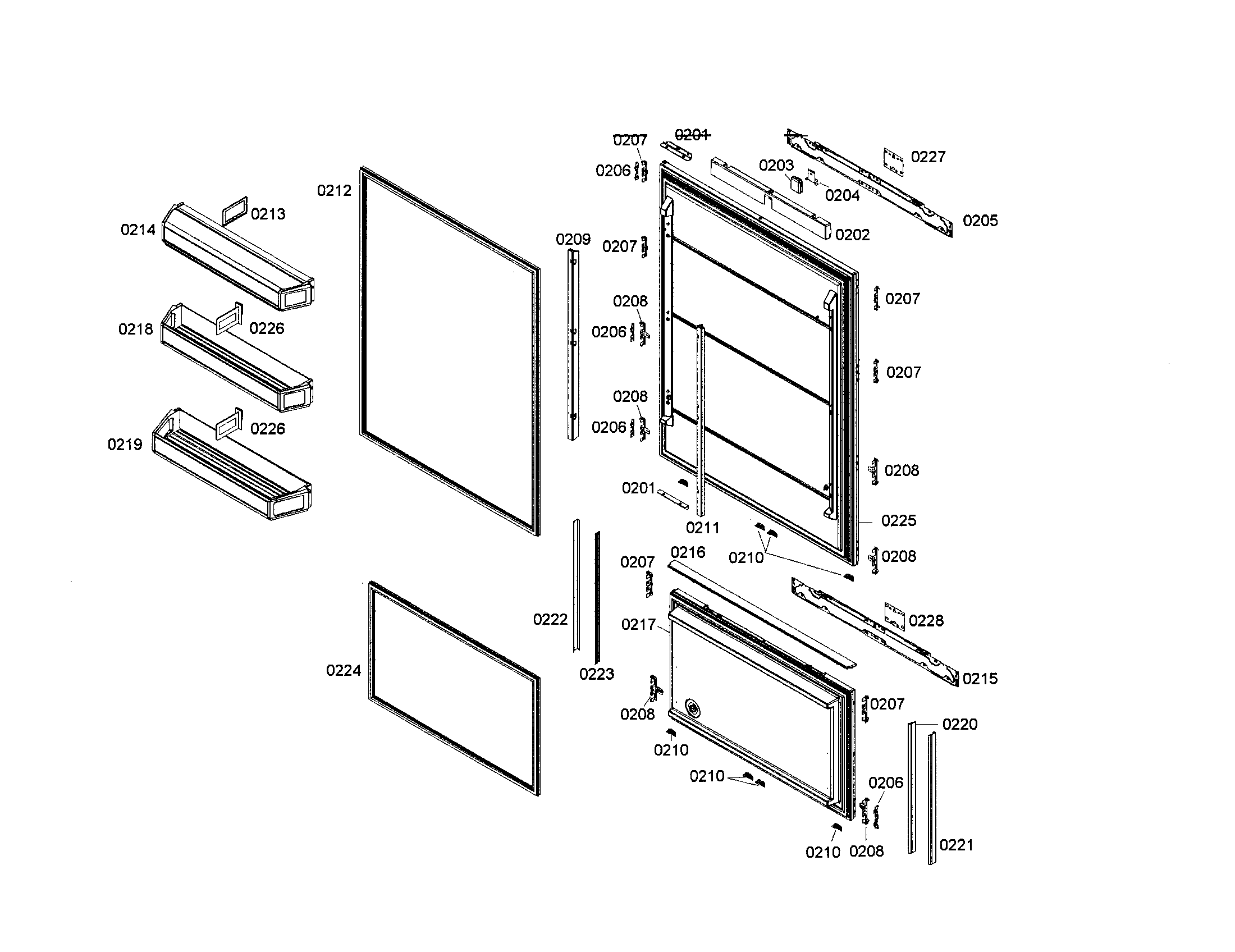

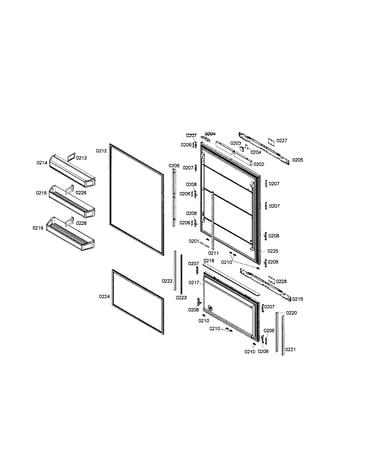

Refrigerator door diagram
Refrigerator door tray
Part #477453
Replaced by #00477453
?
Manufacturer substitution
This part replaces 477453. Substitute parts can look different from the original.
$180.29 |
6% OFF Phone Price : $192.29
In Stock
Defrost sensor
Part #604025
Replaced by #00617203
?
Manufacturer substitution
This part replaces 604025. Substitute parts can look different from the original.
This item is not returnable
$23.59 |
20% OFF Phone Price : $29.59
In Stock
#224
Refrigerator door diagram
Refrigerator door seal
Part #244576
Replaced by #00710673
?
Manufacturer substitution
This part replaces 244576. Substitute parts can look different from the original.
$74.59 |
7% OFF Phone Price : $80.59
In Stock
#427

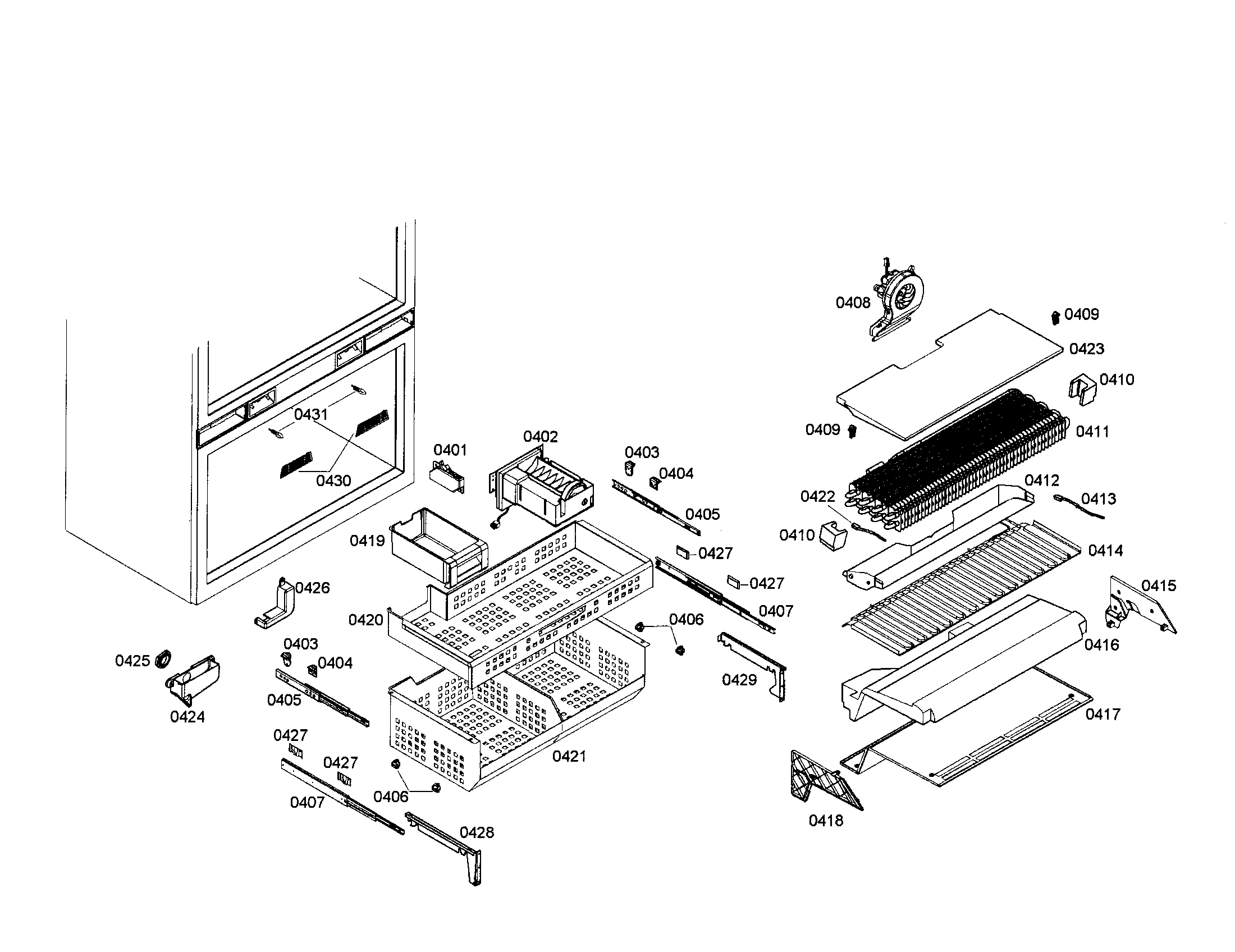

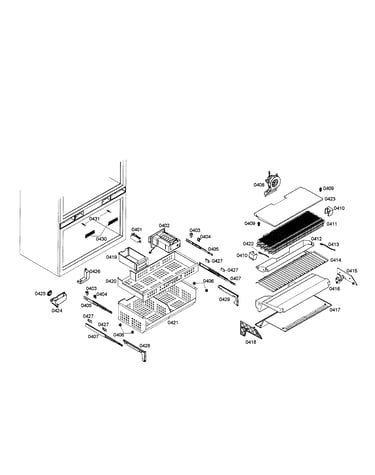

Evaporator/freezer basket diagram
Refrigerator freezer slide rail clip
Part #605962
Replaced by #00605962
?
Manufacturer substitution
This part replaces 605962. Substitute parts can look different from the original.
This item is not returnable
$5.26
In Stock
#401
Evaporator/freezer basket diagram
Lock clamp
Part #605593
Replaced by #00623375
?
Manufacturer substitution
This part replaces 605593. Substitute parts can look different from the original.
$19.46
In Stock
#103

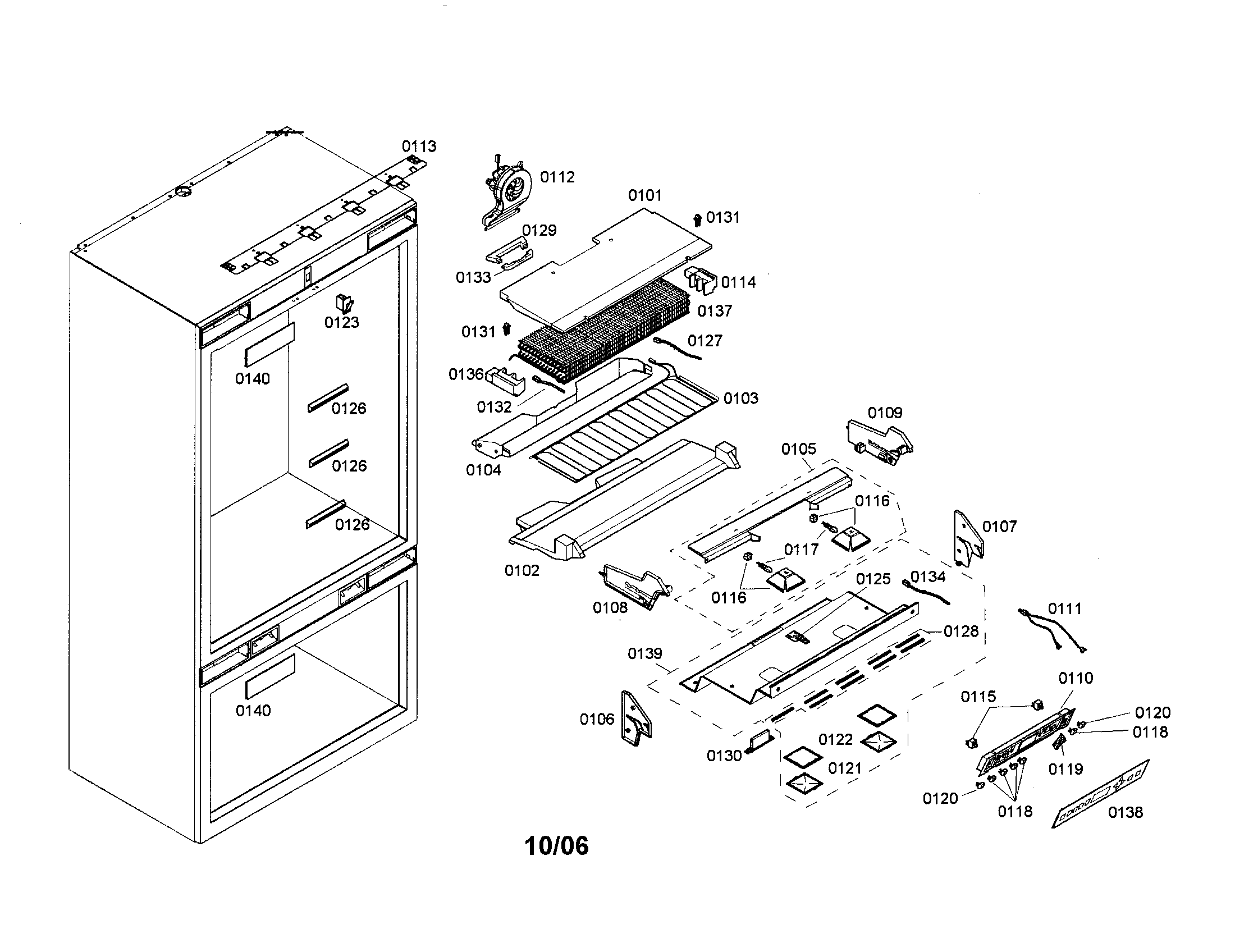

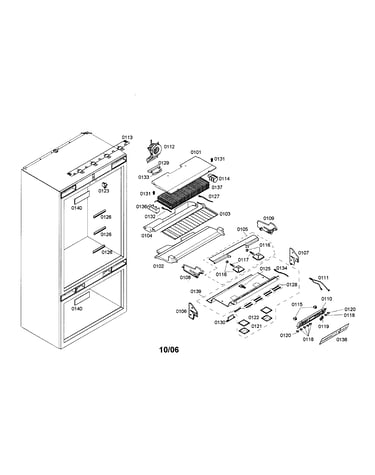

Refrigerator section diagram
Refrigerator defrost heater
Part #244560
Replaced by #00708056
?
Manufacturer substitution
This part replaces 244560. Substitute parts can look different from the original.
$157.24
In Stock
#412
Evaporator/freezer basket diagram
Refrigerator drain
Part #244584
Replaced by #00716805
?
Manufacturer substitution
This part replaces 244584. Substitute parts can look different from the original.
$244.38
In Stock
#404
Evaporator/freezer basket diagram
Refrigerator clip
Part #604666
Replaced by #00633652
?
Manufacturer substitution
This part replaces 604666. Substitute parts can look different from the original.
This item is not returnable
$8.06
In Stock
