KitchenAid KFCO22EVBL5 refrigerator Parts

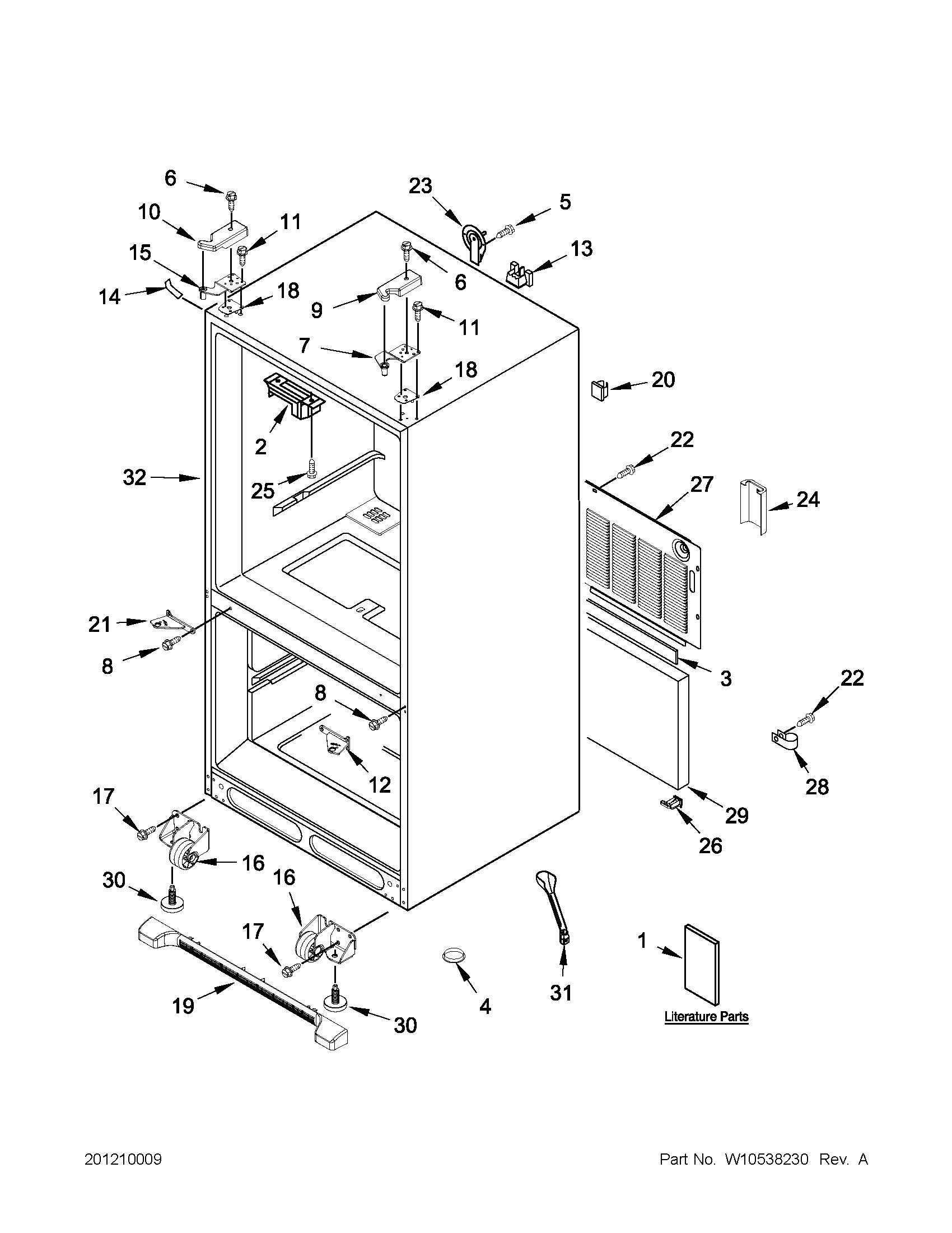

To remove the bottom grill (toe grille) on your KitchenAid KFCO22EVBL5 bottom-mount refrigerator, grasp the grille at the ends and pull it straight forward to release the retaining clips. Reinstall by aligning it with the lower frame and pressing until it snaps in place; use the KFCO22EVBL5 owner's manual for model-specific handling notes.

• Open both refrigerator doors for better access.
• Grip the grille near the left and right ends (not the center).
• Pull straight out toward you to pop the clips free.
• If it resists, pull one side loose first, then the other.
• To reinstall, align the tabs/clips with the slots on the lower frame.
• Press along the ends until you feel it snap in.

• Check for hidden screws at the ends or underneath (some versions use screws).
• Look for a water line or wiring routed behind the grille; avoid yanking.
• Warm the area slightly with room-temperature air if the grille feels brittle.
• Pull with steady pressure; twisting can crack the plastic.

Removing the toe grille lets us clean the condenser area and check for leaks or airflow restrictions. Keeping that area clear helps the compressor run less and improves temperature stability.

You can also order model-matched replacement parts for KFCO22EVBL5 from the parts list for this refrigerator, or search by model on Sears PartsDirect.

Last updated: February 2026

On the KitchenAid KFCO22EVBL5 bottom-mount refrigerator, water leaking from the bottom is most often caused by a clogged or frozen defrost drain that overflows during the defrost cycle and runs onto the floor. A leaking water supply connection or inlet valve can also drip underneath.

• Look for water under the crisper drawers inside the fresh food section; that strongly points to a defrost drain issue.
• Check the drain pan underneath for cracks or if it is out of position.
• Inspect the water line behind the refrigerator for slow drips or a loose fitting.
• Check the filter area for seepage after a recent filter change.
• Confirm the freezer door closes fully; warm air can increase frost and lead to drain icing.

During normal operation, defrost water should flow through a drain tube to the pan underneath. If the drain clogs with ice or debris, water backs up and leaks out at the bottom.

• Unplug the refrigerator.
• Remove items from the bottom shelves and drawers.
• Melt any visible ice around the drain opening using warm water (not boiling).
• Flush the drain with warm water until it flows freely to the drain pan.
• Clean the drain pan and confirm it is seated correctly.

If the leak happens near the back of the unit or only when the ice maker or dispenser runs, focus on the water supply path.

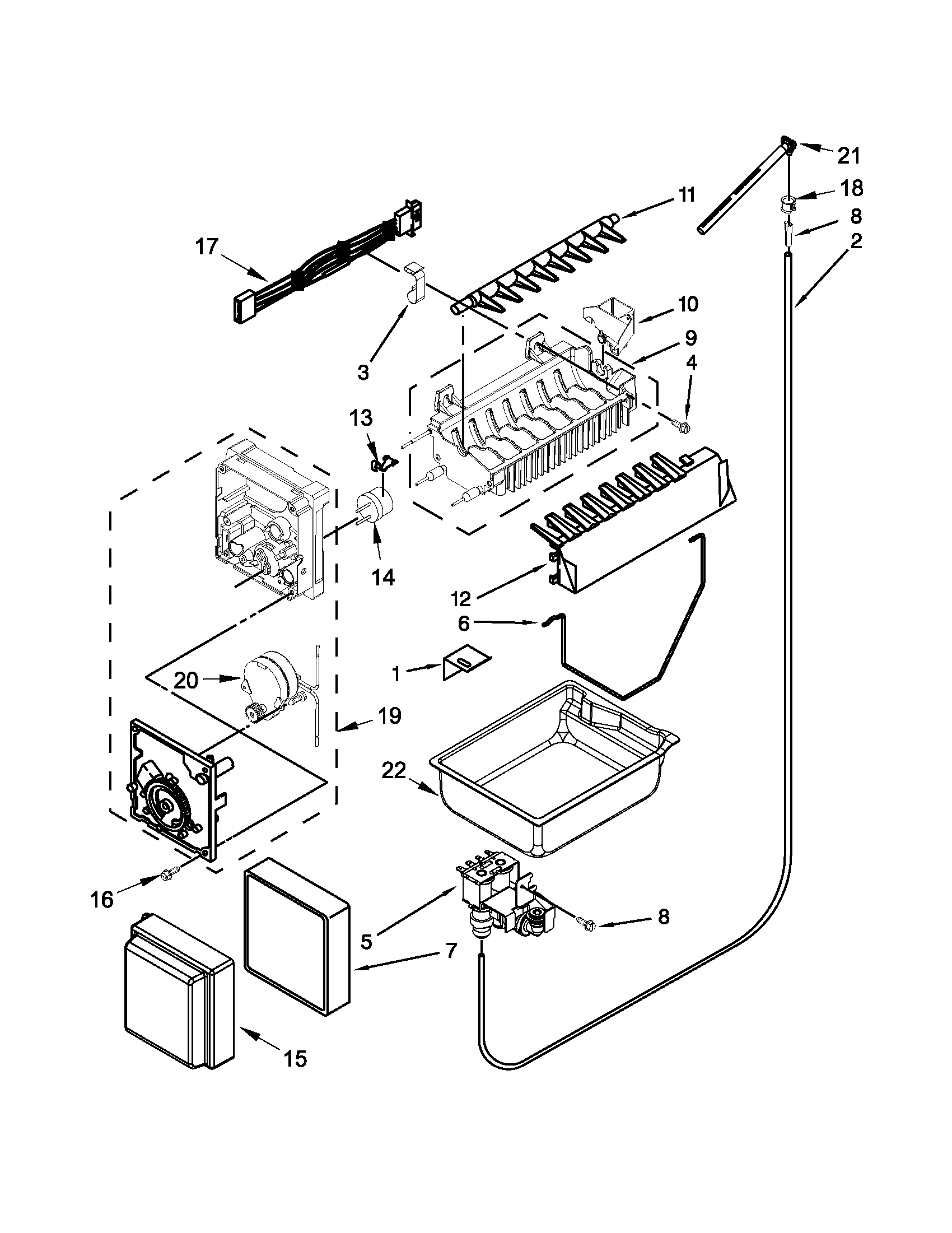

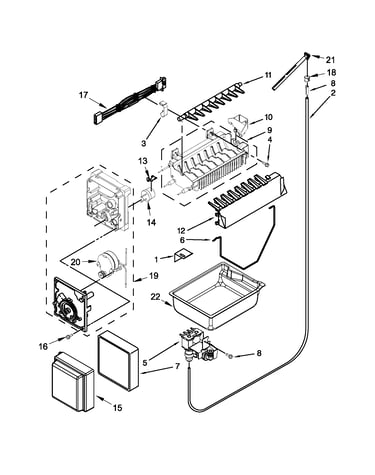

If you suspect the inlet valve, the model-compatible refrigerator water inlet valve assembly WPW10420083 is a common replacement when the valve seeps or fails to shut fully.

• Use our KFCO22EVBL5 manual to locate the drain path, drain pan, and water connections for your exact configuration.
• Follow how to get rid of refrigerator puddles for step-by-step leak isolation and cleanup tips.

Bottom leaks can lead to floor damage, recurring ice buildup, and temperature swings if airflow gets blocked by frost. Clearing the drain and stopping small drips early prevents bigger cooling and ice maker problems.

Last updated: February 2026

Frost buildup in the bottom freezer on your KitchenAid KFCO22EVBL5 almost always happens when warm, humid air is getting into the freezer or when airflow is restricted. The most common fixes are improving door sealing, reducing door-open time, and clearing anything that blocks vents or prevents the drawer from closing fully.

• Make sure the freezer drawer closes completely every time (no packages sticking out).

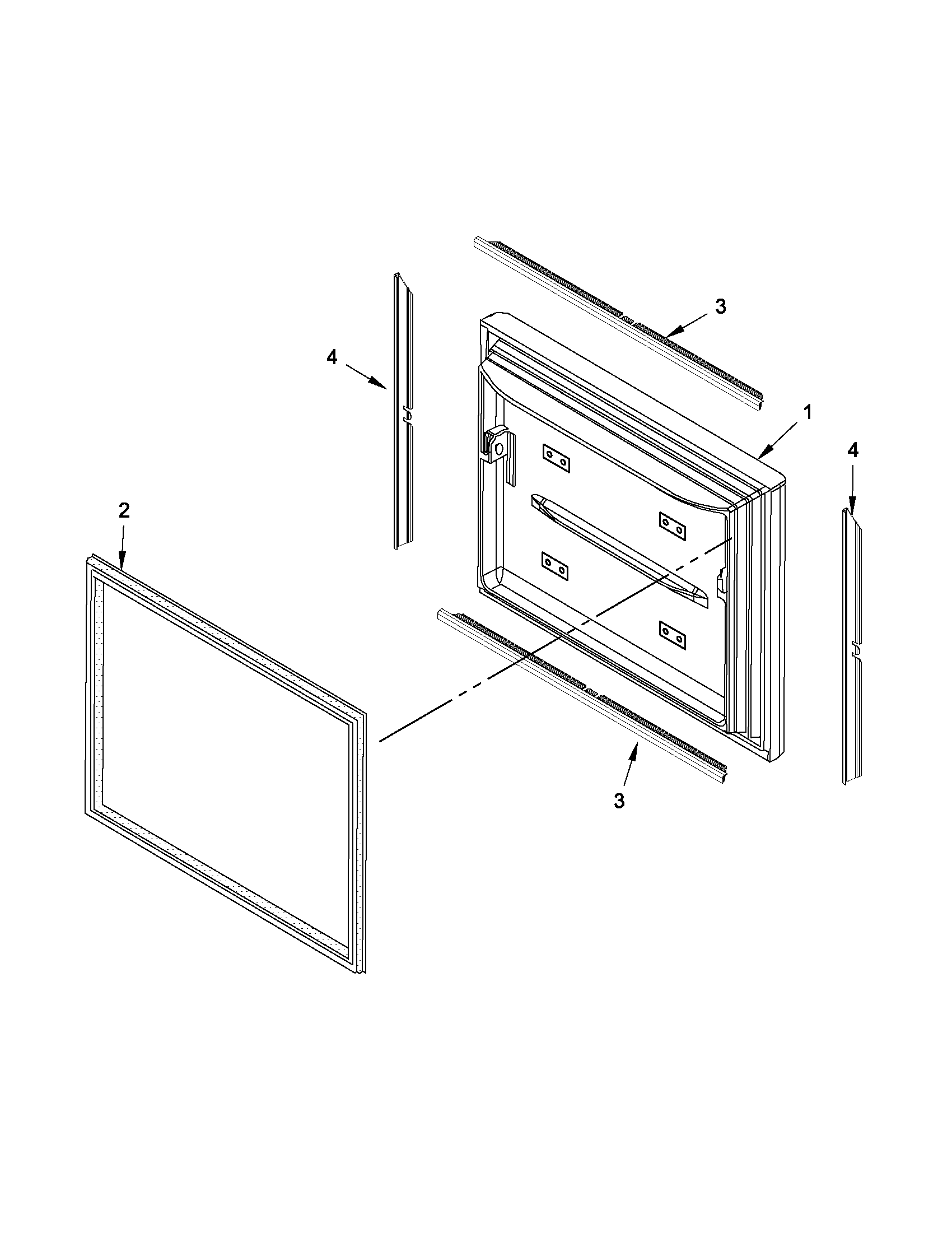

• Inspect the door gasket for rips, gaps, or areas that look flattened.
• Wipe moisture off the gasket and door sealing surfaces; moisture turns into frost fast.
• Confirm the freezer vents are not blocked by bags, boxes, or an overfilled basket.
• Let hot foods cool before loading; steam becomes frost.
• Keep the freezer organized so the drawer can shut without resistance.

If the seal looks good but frost keeps returning, focus on airflow and defrost symptoms:

A weak or noisy evaporator fan can reduce circulation and contribute to uneven temps and frost patterns. If you suspect a fan issue, we recommend using our DIY guide: how to fix your evaporator cooling fan.

These parts are commonly related to airflow and cooling performance on this model:

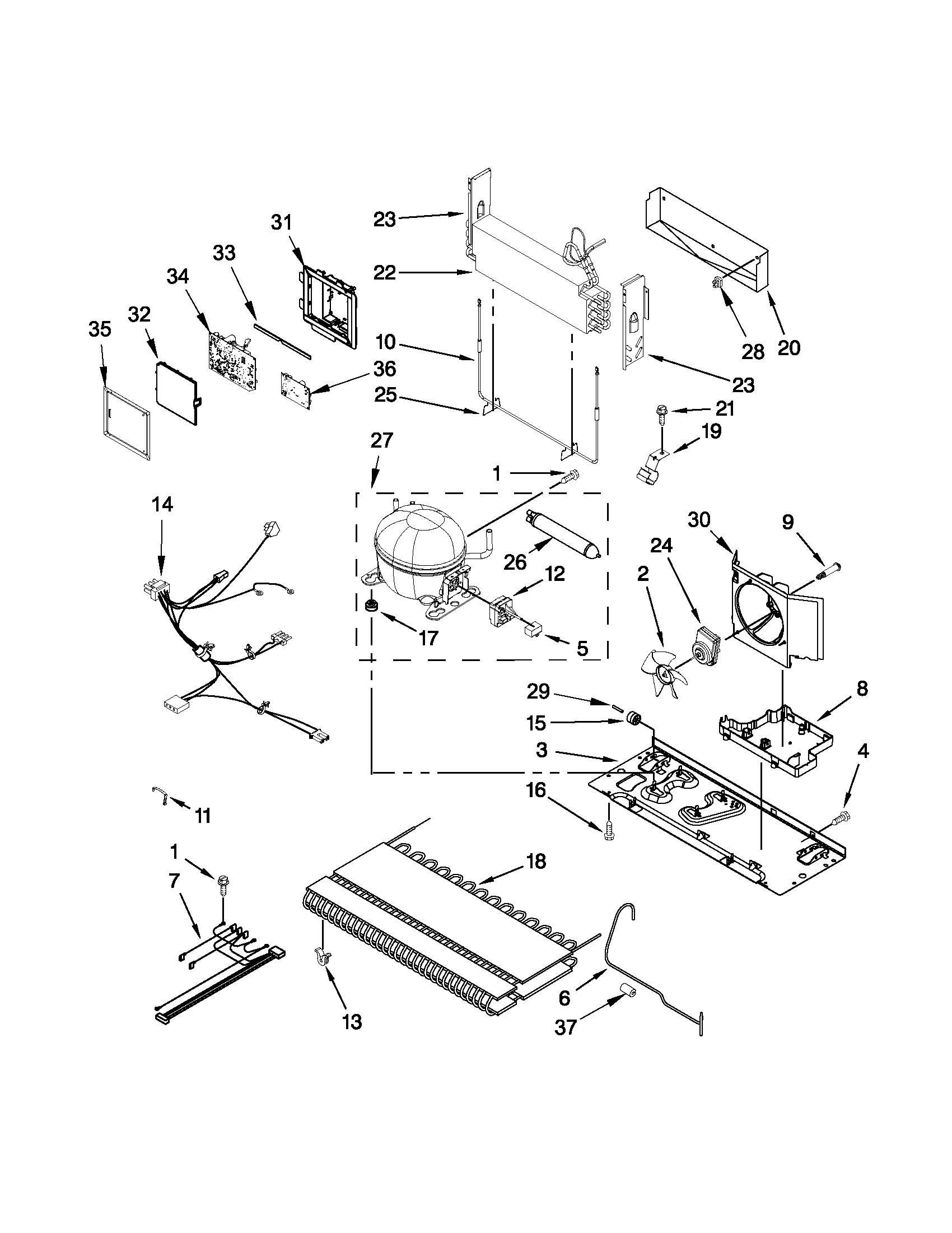

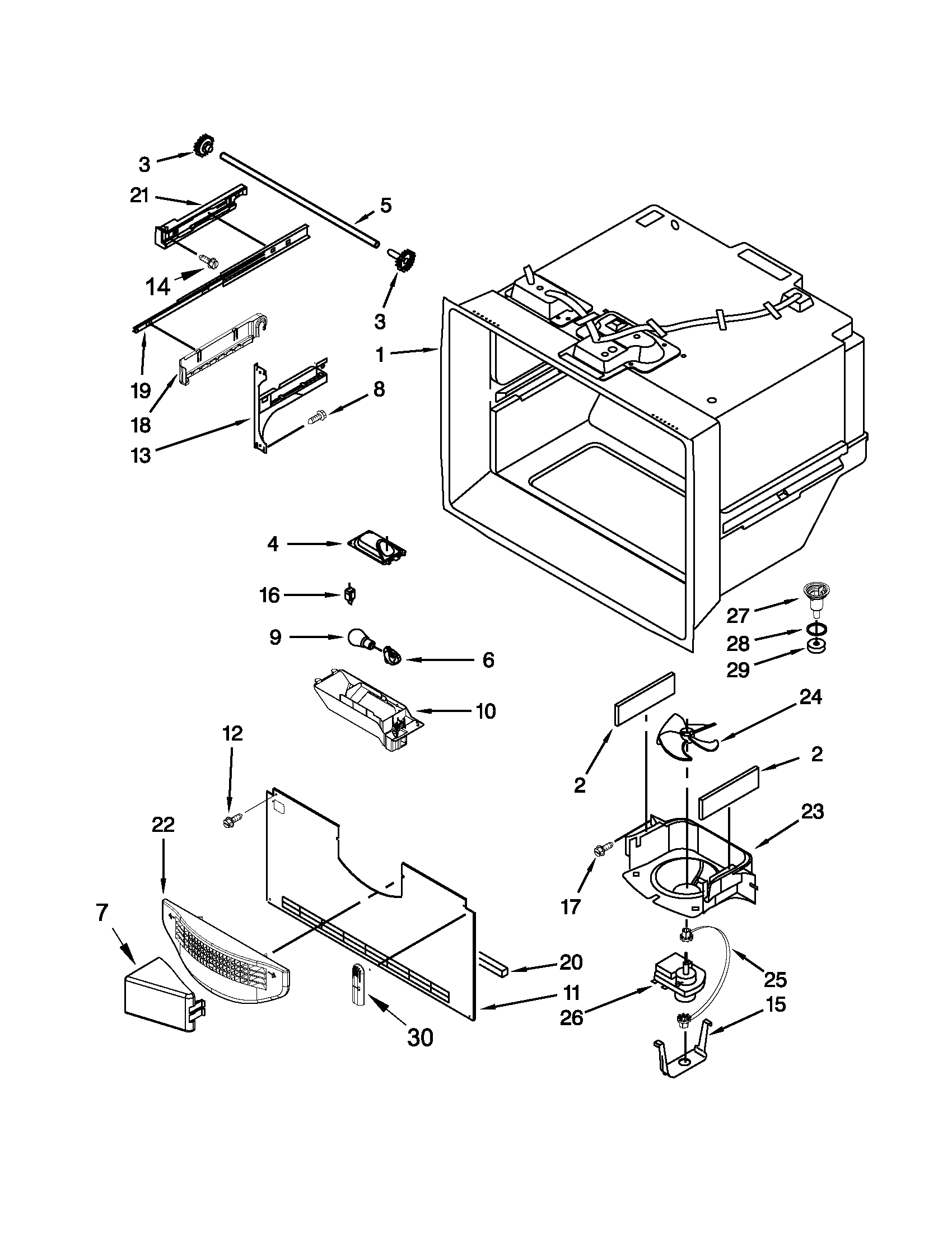

• Refrigerator evaporator fan motor WPW10128551 (circulates cold air through the freezer and fresh food section)
• Refrigerator evaporator fan blade WP2169142 (damaged blades can reduce airflow or cause noise)
• Refrigerator damper control assembly WPW10594329 (controls cold air flow into the refrigerator section)

Frost buildup is more than a nuisance; it can prevent the drawer from sealing, reduce cooling efficiency, and lead to temperature swings that affect food quality.

For model-specific operating tips (recommended temperature settings, loading guidance, and normal sounds), use the owner's manual. You can also order replacement parts for your KFCO22EVBL5 from the parts list for this model, or search by model number on Sears PartsDirect.

Last updated: February 2026

The most common problems we see on KitchenAid refrigerators like model KFCO22EVBL5 are temperature swings (fresh food too warm or freezer too warm), frost buildup that restricts airflow, water puddles from a clogged defrost drain, and unusual fan noise. Use the KFCO22EVBL5 owner's manual to match symptoms to the right checks.

• Fresh food too warm: blocked air vents, damper not opening/closing correctly, weak evaporator airflow
• Freezer too warm: frost restricting airflow, door not sealing, condenser area dirty
• Frost buildup on the back wall/freezer panel: defrost system issue or door left ajar
• Water on the floor or inside the fridge: clogged/iced defrost drain, drain pan overflow
• Noisy operation: evaporator fan blade hitting ice, worn fan motor, condenser fan problem

• Set temperatures to typical targets: 37°F refrigerator, 0°F freezer
• Keep packages from blocking interior vents (especially near the damper outlet)
• Clean dust from the condenser area and confirm the condenser fan is running
• Inspect door gaskets for gaps and confirm doors close on their own
• If you see ice on the freezer back panel, defrost the unit and watch for repeat frost buildup

Most “common problems” start as airflow or heat-removal issues. Fixing a weak fan, stuck damper, or heavy frost early helps stabilize temperatures and reduces strain on the sealed system.

Replacement parts for KFCO22EVBL5 can be ordered from the parts list for this model, or you can search by model number on Sears PartsDirect.

Last updated: February 2026
