GE
Side-By-Side Refrigerator

Model # PSHS6RGXCDSS Official GE refrigerator - x series

Here are the diagrams and repair parts for Official GE PSHS6RGXCDSS refrigerator - x series, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

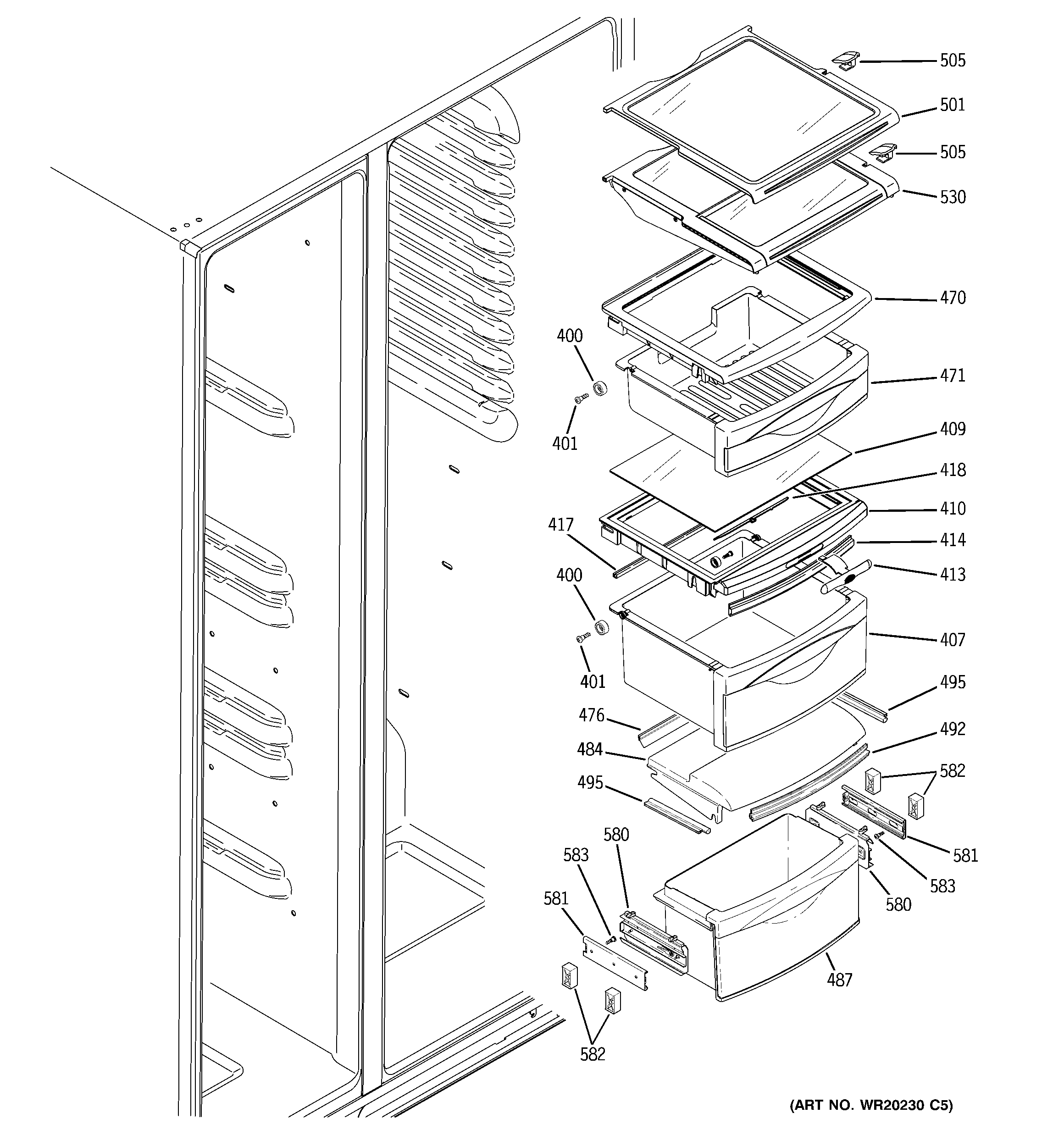

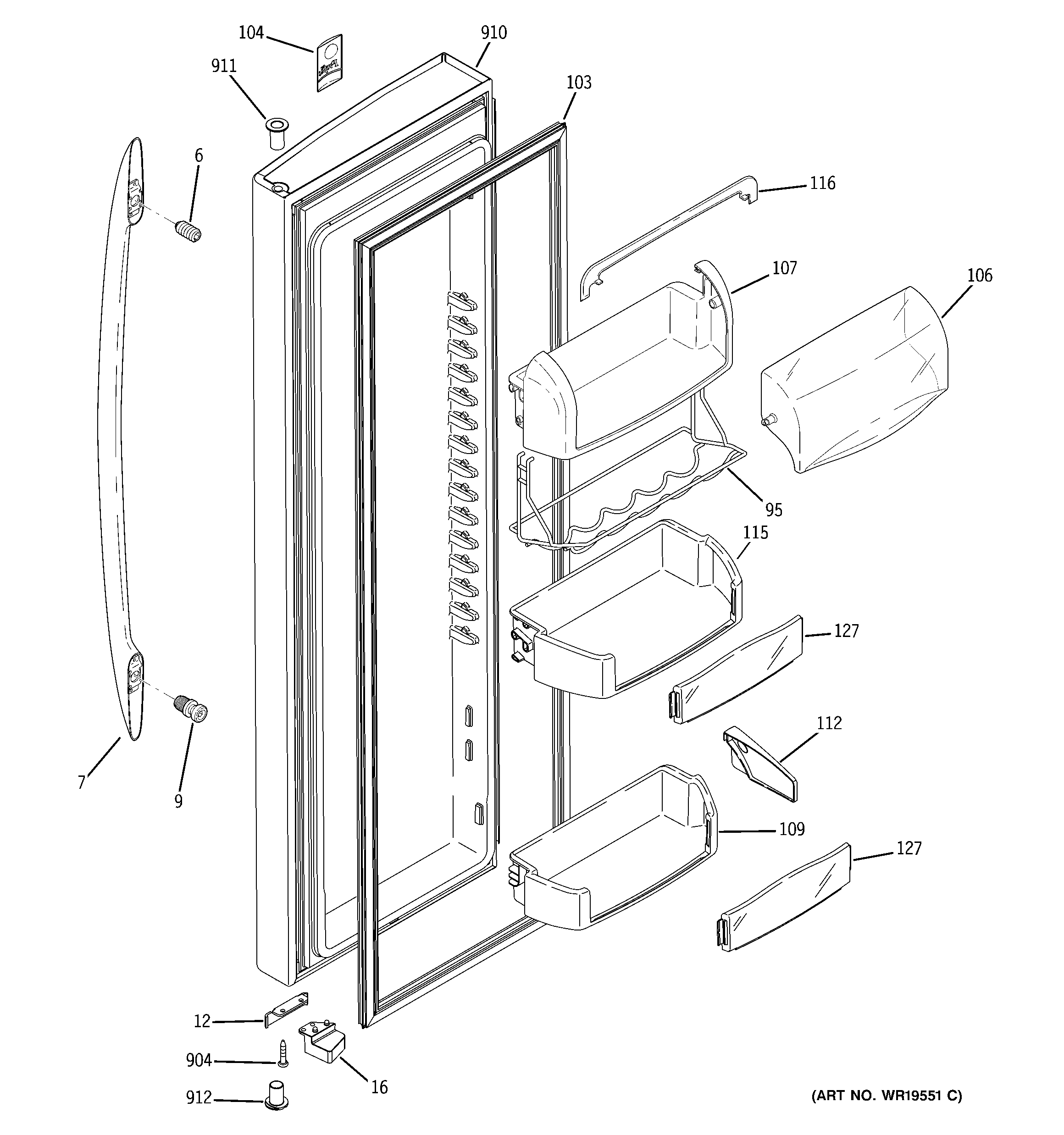

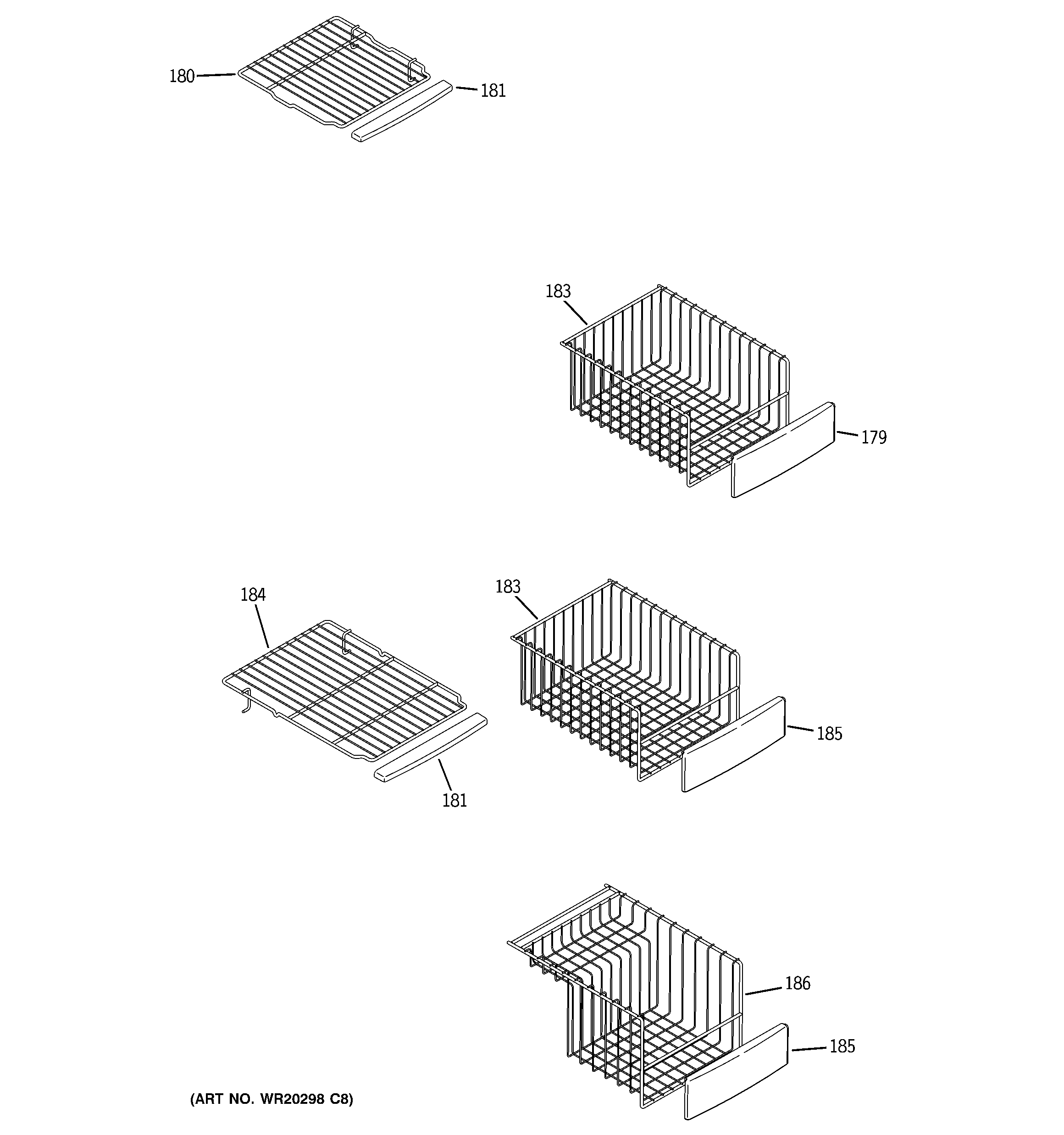

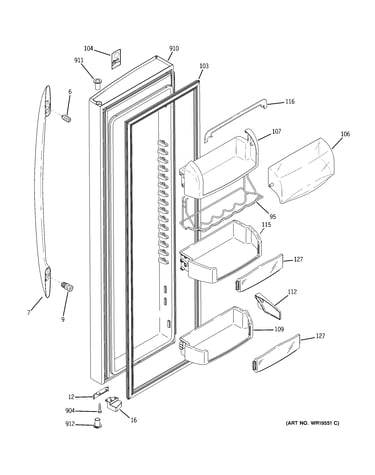

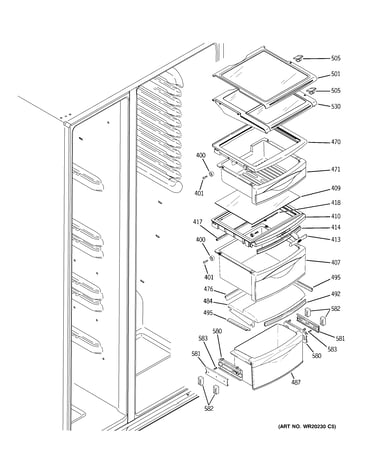

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 254 parts  |

Ge Profile Refrigerator Temperature Sensor WR55X10025
Ge profile refrigerator temperature sensor

Part #WR55X10025

BEST SELLER
$19.47
9% OFF Phone Price : $21.47
In Stock
Refrigerator Temperature Sensor WR55X10027
#236

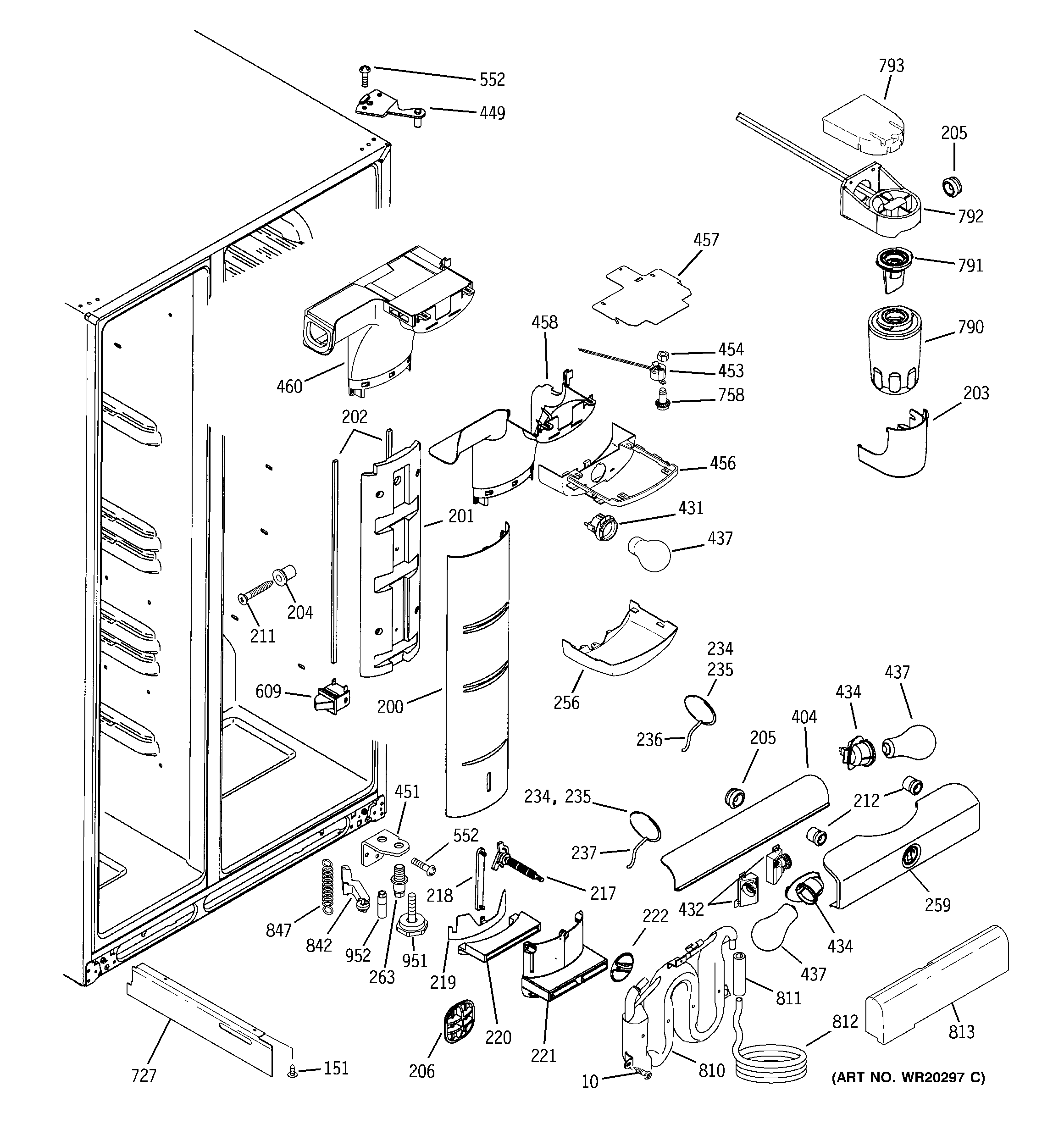

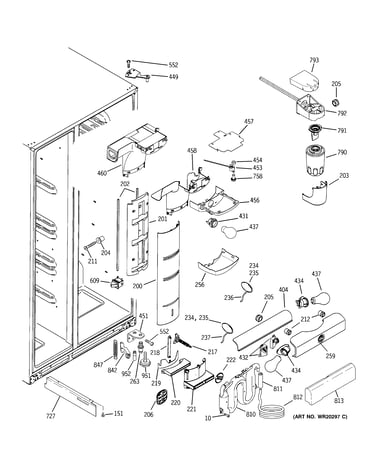

Fresh food section diagram

Refrigerator temperature sensor

Part #WR55X10027

Replaced by #WR55X10025

?
Manufacturer substitution
This part replaces WR55X10027. Substitute parts can look different from the original.
BEST SELLER
$19.47
9% OFF Phone Price : $21.47
In Stock
Refrigerator Temperature Sensor WR55X10028
#237

Fresh food section diagram

Refrigerator temperature sensor

Part #WR55X10028

Replaced by #WR55X10025

?
Manufacturer substitution
This part replaces WR55X10028. Substitute parts can look different from the original.
BEST SELLER
$19.47
9% OFF Phone Price : $21.47
In Stock
Refrigerator Temperature Sensor WR55X10026
#233

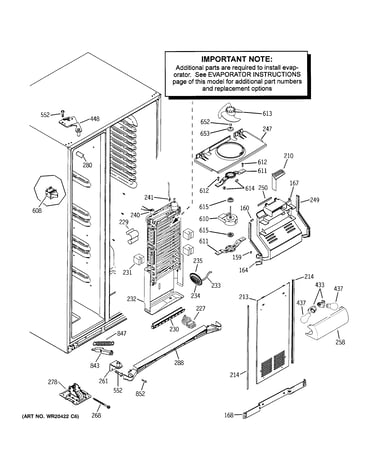

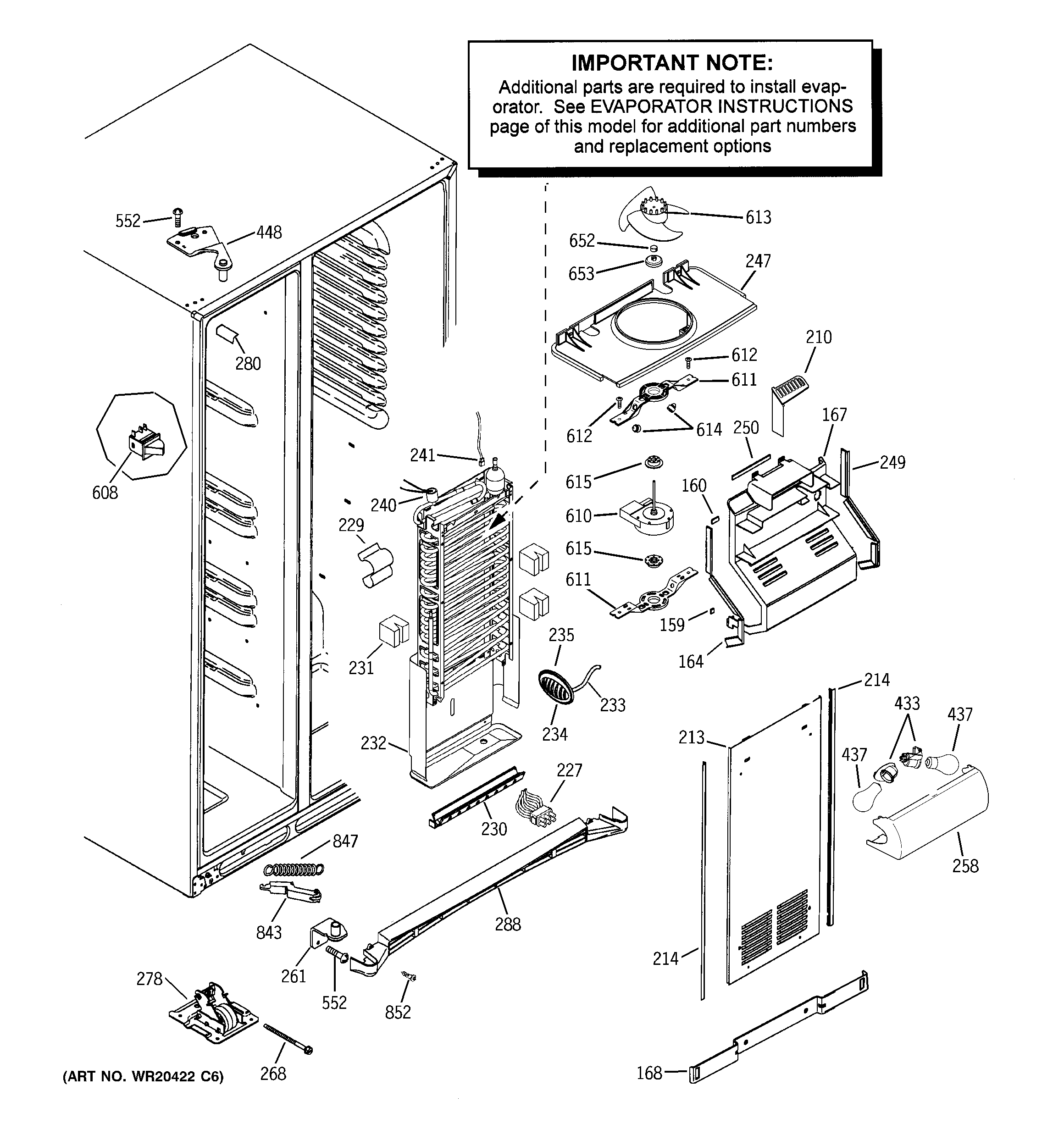

Freezer section diagram

Refrigerator temperature sensor

Part #WR55X10026

Replaced by #WR55X10025

?
Manufacturer substitution
This part replaces WR55X10026. Substitute parts can look different from the original.
BEST SELLER
$19.47
9% OFF Phone Price : $21.47
In Stock
Refrigerator Defrost Heater (replaces Wr51x10030) WR51X10055
#230

Freezer section diagram

Refrigerator defrost heater (replaces wr51x10030)

Part #WR51X10055

BEST SELLER
$93.82
6% OFF Phone Price : $99.82
In Stock
Electronic I WR30X10061
#820

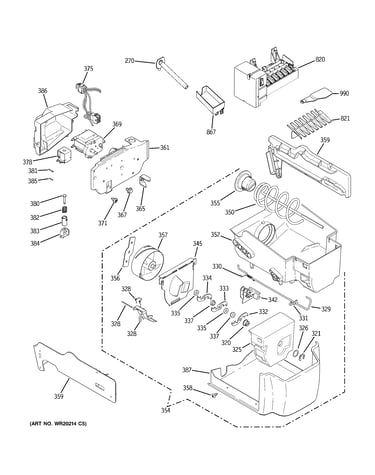

Ice maker & dispenser diagram

Electronic i

Part #WR30X10061

Replaced by #WR30X10093

?
Manufacturer substitution
This part replaces WR30X10061. Substitute parts can look different from the original.
BEST SELLER
$186.44
6% OFF Phone Price : $198.44
In Stock
Dryer Filter WR86X0096
#740

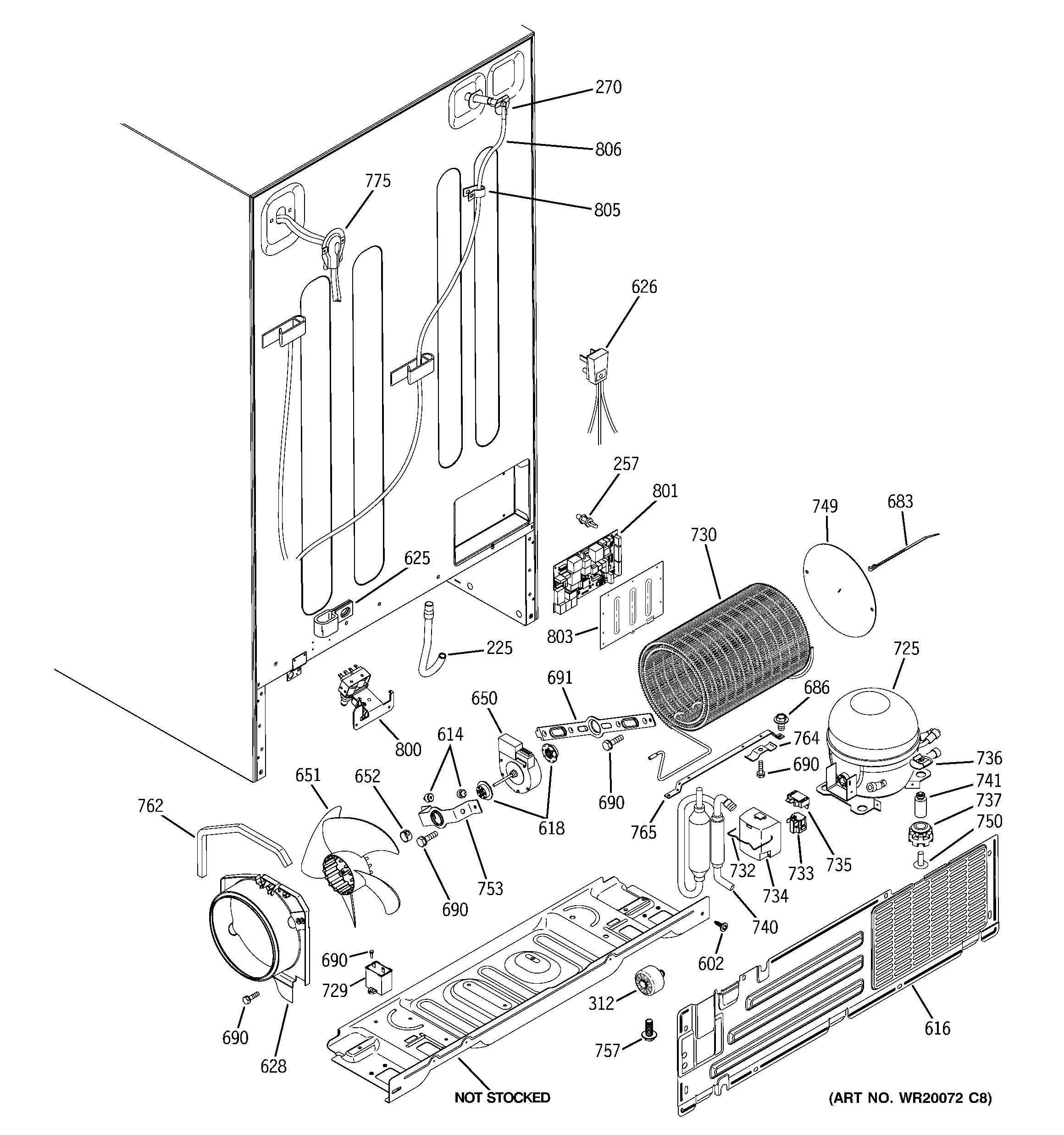

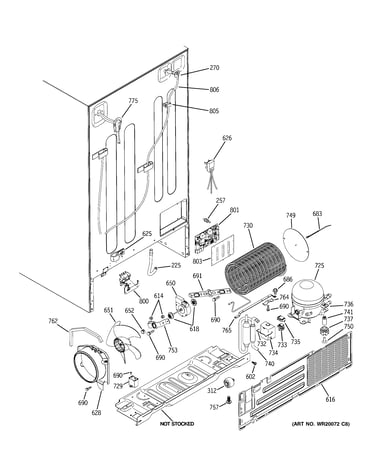

Sealed system & mother board diagram

Dryer filter

Part #WR86X0096

Replaced by #WR86X25269

?
Manufacturer substitution
This part replaces WR86X0096. Substitute parts can look different from the original.
BEST SELLER
$79.18
7% OFF Phone Price : $85.18
In Stock
Refrigerator Lamp WR02X12289
Refrigerator lamp

Part #WR02X12289

Replaced by #40A15

?
Manufacturer substitution
This part replaces WR02X12289. Substitute parts can look different from the original.
BEST SELLER
$15.16
12% OFF Phone Price : $17.16
In Stock
Capacitor WR62X0079
#729

Sealed system & mother board diagram

Capacitor

Part #WR62X0079

Replaced by #WR55X24064

?
Manufacturer substitution
This part replaces WR62X0079. Substitute parts can look different from the original.
BEST SELLER
$40.73
13% OFF Phone Price : $46.73
In Stock
Rca Refrigerator Dispenser Ice Chute Door Solenoid (replaces Wr62x10020) WR62X10055
#36

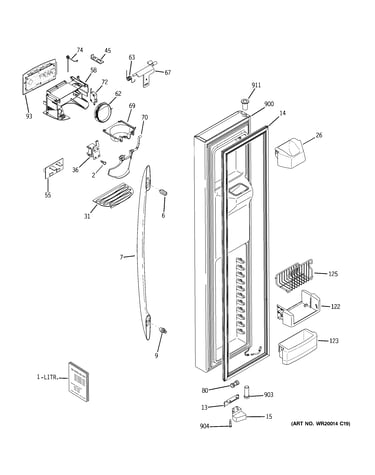

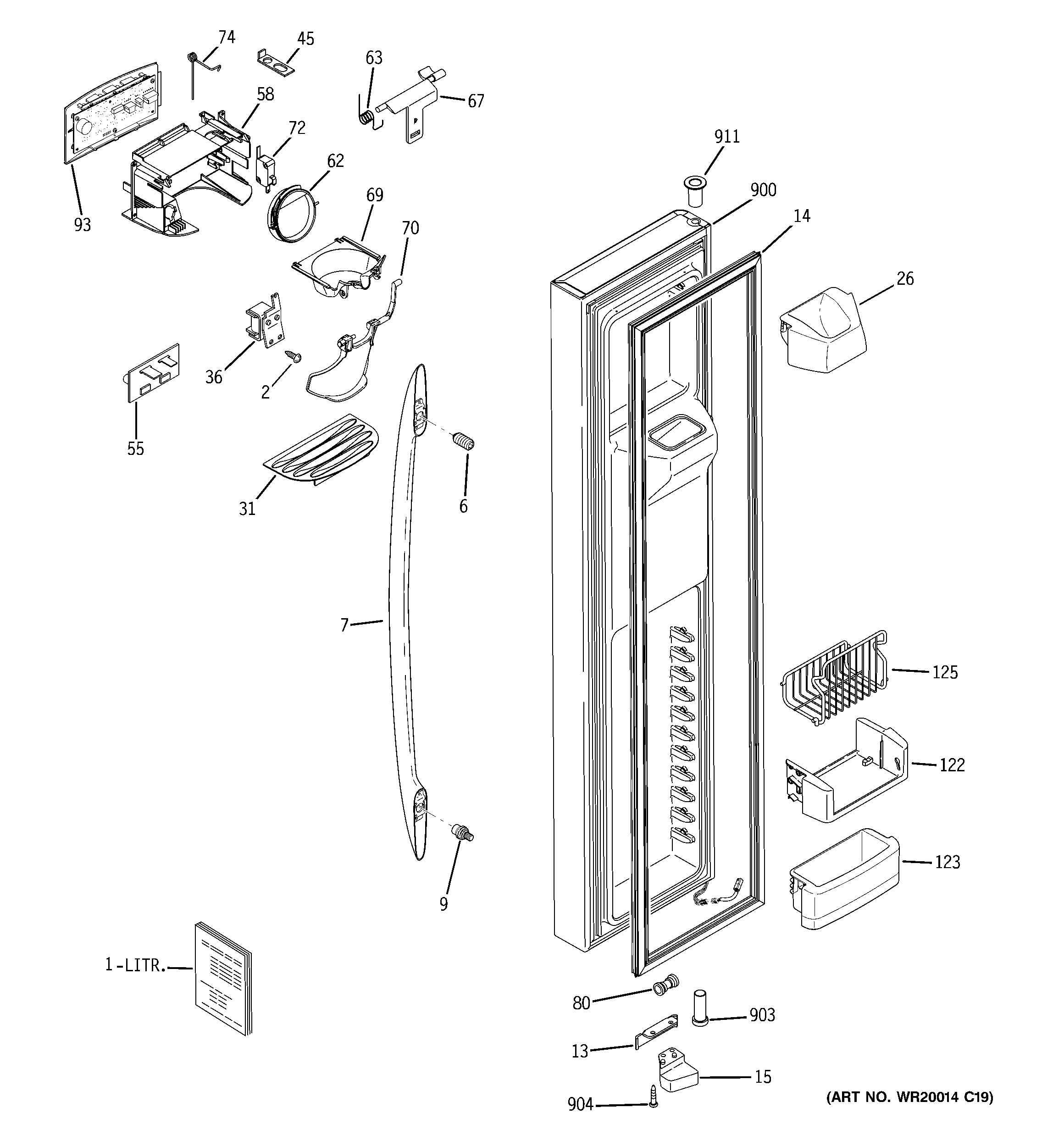

Freezer door diagram

Rca refrigerator dispenser ice chute door solenoid (replaces wr62x10020)

Part #WR62X10055

BEST SELLER
$54.06
10% OFF Phone Price : $60.06
In Stock
