Craftsman 917289130 tractor Parts

The model number is 917.28913 (often written without the dot as 917289130) for the Craftsman front-engine lawn tractor. You can confirm it on the ID label and in the owner's manual for this tractor.

Where to find the model number on the tractor

We recommend checking these common locations first:

• Under the seat on the seat pan or fender area
• On the frame rail near the engine compartment
• Near the rear hitch plate or transaxle area
• In the manual cover page and specifications section

917.28913 vs. 917289130: what the numbers mean

Craftsman model numbers are often shown with punctuation in manuals and without punctuation in parts listings.

Where you see it	Typical format	What it refers to
Operator's manual	917.28913	Same tractor model
Parts lookup / tags	917289130	Same tractor model

Why it matters

Using the exact model number ensures you get the right parts and diagrams for your Craftsman tractor, especially for deck components (like blades and mandrel parts) and starting system parts.

Parts examples that depend on the correct model

Once you confirm the model, match parts by the diagrams for your tractor:

• Mower deck parts such as the lawn tractor mandrel housing 587819701
• Blade options such as the lawn tractor 42-in deck high-lift blade 532138971
• Starting system parts such as the lawn tractor ignition switch 532193350

Last updated: February 2026

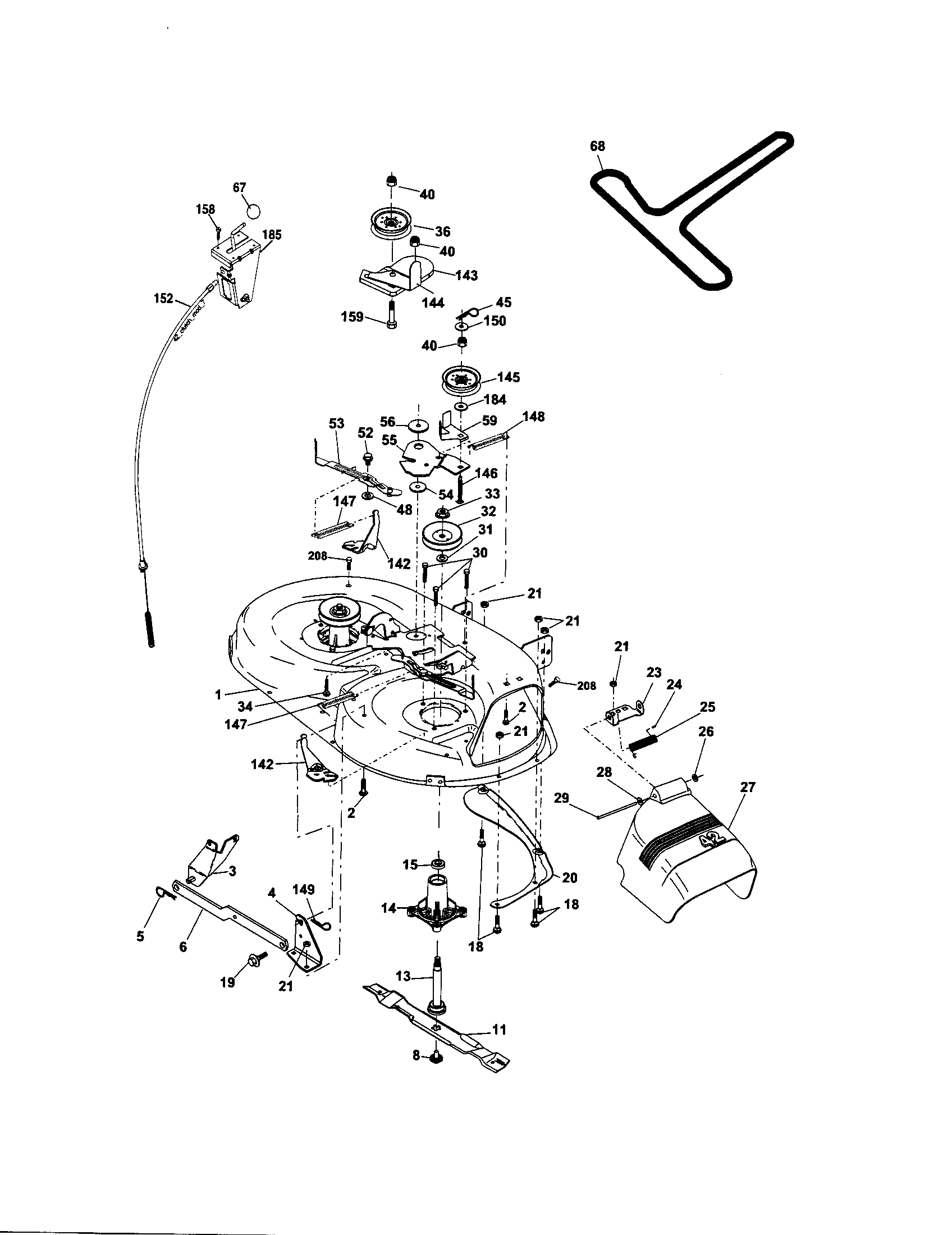

The Craftsman 917289130 front-engine lawn tractor uses a 42-inch mower deck. This matches the operator’s manual, which identifies the tractor as a 42" mower model, so you can shop for 42-in deck blades and deck parts with confidence using the correct deck size.

How to confirm the deck size on your tractor

We recommend verifying the deck size using the model information and deck labeling, especially if a deck has ever been swapped.

• Check the deck shell for a decal or stamping that lists the deck width
• Measure the cutting path: it is typically about 42 inches for this model
• Confirm the model number on the tractor frame tag is 917289130
• Use the deck diagram and specifications in the owner's manual

Common 42-in deck parts you may need

A 42-in deck commonly uses two blades and a belt-driven mandrel system. These model-matched parts are frequently replaced during routine maintenance.

• Lawn tractor 42-in deck high-lift blade 532138971 (bagging and strong discharge)
• Husqvarna lawn tractor mulching blade, 21-in 532134149 (mulching setup; typically used as a pair)
• Lawn tractor mandrel housing 587819701 (supports the spindle/mandrel assembly)

Quick reference: what “42-inch deck” means

Item	What to expect on a 42-in deck
Deck width	42 inches (cutting swath)
Blade count	Usually 2 blades
Blade length	Commonly about 21 inches each

Why it matters

Using the correct deck size prevents ordering the wrong blades, mandrel parts, or deck assembly components, and it helps you set up the mower deck for an even cut and proper discharge.

Last updated: February 2026

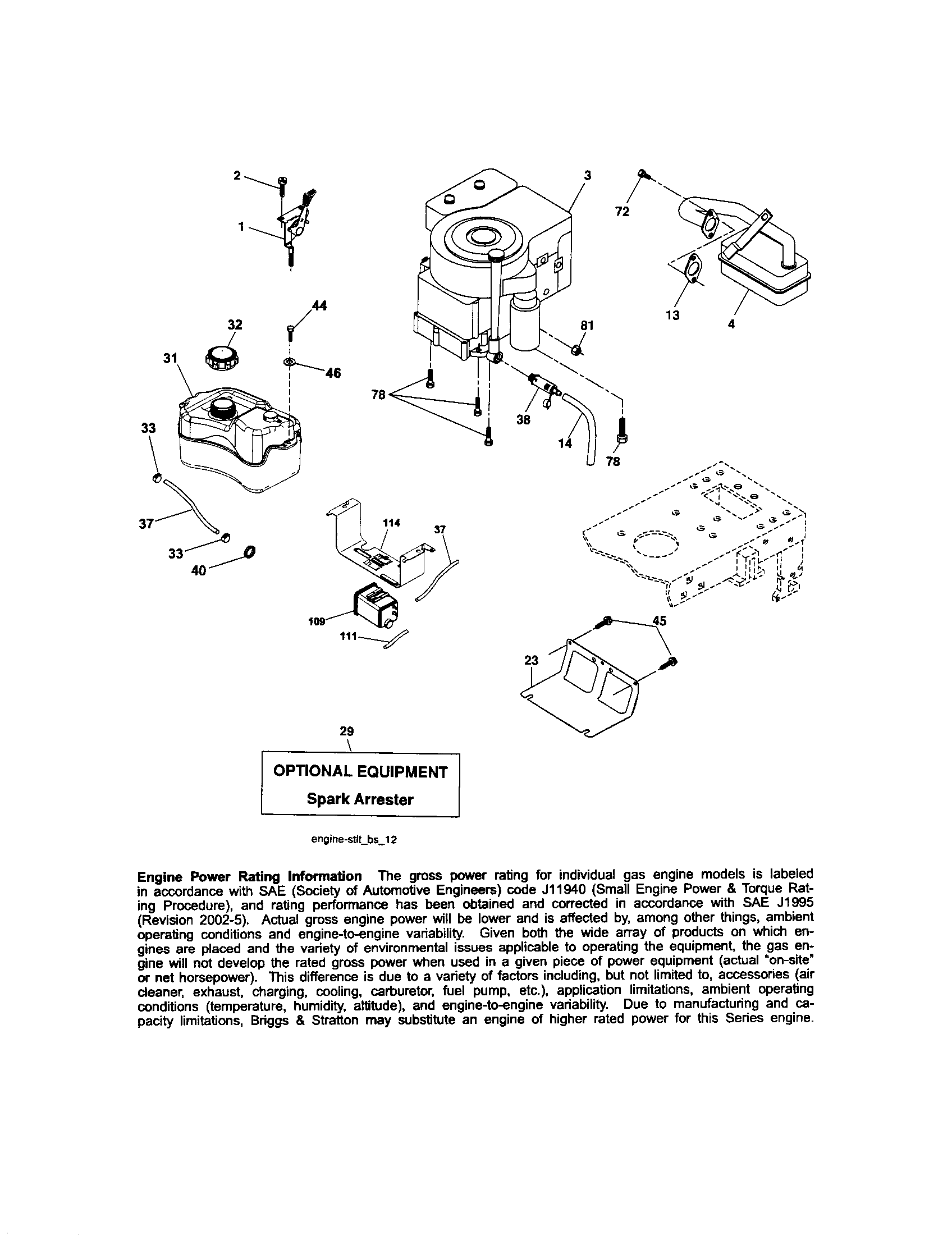

The Craftsman riding mower model 917289130 uses a 17.5 HP (as rated by the engine manufacturer) engine; the operator’s manual identifies it as a low-emission engine and the tractor is equipped with a 42-inch mower deck. For the exact engine family and service details, use the specifications section in the owner's manual.

How to confirm the exact engine on your tractor

Even within the same model series, the most reliable way to identify the exact engine is by the engine ID label on the blower housing or valve cover.

• Locate the engine label and write down the model, type, and code numbers
• Match those numbers to the engine parts list when ordering tune-up items
• Compare the tractor’s configuration (deck size, transmission type) to the manual specs
• If the label is missing, use the tractor model number 917289130 plus the engine’s visible brand markings

What “17.5 HP” means for parts and maintenance

Horsepower helps describe the tractor’s capability, but engine identification numbers are what you need for correct parts like spark plugs, air filters, and fuel filters.

What you’re checking	Where to find it	Why it matters
HP rating	Manual/specs and engine label	Confirms general engine class
Engine model/type/code	Engine label	Ensures correct tune-up and repair parts
Deck size (42-inch)	Tractor deck tag/manual	Helps match blades and deck parts

Related parts you might replace on a 42-inch deck setup

If you are servicing the cutting system on this 42-inch deck tractor, these model-matched parts are commonly involved:

• Lawn tractor 42-in deck high-lift blade 532138971 for bagging or strong lift
• Husqvarna lawn tractor mulching blade, 21-in 532134149 when using a mulching setup
• Lawn tractor mandrel housing 587819701 if you have blade wobble, noise, or a seized spindle

Why it matters

Using the correct engine identification prevents wrong tune-up parts and helps avoid hard-starting, loss of power, and poor cutting performance. Confirming deck and mandrel components also keeps vibration down and protects the mower deck.

Last updated: February 2026

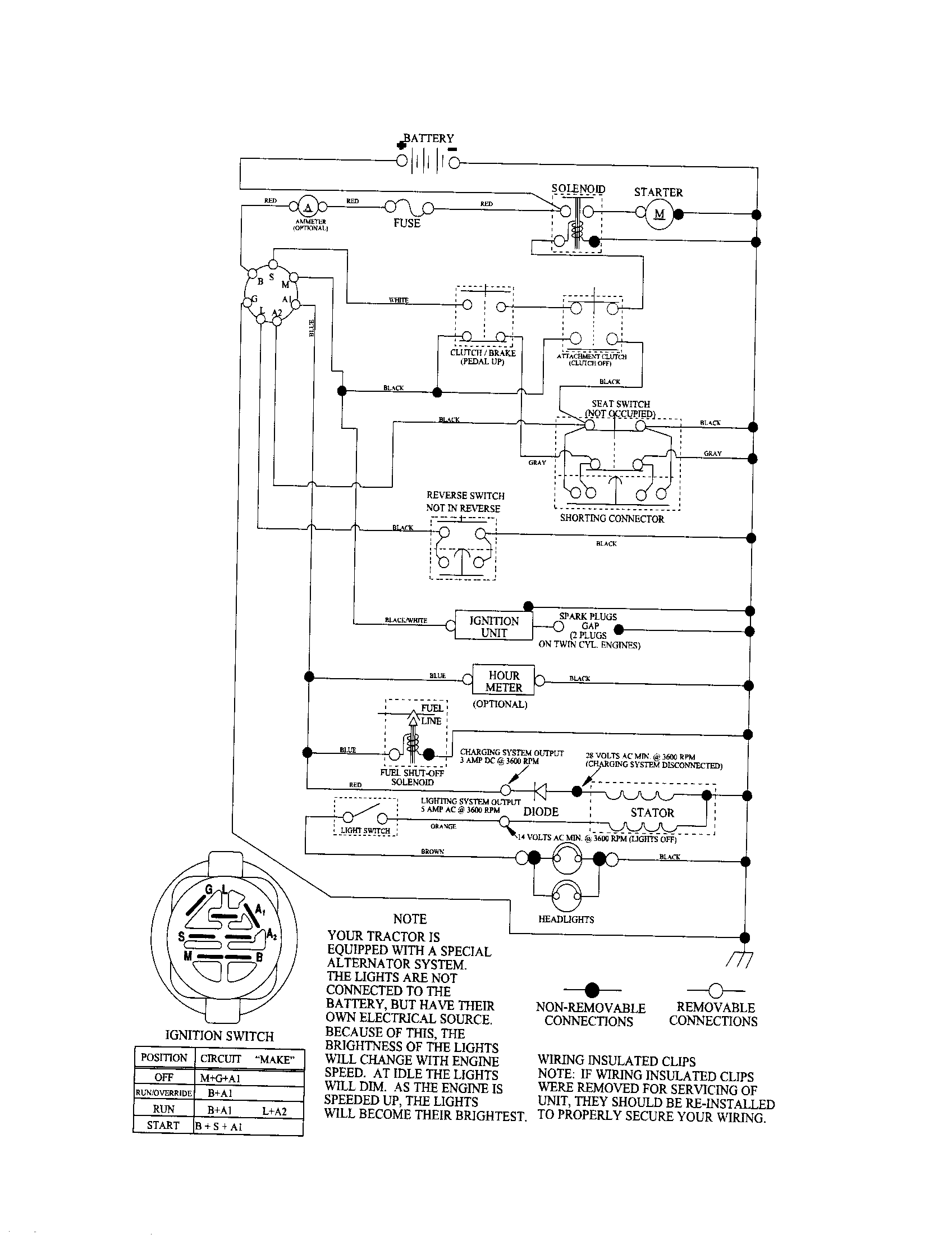

Common problems on the Craftsman 917289130 front-engine lawn tractor include a no-start (often battery, wiring, solenoid, or safety switch related), loss of power from airflow or fuel issues, excessive vibration from blade or mandrel problems, and poor cutting from an unlevel or clogged deck. Use the owner's manual troubleshooting chart to match symptoms to fixes.

Most common symptoms and what usually causes them

• Engine will not start: weak/dead battery, corroded terminals, loose/damaged wiring, faulty starter solenoid, throttle set incorrectly
• Loss of power: dirty air filter, low or dirty oil, grass buildup under the deck, dirty fuel filter, stale fuel or water in fuel
• Excessive vibration: worn or bent blade, loose blade bolt, bent blade mandrel, loose or damaged parts
• Poor cut (uneven): deck not level, tire pressure uneven, blades worn or installed incorrectly, deck packed with grass
• Blades will not rotate: obstruction in clutch mechanism, worn deck belt, frozen idler pulley, frozen blade mandrel

Quick checks we recommend first (fast, high-impact)

• Set throttle to FAST for mowing; avoid leaving it in CHOKE after starting.
• Check the battery connections for tightness and corrosion.
• Inspect under the mower deck for packed grass and debris; clean the underside.
• Verify tire pressure is even side-to-side before leveling the deck.
• If the engine cranks but runs poorly, drain old fuel and refill with fresh gasoline.

Parts that commonly solve these problems

If your symptoms match, these model-compatible parts are common fixes:

Symptom	Likely part area	Example part for this model
Clicks or intermittent crank	Starting circuit	Lawn tractor starter solenoid 582042802
No response at key or erratic key function	Controls	Lawn tractor ignition switch 532193350
Vibration or poor cut quality	Deck spindle/mandrel	Lawn tractor mandrel housing 587819701

Why it matters

Most “Craftsman mower problems” come down to three systems: starting and safety interlocks, fuel and airflow (air filter, fuel quality, oil condition), and the cutting deck (level, clean, and mechanically tight). Fixing the root cause prevents repeat failures and protects the engine and deck.

Last updated: February 2026

Yes, replacing the engine on your Craftsman 917289130 front-engine lawn tractor is worth it when the tractor’s deck, steering, and drivetrain are still solid and the total engine-swap cost stays well below the cost of replacing the whole tractor. If multiple major systems are worn out, replacement usually makes more sense.

Quick decision checklist (what we look at first)

• Deck condition: no severe rust-through, cracks, or repeated spindle failures
• Starting and electrical health: wiring is intact and safety circuits are working (no chronic no-crank issues)
• Drive system condition: transaxle drives smoothly and does not slip or leak excessively
• Parts availability: common wear parts are still easy to get for 917289130
• Total cost: engine + any “while you’re in there” parts stays comfortably under a replacement tractor budget

Costs that change the math

An engine swap often triggers other repairs that should be priced in up front.

Item you may also need	Why it matters	Example part for this model
Starter/solenoid	A weak solenoid can cause clicking/no-start symptoms	Lawn tractor starter solenoid 582042802
Ignition switch	Intermittent switch contacts can mimic engine problems	Lawn tractor ignition switch 532193350
Deck/spindle components	Worn mandrels and pulleys cause vibration and poor cut	Lawn tractor mandrel housing 587819701
Blades	Bent or worn blades reduce cut quality and add vibration	Lawn tractor 42-in deck high-lift blade 532138971

When replacing the engine is usually a good idea

• The tractor starts reliably (or the fix is clearly electrical, not mechanical)
• The mower deck cuts evenly after basic service (blade, leveling, cleanup)
• The transaxle and steering feel tight enough that you would keep the tractor for years

When it usually is not worth it

• The tractor has multiple major issues (deck damage plus drive problems plus electrical problems)
• You have ongoing symptoms listed in the troubleshooting chart such as repeated loss of power, heavy vibration, or chronic no-start that traces to several systems (battery, wiring, solenoid/starter, fuel) rather than one failed component

Why it matters

An engine is the single biggest repair on a riding mower. If the rest of the Craftsman 917289130 is in good shape, an engine swap can reset the tractor’s useful life; if the deck and drivetrain are already near end-of-life, you can end up paying twice.

For maintenance and safety steps (fueling, blade handling, and troubleshooting guidance), follow the owner's manual.

Last updated: February 2026
