Amana
Dryer

Model #ALE331RCW Amana dryer

Here are the diagrams and repair parts for Amana ALE331RCW dryer, as well as links to manuals and error code tables, if available.


There are a couple of ways to find the part or diagram you need:

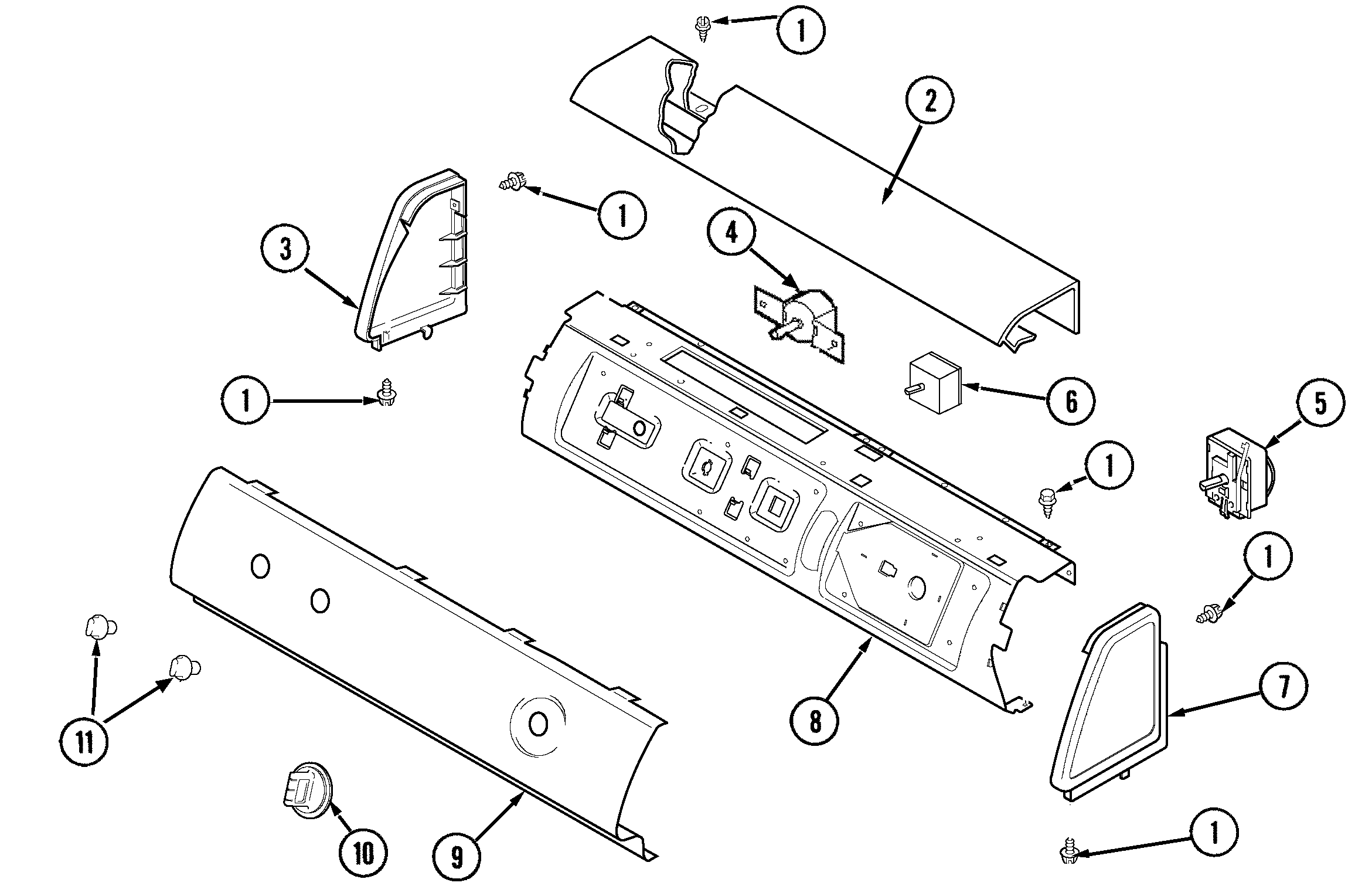

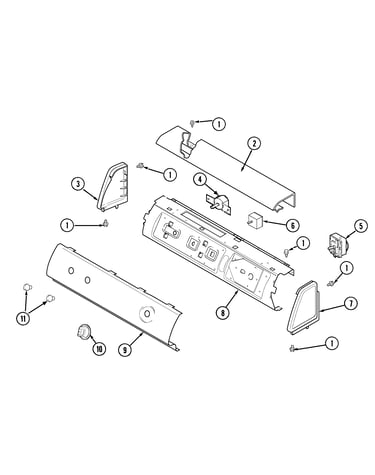

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Save to my profile

Showing 10 of 107 parts

Dryer Door Handle (White)

#22A

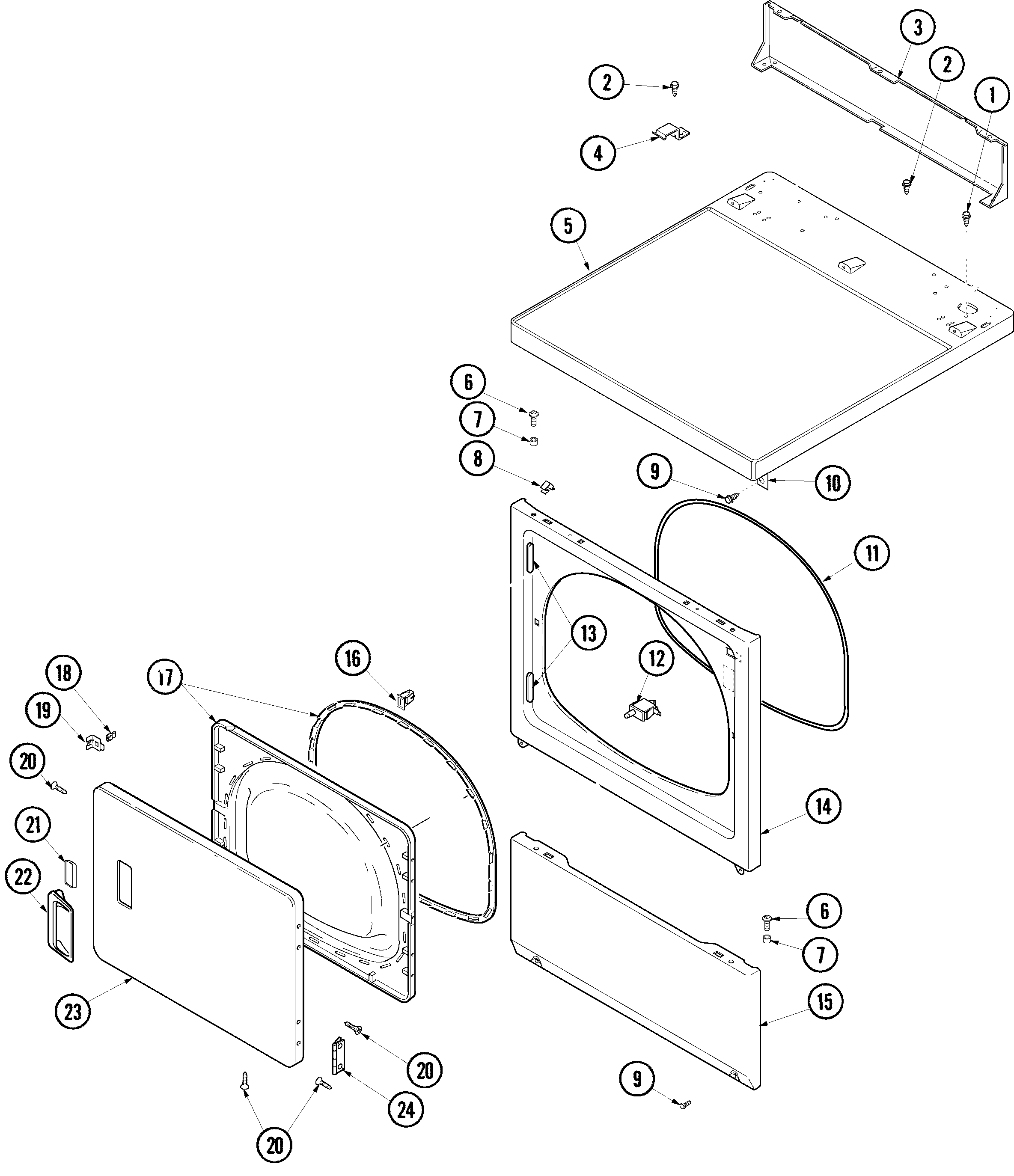

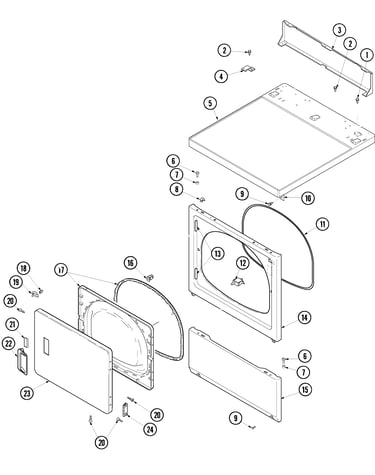

Door, front, access and top panels Diagram

$27.79

In Stock

Dryer Thermal Fuse, 360-degree F

#4

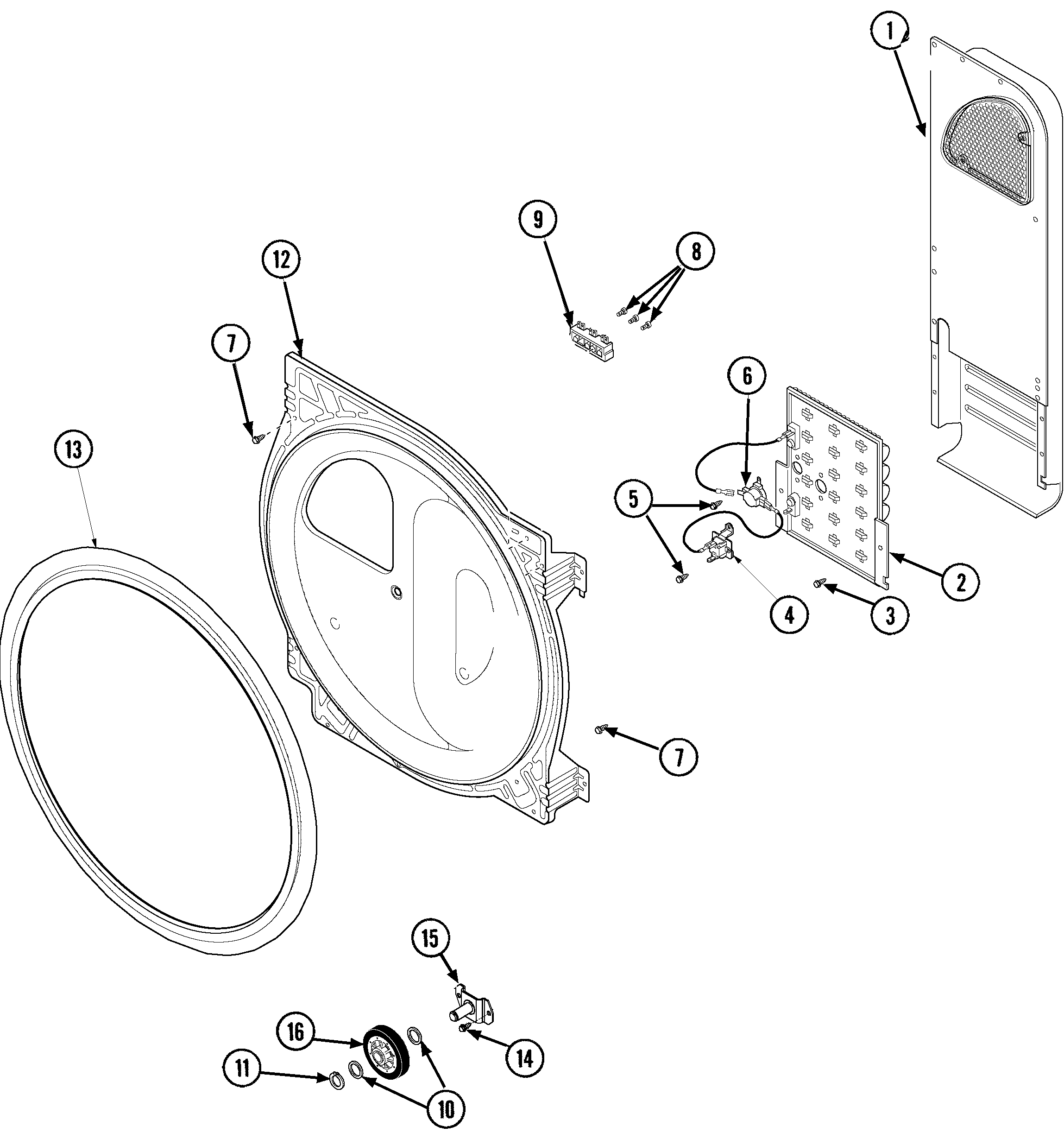

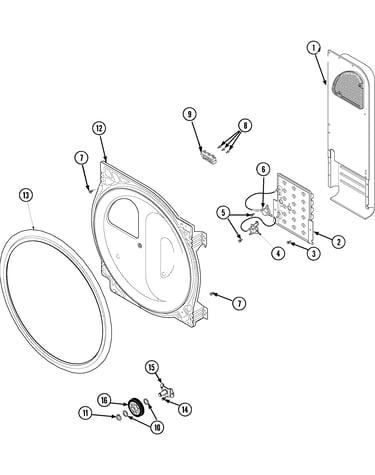

Rear bulkhead, air duct, heater & roller Diagram

Dryer thermal fuse, 360-degree f

Part #WP40113801
?
Manufacturer substitution
This part replaces 40113801. Substitute parts can look different from the original.
This part replaces 40113801
$8.59

Back Order

Dryer Drum Glide Bracket

#13

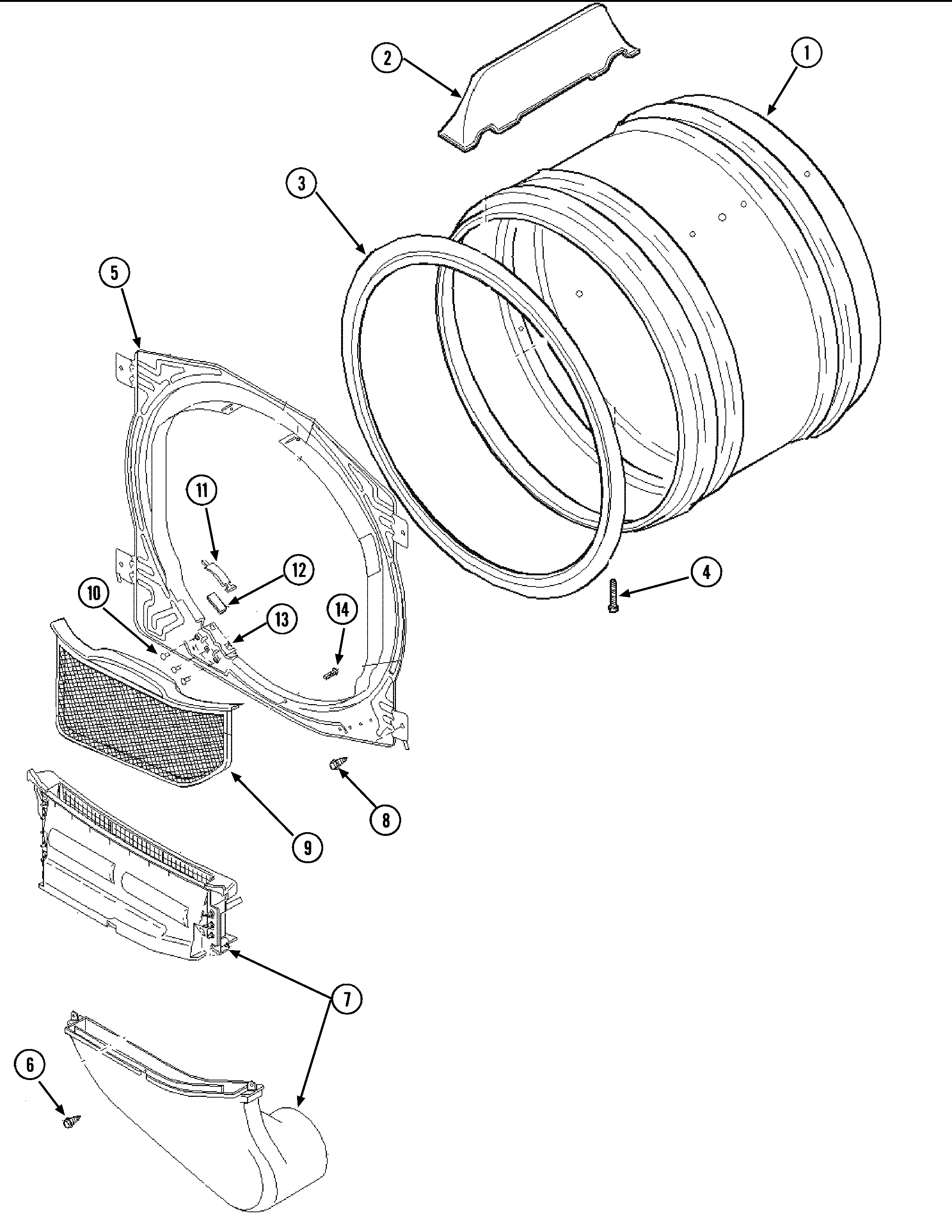

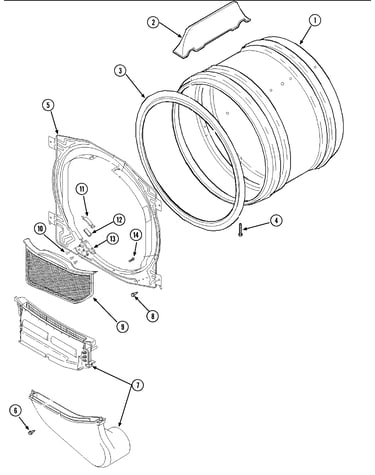

Front bulkhead, air duct & cylinder Diagram

Dryer drum glide bracket

Part #WP37001036
?
Manufacturer substitution
This part replaces 37001036. Substitute parts can look different from the original.
This part replaces 37001036
$29.01

In Stock

Dryer Nut

#20

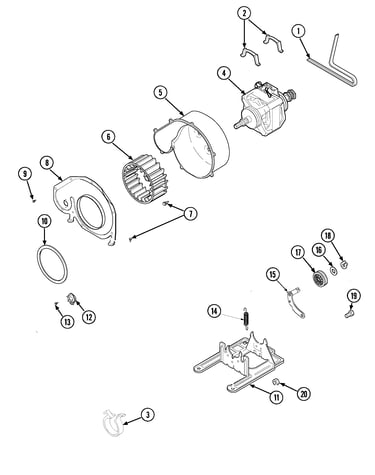

Motor & fan Diagram

Dryer nut

Part #WPW10139757
?
Manufacturer substitution
This part replaces 52566. Substitute parts can look different from the original.
This part replaces 52566
This item is not returnable
$4.08

In Stock

Dryer Front Panel Shroud Seal

#11

Door, front, access and top panels Diagram

Dryer front panel shroud seal

Part #W10856845
?
Manufacturer substitution
This part replaces 504005. Substitute parts can look different from the original.
This part replaces 504005
$43.11 |
10% OFF MSRP:$48.00

Back Order

Dryer Blower Wheel

#6

Motor & fan Diagram

Dryer blower wheel

Part #56000
?
Manufacturer substitution
This part replaces 56000. Substitute parts can look different from the original.
This part replaces 56000
$31.66 |
30% OFF MSRP:$45.00

In Stock

Laundry Appliance Washer

#16

Motor & fan Diagram

Laundry appliance washer

Part #WP233520
?
Manufacturer substitution
This part replaces 52549. Substitute parts can look different from the original.
This part replaces 52549
This item is not returnable
$4.63

In Stock

Range Screw

#5

Rear bulkhead, air duct, heater & roller Diagram

Range screw

Part #WP3177991
?
Manufacturer substitution
This part replaces 23222. Substitute parts can look different from the original.
This part replaces 23222
This item is not returnable
$3.21

In Stock

Dryer Drive Motor

#4B

Motor & fan Diagram

Dryer drive motor

Part #WP2200376
?
Manufacturer substitution
This part replaces 40099801. Substitute parts can look different from the original.
This part replaces 40099801
$136.04 |
5% OFF MSRP:$143.48

Back Order

Laundry Appliance Retainer Ring

#18

Motor & fan Diagram

Laundry appliance retainer ring

Part #WP23748
?
Manufacturer substitution
This part replaces 23748. Substitute parts can look different from the original.
This part replaces 23748
This item is not returnable
$6.54

In Stock
