Model #LX460 Official Toro tractor
Here are the diagrams and repair parts for Toro LX460 tractor, as well as links to manuals and error code tables, if available.
There are a couple of ways to find the part or diagram you need:
- Click a diagram to see the parts shown on that diagram.
- In the search box below, enter all or part of the part number or the part’s name.
Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.
We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.
For DIY troubleshooting advice and repair guides, visit our repair help section.

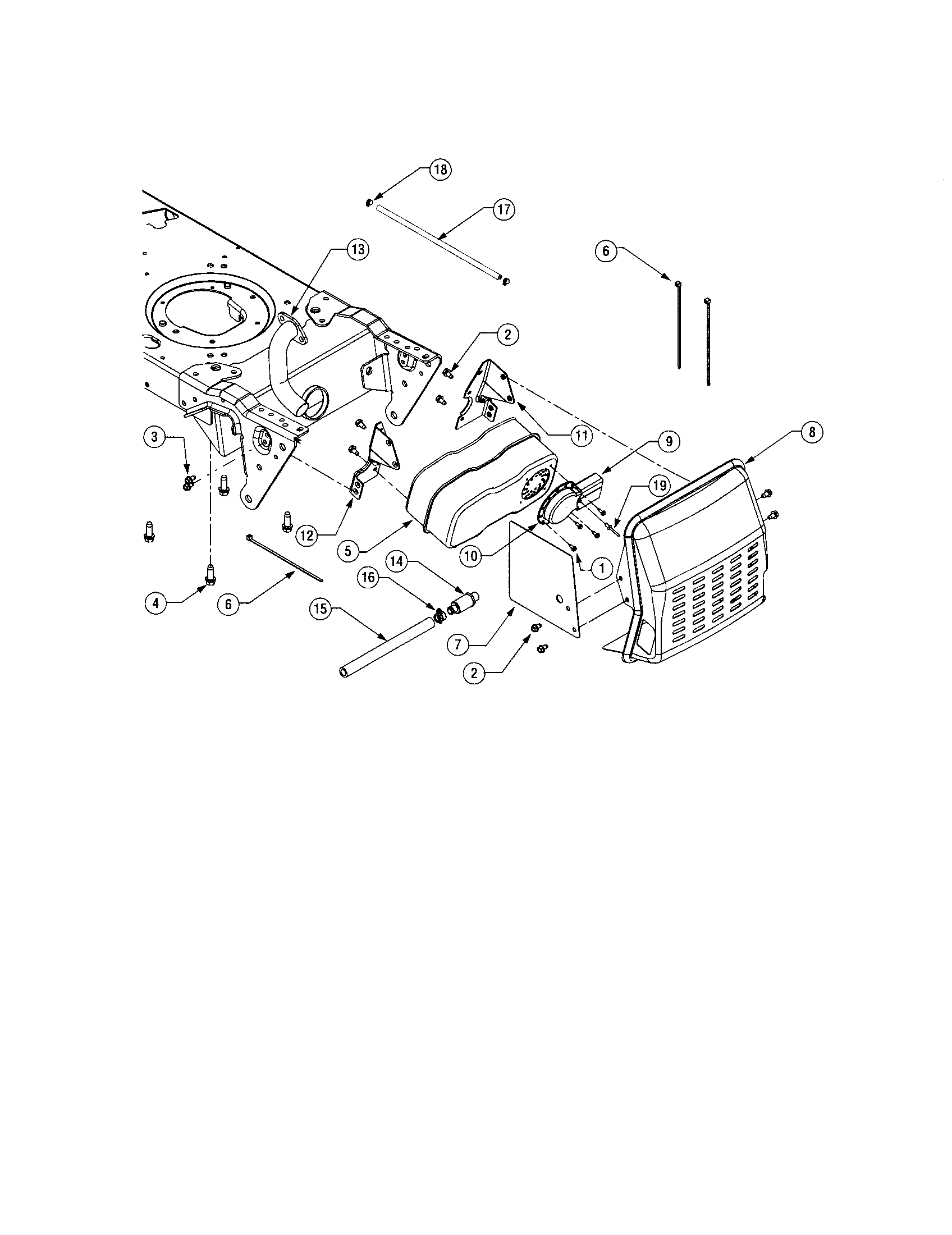

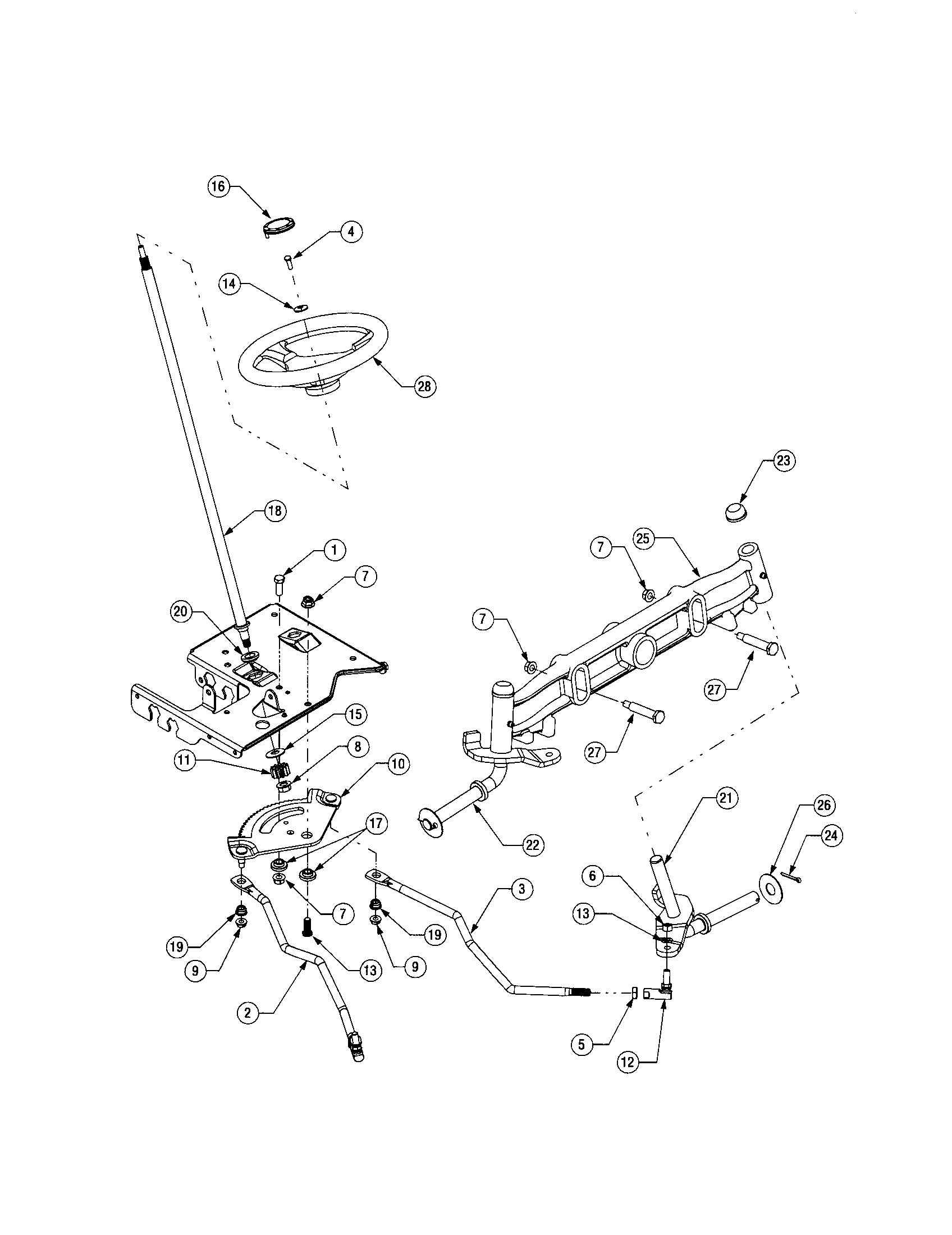

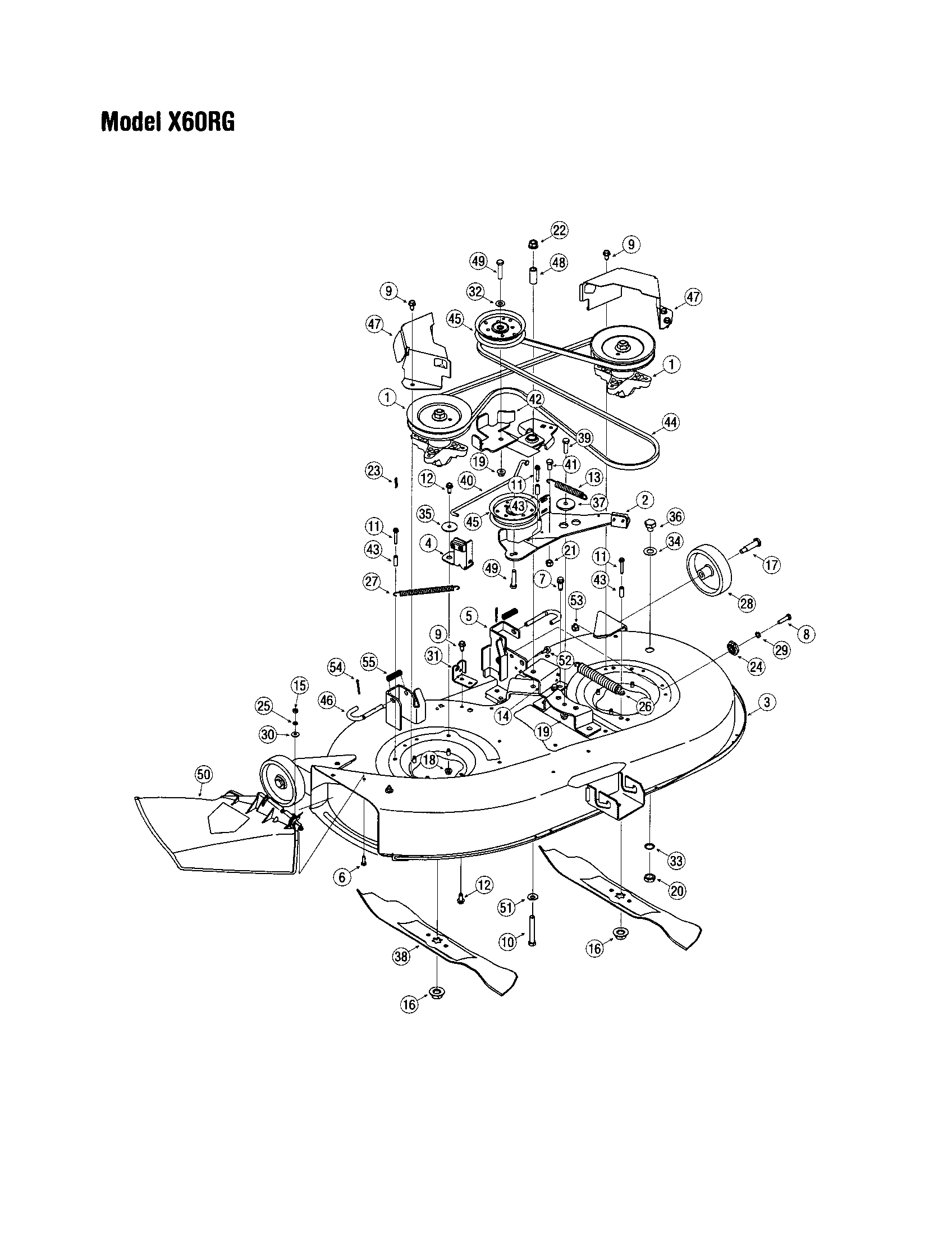

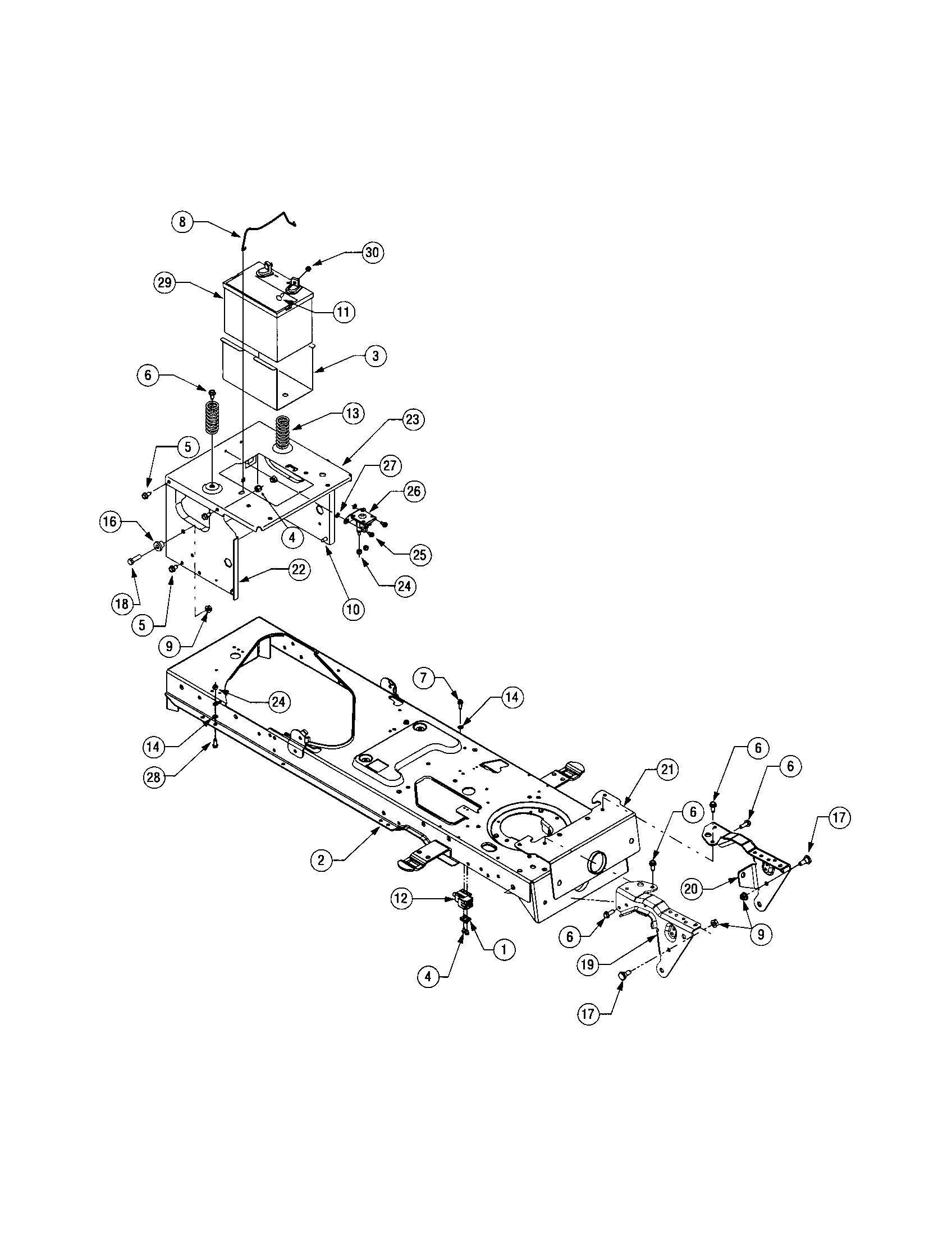

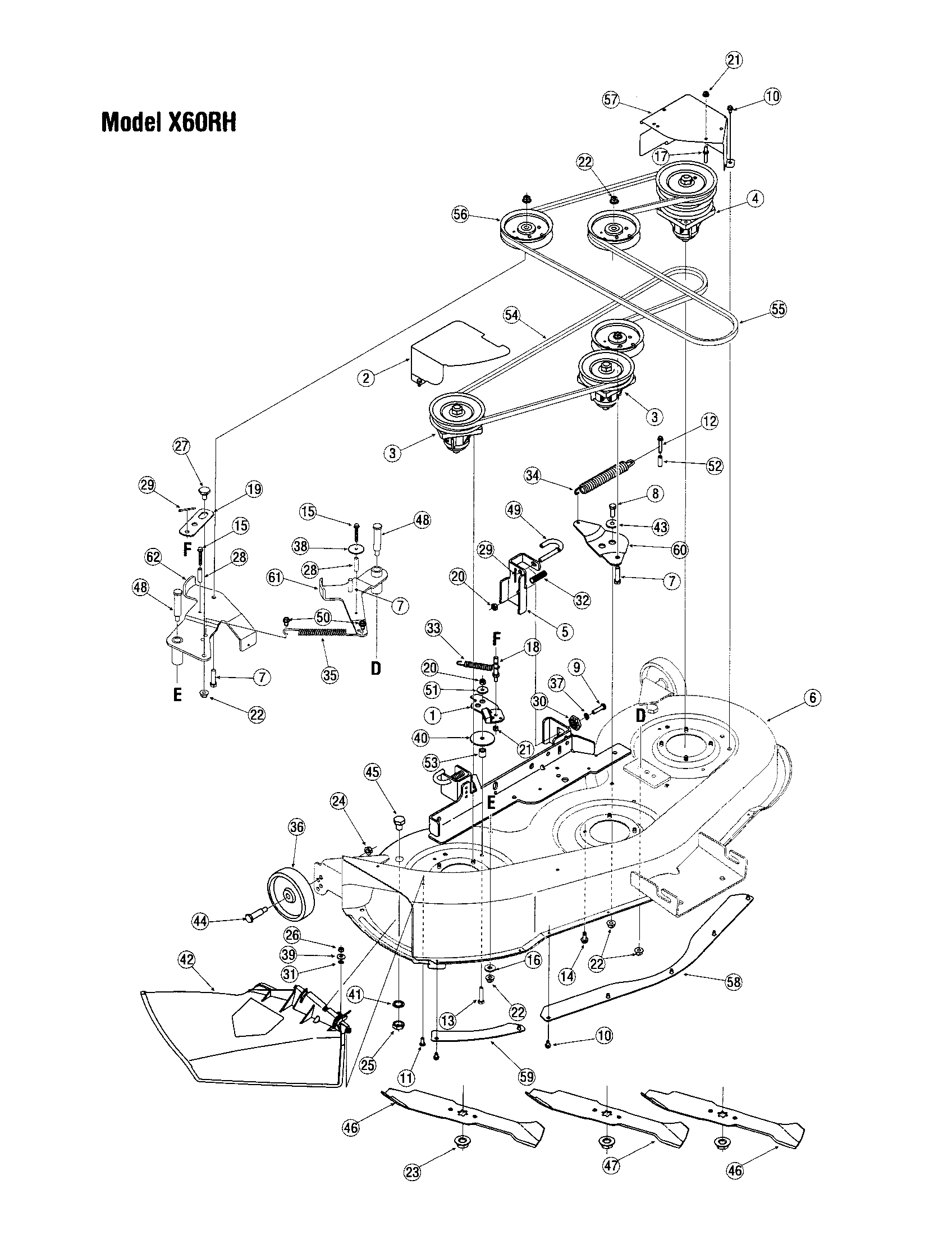

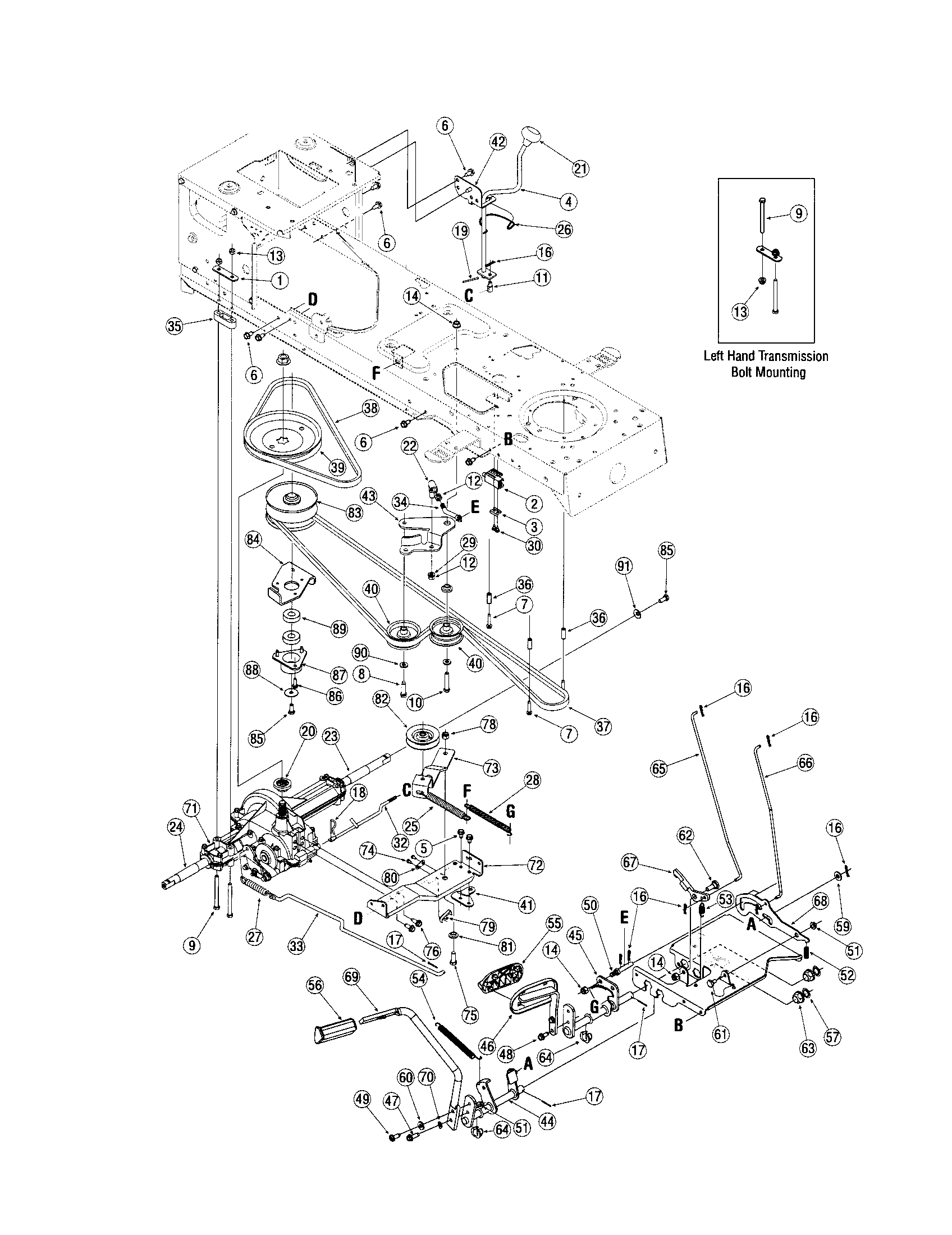

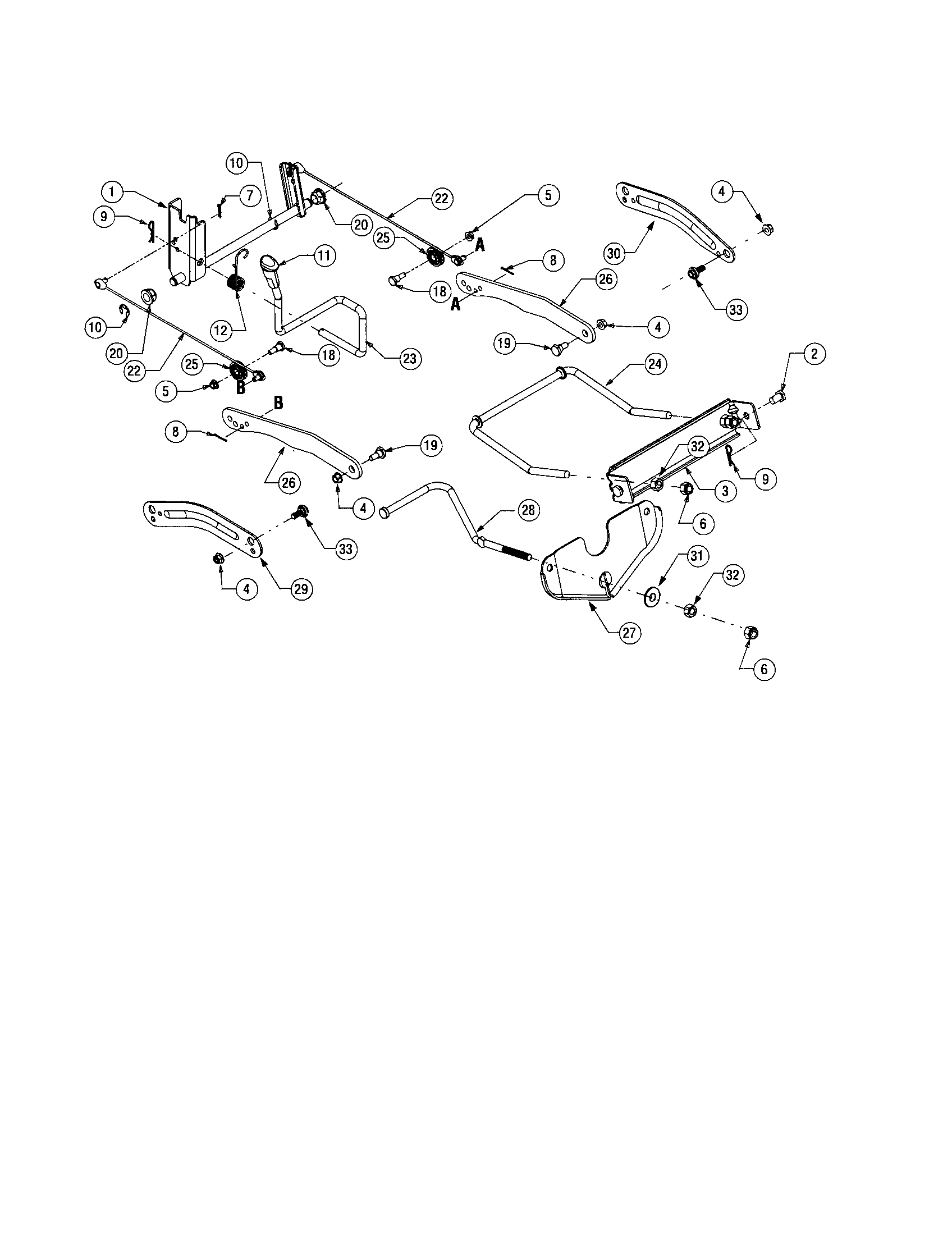

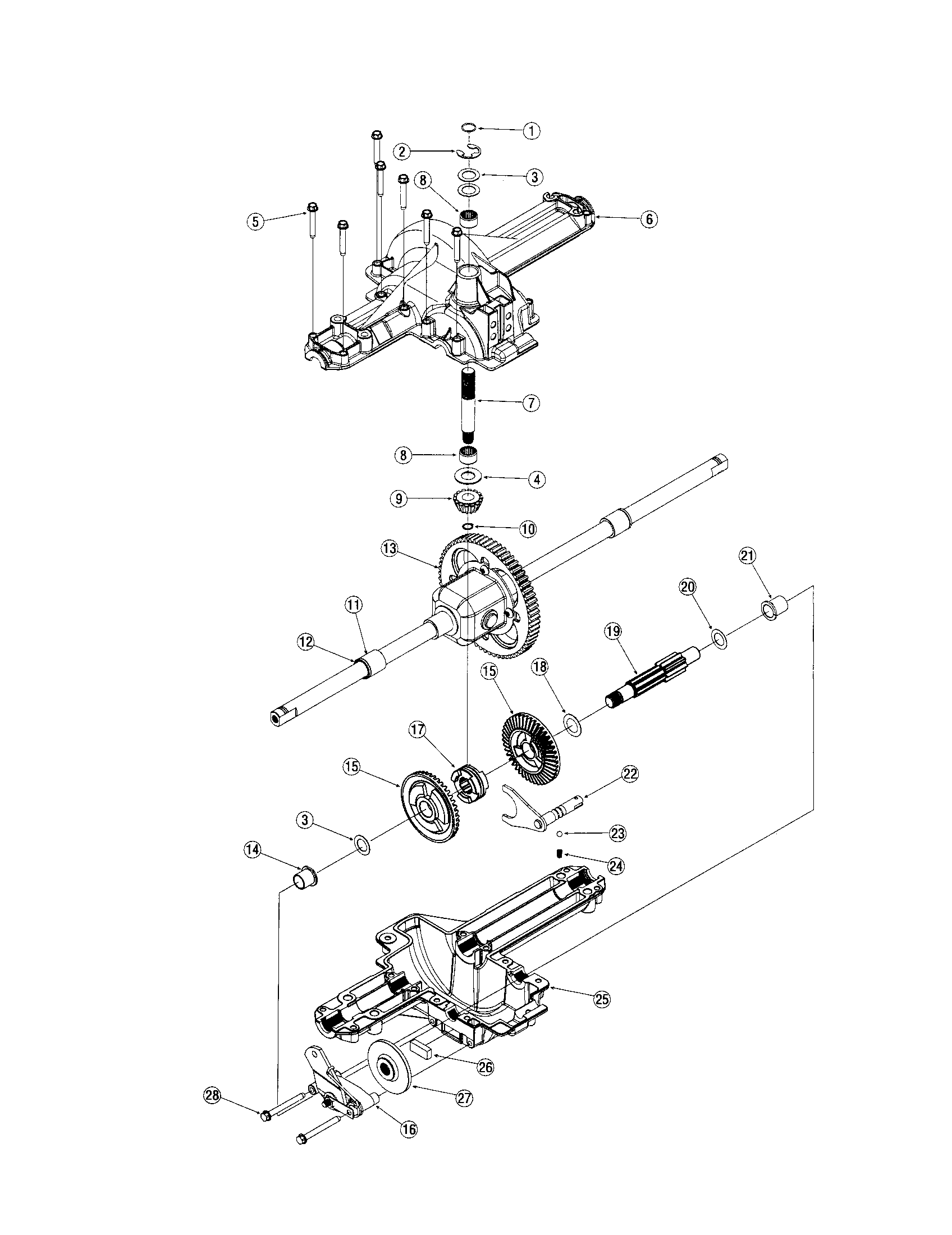

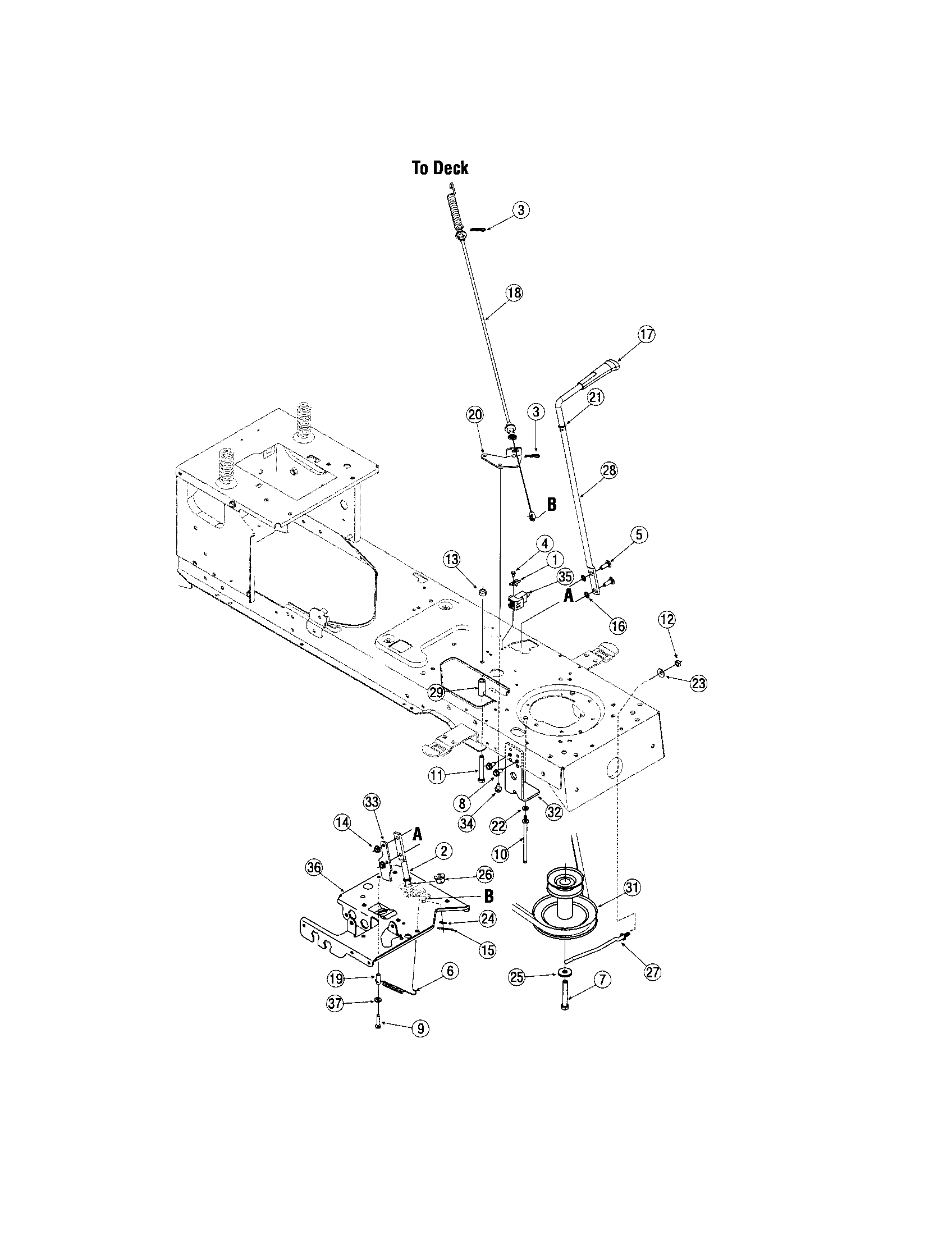

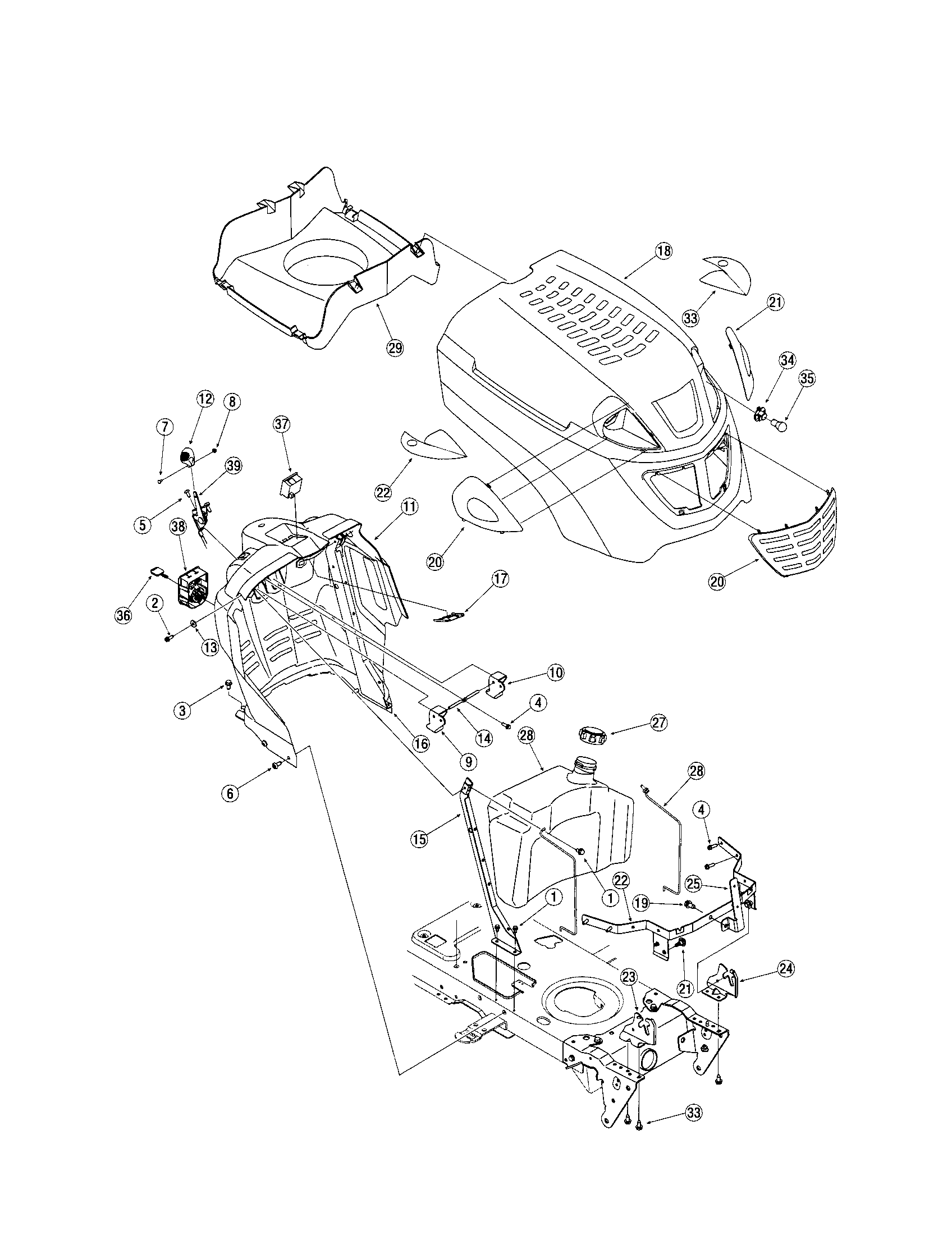

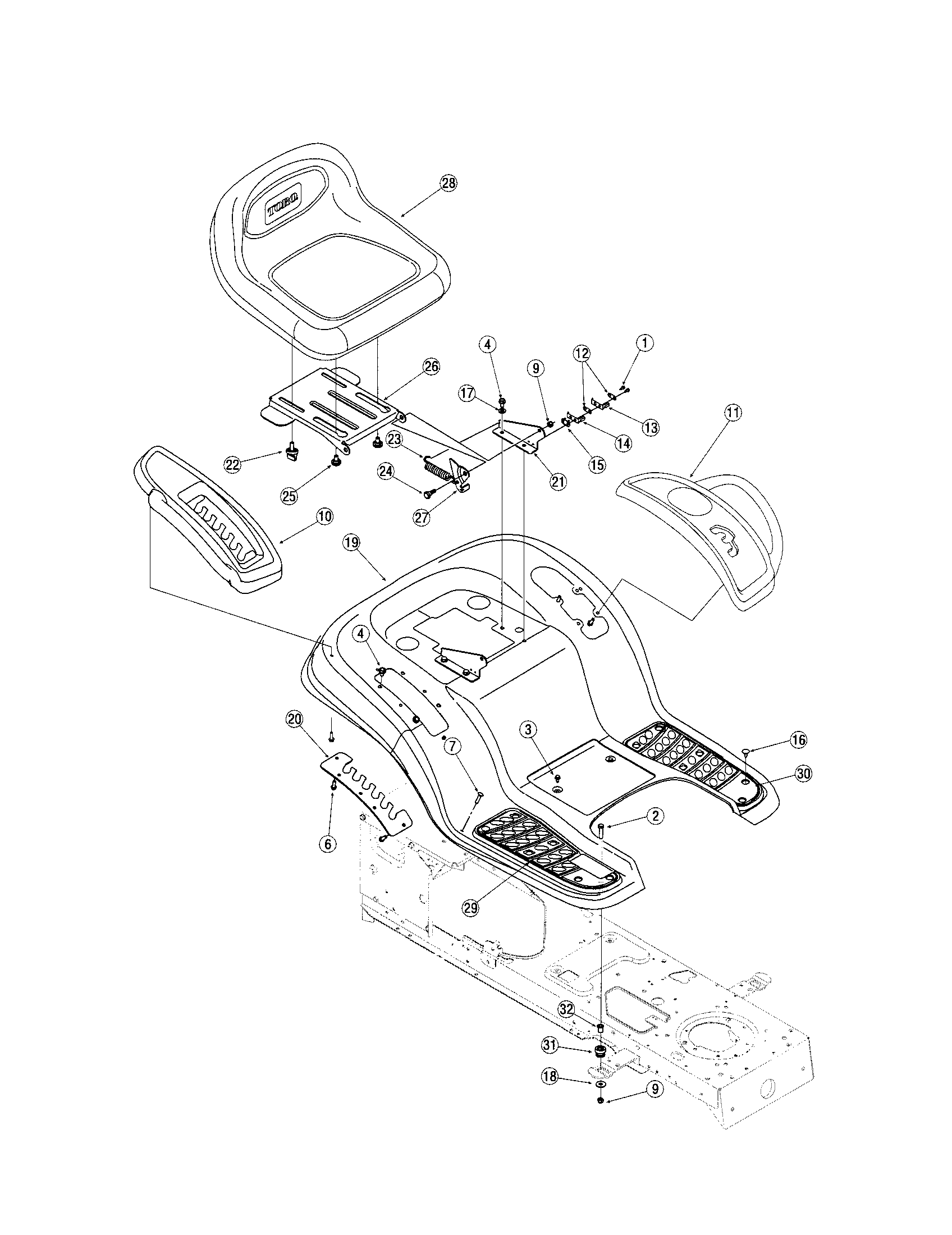

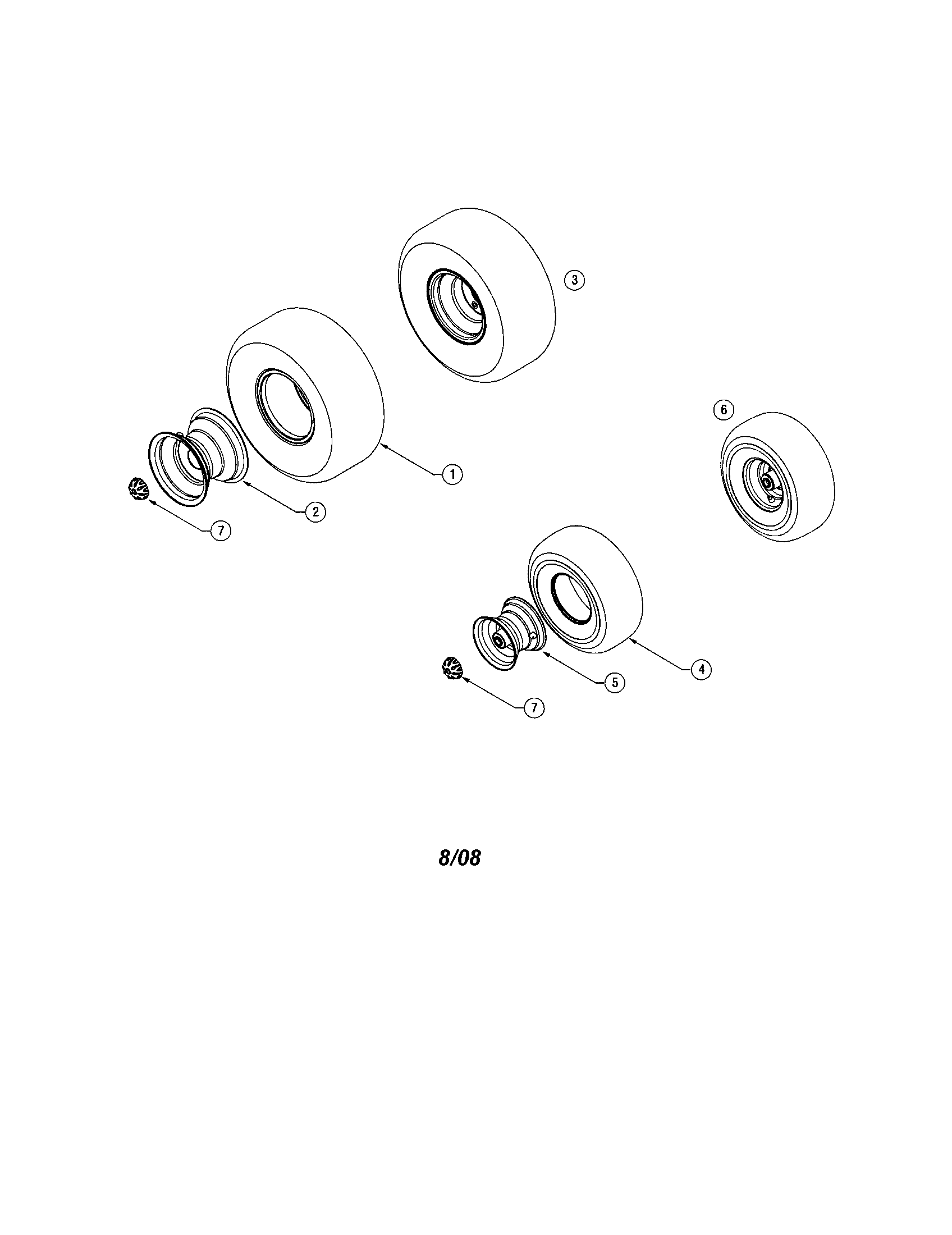

Model Diagram and Schematics
Search within this model
?
This is the number corresponding to the part on the diagram / schematic
Parts List
Showing 10 of 381 parts
Lawn tractor 42-in deck 3-in-1 blade (replaces 742-0616a, 742-0616a-0637, 942-04126, 942-0616)
Part #942-0616A
Get free shipping with Automatic Reorder
In Stock
$30.90 |
14% OFF
Phone Price: $35.90
Ignition key
Part #925-1745
Replaced by #925-1745A
?
Manufacturer substitution
This part replaces 925-1745. Substitute parts can look different from the original.
In Stock
$15.99 |
30% OFF
MSRP: $23.00
See All Related Diagrams
Hex screw
Part #910-1260A
Replaced by #710-1260A
?
Manufacturer substitution
This part replaces 910-1260A. Substitute parts can look different from the original.
This item is not returnable
In Stock
$3.31 |
28% OFF
MSRP: $4.60
See All Related Diagrams
Pulley, idler, 4.25" dia.
Part #756-04129
Replaced by #753-08171
?
Manufacturer substitution
This part replaces 756-04129. Substitute parts can look different from the original.
In Stock
$30.23 |
14% OFF
Phone Price: $35.23
See All Related Diagrams
In Stock
$3.39 |
50% OFF
MSRP: $6.80
See All Related Diagrams
In Stock
$3.17 |
37% OFF
MSRP: $5.00
Variable belt
Part #954-0467
Replaced by #490-501-Y035
?
Manufacturer substitution
This part replaces 954-0467. Substitute parts can look different from the original.
In Stock
$45.07
See All Related Diagrams
Lawn tractor gauge wheel
Part #734-0973
The manufacturer no longer makes this part, and there's no substitute part
Lawn tractor headlight bulb (replaces 1752872, 1772001, gw-1772001, wd-900-2025, wd-c37508)
Part #925-0963
This item is not returnable
Back Order
$4.96 |
50% OFF
MSRP: $9.90
See All Related Diagrams
Hex washer screw
Part #910-0599
Replaced by #710-0599
?
Manufacturer substitution
This part replaces 910-0599. Substitute parts can look different from the original.
This item is not returnable
In Stock
$4.91 |
17% OFF
Phone Price: $5.91
