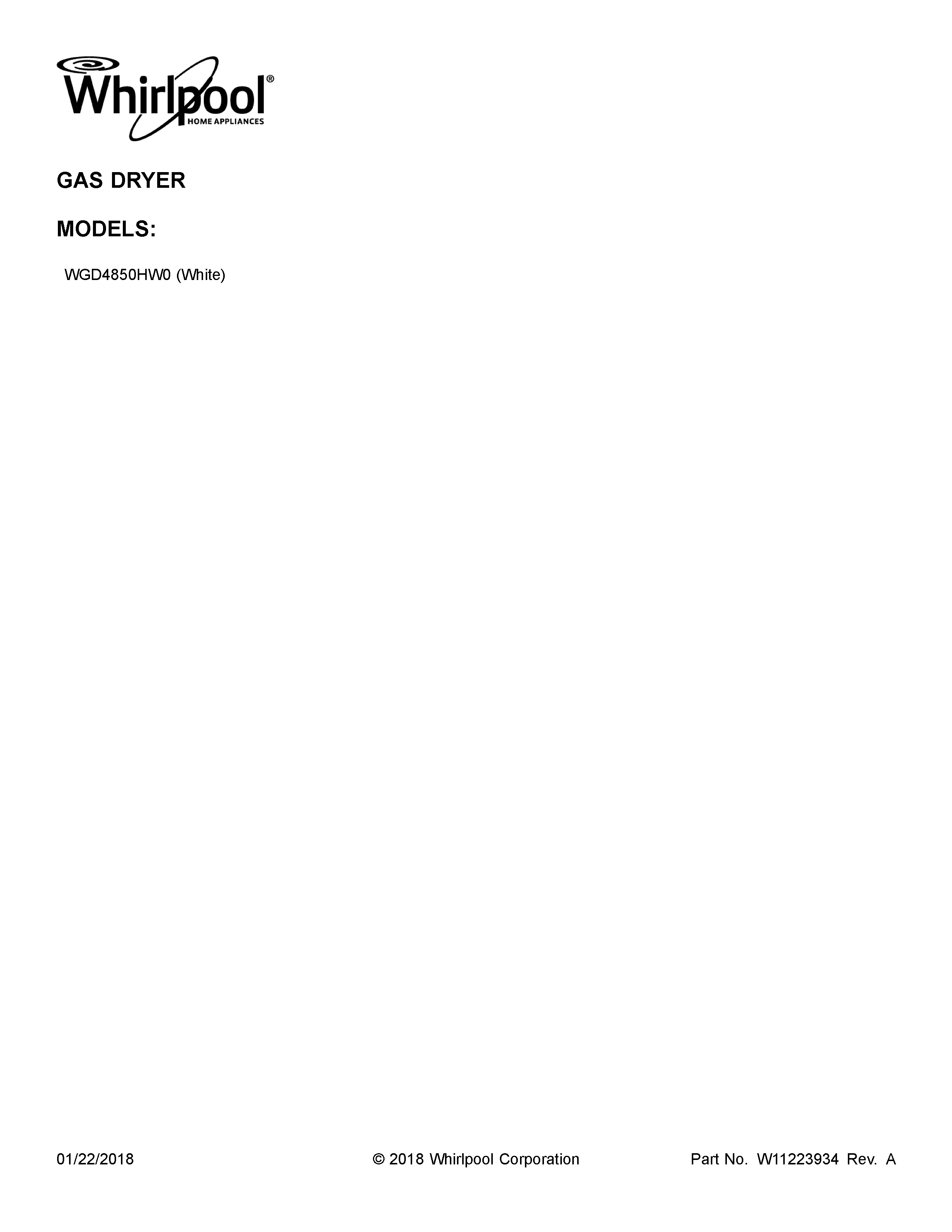

Model #WGD4850HW0 Whirlpool dryer

Here are the diagrams and repair parts for Whirlpool WGD4850HW0 dryer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guideOwner’s manual

    Showing 10 of 123 parts

    Dryer Drum Belt#32

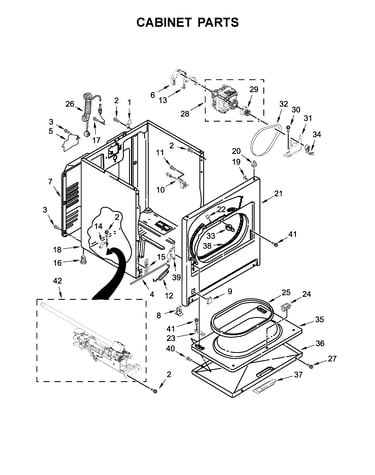

    Cabinet parts Diagram

    Belt

    Part #W10131364
    Replaced by #341241
    ?
    Manufacturer substitution
    This part replaces W10131364. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $17.49
    Dryer Repair Kit#NI

    Optional parts (not included) Diagram

    Dryer repair kit

    Part #279948
    Replaced by #4392065
    ?
    Manufacturer substitution
    This part replaces 279948. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $26.99 |
    43% OFF
    MSRP: $47.00
    Dryer Lint Screen (White)#5

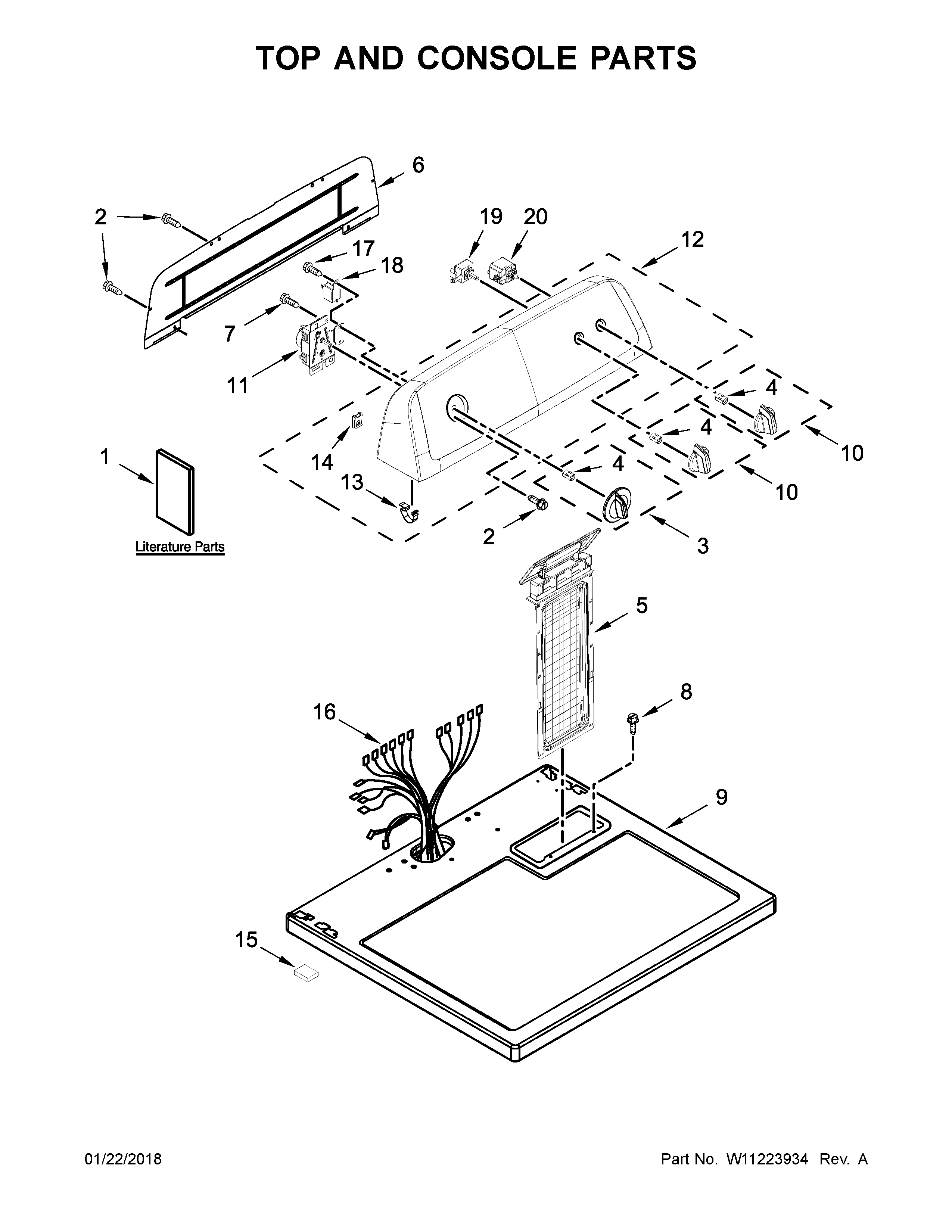

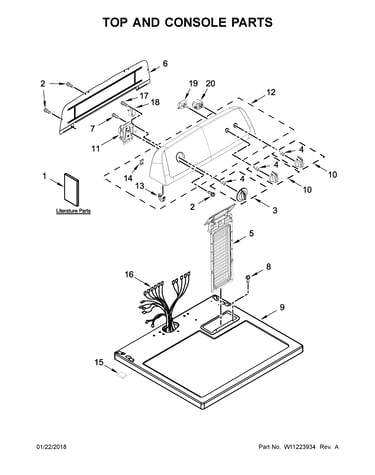

    Top and console parts Diagram

    Dryer lint screen

    Part #W10717210
    Replaced by #WPW10717210
    ?
    Manufacturer substitution
    This part replaces W10717210. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $52.99 |
    10% OFF
    Was: $58.89
    Dryer Drum Support Roller Kit#32

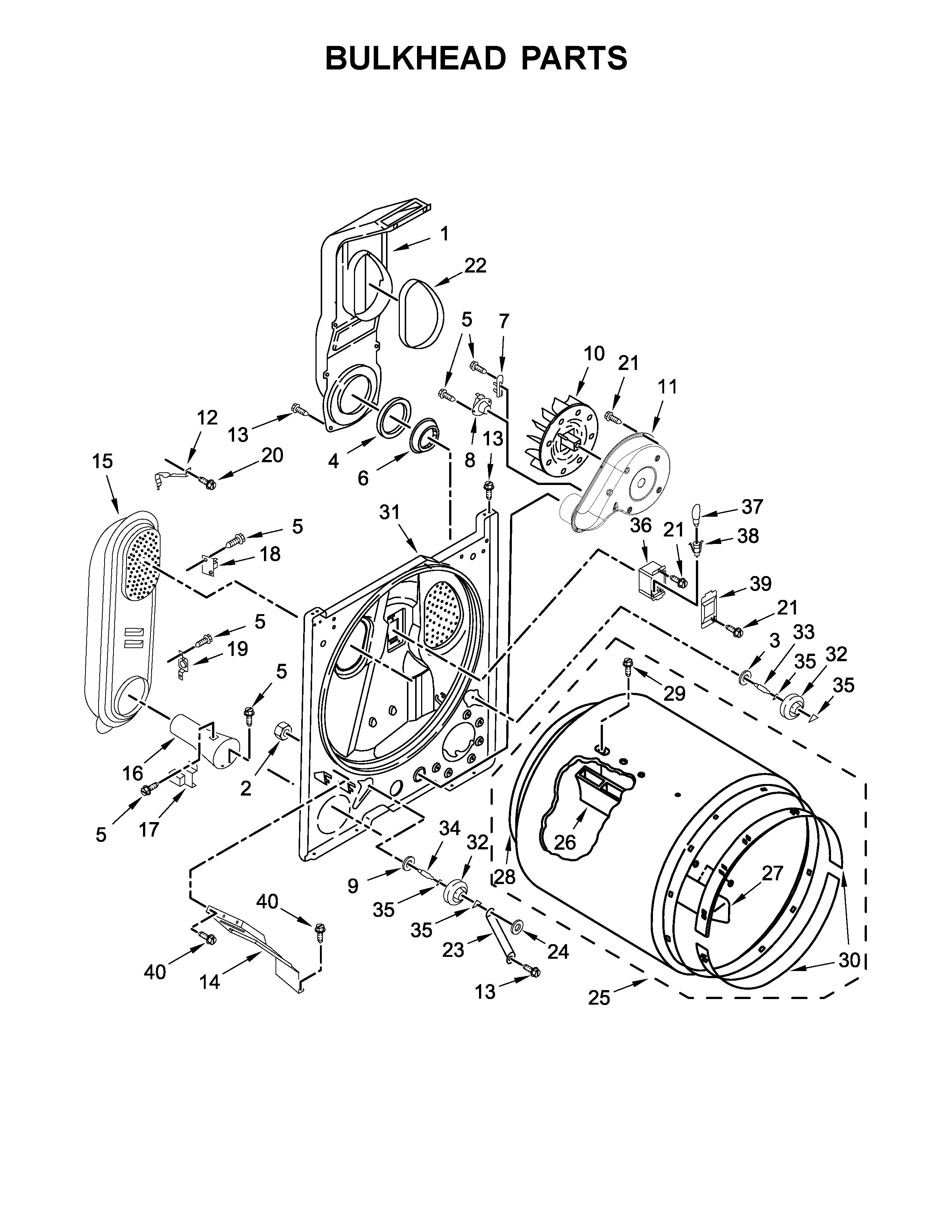

    Bulkhead parts Diagram

    Support

    Part #3397590
    Replaced by #349241T
    ?
    Manufacturer substitution
    This part replaces 3397590. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $19.79 |
    10% OFF
    Was: $21.99
    Dryer Door Latch Kit#33

    Cabinet parts Diagram

    Strike

    Part #696144
    Replaced by #279570
    ?
    Manufacturer substitution
    This part replaces 696144. Substitute parts can look different from the original.
    BEST SELLER
    This item is not returnable
    In Stock
    $5.79 |
    9% OFF
    Was: $6.39
    Dryer Door Handle (White)#37

    Cabinet parts Diagram

    Dryer door handle

    Part #W10714516
    Replaced by #W10861225
    ?
    Manufacturer substitution
    This part replaces W10714516. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $37.59
    Dryer Idler Pulley#34

    Cabinet parts Diagram

    Dryer idler pulley

    Part #691366
    Replaced by #WP691366
    ?
    Manufacturer substitution
    This part replaces 691366. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $22.19
    Dryer Door Seal#25

    Cabinet parts Diagram

    Seal

    Part #W10823580
    Replaced by #W10906683
    ?
    Manufacturer substitution
    This part replaces W10823580. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $58.49
    Dryer Operating Thermostat#8

    Bulkhead parts Diagram

    Dryer operating thermostat

    Part #3387134
    Replaced by #WP3387134
    ?
    Manufacturer substitution
    This part replaces 3387134. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $24.89 |
    10% OFF
    Was: $27.69
    Dryer Burner Igniter Kit#4

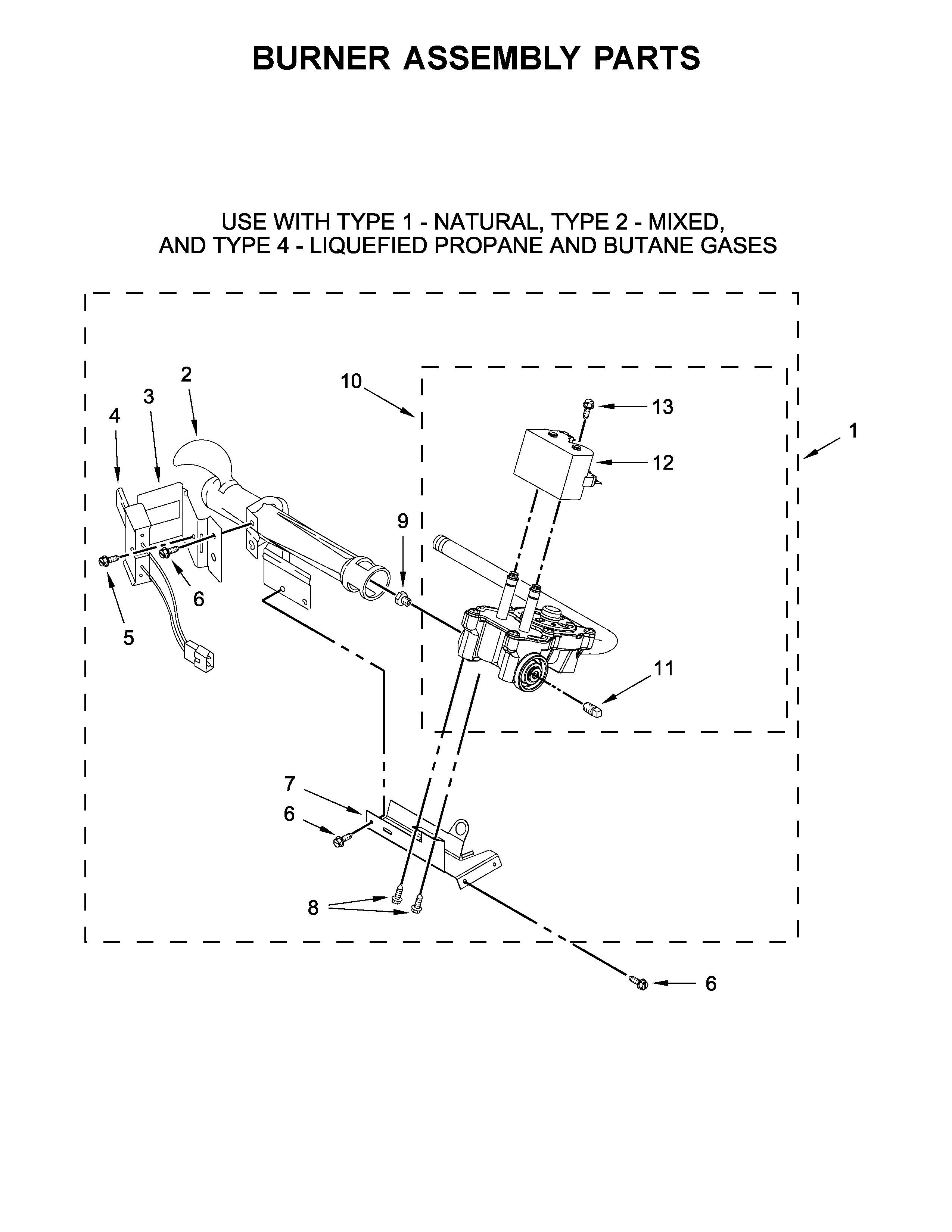

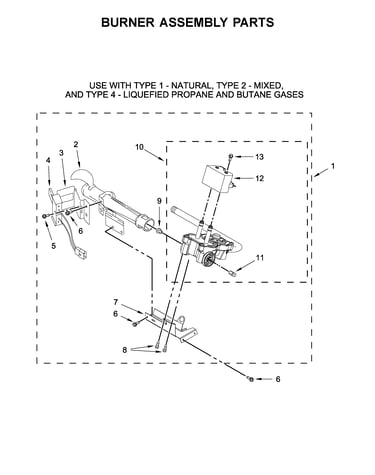

    Burner assembly parts Diagram

    Igniter

    Part #686590
    Replaced by #279311
    ?
    Manufacturer substitution
    This part replaces 686590. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $36.79 |
    10% OFF
    Was: $40.89

    Symptoms common to all dryers

    Choose a symptom to see related dryer repairs.

    Main causes: bad drum support roller, damaged idler pulley, broken blower fan blade, worn drum glide bearing, bad drive motor
    Main causes: bad gas valve coils, broken heating element, tripped safety thermostat or fuse, bad operating thermostat, control failure
    Main causes: bad timer or electronic control board, door switch failure
    Main causes: lack of electrical power, bad power cord, wiring failure, bad control board, blown thermal fuse, bad door switch
    Main causes: clogged exhaust vent, bad motor relay, loose dryer door catch, bad door switch, control system failure, faulty drive motor
    Main causes: damaged door strike, worn door catch
    Main causes: door switch failure, lack of power, broken belt, blown thermal fuse, bad drive motor, control system failure
    Main causes: clogged exhaust system, heating system failure, deposits on moisture sensor, control system failure

    Repair guides common to all dryers

    These step-by-step repair guides will help you safely fix what’s broken on your dryer.

    August 1, 2014
    By Lyle Weischwill
    How to replace a dryer drum support roller

    If your dryer thumps or squeals, replace the drum support roller to restore quiet to your home.

    Repair difficulty
    Time required
     90 minutes or less
    August 1, 2014
    By Lyle Weischwill
    How to replace a dryer thermistor

    The thermistor senses the air temperature in the dryer. If your dryer overheats or doesn't heat at all, the thermistor could be the problem.

    Repair difficulty
    Time required
     30 minutes or less
    August 1, 2014
    By Lyle Weischwill
    How to replace a dryer idler pulley

    The idler pulley exerts pressure keeps the drive belt tight so it can rotate the drum. A worn idler pulley squeals or squeaks when the dryer is running. Follow these instructions to replace it.

    Repair difficulty
    Time required
     90 minutes or less
