Frigidaire FGCD2444SA2A dishwasher Parts

Your Frigidaire dishwasher model number is on the serial label inside the door area. On the Frigidaire FGCD2444SA2A style dishwasher, the label is typically on the right side of the inner door frame or tub opening; open the door fully and look along the right edge near the seal. For the exact label location and a diagram, use the owner's manual.

• Open the dishwasher door and inspect the right-side door jamb/tub frame.
• Look for a serial label with an alphanumeric model number (letters and numbers).
• Use a flashlight; the label can be low-contrast or partially hidden by the door gasket.
• Pull out the lower rack if needed to improve visibility along the tub wall.
• Write down both the model number and serial number for parts matching.

We use the model number to match the correct Frigidaire dishwasher parts for your exact configuration (controls, racks, pump system, and door components). Even small model variations can change which parts fit.

• Check for a second label on the tub wall near the door seal.
• Clean the label gently with a damp cloth to remove film or detergent residue.
• If you already have the correct model, you can shop by model and common repairs (for example, a no-drain issue may point to the drain pump a A00126401).

Last updated: February 2026

Poor cleaning performance is the most common issue we see with Frigidaire dishwashers like model FGCD2444SA2A. In most cases, it comes down to loading (items blocking spray), detergent and water hardness, or water supply conditions such as low pressure or water that is not hot enough; our owner's manual covers these checks.

• Use fresh, household automatic dishwasher detergent (not industrial grade).
• Confirm the rinse aid dispenser is filled.
• Avoid nesting; make sure spray can reach all surfaces.
• Verify nothing is blocking the spray arms from rotating.
• Make sure the cycle selected is long enough for heavy soils.
• Confirm home water pressure is in the 20 to 120 psi range.
• Confirm incoming water temperature is about 120°F (49°C).

If you have good water temperature and pressure, you are loading correctly, and cleaning is still weak, a worn wash component is a common next step to inspect.

• If the spray pattern looks uneven or the arm will not spin freely, consider the dishwasher spray arm 5304507158.

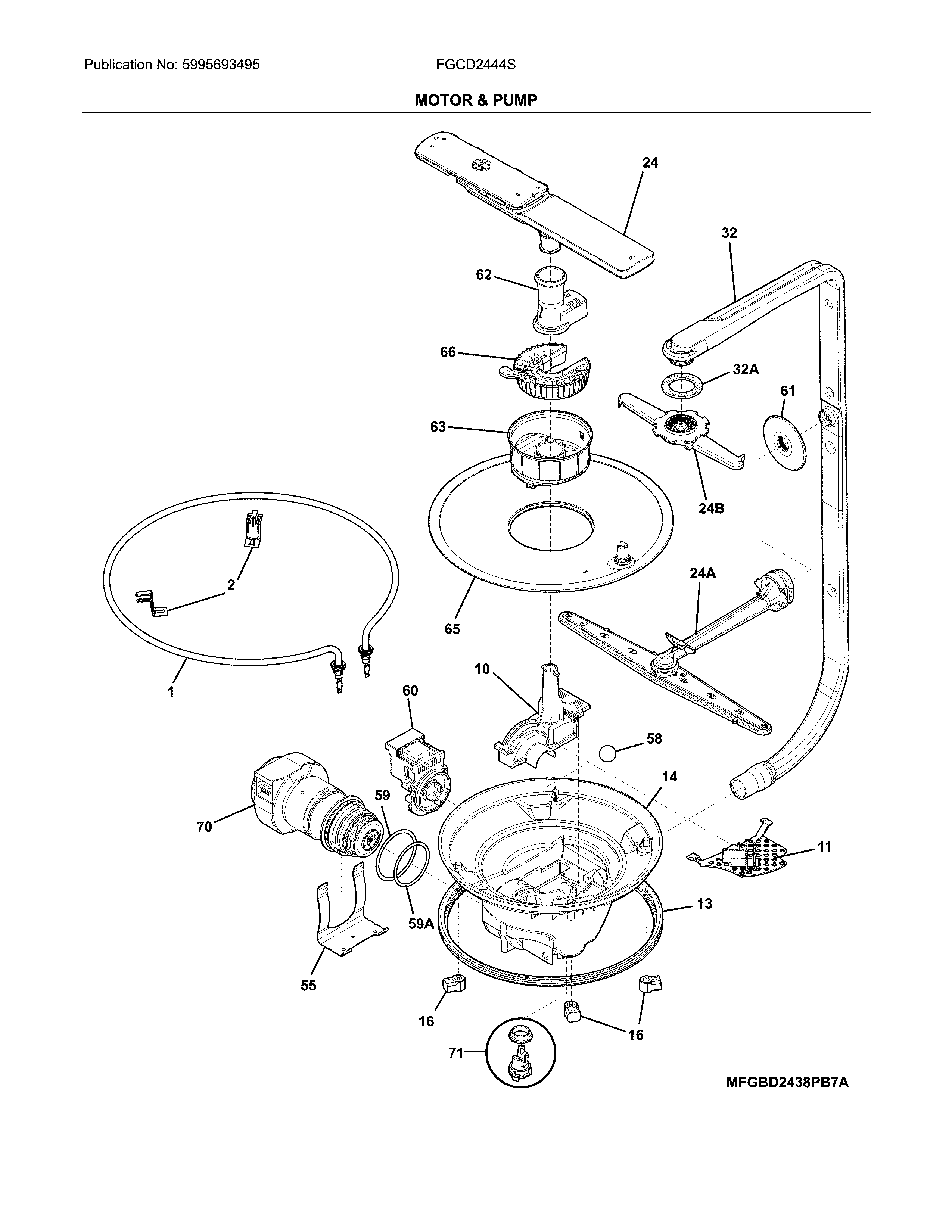

• If wash pressure seems low or the unit sounds like it is running but not circulating well, the dishwasher pump and motor assembly 154844301 is a key suspect.
• If you see heavy debris returning to dishes, a restricted filter can contribute; check the dishwasher filter 154283005.

Cleaning issues are usually a chain reaction: low water heat or pressure reduces detergent performance, and blocked spray or a restricted filter reduces circulation. Fixing the basics first prevents unnecessary part replacement and restores normal wash results.

Last updated: February 2026

If your Frigidaire FGCD2444SA2A dishwasher is not air drying, the most common cause is that AIR DRY is selected; that setting turns the heater off during the drying phase, so dishes often stay damp. Switching to HEAT DRY and using rinse aid typically restores normal drying performance (see the FGCD2444SA2A owner's manual).

• Confirm HEAT DRY is selected (AIR DRY disables the heater during drying).
• Make sure incoming hot water is at least 120°F (49°C) before starting a cycle.
• Use rinse aid and verify the dispenser is not empty.
• Avoid overloading; keep items from nesting so air and heat can circulate.
• Open the door slightly after the cycle ends for a few minutes to vent steam.

Drying depends on hot final rinse water and a working heater. If the dishwasher washes fine but consistently leaves water on dishes, these parts are common suspects:

When AIR DRY is used, the heater is deactivated during drying, which lowers energy use but increases the likelihood that dishware will not dry completely. Also, starting with water below 120°F can reduce overall wash temperature and drying results.

• Use Normal or Heavy with HEAT DRY.
• If available for the load, add HI-TEMP WASH to boost main-wash temperature (helps cleaning and drying).
• For plastics, expect some moisture; plastics hold heat poorly compared to glass and ceramic.

Last updated: February 2026

To clear most error conditions on your Frigidaire FGCD2444SA2A dishwasher, cancel the current cycle first. Press the CANCEL pad; the dishwasher runs a 90-second drain, then you can select a new cycle. For model-specific button behavior, use the FGCD2444SA2A owner's manual.

• Press CANCEL once to stop the cycle.
• Wait for the 90-second drain to finish.
• Select your desired cycle.
• Press START/PAUSE to run the new cycle.
• If DELAY START was set, press CANCEL to cancel the delay and start normally.

Many “error code” situations are caused by a real condition (not just a glitch). Check the most common causes below before repeating resets:

• Drain issue: clean the filter area and confirm the drain hose is not kinked.
• Standing water: verify the sink/disposer connection is clear.
• Overfill/leak protection: make sure the tub is not over-sudsing (use dishwasher detergent only).
• Water supply: confirm the shutoff valve is fully open.

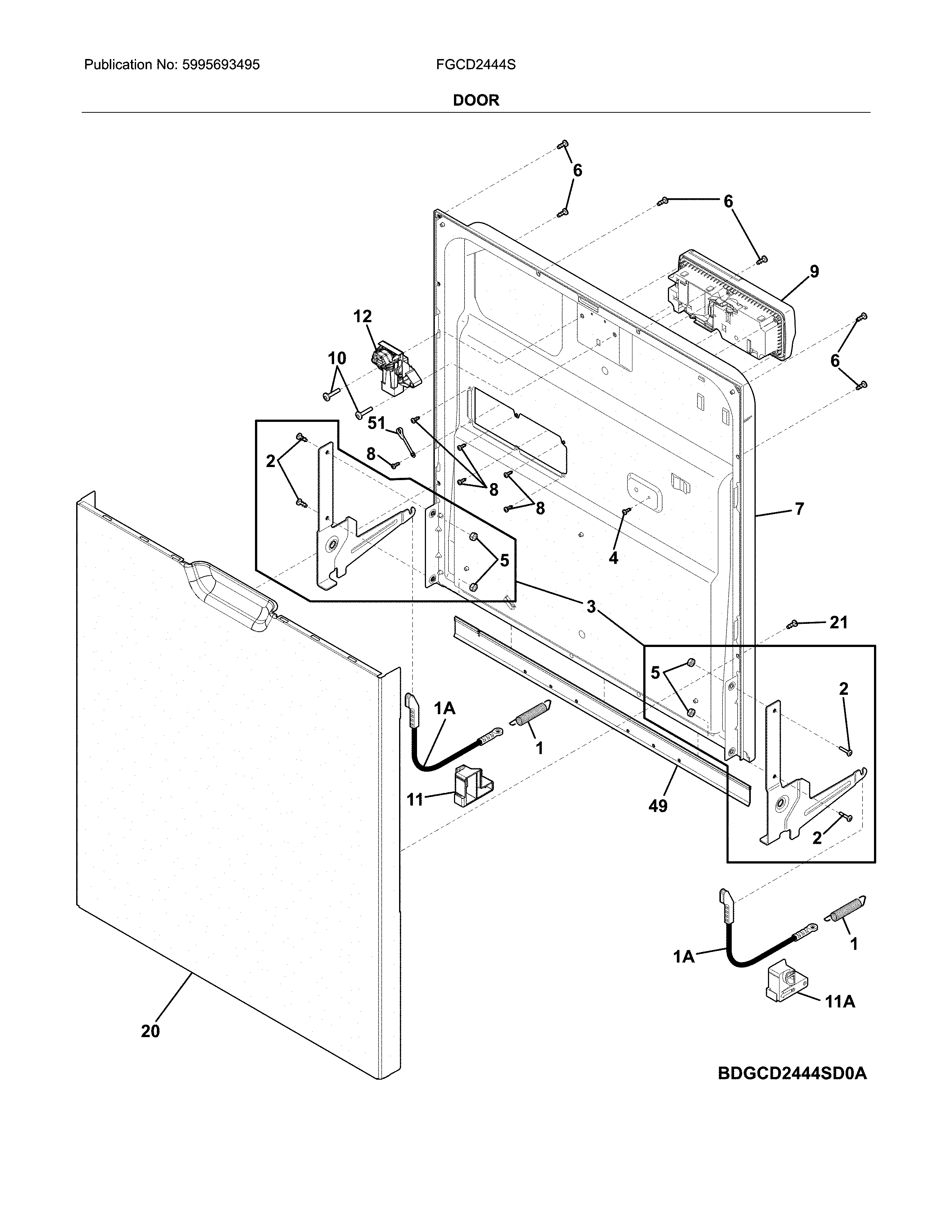

• Door not latched: close the door firmly; if it will not latch, inspect the dishwasher door latch 5304525218.

Canceling correctly protects the pump and helps prevent dirty water from sitting in the sump. If the dishwasher cannot drain or cannot latch, the control can keep reporting the same fault until the underlying problem is corrected.

Last updated: February 2026
