How to get a Frigidaire professional dishwasher to drain?
To get your Frigidaire FPHD2485NF1A dishwasher to drain, make sure the cycle is actually finished (not paused), then check the drain path for restrictions: the drain hose must be routed with a high loop, have no kinks, and be properly connected to the sink drain, disposer, or trap per the installation guide.
- Cancel or end the cycle and wait a few minutes for the drain portion to run.
- Verify the drain hose is not pinched behind the dishwasher and has no sharp bends.
- Confirm the drain hose high loop is at least 32 inches above the floor.
- Make sure the dishwasher is not resting on the drain hose (it should move freely).
- If connected to a garbage disposer, remove the disposer inlet knock-out plug.
- Check the tub filter area for debris and reinstall the filter/glass trap correctly.
Your FPHD2485NF1A drain setup needs the right routing to prevent slow drain or backflow.
| Item to verify | What “correct” looks like | What happens if it’s wrong |
|---|---|---|
| High loop height | Drain hose loop is 32 in. minimum above floor | Water can siphon back; poor draining |
| Hose condition | No kinks, no sharp bends | Restricted flow; standing water |
| Connection point | Do not connect to the horizontal pipe between sink drain and disposer | Backflow; slow drain |
| Disposer hookup | Knock-out plug removed before attaching hose | Dishwasher cannot drain |
If the hose routing and filter area are clear but the unit still will not drain, these model-matched parts are common suspects:
- Pump A00126401 (drain or circulation issues depending on symptom)
- Dishwasher water inlet valve 154637401 (if the complaint is actually “won’t fill,” not drain)
- Dishwasher float switch 154773201 (can stop filling and change how the cycle behaves)
A dishwasher drains by pushing water through the drain hose to your plumbing connection. Any kink, low loop, incorrect connection point, or disposer plug left in place can block flow and leave water standing in the tub.
Last updated: February 2026
What is the most common problem with Frigidaire dishwashers?
The most common issue we see with Frigidaire dishwashers (including model FPHD2485NF1A) is poor cleaning, usually caused by restricted water flow from a dirty filter, clogged spray arm holes, or loading that blocks spray. Leaks and draining problems are also frequent and often trace back to seals, hoses, or a blocked drain path.
- Dishes still dirty or gritty: filter needs cleaning, spray arm ports clogged, or items blocking rotation
- Cloudy glassware: hard water, too much detergent, or low water temperature
- Water left in the tub: drain hose kink, blocked filter area, or drain path restriction
- Leaks at the front/bottom of the door: worn door seal or splash shield area
- Won’t start or stops mid-cycle: door not latching fully, control issue, or power supply problem
- Confirm the door closes and latches firmly.
- Clean the filter area and remove debris from the sump.
- Spin the spray arms by hand; they should rotate freely.
- Check for kinked drain or water hoses; kinks can cause fill and drain problems.
- If recently installed or moved, verify the unit is level and securely fastened.
For installation-related drain issues, the installation instructions call out avoiding sharp bends/kinks and using a proper high loop (at least 32 inches from the floor) to help ensure proper drainage; see the installation guide.
If cleaning and hose checks do not solve it, these model-matched parts are common next steps:
| Problem | Likely part | What it affects |
|---|---|---|
| Leaking at door | Door gasket 809006501 | Seals the door opening to prevent water escaping |
| Not starting, door pops open | Dishwasher door latch 5304525218 | Confirms door is closed so the cycle can run |
| Poor cleaning | Dishwasher spray arm 5304507158 | Restores proper spray pattern and rotation |
| Not drying well | Frigidaire dishwasher heating element 154825001 | Heats water and supports drying performance |
| Not filling or fills slowly | Dishwasher water inlet valve 154637401 | Controls water entering the dishwasher |
Poor cleaning, leaks, and drain problems often share the same root cause: restricted water movement. Keeping the filter path clear, preventing hose kinks, and maintaining door sealing surfaces helps your dishwasher wash, drain, and dry the way it was designed to.
Last updated: February 2026
How to hard reset a Frigidaire dishwasher?
To hard reset your Frigidaire FPHD2485NF1A dishwasher, we recommend a full power cycle: turn the dishwasher off at the circuit breaker (or unplug it) for 5 to 10 minutes, then restore power and cancel the current cycle to clear a stuck control or minor glitch.
- Turn the dishwasher OFF.
- Switch the circuit breaker OFF (or unplug the dishwasher).
- Wait 5 to 10 minutes.
- Restore power.
- Press Cancel/Drain (or Start/Cancel, depending on your console labeling) to clear the current cycle.
- Start a new cycle and confirm the dishwasher fills, washes, and drains normally.
These checks address the most common reasons a dishwasher appears “stuck” even after a reset.
- Make sure the door is closing and latching firmly; a weak latch can prevent the control from starting. Consider the dishwasher door latch 5304525218 if the door will not latch consistently.
- If the dishwasher is overfilling or acting like it is in flood protection, check the float movement and switch operation; the dishwasher float switch 154773201 is the key safety input.
- If the unit is not filling after the reset, confirm the water supply valve is on and the inlet valve is working; the dishwasher water inlet valve 154637401 controls fill.
- If the dishwasher powers up but behaves erratically, a failed control can be the cause; the board 5304514670 is the main control used on this model.
| What you see | What the reset usually helps | What to check next |
|---|---|---|
| Buttons unresponsive | Clears a temporary control lockup | Door latch, control board |
| Cycle won’t start | Clears a stuck cycle state | Door latch, float switch |
| Stops mid-cycle | Clears a glitch after a power event | Fill, drain, heating issues |
A power-cycle reset clears the control’s temporary memory and can restore normal operation after a brief power interruption, a stuck cycle, or a keypad glitch. If the same symptom returns, a door-latch, fill-safety, or control issue is usually the real cause.
For model-specific button sequences and cycle-cancel behavior, follow the FPHD2485NF1A owner's manual.
Last updated: February 2026
What is the CD error on a Frigidaire dishwasher?

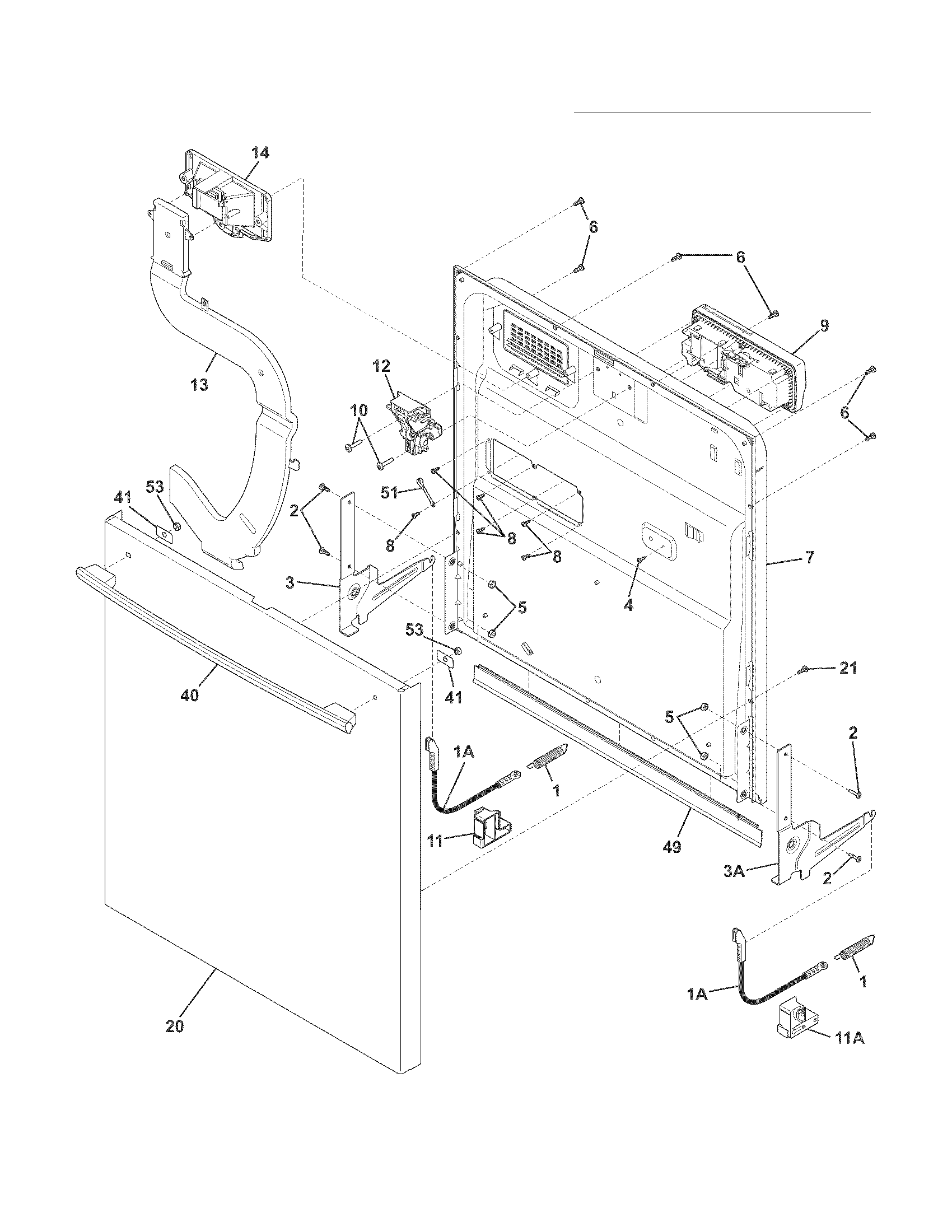

On the Frigidaire FPHD2485NF1A dishwasher, a CD (or CL/Cd) error means the door is not fully closed and latched. Open the door, clear any obstruction, then close it firmly until it latches; the code should clear once the latch engages.
- Press the door closed at the top and center until you feel the latch catch.
- Make sure racks are fully pushed in and not bumping the door.
- Check for dishes or utensils sticking out and hitting the inner door.
- Inspect the door seal area for debris that prevents a full close.
- Power-cycle the dishwasher (turn off for 1 minute, then back on) after the door is latched.
If the door closes but the code returns, these parts are the most common causes on this model:
- Worn or misaligned latch: dishwasher door latch 5304525218
- Door not sealing or sitting correctly: door gasket 809006501
- Door balance issues that keep it from staying shut (spring/cable): door springs and cables (check the parts list for your exact configuration)
| What you notice | Most likely cause | What to do |
|---|---|---|
| Door won’t “click” shut | Latch not catching | Inspect/replace latch assembly |
| Door closes but pops back open | Weak spring or binding hinge | Check spring tension and hinge movement |
| Door feels closed but code stays | Latch switch not registering | Replace latch assembly |
| Door rubs cabinet/countertop | Installation alignment issue | Re-level and re-secure dishwasher |
The dishwasher will not run if it cannot confirm the door is safely closed. Fixing the latch or alignment prevents no-start problems and helps avoid leaks around the door.
During installation, the dishwasher should be level, securely fastened, and the door should open and close without hitting surrounding cabinets or the countertop. For the correct checks and adjustments, use the installation guide.
Last updated: February 2026
