Model #PLES389DCC Official Frigidaire electric range
Here are the diagrams and repair parts for Frigidaire PLES389DCC electric range, as well as links to manuals and error code tables, if available.
There are a couple of ways to find the part or diagram you need:

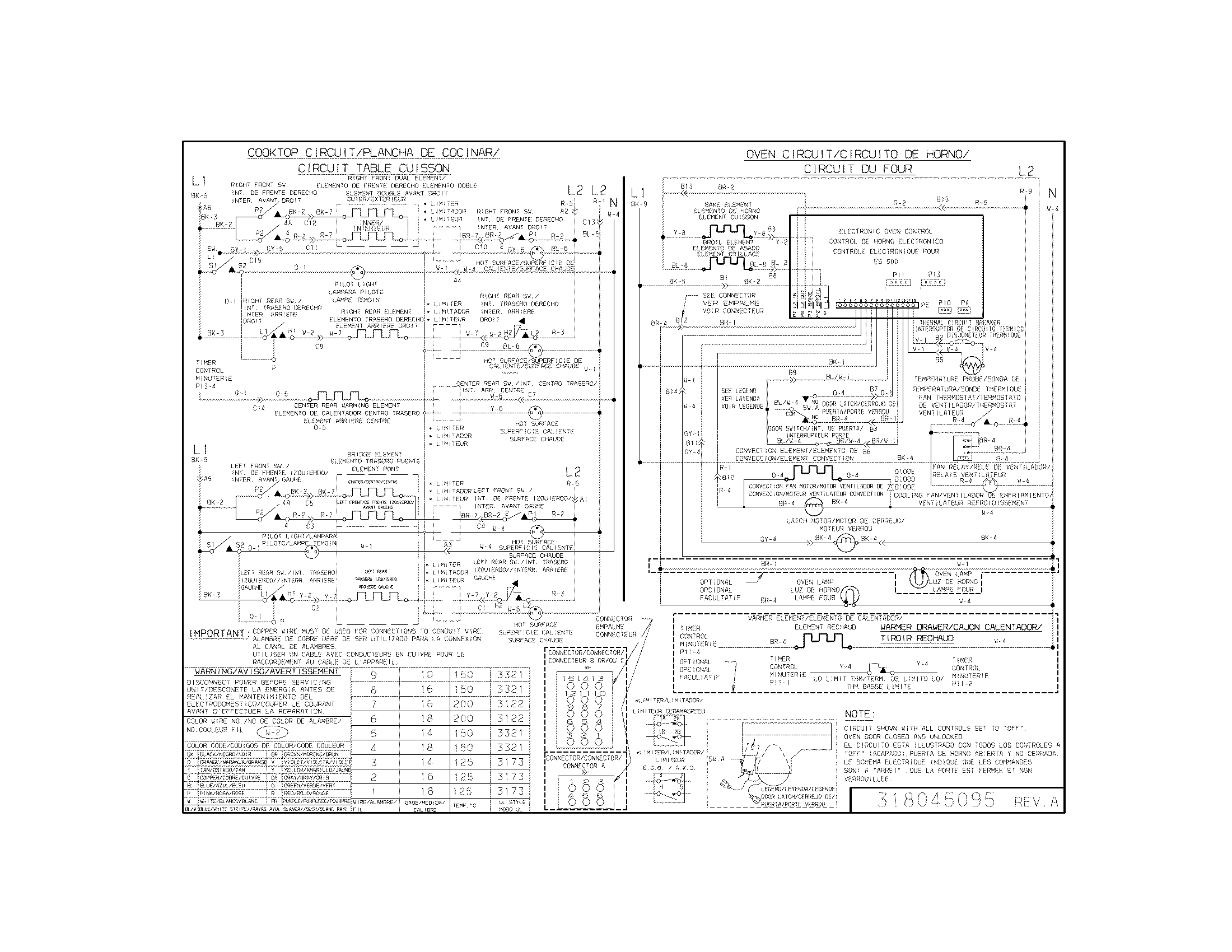

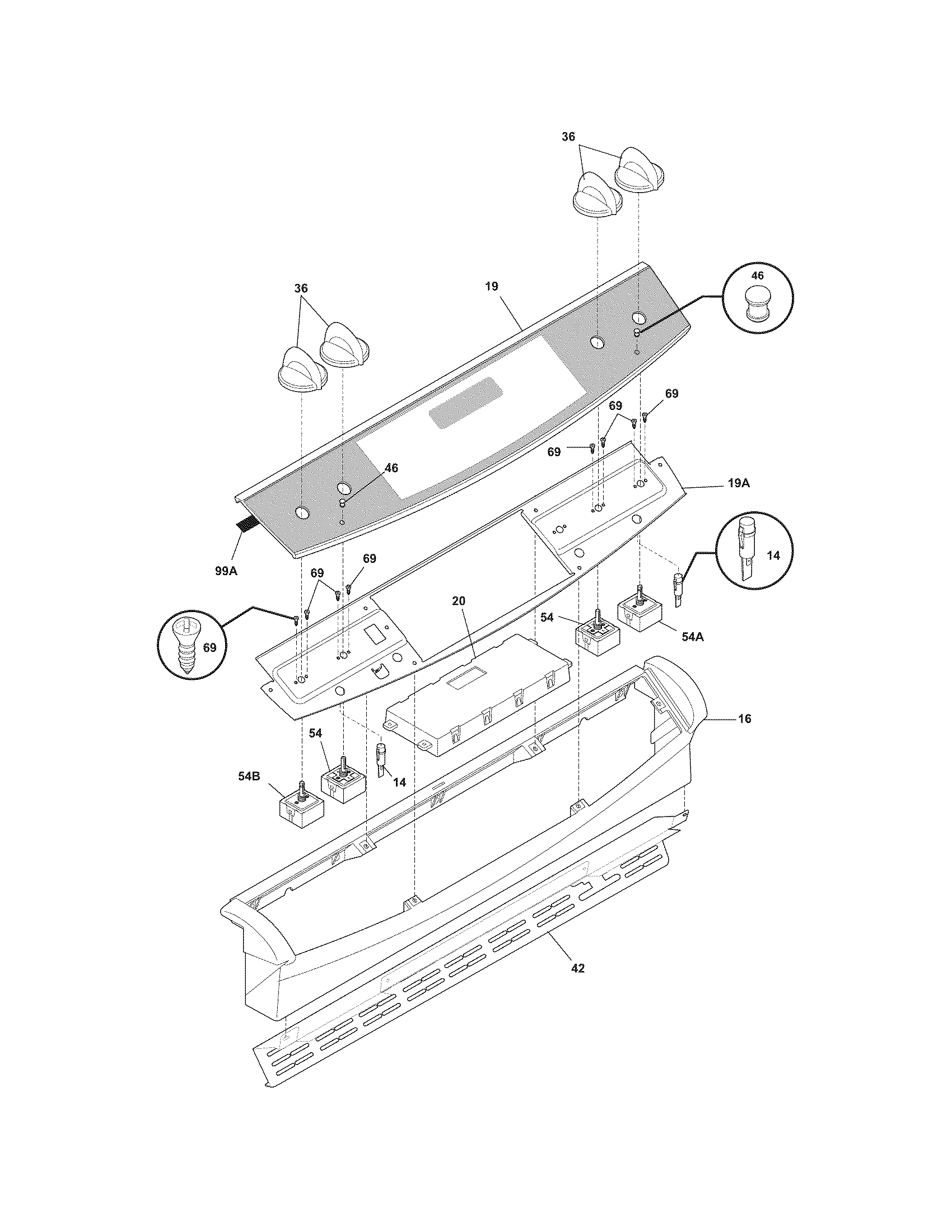

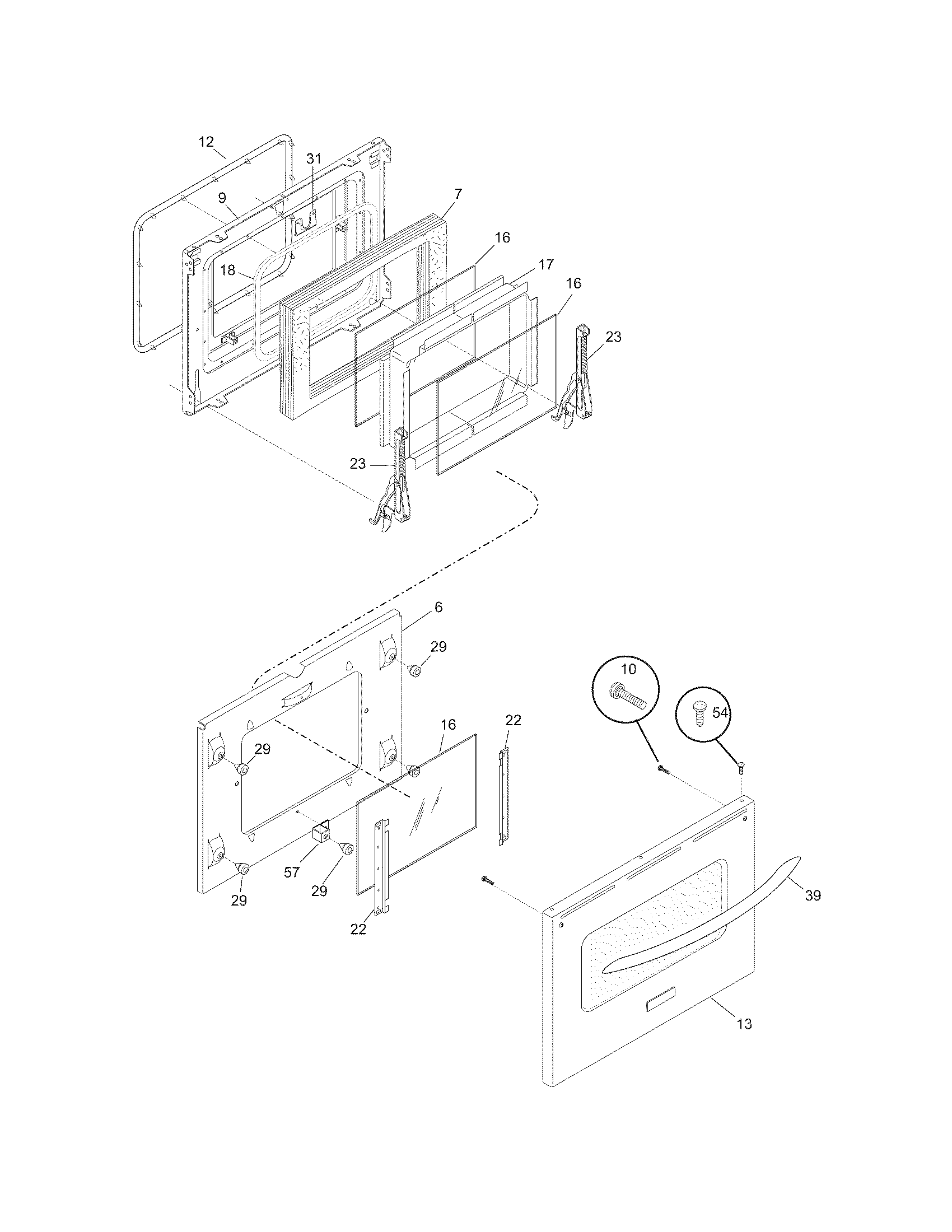

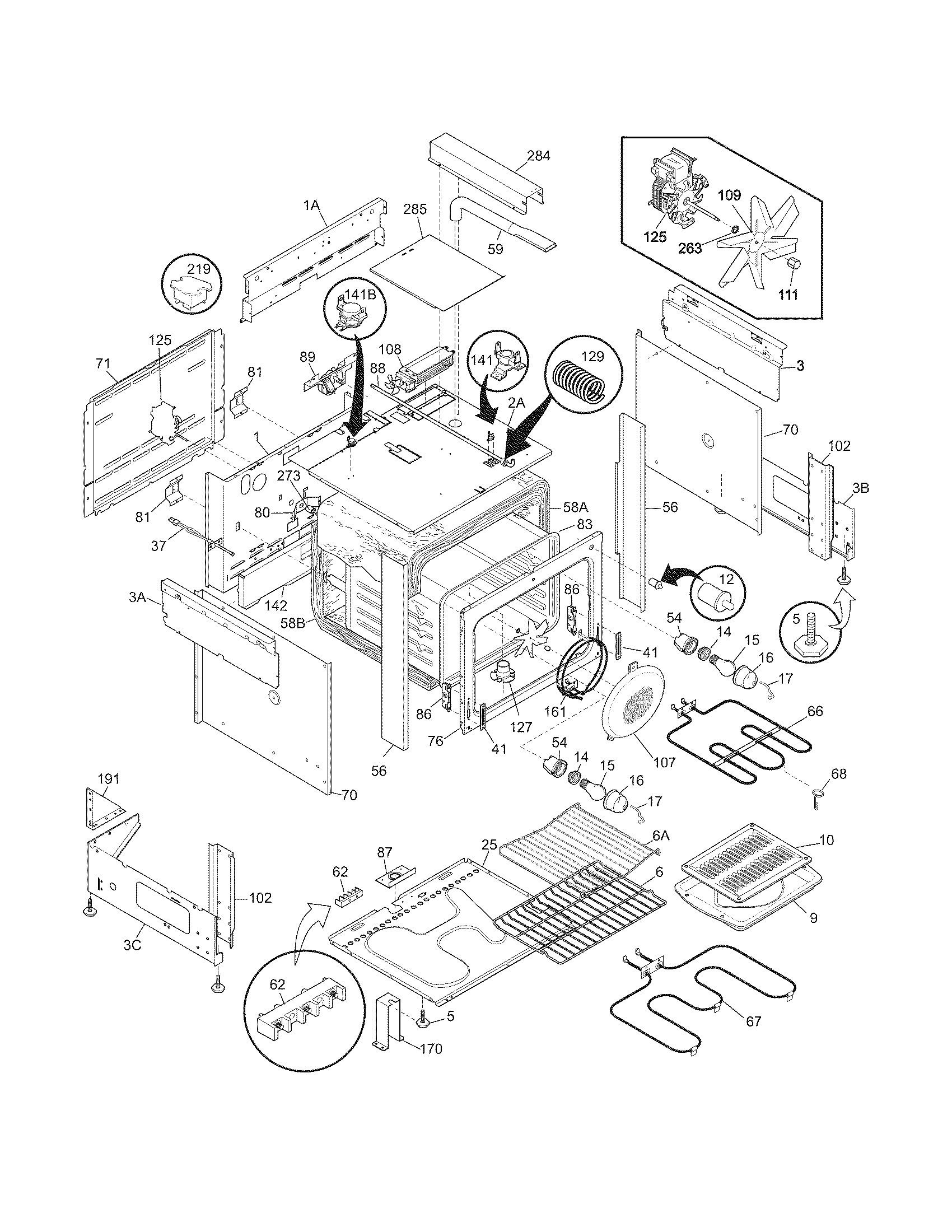

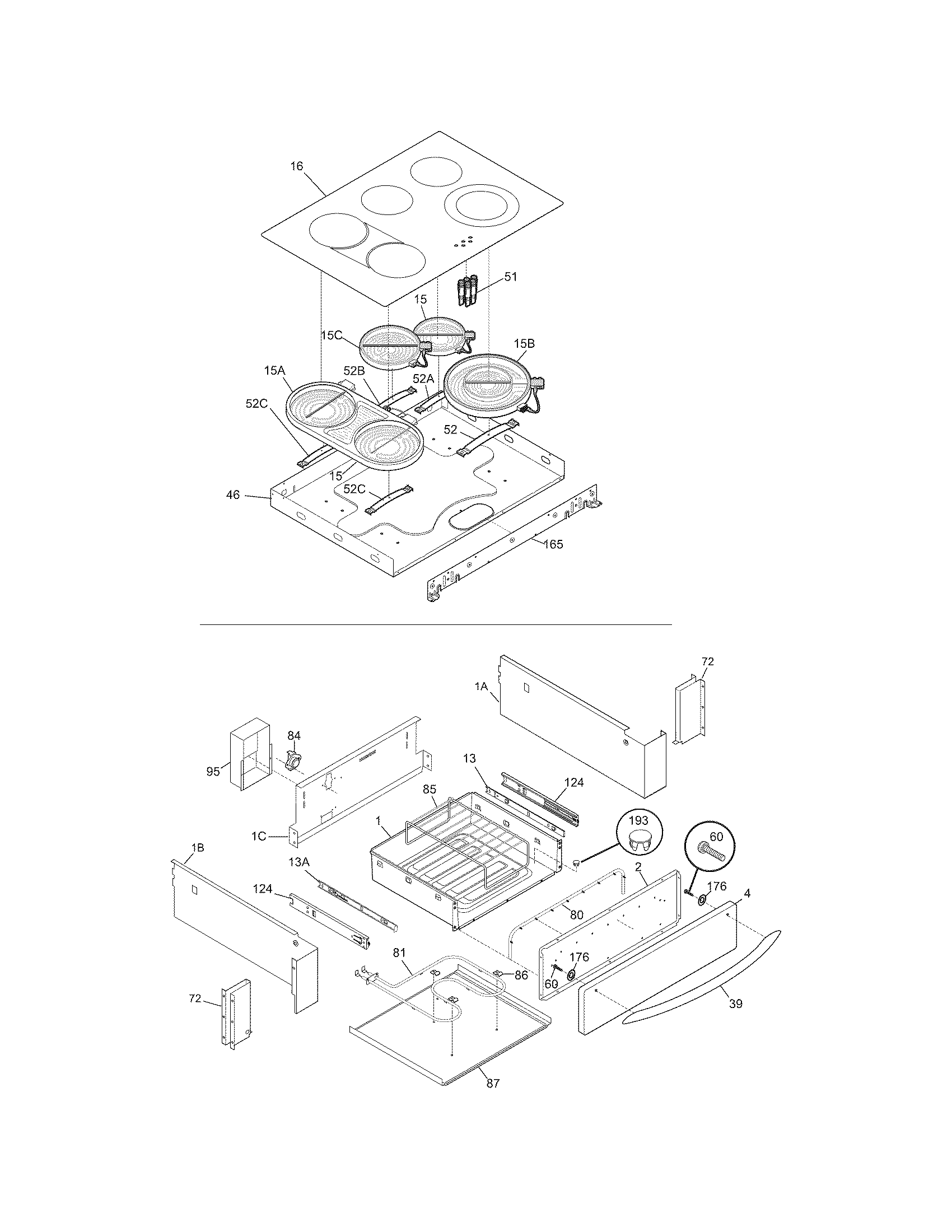

- Click a diagram to see the parts shown on that diagram.
- In the search box below, enter all or part of the part number or the part’s name.
Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.
We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.
For DIY troubleshooting advice and repair guides, visit our repair help section.
Showing 10 of 137 parts
Range oven light bulb
Range dual radiant surface element
Range broil element
Terminal block
Range dual element infinite switch
Symptoms common to all ranges
Repair guides common to all ranges
The oven door switch detects whether the oven door is closed and helps control the oven light. Replace the switch if it doesn’t control the oven light properly.
Oven door not locking? You can replace the lock assembly in less than 30 minutes. Here's how.
Articles and videos common to all ranges
Learn how the self-clean cycle works in an oven.
Learn how to troubleshoot a coil surface element on your stove that won't heat.
Troubleshoot the door lock system to find and fix the problem.
