CONFIRM THE PART FITS
Part Information

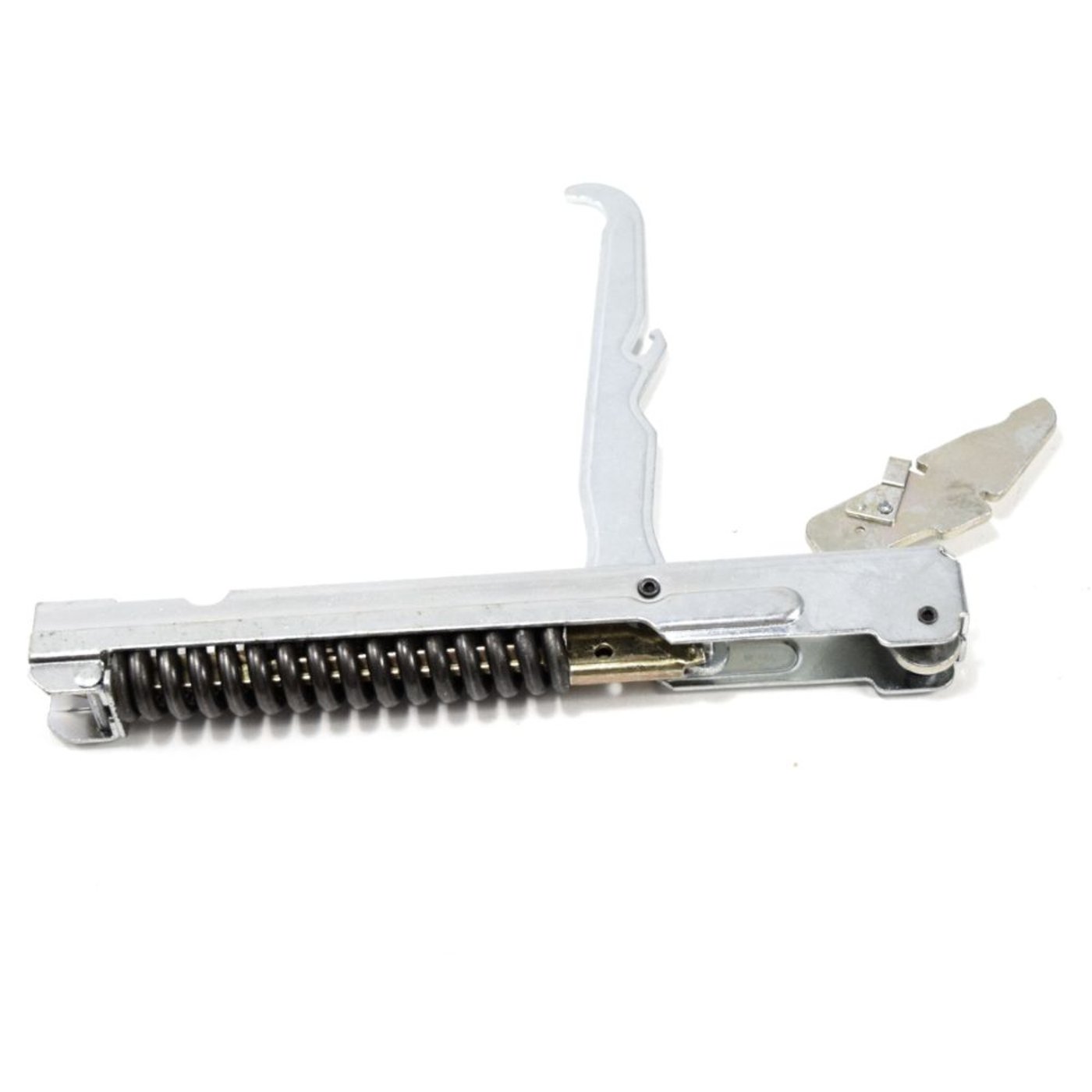

This door hinge (part number 545472) is for wall ovens.
Door hinge 545472 attaches at the side of the door. The hinges on an oven door control the rate at which the door opens and allow the door to stay open at an angle.
Wear work gloves to protect your hands when installing this part.
Top models using the same part
Model Name | Model Number | Diagram Name |
---|---|---|
Model #OD301V2-87980 Fisher & Paykel electric wall oven | OD301V2-87980 | Door outer assembly |
Model #OD301MV2-87930 Fisher & Paykel electric wall oven | OD301MV2-87930 | Door outer assembly |
Model #OS301V2-88424 Fisher & Paykel electric wall oven | OS301V2-88424 | Door outer assembly |
Model #OD301MV2-88419 Fisher & Paykel electric wall oven | OD301MV2-88419 | Door outer assembly |
Model #OD301MV1-87893 Fisher & Paykel electric wall oven | OD301MV1-87893 | Door outer assembly |
Model #OS301V2 Fisher & Paykel electric wall oven | OS301V2 | Door outer assembly |
Model #OS301V1-88416 Fisher & Paykel electric wall oven | OS301V1-88416 | Door outer assembly |
Model #OD301MV1-87818 Fisher & Paykel electric wall oven | OD301MV1-87818 | Door outer assembly |
Model #OD301V2-88423 Fisher & Paykel electric wall oven | OD301V2-88423 | Door outer assembly |
Model #OS301MV1-87819 Fisher & Paykel electric wall oven | OS301MV1-87819 | Door outer assembly |
Reviews
Easy to install
I ordered two of these, and unfortunately, the primary hole that is used to attach this to the oven door is different between the two hinges sent. Both have the exact same part numbers on the bags, but somehow are different hole sizes and one with a 'dimple' inset and bigger hole. So first lesson is to ensure that the hinge has the same hole / mounting on its base. Clearly there are two versions that are not evident in the part number. Taking the door off, with the old hinges and replacing the door and how to replace the hinge is best shown for this type of hinge on this video providing by someone else. https://vimeo.com/11325760 Taking the oven door apart was easy, and cleaning the interior glass too. the hinge fits where the old one was and comes off with on screw that was in a self tapping hole, and then two at the very end of the hinge in the edge of the door. Only need a philips screw driver and cleaning materials for the glass.
ronams, California
Did you find this review helpful?
- Ease of Installation
- Easy
- Duration of Installation
- 30 minutes - 1 hour
