What kind of engine does a Craftsman riding lawn mower have?
For Craftsman lawn tractor model 917287230, the operator’s manual identifies it as a 21.0 HP riding lawn tractor with a low-emission internal combustion engine (gas). The manual does not specify the engine brand or exact engine model; that detail varies by production run and is typically confirmed from the engine ID label.
How to identify the exact engine on model 917287230
Use the engine’s identification label (usually on the blower housing, valve cover, or near the starter) to confirm the manufacturer and model/type code.
- Park on a level surface, set the parking brake, and remove the key
- Let the engine cool completely before reaching near the muffler
- Lift the hood and look for a sticker or stamped tag on the engine
- Record the model, type, and code (or similar fields)
- Use those numbers to match tune-up parts (spark plug, air filter, fuel filter)
For operating and safety details specific to this tractor, use the 917287230 operator's manual.
What we can confirm from the manual (model-specific)
Based on the documentation for 917287230, these are the key engine-related specs we can state confidently:
| Item | Specification (917287230) |
|---|---|
| Engine type | Gas, low-emission internal combustion |
| Power rating | 21.0 HP (as rated by engine manufacturer) |
| Fuel | Unleaded regular gasoline (minimum 87 octane) |
| Fuel capacity | 2.50 gallons |
| Spark plug type | Champion RC12YC (gap 0.030 in.) |
Why it matters
Knowing the exact engine make and model helps you buy the correct maintenance parts and avoid starting, power, or fuel-system issues caused by mismatched filters, plugs, or carburetor settings.
If you are troubleshooting performance under load (for example, bogging when blades engage), our guide why your mower loses power when the blades are engaged can help you narrow it down.
Last updated: January 2026
How to find Craftsman riding mower serial number?
On the Craftsman riding mower model 917287230, the model and serial number label is typically on the tractor frame under the seat, or on the underside of the seat itself. We recommend confirming the full model and serial before ordering parts or using the 917287230 operator's manual.
Where to look on model 917287230
Check these common label locations first:

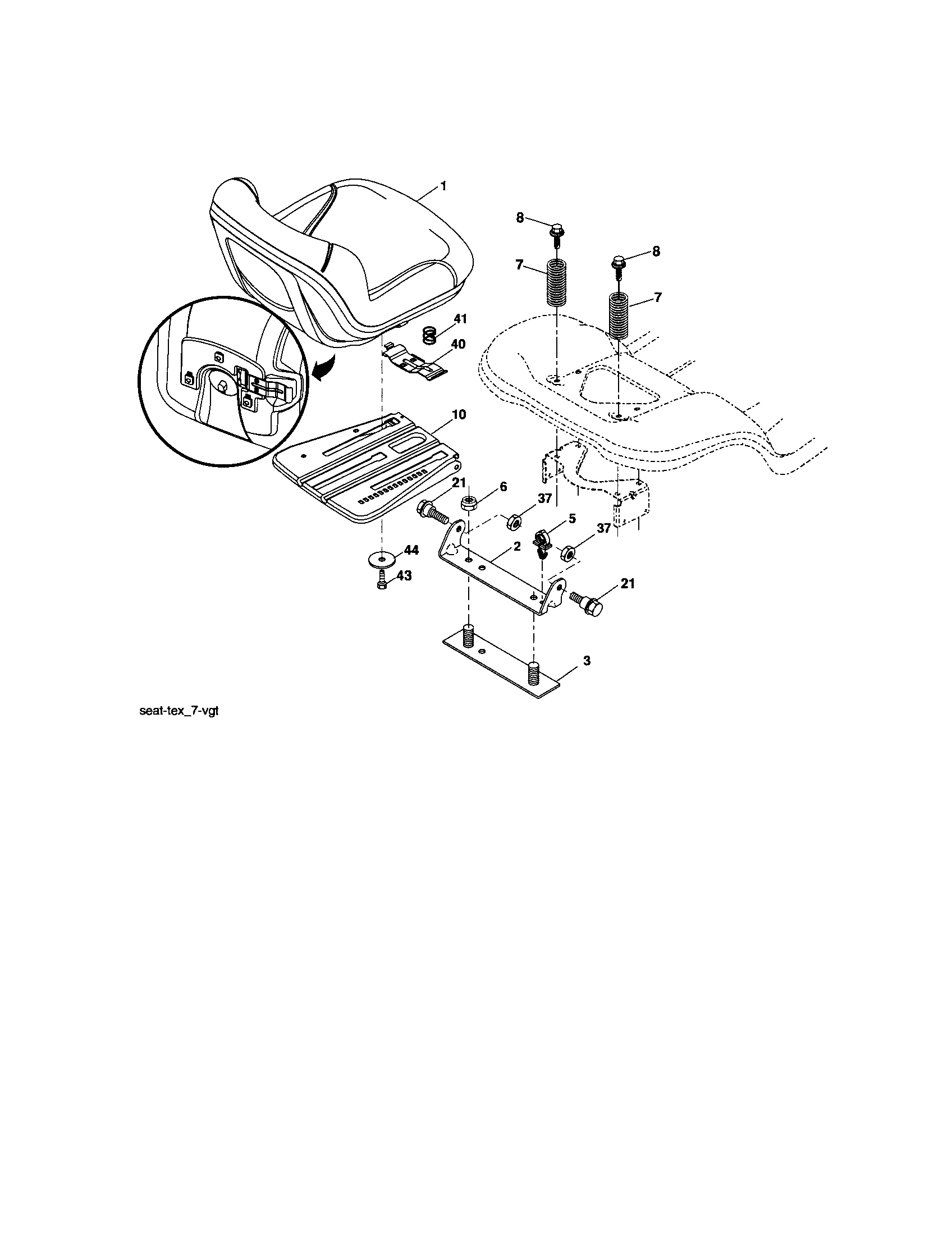

- Lift the seat and look on the frame rails directly under the seat pan
- Flip the seat up and check the underside of the seat (bottom surface)
- Look near the rear fender area where the seat mounts to the chassis
- Wipe off grass and dust; the label can be hard to see when dirty
What the label usually includes
Most Craftsman lawn tractors use a label that lists both identifiers.
| What you need | What it’s used for | Example format |
|---|---|---|
| Model number | Matching diagrams and parts to your exact tractor | 917.287230 |
| Serial number | Identifying production run details | Varies by unit |
Tips if the label is missing or unreadable
If the sticker is damaged, you can often still confirm the correct parts path by using multiple identifiers.
- Check for a stamped or printed number on the frame near the seat bracket

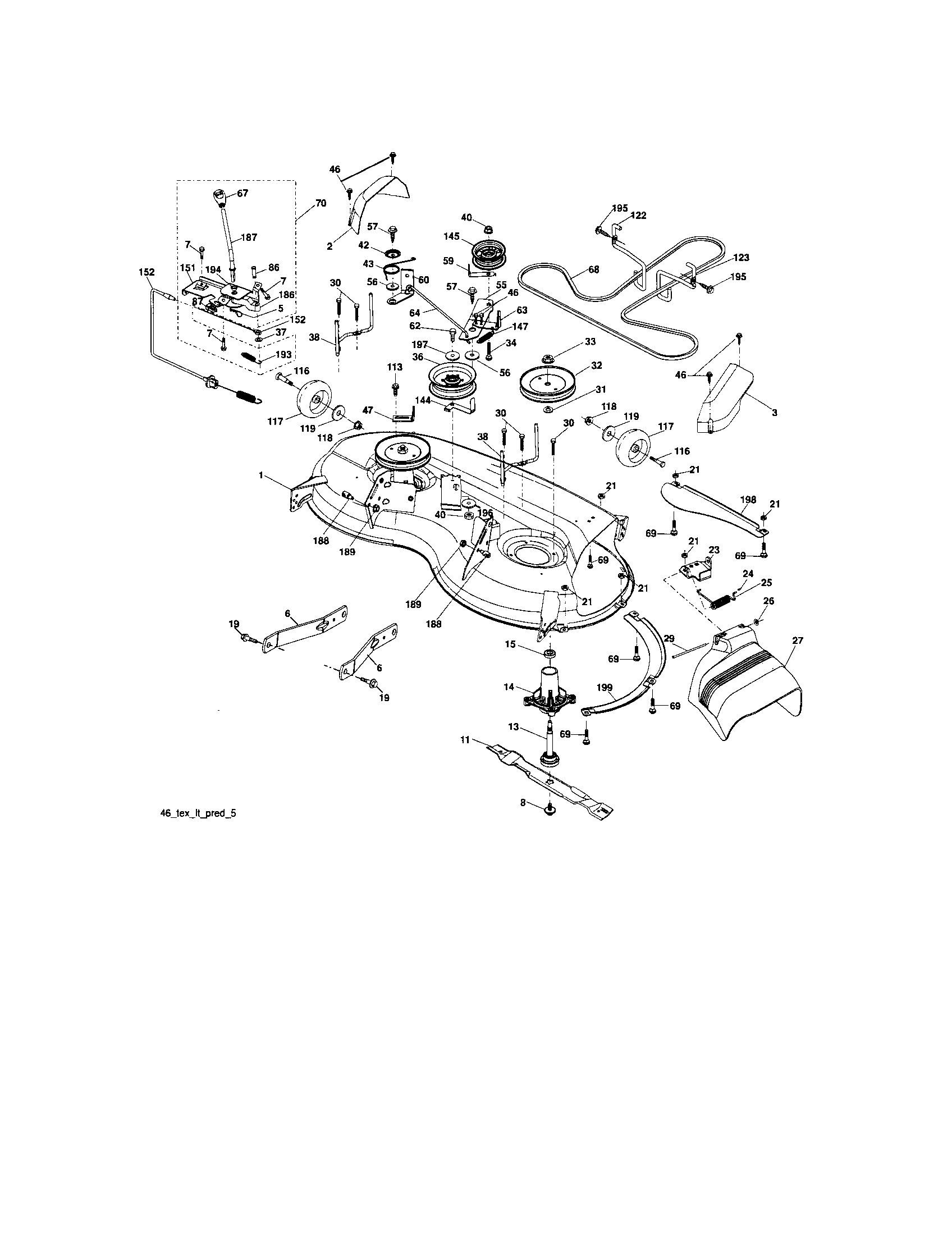

- Compare your mower deck size and configuration to the specifications in the manual
- Use the engine model/type code (on the engine shroud) to help narrow tune-up parts
- Avoid ordering by “looks like” alone; small changes can affect belts, blades, and pulleys
Why it matters

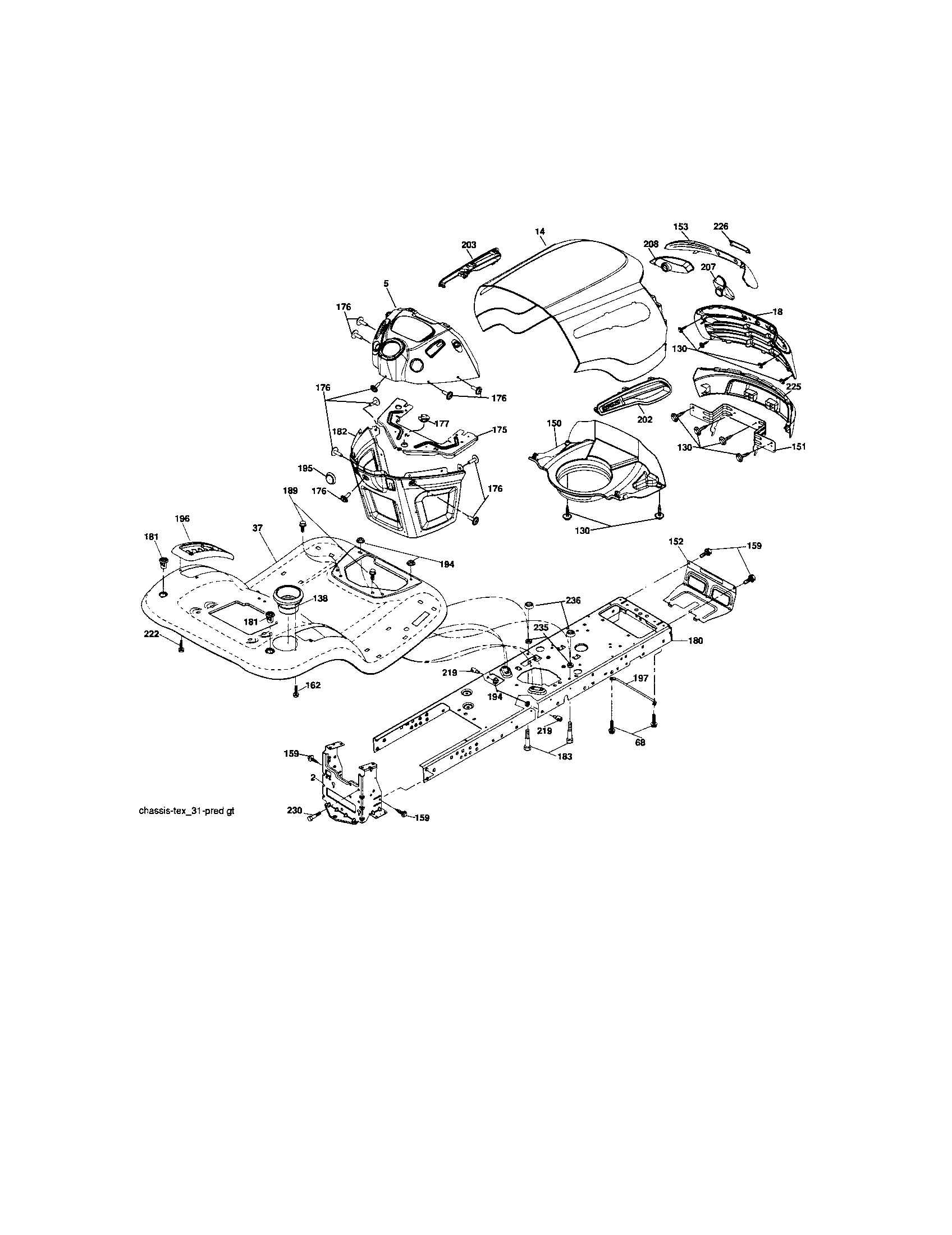

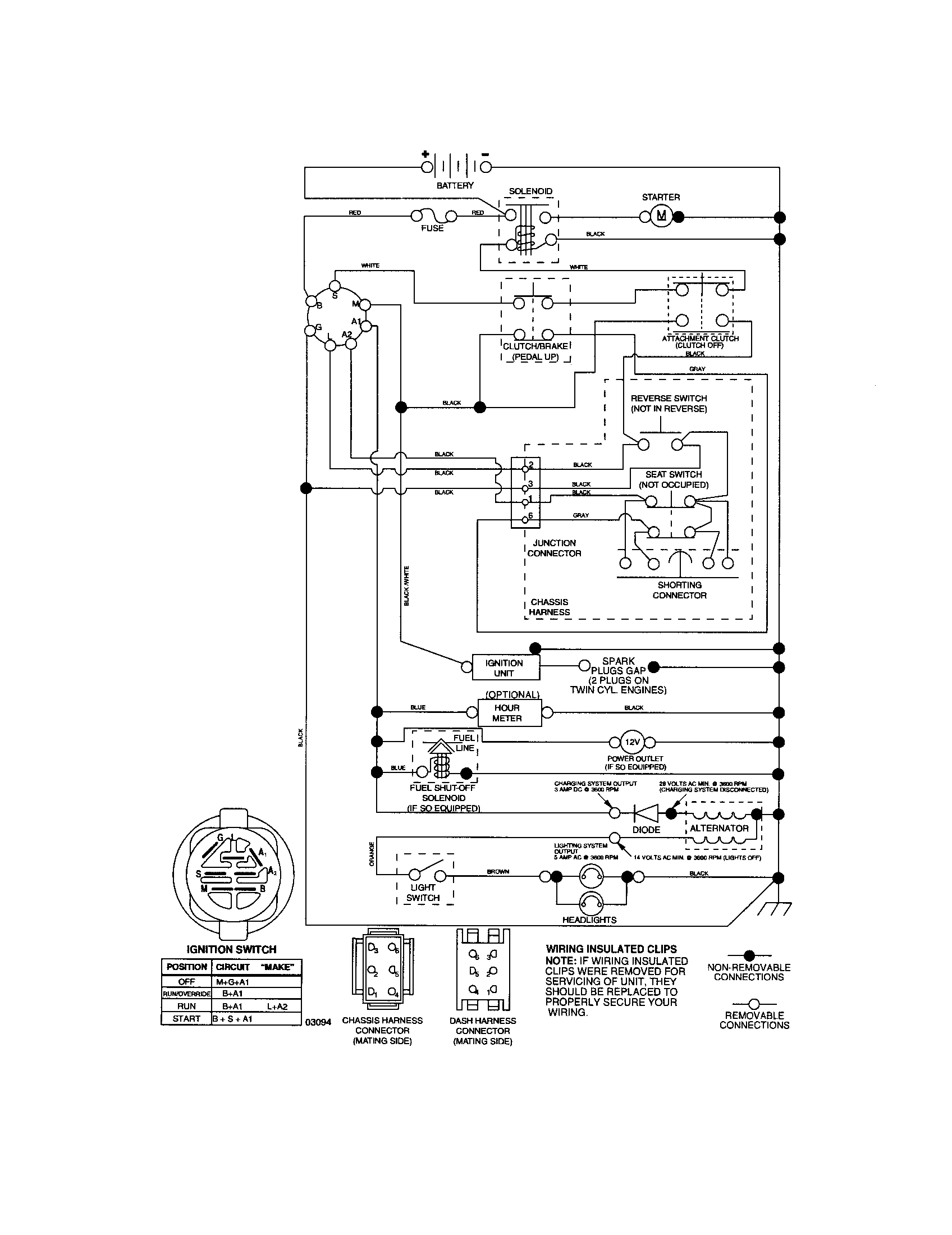

On riding mowers, the same “Craftsman tractor” can be built with different deck setups, belt routing, and safety interlock wiring. Using the correct model and serial helps ensure parts like a blade drive belt or ignition switch match your exact 917287230 configuration.
Last updated: January 2026

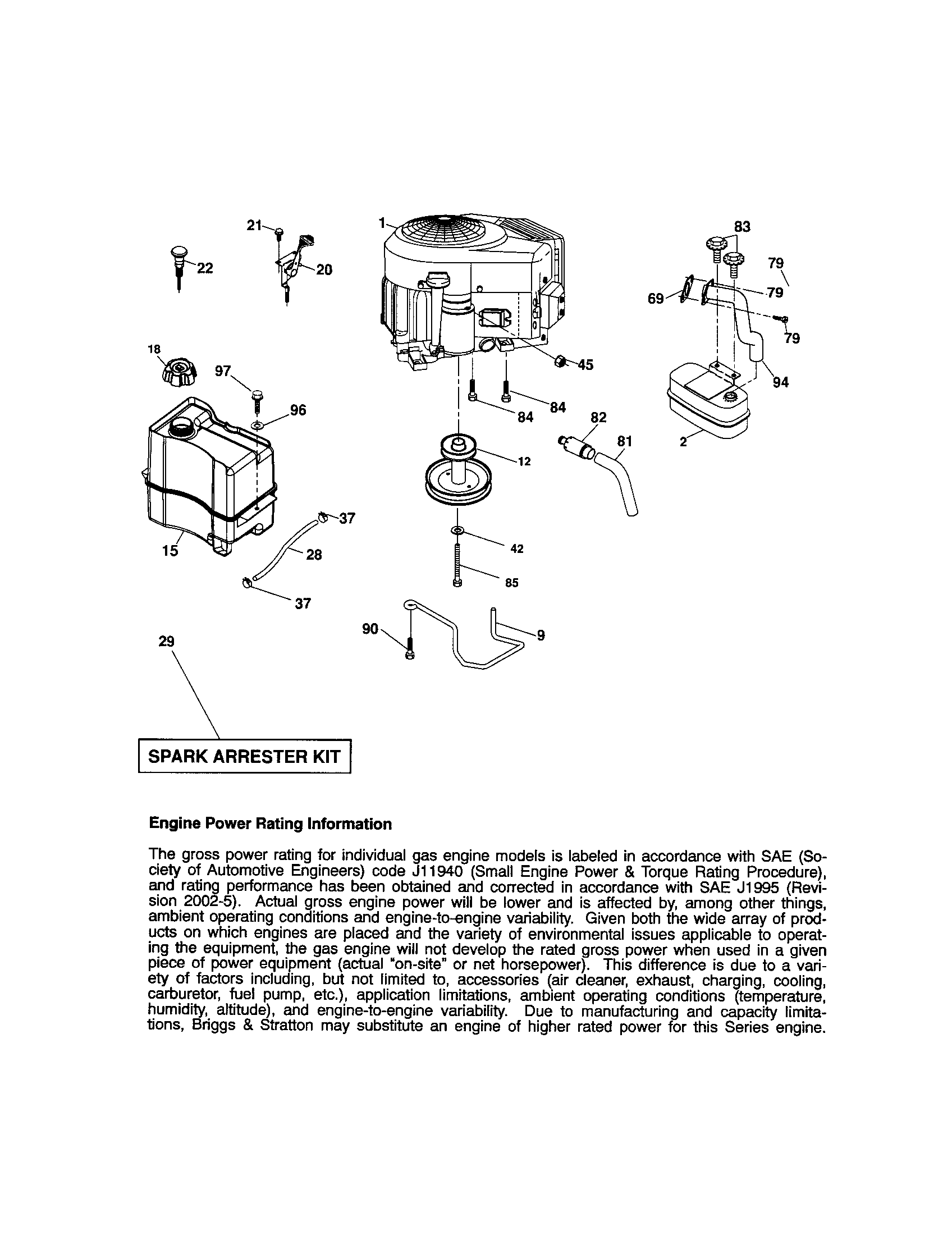

What are the parts of a tractor engine?
On the Craftsman 917287230 front-engine lawn tractor, the engine is made up of core internal parts (that create power) plus supporting systems (fuel, ignition, lubrication, cooling/airflow, and exhaust). For model-specific operating and maintenance details, use the 917287230 operator's manual.
Main tractor engine parts (what they do)
Most lawn tractor engines like the one used on model 917287230 include these major components:
- Cylinder and combustion chamber: where the air-fuel mix burns
- Piston and piston rings: convert combustion pressure into motion and help seal the cylinder
- Connecting rod: links the piston to the crankshaft
- Crankshaft: turns piston motion into rotating power for the drivetrain and mower deck
- Valves and valve train (camshaft, lifters, pushrods, rocker arms): control air intake and exhaust flow
- Gaskets and seals: prevent oil and compression leaks
Supporting systems you will see on a lawn tractor engine
These parts keep the engine starting, running, and protected:
- Fuel system: fuel tank, fuel cap, fuel line, fuel filter, carburetor

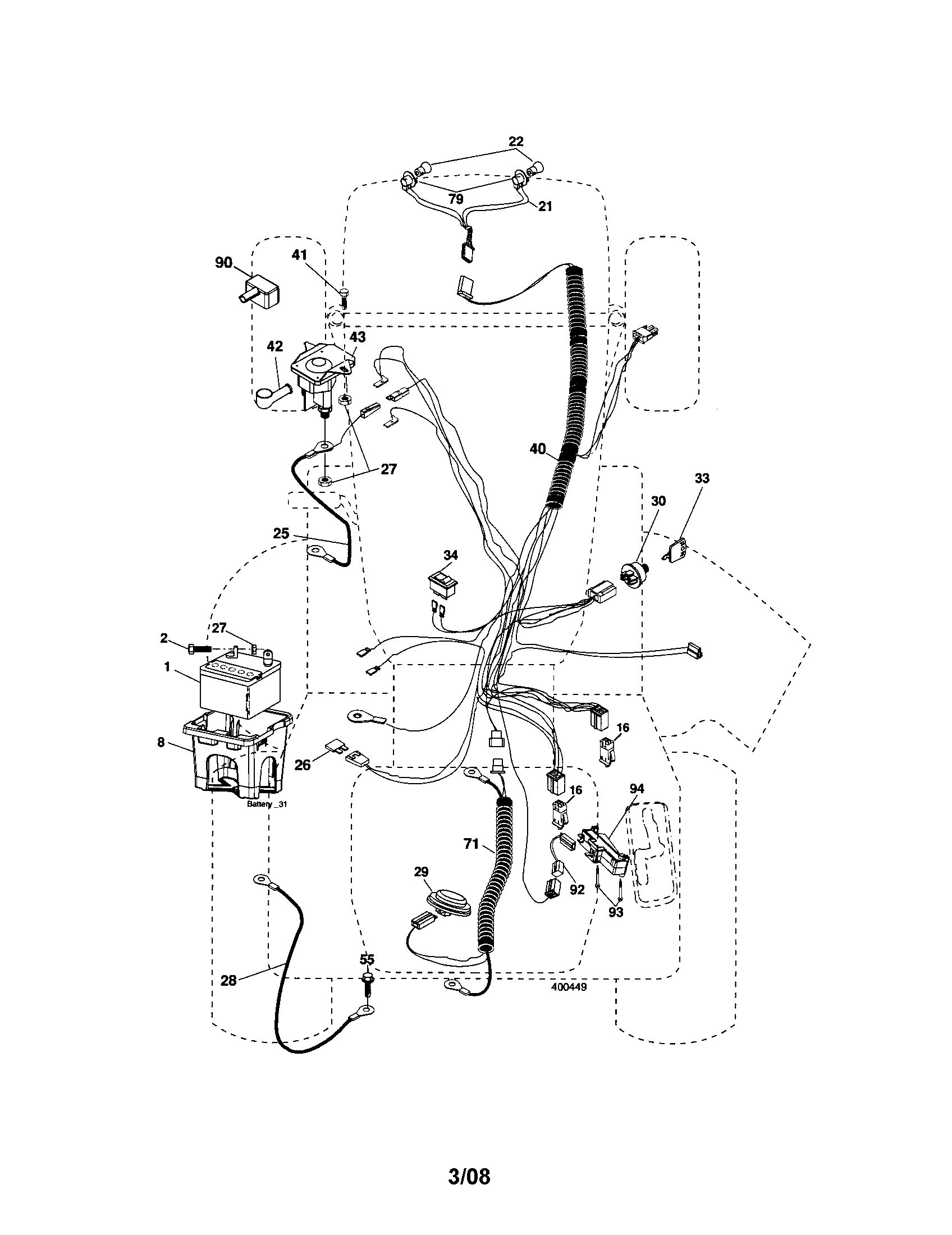

- Ignition system: spark plug, ignition coil, ignition switch, wiring harness
- Lubrication system: crankcase oil, oil drain valve/plug, oil filter (if equipped)
- Air intake and cooling airflow: air filter, air screen, cooling fins/blower housing
- Exhaust system: muffler and exhaust tube
Examples of engine-related parts available for this model
Here are a few engine-adjacent parts we commonly see customers replace on the Craftsman 917287230:
| System | Example part | What it affects |
|---|---|---|
| Fuel | Fuel cap assembly 581075501 | Helps seal the tank and prevent fuel spills/contamination |
| Exhaust | Exhaust tube 581880901 | Routes exhaust; leaks can increase noise and heat near the hood |
| Starting | Starter solenoid (varies by engine setup) | Controls power to the starter motor |
Why it matters
Knowing which “system” a part belongs to helps you troubleshoot faster. For example, hard starting usually points to fuel or ignition, while power loss under load often points to airflow, fuel delivery, or deck drag.
Last updated: January 2026
What brand engine does Craftsman use?
Craftsman uses engines from multiple manufacturers, and the exact engine brand can vary even within the same product type. For the Craftsman lawn tractor model 917287230, the operator documentation confirms it has a low-emission engine, but it does not identify the engine maker by brand name; use the engine’s ID label on the engine itself to confirm. See the 917287230 operator's manual.
How to identify the engine brand on model 917287230
Look for the engine identification label, then match the brand and model/type numbers.
- Check the top of the engine shroud (often near the recoil/starter area)
- Check the valve cover area or blower housing
- Look near the spark plug side of the engine
- Check for a stamped or printed model/type/code (common on Briggs & Stratton)
- Write down the full engine model and spec numbers before ordering parts
Common engine brands used on Craftsman riding mowers (general guidance)
Across Craftsman riding mowers and lawn tractors, the most common engine suppliers you will run into include:
- Briggs & Stratton (very common on many Craftsman tractors)
- Kohler (common on many older and some mid-range tractors)
- Honda (more common on certain walk-behind products; less common on tractors)
Why the engine brand matters
The tractor model number (917287230) identifies the tractor platform and parts like belts, blades, and chassis components, but engine service parts (air filter, fuel filter, starter, carburetor parts) often depend on the engine’s own model/spec. Confirming the engine ID helps you avoid ordering the wrong tune-up or fuel-system parts.
Quick reference: what to use for parts lookup
| What you’re replacing | Best number to use | Example items |
|---|---|---|
| Deck/drive components | Tractor model 917287230 | blade drive belt, blades, idlers |
| Engine-specific parts | Engine model/spec from the engine label | air filter, spark plug, fuel filter |
Last updated: January 2026
