A bottom-mount refrigerator like Kenmore 59669283012 is “better” when you use the fresh-food section most often; it keeps everyday items at eye level and puts the freezer down low. If you access frozen foods constantly or want the lowest upfront cost, another style can fit better.

Why many people prefer bottom-mount refrigerators

• Fresh-food shelves sit higher, so you bend less during daily use
• Wider refrigerator compartment space is easier to organize for produce, drinks, and leftovers
• Freezer drawers can hold bulky items and stack well
• Better visibility of fresh foods helps reduce forgotten items and waste
• Often quieter in the kitchen because you open the fridge section more than the freezer

Trade-offs to consider

• You bend more to reach freezer items (especially items at the bottom of the drawer)
• Freezer drawers can feel heavy when fully loaded
• Some bottom-mount designs have less door-bin space than side-by-side models

Quick comparison: bottom-mount vs other common styles

Style	Best for	Common drawback
Bottom-mount	Fresh-food access and visibility	More bending for freezer
Top-freezer	Value and simple layout	More bending for fridge
Side-by-side	Narrow spaces, frequent freezer use	Narrower fridge shelves
French door (top fridge, bottom freezer)	Wide shelves and entertaining	Typically higher cost

How to decide for your kitchen

• Track what you grab most for a week (fresh vs frozen)
• Measure door swing and drawer clearance; bottom freezer drawers need room to pull out
• Check your temperature and feature settings in the owner's manual so the refrigerator performs as designed

Why it matters

Refrigerator style affects daily comfort, food organization, and how often the doors stay open. Choosing the layout that matches your habits helps your Kenmore 59669283012 maintain steadier temperatures and reduces wear on components like fans and controls.

Last updated: February 2026

If your Kenmore refrigerator model 59669283012 is warm and the compressor repeatedly clicks, hums briefly, or never stays running, the compressor system is failing to start or pump refrigerant. In many cases, the root cause is the start components, not the compressor itself; confirm basics in the owner's manual.

Quick signs the compressor system is the problem

• Fridge and freezer are both warming even though interior lights work
• You hear a repeating click every few minutes from the back (overload cycling)
• Compressor is very hot to the touch, or it never warms up at all
• Condenser fan runs (if equipped) but cooling does not improve
• You hear a brief hum, then a click (start attempt fails)
• Breaker trips or the unit shuts off shortly after trying to start

Check the easy, common causes first (often mistaken for a “bad compressor”)

1. Power reset: Unplug for 5 minutes, plug back in, then listen for a steady run.
2. Airflow and dust: Clean the condenser area; poor airflow can overheat the compressor.
3. Condenser fan (if your model uses one): If the fan is not running when the compressor should be on, cooling can fail.
4. Start components: A failed relay/capacitor can mimic a bad compressor.

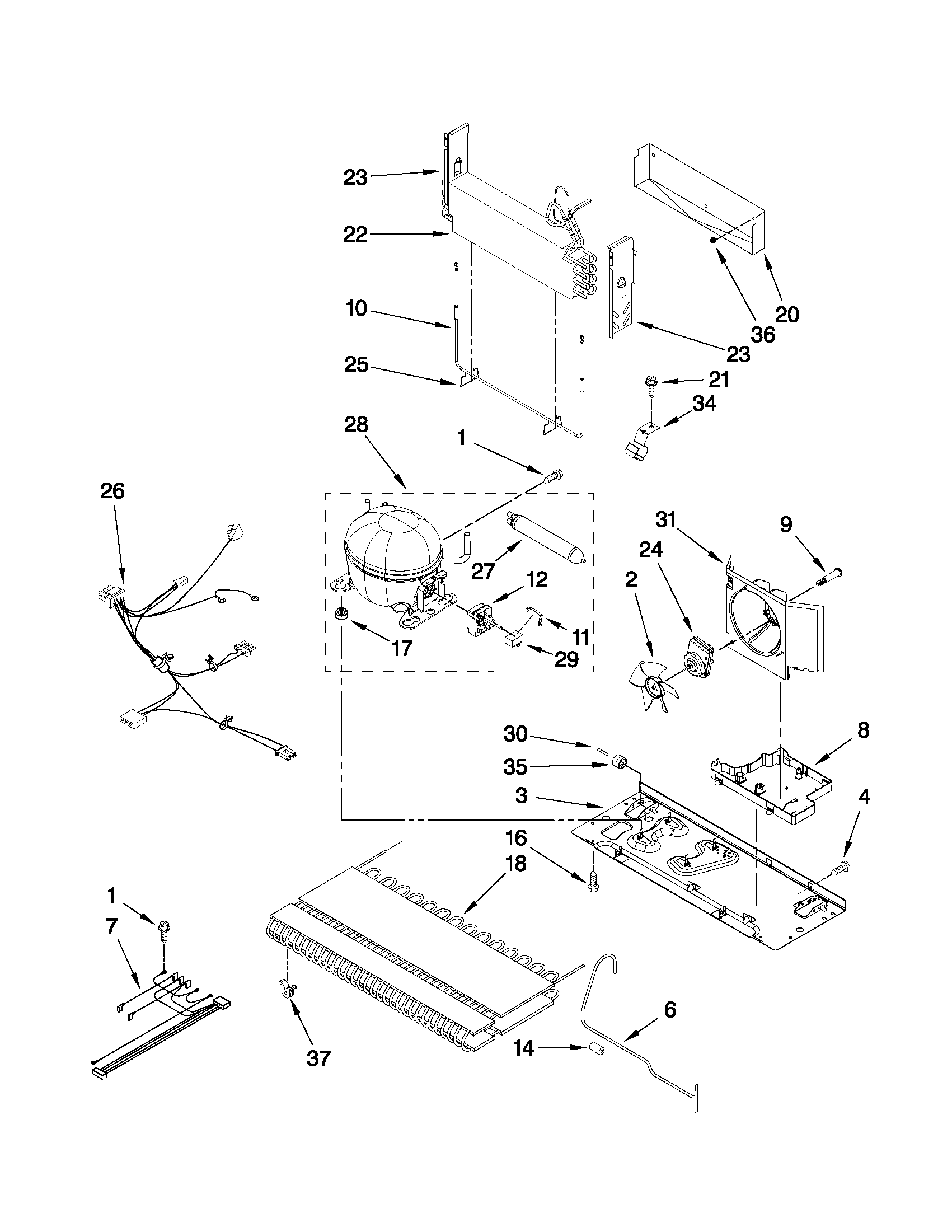

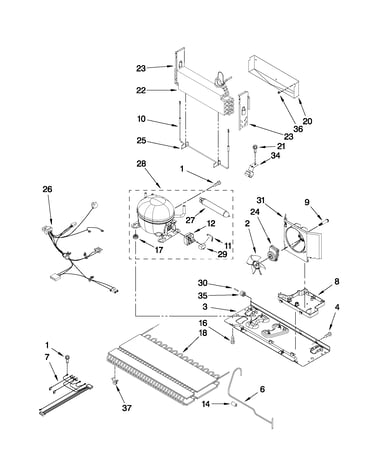

Parts that commonly affect compressor starting

What you notice	Most likely suspect	Example part for this model
Clicks, won’t start, intermittent attempts	Start relay/overload	Refrigerator start device WPW10448874
Hums, struggles to start, then clicks off	Weak run capacitor	Refrigerator run capacitor WPW10662129

How we confirm a truly bad compressor

A compressor is considered bad when it has an internal electrical failure (open/shorted windings), is mechanically locked, or runs but cannot build pressure. A technician typically confirms this with electrical tests and sealed-system checks.

Why it matters

Replacing a start device or run capacitor is a common, lower-effort fix that restores cooling quickly. Confirming those parts first helps avoid unnecessary sealed-system work and gets your Kenmore bottom-mount refrigerator cooling again sooner.

Last updated: February 2026

Your Kenmore refrigerator’s model number is printed on the appliance’s ID label; for Kenmore model 59669283012, that label is typically inside the fresh food (refrigerator) compartment on a side wall or ceiling, or behind the crisper drawers. Use the model number to match the correct parts list and diagrams.

Where to look for the model number label

Check these common spots first (use a flashlight and look for a sticker or metal plate):

• Inside the refrigerator section on the left or right side wall
• On the ceiling of the fresh food compartment
• Behind or under the crisper drawers (remove drawers to see the liner wall)
• Along the door frame (hinge side) when the door is open
• Near the bottom front, behind the toe grille or kick plate

If you still do not see it, follow the location guidance and illustrations in the owner's manual.

What the model number looks like (and what to write down)

We recommend recording the full model number and serial number exactly as shown.

Item	Example format	Why it matters
Model number	59669283012	Ensures parts fit your exact refrigerator
Serial number	Letters and numbers	Helps identify production run details

Why Kenmore model numbers matter for parts

Kenmore is a brand name, and many Kenmore refrigerators were built by different manufacturers. The model number is what ties your unit to the correct components and diagrams.

• Prevents ordering the wrong door gasket, shelf, or control
• Helps match electrical parts like the refrigerator electronic control WPW10503278
• Helps match cooling-system parts like the refrigerator start device WPW10448874

Why it matters

Even small design changes can affect fit and wiring. Using the exact model number (not just “Kenmore bottom-mount”) is the fastest way to get the right replacement parts and avoid returns.

Last updated: February 2026

Water at the bottom of your Kenmore 59669283012 bottom-mount refrigerator is usually caused by a clogged or frozen defrost drain, a mis-seated drain pan, or a door seal letting humid air in and creating excess frost that later melts. Use the owner's manual to locate the drain and access panels for your exact layout.

Most common causes (and what to check first)

• Defrost drain clogged (food debris or ice): water backs up and spills into the fresh food section, then runs to the floor.
• Defrost drain frozen: meltwater cannot reach the drain pan.
• Drain pan out of position or cracked: water misses the pan and leaks underneath.
• Door gasket not sealing: warm air causes heavy frost, then water during defrost.
• Ice maker or water line leak (if equipped): slow drips can pool and travel forward.

Quick troubleshooting steps

1. Unplug the refrigerator and protect the floor with towels.
2. Check for ice or standing water on the refrigerator floor (inside). If present, suspect the defrost drain.
3. Clear the drain opening (usually at the back of the fresh food compartment or behind the rear freezer panel). Flush with warm water using a turkey baster.
4. Inspect the drain pan underneath: confirm it is centered under the drain outlet and not warped.
5. Inspect door sealing: close a dollar bill in the gasket; if it slides out easily, clean the gasket and mating surface, then re-test.

What the symptoms usually mean

What you see	Most likely cause	Best next step
Water inside fridge, under crisper	Clogged/frozen defrost drain	Thaw and flush drain
Water only on floor under unit	Drain pan shifted/cracked	Re-seat pan; replace if damaged
Frost buildup, then puddles	Door not sealing well	Clean gasket; check alignment
Random puddles near back	Water supply/ice maker leak	Inspect tubing and fittings

Parts that may be involved

If you confirm a cooling/airflow issue contributing to icing and meltwater, these model-matched parts can be relevant:

• Refrigerator defrost heater WP12729128 (helps prevent heavy frost that can overwhelm the drain)
• Refrigerator evaporator motor W11024089 (poor airflow can contribute to icing patterns)
• Refrigerator door gasket (black) WPW10436248 (leaks humid air that increases frost)

Why it matters

Leaks are often a defrost-water routing problem. Fixing the drain or seal stops repeat puddles, helps maintain stable temperatures, and prevents ice buildup that can strain the evaporator fan and cooling system.
