Frigidaire FGFLZ87GCF gas range Parts

Your Frigidaire gas range model number is printed on the identification plate. On model FGFLZ87GCF, it’s typically on the right-hand surface of the oven front frame near the storage or warmer drawer area, or in the lower panel area. Use the model number to match the correct parts and instructions in the FGFLZ87GCF owner’s manual.

Check these common spots in order:

• Open the storage drawer or warmer drawer and look around the frame area for the identification plate
• Look on the right-hand surface of the oven front frame (near the drawer opening)
• Check the lower panel area below the oven door
• Use a flashlight and wipe dust or grease off the plate so the characters are readable
• Write down model and serial numbers exactly (letters and numbers can look similar)

The identification plate usually includes more than just the model number. Capture everything you see.

Frigidaire ranges can look nearly identical across model families, but parts like the oven temperature sensor, burner components, and control panel can vary by model and production run. Using the exact model number prevents ordering the wrong replacement.

• Check for a second label in the same drawer and front-frame area
• Look for a faint imprint and take a close-up photo with your phone
• Use the guidance in how to find your appliance model number (and what it means for parts) to confirm the best locations and what the number format looks like

Last updated: February 2026

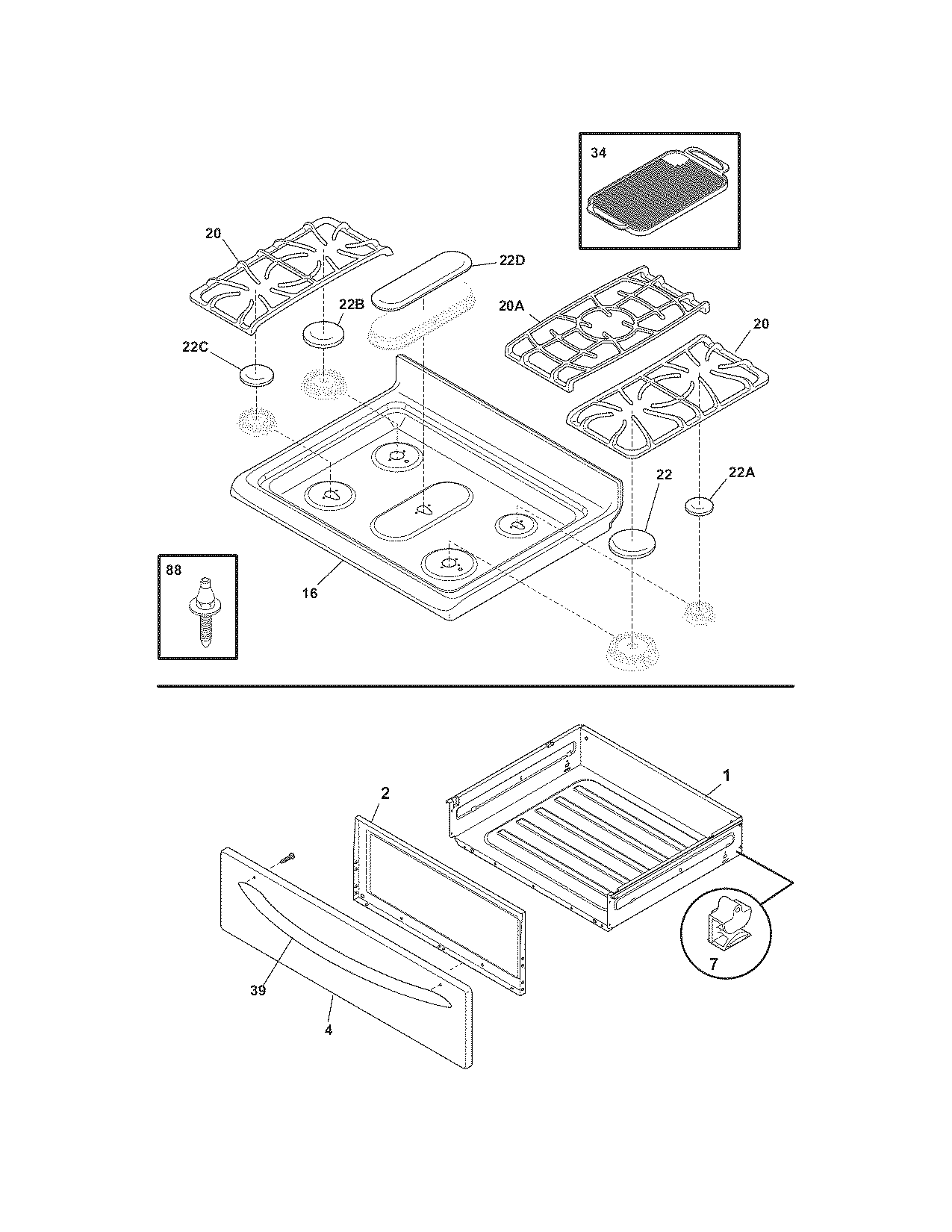

To remove the cooktop (main top) on your Frigidaire FGFLZ87GCF gas range, we start by shutting off the gas supply and disconnecting power, then removing the surface burner parts and any fasteners that secure the main top so it can lift up or be taken off for service.

• Turn the range off and let all surfaces cool completely.
• Shut off the gas supply at the shut-off valve.
• Unplug the power cord (or switch off the breaker).
• Pull the range out only as far as needed; if connections are hard to reach, lift slightly at the front and slide forward.
• Confirm the anti-tip bracket is engaged again when you reinstall.

For model-specific cautions and anti-tip checks, follow the FGFLZ87GCF installation guide.

1. Remove the burner grates.
2. Lift off burner caps.
3. Remove the burner heads (on many models they lift off; some use screws).
4. If present, remove any screws securing the cooktop to the burner box (often found near burner bases or under trim).
5. Lift the front of the cooktop; then raise it like a hinge or lift it off (depending on how your model is built).
6. Support the top safely; do not strain wiring or gas tubing.

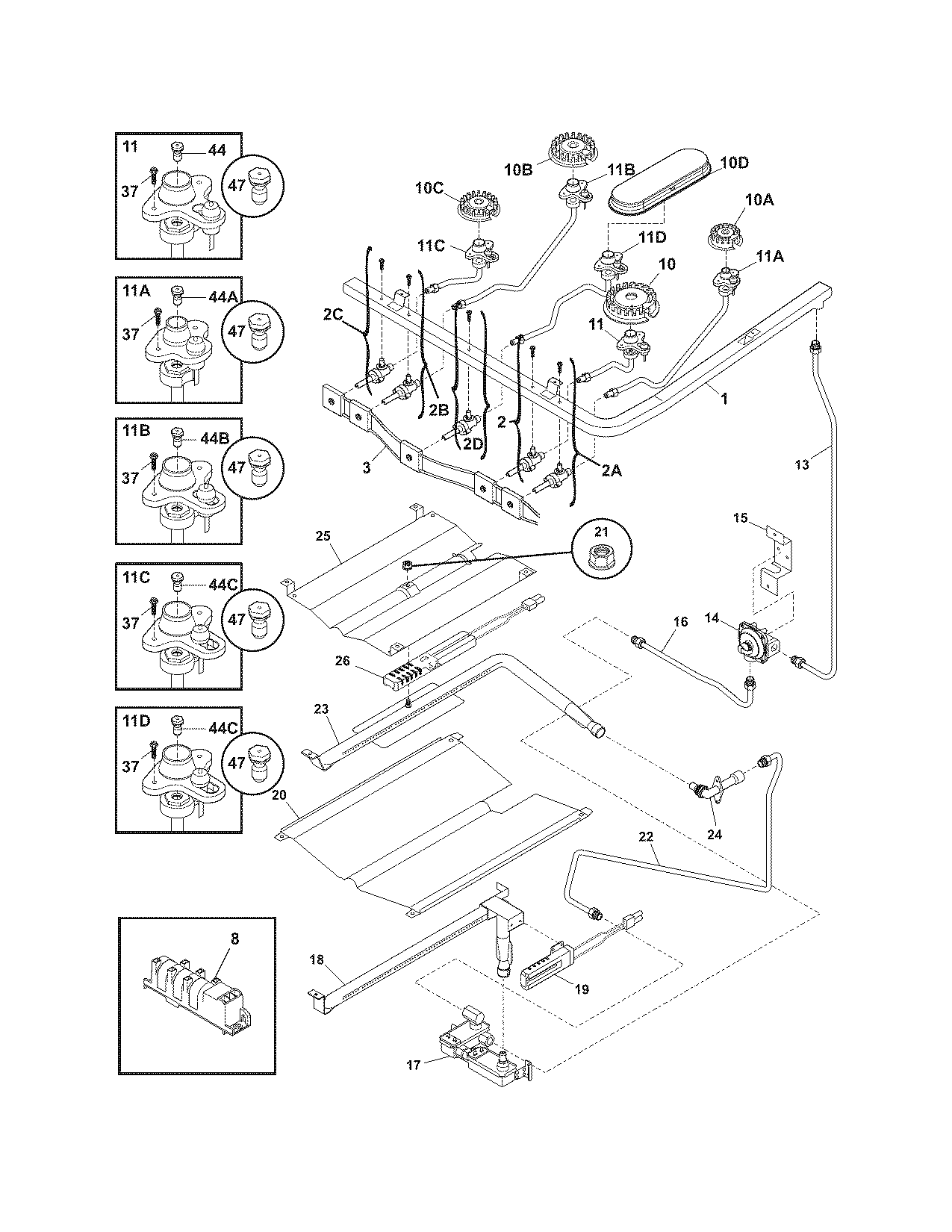

If you are replacing ignition-related components while the top is open, the igniter and orifice holder 316237805 is one of the common assemblies involved in surface burner ignition.

Removing the main top correctly prevents gas leaks, pinched wires, and burner alignment problems that can cause weak flames or clicking igniters after reassembly.

Last updated: February 2026

The average lifespan of a Frigidaire gas range like model FGFLZ87GCF is about 15 years with normal household use and basic maintenance. Keeping burners clean, ensuring proper flame color, and addressing heating issues early helps you reach that typical service life.

• Daily cooking volume and high-heat use (broil, self-clean)
• Cleaning habits (spills left to bake on, blocked vents)
• Gas quality and correct regulator setup
• Wear items replaced on time (igniters, sensors, door seals)
• Proper installation and leveling

Use the setup and care steps in the installation guide and your use and care information to keep performance steady.

• Keep burner heads and grates clean and seated correctly
• Watch burner flames; steady blue flames indicate good combustion
• If you ever move the range for cleaning, shut off gas first and check connections for leaks afterward
• Replace worn oven door sealing parts if you notice heat escaping
• Fix temperature problems early to avoid overworking the oven

These are typical failure points on gas ranges; replacing them restores normal operation instead of replacing the whole range.

A range that is heating correctly and sealing properly runs fewer long cycles, which reduces stress on the gas valve, igniters, and control components. That directly supports the typical 15-year lifespan for this appliance class.

Last updated: March 2026
