Kenmore 10658909801 side-by-side refrigerator Parts

To clean the condenser coils on your Kenmore side-by-side refrigerator model 10658909801, unplug the refrigerator, pull it straight out to protect the floor, then remove dust and lint from the coil area using a coil brush and vacuum. Follow the safety and cleaning guidance in the owner's manual.

Step-by-step: cleaning the condenser coil area

• Unplug the refrigerator (or disconnect power at the breaker).
• Pull the refrigerator straight out from the wall (do not “walk” it) to avoid floor damage.
• Remove the base grille (the grille at the bottom front) to access the coil area on many side-by-side models.
• Use a coil-cleaning brush to loosen dust, then vacuum it up (a crevice tool helps).
• Clean the floor area under and behind the refrigerator, then reinstall the base grille.
• Push the refrigerator straight back into place and restore power.

What to use (and what to avoid)

Task	Recommended	Avoid
Removing dust/lint	Coil brush + vacuum	Water spray, pressure air that blows dust into the unit
Wiping nearby surfaces	Mild detergent in warm water	Abrasive cleaners, flammable fluids
Moving the refrigerator	Pull straight out with help	Wiggling or “walking” the unit

How often we recommend cleaning

• Every 6 months in most homes.
• Every 3 months if you have pets, heavy dust, or the refrigerator is in a high-traffic kitchen.

Why it matters

Dirty coils make the sealed system work harder, which can cause warmer temperatures, longer run times, and higher energy use. Keeping the coil area clean helps your Kenmore 10658909801 cool more efficiently and can reduce strain on components like the compressor.

Last updated: February 2026

On Kenmore side-by-side refrigerator model 10658909801, the model number is printed on the appliance identification label (the same label that lists the serial number). We typically find this label inside the fresh food compartment on a side wall or near the ceiling, and sometimes behind a crisper drawer. See the 10658909801 owner's manual for the exact label location and what the tag looks like.

Common places to check first

Look for a white or silver sticker or plate with MODEL and SERIAL fields. Check these spots in order:

• Inside the refrigerator section on the left or right interior wall
• On the ceiling area inside the refrigerator compartment
• Behind or beside the crisper (meat pan) area (you may need to slide drawers out)
• Along the door frame area that seals against the cabinet
• Inside the freezer section on an interior wall (less common, but possible)

What the label information means

The label usually includes both a model number and a serial number.

Item on label	What it’s used for	Why you need it
Model number	Identifies the exact refrigerator design	Ensures parts diagrams and replacement parts match your unit
Serial number	Identifies the production run and date code	Helps confirm correct revisions when ordering parts

Why it matters

Kenmore model numbers can look similar across different side-by-side refrigerators. Using the exact model number (like 10658909801) prevents ordering the wrong water filter, ice maker, inlet valve, or door gasket.

After you find the model number

Use the model number to match parts and troubleshooting info:

• For water and ice issues, start with the genuine Kenmore refrigerator water filter EDR3RXD1 and confirm fit by model
• If the ice maker is not producing ice, compare symptoms to common failures before replacing the refrigerator ice maker 2198597
• If water will not dispense or the ice maker will not fill, the refrigerator inlet valve W10408179 is a common check point
• For broader parts lookup by model number, search on Sears PartsDirect

Last updated: February 2026

For Kenmore model 10658909801, the cubic-foot capacity is the refrigerator’s internal storage volume (not an outside measurement). The most accurate capacity for your exact model is listed on the model’s rating information and in the 10658909801 owner's manual.

How to find the cubic feet for model 10658909801

Use these quick checks; they give the correct capacity without doing math from exterior dimensions.

• Check the model rating label inside the fresh food section (commonly on a side wall or ceiling area).
• Look for wording like “Total capacity”, “Refrigerator capacity”, or “Freezer capacity”.
• Confirm the model number matches 10658909801 exactly.
• Use the capacity values on the label; they are already in cubic feet (cu. ft.).
• Cross-check the same capacity listing in the 10658909801 owner's manual.

Why the “depth x height” calculation is wrong

Exterior measurements (like 30-inch depth and 48-inch height) do not represent usable storage volume. They ignore:

• Cabinet wall thickness and insulation
• Door thickness and door bins
• Shelves, drawers, and air channels
• The freezer divider and evaporator airflow space

Quick comparison

Method	What it measures	Accuracy for cubic feet
Rating label or manual	Certified internal storage volume	High
Exterior dimension math	Outside box size	Low

If you still want an estimate (general guidance)

When the rating label is missing or unreadable, we estimate capacity by comparing similar side-by-side designs, but the exact number varies by configuration. For the correct figure for your unit, use the rating label or the 10658909801 owner's manual.

Related help for Kenmore refrigerators

If you are troubleshooting display codes while checking model information, use our Kenmore 106 model refrigerator error codes reference.

If you need replacement parts while you’re identifying your model details, you can order from the parts list for model 10658909801 or search by model on Sears PartsDirect.

Last updated: February 2026

Kenmore model numbers are built in sections: the first 3 digits identify the manufacturer behind the Kenmore brand, the next group identifies the base design, and the remaining digits show feature or production variations. For your Kenmore side-by-side refrigerator model 10658909801, that 106 prefix is the key identifier.

How the Kenmore model number is typically structured

Most Kenmore refrigerator model numbers follow this pattern:

• Prefix (first 3 digits): manufacturer code (who built it)
• Middle digits: base model platform or series
• Ending digits: version details (color, features, engineering changes)

To confirm the exact format used for your unit and where to find the full model and serial tag, use the 10658909801 owner's manual.

Why the 3-digit prefix matters for parts

The prefix helps us match the correct parts system and diagrams. For Kenmore 106 refrigerators, you will commonly see parts and part IDs that cross-reference to Whirlpool-built designs.

Here are examples of parts on this model’s parts list that depend on the correct model number match:

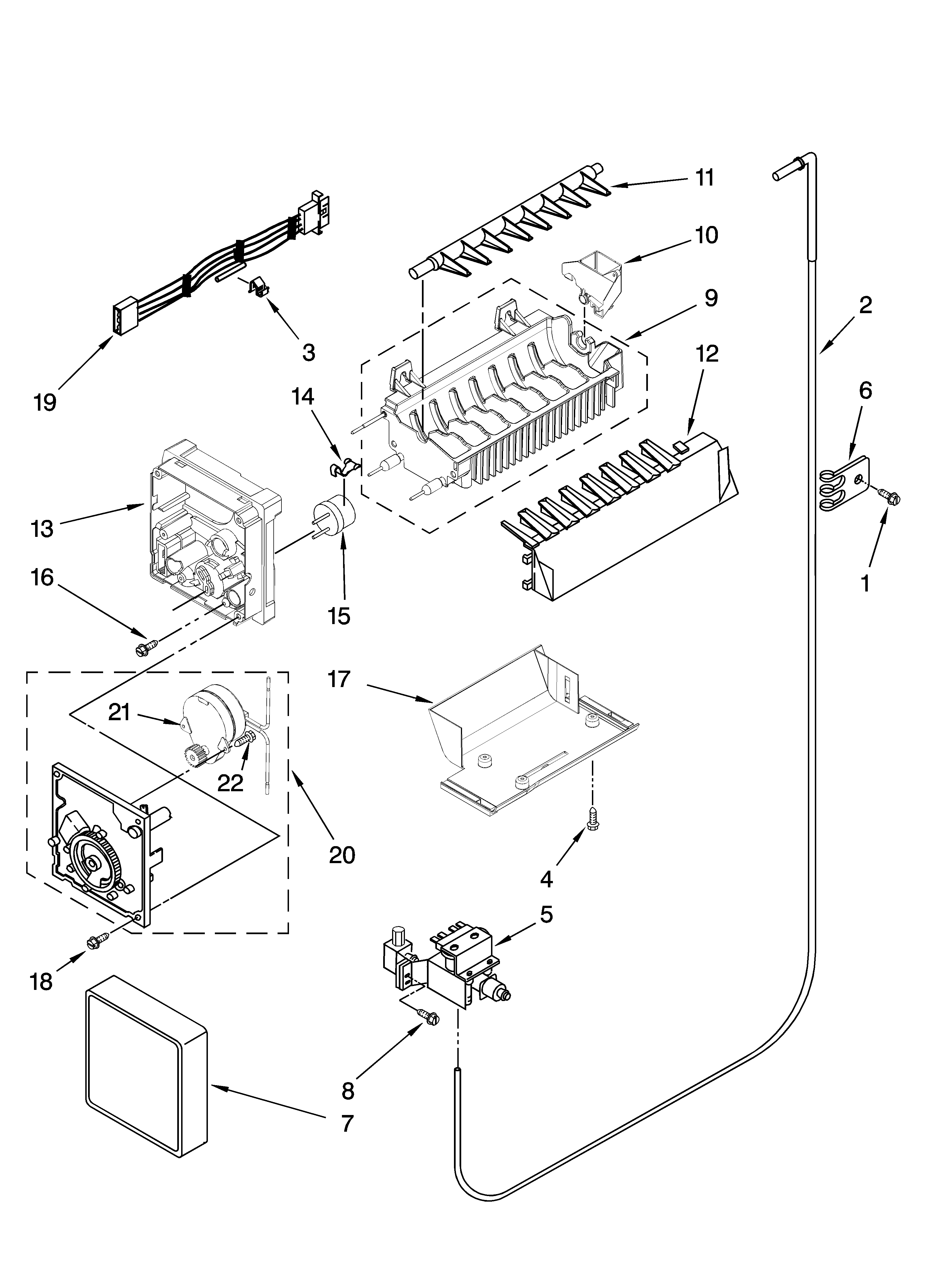

• Refrigerator ice maker 2198597 (ice production and harvest)
• Refrigerator inlet valve W10408179 (water supply to dispenser and ice maker)
• Genuine Kenmore refrigerator water filter EDR3RXD1 (drinking water filtration)

Quick example: how to interpret “10658909801”

Section	Example digits	What it tells you
Manufacturer prefix	106	Who built the unit
Base model identifier	58909	Core design family
Variation/version	801	Specific configuration

Why it matters

Reading the model number correctly prevents ordering the wrong refrigerator water filter, ice maker, or control part. Even small digit differences can change the door parts, wiring harness connections, or water system components.

If you are ordering parts, start with the parts list for model 10658909801 on this page; for broader model searches, use Sears PartsDirect.

Last updated: February 2026

The most common problems we see on Kenmore refrigerators like model 10658909801 are poor cooling, water leaks, ice maker or dispenser failures, and unusual noises. These symptoms usually come from airflow restrictions, a defrost system issue, or a water-supply component; start with the troubleshooting section in the 10658909801 owner's manual.

Most common symptoms and likely causes

• Not cooling or warm temps: dirty condenser coils, evaporator fan not running, frost from a defrost failure
• Water leaking or puddles: clogged defrost drain, loose water tube, seeping inlet valve
• Ice maker not making ice: low water pressure, frozen fill tube, failed ice maker
• Slow water dispenser: clogged water filter, kinked water tube, weak inlet valve
• Buzzing, clicking, rattling: fan blade hitting ice, failing fan motor, cabinet vibration

Quick checks before replacing parts

• Set temps to 37°F (fresh food) and 0°F (freezer); wait 24 hours to stabilize
• Make sure interior vents are not blocked by food packages
• Check the freezer back panel for heavy frost (points to defrost trouble)
• Note where water appears (under freezer vs. behind unit) to narrow the source
• If water flow is weak, replace the filter and dispense several glasses to purge air

Parts that often match these problems (when symptoms match)

Symptom	Common fix area	Example part for 10658909801
Slow water flow	Filtration	Genuine Kenmore refrigerator water filter EDR3RXD1
No ice or no water fill	Water supply	Refrigerator inlet valve W10408179
Frost buildup, warm fridge	Defrost system	Refrigerator defrost heater WP2323198
Noisy or warm freezer	Air circulation	Refrigerator evaporator fan motor WP2315549

Why it matters

Cooling, ice, and water issues often share root causes (restricted airflow, frost buildup, or low water flow). Fixing the underlying cause helps protect food temperatures and reduces compressor run time.

For step-by-step filter help, use how to replace the water filter in a Kenmore refrigerator. To order parts not listed for model 10658909801, search by model number on Sears PartsDirect.

Last updated: February 2026
