Kenmore Elite 59677599802 refrigerator Parts

If your Kenmore Elite refrigerator model 59677599802 is warmer at the bottom, the most common causes are restricted airflow (blocked vents or overpacked shelves), dirty condenser coils reducing heat removal, or an evaporator fan issue that is not circulating cold air properly. Start with airflow and cleaning checks first.

• Make sure interior air vents are not blocked by food containers (air must circulate to cool evenly).
• Confirm the temperature controls are set to the recommended settings and give changes 24 hours to stabilize.
• If this is a new install or the unit was unplugged, allow 24 hours to cool before judging performance.
• Clean the condenser area (dust and pet hair commonly reduce cooling performance).
• Verify the doors are closing and sealing fully; warm air leaks often show up as uneven temperatures.

1. Check airflow inside the fresh food section
   • Rear vents blocked or shelves packed tight can leave the lower area warm.
2. Clean condenser coils and confirm ventilation clearance
   • Your refrigerator needs breathing room; allow about 1/2 inch at the top and behind for proper ventilation.
3. Listen for the evaporator fan
   • If the fan is not running, cold air will not move through the refrigerator compartment.
4. Check for frost buildup on the freezer back wall
   • Heavy frost can indicate a defrost problem that restricts airflow to the refrigerator section.

Bottom-warm conditions usually mean cold air is not circulating correctly. Fixing airflow and heat removal first protects food safety, reduces compressor run time, and prevents icing problems from getting worse.

Use the 59677599802 owner's manual to confirm recommended temperature settings, control behavior (including “cooling off/on”), and the 24-hour stabilization guidance.

Last updated: January 2026

On Kenmore Elite refrigerator model 59677599802, DH commonly indicates a defrost heating problem (the refrigerator is not sensing normal defrost heater operation). We focus on the defrost circuit first: heater, wiring, and the electronic control that powers defrost.

• Power reset: Unplug the refrigerator for 5 minutes, then restore power and watch for the code returning.
• Door sealing and airflow: Make sure doors close fully and vents are not blocked by food packages.
• Heavy frost clues: If the freezer back wall has heavy frost, the defrost system is the likely cause.
• Listen for the evaporator fan: A stalled fan can worsen icing and temperature swings.
• Confirm temperatures: Freezer should be near 0°F and fresh food near 37°F after stabilizing.

A DH-style defrost heat issue is usually caused by one of these:

For model-specific access steps, wiring routing, and troubleshooting flow, follow the 59677599802 owner's manual.

If diagnosis points to a control or airflow issue, these model-matched parts are commonly involved in cooling and defrost-related symptoms:

• Refrigerator electronic control WPW10317076 (controls defrost and cooling functions)
• Refrigerator evaporator fan motor W11024089 (moves air across the evaporator)
• Refrigerator evaporator fan blade WP2169142 (fan blade damage can reduce airflow)

When defrost heat is not working correctly, frost can insulate the evaporator coil and block airflow. That leads to warmer temperatures, longer run times, and inconsistent ice production.

Last updated: January 2026

Common problems on the Kenmore Elite 59677599802 bottom-mount refrigerator include not cooling well, running longer than expected, unusual noises, frost or moisture buildup, and ice maker or water issues. Many fixes start with basic checks, cleaning, and confirming control settings in the 59677599802 owner's manual.

• Not cooling or slow cooling after setup: after a new installation, allow 24 hours for the refrigerator to cool completely.
• Runs a lot: frequent door openings, warm room temperature, or a large food load can make the compressor and fans run longer.
• Noises: some sounds are normal, including buzzing when the water valve fills the ice maker and pulsating as fans and the compressor adjust.
• Ice and water problems: often tied to water supply, a clogged filter, or a valve issue.
• Moisture or frost: commonly caused by door seal leaks or doors not closing fully.

1. Verify the refrigerator is plugged into a grounded 3-prong outlet and the outlet has power.
2. Make sure the controls are turned on and set to normal temperatures.
3. Confirm doors are closing and sealing; check for torn or warped gaskets.
4. Clean condenser coils (dust buildup is a top cause of poor cooling and long run times).
5. If you have ice maker issues, confirm the household water supply valve is fully open.

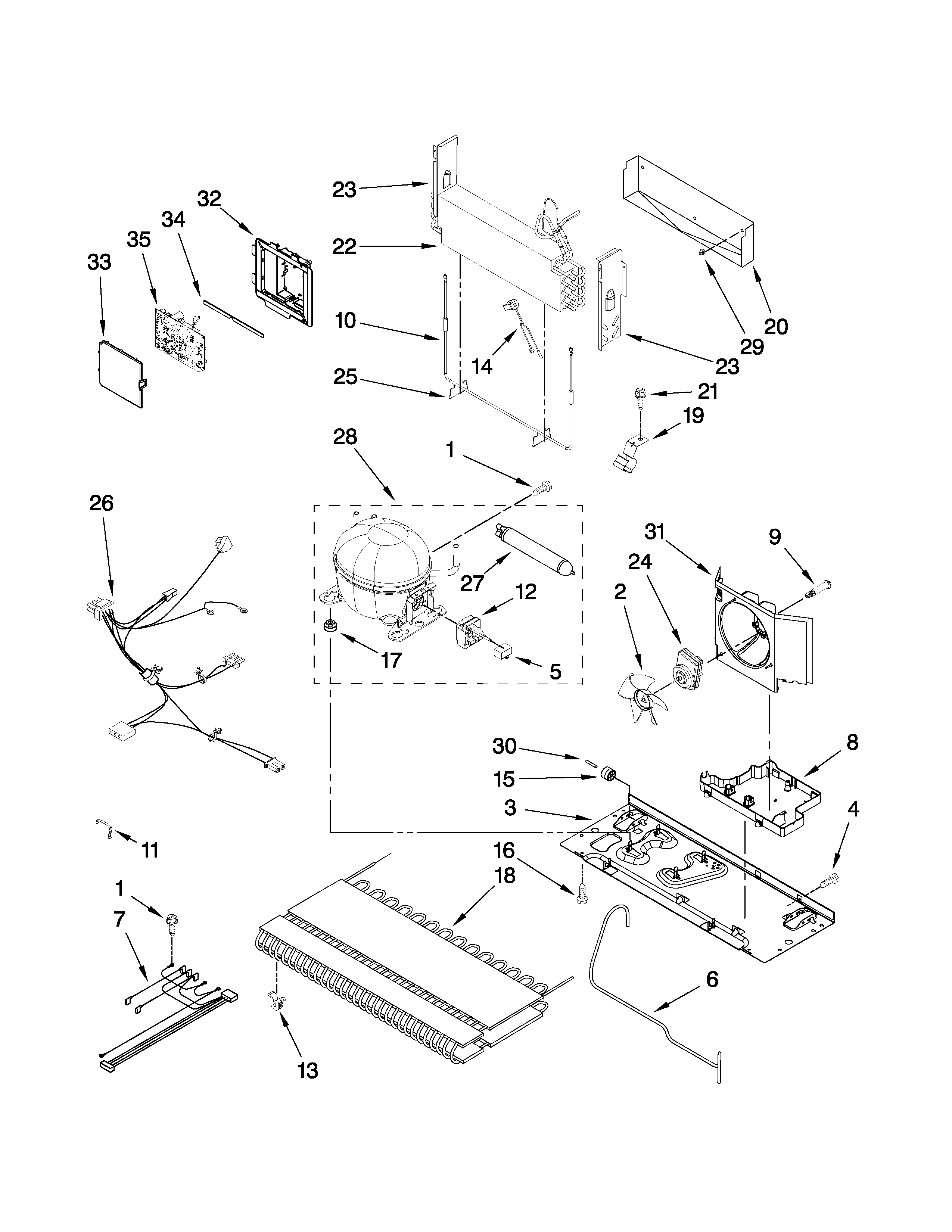

• Cooling airflow problems: evaporator fan motor and blade such as refrigerator evaporator motor W11024089 and refrigerator evaporator fan blade WP2169142

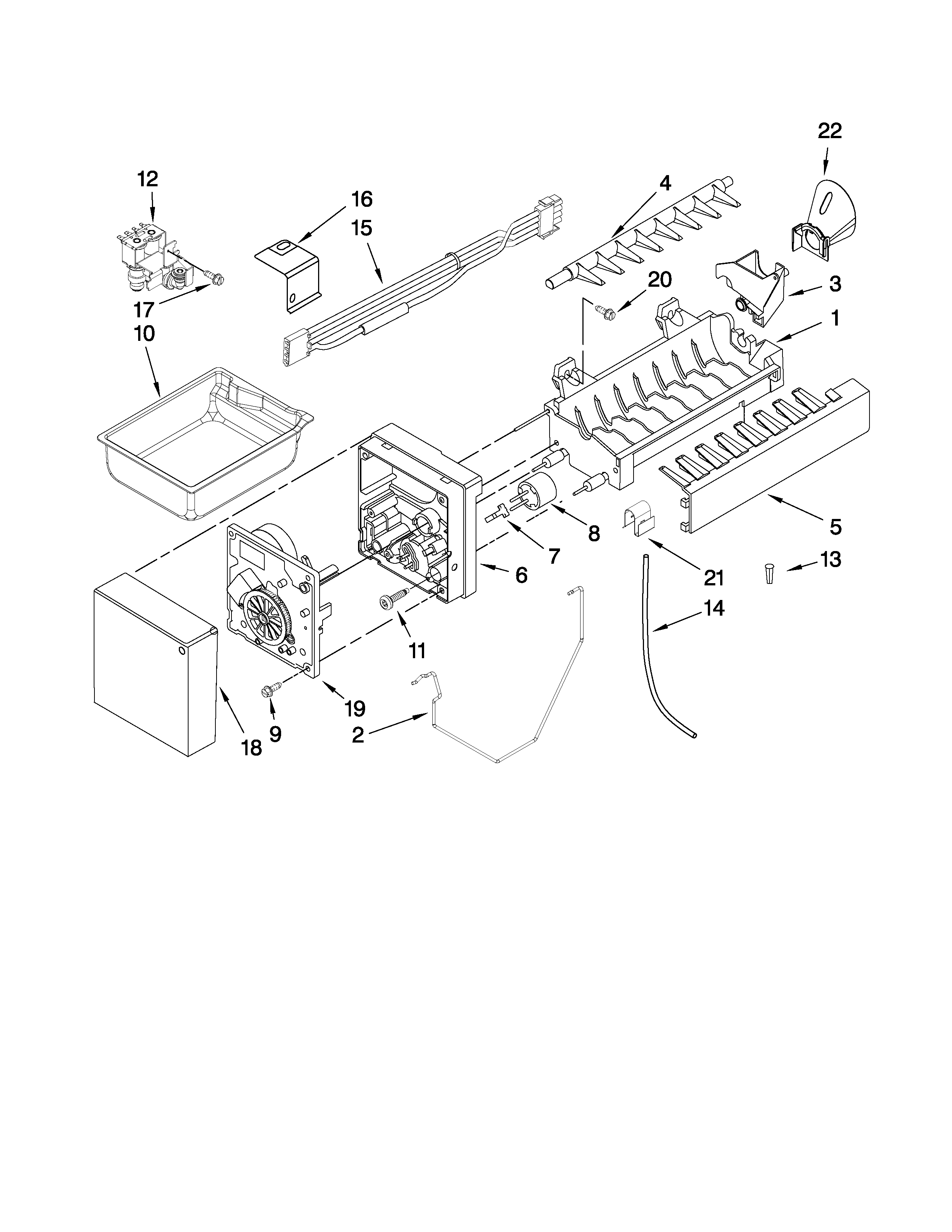

• Ice maker not making ice: ice maker assembly such as refrigerator ice maker D7824706Q
• Water not dispensing or slow ice fill: inlet valve such as refrigerator water inlet valve assembly WP12544124

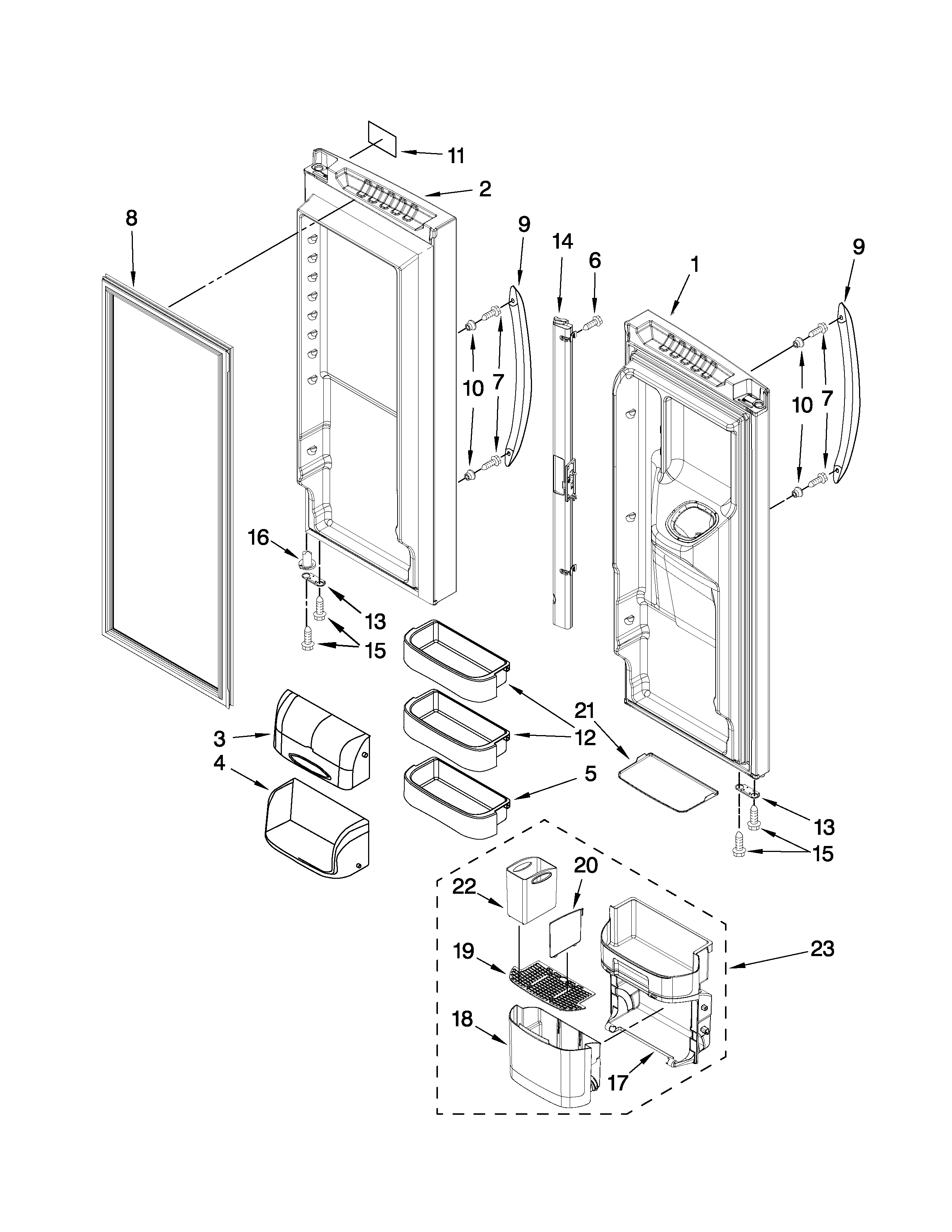

• Door not sealing: door gasket options (match color/side) such as refrigerator gasket panel W10443320

Cooling, noise, and ice maker complaints often share the same root causes: airflow restrictions, door seal leaks, or water supply problems. Starting with the basic checks prevents unnecessary part replacement and helps protect food temperatures.

Last updated: January 2026

Water leaking from the bottom of your Kenmore Elite refrigerator model 59677599802 is typically caused by a clogged defrost drain (defrost water cannot reach the drain pan) or a drip from the water supply, inlet valve, or dispenser tubing near the base grille.

• Look for ice or standing water on the freezer floor; this points to a blocked defrost drain.
• Check for water on the floor at the front near the base grille; this often indicates a loose dispenser tube connection.
• Inspect the filter area for drips after a filter change; flush the system and recheck.
• Pull the unit out and look for a slow drip at the household shutoff valve or supply line.
• Make sure the refrigerator is level and slightly tilted back so water flows to the drain pan.

1. Freezer floor and drain trough: Melt any ice with warm air and flush the drain with warm water.
2. Drain tube and drain pan: Confirm the tube is routed correctly into the pan and the pan is seated.
3. Water connections: With water turned on, watch the inlet valve and tubing for seepage.
4. Door and dispenser tubing: If doors were removed recently, confirm the water tube connection is fully seated.

• Refrigerator drain tube W10619951: routes defrost water out; a split, blockage, or misrouting can cause bottom leaks.
• Refrigerator water inlet valve assembly WP12544124: can drip or seep at fittings or if the valve does not seal.

Bottom leaks can create ice buildup, restrict airflow, and damage flooring. Fixing a drain restriction or tightening a water connection early prevents repeat puddles and helps the ice maker and dispenser run reliably.

For model-specific water system and leak checks, use the 59677599802 owner's manual.

Last updated: January 2026
