Kenmore Elite 11042926220 washer Parts

Your washer’s model is 11042926220 (Kenmore Elite front-loading automatic washer). You’ll find the model and serial number on the washer’s model/serial label; use that exact model number when looking up parts and the owner's manual.

Where to find the model/serial label

On Kenmore front-load washers like model 11042926220, the label is typically in one of these spots:

• Behind the door or on the door jamb (open the door and check the frame area)
• Along the inside edge of the main cabinet opening
• On the back of the control panel area
• On the side of the main cabinet near the bottom

How to read the model number correctly

Kenmore model numbers often start with a prefix (like 110) and then continue with the full identifier.

• Write down the model number exactly as printed
• Record the serial number too (it helps match production details)
• Keep the information with your purchase date for future service and parts lookup

Quick reference

What to record	Example for this washer	Why it matters
Model number	11042926220	Ensures correct parts diagrams and fit
Serial number	(from label)	Helps identify production version
Purchase date	(your date)	Useful for maintenance history

Why it matters

Using the exact model number prevents ordering the wrong Kenmore washer parts (like a door lock, water inlet valve, or tub-to-pump hose) that can look similar but mount or wire differently.

Last updated: February 2026

The exact tub capacity (cubic feet) for Kenmore Elite model 11042926220 is listed in the specifications section of the owner's manual. If you are comparing washers, most front-load Kenmore Elite units of this design are typically in the 3.5 to 4.5 cu. ft. range.

How to find the cubic feet in the manual

Check these common spots in the owner's manual:

• Specifications or Product dimensions section
• Model identification pages near the front
• A table listing capacity, volume, or IEC capacity
• The section that lists electrical and water requirements (sometimes grouped with specs)

Quick size clues for this washer

Your 11042926220 is a front-load washer; the manual excerpt shows typical installation dimensions for this platform. Those dimensions help confirm you are comparing like-for-like machines.

Spec type	Typical for this platform	What to use for exact value
Width	About 27 in.	Owner's manual
Height	About 38 in.	Owner's manual
Capacity	Often 3.5 to 4.5 cu. ft.	Owner's manual

Why capacity matters when replacing or matching

Capacity affects more than “how much fits.” It also impacts cycle times, water use, and whether your existing setup still works.

• Pedestal/stacking fit and door swing clearance
• Load size expectations (comforters, bulky items)
• Installation spacing in a closet or undercounter
• Drain and fill hose reach and routing

If you are shopping for compatible parts

Capacity is rarely needed to order repair parts. For most repairs, matching the model number 11042926220 is what matters. Common repair categories for this washer include suspension and door-related components such as the shck absorbr WP8182703 and the door lock WP8182634.

Last updated: February 2026

To reset your Kenmore Elite washer model 11042926220, we recommend canceling the current cycle at the control panel, then restoring power. On this model, pressing PAUSE/CANCEL twice stops the cycle and powers the washer down; unplugging for about 1 minute and plugging back in clears many temporary control glitches (then reselect a cycle and press START). See the owner's manual for the exact control behavior.

Quick reset steps (most common)

• Press PAUSE/CANCEL twice to cancel the cycle.
• Wait for the washer to power down.
• Unplug the washer (or switch the breaker off) for about 1 minute.
• Restore power.
• Select your cycle and hold START for about 1 second.
• If the door stays locked, wait for the washer to drain; it can drain automatically if water level or temperature is too high.

If the controls seem “frozen”

This model has a control lock feature that disables most buttons.

• If CONTROL LOCKED is lit, press and hold DRAIN/SPIN for 3 seconds to unlock.
• Try canceling the cycle again: PAUSE/CANCEL twice.
• Re-select the cycle and press START.

Symptom	What to try	What it usually means
Buttons do not respond	Hold DRAIN/SPIN 3 seconds	Control lock is on
Need to stop and restart	PAUSE/CANCEL twice, then select cycle	Cycle reset
Door won’t unlock	Wait for drain to finish	Water level or temp is high
Won’t drain or spins poorly	Cancel cycle, check drain hose height/kinks	Drain restriction or suds routine

Why it matters

A proper reset clears a stuck cycle, unlocks the controls, and gets the washer back to a known starting point so you can accurately troubleshoot issues like draining problems (for example, “F02”) or excessive suds (“SUD”).

Last updated: February 2026

To force your Kenmore Elite washer model 11042926220 to drain, use the control-panel Drain/Spin cycle: press PAUSE/CANCEL, select DRAIN/SPIN, then press and hold START for about 1 second to begin draining. When the spin finishes, the door unlocks.

Fast steps to drain it from the controls

• Press PAUSE/CANCEL once to stop the current cycle.
• Select DRAIN/SPIN.
• (Optional) Lower the spin speed for delicates to reduce fabric stress.
• Press and hold START for about 1 second.
• Wait for the cycle to complete; the door unlocks when it is safe.
• Remove items after the drain and spin are complete.

If it still will not drain

A drain failure is usually caused by a kinked hose, a clog, or a pump issue.

• Check the drain hose for kinks or crushing behind the washer.
• Make sure the drain hose height is not more than 96 in. (2.4 m) above the floor.
• Check for a frozen drain hose (cold-weather storage can cause this).
• Reduce oversudsing; too much detergent can trigger a suds routine that delays draining.
• If the washer shows a drain-related error (often F02 on similar Kenmore front-load platforms), focus on hose and pump checks first.

Parts that commonly fix “won’t drain” symptoms

If the hose and installation look correct, these parts are common causes on this model:

Symptom	Most likely area	Example part on this model

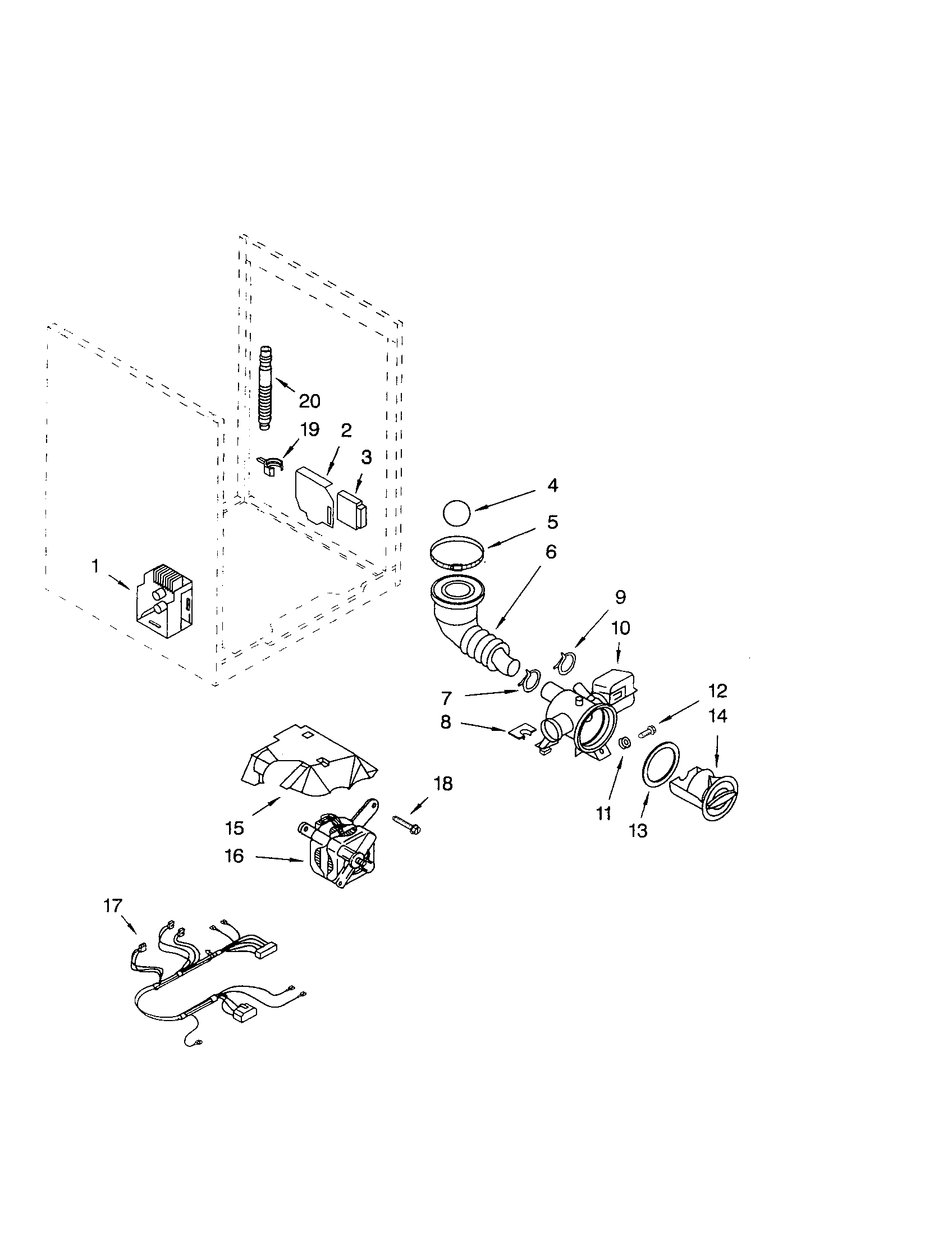

Hums but does not drain	Drain pump	Water pump 280187
Drains slowly or intermittently	Tub-to-pump path	Washer tub-to-pump hose WPW10467168
Leaks or loose connection after service	Hose connection	Clamp WP285655

Why it matters

Forcing a drain the correct way protects the door lock system and helps prevent water spills. It also confirms whether the problem is control-related (cycle selection) or mechanical (hose restriction or pump failure).

For cycle and control details specific to model 11042926220, follow the steps in the owner's manual.

Last updated: February 2026

A Kenmore model number tells you what product you have and who built it. For Kenmore Elite washer model 11042926220, the first three digits (110) identify the manufacturing source, and the remaining digits narrow down the exact design so you can match the right parts and service information in the owner's manual.

What each part of the model number means

Kenmore model numbers are typically split into two sections:

• Prefix (first 3 digits): identifies the manufacturing source (for example, many Kenmore washers starting with 110 are Whirlpool-built)
• Base model digits: identify the core platform and major configuration
• Suffix/variation digits: identify revisions, feature packages, and production changes

Example: 11042926220

Section	Example digits	What it’s used for
Manufacturer prefix	110	Points to the build source and parts family
Model/series	42926	Narrows the washer platform and configuration
Variation/revision	220	Helps match the correct version of parts and documentation

Where to find the model number on your washer

On Kenmore front-load washers like 11042926220, the model/serial label is commonly found:

• Around the door opening (door frame area)
• Behind the door on the cabinet front
• On the rear panel (less common)
• In the owner's manual under product record information

Why it matters for parts and troubleshooting

Using the full model number (not just “Kenmore Elite” or “110”) helps us match parts that can change between revisions. That matters most for fit and function items such as:

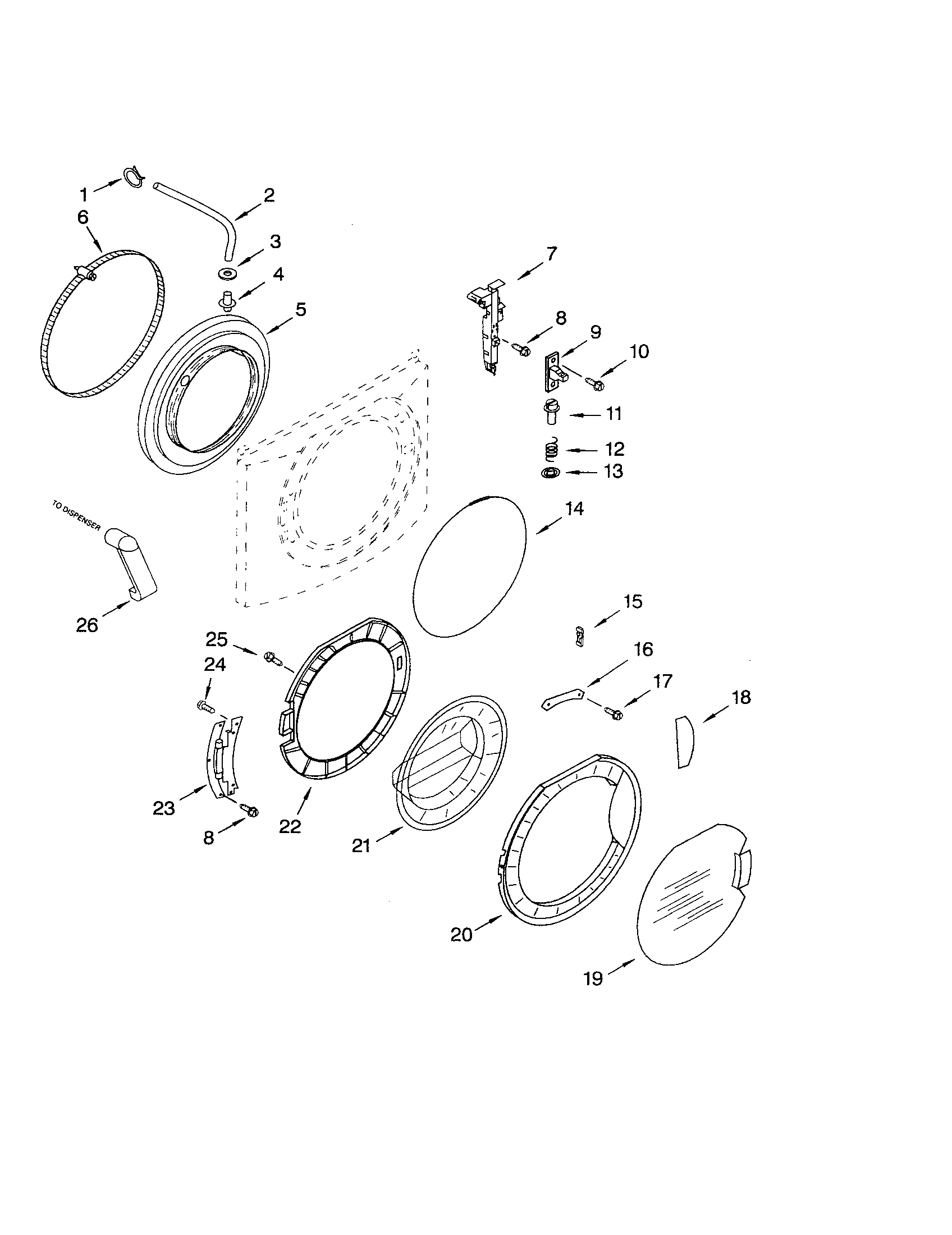

• Door locking components like the door lock WP8182634
• Water fill components like the washer water inlet valve WP8181694
• Vibration control parts like the shck absorbr WP8182703

Quick tips to avoid common mix-ups

• Use the entire model number: 11042926220
• Double-check similar-looking digits (0 vs O, 1 vs I)
• If you’re ordering parts, match by model number first, then confirm by part name and ID

Last updated: February 2026
