Kenmore Elite
Washer

Model # 11028042700 Official Kenmore Elite washer

Here are the diagrams and repair parts for Official Kenmore Elite 11028042700 washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 141 parts  |

Suspension 8564009
#10

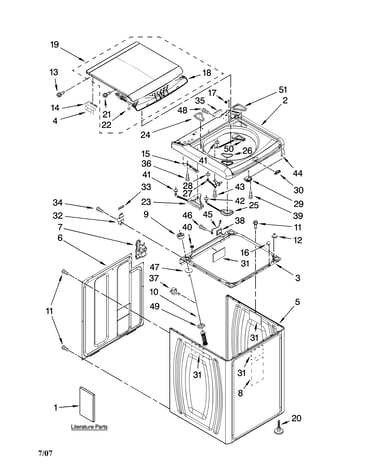

Top and cabinet parts diagram

Suspension

Part #8564009

Replaced by #W10820048

?
Manufacturer substitution
This part replaces 8564009. Substitute parts can look different from the original.
BEST SELLER
$62.72
24% OFF MSRP : $82.00
In Stock
Washer Tub Bearing And Drive Shaft Kit W10435302
#(NI)

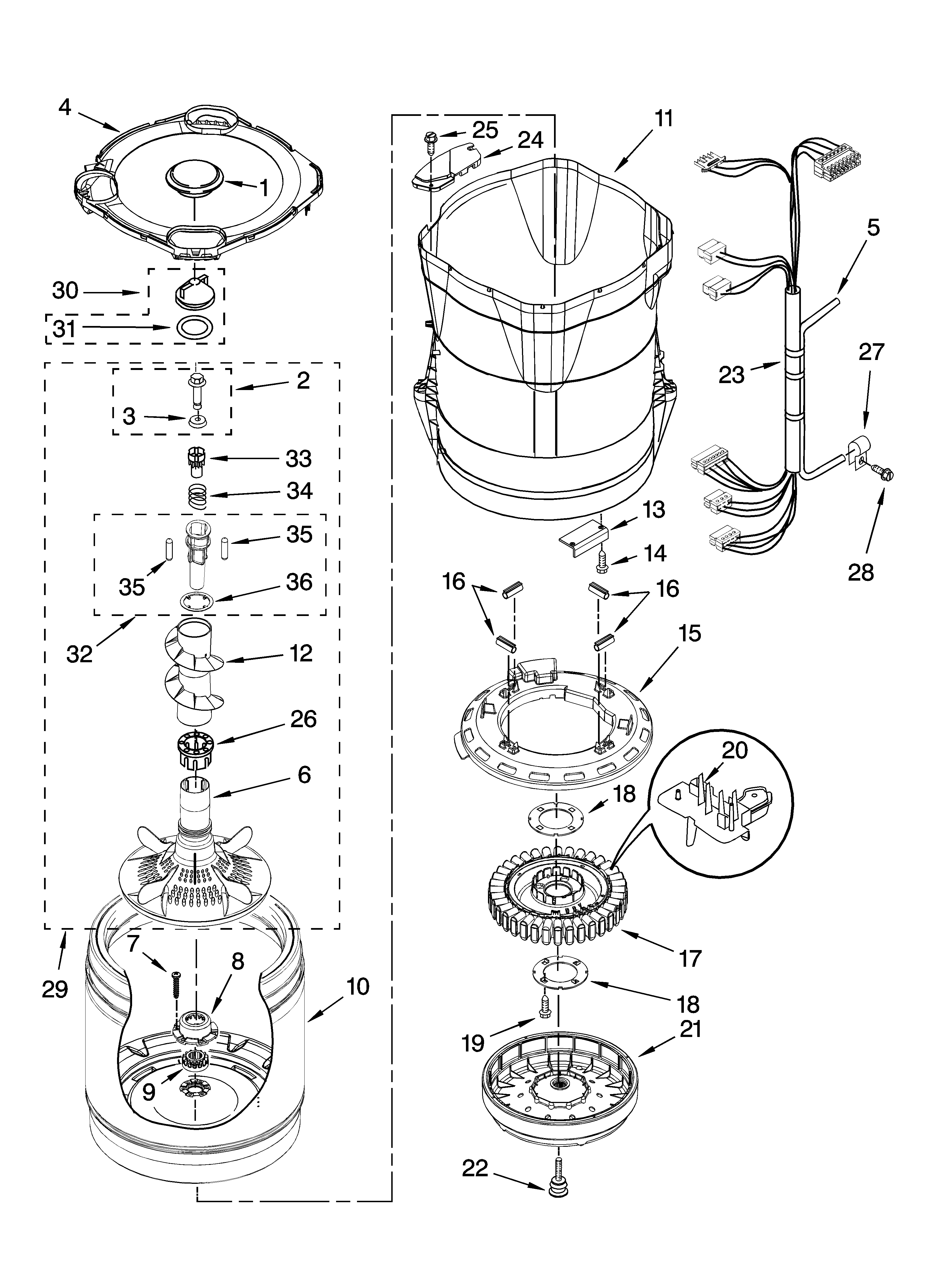

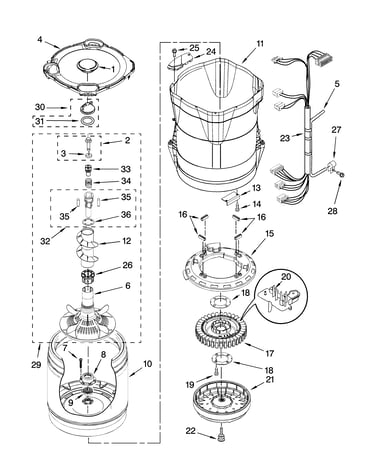

Motor, basket and tub parts diagram

Washer tub bearing and drive shaft kit

Part #W10435302

BEST SELLER
$98.42
24% OFF MSRP : $130.00
In Stock
Appliance Spray Paint (white) (replaces 094566-64, 206923, 2780-0001, 4395978, 5303203125, 66208, 788343, 799343, 799433, 99343, A0050702, F94566-010, Y057937, Y350930) 350930
#NI

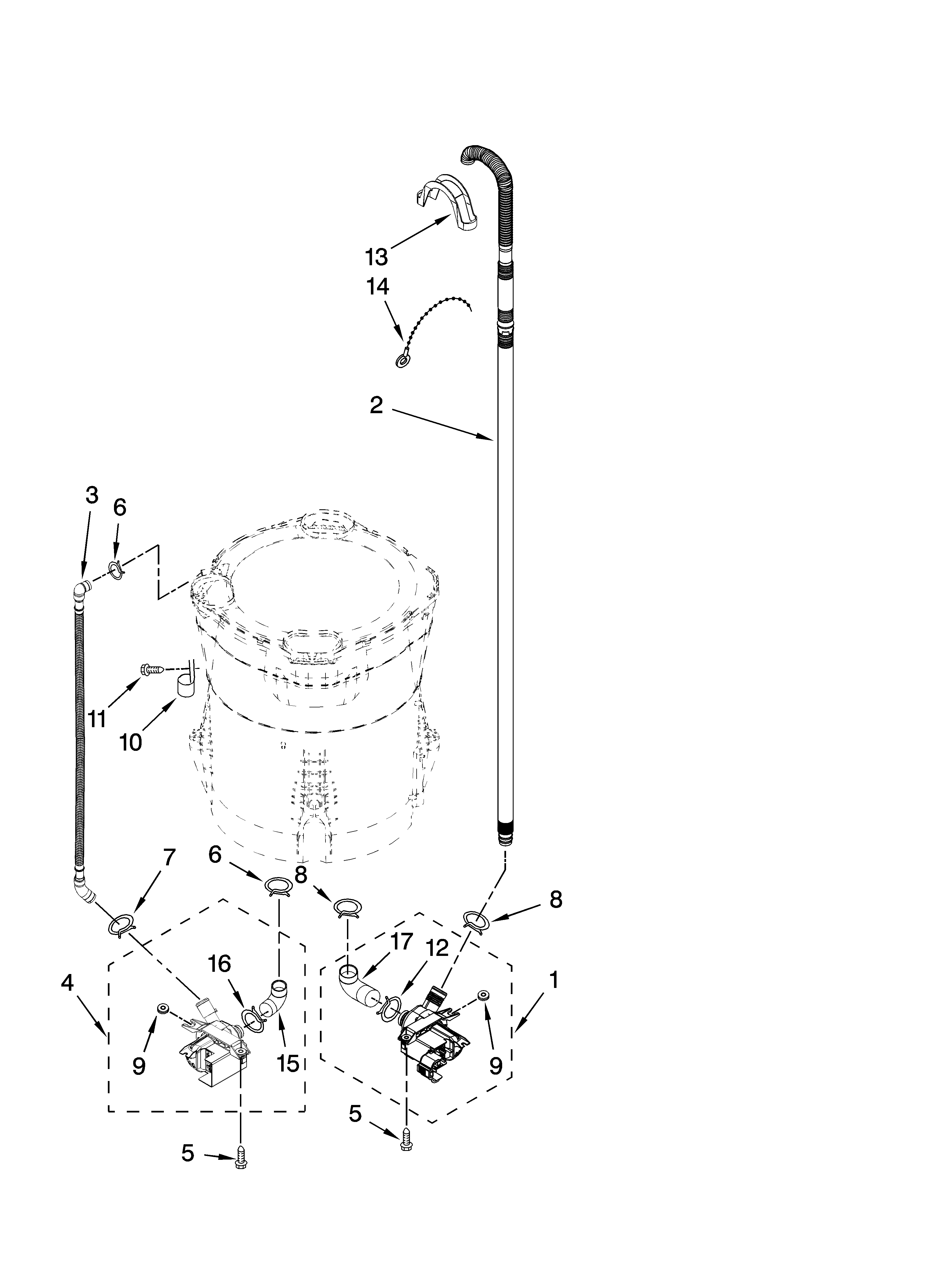

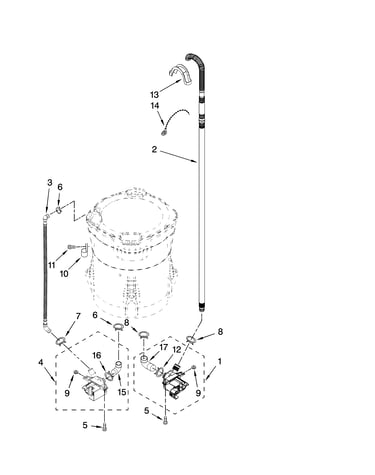

Pump parts, optional parts (not included) diagram

Appliance spray paint (white) (replaces 094566-64, 206923, 2780-0001, 4395978, 5303203125, 66208, 788343, 799343, 799433, 99343, a0050702, f94566-010, y057937, y350930)

Part #350930

BEST SELLER
This item is not returnable
$15.69
11% OFF Phone Price : $17.69
In Stock
Pump-water W10049390
#1

Pump parts, optional parts (not included) diagram

Pump-water

Part #W10049390

Replaced by #W10536347

?
Manufacturer substitution
This part replaces W10049390. Substitute parts can look different from the original.
BEST SELLER
$93.29
22% OFF MSRP : $120.00
In Stock
Washer Agitator Cap Seal W10072840
#31

Motor, basket and tub parts diagram

Washer agitator cap seal

Part #W10072840

Replaced by #WPW10072840

?
Manufacturer substitution
This part replaces W10072840. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.89
15% OFF Phone Price : $6.89
In Stock
Washer Lid Hinge Screw W10119828
#13

Top and cabinet parts diagram

Washer lid hinge screw

Part #W10119828

Replaced by #WPW10119828

?
Manufacturer substitution
This part replaces W10119828. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$3.09
76% OFF MSRP : $13.00
In Stock
Fill Hose 8571377
#19

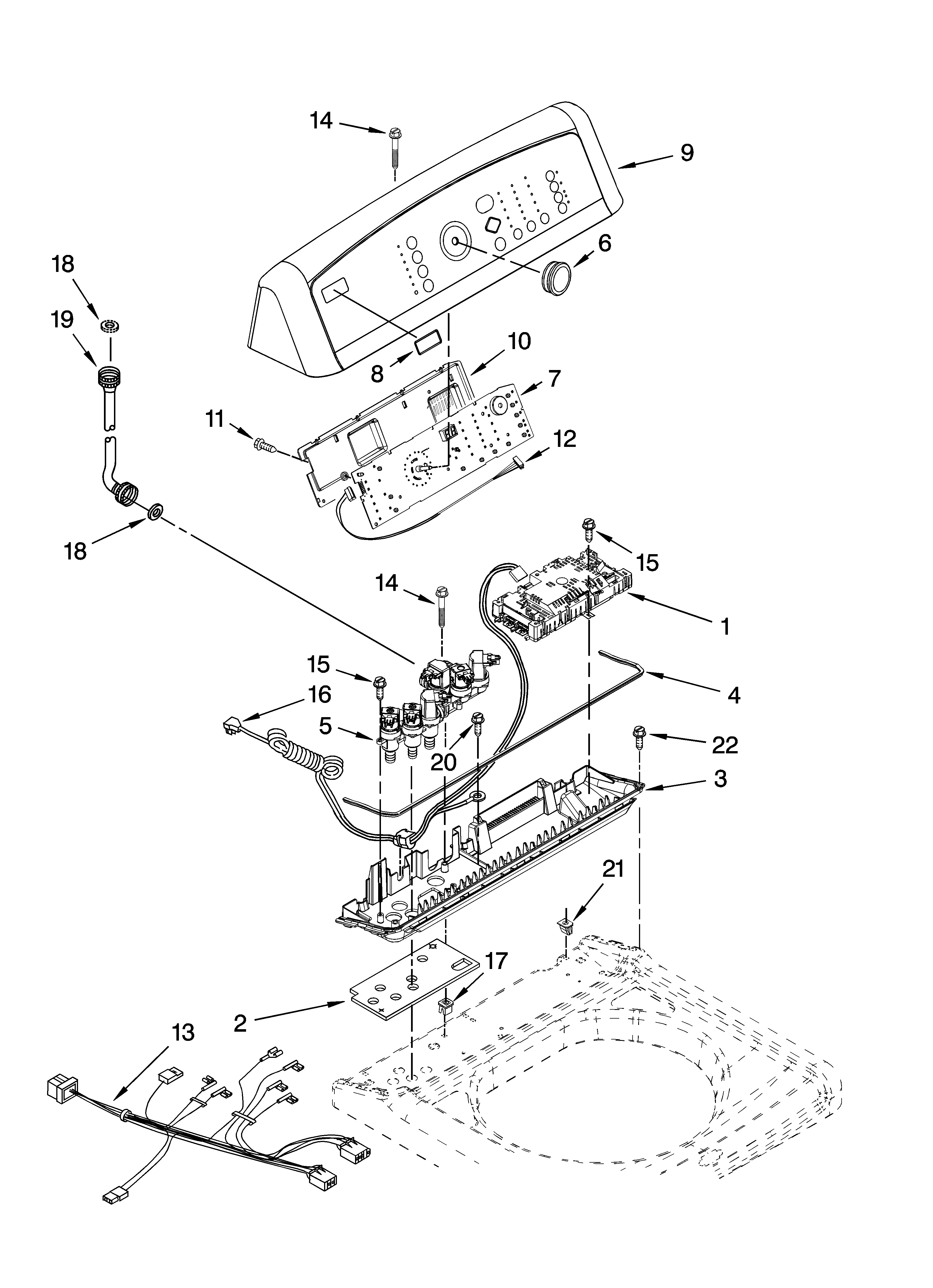

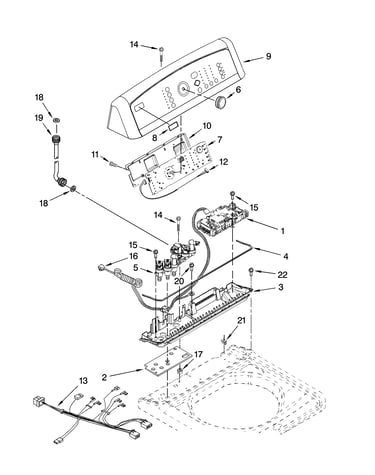

Control panel parts diagram

Fill hose

Part #8571377

Replaced by #WP89503

?
Manufacturer substitution
This part replaces 8571377. Substitute parts can look different from the original.
BEST SELLER
$14.49
12% OFF Phone Price : $16.49
In Stock
Washer Fill Hose 8571378
#19A

Control panel parts diagram

Washer fill hose

Part #8571378

Replaced by #WP89503

?
Manufacturer substitution
This part replaces 8571378. Substitute parts can look different from the original.
BEST SELLER
$14.49
12% OFF Phone Price : $16.49
In Stock
Absorber 8564458
#31

Top and cabinet parts diagram

Absorber

Part #8564458

Replaced by #WP8564458

?
Manufacturer substitution
This part replaces 8564458. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.49
13% OFF Phone Price : $7.49
In Stock
Washer Screw 693995
#36

Top and cabinet parts diagram

Washer screw

Part #693995

Replaced by #WP693995

?
Manufacturer substitution
This part replaces 693995. Substitute parts can look different from the original.
This item is not returnable
$4.37
74% OFF MSRP : $17.00
In Stock
