On Kenmore electric range model 7909611340A, an F1 code with repeated beeping usually points to a problem in the oven’s electronic control system, most often a stuck key on the control panel or a failing control board circuit. Start with a power reset; if F1 returns, troubleshooting focuses on the keypad and control.

Quick reset and safety steps

• Turn the range off at the circuit breaker for 1 minute, then restore power.
• If the beeping stops but returns later, note when it happens (during preheat, broil, after self-clean, or at idle).
• If the display is unresponsive or the oven turns on by itself, keep the breaker off until repaired.
• Follow the wiring and access guidance in the 7909611340A owner’s manual.

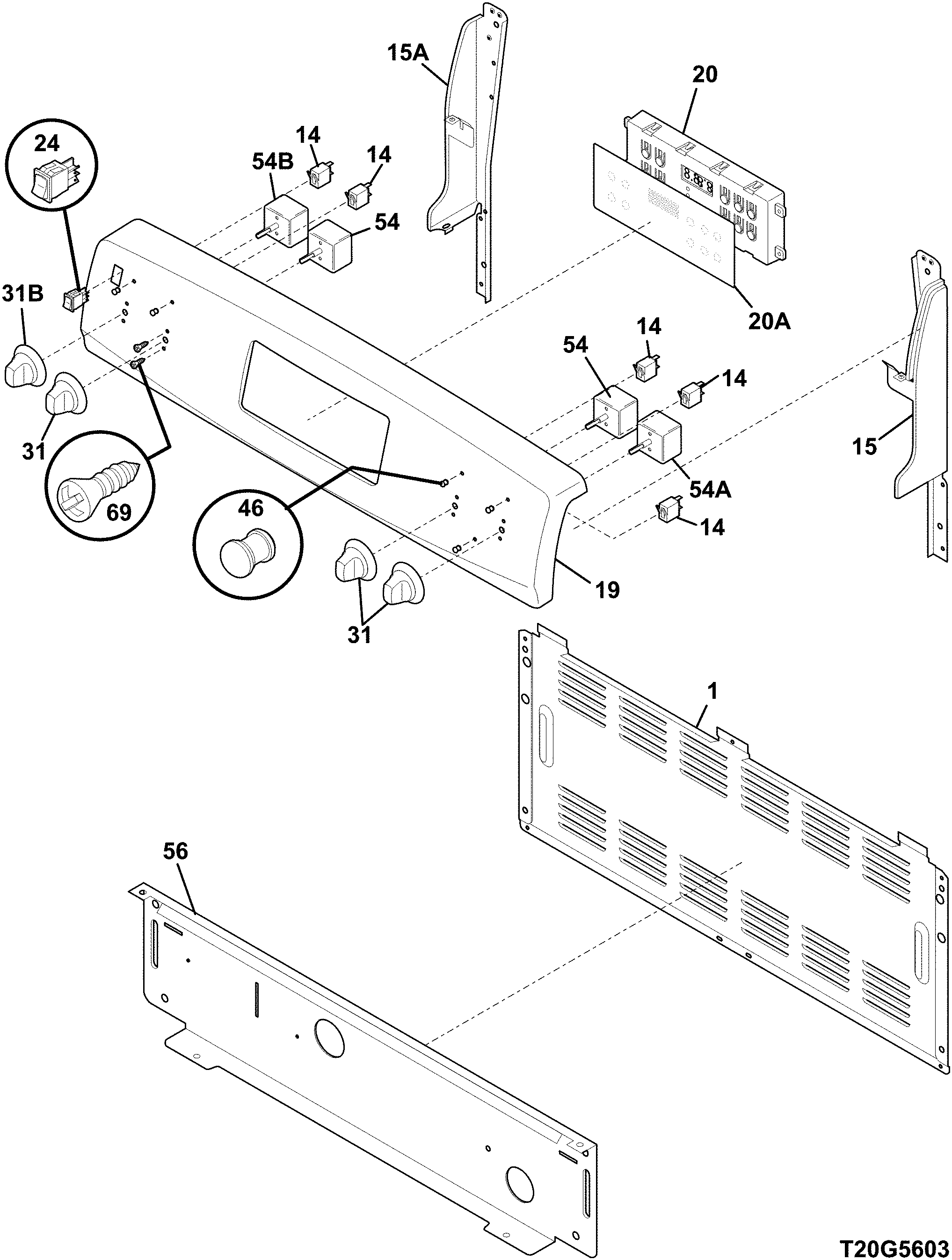

What usually causes the F1 code

Most F1 events come from one of these conditions:

• Stuck or shorted keypad (moisture, cleaner residue, worn membrane)
• Electronic oven control (EOC) fault (internal relay or circuit failure)
• Heat-related stress after high-temperature cooking or self-clean
• Loose connection at the control or ribbon cable (less common)

How to narrow it down (basic checks)

1. Power reset first (breaker off 1 minute).
2. If F1 returns, inspect the control area for moisture or residue; let it dry completely.
3. If you can access the control, reseat the keypad ribbon connector (power off first).
4. If F1 persists, replacement typically involves the control assembly or the touchpad, depending on how your 7909611340A is built.

Symptom guide

What you notice	Most likely cause	What to do next
F1 beeps at idle	Keypad short or EOC fault	Reset; dry; check ribbon; plan control repair
F1 during/after broil	Heat-stressed control	Reset; verify cooling/venting; plan control repair
Random beeping, some keys don’t work	Keypad issue	Dry/clean carefully; plan keypad/control repair

Why it matters

An F1 condition can make the oven unreliable and, in some cases, cause unexpected heating. Addressing it quickly protects the control components and helps prevent repeat shutdowns during cooking.

Last updated: January 2026

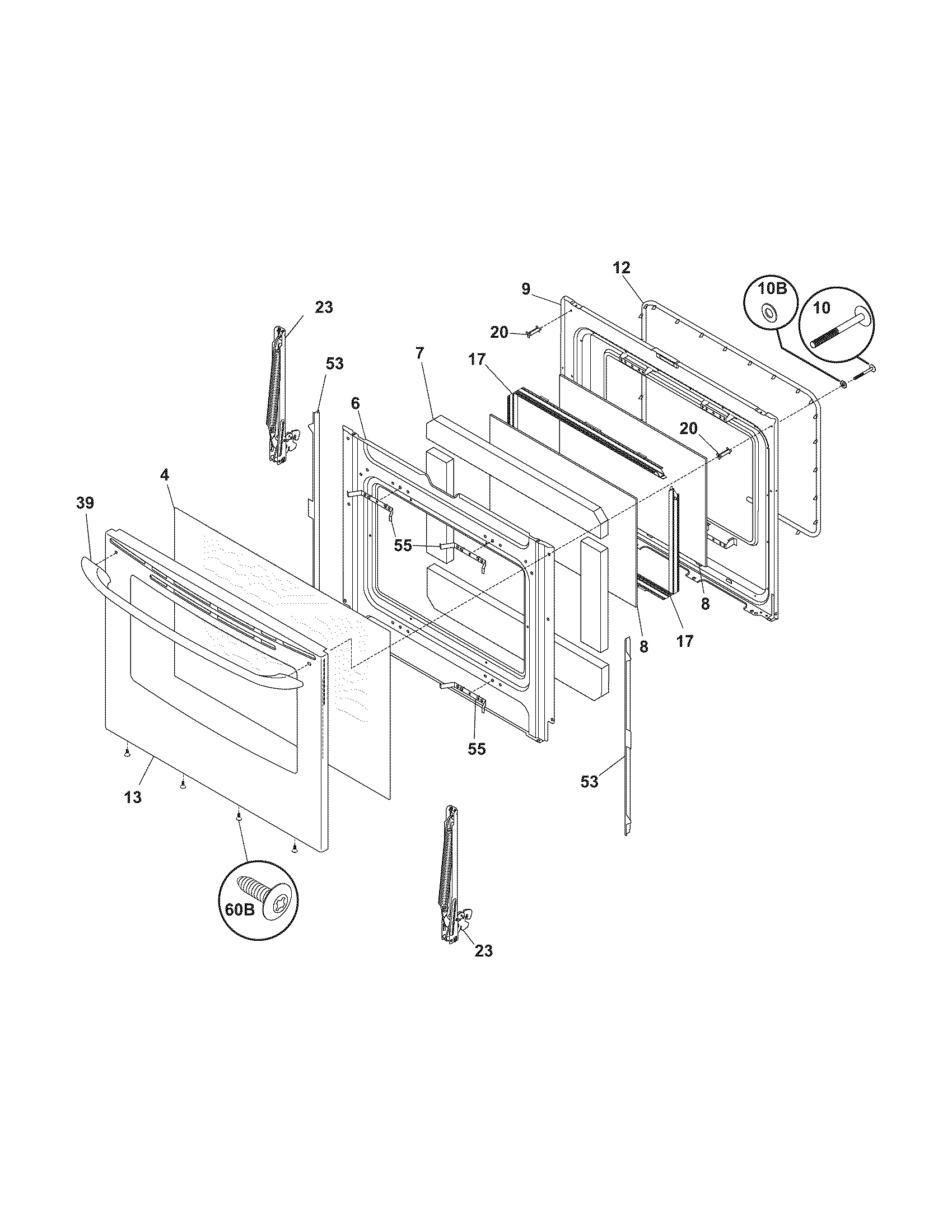

Kenmore model numbers are read left to right: the first 3 digits identify the manufacturer behind the Kenmore brand, the next group identifies the base product series, and the remaining characters show feature or production variations. For your Kenmore electric range model 7909611340A, the 790 prefix is the key identifier.

What each section of a Kenmore model number means

Most Kenmore model numbers follow this pattern:

• Prefix (first 3 digits): manufacturer code (used to match the right parts and diagrams)
• Middle digits: base model or series (helps narrow down the correct design family)
• Suffix (last digits/letters): version details (color, feature package, engineering change)

For example, 7909611340A breaks down like this:

Section	Example	What it tells you
Manufacturer prefix	790	Who built the unit for Kenmore
Base model/series	961134	Core design family
Variation suffix	0A	Revision or feature variation

Why the prefix matters when buying parts

We use the prefix to make sure parts match the correct design platform. On ranges, that affects common repairs such as:

• Surface element heating issues (switches and radiant elements)
• Oven not heating evenly (bake element, broil element)
• Temperature accuracy problems (oven temperature sensor)
• Control panel or indicator light problems

If you are troubleshooting a heating or temperature issue on this model, the 7909611340A owner's manual is the best place to confirm how your controls and features are supposed to operate.

Tips to make sure you have the right model number

Use these quick checks before ordering parts:

• Match the model number exactly, including any letters (example: 7909611340A, not just 7909611340)
• Pull the number from the appliance rating label, not the cooktop glass or control panel
• Write down the full model number and any serial number nearby
• Use the model number when searching diagrams for bake, broil, and surface element sections

Why it matters

A single character difference in a Kenmore model number can point to a different wiring layout, control style, or element type; using the full model number prevents wrong-part returns and repeat repairs.

Last updated: January 2026

To reset your Kenmore electric range model 7909611340A, we recommend doing a power reset: turn the range off, shut off power at the breaker for 1 to 5 minutes, then restore power and set the clock. This clears many control glitches and false error displays.

Quick reset steps (power reset)

• Turn all surface element knobs to OFF.
• If the oven is running, press Cancel/Off on the control panel.
• Switch the range circuit breaker OFF (or unplug the range if it is accessible).
• Wait 1 to 5 minutes.
• Restore power, then set the clock and try the function again.

If you need the exact control-panel sequence for your version of the 7909611340A, use the 7909611340A owner's manual.

If the range still will not reset

A reset helps when the control is “confused”, but it will not fix a failed sensor, stuck relay, or damaged wiring. Check these common causes next:

• Oven temperature sensor issue (can trigger heat or error problems)
• Stuck or failed surface element switch (burner stays on, won’t regulate heat)
• Loose power connection at the terminal block (intermittent power, dead display)
• Control overlay or keypad problem (buttons do not respond)
• Overheating after self-clean (some models need time to cool before normal operation)

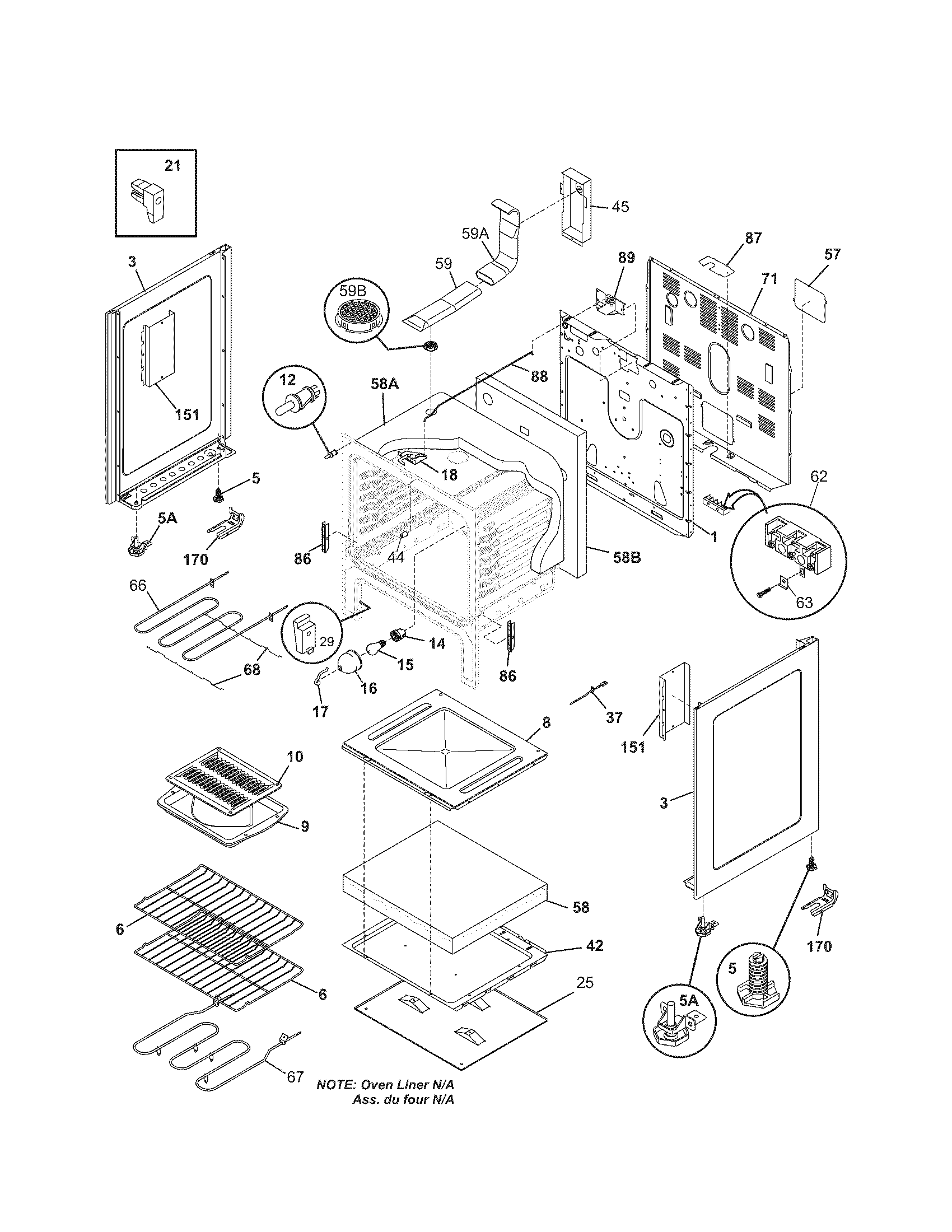

Helpful part examples for this model

Symptom	Common part to check	Example part for 7909611340A
Oven heats wrong or shows temp-related errors	Oven temperature sensor	Frigidaire range oven temperature sensor 316490000
Burner won’t cycle or stays too hot	Surface element control switch	Range surface element control switch 316436001

Why it matters

Resetting restores normal operation after a power flicker or control hiccup, and it is the fastest safe first step before testing components like the oven temperature sensor, surface element switches, or terminal block connections.

Last updated: January 2026

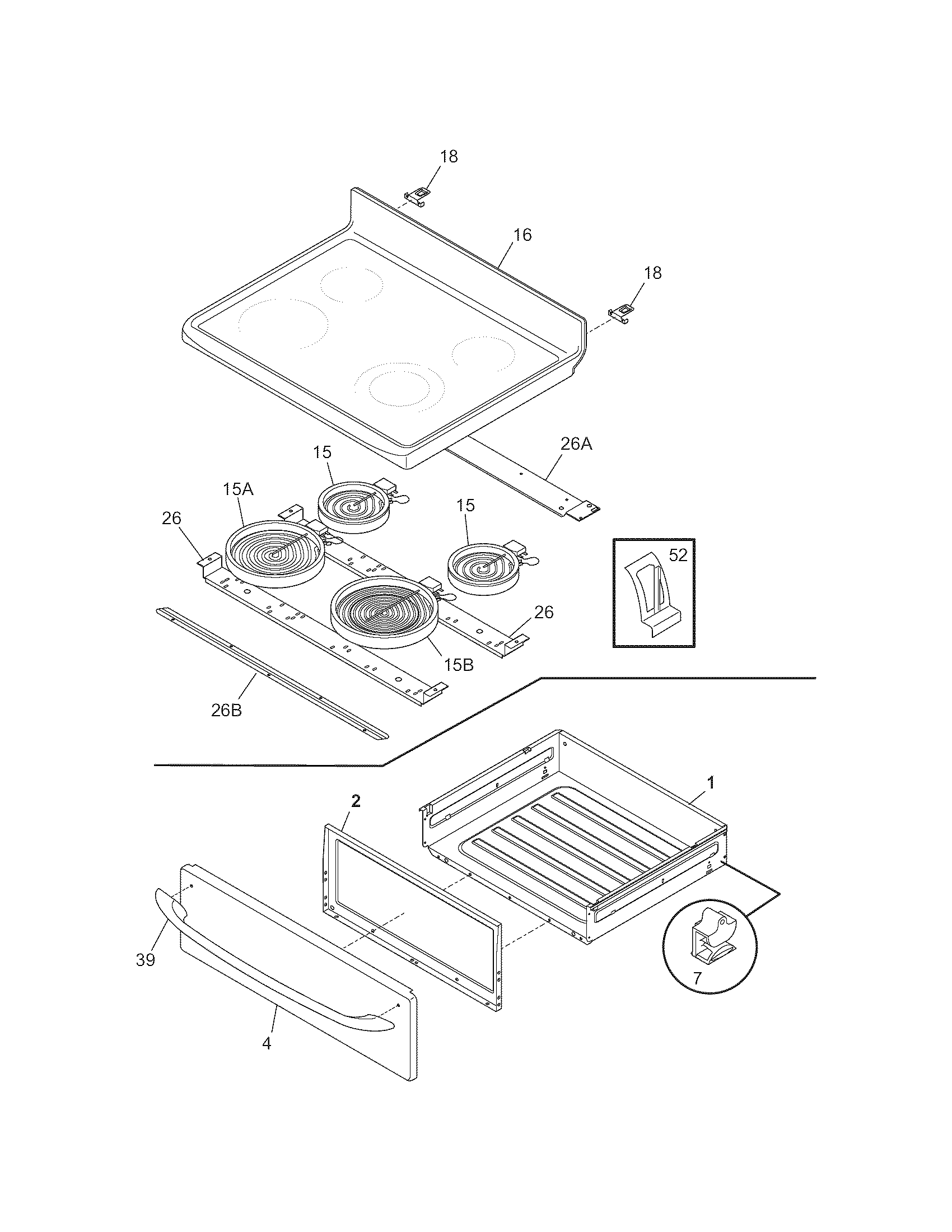

On the Kenmore 7909611340A electric range, the cooktop (main top) typically lifts or is released after you remove the burner elements and any retaining brackets, then raise the front and support it so you can access surface wiring and switches safely. Use the 7909611340A installation guide for the exact lift points and fastener locations.

Before you start (safety and prep)

• Turn off power at the house breaker (240V range circuit), then confirm the cooktop is off.
• Let all radiant elements cool completely.
• Pull the range forward enough to work without straining the power cord.
• Protect the countertop and cooktop edge with a towel to prevent chips and scratches.
• Keep a small container for screws and clips.

Common steps to remove or lift the cooktop

Most Kenmore electric ranges of this design follow this sequence:

• Remove the surface elements (lift out after pulling straight up, depending on style).
• If your model uses element retaining brackets, release them with a large flat screwdriver.
• Open the oven door and look for cooktop hold-down screws along the underside of the front lip.
• Lift the front of the cooktop; then tilt it up and support it (or remove it fully if wiring allows).
• If you need full removal, label wire connections before disconnecting.

What you can access once the top is up

What you are checking	What it usually indicates
Loose or burned wire terminals	Overheating at a connection point
Switch shaft wobble or arcing marks	Failing surface element control
Cracked element support or warped top	Heat damage or impact damage

Parts that commonly relate to cooktop removal

If you are lifting the top to diagnose a burner that will not regulate heat, these model-compatible parts are common suspects:

• Range surface element control switch 316436001 (burner stays on high, will not cycle, or will not turn on)
• Range indicator light 316022500 (surface-on indicator issues)
• Range radiant surface element, 9-in 316135401 (burner not heating or heating unevenly)

Why it matters

Removing the cooktop the right way prevents cracked glass, stripped mounting points, and damaged wiring. It also makes troubleshooting faster because you can inspect the surface element controls, harness connections, and element terminals in one place.
