Model # FTF530ES0 Official Frigidaire washer

Here are the diagrams and repair parts for Official Frigidaire FTF530ES0 washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

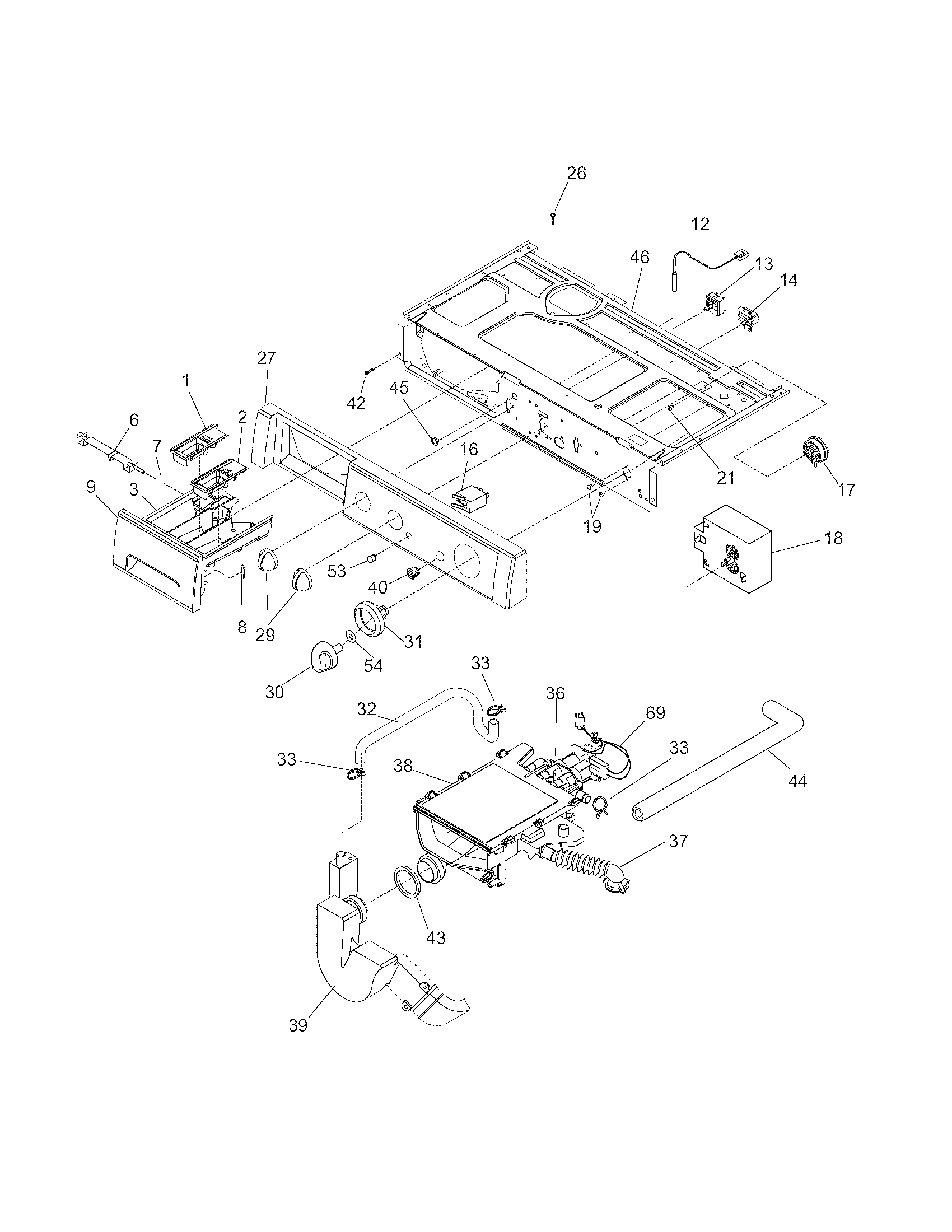

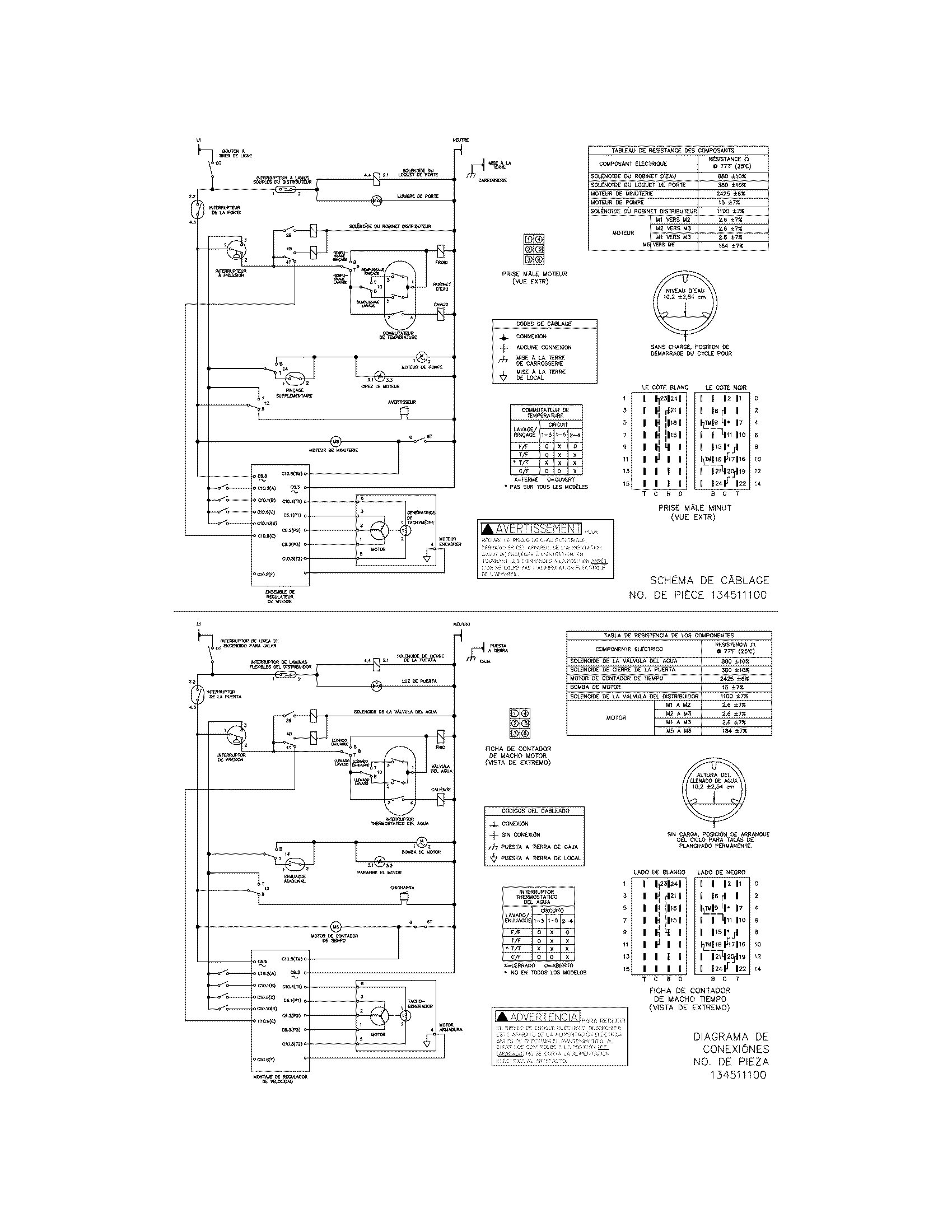

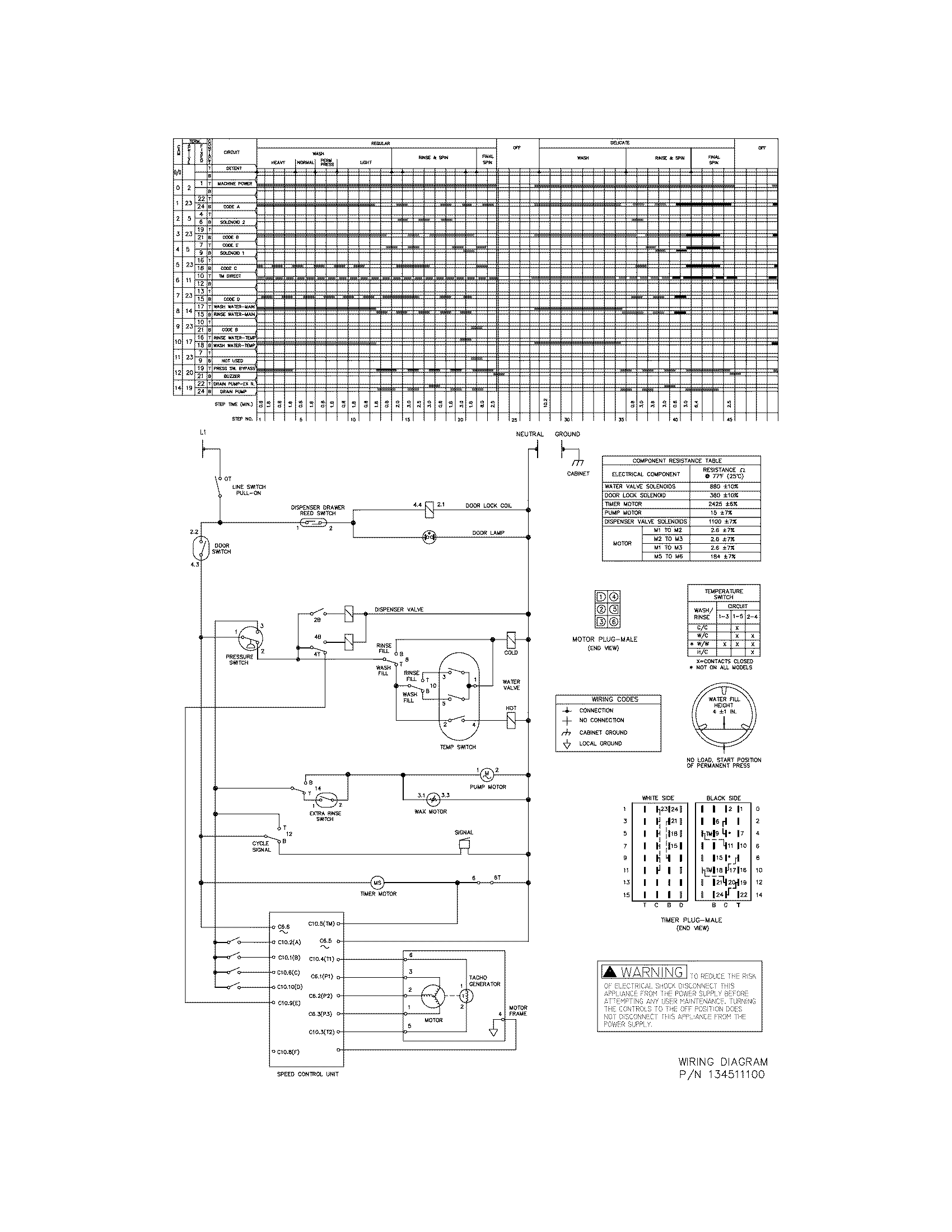

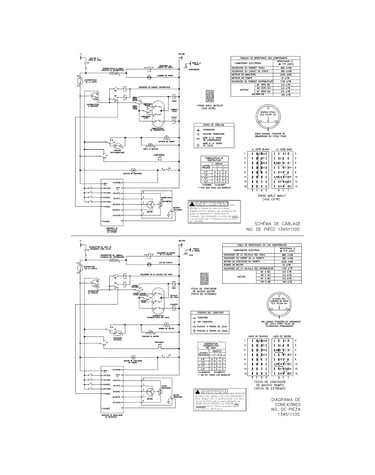

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 114 parts  |

Door Catch 131763200
#8

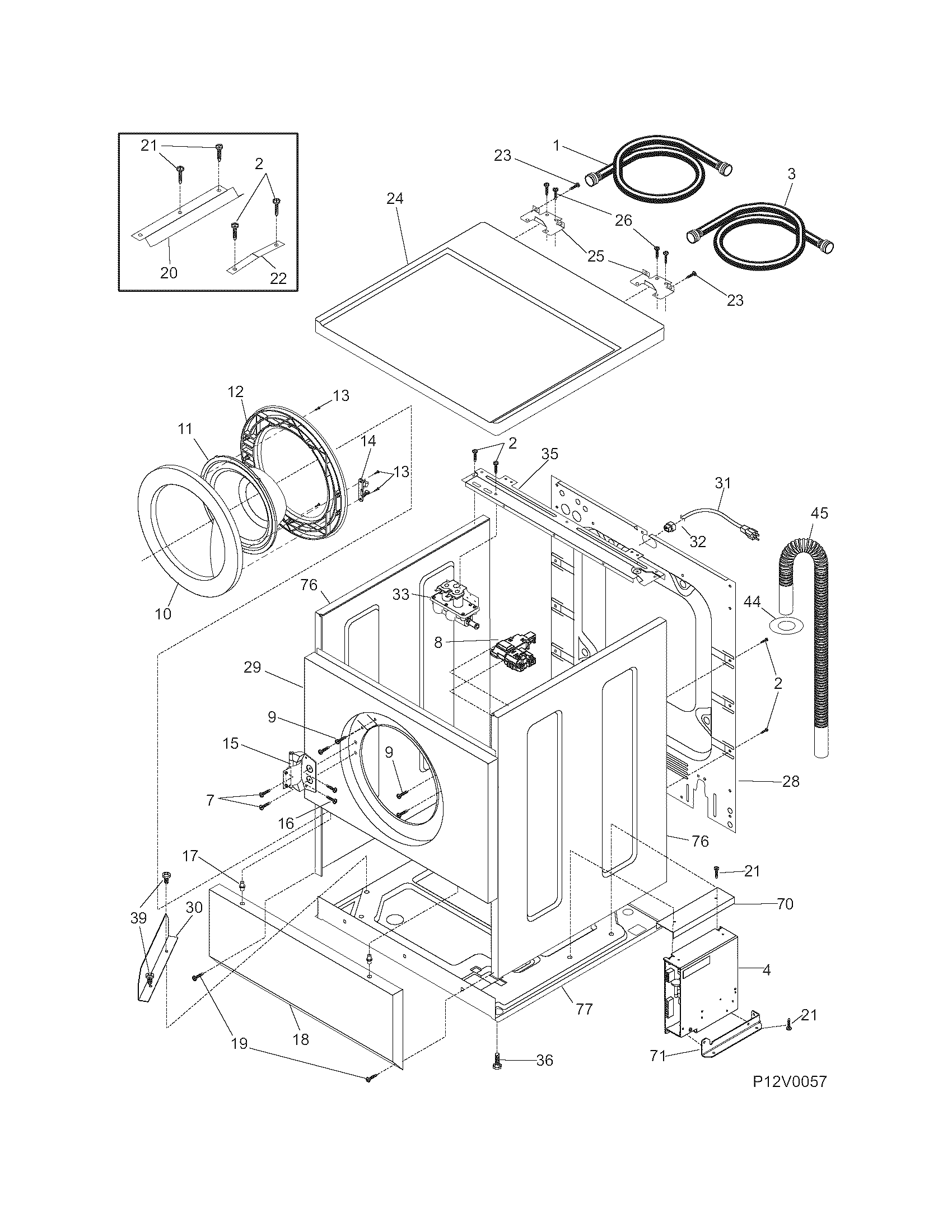

Cabinet/top diagram

Door catch

Part #131763200

Replaced by #131763256

?
Manufacturer substitution
This part replaces 131763200. Substitute parts can look different from the original.
BEST SELLER
$111.79
8% OFF Phone Price : $121.79
In Stock
Washer Door Strike (replaces 134456600) 131763310
#14

Cabinet/top diagram

Washer door strike (replaces 134456600)

Part #131763310

BEST SELLER
$14.08
12% OFF Phone Price : $16.08
In Stock
Level Shock 131268200
#30

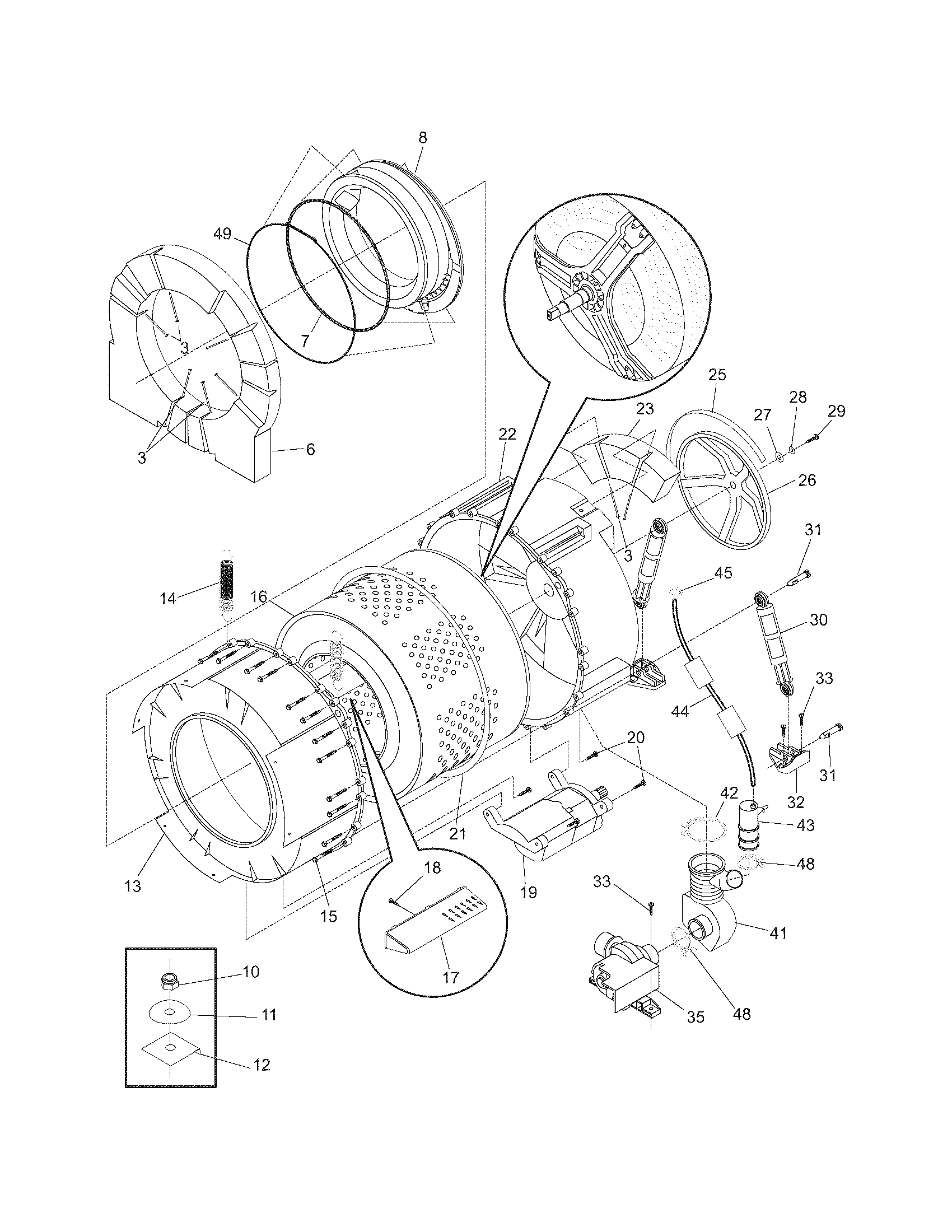

Motor/tub diagram

Level shock

Part #131268200

Replaced by #5304485917

?
Manufacturer substitution
This part replaces 131268200. Substitute parts can look different from the original.
BEST SELLER
$47.87
9% OFF Phone Price : $52.87
In Stock
Laundry Appliance Screw, #8-18 X 31/100-in 131168200
Laundry appliance screw, #8-18 x 31/100-in

Part #131168200

BEST SELLER
$10.87
36% OFF MSRP : $17.00
In Stock
Washer Drain Pump 134051100
#35

Motor/tub diagram

Washer drain pump

Part #134051100

Replaced by #137108000

?
Manufacturer substitution
This part replaces 134051100. Substitute parts can look different from the original.
BEST SELLER
$139.29
7% OFF Phone Price : $149.29
In Stock
Washer Shock Absorber Mounting Pin (replaces 7131268300) 131268300
#31

Motor/tub diagram

Washer shock absorber mounting pin (replaces 7131268300)

Part #131268300

BEST SELLER
$17.99
10% OFF Phone Price : $19.99
In Stock
Washer Drain Hose 134049200
#45

Cabinet/top diagram

Washer drain hose

Part #134049200

Replaced by #134592700

?
Manufacturer substitution
This part replaces 134049200. Substitute parts can look different from the original.
BEST SELLER
$60.00
8% OFF Phone Price : $65.00
In Stock
Bellows-doga 134177600
#8

Motor/tub diagram

Bellows-doga

Part #134177600

Replaced by #5303937187

?
Manufacturer substitution
This part replaces 134177600. Substitute parts can look different from the original.
BEST SELLER
$107.83
8% OFF Phone Price : $117.83
In Stock
Washer Baffle Screw (replaces 131258400, 131303300, 3205239, 3205406, 7131302800, 713130300) 131302800
Washer baffle screw (replaces 131258400, 131303300, 3205239, 3205406, 7131302800, 713130300)

Part #131302800

$14.09
12% OFF Phone Price : $16.09
In Stock
Siphon Screw 131303300
#9

Cabinet/top diagram

Siphon screw

Part #131303300

Replaced by #131302800

?
Manufacturer substitution
This part replaces 131303300. Substitute parts can look different from the original.
$14.09
12% OFF Phone Price : $16.09
In Stock
