KitchenAid 4KHWS160AL8 water dispenser Parts
Here are the diagrams and repair parts for KitchenAid 4KHWS160AL8 water dispenser, as well as links to manuals and error code tables, if available.
By Schematic
By Part
SELECT DIAGRAM
Browse Parts for 4KHWS160AL8 Water Dispenser

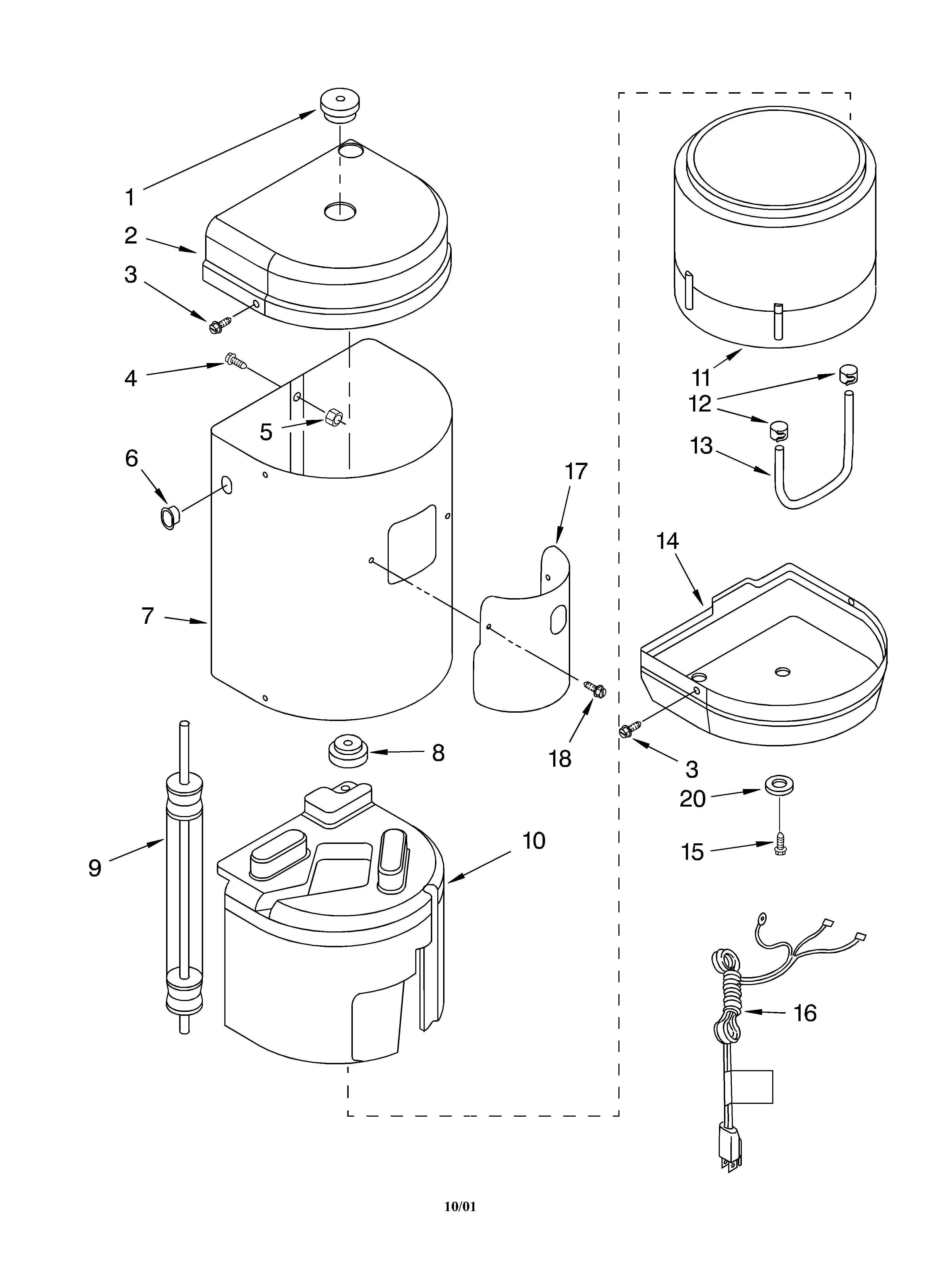

Outer cover and insulation/literature diagram
Insulation
In Stock$32.66
Qty

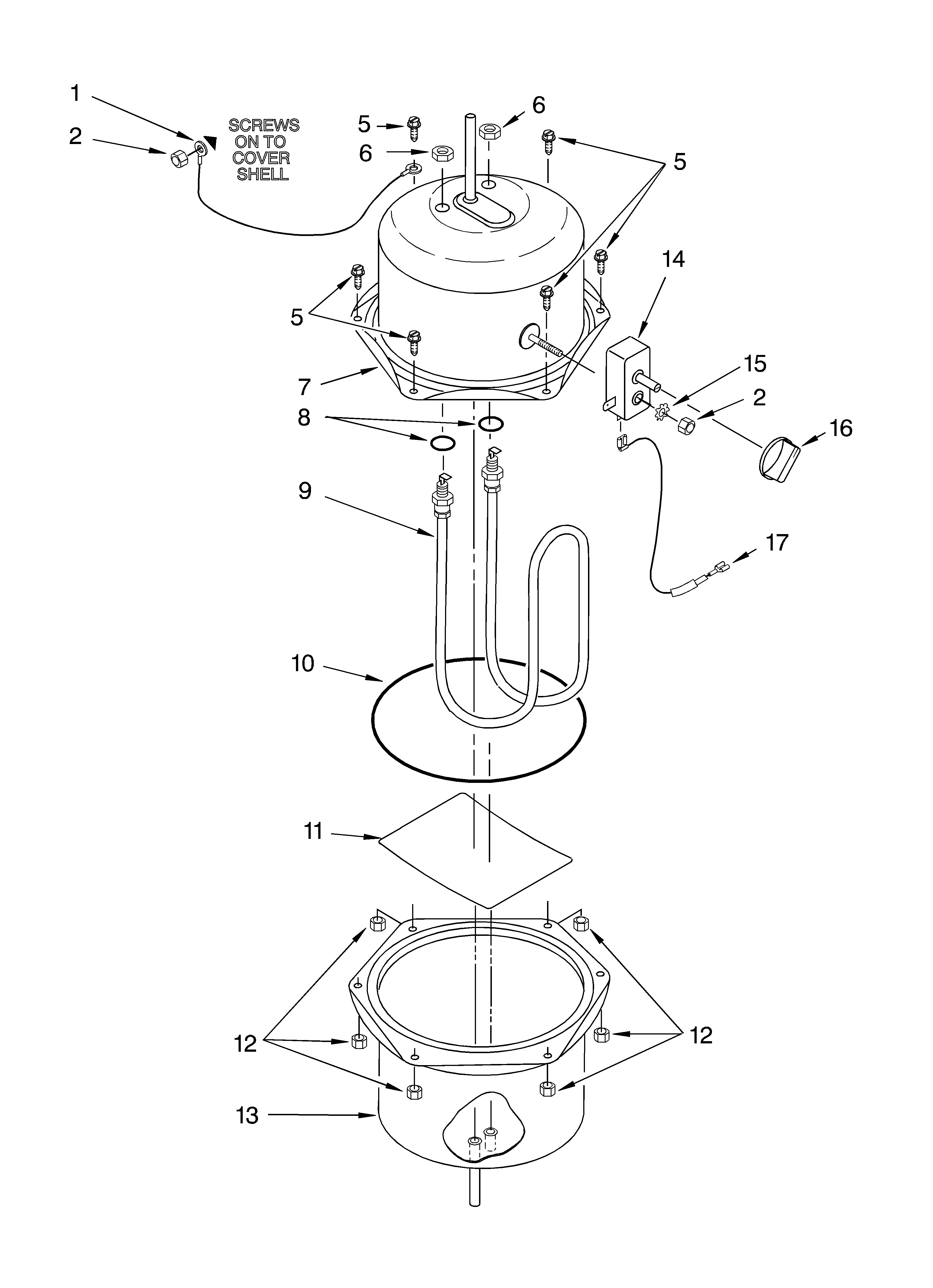

Upper and lower tank shell diagram
Lock Washer
In Stock$37.03QtyOuter cover and insulation/literature diagram
Screw
Part #311932Replaced by #WP313808
Manufacturer substitutionThis part replaces 311932. Substitute parts can look different from the original.This item is not returnableIn Stock$5.2116% OFF Phone Price : $6.21

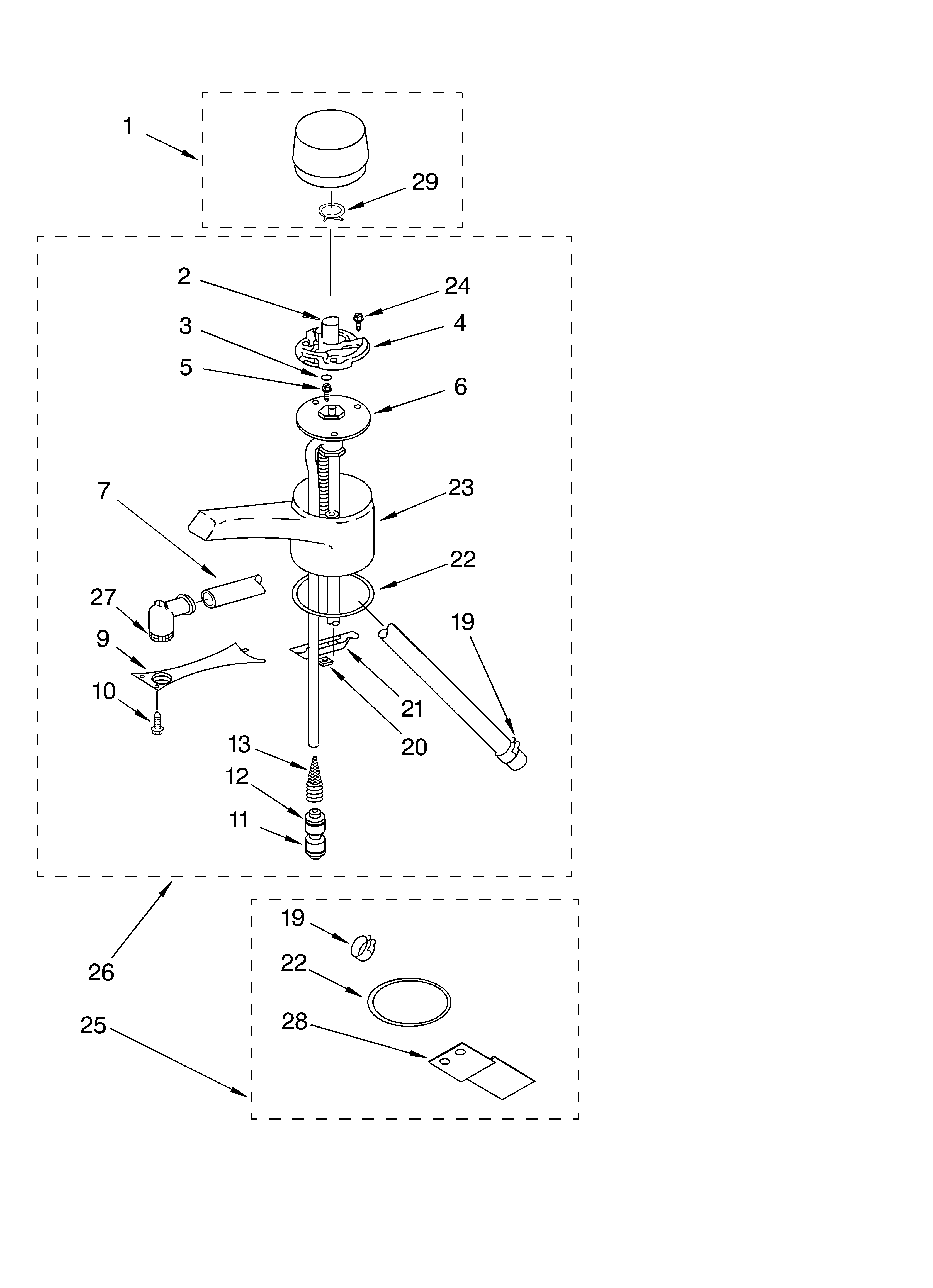

QtySpout unit diagram
Union-watr
Part #3191383Replaced by #WP2198677
Manufacturer substitutionThis part replaces 3191383. Substitute parts can look different from the original.In Stock$21.4022% OFF Phone Price : $27.40QtyUpper and lower tank shell diagram
Thermostat
Part #3191423
The manufacturer no longer makes this part, and there's no substitute part
Spout unit diagram
Valve-mech
Part #3192899
The manufacturer no longer makes this part, and there's no substitute part
Spout unit diagram
Body Spout
Part #3193336
The manufacturer no longer makes this part, and there's no substitute part
Outer cover and insulation/literature diagram
Power Cord
Part #3192352
The manufacturer no longer makes this part, and there's no substitute part
Outer cover and insulation/literature diagram
Tubing
Part #3191437
The manufacturer no longer makes this part, and there's no substitute part
Upper and lower tank shell diagram
(see Note) Bracket - Switch Mounting
Part #N/P
The manufacturer no longer makes this part, and there's no substitute part
