GE GDF520PGJ5WW dishwasher Parts

A GE dishwasher typically lasts 10 to 12 years with normal household use. For your GE GDF520PGJ5WW, consistent cleaning, correct loading, and fixing small leaks or draining issues early are the biggest factors that help you reach (or beat) that average; see the GDF520PGJ5WW owner's manual for care and cleaning routines.

What affects lifespan the most

• Water quality: hard water speeds up mineral buildup on spray arms and the heating system.
• Cleaning and maintenance: regular interior cleaning helps prevent odors and performance loss.
• Loading habits: overloading blocks spray patterns and strains the circulation system.
• Drying heat use: heavy heated drying can add wear to heating components over time.
• Early repairs: replacing a worn seal or pump early prevents bigger damage.

Quick maintenance plan (high impact, low effort)

Use this as a simple schedule for the GDF520PGJ5WW:

When	What to do	What it prevents
Weekly	Check for debris around the sump area and bottom of the tub	Poor cleaning, drain issues
Monthly	Run a cleaner (citric acid or dishwasher cleaner)	Odors, hard-water film
Every 3 to 6 months	Inspect door sealing surfaces and wipe them clean	Leaks, moisture damage
As needed	Clear spray arm holes if you see clogging	Spots, gritty residue

Parts that commonly limit dishwasher life

These are the components we most often see tied to “not cleaning,” “not drying,” or “won’t drain” complaints:

• Heating system: if drying gets weak, the dishwasher heating element WD05X30818 is a common suspect.

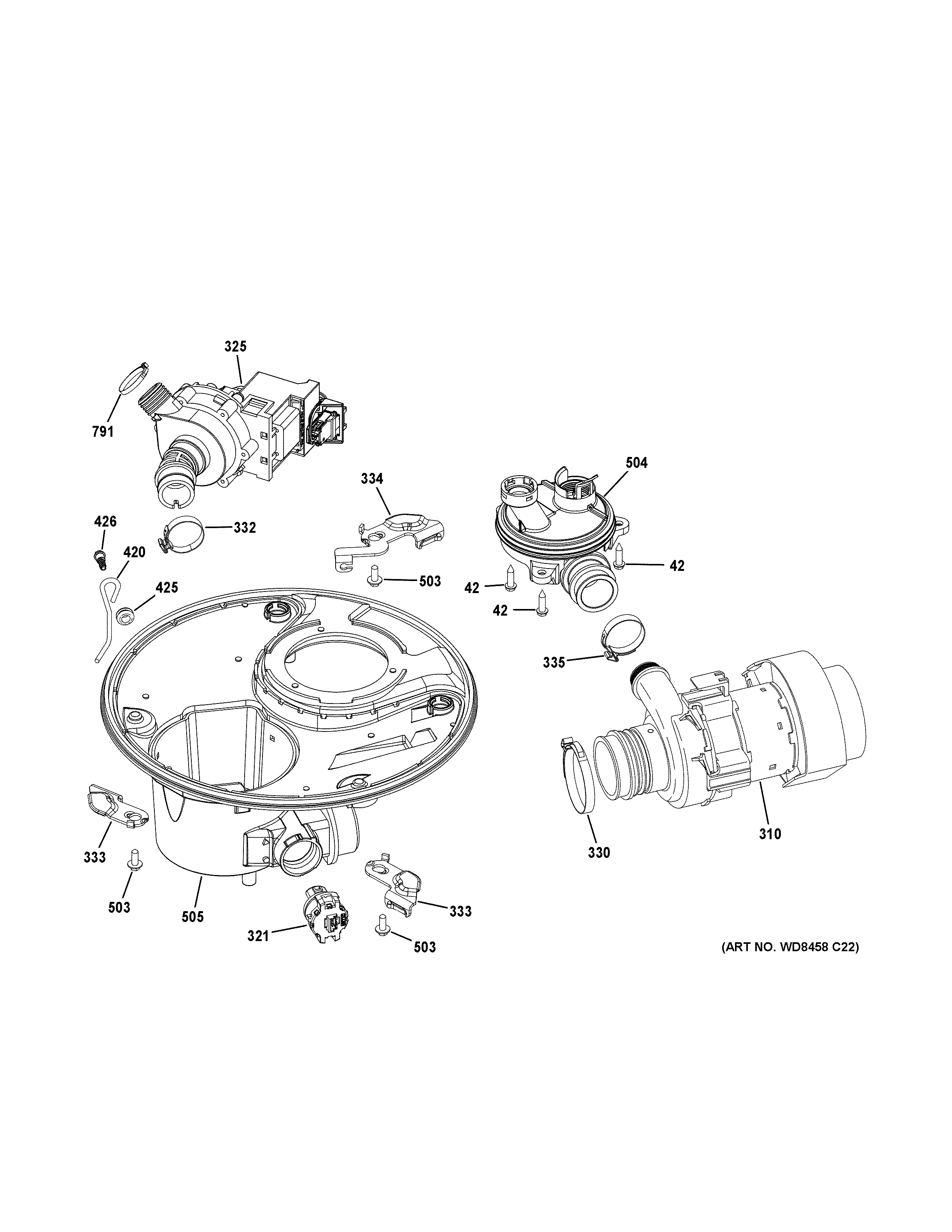

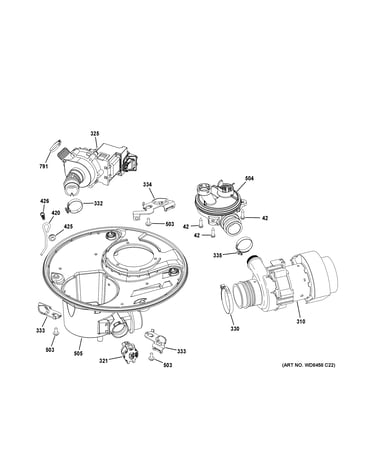

• Wash circulation: weak spray pressure can point to the circulation pump.
• Drain system: slow draining can involve the drain hose or drain pump.
• Door sealing: leaks can start with a worn tub gasket.

Why it matters

A dishwasher that is cleaned regularly and kept leak-free usually runs quieter, cleans better, and avoids the kind of water damage or pump strain that shortens service life. Good maintenance is often the difference between replacing a dishwasher at 8 years versus getting 12 years or more.

Last updated: February 2026

The most common problems we see on GE dishwashers like model GDF520PGJ5WW are not draining, not starting, and poor cleaning. These usually trace back to a clogged drain path, a door-latch/controls issue, or restricted spray action from debris and loading.

Most common issues (and what to check first)

• Not draining: check the sump area for debris, confirm the drain hose is not kinked, and verify the sink/disposer connection is clear.
• Won’t start or stops mid-cycle: confirm the breaker is on, any wall switch feeding the dishwasher is on, and the control panel is not locked.
• Poor cleaning: make sure dishes are not blocking the detergent cup or spray arms; use automatic dishwasher detergent only.
• Suds/foam in the tub: caused by wrong detergent or rinse aid spills; suds reduce wash performance.
• Leaks at the door: inspect the tub gasket for tears, flattening, or gaps.

Quick troubleshooting steps for GDF520PGJ5WW

1. Power reset: turn off the breaker for 1 minute, then restore power.
2. Confirm proper detergent: use only automatic dishwasher detergent; never use hand dish soap.
3. Check loading: keep tall utensils from blocking the detergent dispenser and keep spray arms free to rotate.
4. Inspect for standing water: if present, check the drain hose routing and for clogs.
5. Clean and deodorize: run a cleaner cycle periodically to reduce mineral film and odors.

Parts that commonly relate to these symptoms

Symptom	Common area	Example part for this model
Won’t start / won’t latch	Door latch system	GE dishwasher door latch lock WD21X10490
Not draining	Drain path / pump	Dishwasher drain hose WD24X10062
Leaking at door	Door seal	Dishwasher tub gasket WD08X23476

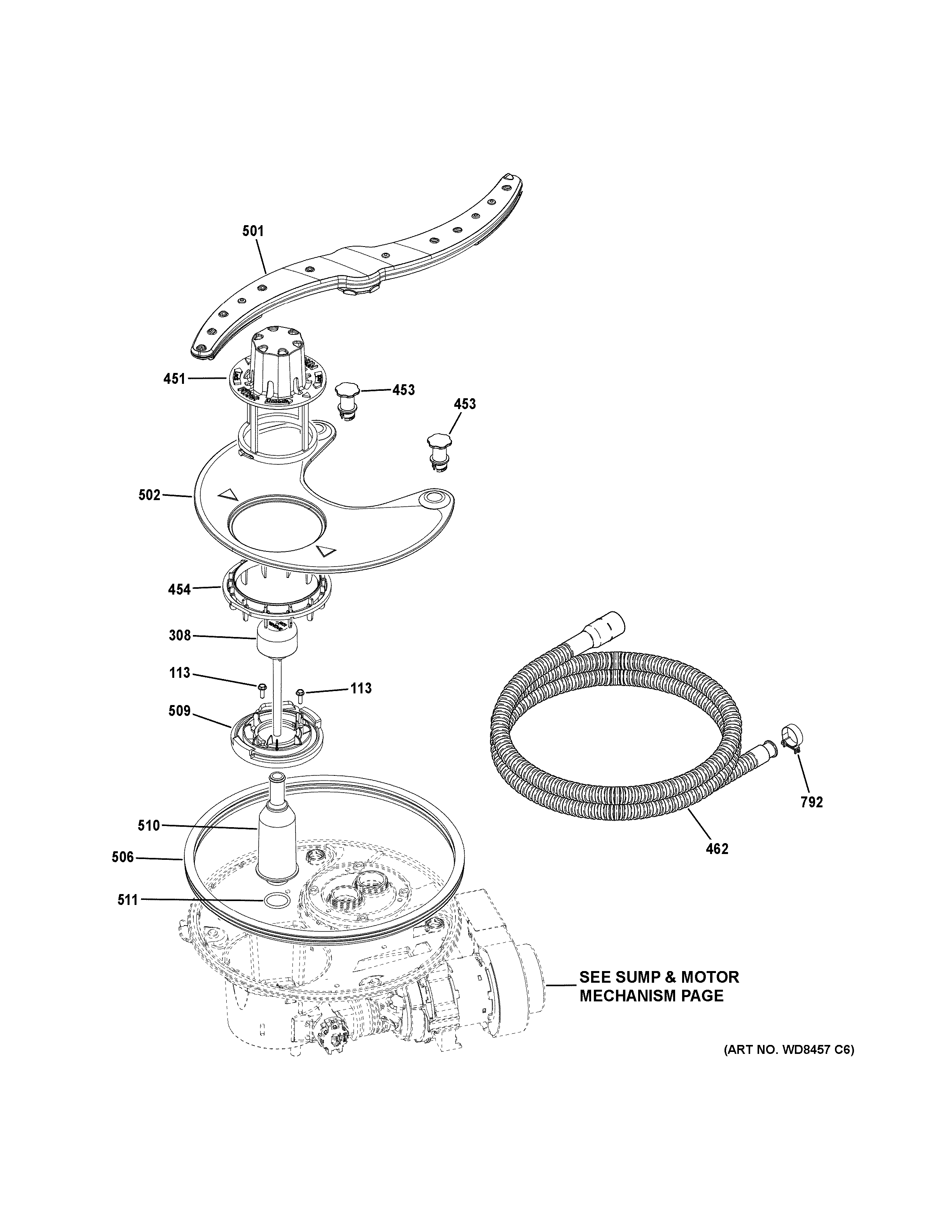

Poor cleaning	Spray system	Dishwasher spray arm, lower WD22X33499

Why it matters

Drain, latch, and spray issues can make the dishwasher appear “dead,” leave dirty dishes, or cause water to back up. Catching a clog, loading problem, or worn seal early helps prevent repeat cycle failures and water damage.

For model-specific operating tips (detergent use, control lock behavior, and cleaning guidance), follow the GDF520PGJ5WW owner’s manual. You can also match flashing lights or fault behavior using GE electronic dishwasher error codes.

Last updated: February 2026

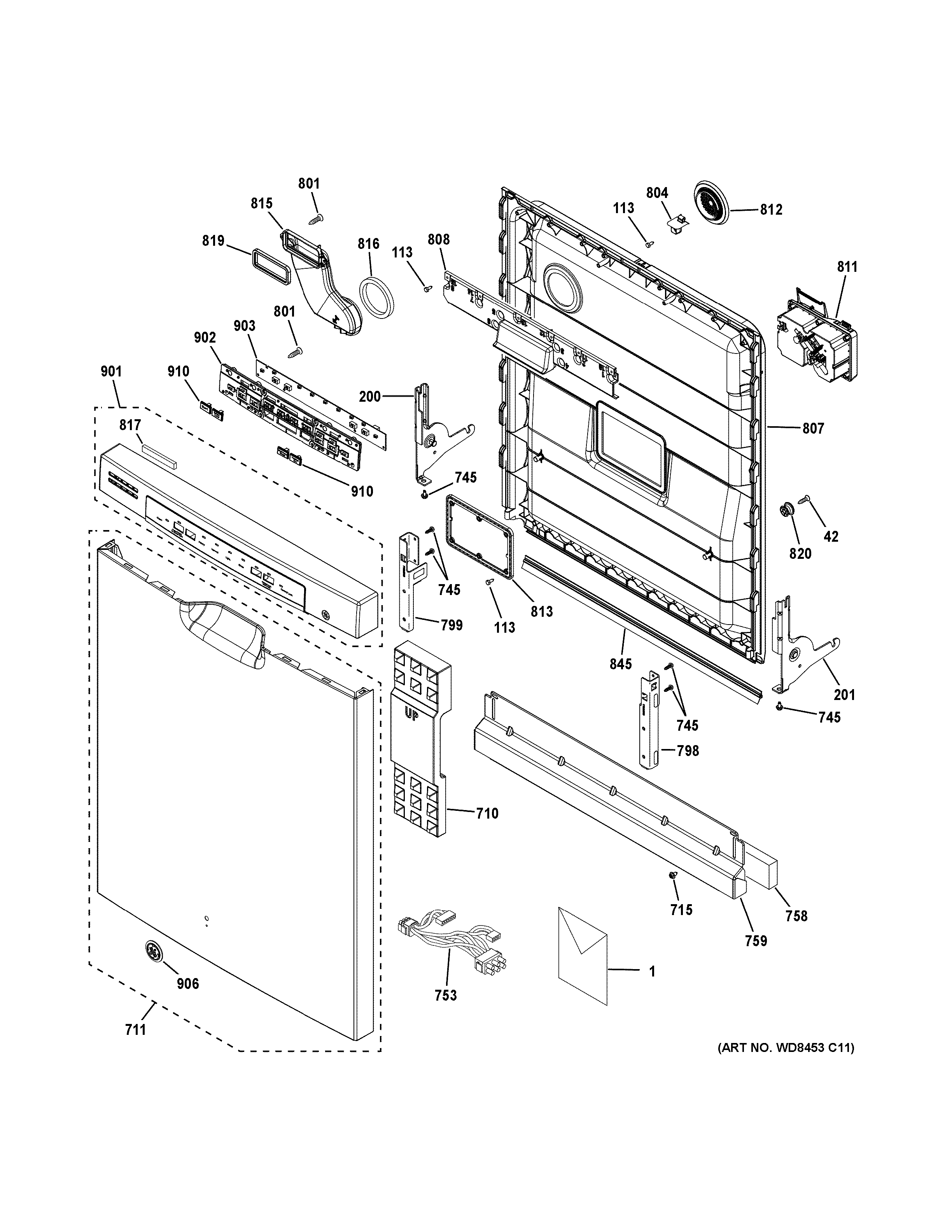

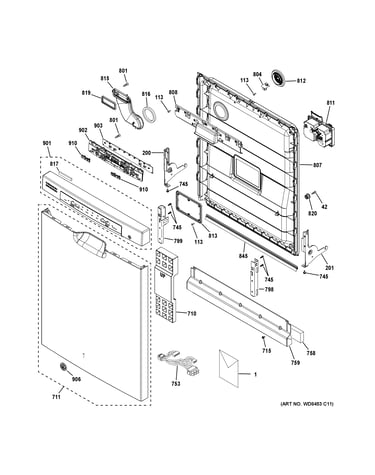

To remove the control panel on a GE dishwasher like model GDF520PGJ5WW, we typically open the door, remove the inner-door fasteners, then release the control housing tabs so the user interface can lift away. Use care so you do not crack the console or pinch wiring; follow the GDF520PGJ5WW installation guide.

Before you start (safety and prep)

• Turn off power at the breaker (dishwashers can be hardwired).
• Turn off the water supply if you plan to pull the dishwasher out.
• Protect the door and console with a towel to prevent scratches.
• Use the right driver (commonly a Torx or Phillips, depending on the screw).
• Keep screws grouped by location so reassembly is straightforward.

Control panel removal steps (typical GE built-in dishwasher)

1. Open the door and support it so it stays fully open.
2. Remove the inner door screws around the perimeter (leave the hinge-area screws for last if present).
3. Separate the inner door liner from the outer door panel just enough to access the console area.
4. Release the console tabs (a small pick can help) and lift the control panel/control housing away.
5. Disconnect wiring only after noting positions; take a quick photo for reference.

What you may be removing (common parts)

Part you touch	What it does	When it’s involved
User interface	Buttons/LEDs for cycle selection	Dead keys, flashing lights
Control board	Runs cycles and loads	No-start, random stopping
Door latch/strike	Confirms door is closed	Won’t start, beeps, won’t latch

When a part is likely the real issue

If the panel is coming off because the dishwasher will not respond, these are common suspects on this model:

• Dishwasher user interface WD21X31899 (unresponsive buttons, no selections)
• Dishwasher electronic control board WD21X24901C (no operation, erratic behavior)
• GE dishwasher door latch lock WD21X10490 or dishwasher door latch strike WD13X10071 (won’t start because door is not sensed closed)

Why it matters

The control panel area also routes wiring and latching components; forcing the console can break plastic tabs or create a loose connection that causes intermittent power or cycle-start problems.

Last updated: February 2026

On the GE GDF520PGJ5WW dishwasher, a bottom leak is usually caused by door sealing issues (door rubbing cabinets, misalignment, or a latch that is not pulling the door tight) or by oversudsing from the wrong detergent. Start by checking door alignment and doing a quick leak check under and around the door.

Quick checks we recommend first

• Confirm the door fully latches and feels snug when closed.
• Look for the door rubbing or hitting adjacent cabinets; repositioning the dishwasher can stop door-edge leaks.
• Inspect the tub opening for food debris that can keep the seal from seating.
• Check for suds in the tub; use only automatic dishwasher detergent (hand soap causes leaks and foam overflow).
• Run a short cycle and watch where the first drip appears: door edge, toe-kick area, or underneath.

Most common causes and what to do

Where you see water	Most likely cause	What to do next
Along the bottom of the door	Door not aligned, door rubbing cabinet, or latch not pulling tight	Level and align the dishwasher; verify the latch closes firmly
Under the center/front (behind toe panel)	Drain or fill connection seepage	Check hose clamps and fittings; tighten as needed
Suds or foam pushing out	Wrong detergent or rinse aid spill	Switch to automatic dishwasher detergent; wipe up rinse aid spills

Parts that commonly relate to bottom leaks

If the door is closing but not sealing consistently, the latch system is a common next suspect.

• GE dishwasher door latch lock WD21X10490: if the latch is weak or not engaging fully, the door can relax during the wash.

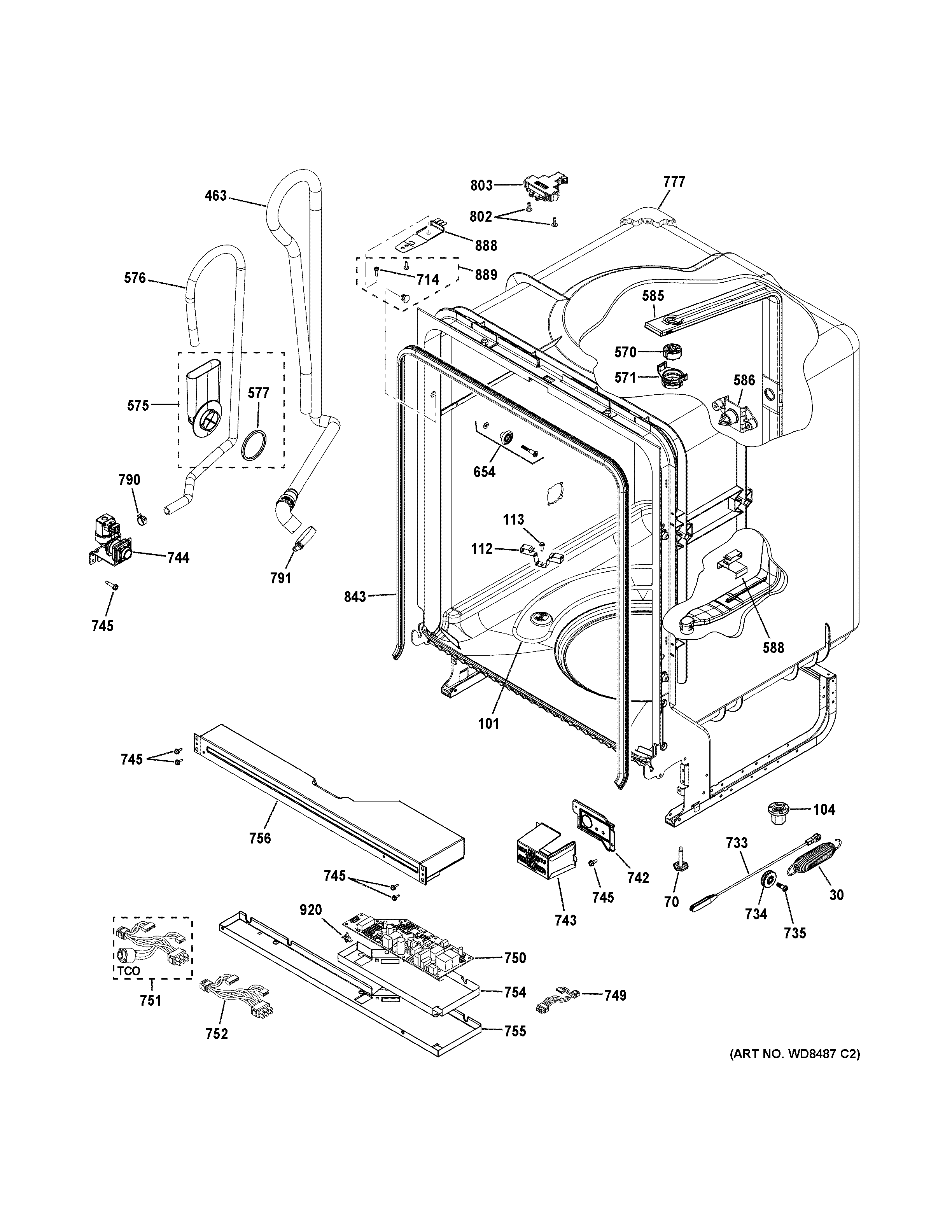

• Dishwasher tub gasket WD08X23476: if the gasket is torn, warped, or packed with debris, water can escape at the door edge.
• Dishwasher drain hose WD24X10062: if the leak is underneath, check the drain hose routing and connections.

Why it matters

A small leak at the bottom can quickly damage flooring and cabinets, and it can also trigger intermittent wash problems if the door is not staying tightly sealed.

What to check in the documentation

Use the installation guide steps for door alignment, leveling, and the wet test procedure (including checking for leaks under the dishwasher and around the door).

Last updated: February 2026
