Model # YMHWE201YW00 Official Maytag washer

Here are the diagrams and repair parts for Official Maytag YMHWE201YW00 washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

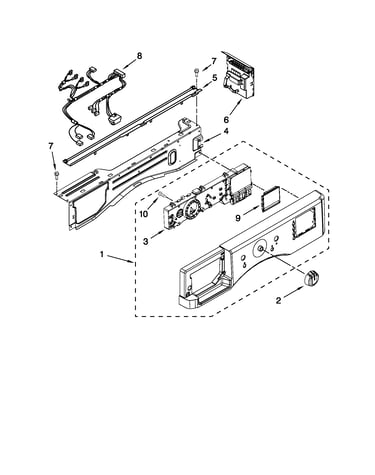

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 133 parts  |
Affresh Washer Cleaner, 3-pack (replaces 18001080, 77109, W10135699a) W10135699
#NI

Optional parts (not included) diagram

Affresh washer cleaner, 3-pack (replaces 18001080, 77109, w10135699a)

Part #W10135699

BEST SELLER

Get free shipping with Automatic Reorder

$12.27 |
44% OFF MSRP : $22.00
In Stock
Washer Drain Pump Assembly W10130913
#9

Pump and motor parts diagram

Washer drain pump assembly

Part #W10130913

Replaced by #WPW10730972

?
Manufacturer substitution
This part replaces W10130913. Substitute parts can look different from the original.
BEST SELLER
$117.37 |
22% OFF MSRP : $150.00
In Stock
Clamp 370450
#3

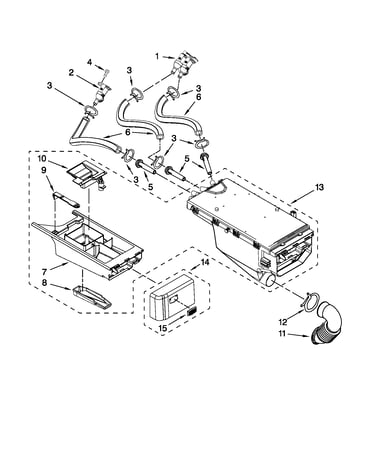

Dispenser parts diagram

Clamp

Part #370450

Replaced by #WP596669

?
Manufacturer substitution
This part replaces 370450. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.37 |
69% OFF MSRP : $14.00
In Stock
Appliance Touch-up Paint, 0.6-oz (white) (replaces 21020, 72017r, 8006, W10813125, Y058028) 72017
#NI

Optional parts (not included) diagram

Appliance touch-up paint, 0.6-oz (white) (replaces 21020, 72017r, 8006, w10813125, y058028)

Part #72017

BEST SELLER
$8.29 |
11% OFF Phone Price : $9.29
In Stock
Washer Door Lock W10253483
#3

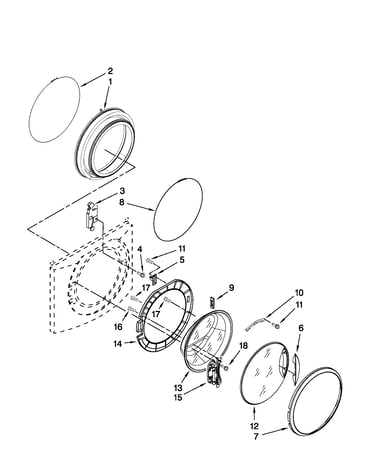

Door and latch parts diagram

Washer door lock

Part #W10253483

Replaced by #WPW10253483

?
Manufacturer substitution
This part replaces W10253483. Substitute parts can look different from the original.
BEST SELLER
$118.16 |
30% OFF MSRP : $170.00
In Stock
Clamp W10245724
#8

Pump and motor parts diagram

Clamp

Part #W10245724

Replaced by #WP285655

?
Manufacturer substitution
This part replaces W10245724. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.49 |
59% OFF MSRP : $16.00
In Stock
Hose Clamp 356138
#17

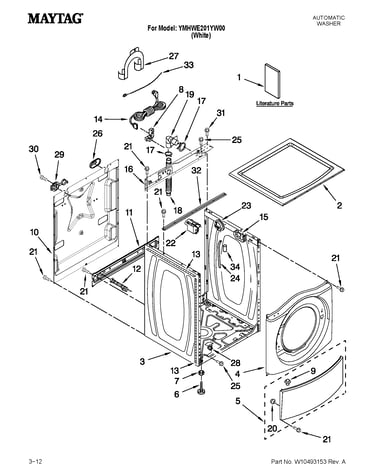

Top and cabinet parts diagram

Hose clamp

Part #356138

The manufacturer no longer makes this part, and there's no substitute part

Sensor-ntc W10176659
#23

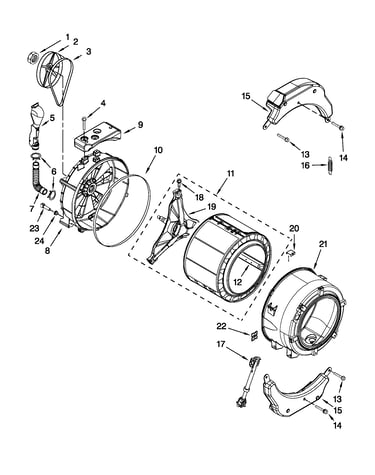

Tub and basket parts diagram

Sensor-ntc

Part #W10176659

Replaced by #WPW10467289

?
Manufacturer substitution
This part replaces W10176659. Substitute parts can look different from the original.
BEST SELLER
$28.62 |
28% OFF MSRP : $40.00
In Stock
Washer Outer Tub Gasket 8540090
#10

Tub and basket parts diagram

Washer outer tub gasket

Part #8540090

Replaced by #WPW10111158

?
Manufacturer substitution
This part replaces 8540090. Substitute parts can look different from the original.
BEST SELLER
$28.55 |
30% OFF MSRP : $41.00
In Stock
Washer Tub-to-pump Hose 8540012
#6

Pump and motor parts diagram

Washer tub-to-pump hose

Part #8540012

Replaced by #W11366249

?
Manufacturer substitution
This part replaces 8540012. Substitute parts can look different from the original.
BEST SELLER
$23.95 |
17% OFF Phone Price : $28.95
In Stock
