GE GTWN4250M0WS washer

GE GTWN4250M0WS washer Parts

Here are the diagrams and repair parts for GE GTWN4250M0WS washer, as well as links to manuals and error code tables, if available.

By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for GTWN4250M0WS Washer

  • Washer Hub Nut for GE GTWN4250M0WS - Part WH2X1193

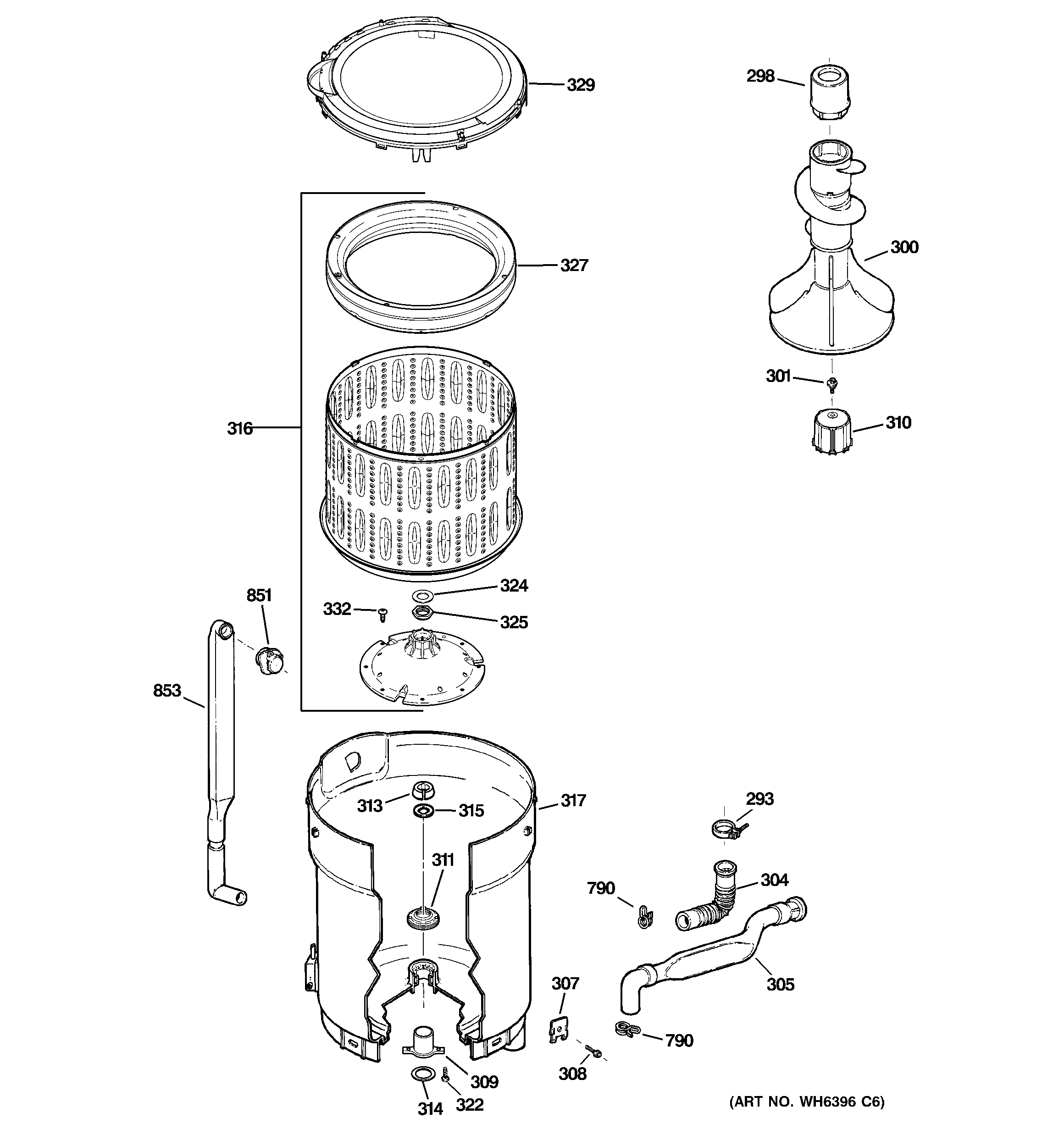

    Tub, basket & agitator diagram

    Hub Nut

    Part #WH02X1193

    Replaced by #WH2X1193

    Info Icon
    Manufacturer substitution
    This part replaces WH02X1193. Substitute parts can look different from the original.
    In Stock
    $16.39
    11% OFF Phone Price : $18.39Info Icon
    Minus Item
    Qty
    Plus Item
  • Washer Tub Seal Assembly for GE GTWN4250M0WS - Part WH02X10383

    Tub, basket & agitator diagram

    Washer Tub Seal

    Part #WH02X10032

    Replaced by #WH02X10383

    Info Icon
    Manufacturer substitution
    This part replaces WH02X10032. Substitute parts can look different from the original.
    In Stock
    $12.23
    14% OFF Phone Price : $14.23Info Icon
    Minus Item
    Qty
    Plus Item
  • Washer Lid Switch Assembly for GE GTWN4250M0WS - Part WH12X10334

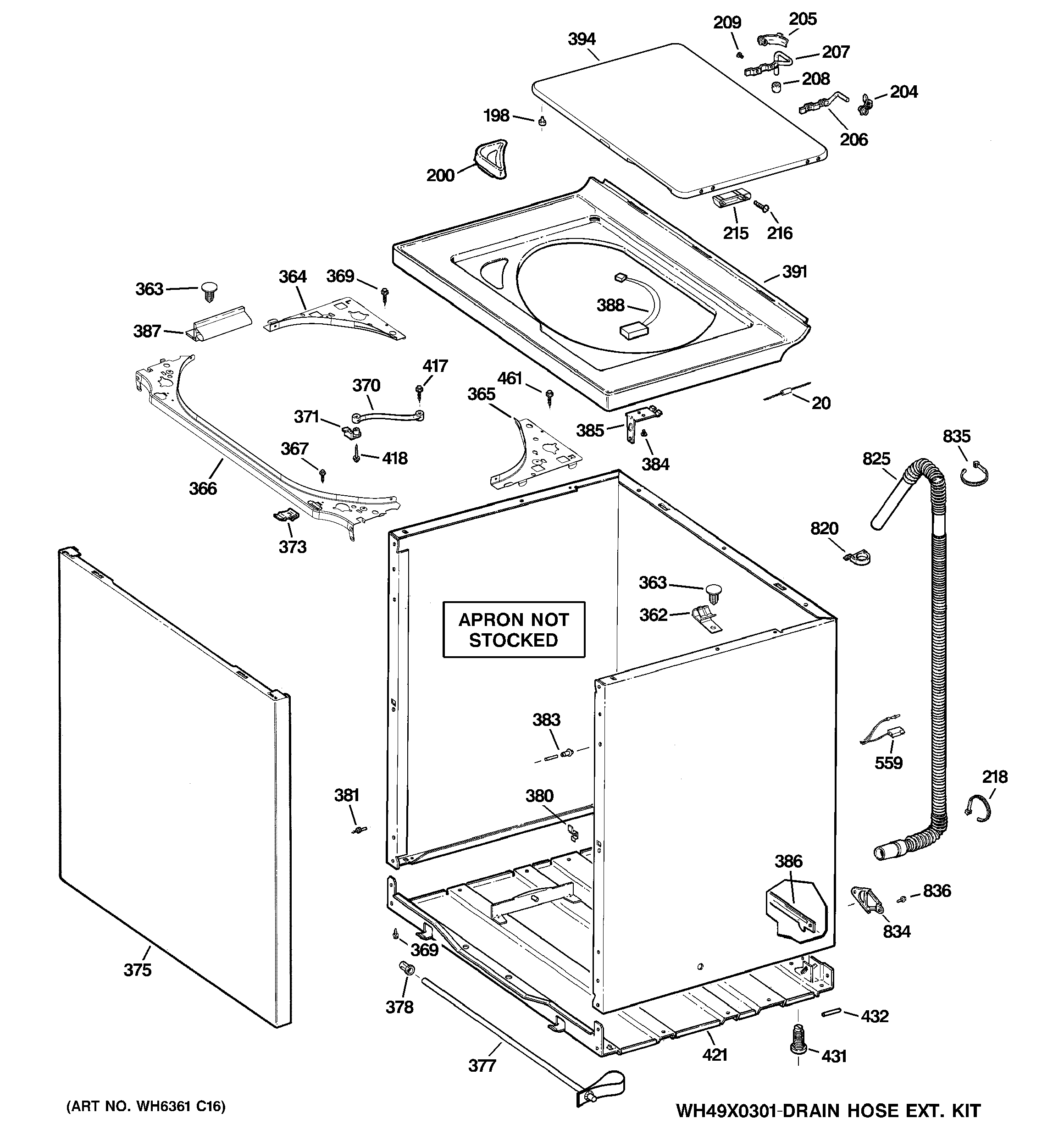

    Cabinet, cover & front panel diagram

    Washer Lid Switch Assembly

    In Stock
    $39.68
    13% OFF Phone Price : $45.68Info Icon
    Minus Item
    Qty
    Plus Item
  • Washer Drive Belt for GE GTWN4250M0WS - Part WH01X10302

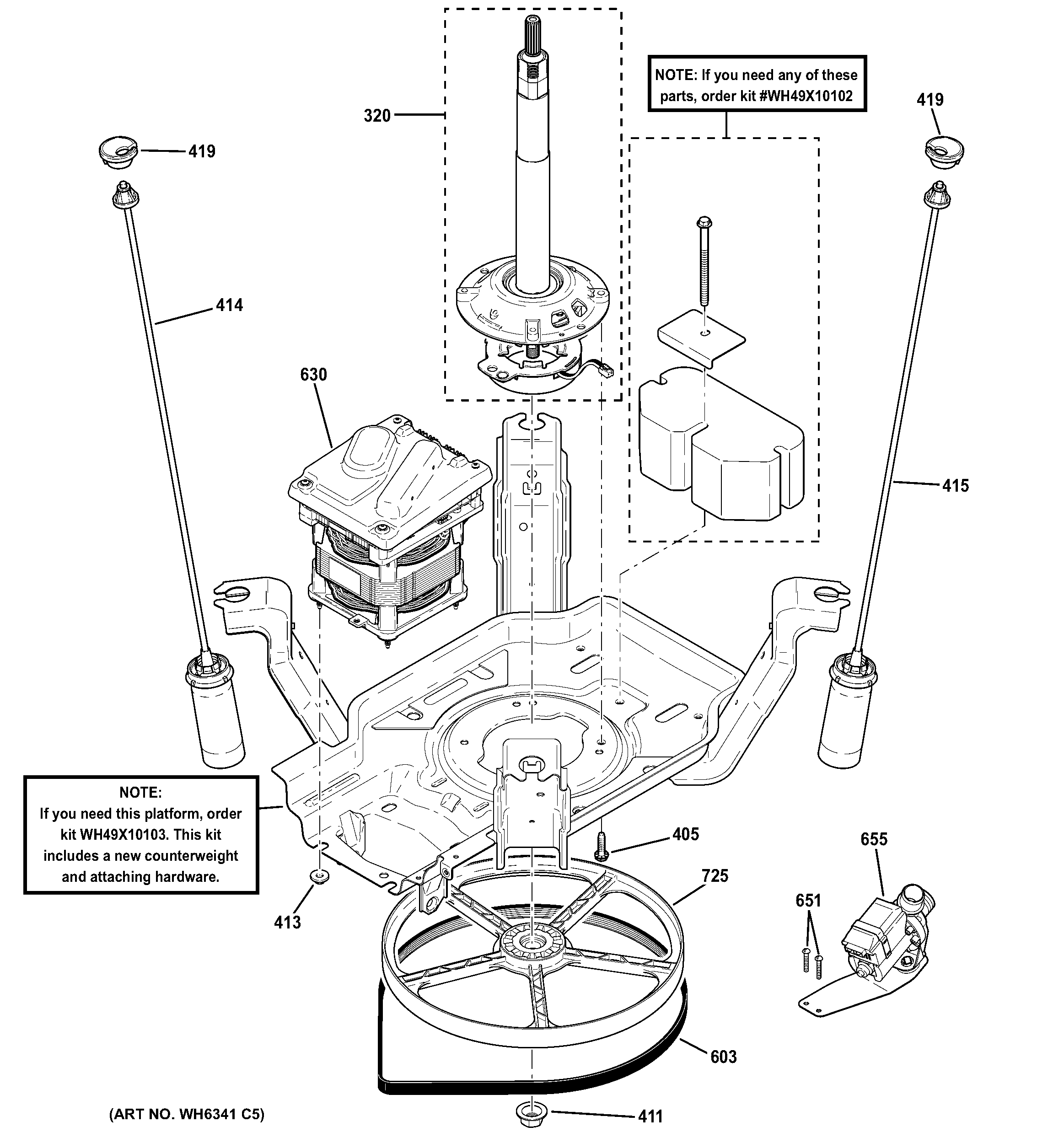

    Suspension, pump & drive components diagram

    Washer Drive Belt

    Part #WH01X10353

    Replaced by #WH01X10302

    Info Icon
    Manufacturer substitution
    This part replaces WH01X10353. Substitute parts can look different from the original.
    In Stock
    $24.75
    20% OFF Phone Price : $30.75Info Icon
    Minus Item
    Qty
    Plus Item
  • Washer Tub Bearing for GE GTWN4250M0WS - Part WH2X1198

    Tub, basket & agitator diagram

    Tub Bearing

    Part #WH02X1198

    Replaced by #WH2X1198

    Info Icon
    Manufacturer substitution
    This part replaces WH02X1198. Substitute parts can look different from the original.
    In Stock
    $35.73
    14% OFF Phone Price : $41.73Info Icon
    Minus Item
    Qty
    Plus Item
  • Washer Tub Bearing Washer for GE GTWN4250M0WS - Part WH2X1197

    Tub, basket & agitator diagram

    Tub Bearing

    Part #WH02X1197

    Replaced by #WH2X1197

    Info Icon
    Manufacturer substitution
    This part replaces WH02X1197. Substitute parts can look different from the original.
    In Stock
    $9.14
    10% OFF Phone Price : $10.14Info Icon
    Minus Item
    Qty
    Plus Item
  • Washer External Drain Hose for GE GTWN4250M0WS - Part WH41X10096

    Cabinet, cover & front panel diagram

    Washer External Drain Hose

    In Stock
    $26.11
    19% OFF Phone Price : $32.11Info Icon
    Minus Item
    Qty
    Plus Item
  • Washer Suspension Rod And Spring Assembly for GE GTWN4250M0WS - Part WH16X10141

    Suspension, pump & drive components diagram

    Rod Spring

    Part #WH16X0545

    Replaced by #WH16X10141

    Info Icon
    Manufacturer substitution
    This part replaces WH16X0545. Substitute parts can look different from the original.
    In Stock
    $34.89
    15% OFF Phone Price : $40.89Info Icon
    Minus Item
    Qty
    Plus Item
  • Washer Suspension Rod Socket for GE GTWN4250M0WS - Part WH01X10001

    Suspension, pump & drive components diagram

    Washer Suspension Rod Socket

    Part #WH01X10001
    This item is not returnable
    In Stock
    $8.93
    10% OFF Phone Price : $9.93Info Icon
    Minus Item
    Qty
    Plus Item
  • Washer Start/stop Switch Button for GE GTWN4250M0WS - Part WH01X10088

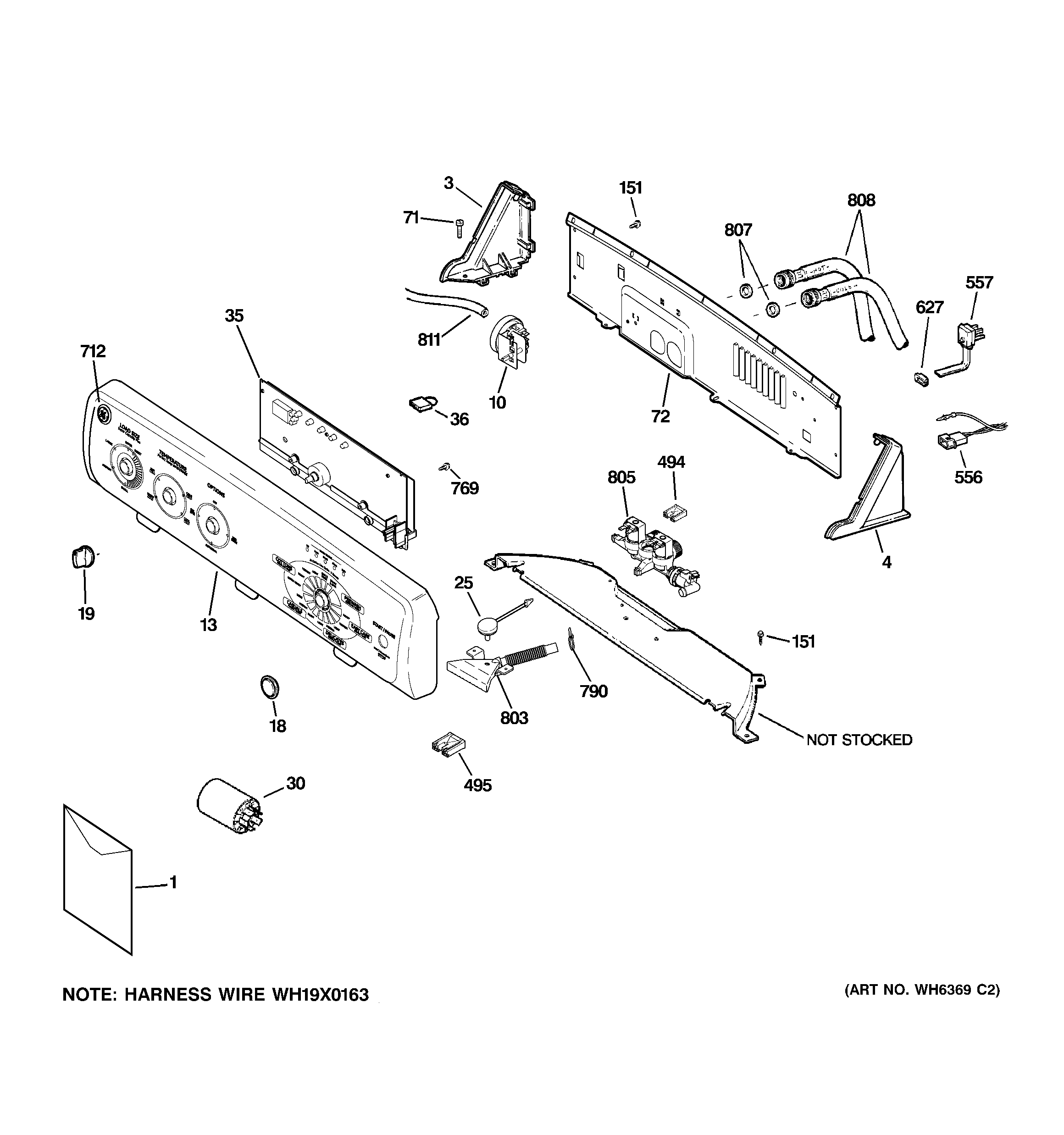

    Controls & backsplash diagram

    Washer Start/stop Switch Button

    In Stock
    $17.59
    10% OFF Phone Price : $19.59Info Icon
    Minus Item
    Qty
    Plus Item

GE Washer GTWN4250M0WS FAQs

A GE washing machine typically lasts 10 to 14 years with normal household use. For your GE GTWN4250M0WS top-load washer, consistent maintenance, correct installation, and avoiding overloads are the biggest factors that keep the drive system, tub bearings, and drain pump running longer.

Typical lifespan ranges

Most washers fall into a fairly predictable range:

Washer type Typical life expectancy
Top-load washer (like GTWN4250M0WS) 10 to 14 years
Front-load washer 10 to 12 years
Heavy-use household (multiple loads daily) Closer to 8 to 10 years
What shortens washer life fastest

We see these issues reduce lifespan more than anything else:

  • Overloading (stresses the drive shaft, suspension, and tub bearings)
  • Unbalanced loads (increases vibration and wear)
  • Poor drainage (pump strain, standing water, odor)
  • Hard water and detergent buildup (can affect valves, tub seal areas, and performance)
  • Improper installation (vibration, hose strain, and premature component wear)
Installation details that matter for longevity

For GTWN4250M0WS, correct setup reduces vibration and water-related problems. Key requirements include:

  • Install on firm flooring (concrete is best) to minimize spin vibration
  • Use proper water pressure: 10 to 150 psi
  • Set hot water delivery to 120°F to 150°F (50°C to 66°C) when hot wash is selected
  • Ensure the drain discharge height is at least 30 inches and no more than 8 feet above the washer base
  • Plug into a 115V, 15- or 20-amp properly grounded outlet (no extension cords)

For the full specs and clearances, use the installation guide.

Why it matters

A washer usually does not fail all at once; lifespan is often determined by how long major wear parts (like the tub seal, tub bearing, suspension, and drain pump) can operate without leaks, noise, or excessive vibration.

Last updated: February 2026

The most common problem we see with top-load washers like the GE GTWN4250M0WS is an out-of-balance load that makes the washer bang, shake, or stop before the spin finishes. In many cases, correcting the load and leveling the washer fixes it without replacing parts.

Quick checks that fix most shaking and stopping
  • Pause the cycle and redistribute items evenly around the basket (mix large and small items).
  • Avoid overloading; bulky items need extra space to move.
  • Confirm the washer sits on firm flooring (not on rugs) to reduce vibration.
  • Level the washer front-to-back and side-to-side; then set the rear legs by tilting the washer forward 4 to 6 inches and gently setting it back down.
  • Verify minimum clearances if installed in a closet or alcove (tight spaces can amplify vibration).
When it is not just an unbalanced load

If balancing and leveling do not help, these are the most common top-load causes we troubleshoot next:

Symptom Likely area Example part for GTWN4250M0WS
Loud banging, tub hits cabinet Suspension support Washer suspension rod and spring assembly WH16X10057
Won’t spin or stops when lid is closed Lid safety circuit Washer lid switch assembly WH12X10334
Water left in tub, won’t drain Drain system Washer drain pump assembly WH23X10030
Grinding/roaring during spin Bearing/seal area Tub bearing WH2X1198 and washer tub seal WH02X10383
Why it matters

Running a top-load washer while it is severely out of balance can increase wear on the suspension, drive components, and tub bearings. Getting the washer stable protects the basket, outer tub, and motor, and it helps the washer reach full spin speed for better water extraction.

Specs that affect vibration and installation

These installation requirements directly impact shaking and noise; we follow them when diagnosing vibration complaints:

  • Install on firm flooring; concrete is best.
  • Drain standpipe height must be at least 30 inches and no more than 8 feet above the washer base.
  • Water pressure should be 10 to 150 psi.

For the exact leveling procedure and clearance requirements for your setup, use the installation guide.

Last updated: February 2026

A 5.0 cu. ft. washer has 0.5 cu. ft. more tub volume than a 4.5 cu. ft. washer, so it handles bulkier loads with more room for items to move. GE model GTWN4250M0WS is a different capacity class; use the GTWN4250M0WS owner's manual to follow the correct load-size guidance for your washer.

What the extra 0.5 cu. ft. changes
  • Fits bulky items more comfortably (comforters, blankets, heavy towel loads)
  • Reduces the chance of overpacking because there is more free space
  • Can cut down the number of loads for large households
  • Often requires more reach into the tub when unloading
  • Larger loads can increase vibration if the washer is not level
Quick comparison (typical use)
Item or load type 4.5 cu. ft. washer 5.0 cu. ft. washer
Everyday mixed laundry Great fit Great fit (more headroom)
Bulky bedding Works, but can be tight Better fit, more tumbling room
Towels/jeans heavy loads Easier to overload More room, still avoid packing
Unloading small items Usually easier reach Often deeper reach
How we recommend choosing
  • Choose 5.0 cu. ft. if you frequently wash bulky bedding or want fewer loads per week.
  • Choose 4.5 cu. ft. if you want a large capacity but prefer easier unloading and a slightly smaller footprint.
  • For any washer size, load loosely; packed loads clean worse and go out of balance more often.
  • Set up matters as much as size; follow leveling and firm-flooring requirements in the installation guide to reduce vibration during spin.
Why it matters

Capacity affects cleaning performance and spin balance. Using the right load size helps prevent chronic out-of-balance conditions that wear suspension and drive components over time.

Last updated: February 2026

Most common symptoms to help you fix your washers

Choose a symptom to see related washer repairs.

Main causes: clogged drain hose, house drain clogged, bad drain pump, water-level pressure switch failure, bad control b…

Main causes: broken lid switch or lid lock, bad pressure switch, broken shifter assembly, faulty control system…

Main causes: worn agitator dogs, bad clutch, broken motor coupler, shifter assembly failure, broken door lock, suspensio…

Main causes: water heater failure, bad water temperature switch, faulty control board, bad water valve, faulty water tem…

Main causes: lack of electrical power, wiring failure, bad power cord, electronic control board failure, bad user interf…

Main causes: no water supply, bad water valves, water-level pressure switch failure, control system failure, bad door lo…

Main causes: unbalanced load, loose spanner nut, worn drive block, broken shock absorber or suspension spring, debris in…

Main causes: leaky water inlet valve, faulty water-level pressure switch, bad electronic control board…

Main causes: bad lid switch or door lock, bad timer or electronic control board, wiring failure, bad water inlet valve a…
