How many cubic feet is my Kenmore refrigerator?
The cubic-foot capacity for your Kenmore side-by-side refrigerator model 10650562990 is listed in the specifications section of the 10650562990 owner's manual. If you need a quick estimate, you can also calculate capacity by measuring the usable interior space and converting cubic inches to cubic feet.
Fast ways to find the cubic feet
- Check the specifications section in the 10650562990 owner's manual.
- Look for the model/serial label inside the fresh food compartment (commonly on a side wall or ceiling area).
- If the label is hard to read, use the model number 10650562990 when searching specs.
- If you only need an estimate, measure the interior and calculate it (steps below).
How to calculate cubic feet yourself
- Empty the section you are measuring (refrigerator side, freezer side, or both).
- Measure the usable interior dimensions in inches:
- Width (left to right)
- Depth (front to back, not including door bins)
- Height (bottom shelf area to ceiling, not including light housings)
- Multiply:
width × depth × height = cubic inches. - Convert to cubic feet:
cubic inches ÷ 1728 = cubic feet.
| What you measure | What you get | Best for |
|---|---|---|
| Refrigerator section only | Fresh food capacity | Comparing fridge space |
| Freezer section only | Freezer capacity | Comparing frozen storage |
| Both sections added | Total capacity | Matching published “cu ft” specs |
Why it matters
Capacity helps you compare models accurately and choose correctly sized parts and accessories (like bins and shelves). It also helps when setting expectations for airflow and loading, which affects cooling performance.
Last updated: January 2026
How do I find the model number on my 10650562990?
On a Kenmore 10650562990 side-by-side refrigerator, the model number is printed on the rating label inside the cabinet. We typically find it on the fresh food compartment wall near the crisper drawers or on the side wall; confirm the exact label location in the owner's manual.
Where to look (most common spots)
- Fresh food section side wall (left or right)
- Ceiling area inside the fresh food compartment
- Frame around the fresh food door opening
- Behind the crisper drawers (on the back or side wall)
- Freezer section side wall (less common)
What the label looks like
| Label item | What it’s used for | Example |
|---|---|---|
| Model number | Ensures correct parts and diagrams | 10650562990 |
| Serial number | Identifies production run | Varies |
| Electrical ratings | Confirms voltage/amps | Varies |
Why it matters
Kenmore model numbers can look similar across side-by-side refrigerators. Using the exact model number from the rating label ensures you get the correct ice maker, water valve, door gasket, and other replacement parts that fit and function properly.
Tips to avoid mix-ups
- Write the model number exactly as shown (all digits).
- Use the model number when selecting parts like the refrigerator inlet valve W10408179 or ice maker assembly - refrigerator ice maker by whirlpool 4317943.
- If the label is worn, take a clear photo and zoom in to read it.
Last updated: March 2026
How do I troubleshoot my 10650562990?
For your Kenmore 10650562990 side-by-side refrigerator, we troubleshoot by matching the symptom (not cooling, leaking, no ice, noisy) to the system involved: airflow, defrost, water supply, or controls. Start with simple checks, then test likely parts using the wiring diagram and procedures in the owner's manual.
Quick checks we recommend first
- Confirm the refrigerator is plugged in and the outlet has power.
- Set temperatures to normal (fresh food about 37°F; freezer about 0°F).
- Make sure both doors seal fully and close on their own.
- Clear blocked vents; avoid packing food tightly against air returns.
- Clean the condenser area (dust buildup reduces cooling).
Symptom-based troubleshooting
| Symptom | Most common causes | What to check next |
|---|---|---|
| Not cooling or warm temps | Dirty condenser, evaporator fan issue, defrost problem | Listen for fan, look for frost buildup on rear freezer panel |
| Frost wall in freezer | Defrost system failure | Check refrigerator defrost bi-metal WPW10225581 and heater circuit |
| No ice or slow ice | Water supply, inlet valve, ice maker | Verify water pressure, then test refrigerator inlet valve W10408179 |
| Water leaking | Water tube, filter housing, door left ajar | Inspect refrigerator water tube W10823511 and refrigerator water filter housing WP2186443 |
| Door won’t close, popping | Hinge/cam wear | Inspect refrigerator door cam (black) WP2182179 |
Why it matters
A side-by-side relies on steady airflow and a working defrost cycle to keep both compartments cold. Fixing the root cause (like a defrost failure or weak water valve) prevents repeat icing, warm temperatures, and water leaks.
When a part is the likely fix
Use these part examples when the symptom matches:

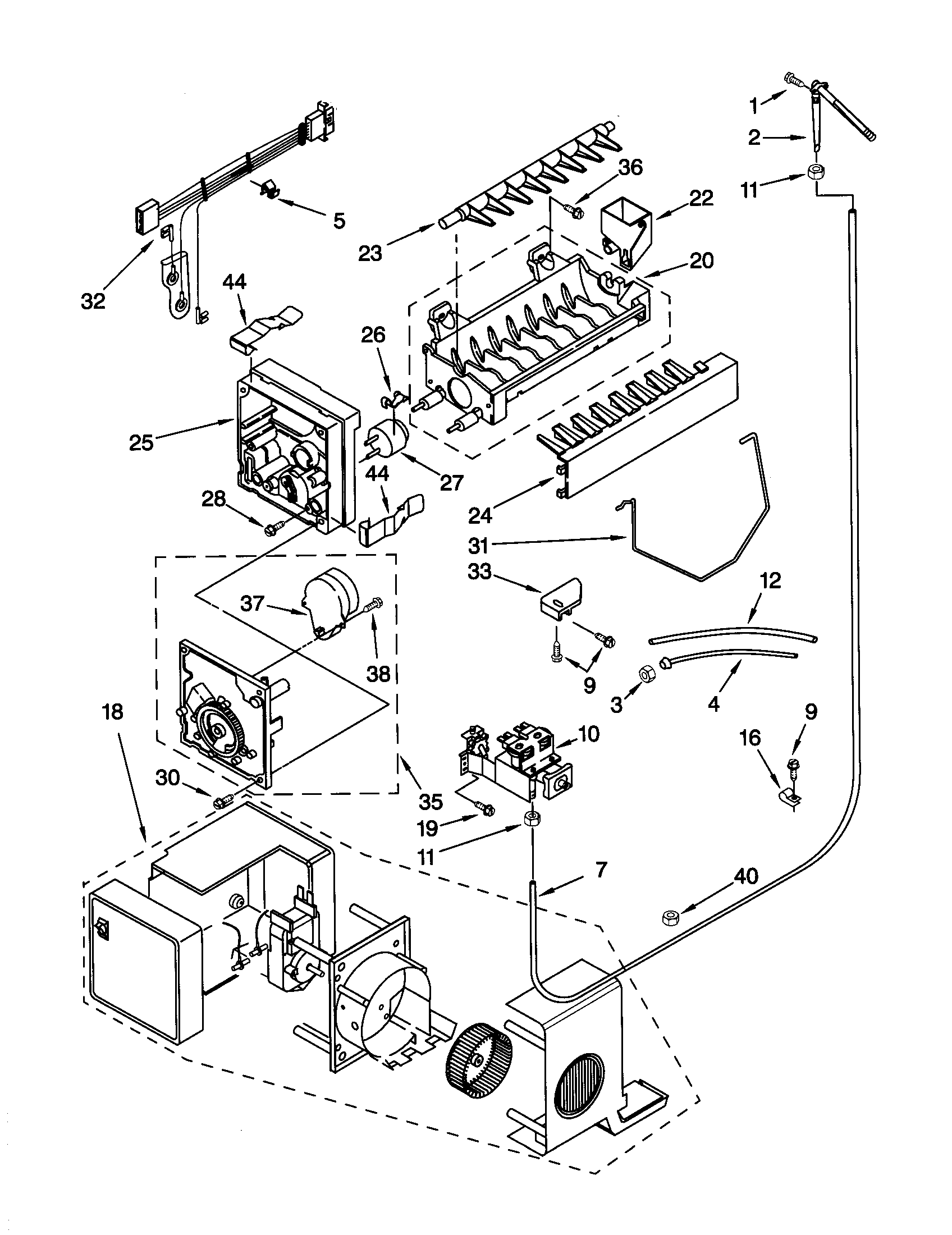

- Ice production issues: ice maker assembly - refrigerator ice maker by whirlpool 4317943
- Defrost frost buildup: refrigerator heater WP2323198 and refrigerator defrost bi-metal WPW10225581
- Leaks at filter area: refrigerator water filter housing WP2186443
Last updated: March 2026
