Kenmore 66513842K601 dishwasher Parts

To hard reset your Kenmore dishwasher model 66513842K601, we recommend using the built-in CANCEL/DRAIN reset: press CANCEL/DRAIN and let the dishwasher run the 2-minute drain (door closed). This clears the current cycle and most indicator lights so you can restart cleanly (see the 66513842K601 owner's manual).

Quick reset steps (most reliable)

• Press CANCEL/DRAIN once.
• Close the door fully (the dishwasher must be closed to drain).
• Wait about 2 minutes for the drain to finish.
• Select a new cycle and options.
• Press START/RESUME.

If the dishwasher is unresponsive

If the control panel is frozen or buttons do not respond, a power reset often restores normal operation.

• Turn OFF the dishwasher circuit breaker for 1 minute.
• Turn the breaker ON.
• Start the shortest wash cycle and confirm it fills and washes.
• If it still will not run, follow the “if dishwasher does not operate” checks in the 66513842K601 installation guide.

What “reset” does (and does not do)

Reset method	What it typically clears	What it does not fix
CANCEL/DRAIN	Current cycle, many option lights, standing water (if needed)	Drain clogs, failed pump, wiring issues
Breaker power reset	Frozen control logic, temporary glitches	Blown fuse, bad control board, motor failures

Why it matters

A proper reset prevents starting a new wash cycle with leftover water, a stuck cycle selection, or flashing indicators. On sensor-based dishwashers, clearing the cycle also helps the unit re-evaluate soil level and timing on the next start.

Last updated: January 2026

Common problems on the Kenmore 66513842K601 dishwasher include not starting or stopping mid-cycle, not filling, not draining fully, running too long while heating water, poor drying, and indicator lights flashing (such as START/RESUME or CLEAN). Many issues trace back to door latching, power, water supply, loading, or drainage setup. See the 66513842K601 owner's manual for model-specific troubleshooting steps.

Most common symptoms and what to check first

• Won’t start or stops: confirm the door is fully closed and latched; verify the cycle selection.
• START/RESUME light flashing: the door was opened during a cycle or power was interrupted; press Start/Resume and latch the door.
• Won’t fill: make sure the water shutoff valve is on; check that the overfill protection float moves freely.
• Water left in the tub: confirm the cycle completed; check for a drain/disposer knockout issue from installation.
• Runs a long time: hot water supply helps; some cycles pause while the unit heats water.
• Dishes not dry: avoid overloading; use rinse aid; heated dry improves results.

Quick troubleshooting table

Symptom	Most likely cause	Best first step
Dishwasher doesn’t run	Door not latched, power issue	Latch door; check breaker/fuse
START/RESUME flashing	Door opened or power interruption	Press Start/Resume; close door
Won’t fill	Water valve off, float stuck	Turn on valve; free the float
Water remains	Drain setup issue, cycle not complete	Let cycle finish; check drain path
Poor drying	No rinse aid, overloaded racks	Add rinse aid; reload for drainage

Parts that commonly relate to these problems

If checks above don’t resolve the issue, these model-matched parts are often involved:

• For no heat or poor drying: dishwasher heating element W10518394
• For not draining: dishwasher drain pump WPW10348269 and the drain hose (routing and clogs)
• For dead/no response: fuse W10258275 or dishwasher electronic control board WPW10084141

Why it matters

Catching simple causes first (door latch, power, water shutoff, float movement, and proper loading) prevents unnecessary part replacement and helps restore normal wash performance, drying, and cycle time.

Last updated: January 2026

On Kenmore dishwasher model 66513842K601, the F4E1 service code points to a wash pump or pump motor problem (the motor that circulates water through the spray arms). In most cases, fixing it means restoring proper wash-pump operation and then clearing the stored code using the keypad sequence in the 66513842K601 owner's manual.

What to check first (before replacing parts)

• Cancel the cycle and restart a normal wash to see if the pump engages.
• Confirm the door is fully closed and latched; the dishwasher will not run the wash motor if the latch is not made.
• Verify the breaker is on and the dishwasher has power.
• Make sure the water supply valve is turned on.
• Listen for the wash motor: a steady hum with no spray action often indicates a jammed or failing pump.

Common fixes for F4E1 on this Kenmore dishwasher

If the dishwasher fills but does not wash (no strong spray), these repairs are the most common:

Symptom	Most likely area	Typical repair direction
Fills with water, no spray	Wash pump motor / circulation system	Inspect for blockage; replace pump motor if seized
Wash starts then stops, code returns	Motor overheating or failing	Replace pump motor or complete pump assembly
Poor wash plus intermittent code	Sump area restriction	Clean sump area and check for debris

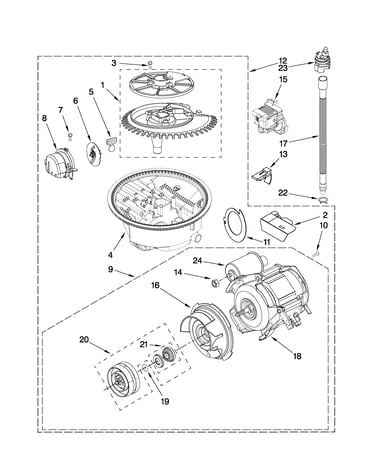

Model-matched parts we commonly see involved in wash-circulation issues include the pump motor WPW10780877 or the dishwasher pump motor WPW10239401 (part selection depends on the exact configuration in your unit).

How to clear the code after the repair

After you correct the wash-pump problem, clear the stored code using the control reset procedure shown in the 66513842K601 owner's manual. A common method on many Kenmore 665-series controls is pressing any three keys in a 1-2-3 sequence three times.

Why it matters

The wash pump is what actually moves water through the spray arms. If it is not running correctly, the dishwasher may fill and drain but still leave dishes dirty, and the control can stop the cycle to protect the motor.

Last updated: January 2026

If your Kenmore dishwasher model 66513842K601 has standing water, we recommend removing the water first (so you can work cleanly), then correcting the most common causes: a clogged filter/sump area, a kinked drain hose, or a drain pump problem. Use the steps in the 66513842K601 installation guide to confirm the drain hose routing and drain loop.

Safe, quick way to remove the water

• Turn off power at the breaker (and unplug if accessible).
• Place towels under the front edge to catch spills.
• Scoop water out with a cup, then soak up the remainder with towels or a sponge.
• Remove the lower rack so you can access the bottom of the tub.

Fix the most common drain problems

1) Check the drain hose routing (high loop and no kinks)

A low or kinked hose can let water sit in the tub.

• Make sure the drain hose is not crushed behind the dishwasher.
• Keep the hose routed to avoid rubbing on the motor, springs, cabinet edges, or flooring.
• Do not remove the factory drain loop from the side of the dishwasher.

2) Clear the filter and sump area

Food debris in the sump can restrict draining.

• Remove any visible debris from the bottom of the tub.
• Clean the filter area thoroughly.
• Run a rinse cycle and listen for strong drain flow at the sink/disposer connection.

3) If it still will not drain, suspect the pump or hose

Use this table to match symptoms to likely fixes:

What you notice	Most likely cause	What we recommend
Humming during drain, little or no water movement	Drain pump jammed or failing	Inspect/replace dishwasher drain pump WPW10348269
Drains slowly, hose looks soft, kinked, or restricted	Drain hose restriction or routing issue	Replace the hose (always use a new drain hose during install)
Drains sometimes, then stops again	Partial clog in hose, disposer inlet, or air gap	Clear the restriction and recheck hose routing

Why it matters

Standing water can cause odors, poor wash performance, and can backflow debris into the sump. Correct drain hose routing and a clear sump help the drain pump move water out quickly and consistently.

Last updated: January 2026
