Craftsman 917254550 38" mower lawn tractor Parts

For Craftsman riding mower model 917254550, we find the model number on the model plate under the seat. Lift the seat and look on the tractor frame area beneath it; record the model and serial number so you can match the correct parts and diagrams.

Where to look on a Craftsman riding mower

Check these common spots first:

• Under the seat on the model plate (most common for model 917254550)
• On the frame directly beneath the seat pan
• On the underside of the seat (if the plate is mounted to the seat)
• Near the rear fender area close to the seat hinge

How to read and record the information

Write down the numbers exactly as shown (including dots or dashes if present).

• Model number: identifies the tractor version (example: 917.254550 may appear with a dot)
• Serial number: identifies your specific unit
• Date of purchase (if you track maintenance)

What you’re looking for	What it’s used for	Tip
Model number	Matching the correct parts list and diagrams	Copy it exactly as printed
Serial number	Confirming production details for some parts	Keep it with your maintenance notes

Why it matters

Using the exact model number prevents ordering the wrong belt, pulley, steering, or electrical parts. For example, drive and deck belt routing can vary by tractor configuration, even within similar Craftsman 38-inch mower lawn tractor models.

Next step: use the manual and parts list

• Use the 917254550 owner's manual to confirm the model plate location and basic tractor information.
• If you’re ordering, match parts by model number first, then select the exact part by description and diagram; you can also search by model number on Sears PartsDirect.

Last updated: February 2026

For a Craftsman riding lawn tractor like model 917254550, a complete engine replacement typically costs about $260 to $1,800 installed, depending on the engine, any extra parts needed (belts, wiring, fuel parts), and labor rates. Plan on around 6 hours of labor for a riding mower engine swap.

What drives the total cost

• Engine price: the biggest variable (new, remanufactured, or used)
• Labor time and shop rate: riding tractors take longer than walk-behinds
• Extra parts discovered during teardown: worn belts, damaged wiring, leaking gaskets
• Tune-up vs. replacement: many “no start” issues are fuel, ignition, or electrical
• Pickup and delivery (if you are not transporting the tractor)

Before you replace the engine, check these common fixes

We see many tractors that need maintenance or a small repair, not a full engine.

• Verify fresh fuel and correct starting procedure
• Check the spark plug condition and gap (the manual calls out 0.030 inch)
• Inspect for loose wires and safety switch issues (seat switch, PTO switch)
• Check the fuse and connections (the manual includes fuse troubleshooting)
• Look for exhaust leaks or damage; a simple gasket can cause poor running

A couple of parts on this model that can be involved in “won’t crank” or “runs poorly” complaints include the solenoid 532146154 and the gasket 692236. For maintenance intervals and troubleshooting steps specific to this tractor, use the 917254550 owner's manual.

Cost snapshot (typical ranges)

Item	Typical range	Notes
Engine (part only)	$200 to $1,500+	Varies by horsepower and crankshaft specs
Labor	4 to 8 hours	Many shops land near 6 hours for riders
Misc. parts/fluids	$20 to $150	Oil, filter, fuel line, clamps, hardware

Why it matters

An engine replacement is one of the highest-cost repairs on a riding mower. Doing a quick ignition, fuel, and electrical check first can prevent replacing a good engine and can get your 38" mower lawn tractor back to mowing faster.

If you decide to move forward, you can order replacement parts for model 917254550 from the parts list for this tractor, or search by model number on Sears PartsDirect.

Last updated: February 2026

Yes, replacing the engine on your Craftsman 917254550 38" mower lawn tractor is worth it when the tractor’s deck, transmission, steering, and frame are still solid and you want to extend the machine’s life for less than the cost of a comparable replacement tractor. Use the owner's manual to confirm safe service steps and maintenance requirements.

Quick decision checklist

• The mower deck is not rusted through, cracked, or badly bent.
• The transaxle drives smoothly (no slipping, grinding, or loud whining).
• Steering and front axle are tight enough to track straight.
• You can still get common wear parts (belts, pulleys, electrical parts).
• The total engine-swap cost stays well below the price of a similar new riding mower.

What to inspect before you spend money

A “bad engine” symptom is often caused by maintenance or a related part. Our manual for this tractor calls out routine items like spark plug replacement (every 100 hours or at the start of the mowing season) and carburetor adjustment steps; it also emphasizes not operating without a muffler and not changing governor settings.

Check these first:

• Fuel quality and fuel cap venting (a restricted vent can mimic fuel starvation).
• Spark plug condition and gap (manual specifies 0.030 inch).
• Air intake and filter condition (do not run with the air cleaner removed).
• Wiring and safety interlocks (seat switch, PTO switch, connections).
• Exhaust condition; a damaged muffler is a safety issue and can affect performance.

Cost and effort: repair vs. replace

Option	Best when	Typical downside
Tune-up/adjustment	Hard starting, surging, loss of power	May not fix internal engine wear
Engine replacement	Tractor is mechanically sound overall	Higher up-front cost and labor
Replace tractor	Deck/transaxle/frame are worn out	Highest cost, new setup time

Parts that commonly get replaced during a “big fix”

If you are already investing in the tractor, it often makes sense to refresh high-wear items that affect drive and cut quality:

• V-belt 532125907 (ground drive belt)
• Lawn tractor blade drive belt 532106085 (blade drive belt)
• Pulley 532139245 (blade idler pulley)

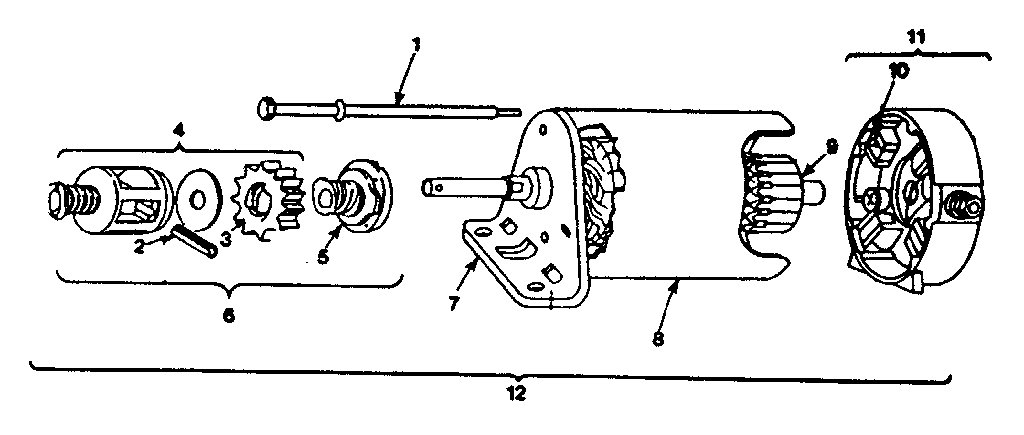

• Solenoid 532146154 (starter solenoid, if cranking is intermittent)

Why it matters

A good engine on a worn-out chassis still leaves you with poor mowing performance, vibration, and belt issues. The manual’s troubleshooting guidance ties cut quality and vibration to items like blade condition, belt adjustment, and pulleys, so confirming the rest of the tractor is healthy protects your investment.

Last updated: February 2026

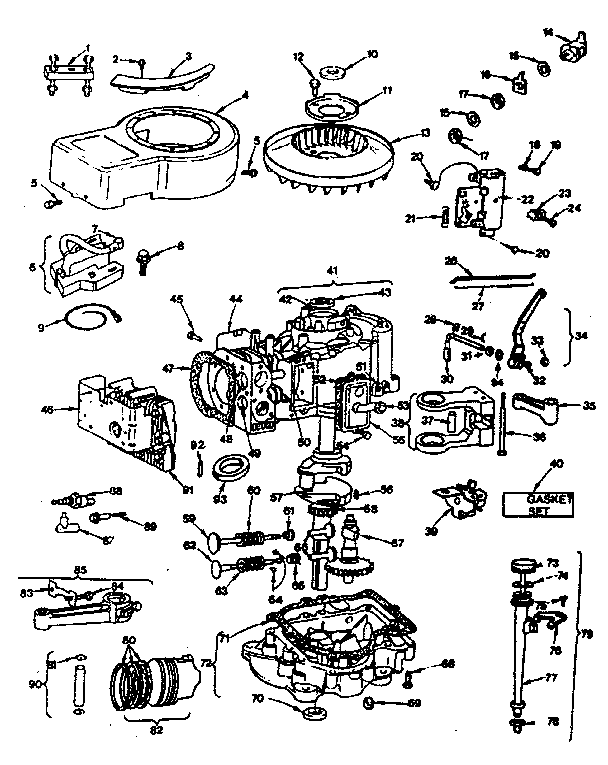

Craftsman riding mower model 917254550 uses a gasoline, single-cylinder lawn tractor engine; the exact engine manufacturer, model, and horsepower for your tractor are identified on the engine ID label and in the specifications section of the 917254550 owner's manual. Use that ID information to match tune-up and engine parts correctly.

How to identify the exact engine on model 917254550

Check the engine identification label (usually on the blower housing/shroud, valve cover area, or near the starter). Write down:

• Engine manufacturer name (for example, Briggs & Stratton, Kohler)
• Engine model number and type/spec code
• Code/date number (helps match the correct carburetor and ignition parts)
• Any emissions family label (if present)

What the engine ID helps you do

Once you have the engine model and type/spec, you can select the right maintenance items and settings.

What you need	Where it comes from	Why it matters
Oil type and capacity	Manual and engine label	Prevents hard starting and engine wear
Spark plug and gap	Engine model/type	Avoids misfire and rough running
Air filter style	Engine model/type	Restores power and reduces smoke
Carburetor adjustments	Manual procedures	Improves idle and throttle response

Parts that commonly get mistaken for “engine problems”

If the tractor will not crank or cranks slowly, these chassis electrical parts are common causes:

• Solenoid 532146154 (switches battery power to the starter)
• Battery condition and cable connections (clean, tight, corrosion-free)
• Operator presence and PTO/brake safety interlocks
• Blown fuse or damaged wiring

Why it matters

Craftsman tractors can share the same tractor model family while using different engine variants over time; using the engine ID label plus model 917254550 ensures you get the correct engine service parts and avoid repeat repairs.

You can order model-matched replacement parts from the parts list for this tractor, or search by model number on Sears PartsDirect.

Last updated: February 2026
