Kenmore 66575775890 gas range Parts

A Kenmore gas range like model 66575775890 typically lasts 15 years with normal household use. Keeping burners clean, ensuring proper airflow, and fixing ignition problems early helps you get the full life out of the oven and surface burners.

Most gas ranges reach the 15-year mark when these conditions are in place:

• Burners ignite quickly and burn with a steady blue flame
• Oven preheats normally (no long delays or gas smell)
• Spills are cleaned before they bake onto the cooktop or oven bottom
• The range stays level so the door seals evenly
• Ventilation is used to reduce heat and grease buildup

For model-specific care and cleaning steps, follow the 66575775890 owner's manual.

• Clean burner caps and ports regularly so ignition stays reliable
• Keep the oven bottom area free of heavy baked-on spills
• Check the oven door seal for gaps or tears
• Replace a weak oven igniter if the oven takes a long time to light
• Confirm the range is stable and level on all feet

A gas range that is slow to ignite or leaking heat works harder to maintain temperature. That extra stress can shorten the life of components like the igniter, door gasket, and controls, and it can also lead to uneven cooking results.

Last updated: February 2026

To change a spark electrode igniter on your Kenmore gas range model 66575775890, we shut off power, lift the cooktop to access the burner base, disconnect the electrode wire, then install the new electrode and reassemble so the burner lights reliably when the knob is turned to LITE (spark clicking). See the 66575775890 installation guide for ignition system details and burner reassembly notes.

• Unplug the range (electronic ignition needs power; we want it fully de-energized).
• Turn all burner knobs to OFF.
• Let the cooktop cool completely.
• Work in good light; take a quick photo of wire routing before disconnecting anything.
• If you smell gas at any point, stop and ventilate the area before continuing.

1. Remove burner grates and lift off the burner cap and burner head.
2. Lift the cooktop (or remove the top panel as your model is designed) to access the electrode mounting area.
3. Locate the electrode: a small ceramic insulator with a metal tip positioned near the burner.
4. Disconnect the electrode wire connector from the old electrode.
5. Remove the mounting screw(s) holding the electrode to the burner base or orifice holder.
6. Install the new electrode in the same position and secure it with the screw(s).
7. Reconnect the wire firmly; route it away from hot surfaces and sharp edges.
8. Reinstall burner head and cap; confirm the cap sits level.
9. Restore power and test: turn the knob to LITE and confirm steady sparking until ignition.

• Electrode tip gap and alignment: the spark must jump to the burner metal near the ports.
• Burner cap seating: a tilted cap can prevent ignition.
• Clogged burner ports: clean and dry the burner head.
• All ignitors click together: this is normal; only the selected burner should ignite.

A properly installed electrode and correctly seated burner cap help your 66575775890 ignite quickly at LITE, reduce delayed ignition, and keep the flame stable at low settings.

Last updated: February 2026

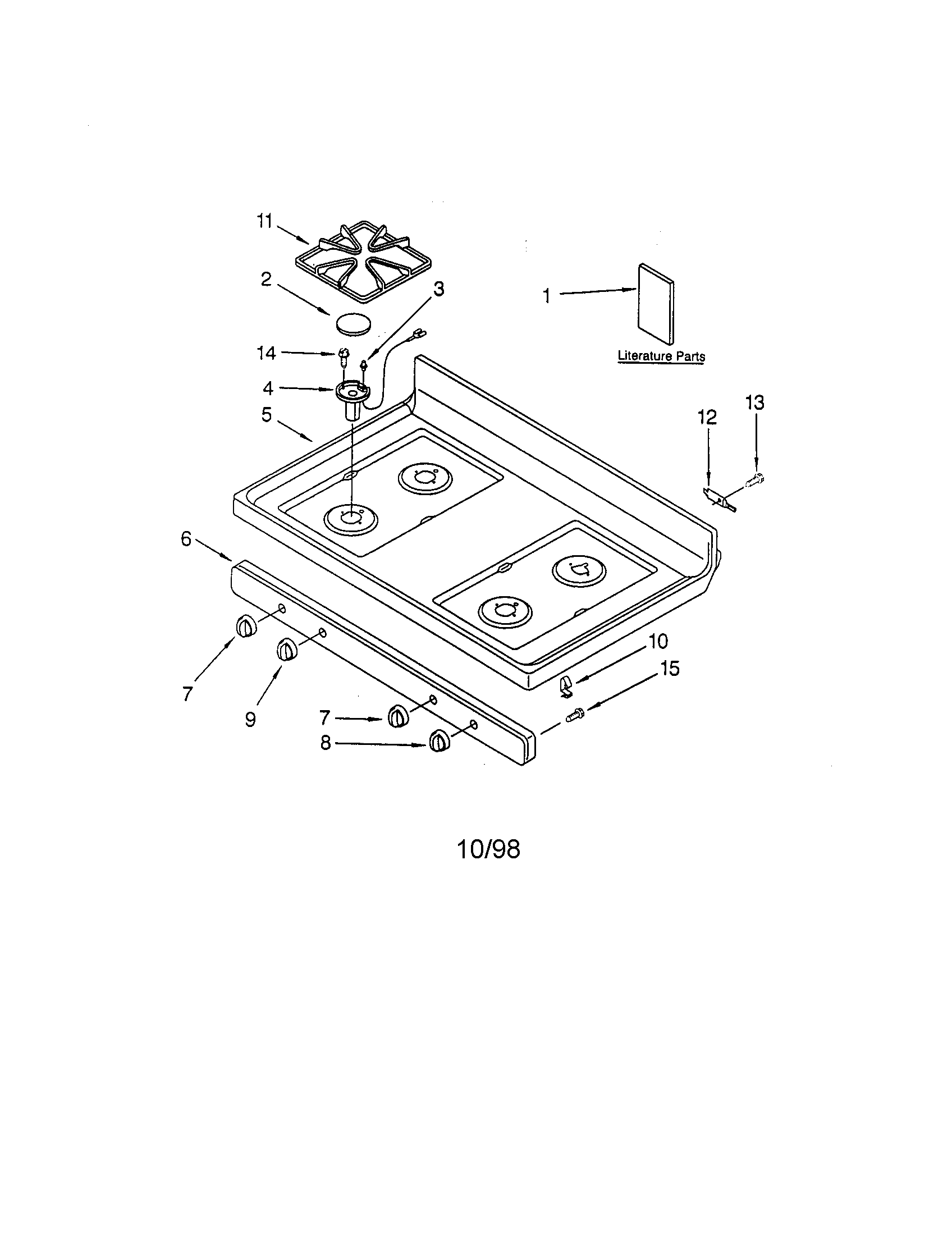

On Kenmore gas range model 66575775890, the cooktop (top) is typically held by two front clips. Pull the range forward slightly, then release the clips with a putty knife so you can lift the cooktop for access to burners and internal components; follow the 66575775890 installation guide for the exact clip locations and safe handling.

• Turn all surface burner knobs to OFF and let the range cool completely.
• Shut off the gas supply if you will move the range or work near gas lines.
• Unplug the power cord (spark ignition and oven controls still use electricity).
• Protect the floor with cardboard or hardboard before sliding the range.
• Keep the anti-tip bracket engaged; recheck it after you move the range.

1. Remove the grates.
2. Pull the range out from the countertop front about 4 inches.
3. Locate the two cooktop clips (one on each side), positioned underneath the cooktop about 2-3/8 inches back from the front.
4. Carefully slide a putty knife between the cooktop and the oven frame.
5. While gently lifting the cooktop, push in on the putty knife to release the clip.
6. Repeat on the other side, then lift the cooktop.

If you are lifting the top to diagnose ignition or flame issues, you may also remove:

• Burner grates and burner caps
• Burner bases (some designs use mounting screws)
• Manifold panel screws (for air shutter access, depending on the adjustment)

Removing the top correctly prevents bent cooktop panels, broken clips, and gas ignition wiring damage. It also gives you safe access to surface burner components for cleaning, inspection, and flame adjustments.

Last updated: February 2026

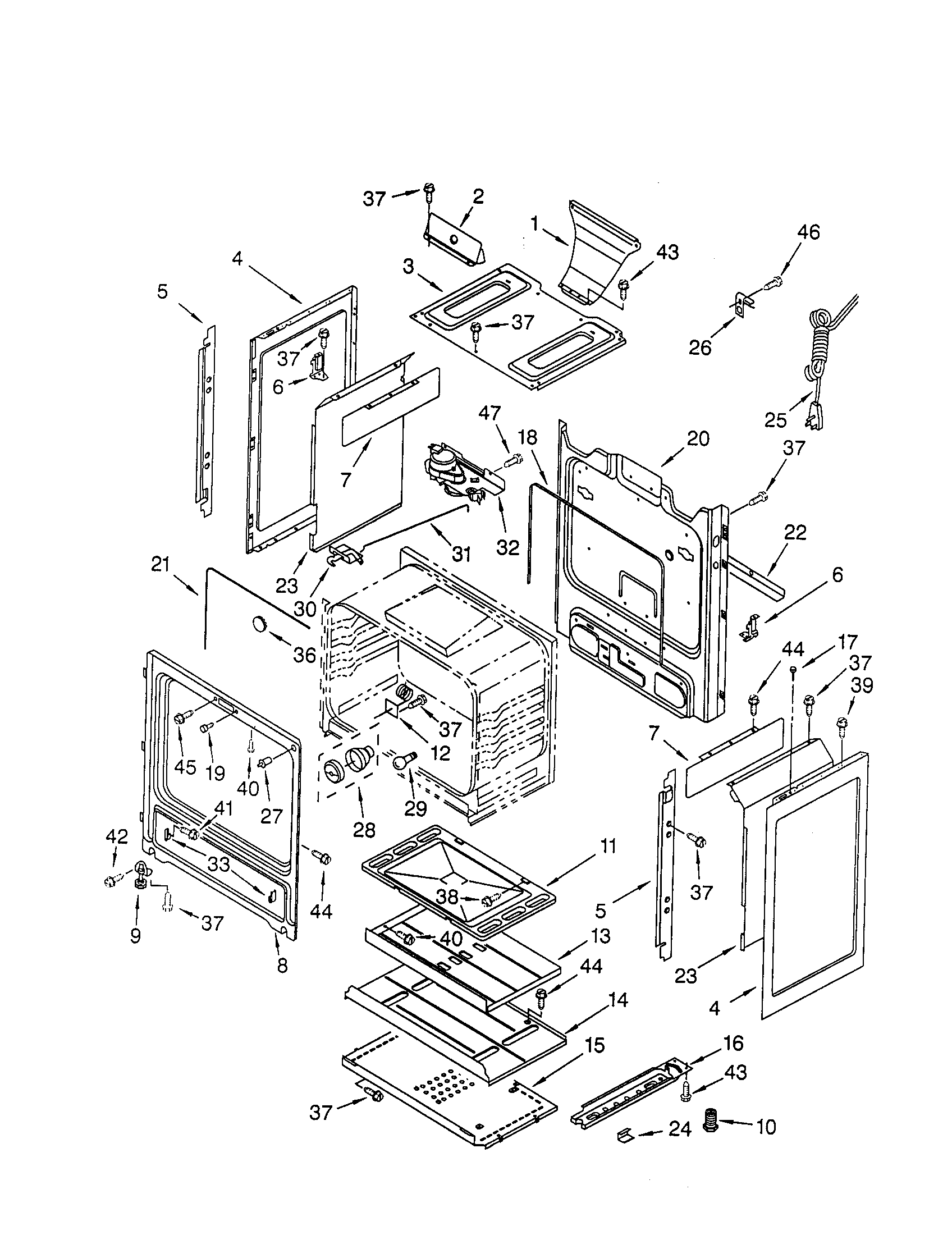

A Kenmore 66575775890 gas range oven is built from a few core systems: the oven cavity (racks, door, gasket, vent), the gas ignition and burner components that create heat, and the controls and safety hardware that manage temperature and prevent tipping. See the 66575775890 owner's manual for the full parts-and-features diagram.

• Oven cavity and liner: the insulated box that holds heat; includes the bottom liner and side walls.
• Oven racks: support cookware at different heights.
• Oven door and glass: seals the cavity and lets you view food.
• Door gasket: helps keep heat inside the oven for stable baking.
• Oven vent/flue: routes hot air and combustion byproducts out of the oven area.
• Ignition system: lights the gas for baking and broiling.
• Electronic oven control and knobs: set bake, broil, and temperature.

These are common service parts we see customers replace when the oven will not heat, will not light, or loses heat:

• Range oven igniter W10918546 (ignites gas for oven heat)
• Door gasket W11542153 (improves sealing and temperature stability)
• Light bulb 8009 (restores oven light)

Knowing the major oven parts helps you troubleshoot faster and order the right replacement the first time. For example, a weak igniter can prevent the burner from lighting, while a worn gasket can cause long preheat times and temperature swings.

• Turn off power to the range at the breaker before accessing wiring or controls.
• Shut off the gas supply before servicing burner or ignition components.
• Confirm anti-tip protection is in place after moving the range; follow the 66575775890 installation guide.

Last updated: February 2026

Your Kenmore gas range model number is printed on the model and serial number plate. On Kenmore model 66575775890, that plate is typically on the frame behind the storage drawer; match the full number exactly (including any prefix like 665.). See the 66575775890 owner's manual for the diagram.

We recommend checking these common label locations first:

• Behind the storage drawer (pull the drawer out and look on the frame)
• Inside the oven door area (door jamb or frame edge)
• On the back panel near the vent area
• Under the cooktop edge (less common, but possible on some ranges)

Kenmore range model numbers are usually a long number string. For this series, you may see a prefix and decimals.

We use the exact model number to show the correct gas range parts (like an oven igniter, door gasket, or latch motor) and the right installation and safety information. Even one digit off can pull parts for a different Kenmore range.

• Write the model number exactly as shown (include dots and leading digits)
• Take a clear photo of the entire rating plate
• If the label is worn, use a flashlight and view from an angle to read faint print

Last updated: February 2026
