Model #GTDP490GD3WS Official GE gas dryer

Here are the diagrams and repair parts for GE GTDP490GD3WS gas dryer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guideOwner’s manual

    Showing 10 of 112 parts

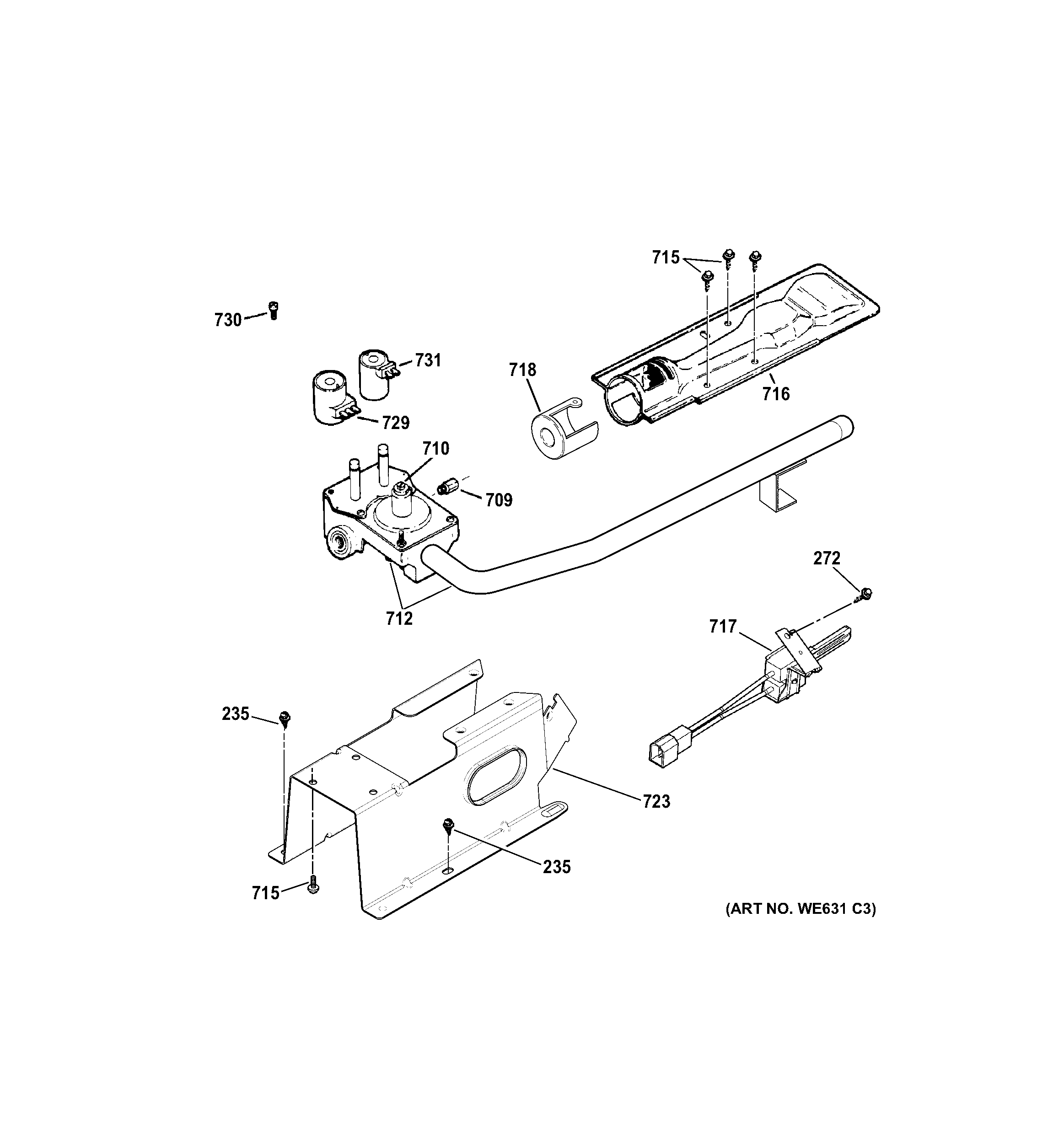

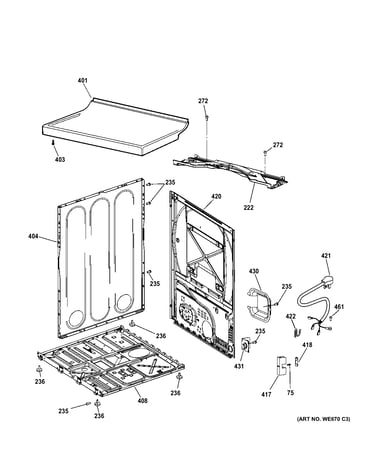

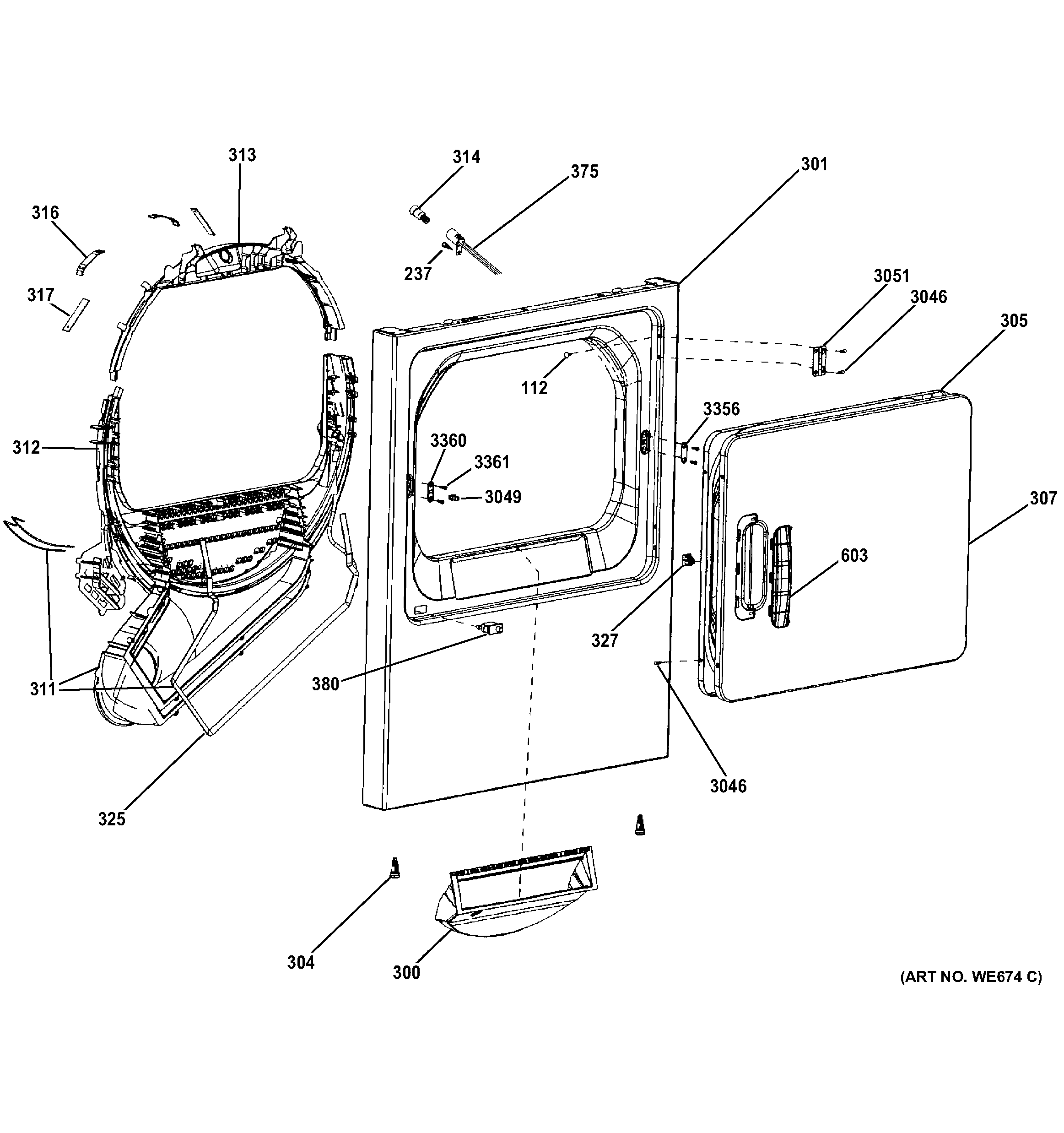

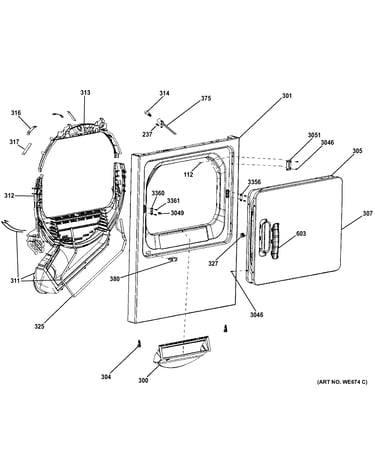

    Dryer Drum Front Glide Pad#317

    Front panel & door Diagram

    Dryer drum front glide pad

    Part #WE1M504
    BEST SELLER
    This item is not returnable
    In Stock
    $4.86 |
    17% OFF
    Phone Price: $5.86
    Dryer Drum Front Glide Pad#316

    Front panel & door Diagram

    Dryer drum front glide pad

    Part #WE1M1067
    BEST SELLER
    In Stock
    $7.77 |
    11% OFF
    Phone Price: $8.77
    Dryer Drum Felt Seal#312

    Front panel & door Diagram

    Felt

    Part #WE9M30
    Replaced by #WE09X27634
    ?
    Manufacturer substitution
    This part replaces WE9M30. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $7.69 |
    12% OFF
    Phone Price: $8.69
    Dryer Drum Bearing, Front#313

    Front panel & door Diagram

    Dryer drum bearing, front

    Part #WE3M26
    BEST SELLER
    In Stock
    $57.62 |
    8% OFF
    Phone Price: $62.62

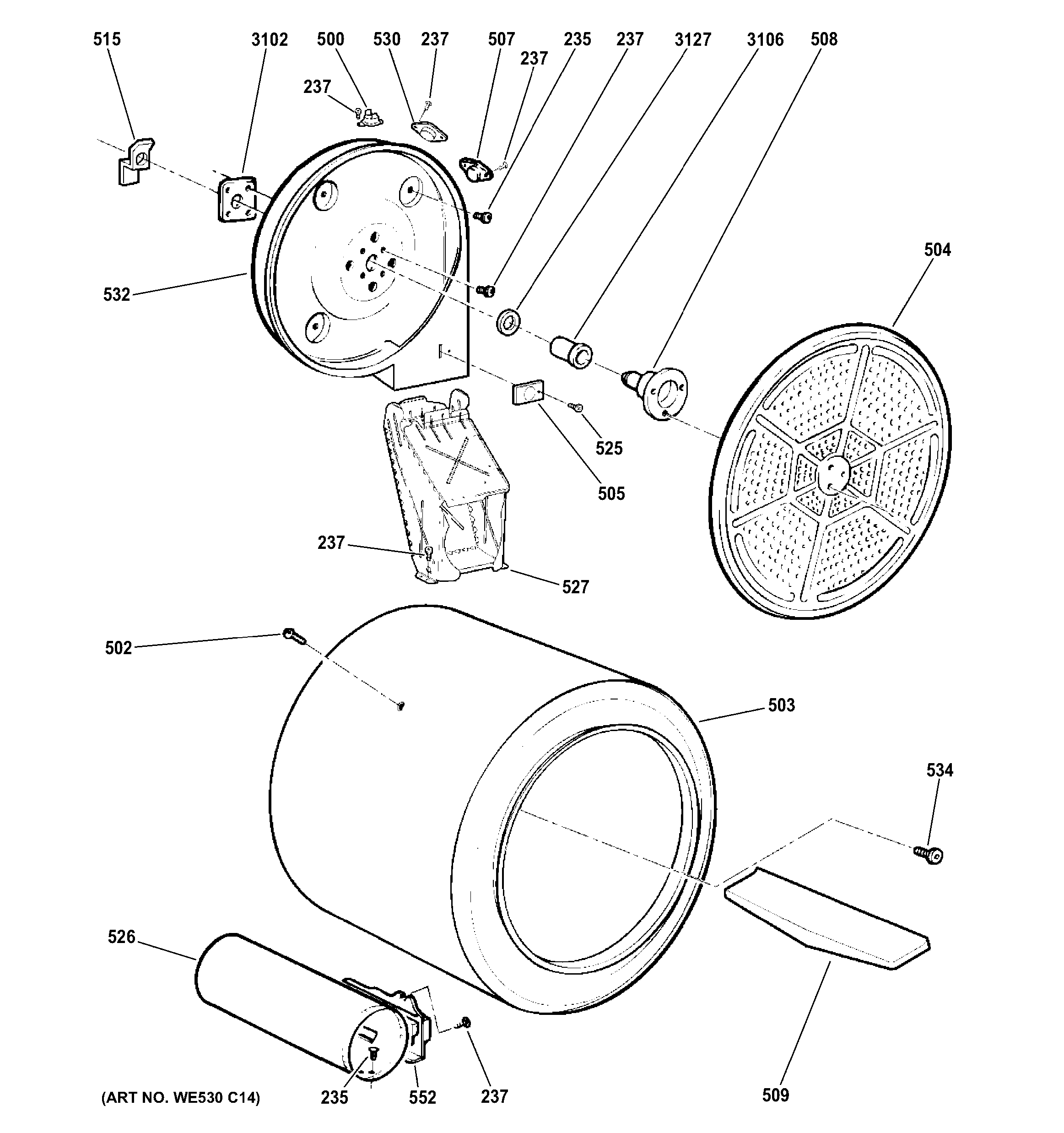

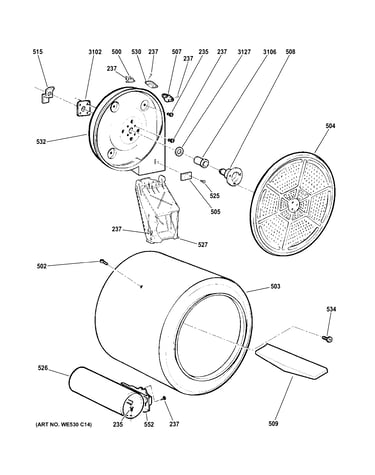

    Dryer Rear Bearing#3106

    Drum Diagram

    Dryer rear bearing

    Part #WE1M462
    BEST SELLER
    In Stock
    $18.29 |
    10% OFF
    Phone Price: $20.29
    Dryer Lint Screen#300

    Front panel & door Diagram

    Dryer lint screen

    Part #WE18M28
    Replaced by #WE18X25100
    ?
    Manufacturer substitution
    This part replaces WE18M28. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $61.99 |
    7% OFF
    Phone Price: $66.99

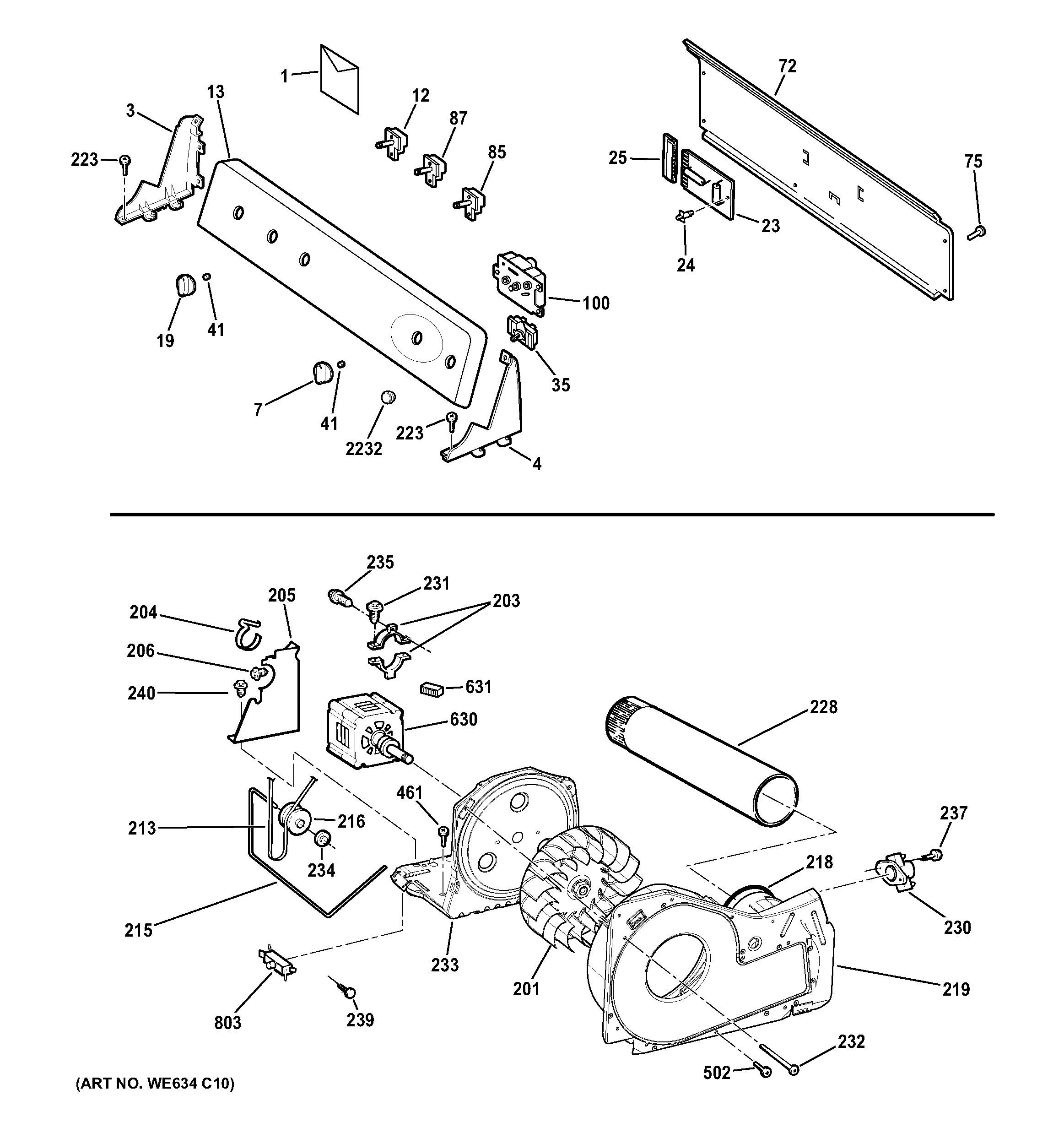

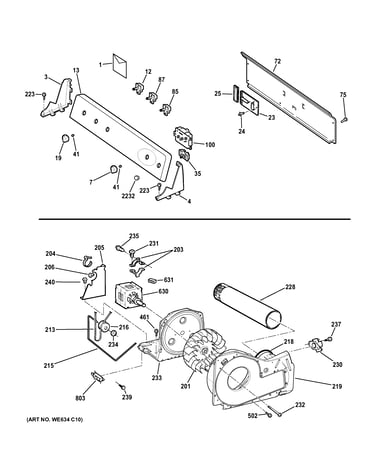

    Dryer Push-to-Start Switch#35

    Backsplash, blower & drive assembly Diagram

    Dryer push-to-start switch

    Part #WE4M416
    BEST SELLER
    In Stock
    $21.59 |
    19% OFF
    Phone Price: $26.59
    BELT DRIVE#213

    Backsplash, blower & drive assembly Diagram

    Dryer drum belt

    Part #WE12M29
    Replaced by #WE03X29897
    ?
    Manufacturer substitution
    This part replaces WE12M29. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $26.58
    Washer Control Knob Clip#41

    Backsplash, blower & drive assembly Diagram

    Dryer control knob clip

    Part #WE1X980
    Replaced by #WH01X10106
    ?
    Manufacturer substitution
    This part replaces WE1X980. Substitute parts can look different from the original.
    BEST SELLER
    This item is not returnable
    In Stock
    $7.69 |
    12% OFF
    Phone Price: $8.69
    Dryer Rear Bearing O-Ring#3127

    Drum Diagram

    Dryer rear bearing o-ring

    Part #WE1M461
    BEST SELLER
    This item is not returnable
    In Stock
    $7.49 |
    12% OFF
    Phone Price: $8.49

    Symptoms common to all dryers

    Choose a symptom to see related dryer repairs.

    Main causes: bad drum support roller, damaged idler pulley, broken blower fan blade, worn drum glide bearing, bad drive motor
    Main causes: bad gas valve coils, broken heating element, tripped safety thermostat or fuse, bad operating thermostat, control failure
    Main causes: bad timer or electronic control board, door switch failure
    Main causes: lack of electrical power, bad power cord, wiring failure, bad control board, blown thermal fuse, bad door switch
    Main causes: clogged exhaust vent, bad motor relay, loose dryer door catch, bad door switch, control system failure, faulty drive motor
    Main causes: damaged door strike, worn door catch
    Main causes: door switch failure, lack of power, broken belt, blown thermal fuse, bad drive motor, control system failure
    Main causes: clogged exhaust system, heating system failure, deposits on moisture sensor, control system failure
